SPR SHELLEYSPEED™ REFRIGERATOR MODULE, 34” HEIGHT, 30” DEPTH
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
SPR
Refrigerator Module, 34” height, 30” depth
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: [phone]
Fax: [phone]
Email: info@delfield.com
Approval _________________
Date ____________________
SPECIFICATIONS
MODELS
❑ SPR-40 40” length, refrigerator module, 34” height, 30” depth
❑ SPR-50 50” length, refrigerator module, 34” height, 30” depth
❑ SPR-64 64” length, refrigerator module, 34” height, 30” depth

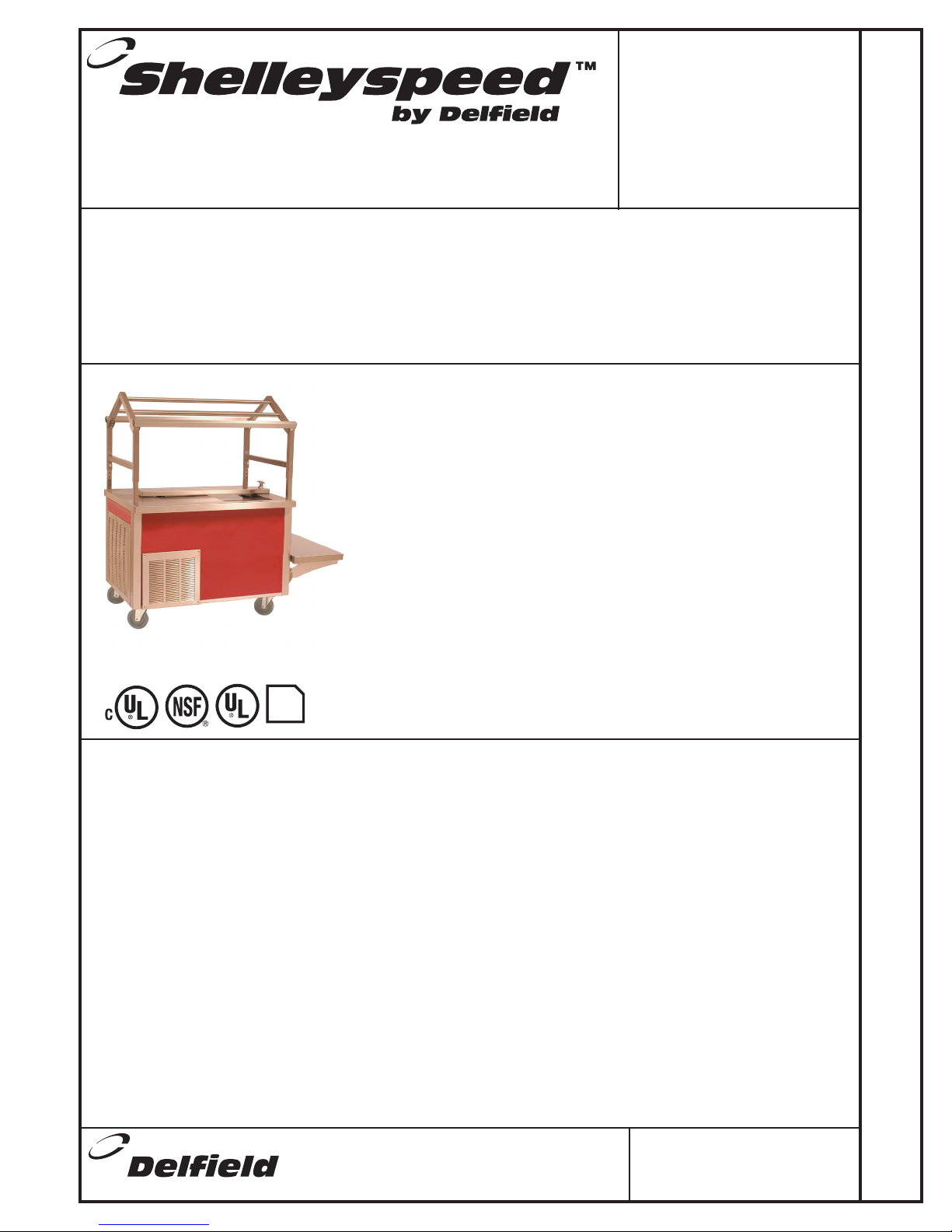

SPR-50
Unit shown with optional single tier merchandiser
and tray shelf
Exterior: Exterior body is constructed of 18-gauge
stainless steel (stainless models) or 18-gauge
galvanized with reinforced laminate facing. 14-gauge
galvanized bottom. All exterior side panels are
reinforced with overlapping corners and are welded in
place. All insert cutouts are reinforced with 14-gauge
galvanized channel supports.
Exterior top is constructed of 14-gauge stainless steel,
welded, ground and polished into one integral unit.
Top is fabricated with square exterior corners with fully
hemmed nosing on overhanging sides. Stainless steel
fully retractable interlocks are installed on opposing
corners and locks units into a complete serving system.
Interior: Refrigerated cold pan is 14” deep one-piece
constructed stainless steel tank. Louvered front and
rear sides are for re-circulated forced air-cooling. The
tank is separated from the top by a polycarbonate
thermal break and is fully insulated with foamed in
place high-density polyurethane foam. A stainless
steel access panel is located in bottom of tank, allowing
complete access to the evaporator coil and fan package.
On/Off switch is located on the operator side in a
recessed panel with a hinged cover plate.
Refrigerated tank maintains NSF7 temperature
requirements.
Lid: Lids are constructed of stainless steel and are
foamed with polyurethane insulation. The lid thickness
is 3/4”. Lid handle shall be black, recessed ABS. Lids
are removable without the use of tools. Lid locks are
standard.
Stainless steel lid locking bar is standard. Bar has
locking handle at one end and mounts to clips, which
are bolted to the top of the cabinet. The locking bar
extends the length of the unit. Entire assembly can be
removed during the serving period.
Electrical: Electrical connections shall be 120 volt, 60
Hertz, single phase. Unit shall have a 9’ long electrical
cord and NEMA 5-15 plug. Cord is standard on the
operator right side of equipment. Double cord hook is
located on the bottom of the unit.
Refrigeration: Refrigeration system uses R134A
refrigerant and has a self-contained 120 volt, 60
Hertz, single phase hermetically sealed condensing
unit. The system utilizes an evaporator coil and fan
package for re-circulated forced air-cooling of product.
Unit is supplied with an expansion valve and hot gas
condensate evaporator.
Casters: Unit is mounted on 5” (12.7cm) diameter
swivel polyurethane casters with non-marking tires
and plate brakes. Casters are bolted directly to the
14-gauge bottom of the base. Overall height of caster
assembly is 6.00” (15.2cm).
Styling: Units are standard with 18-gauge stainless
steel exterior. Laminate is an option available at no
additional charge. Decal packages and canopies are
also available.
134a
REFRIGERANT
STANDARD FEATURES
• 14-gauge stainless steel top standard
• 34” counter height, 30” depth
• 9’ long cord and plug are supplied standard
• 18-gauge stainless steel exterior standard
• Electrical: 120 volt, 60 cycle, single phase
• R134A refrigerant
• Removable sliding lids (two per unit) standard
• Standard on 5” diameter polyurethane swivel casters
• Stainless steel fully retractable interlock provided as
standard
• Basket rack system is standard
• A wide selection of laminate colors available at no
additional charge
• Laminate selection has 18-gauge galvanized base,
16-gauge coved corner supports to protect laminate
• Meets NSF2, NSF7, UL and CEC standards
• One-year parts and 90 day labor standard warranty.
Additional warranties available
• Holds baskets size, 13.25” x 20.5” x 2.5” or
13.25” x 20.5” 4.75”
OPTIONS AND ACCESSORIES
❑ Single tier merchandiser (Unheated)
❑ Double tier merchandiser (Unheated)
❑ 16”x30” stainless steel drop tray shelf
❑ Cash shelf
❑ Tray slides
• V-style
• Tubular bar
❑ 2” Wire basket (13.25”x20.5”x2.5”)
❑ 4” Wire basket (13.25”x20.5”x4.75”)
❑ Decal package
❑ Canopy

Model #__________
CSI Section 11400
Printed in the USA.
06/05
SSSPR
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: [phone]
Fax: [phone]
Email: info@delfield.com
SPR - Refrigerator Module, 34” height, 30” depth
Right End View
All Models
Elevation View SPR-40 Elevation View SPR-50 Elevation View SPR-64
Plan View SPR-40




Plan View SPR-50








Plan View SPR-64




34.00”
86.36cm
34.00”
86.36cm
34.00”
86.36cm
30.00”
76.2cm
50.00”
127cm
30.00”
76.2cm
64.00”
162.56cm
30.00”
76.2cm
40.00”
101.6cm
Delfield reserves the right to make changes in design or specifications without prior notice.

 
40.00”
101.6cm
50.00”
127cm 64.00”
162.56cm
Basket Detail
MODEL NUMBER TYPE BASKET CAPACITY
STORAGE
CAPACITY VOLTAGE AMPS HP NEMA PLUG SHIP WEIGHT
SPR-40 REFRIGERATED
12 (13.25X20.5X2.5)
6 (13.25X20.5X4.75) 4.73 CU FT. 120 5.0 1/5 5-15P 370
SPR-50 REFRIGERATED
18 (13.25X20.5X2.5)
9 (13.25X20.5X4.75) 7.06 CU FT. 120 7.0 1/4 5-15P 525
SPR-64 REFRIGERATED
24 (13.25X20.5X2.5)
12 (13.25X20.5X4.75) 9.38 CU FT. 120 7.0 1/4 5-15P 550
MECHANICAL DATA:
