VIV MOUNT-VC55 User manual

Motorized Ceiling TV Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-vc55
[email protected]om www.vivo-us.com 1-800-371-5654
SKU: MOUNT-VC55

2 3

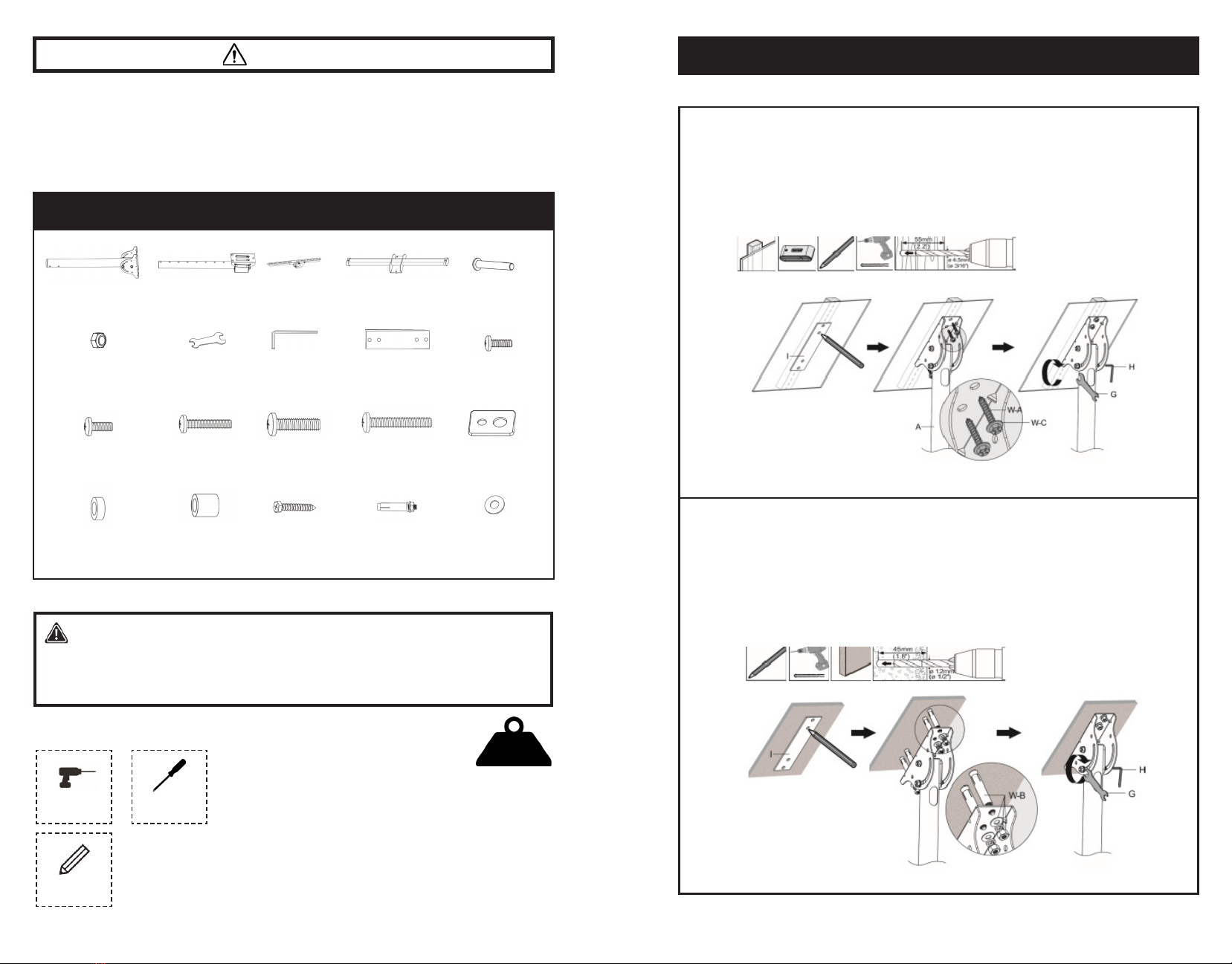

ASSEMBLY STEPS
STEP 1
OPTION A: Wood Ceiling
Use guide (I) to mark mounting holes in ceiling where stud is located. Using a 3/16” bit, drill
approximately 2.2” into ceiling. Use bolts (W-A) and washers (W-C) to secure mount (A) to the ceiling.
Use allen wrench (H) and wrench (G) to adjust angle of mount (A).
PACKAGE CONTENTS
TOOLS NEEDED
110lbs
(49.90kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
WARNING!
Phillips
Screwdriver
A (x1)
Mount
B(x1)
Mount
C(x2)
Bracket
M-F (x4)
Metal Spacer
M-G (x8)
Small Spacer
M-H (x8)
Large Spacer
W-A (x4)
Bolt
M-E (x4)
M8x50
M-A (x4)
M5x14
M-B (x4)
M6x14
M-C (x4)
M6x30
M-D (x4)
M8x30
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualied technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED
W-C (x4)
Washer
W-B (x4)
Anchor
Drill
OPTION B: Concrete Ceiling
Use guide (I) to mark mounting holes in ceiling. Using a 1/2” bit, drill approximately 1.8” into ceiling.
Use concrete anchors (W-B) to secure mount (A) to the ceiling. Adjust mount with allen wrench (H) and
wrench (G).
CAUTION!
DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO
MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.
com, email at [email protected], or call us at 1-800-371-5654.
D(x1)
Bracket
E(x2)
Bolt
F (x2)
Nut
G(x1)
Wrench
H(x1)
Allen Wrench
I(x1)
Guide
Pencil

4 5
STEP 2 STEP 4
Loosen bolts on TV brackets (C).
STEP 3
Loosen center bolt on back of bracket (D) using wrench (G). Attach to mount (B) and tighten nuts.
STEP 5
OPTION A: Flat Back Monitor
With TV laying face down on a at surface, attach brackets (C) using metal spacers (M-F) and bolts
(M-A, M-B).
Run TV wires through mount (A) and (B) and secure the two together at desired height using bolts (E)
and nuts (F). Tighten using allen wrench (H) and wrench (G).

6 7
STEP 5 (Continued)
OPTION B: Curved Back Monitor
If bolts (M-C, M-D, M-E) are too long, spacers (M-H, M-G) may be required.
STEP 6
Mount the TV on the bracket.
STEP 7
Secure brackets (C) with bolt. Tighten using phillips head screwdriver. Adjust the angle of the
television using wrench (G) and adjust the height using allen wrench (H) as desired.

Last Updated: 10/01/2018
If any parts are received damaged or defective, please contact us. We are happy to
replace parts to ensure you have a fully functioning product.
For more VIVO products, check out our website at:
www.vivo-us.com.
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
