Vivitar DVR 781HD User manual

DVR 781HD
Action Camcorder
User Manual
© 2009-2014 Sakar International, Inc. All rights reserved.
Windows and the Windows logo are registered trademarks of Microsoft Corporation.
All other trademarks are the property of their respective companies.

1
CONTENTS
Introduction .................................................................................................................................. 2
What’s Included............................................................................................................................ 3
Parts of the Camcorder ................................................................................................................ 4
Initial Camcorder Setup................................................................................................................ 5
Main Camcorder Modes............................................................................................................... 9
Camcorder Technical Specifications........................................................................................... 10

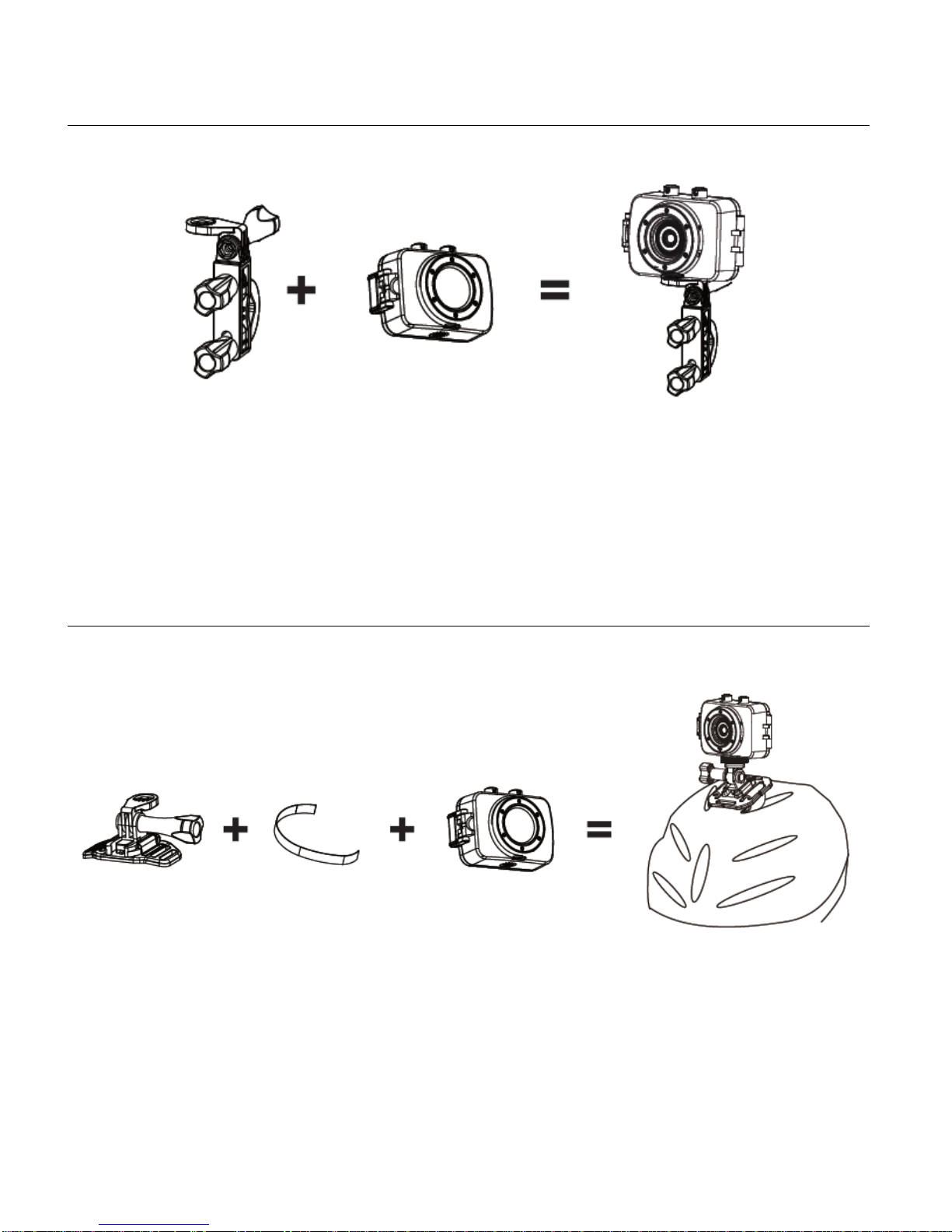

Camcorder Mounts and Accessories...........................................................................................11
Powering On Your Camcorder.................................................................................................... 13
Changing Camcorder Mode ....................................................................................................... 14
Navigating the Menus................................................................................................................. 15
Video Capture Mode .................................................................................................................. 16
Photo Capture Mode.................................................................................................................. 20
Playback Mode........................................................................................................................... 24
Menu Options............................................................................................................................. 30
Computer System Requirements ............................................................................................... 43
Installing the Software................................................................................................................ 44
Connecting the Camcorder to the Computer.............................................................................. 45
Getting Photos and Videos from the Camcorder to the Computer ............................................. 46
Getting Started! .......................................................................................................................... 47
Transferring Images Manually from the Camcorder to the Computer......................................... 47
Camcorder Maintenance............................................................................................................ 49
Sakar Warranty Card.................................................................................................................. 50
Technical Support....................................................................................................................... 51
Troubleshooting.......................................................................................................................... 51

2
Introduction
Thank you for purchasing this digital HD Action Camcorder. Everything you need to take quality
digital videos and photos is included with your camcorder.
Vivitar makes capturing those special moments as easy as possible.
Please read this manual carefully first in order to get the most out of your digital camcorder.
NOTE:
Your digital action camcorder supports a Micro SD Memory Card (up to 32GB, Class 4 or
higher).
In order to use your digital action camcorder normally, please insert the Micro SD Memory
card before use.
Micro SD Memory cards are not included and need to be purchased separately.
This camera is a plug and play device. You can download the pictures and videos without
the software by directly accessing the memory card from your computer. We would
however recommend that you install the ‘Vivitar Experience Image Manager’Software to
enjoy the full Vivitar experience.

3
What’s Included
1. Action Camcorder
6. Helmet Mount Strap
2. USB Cable
7. Bicycle Mount
3. Waterproof Casing
8. Helmet Mount
4. Vivitar Experience Installation CD
5. Stand Accessory
NOTE:
Built-in Lithium Battery included (not shown).
Micro SD Card not included.

4

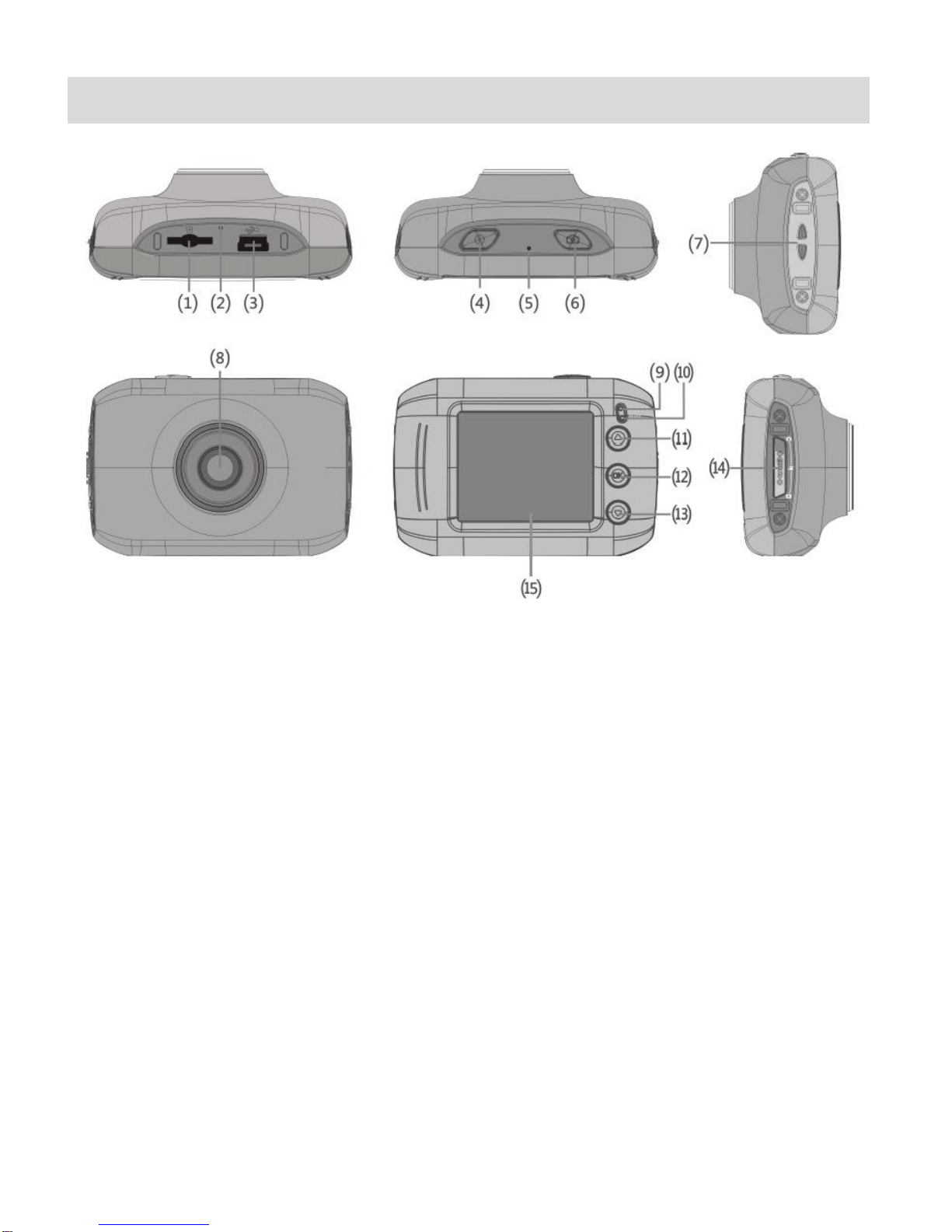

Parts of the Camcorder
1. Micro SD Memory Card Slot
9. LED Busy Light Indicator
2. Reset Button
10.LED Charge Light Indicator
3. USB Interface
11.UP / Zoom In Button
4. Power Button
12.MENU / OK (SET) / EXIT Button
5. Microphone
13.DOWN / Zoom Out Button
6. SHUTTER / ENTER / BACK Button
14.MODE Selector: Photo, Video, Playback
7. Wrist Strap Connector
15.LCD Screen
8. Lens

5
Initial Camcorder Setup

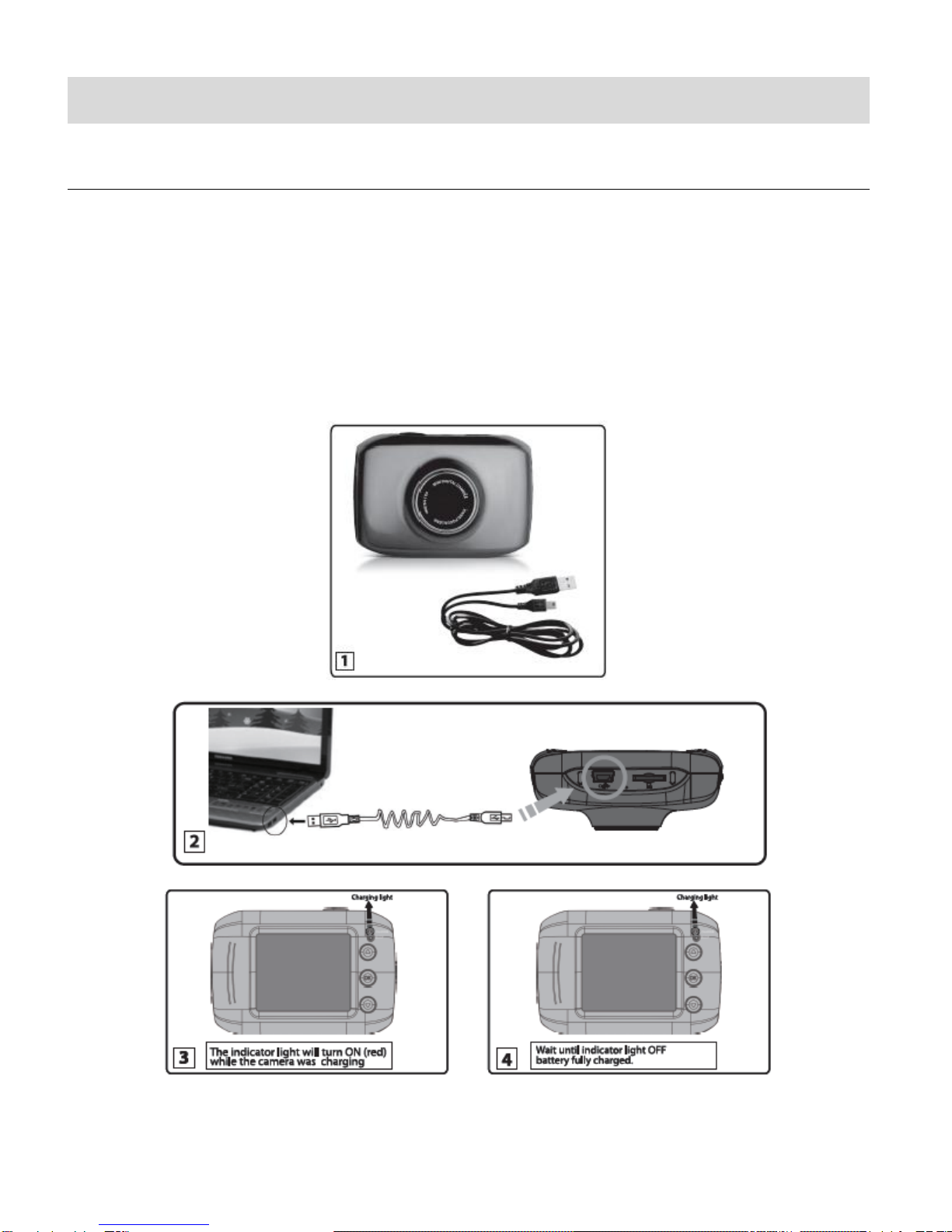

CHARGING THE BATTERY
1. Power off the camera.
2. Use the supplied USB cable to connect the smaller end of the USB cable into the USB
slot on the camcorder. Connect the other end to the USB interface of your computer.
See images below: 1 and 2.
3. The charge light will turn off when the battery is fully charged.
See images below: 3 and 4.

6
BATTERY INDICATOR
The following icons appear on the camera and indicate the status of the camera’s battery power
level:
Battery Indicator
Description
The battery level is full.
The battery level is half.
The battery level is low, indicating to prepare for
recharging the built-in lithium battery.
If the no battery level icon shows, the battery is almost
exhausted and the camcorder automatically turns off after
a moments.
‘Low Battery’ flashes once the battery level is completely
exhausted and the camcorder automatically turns off after
a few seconds.

7
INSTALLING THE MICRO SD MEMORY CARD
Make sure a Micro SD Memory card Class 4 or higher (up to 32 GB) has been properly inserted
into your camcorder. Micro SD Memory card not included.
To properly insert the Micro SD Memory Card:
1. Power off the camcorder.
2. Insert the Micro SD Card into the Micro SD Card slot in the direction as shown on the
camcorder (see SD icon by the Micro SD card slot).
3. Gently press the Micro SD Card until you hear a slight clicking sound. This indicates the
memory card has been inserted correctly.
4. If the memory card has successfully been inserted an icon appears on the LCD
screen.
5. To remove the card, gently press on the edge of the card to release it and pull the card
out.
6. If the card is inserted or removed while the camcorder's power is on, it may damage the
card and/or any recorded data.Always confirm that the power is off before inserting the
card into the camcorder.
NOTE: Make sure there is room on the Micro SD Memory Card to capture images. If the
memory card is full, additional images cannot be captured and saved to the card.

8
TURNING ON AND USING THE CAMERA
Press the POWER button, located on top of the camcorder, to turn on the camcorder.
NOTE: If the camcorder becomes unresponsive, insert a thin pin into the RESET
hole and gently push the pin until you hear a slight ‘click’ sound. The camcorder will
then reset.

9
Main Camcorder Modes
VIDEO CAPTURE MODE
Use this mode to capture videos with your digital camcorder.
Slide the MODE Switch to the Video Capture icon to open the Video Capture Mode.
To take a video, aim your camcorder as desired and press the SHUTTER button to start
recording. A red record indicator and the elapsed recording time appear on the LCD screen
while the recording is in progress. To stop recording, press the SHUTTER button again.
The video is automatically saved to your camcorder’s memory card.
PHOTO CAPTURE MODE
Use this mode to capture pictures with your camcorder.
Slide the MODE Switch to the Photo Capture icon to open the Photo Capture Mode.
To take a picture, aim your camcorder as desired and press the SHUTTER button.
The picture is automatically saved to your camcorder’s memory card.
PLAYBACK MODE (PHOTOS & VIDEOS)
Use this mode to view and manage the photos and videos on your camcorder.
Slide the MODE Switch to the Playback icon to open the Playback Mode for photos and
videos. You can scroll through the photos and videos that you’ve previously taken to view
or delete them as desired.
