Introduction
Thank you for purchasing the Vivitar DVR 794HDv4 Full HD Wi-Fi Action Camcorder. Everything
you need to take high definition digital videos and photos is included with your camcorder.
This unique, ultraportable camera design is adapted specifically for this camera and can be used
to capture special moments in many different environments.
Vivitar makes capturing those special moments as easy as possible.
Please read this manual carefully first in order to get the most out of your digital camcorder.
NOTE:
Your digital action camcorder supports a Class 6 or higher Micro SD card with a capacity
expansion up to 32GB.
In order to use your digital action camcorder normally, please insert the Micro SD Memory
card before use. Please format the Micro SD Memory Card before first use.
Micro SD Memory cards are not included and need to be purchased separately.
This camcorder is a plug and play device. You can download the pictures and videos
without the software by directly accessing the camera’s memory card from your computer.
We would however recommend that you install the Vivitar Experience Image Manager
software to enjoy the full Vivitar experience.

4
What’s Included
1. Wi-Fi Action Camcorder
6. Wireless Remote Control
2. USB Cable
7. Bicycle Mount
3. AC Adapter
8. Helmet Mount & Strap
4. Vivitar Experience Installation CD
9. Lithium Battery
5. Waterproof Casing
10.Camera Shield
NOTE: Micro SD Card not included.

5
Parts of the Camcorder
1.
Shutter / OK Button
8.
Wi-Fi Button / Down Button
2.
Power / Mode Button
9.
Battery Cover
3.
Lens
10.
LCD Screen
4.
Charging (Blue) / Busy (Red) LED Indicator
11.
Working LED Indicator
5.
Microphone
12.
Speaker
6.
Menu / Display Button
13.
Micro SD Card Slot
7.
Wi-Fi Button LED Indicator
14.
Mini HDMI Port
15.
Micro USB Port

6
Initial Camcorder Setup
INSTALLING AND CHARGING THE BATTERY
TO INSTALL THE LITHIUM BATTERY:
1. If the camera is inside the waterproof casing, please take it out of the casing.
2. Push and hold the battery cover lever up to the unlock/open position, until it flips open.
3. Insert the battery into the battery compartment as shown. Make sure to place the battery
according to the correct polarity as shown inside the battery compartment.
4. Close the battery cover.

7
TO CHARGE THE LITHIUM BATTERY:
1. Power off the camcorder.
2. Open the USB cover. Connect the included USB cable to the camcorder and connect the
other end of the cable to a power source such as the included AC charger or to a
computer. Please refer to the images shown below for reference.

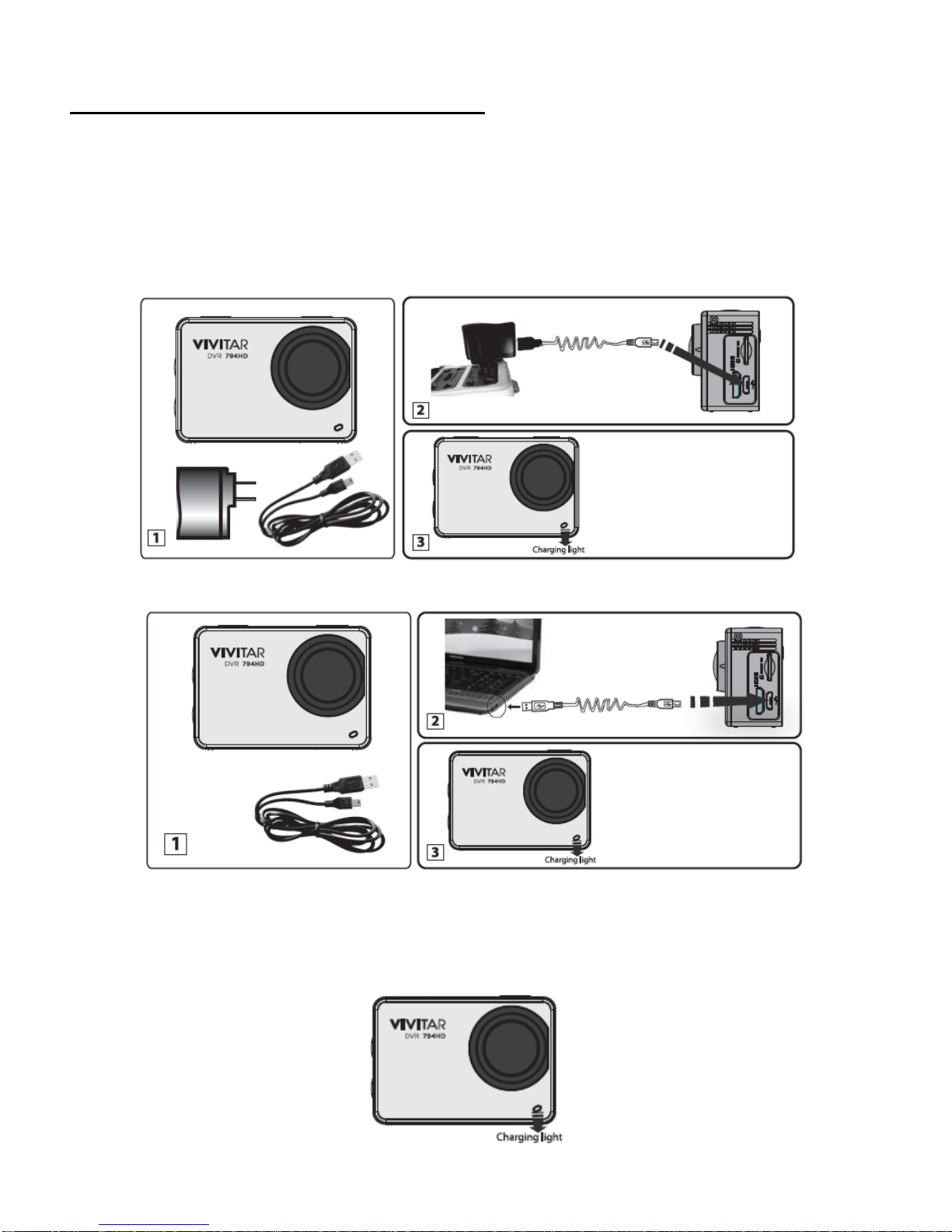

CHARGING USING THE AC CHARGER:
CHARGING USING THE COMPUTER:
3. During the time the camcorder is charging, the LED charging status indicator light (blue) is
on. It takes about 3 to 4 hours to fully charge the battery. When the battery is fully charged
the LED status indicator light turns off.

8
NOTE:
While the device is charging it cannot be used to capture images.
When the camcorder is on, connecting it to a computer will not charge the device. Make sure
the camcorder is powered off to recharge.
BATTERY INDICATOR:
Battery Indicator
Description
The battery level is full.
The battery level is half.
The battery level is low, indicating to prepare for
recharging the built-in lithium battery.
Once ‘Low Battery’ appears on the LCD, this
indicates that the battery level is completely exhausted
and the camcorder automatically turns off after a few
seconds. Please fully recharge the battery.
NOTE: When the battery capacity drops to a low level, the battery icon will flash on the display,
indicating that the camcorder requires to be recharged. Please charge the battery. When the
battery icon flickers, the camcorder will shut down automatically.
INSTALLING THE MICRO SD MEMORY CARD
Make sure a High Speed Class 6 or higher Micro SD Memory card has been properly inserted
into your camcorder. AMicro SD Card must be inserted before use.
Micro SD Memory card not included.

9

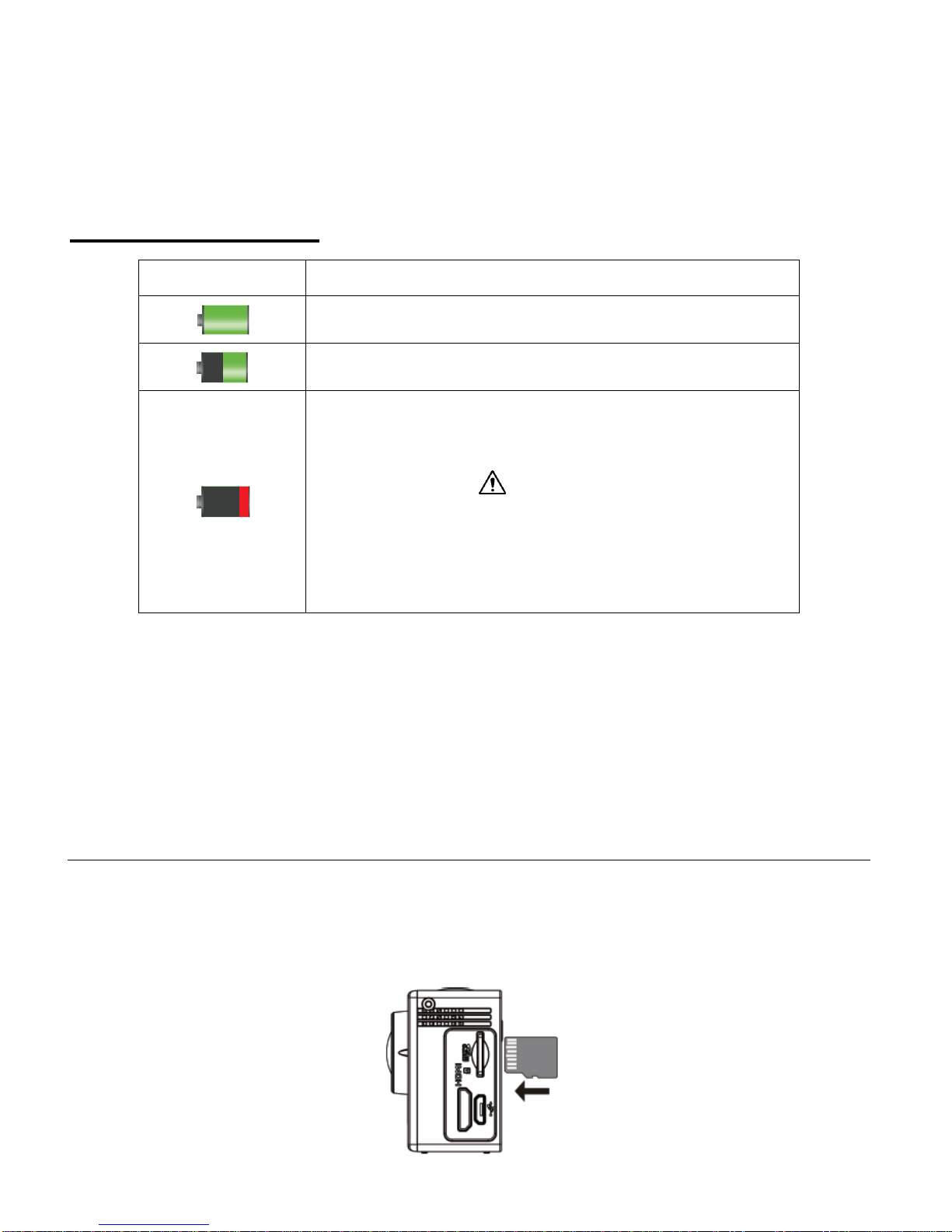

INSTALLING THE MEMORY CARD:
To properly insert the Micro SD Card, follow the instructions below:
1. Power off the camcorder.
2. Open the Micro SD Card cover.
3. Insert the Micro SD Card into the Micro SD Card slot in the direction as shown above.
4. Gently press the Micro SD Card until you hear a slight clicking sound. This indicates the
memory card has been inserted correctly.
5. To remove the card, gently press on the edge of the card to release it and pull the card out.
IMPORTANT:
Please power the camcorder off before installing or taking out the memory card.
If the card is inserted or removed while the camcorder's power is on, it may damage the card
and/or any recorded data. Always confirm that the power is off before inserting the card into
the camcorder.
Make sure there is room on the Micro SD Memory Card for additional images. If the Micro SD
Memory Card is full, additional images will not be added to the memory card.
POWERING ON –OFF / ENERGY SAVE
TO POWER ON THE CAMCORDER:

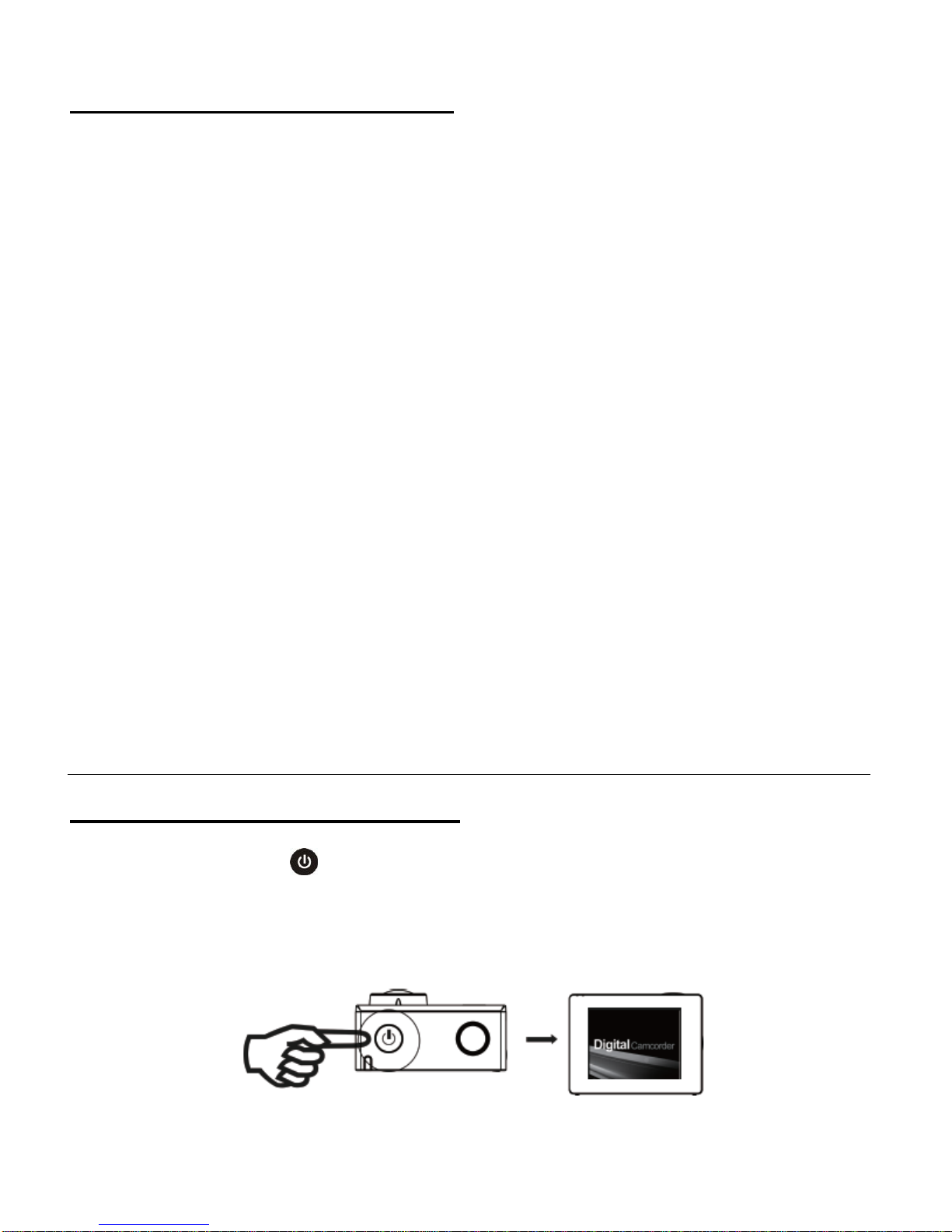

1. Press and hold the Power button for about 2 seconds.
2. The LCD displays turns on and a sound can be heard from the camcorder’s speaker.
