Vivitar DVR 789HD User manual

DVR 789HD
Full HD Action Camcorder
User Manual
© 2009-2018 Sakar International, Inc. All rights reserved.
Windows and the Windows logo are registered trademarks of Microsoft Corporation.
All other trademarks are the property of their respective companies.

1
CONTENTS
Introduction .................................................................................................................................. 2
What’s Included............................................................................................................................ 3
Parts of the Camcorder ................................................................................................................ 4
Initial Camcorder Setup................................................................................................................ 5
Remote Control .......................................................................................................................... 10
Main Camcorder Modes ..............................................................................................................11
Camcorder Technical Specifications........................................................................................... 12
Camcorder Mounts and Accessories.......................................................................................... 13
Powering On Your Camcorder.................................................................................................... 16
Changing Camcorder Mode ....................................................................................................... 17
Navigating the Menus................................................................................................................. 18
Video Capture Mode .................................................................................................................. 19
Photo Capture Mode .................................................................................................................. 22
Playback Mode........................................................................................................................... 25
Menu Options............................................................................................................................. 28
Computer System Requirements ............................................................................................... 35
Installing the Software ................................................................................................................ 36
Connecting the Camcorder to the Computer.............................................................................. 36
Getting Photos and Videos from the Camcorder to the Computer ............................................. 37
Getting Started! .......................................................................................................................... 38
Transferring Images Manually from the Camcorder to the Computer......................................... 38
Camcorder Maintenance ............................................................................................................ 40
Sakar Warranty Card.................................................................................................................. 42
Technical Support....................................................................................................................... 43
Troubleshooting.......................................................................................................................... 43

2
Introduction
Thank you for purchasing this digital HD Action Camcorder. Everything you need to take quality
digital videos and photos is included with your camcorder.
Vivitar makes capturing those special moments as easy as possible.
Please read this manual carefully first in order to get the most out of your digital camcorder.
NOTE:
•Your digital action camcorder supports a Micro SD Memory Card (up to 32GB, Class 6 or
higher).
In order to use your digital action camcorder normally, please insert the Micro SD Memory
card before use.
Micro SD Memory cards are not included and need to be purchased separately.
•This camera is a plug and play device. You can download the pictures and videos without
the software by directly accessing the memory card from your computer. We would
however recommend that you install the ‘Vivitar Experience Image Manager’ Software to
enjoy the full Vivitar experience.

3
What’s Included
1. Action Camcorder
5. Bicycle Mount
2. USB Cable
6. Helmet Mount & Band
3. Wireless Remote Control
7. AC Adapter
4. Waterproof Casing
8. Built-in Lithium Battery (not shown)
NOTE:
•Micro SD Card not included.

4

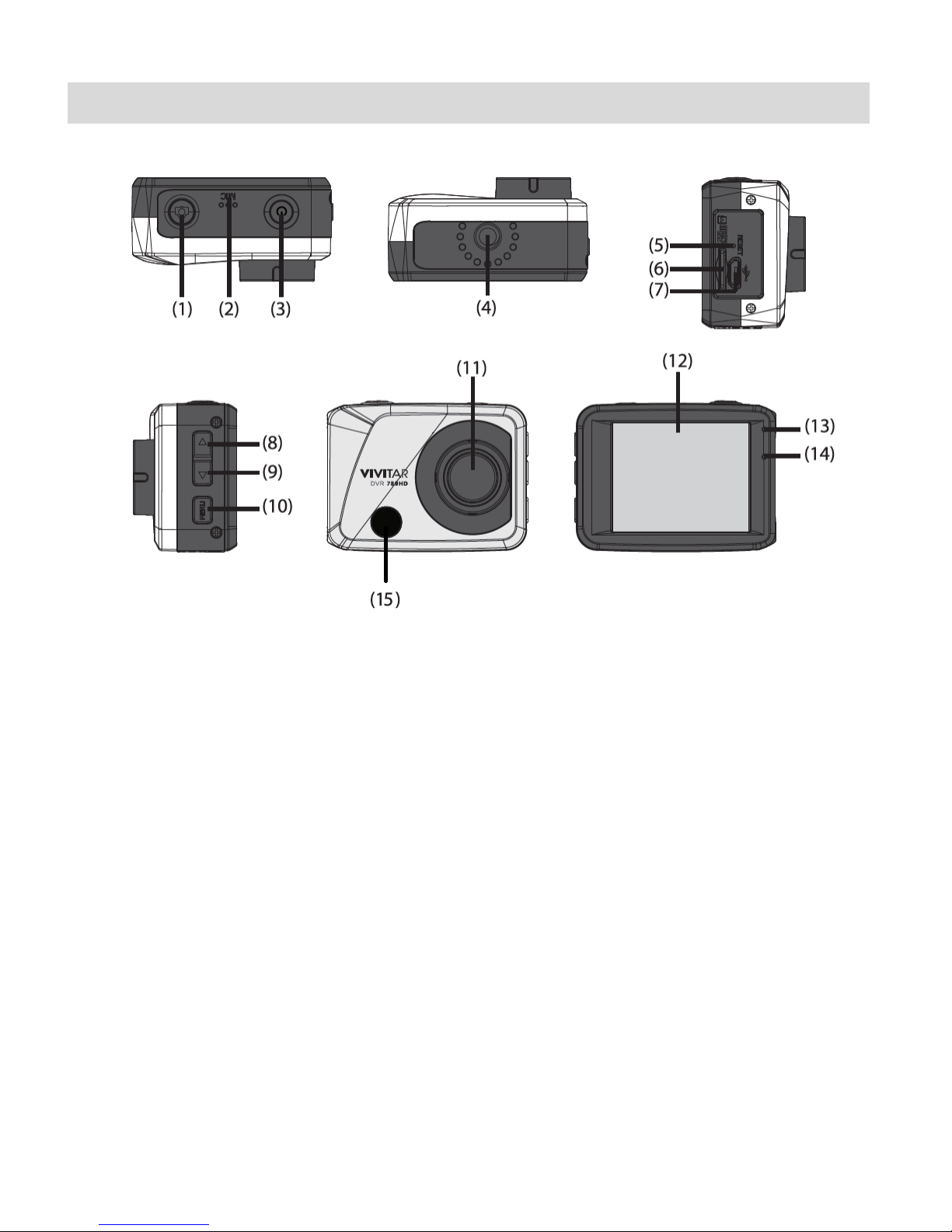

Parts of the Camcorder
1. Shutter / OK button 9. Down / Zoom Out Button
2. Microphone 10. Menu / Back Button
3. Power / Mode Button 11. Lens
4. Tripod Mount 12.LCD Screen
5. Reset Button 13.LED Busy Light Indicator
6. Micro SD Memory Card Slot 14.LED Charge Light Indicator
7. Micro USB Interface 15.Infrared Signal Reception Light
8. UP / Zoom In Button

5
Initial Camcorder Setup
CHARGING THE BATTERY
To charge the battery, follow either one of the charging methods below:

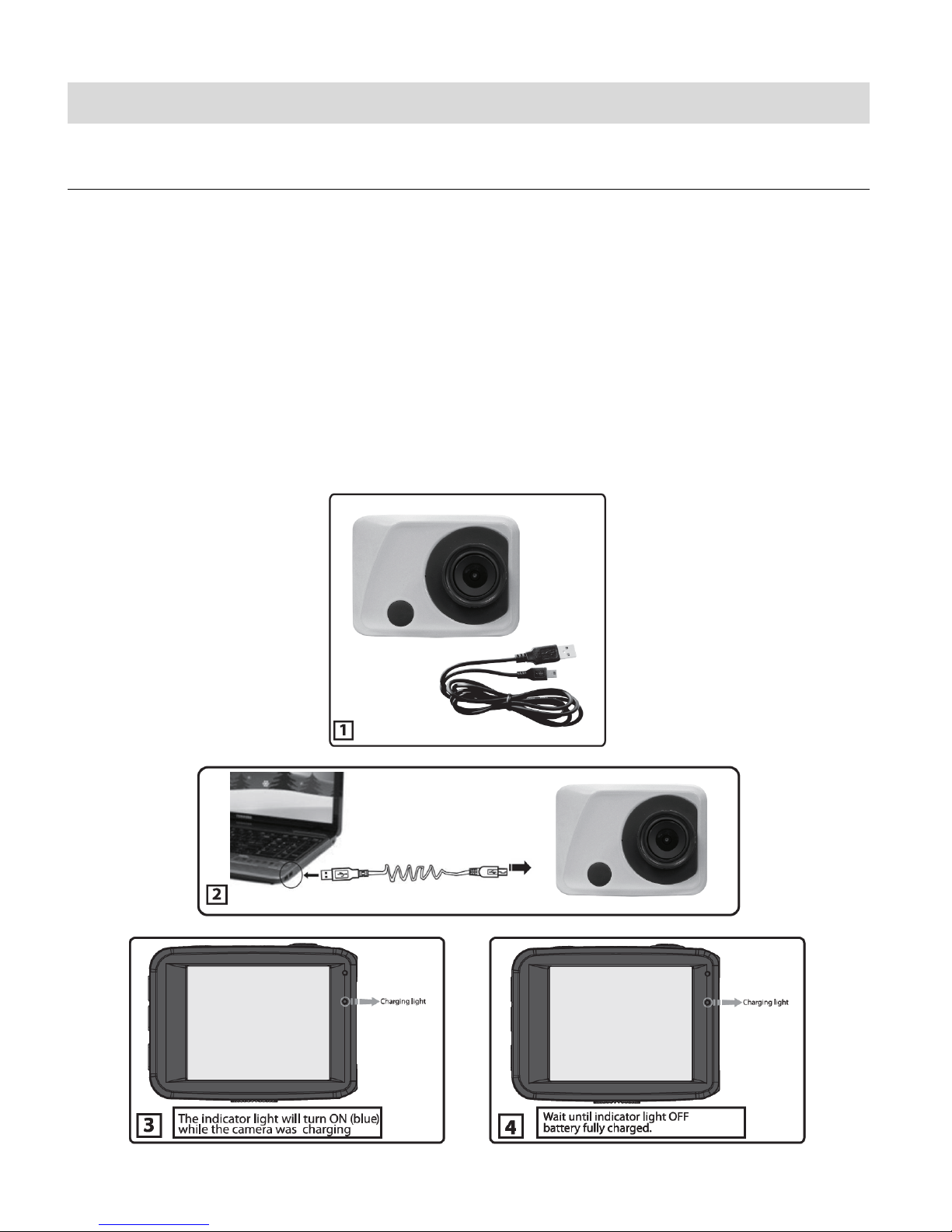

CHARGING VIA THE COMPUTER
1. Power off the camera.
2. Use the supplied USB cable to connect the smaller end of the USB cable into the USB
slot on the camcorder. Connect the other end to the USB interface of your computer.
See images below: 1 and 2.
3. The LED charge light turns on while charging is in progress. The charge light turns off
when the battery is fully charged. See images below: 3 and 4.

6

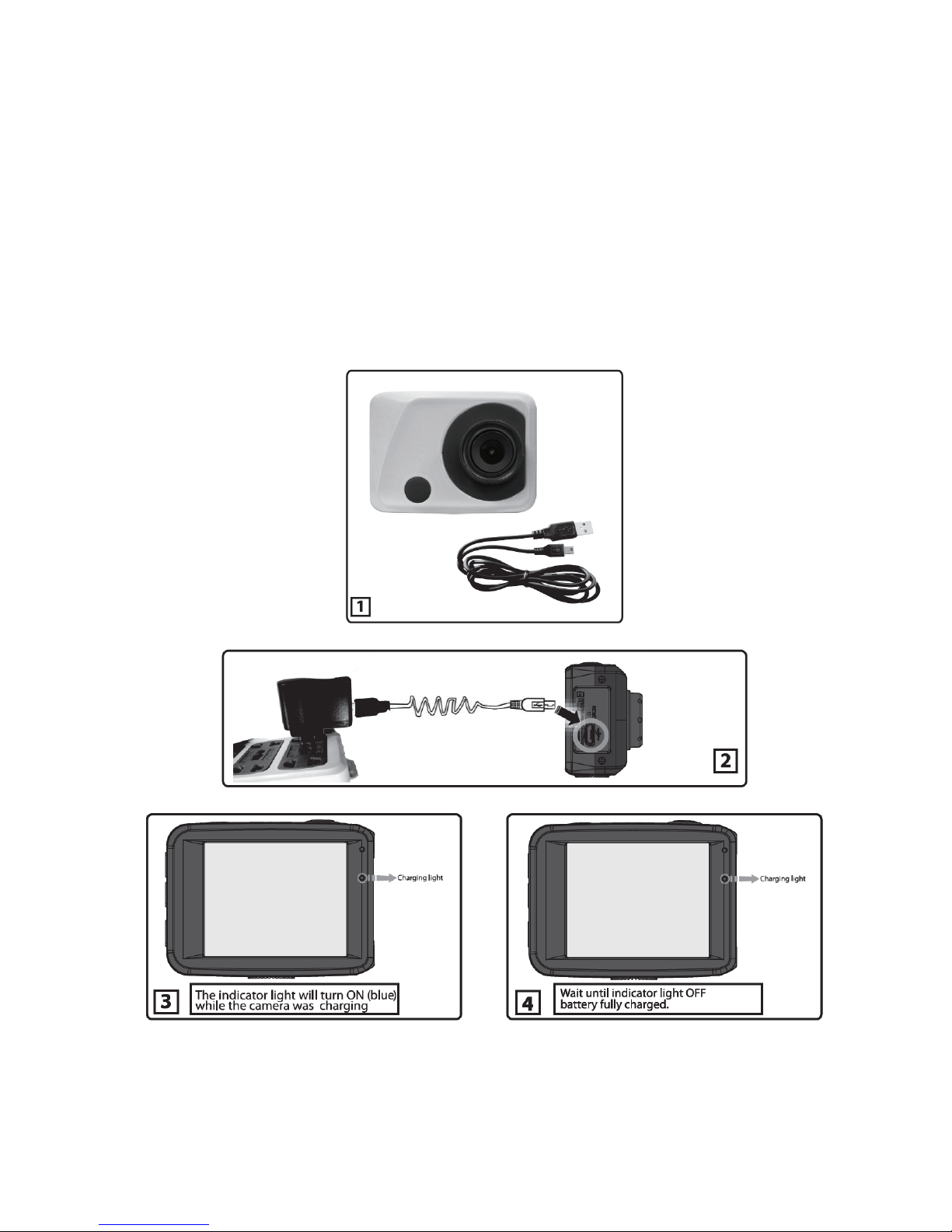

CHARGING VIA THE AC ADAPTER
1. Power off the camera.
2. Use the supplied USB cable to connect the smaller end of the USB cable into the USB
slot on the camcorder. Connect the other end to the cable to the AC Adapter and then
plug the AC Adapter into a power socket. See images below: 1 and 2.
3. The charge light will turn off when the battery is fully charged.
See images below: 3 and 4.

7
BATTERY INDICATOR
The following icons appear on the camera and indicate the status of the camera’s battery power
level:
Battery Indicator Description
The battery level is full.
The battery level is half.
The battery level is low, indicating to prepare for
recharging the built-in lithium battery.
Once ‘Low Battery’ appears on the LCD, this indicates
that the battery level is completely exhausted, and the
camcorder automatically turns off after a few seconds.
Please fully recharge the battery.

8
INSTALLING THE MICRO SD MEMORY CARD
Make sure a Micro SD Memory card Class 6 or higher (up to 32 GB) has been properly inserted
into your camcorder. Micro SD Memory card not included.
To properly insert the Micro SD Memory Card:
1. Power off the camcorder.
2. Insert the Micro SD Card into the Micro SD Card slot in the direction as shown on the
camcorder (see SD icon by the Micro SD card slot).
3. Gently press the Micro SD Card until you hear a slight clicking sound. This indicates the
memory card has been inserted correctly.
4. To remove the card, gently press on the edge of the card to release it and pull the card
out.
5. If the card is inserted or removed while the camcorder's power is on, it may damage the
card and/or any recorded data. Always confirm that the power is off before inserting the
card into the camcorder.
NOTE: Make sure there is room on the Micro SD Memory Card to capture images. If the
memory card is full, additional images cannot be captured and saved to the card.

9
TURNING ON AND USING THE CAMERA
Press the POWER button, located on top of the camcorder, to turn on the camcorder.
RESET: If the camcorder becomes unresponsive, insert a thin pin into the RESET
hole and gently push the pin until you hear a slight ‘click’ sound. The camcorder will
then reset.
NOTE: This camera includes a built-in lithium battery. To charge the battery,
connect the camera using the USB cable to the computer’s USB port or to an AC
charger. The charge light will turn off when the battery is fully charged.
/ Switching Modes

10
Remote Control
The remote control allows you to power on/off the DV and to take photos and videos up to 30
meters away without operating the DV directly. Simply press a button to use your action
camcorder remotely.
You can use the remote control to record videos, take photos and power on/off your camcorder,
without operating the camera.
•Power On/Off:
Power On: Press and hold the Power button until the button indicator light turns off. The DV
will power on.
Power Off: While the camera is on, press and hold the Power button until the button indicator
light turns off. The DV will power off.
•Video Capture:
Press the Video button after the camcorder has been powered on. If the camera is not in
Video Capture Mode, the camera will then enter the Video Capture Mode. Once in Video
Capture Mode, press the Video button to start recording video and press again to stop
recording your video.
•Photo Capture:
Press the Photo button after the camcorder has been powered on. If the camera is not in
Photo Capture Mode, the camera will then enter the Photo Capture Mode. Once in Photo
Capture Mode, press the Photo button to take a photo.
NOTE: Each time a button is pressed, the Button Indicator Lights flash a red light.
Power button
Video button:
Video Capture Mode,
Video Recording
Photo button:
Photo Capture Mode,
Photo Capture
Button Indicator Lights (Red)

11
Main Camcorder Modes
Your camcorder has different modes for the various camera functions.
Short press the Power/Mode button to toggle between the modes.
VIDEO CAPTURE MODE
Use this mode to capture videos with your digital camcorder.
To record a video, please check that the DV is in Video mode. If the video icon is not
displayed on the LCD screen, short press the Power/Mode button repeatedly until it
appears. To start recording, press the Shutter/OK button. Press the Shutter/OK
button again to stop recording. The video is automatically saved to your camcorder’s
memory card.
PHOTO CAPTURE MODE
Use this mode to capture pictures with your camcorder.
To take a photo, please check that the DV is in Photo mode. If the photo icon is not
displayed on the LCD screen, short press the Power/Mode button repeatedly until it
appears. Press the Shutter/OK button to capture your photo. The picture is
automatically saved to your camcorder’s memory card.
PLAYBACK MODE (PHOTOS & VIDEOS)
Use this mode to view and manage the photos and videos on your camcorder.
Please check that the DV is in Playback mode. Short press the Power/Mode button
repeatedly until the Playback mode appears.
You can scroll through the photos and videos that you’ve previously taken to view or delete
them as desired.

12
Camcorder Technical Specifications
Image Sensor CMOS Sensor
Video Resolution 1080p@30fps, 720p@60fps, 720p@30fps
Photo Resolution 12M (4032x3024), 8M (3264x2448), 5MP (2592X1944)
File Format MOV (Video), JPEG (Photo)
External Memory Micro SD Memory card, Class 6 or higher, up to 32GB
LCD Display 2.0” TFT
Lens Focus Length 2.8M (Fixed lens)
White Balance Auto, Daylight, Cloudy, Tungsten, Fluorescent
Light Exposure (Photo)
+2.0, +5/3, +4/3, +1.0, +2/3, +1/3, +0.0,
-1/3, -2/3, -1.0, -4/3, - 5/3, - 2.0
Exposure Auto, 100, 200, 400
Microphone Yes
Auto Power Off Off, 1 min., 3 min.
Languages English, French, German, Italian, Portuguese, Spanish
Interface Micro USB
System Requirements
MICROSOFT® Windows 7 or higher
MACINTOSH OSX v10.9 or higher
Battery Built-in 700mAH Lithium Battery

13
Camcorder Mounts and Accessories
WATERPROOF CASE
1. Clamp
2. Shutter Release
3. Power/Mode Button
4. Tripod Mount
Your action camcorder comes with a waterproof casing for underwater action and added
durability. To assemble your camera to the case, follow the instructions below:
1. To open the case: Insert a finger at the half circle of the latch by prying the latch up - away
from the case.
2. Insert the camera lens forward into the case.
3. Before sealing the waterproof case, make sure the camera housing’s rubber seal clean.
Close the door and secure the latch.
4. While the camcorder is in the waterproof casing, press the POWER/MODE button to select
Video Capture Mode, Photo Capture Mode or Playback Mode. Press the Shutter button
for recording your videos and capturing your photos.
1
2
3
4

14
NOTE:
•A single hair or grain of sand can cause a leak. You can test by closing the case without
inserting the camera. Submerse the case completely in water for about a minute. Remove
the case from the water, dry off its exterior with a towel, and then open the case. If the
entire interior is dry, the case is safe for use under water.
•Before opening the waterproof casing and putting the device in, carefully check whether
the waterproof ring of the casing is flat and smooth.
•After placing the device into the waterproof casing and closing the cover, carefully check
whether the waterproof ring is deformed due to pressure.
•After every use in salt water you will need to rinse the outside of the housing with non-salt
water and dry. Not doing this can eventually cause corrosion of the hinge pin and salt
buildup in the seal, which can cause failure.
•To clean the seal, rinse in fresh water and shake dry (drying with a cloth may cause lint to
compromise the seal). Re-install the seal into the grooves of the housing.

15
INSTALLING THE BICYCLE MOUNT: HANDLEBAR CLAMP
INSTALLING THE HELMET MOUNTING SYSTEM

16
Powering On Your Camcorder
TURNING POWER ON AND OFF
1. Press and hold the POWER button for about 3 seconds to turn on the camcorder.
The LCD screen briefly displays the ‘Vivitar’ screen and opens the default Video Capture
Mode. A beep can be heard from the camcorder’s buzzer.
2. Press and hold the POWER button again for about 3 seconds to turn the power off.
The LCD screen briefly displays ‘Goodbye’ screen and then powers off. A beep can
also be heard from the buzzer as the camcorder is being powered off.
AUTO POWER OFF – POWER SAVING FEATURE:
Your digital camcorder includes an Auto Power Off power feature that automatically turns off your
camcorder after a specified time that your camcorder is left idle. The specified time can be set
using the ‘Auto Power Off’ menu option. Once the camcorder is automatically powered off, you
can long press the POWER button to power on the camcorder.

17
Changing Camcorder Mode
THREE MAIN MODES
1. Video Capture Mode - Use this mode to capture videos with your camcorder.
2. Photo Capture Mode - Use this mode to capture photos with your camcorder.
3. Playback Mode (for photos and videos) – Use this mode to view your captured photos
and videos.
•When the camera is first powered ON, the Video Capture Mode will be active.
•The icons that appear on the LCD screen are the best default settings so that you can begin to
capture and enjoy clear quality photos and videos.
SWITCHING MODES
After turning on the camcorder, you can short press the POWER/MODE button to switch between
the three modes in turn:
•In Video Capture Mode, press the SHUTTER button to start recording and press it again
to stop.
•In Photo Capture Mode, press the SHUTTER button to take photo.
•In Playback Mode, press the SHUTTER button to play back your captured Video.
When in Video Capture Mode, this icon will display on the top-left corner of the LCD display.
When in Photo Capture Mode, this icon will display on the top-left corner of the LCD display
When in Playback Mode, a ►play icon (for videos) or a photo icon (for photos) will
display on the top-left corner of the LCD display.

18
Navigating the Menus
PHOTO CAPTURE, VIDEO CAPTURE AND PLAYBACK MENUS
To access the Main Menu for each Mode:
1. Press the MENU button to open the Main Menus for the current mode.
2. Press the DOWN or UP button to select a specific menu.
The selected option appears highlighted.
3. Press the SHUTTER/OK button to confirm and save your selection and open the options for
the menu you have selected.
4. To select a specific option, press the DOWN or UP button and then the SHUTTER/OK
button to save the selected option and return to the Main Menu.
NOTE:
To go back from the submenus or exit the Main Menu, press the MENU button.
CAMCORDER SETTINGS MENU
To access the Camcorder Settings Menu:
1. Press the MENU button while in the Video Capture or Photo Capture Mode. This opens the
Main Setup screen.
2. Press the DOWN or UP button to select a specific menu.
3. Press the SHUTTER/OK button to confirm and save your selection and open the options for
the menu you have selected.
4. To select a specific option, press the DOWN or UP button and then the SHUTTER/OK
button to save the selected option and return to the Main Menu.
NOTE:
•At any time, you can press the MENU button to exit the menus and return to the previous
screen.
•Once you change a setting, the setting is saved by your camera until you manually change
the setting or restore the camera’s default factory settings.
•After selecting your desired setting, some settings appear as an icon on the LCD screen in
Capture Mode – indicating the option selected.

19
Video Capture Mode
The Video Capture Mode allows you to capture videos with your digital camcorder.
When first powering on your camcorder, Video Capture Mode appears.
The Video Capture icon appears on the LCD screen.
TAKING A VIDEO
1. Selecting the Scene with the LCD Display:
While in Video Capture Mode use the LCD display to direct the camcorder at the scene
you would like to capture.
NOTE: The time available for video capture (as per the installed memory card size and
selected resolution) is shown on the top left side of the LCD screen.
2. Changing Resolution:
If you would like to change the resolution, press the MENU button and then press the
DOWN button to select ‘Movie Size’. Next, press the SHUTTER/OK button to view the
Movie Size options. Press the UP / DOWN button to select an option and then
press the SHUTTER/OK button to confirm the option.
The Movie Size options include:
1080FHD - FHD 1920x1080P@30fps
720P - HD720P 1280X720@60fps
720P - HD720P 1280X720@30fps
3. Capturing the Video:
START: Press the SHUTTER button to start the video capture.
While the video capture is in progress:
- The camcorder’s LED busy light turns on (red) and blinks.
- The elapsed time appears in red on the top left section of the LCD screen.
- The Video Mode icon is highlighted in red and blinks.
STOP: To stop the video recording, press the SHUTTER button again.
4. The video is automatically saved to the camcorder’s Micro SD Memory card.
