Vivo Link VLHDMIEXTFIB User manual

VLHDMIEXTFIB
All Rights Reserved
Version: VLHDMIEXTFIB_2017V1.0
User Manual

HDMI2.0 Fiber Optical Extender
Preface
Read this user manual carefully before using the product. Pictures are shown in this
manual for reference only, different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated till
December 18, 2017. In the constant effort to improve the product, we reserve the right to
make functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
Trademarks
Product model, Vivolink and its logo are trademarks of Vivolink. Any other trademarks
mentioned in this manual are acknowledged as the properties of the trademark owner.
No part of this publication may be copied or reproduced without the prior written consent
of Vivolink.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

HDMI2.0 Fiber Optical Extender
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

HDMI2.0 Fiber Optical Extender
Contents
1. Introduction.................................................................................................................1
2. Features......................................................................................................................1
3. Package List...............................................................................................................1
4. Panel Description........................................................................................................2
4.1 Transmitter.........................................................................................................2
4.2 Receiver ............................................................................................................3
5. System Connection.....................................................................................................4
6. Panel Drawing ............................................................................................................8
7. Specification ...............................................................................................................9
8. Troubleshooting & Maintenance ...............................................................................10
9. Customer Service .....................................................................................................11

HDMI2.0 Fiber Optical Extender
1
1. Introduction
The extender set consists of a Transmitter and Receiver. It is designed to extend HDMI
signal (Max 4Kx2K 60Hz 4:4:4) up to 984ft (300m) from Transmitter to Receiver via two
single mode or OM3/OM4 multi-mode fiber cables.
The extender set also allows for bi-directional IR and RS232 control signal across the
fiber cable, and supports ARC.
2. Features
▪Supports HDMI2.0, HDCP2.2 compliant.
▪Supports 4K@60 Dolby Vision.
▪Supports HDR.
▪Bi-directional IR and RS232 pass-though.
▪Supports ARC.
▪Transmission distance: up to 984ft (300m).
3. Package List
▪Transmitter x 1
▪Receiver x 1
▪Power Adapter (12VDC 1A) x 2
▪RS232 Cable (3-Pin phoenix connector to DB 9) x 1
▪Mounting Ears x 4
▪Mounting Screws x 16
▪Plastic Cushions x 8
▪User Manual x 1
Note : Please contact your distributor immediately if any damage or defect in the
components is found.

HDMI2.0 Fiber Optical Extender
2
4. Panel Description
4.1 Transmitter

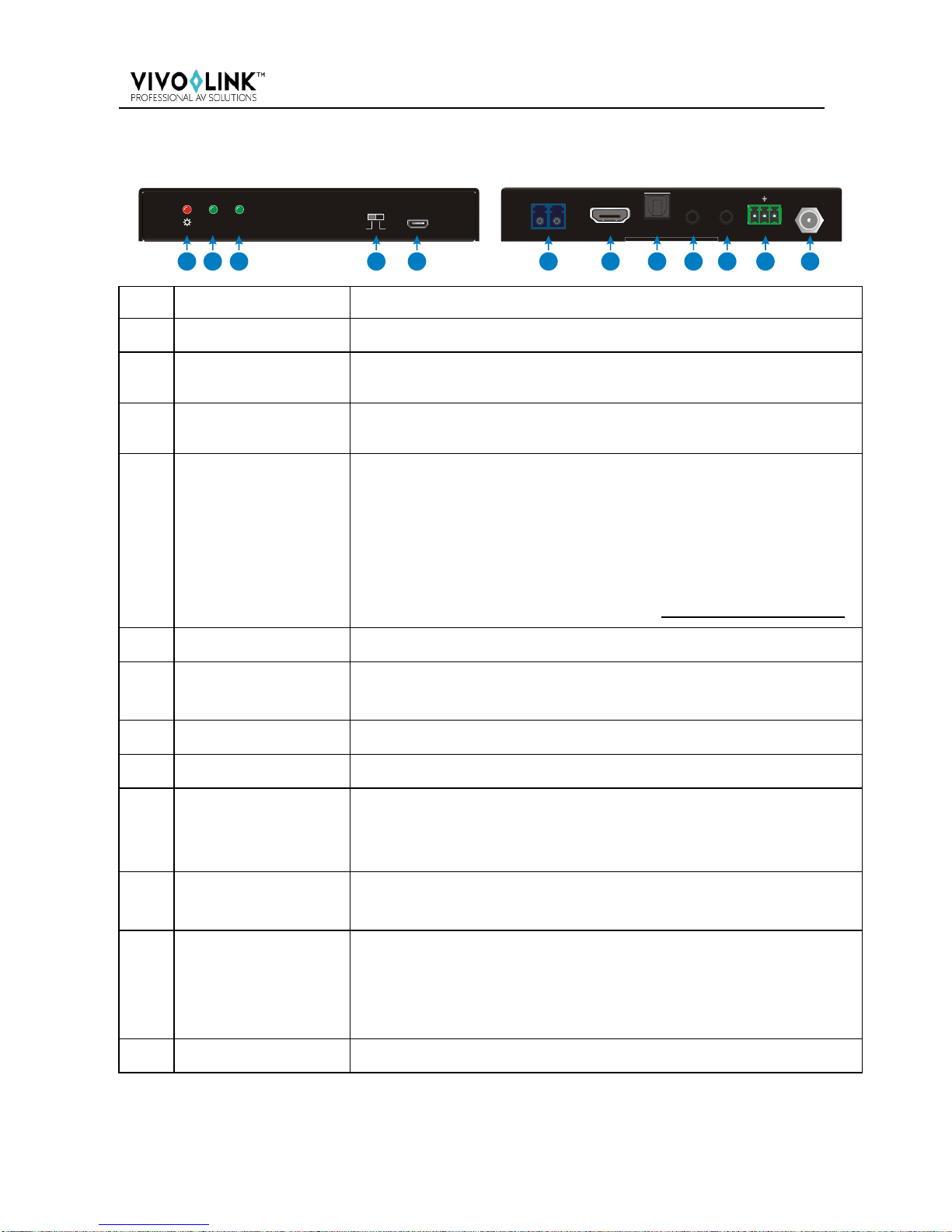

No.
Name
Description
①
Power LED
Turns red when DC power present.
②
Link status LED
Turns green when the Transmitter and Receiver link
successful.
③
Work status LED
Turns green when the signal data is transmitted between
Transmitter and Receiver.
④
ARC switcher
▪ARC (Default): The audio signal can be back to HDMI
input and audio output port on Transmitter from the
HDTV display connected to Receiver.
▪AUDIO: The audio signal is transmitted from audio input
port on Receiver to audio output port on Transmitter.
For more details, please refer to the 5.system connection.
⑤
FW
USB port, used for firmware update.
⑥
OPTICAL OUT
Connect to the OPTICAL IN port on Receiver via two
OM3/OM4 multi-mode fiber cables (A-B; B-A).
⑦
HDMI IN
Connect with HDMI source.
⑧
AUDIO OUT
Connect with audio broadcast device.
⑨
IR IN
Work with far-end IR OUT port on Receiver, connect with IR
Receiver (with carrier) to collect IR signal to control far-end
display.
⑩
IR OUT
Work with far-end IR IN port on Receiver, connect with IR
Emitter to send IR signal to control source device.
⑪
RS232
Makes up bi-directional RS232 pass-through control with
the RS232 port on Receiver. If one is connected with control
device (e.g. PC), and the other should be connected with
the third-party that need to be controlled.
⑫
DC 12V
Connected with 12VDC power adaptor.
Tx Rx
ARC
BA
AUDIOARC
LINK STATUS FW
12345678910 11 12

HDMI2.0 Fiber Optical Extender
3
4.2 Receiver
No.
Name
Description
①
Power LED
Turns red when DC power present.
②
Link status LED
Turns green when the Transmitter and Receiver link
successful.
③
Work status LED
Turns green when the signal data is transmitted between
Transmitter and Receiver.
④
ARC switcher
▪ARC (Default): The audio signal can be back to HDMI
input and audio output port on Transmitter from the
HDTV display connected to Receiver.
▪AUDIO: The audio signal is transmitted from audio input
port on Receiver to audio output port on Transmitter.
For more details, please refer to the 5.system connection.
⑤
FW
USB port, used for firmware update.
⑥
OPTICAL IN
Connect to the OPTICAL OUT port on Transmitter via two
OM3/OM4 multi-mode fiber cables (A-B; B-A).
⑦
HDMI OUT
Connect with HDMI display.
⑧
AUDIO IN
Connect with audio source device.
⑨
IR IN
Work with far-end IR OUT port on Transmitter, connect with
IR Receiver (with carrier) to collect IR signal to control
far-end source device.
⑩
IR OUT
Work with far-end IR IN port on Transmitter, connect with IR
Emitter to send IR signal to control display device.
⑪
RS232
Makes up bi-directional RS232 pass-through control with
the RS232 port on Receiver. If one is connected with control
device (e.g. PC), and the other should be connected with
the third-party that need to be controlled.
⑫
DC 12V
Connected with 12VDC power adaptor.
Tx Rx
ARC
B A
AUDIOARC
LINK STATUS FW
12345678910 11 12

HDMI2.0 Fiber Optical Extender
4
5. System Connection
Usage Precautions:
▪Verify all components and accessories included before installation.
▪System should be installed in a clean environment with proper temperature and
humidity.
▪All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
▪All devices should be connected before power on.
There are three connection ways can be chosen via ARC mode switcher.
Mode
Switch Status
Description
Transmitter
Receiver
①
ARC
ARC
The audio signal is transmitted from the HDTV
display back to HDMI IN and AUDIO OUT ports.
②
ARC
AUDIO
The audio signal is transmitted from the AUDIO IN
to HDMI IN port.
③
AUDIO
ARC
The audio signal is transmitted from the HDTV
display back to the AUDIO OUT port.
④
AUDIO
AUDIO
The audio signal is transmitted from the AUDIO IN
to the AUDIO OUT port.
Note: When the switch status is set as mode 1,2 or 3, the amplifier, display must support
ARC.

HDMI2.0 Fiber Optical Extender
5
①Transmitter: ARC; Receiver: ARC
The audio signal is transmitted from the HDTV display back to HDMI IN and AUDIO
OUT ports.
Connection procedure:
Step1.Connect the OPTICAL OUT port of the Transmitter to the OPTICAL IN port of
the Receiver with two OM3/OM4 multi-mode fiber cables.
Step2.Connect an amplifier to the HDMI IN port of Transmitter, and then connect HDMI
source device (e.g. Blue-ray DVD) and Speaker to the amplifier.
Step3.Connect a broadcast device (e.g. Speaker) to the AUDIO OUT port of
Transmitter with toslink audio cable.
Step4.Connect a display device (e.g. HDTV) to the HDMI OUT port of Receiver with
HDMI cable.
Step5.Bi-directional IR control:
Both Transmitter and Receiver have IR IN and IR OUT port. When one model
use for IR signal receiver, the IR signal must be sent out by the other model.
For example: When IR IN port of Transmitter connects with an IR Receiver, the
IR Emitter must be connected to the IR OUT port of Receiver.
Step6.Bi-directional RS232 control:
Both Transmitter and Receiver have RS232 port. When one model use for
control device, the other must be used for the third-party device needed to be
controlled.
For example: When RS232 port of Transmitter connects with a control PC, the
third-party device must be connected to the RS232 port of Receiver.
Tx Rx
ARC
B A
Tx Rx
ARC
BA
Transmitter : ARC
Blu-Ray DVD Speaker TV Remote
TV Remote
Receiver: ARC
HDMI:
Optical:
Audio:
Control:
300m
APMLIFIER
ARC
ARC
HDTV
IR Emitter
ARC
Speaker

HDMI2.0 Fiber Optical Extender
6
②Transmitter: ARC; Receiver: AUDIO
The audio signal is transmitted from the AUDIO IN to HDMI IN port.
③Transmitter: AUDIO; Receiver: ARC
The audio signal is transmitted from the HDTV display back to the AUDIO OUT port.
Tx Rx
ARC
B A
Tx Rx
ARC
BA
Transmitter: ARC
TV Remote
TV Remote
Receiver:AUDIO
HDMI:
Optical:
Audio:
Control:
300m
Blu-Ray DVD APMLIFIER
ARC
ARC
HDTV
Speaker
IR Emitter
Digital Radio
Tx Rx
ARC
B A
Tx Rx
ARC
BA
Transmitter: AUDIO
Speaker TV Remote
TV Remote
Receiver: ARC
HDMI:
Optical:
Audio:
Control:
300m
HDTV
IR Emitter
ARC
Blu-Ray DVD APMLIFIER

HDMI2.0 Fiber Optical Extender
7

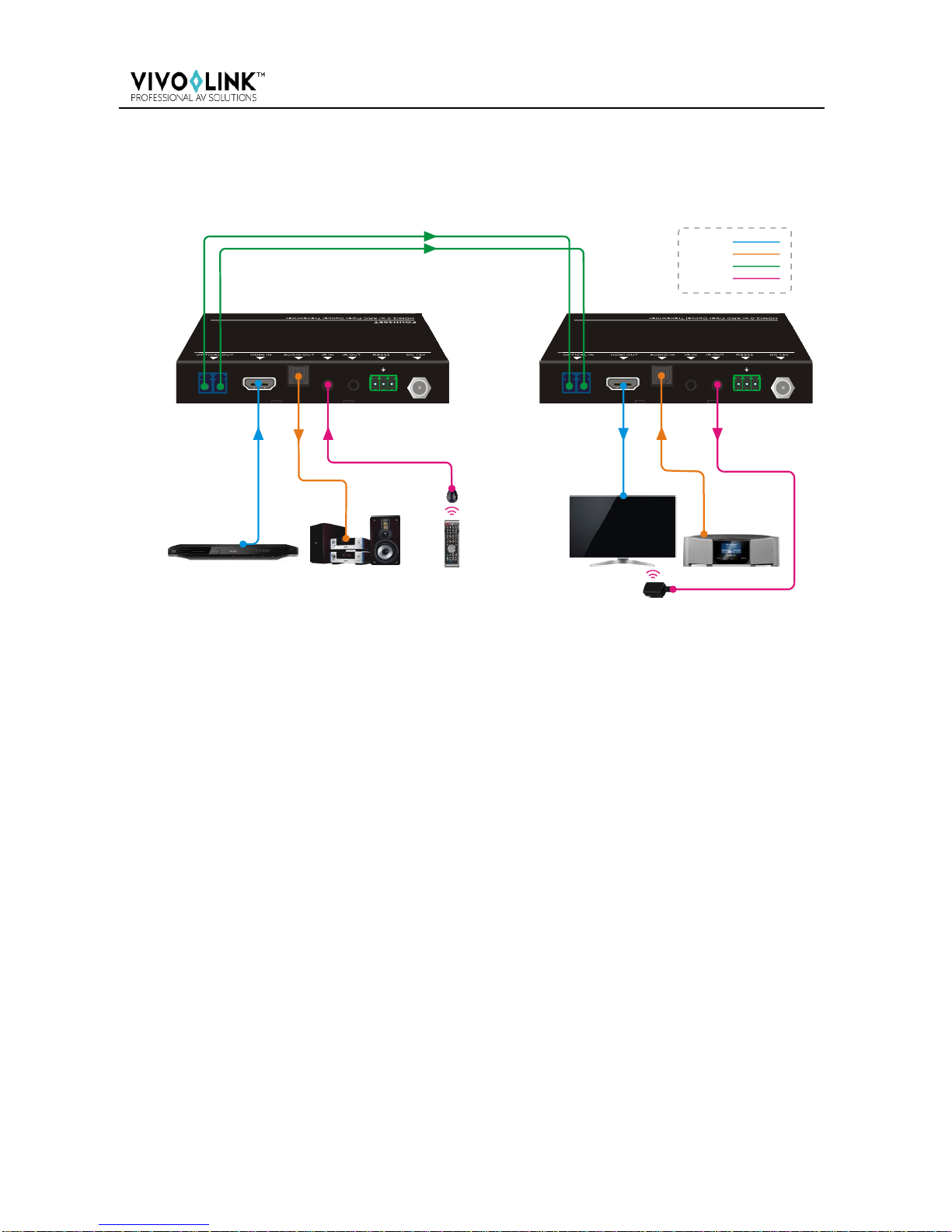

④Transmitter: AUDIO; Receiver: AUDIO
The audio signal is transmitted from the AUDIO IN to the AUDIO OUT port.
Tx Rx
ARC
B A
Tx Rx
ARC
BA

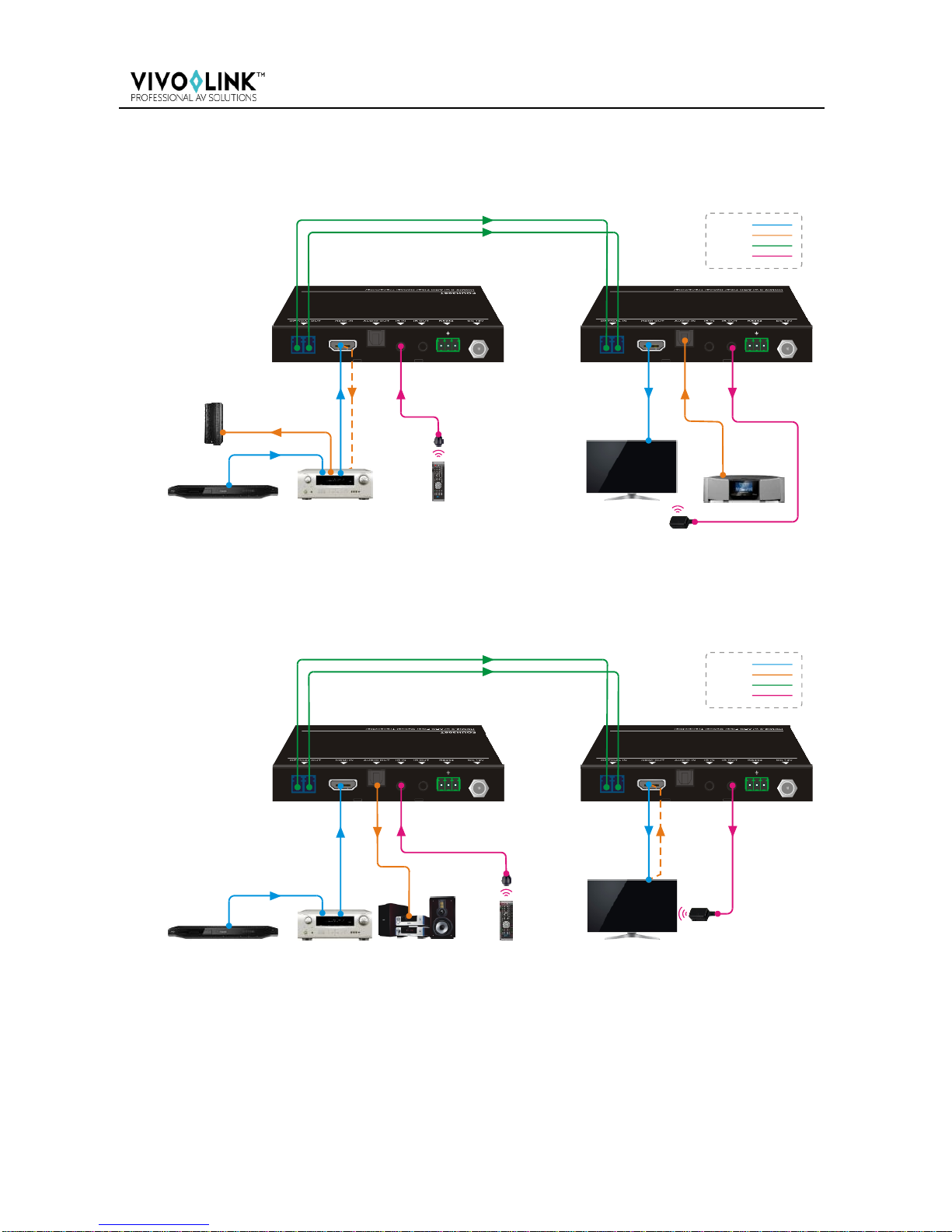

Transmitter: AUDIO
Blu-Ray DVD Speaker TV Remote
TV Remote
Receiver: AUDIO
300m
HDTV
IR Emitter
HDMI:
Optical:
Audio:
Control:
Digital Radio

HDMI2.0 Fiber Optical Extender
8

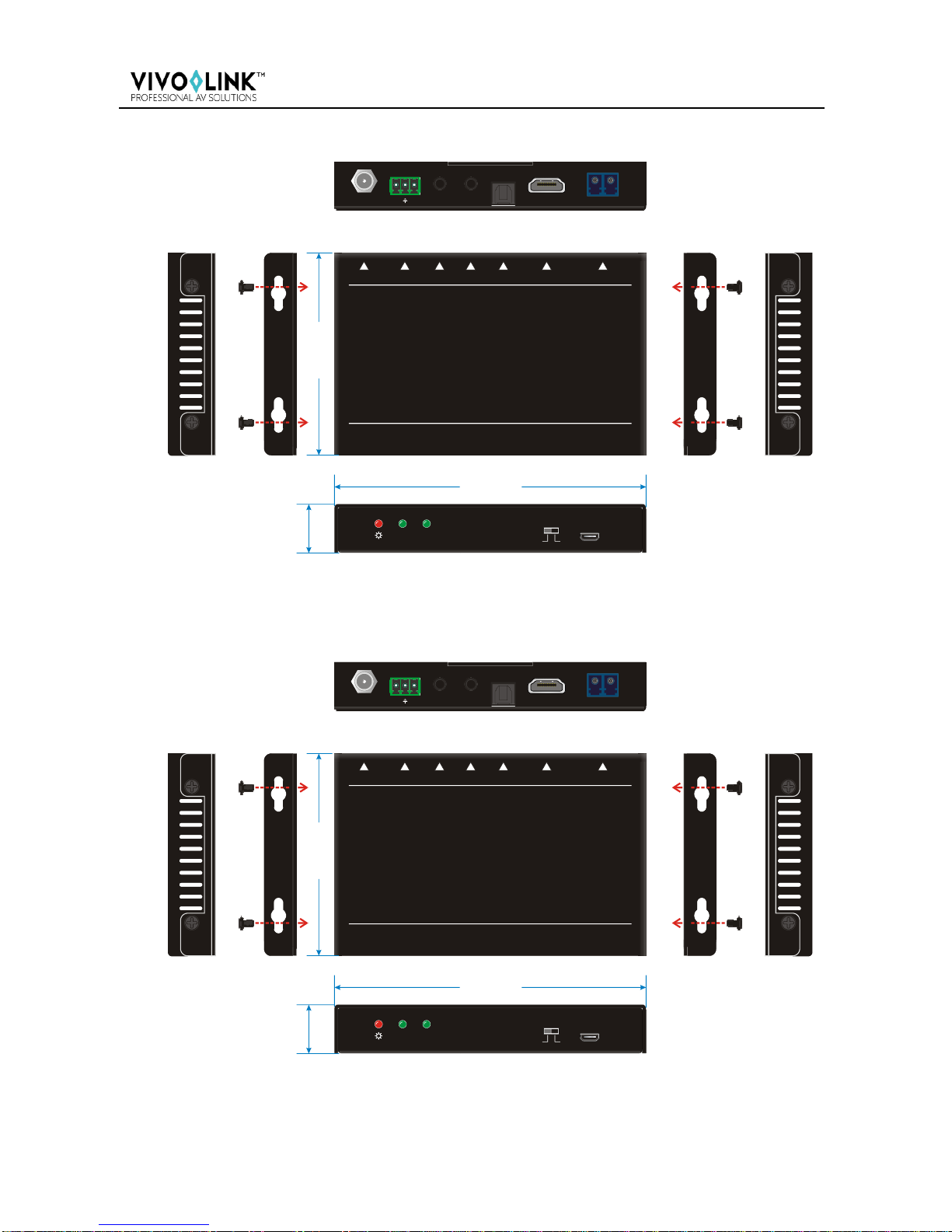

6. Panel Drawing
6-1 Transmitter
6-2 Receiver
Tx Rx
ARC
B A
DC 12V
RS232
IR OUT
IR IN
AUDIO OUT
HDMI IN
OPTICAL OUT
HDMI2.0 w/ ARC Fiber Optical Transmitter
AUDIOARC
LINK STATUS FW
130 mm
84 mm
20 mm
AUDIOARC
LINK STATUS FW
Tx Rx
ARC
BA
DC 12V RS232 IR OUT IR IN AUDIO IN HDMI OUT OPTICAL IN
HDMI2.0 w/ ARC Fiber Optical Receiver
130 mm
84 mm
20 mm

HDMI2.0 Fiber Optical Extender
9
7. Specification
Transmitter
Input
(1) HDMI IN
Input Connector
(1) Type A Female HDMI
Output
(2) OPTICAL OUT; (1) AUDIO OUT
Output Connector
(2) LC Connector; (1) Toslink Connector
Control
(1) IR IN; (1) IR OUT; (1) RS232
Control Connector
(2) 3.5mm Mini Jacks; (1) 3-Pin phoenix connector
Receiver
Input
(2) OPTICAL IN; (1) AUDIO IN
Input Connector
(2) LC Connector; (1) Toslink Connector
Output
(1) HDMI OUT
Output Connector
(1) Type A Female HDMI
Control
(1) IR IN; (1) IR OUT; (1) RS232
Control Connector
(2) 3.5mm Mini Jacks; (1) 3-Pin phoenix connector
General
Resolution
Up to 4Kx2K 60Hz 4:4:4 HDR.
Audio Format
PCM, Dolby Digital, DTS, DTS-HD.
Standard
HDMI2.0 & HDCP2.2 complaint.
Transmission Distance
≤300m via single mode or OM3/OM4 multi-mode fiber
cables.
Operation Temperature
0 ~ +40℃
Storage Temperature
-10 ~ +55℃
Relative Humidity
10% ~ 90%
Power Supply
Input: AC 100~240V, 50/60Hz; Output: 12VDC 1A.
Power Consumption
9W (max)
Dimension (W*H*D)
130mm x 20mm x 84mm
Net Weight
175g

HDMI2.0 Fiber Optical Extender
10
8. Troubleshooting & Maintenance
Problems
Potential Causes
Solutions
Color losing or vague/
double image in HDMI
display
Poor quality of the optical
fiber cable
Change for qualified OM3
cable.
Power led is off,
operations don’t work
Not been powered
Power up the unit
Poor contact
Make sure power adapter is
in well contact
No output on the display
Source/ Display is off
Turn on the source/ display
Poor contact
Check the DVI ports one by
one to make sure they’re in
well contact.
The display doesn’t support
the resolution
Connect the display to the
transmitter and capture its
EDID data before using.
If your problem still remaining after following the above troubleshooting steps, please
find further assistance.

HDMI2.0 Fiber Optical Extender
11
9. Customer Service
The return of a product to our Customer Service implies the full agreement of the terms
and conditions hereinafter. There terms and conditions may be changed without prior
notice.
1) Warranty
The limited warranty period of the product is fixed 3 (three) years.
2) Scope
These terms and conditions of Customer Service apply to the customer service
provided for the products or any other items sold by authorized distributor only.
3) Warranty Exclusions:
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
✓Normal wear and tear.
✓Use of supplies or parts not meeting our specifications.
✓No certificate or invoice as the proof of warranty.
✓The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
✓Damage caused by force majeure.
✓Servicing not authorized by distributor.
✓Any other causes which does not relate to a product defect.
Shipping fees, installation or labor charges for installation or setup of the product.
4) Documentation:
Customer Service will accept defective product(s) in the scope of warranty coverage
at the sole condition that the defeat has been clearly defined, and upon reception of
the documents or copy of invoice, indicating the date of purchase, the type of
product, the serial number, and the name of distributor.
Remarks: For further assistance or solutions, please contact your local distributor, or
email EET at:ob[email protected]
