Vivotek Supreme SD8363E User manual

EN-1
English
Warning Before Installation
Refer to your user’s manual for the
operating temperature.
Power off the Network Camera as soon as
smoke or unusual odors are detected.
Do not touch the Network Camera during
a lightning storm.
Do not disassemble the Network Camera.
Do not drop the Network Camera.
Do not insert sharp or tiny objects into the
Network Camera.
Do not manually pan and tilt the Network
Camera when the power is on.

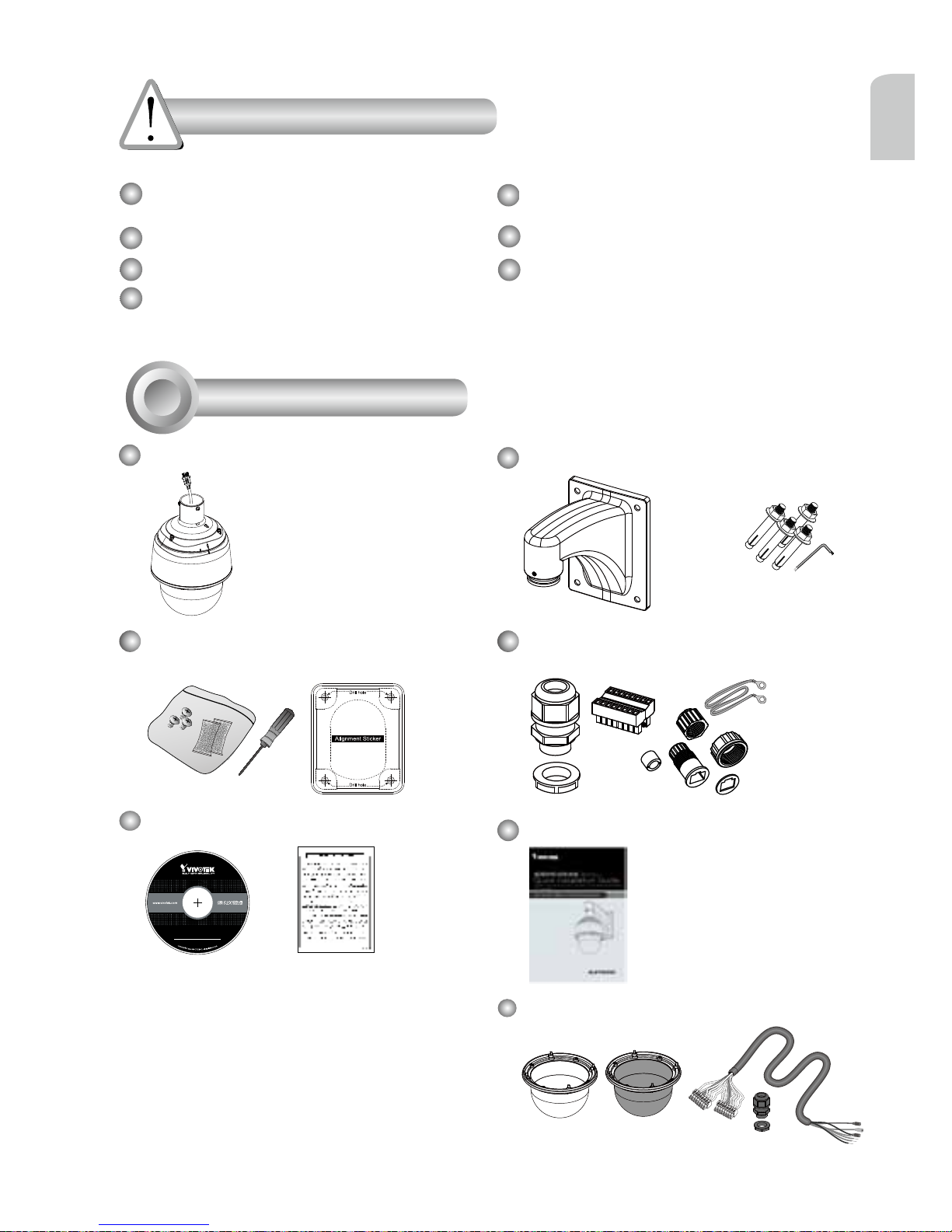

Package Contents
1
5
1
0
0
0
0
2
1
0
G
Software CD / Warranty Card
Wall Mount Bracket / Screws
SD8363E/63E-M
Screws / Alignment Sticker / T25
Stardriver / Desiccant Bags (SD8363E)
Waterproof Connectors / Terminal Blocks /
Ethernet Cable / Ground Wire
Quick Installation Guide PC/ABS / Smoked Dome Cover / IO Cable
(Separately Purchased)

EN-2
Inner View
Board-to-board
Connector
Lens
Outer View

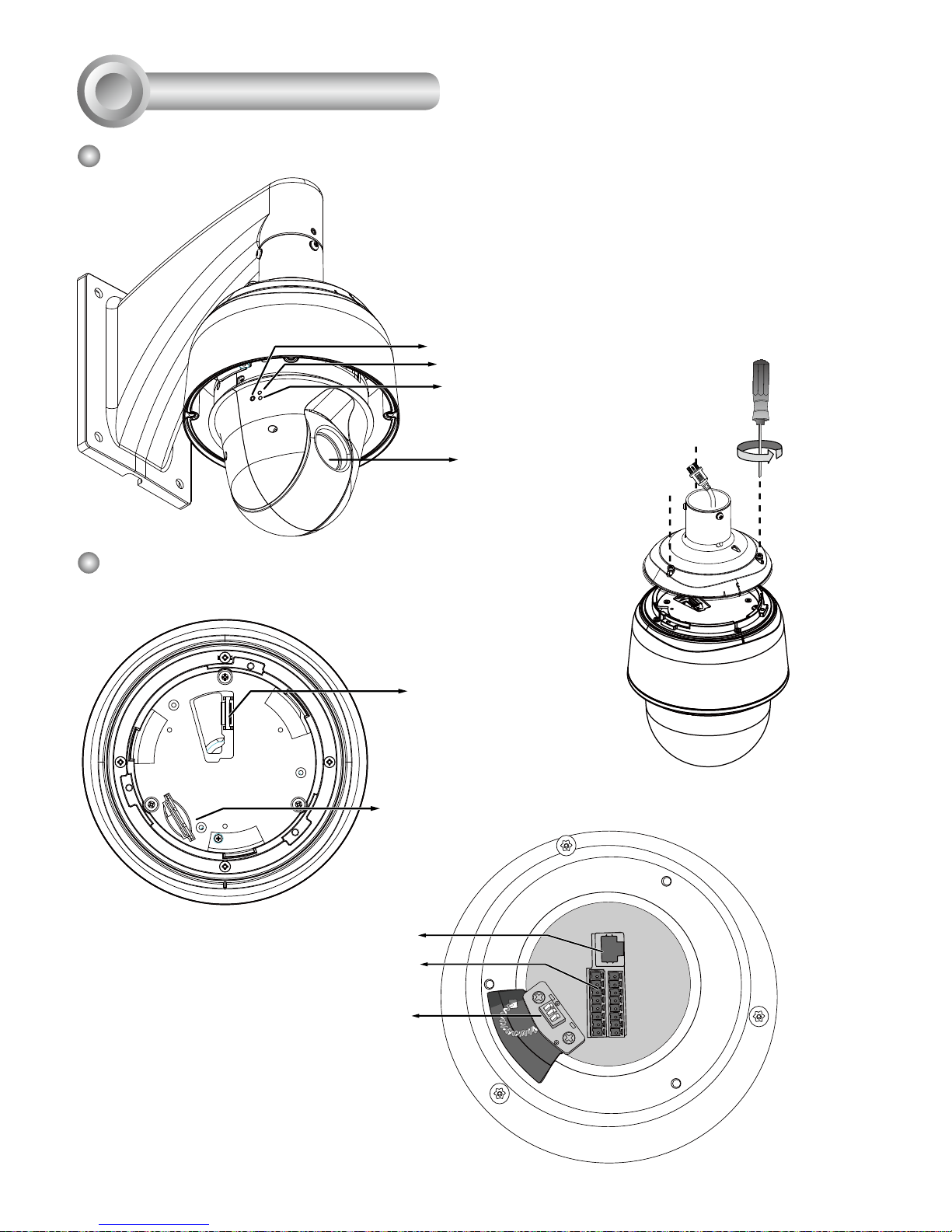

Physical Description
2
Ethernet 10/100
RJ45 Plug
Spring Contacts for
Dehumidier
General I/O
Terminal Block
SD/SDHC/SDXC Card Slot
Ethernet
DI GND
DI4
DI3
DI2
DI1
DO2
DO1
DO+(12V)
AC24V
AC24V
Reserved
MIC IN
Line OUT
Audio GND
RS485-
RS485+
Status LED
Network LED
Reset Button
Interface Section
Camera Body
This drawing shows a camera with its dome
cover removed.
The SD card slot is accessed
by removing the top section
using the T25 stardriver.

EN-3
English
Hardware Installation
3

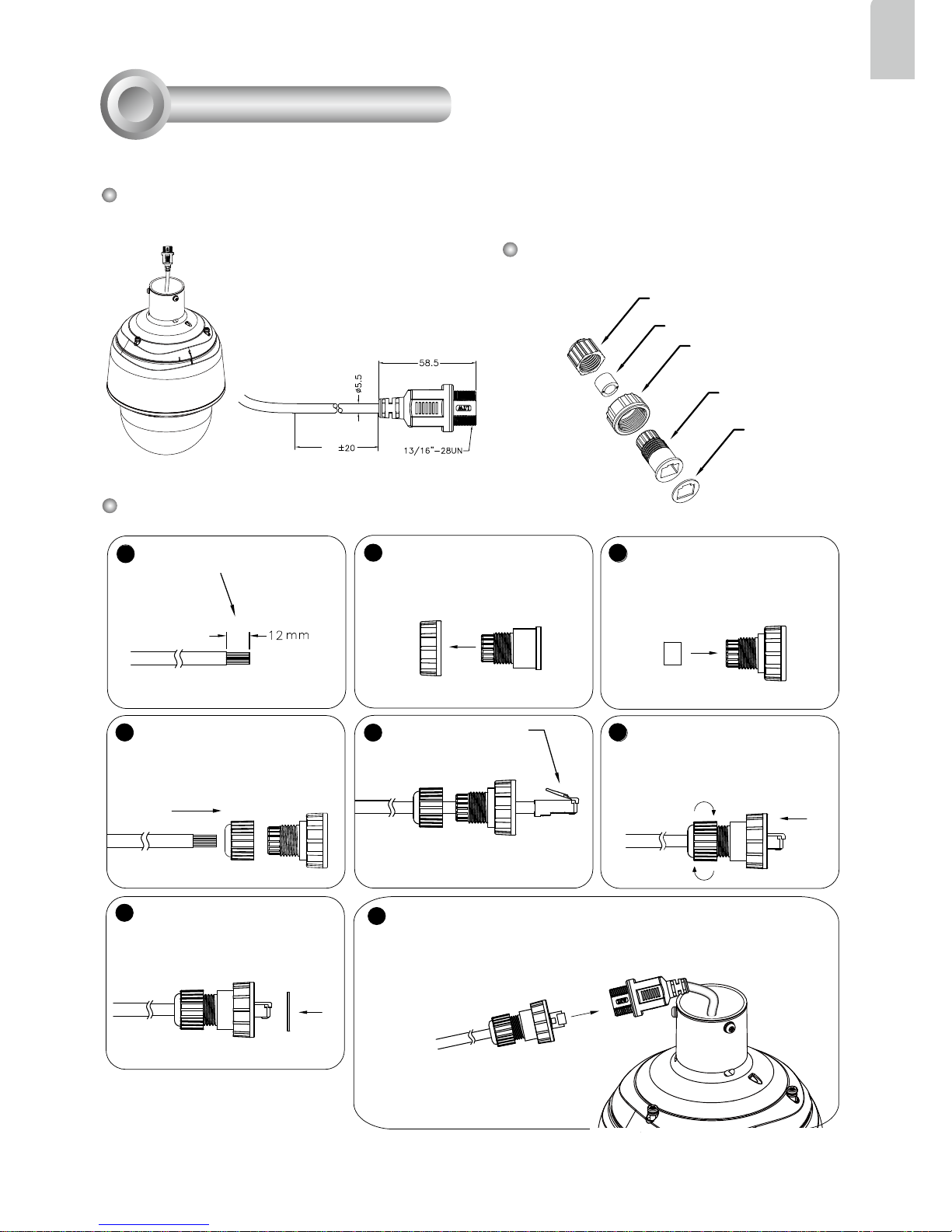

RJ45 Cable Dimension (unit: mm)
Use CAT5e cables only.
3-1. Connecting RJ45 Ethernet Cable
12
3
45
6
78
(D) (B) (C)
(A)
(E)
Components of the Waterproof
Connector
Screw Nut (C)
Housing (D)
Gasket (E)
Seal (B)
Sealing Nut (A)
100
Prepare an Ethernet cable
and strip part of the sheath.
Insert the housing into the
screw nut.
Insert the seal into the housing.
Insert the stripped Ethernet
cable through the sealing
nut and the housing.
Clamp the cable with
an RJ45 plug.
Push the RJ45 plug into the
housing, then secure the
sealing nut tightly.
Attach the gasket to the front
of the housing.
Assembling Steps
Recommended cable gauge: O.D.
5.5~7
Connect the Ethernet cable to the RJ45 cable and secure the
connectors tightly.

EN-4
3-2. Connecting Power and I/O Wires
If you need to connect I/O wires and 24V power, disassemble the top section of the
camera. It is highly recommended to complete the following before you can mount
the speed dome camera at the installation site:
Skip this section and move to Section 3-3 if you connect the Ethernet cable only.
1-3
1-2
1-1
Plan the wire length and complete cabling to
the Interface Section
Cabling through the dome cap and waterproof
connectors
Connect with the mount bracket

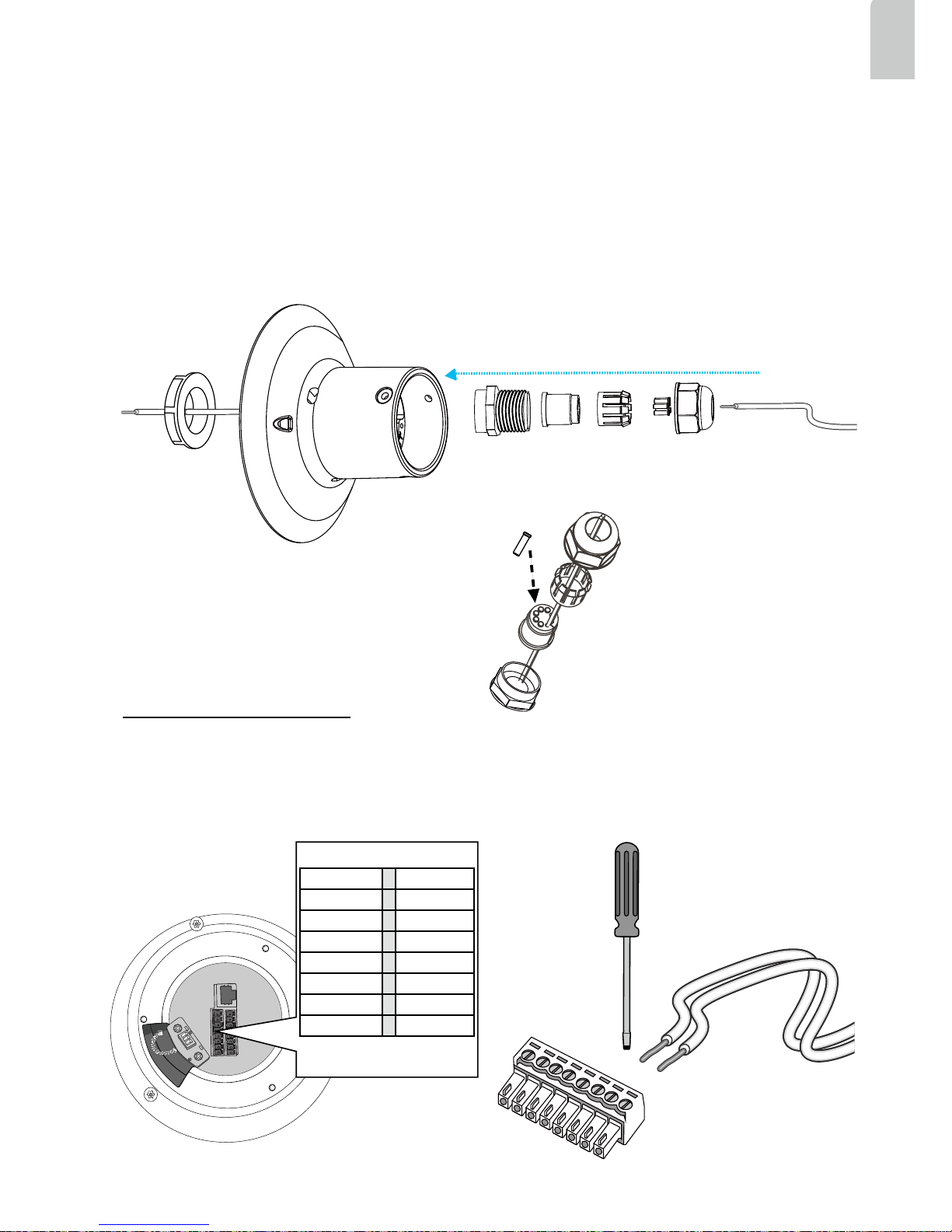

3-2-1. Cabling through the Waterproof Connectors
Components of the Waterproof Connector
Seals (C)
Housing (D)
Sealing Nut (E)
Seal (B)
Screw Nut (A) •
Wire range: 13~16AWG (1.2~1.8mm)
•
A socket wrench for the M20 hex nut is
required.

EN-5
English
1. Disassemble the components of the waterproof connector into parts (A) ~ (E) as
shown above.
2. Remove the plastic stopper from the bottom of the dome cap and keep the M20 hex
nut for later use.
3. Depending on the number of wires, remove seals (C) from the rubber seal (B).
4. If you have external devices such as sensors and alarms, feed IO wires through the
waterproof connector (E --> D --> B --> A) as illustrated below. Note that there are 16
holes on the seal (B), and wire range is beteen 1.2 and 1.8mm.
5. Push the seal (B) into the housing (D).
6. Secure the sealing nut (E) tightly.
(E)(D)(B)(A)
(C)
(B)
(D)
3-2-2. Connect cables:
Ethernet
DI GND
DI4
DI3
DI2
DI1
DO2
DO1
DO+(12V)
AC24V
AC24V
Reserved
MIC IN
Line OUT
Audio GND
RS485-
RS485+
AC24V DI GND
AC24V DI4
Reserved DI3
MIC IN DI2
Line OUT DI1
Audio GND DO2
RS485- DO1
RS485+ DO+(12V)
Wire range: 13~16AWG
Strip length: 6~7mm
Screw: M2
1. Use a small-size at-blade screwdriver to secure IO
wires to the included terminal blocks. You may aslo
purchase an IO combo cable from VIVOTEK.
M20 hex
nut
The max. output load on
DO pins is 50mA.

EN-6
2. Feed the Ethernet cable and IO wires through the mounting bracket, the openings on
the dome cap, and to the interface section. Attach the rubber seal plug to dome cap for
water proong.
Mount bracket
Dome cap
Interface Section
1. IO wires are user-supplied.
2. Avoid touching the circuit boards to prevent damage by electro static discharge.
NOTE:
3. Secure the included ground wire to the dome cap, pass it through the mount bracket,
and connect the other end to a grounded conduit later.
2
3
4. Remove seal from the breathe hole on the top section if your camera comes with the
dehumidier.
4

EN-7
English
1
2
3
Combine the components of the top section.
1. Press the seal ring into the groove on canister. Use the black machine screws (M4x8)
to attach the interface section to the dome cap. Note that you should orient and align
the spring contacts with the dehumidier unit on the dome cap.
2. Secure the dome cap to the mount bracket.
3. Use the included hex wrench to secure the connection.
When done, the top section will
look like this. You can now carry the
camera and the top section
to the installation site.
Mount
Bracket
Interface Section
Board-to-board
Connector
Dehumidier Unit
3-2-3. Connect with the Mount Bracket
Seal Ring

EN-8
HD WDR Pro
IMPORTANT:
If your camera comes without the dehumidier,
you should examine whether the color of the
silica gel inside the chassis has turned red. If
so, you should replace the desiccant bag.
To replace the desiccant bags:
1. Remove the dome cover by loosening 4 T25
anti-tamper screws.
2. Replace the desiccant bags by attaching
them rmly to the inside of the chassis.
3. Re-install the dome cover.
Also note the following:
1. Do not install the camera in a raining day.
2. It takes approximately 2 days to suppress
the moisture level to 30% or lower, either
using the desiccant bags or the dehumidier.
3. Condensation may still be observed from on
the dome cover within 30 minutes.

EN-9
English

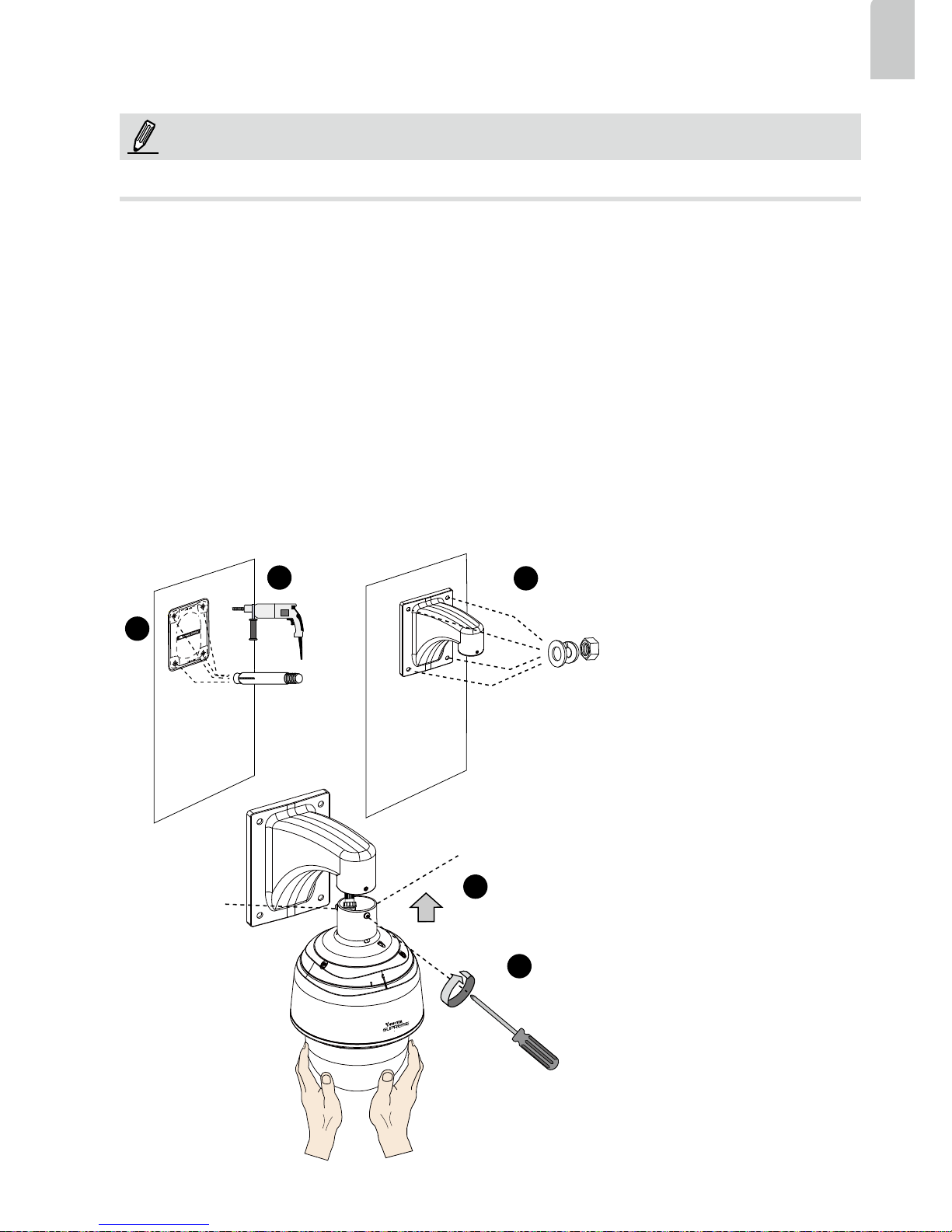

3-3. Mounting the Network Camera
NOTE:
Before mounting the camera, install an SD card if you prefer recording to local storage.
1
23
5
4
HD WDR Pro
1. The camera weighs 3.66kg. Select a rigid mounting location to prevent vibration to
the camera. Attach the alignment sticker to the wall.
2. Drill 4 pilot holes (10mm in diameter and 4cm deep) into the wall, and then hammer
in threaded anchors. Note that you should hammer the anchors with hex nuts on
them so that the threaded poles will not be deformed! If preferred, drill another hole
for routing cables.
3. Secure the wall mount bracket to wall using 4 sets of captive washers and nuts.
4. Align the camera with the wall mount bracket.
5. Tighten 3 included screws using a Phillips screwdriver. Make sure all parts have been
securely tightened.
3-3-1. Mounting with Ethernet Connection Only

EN-10
1
23
4
56
4
HD WDR Pro
HD WDR Pro
HD WDR Pro
Alignment Mark
C Mark
1. The camera weighs 3.66kg. Select a rigid mounting location to prevent vibration to
the camera. Attach the alignment sticker to the wall.
2. Drill 4 pilot holes (10mm in diameter and 4cm deep) into the wall, and then hammer
in threaded anchors. Note that you should hammer the anchors with hex nuts on
them so that the threaded poles will not be deformed! If preferred, drill another hole
for routing cables.
3. Secure the wall mount bracket to wall using 4 sets of captive washers and nuts.
4. Align the camera body with the top section. Align the alignment mark on the camera
with that on the interface section. Push the camera up to match the top section.
5. Rotate the camera clockwise until its alignment mark is aligned with the "C" mark.
6. Use the included T25 stardriver to tighten the 3 anti-tamper screws from the top.
Make sure all parts have been securely tightened.
3-3-2. Mounting with Ethernet & I/O Wires

EN-11
English

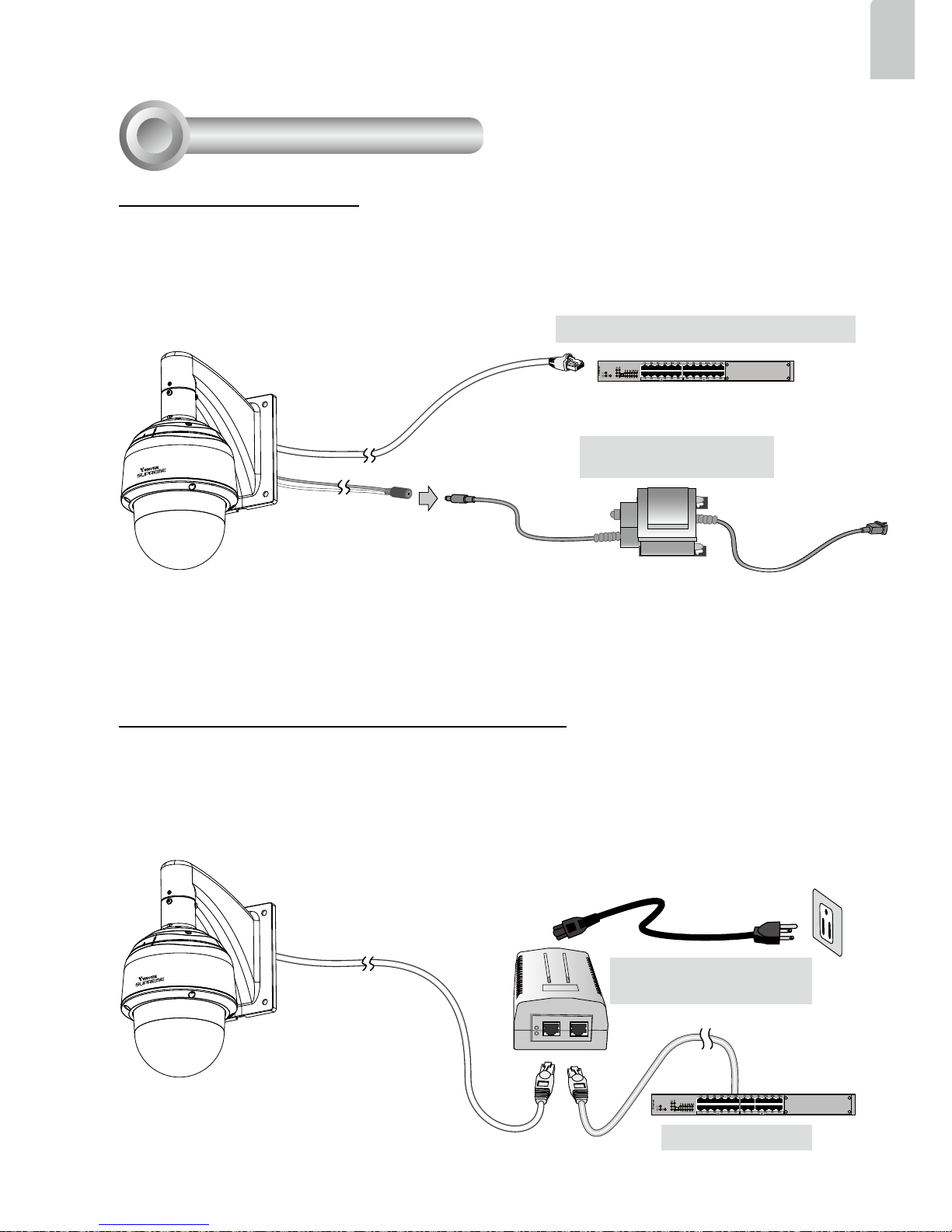

Network Deployment
4
HD WDR Pro
1. Connect the Network Camera's Ethernet cable (CAT5e) to a PoE Plus switch. A 30W
PoE output port alone can not drive the onboard heater, and hence if using the PoE
switch alone, the application does not apply in low-temperature condition. The 30W PoE
plus can only drive the camera when it is working at a temperature higher than -5ºC.
HD WDR Pro
When using a non-PoE switch
Use a High Power PoE power injector (separately purchased) capable of 60W output to
connect between the Network Camera and a non-PoE switch. Sufcient power is required
for low temperature conditions when the onboard heater is activated.
Non-PoE Switch
High Power PoE Power
Injector
2. Connect the power wires to an AC 24V power adaptor (user-supplied). The AC 24V
adapter can drive the camera and the onboard heater.
You can connect both power sources for redundancy in power supply.
Power over Ethernet (High Power PoE)
General Connection
AC 24V 3.5A Adapter
(User-supplied)
IEEE 802.3at PoE Switch (30W output)
and / or

EN-12
1. Install "Installation Wizard 2" from the Software Utility directory on the software CD.
2. The program will conduct an analysis of your network environment. After your network
is analyzed, please click on the "Next" button to continue the program.
3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network
Cameras on the same LAN.
4. After a brief search, the main installer window will pop up. Double-click on the MAC
address that matches the one printed on the camera label or the S/N number on the
package box label to open a browser management session with the Network Camera.
Assigning IP Address
5
For further setup, please refer to the user's manual on the software CD.
28x
Ready to Use
6
1. A browser session with the Network Camera should prompt as shown below.
2. You should be able to see live video from your camera. You may also install the
32-channel recording software from the software CD in a deployment consisting of
multiple cameras. For its installation details, please refer to its related documents.

TC-13
中文 (繁體)
安裝前應注意事項
有關操作時的溫度，請參閱使用者說明書。
如果發現網路攝影機出現煙霧或聞到異味時，
請立即關閉電源。
閃電時，請勿碰觸網路攝影機。
請勿拆卸網路攝影機。
請勿讓網路攝影機掉落地面。
請勿將任何物件插入網路攝影機，例如細針。
網路攝影機開機後，請勿以外力上下/左右旋
轉網路攝影機。
檢查包裝內容物
1
5
1
0
0
0
0
2
1
0
G
軟體光碟/產品保固卡
壁掛安裝架/半圓形上蓋/螺絲SD8363E/63E-M
螺絲/校準貼紙/T25螺絲起子/防潮包
(SD8363E)
防水連接器/端子座/接地線
快速安裝手冊
PC/ABS/煙霧保護蓋/IO纜線(需另購)

TC-14
實體外觀說明
2
內裝
板間連接器
鏡頭
外觀
乙太網路10/100
RJ45接口
除濕器彈簧接點
通用I/O端子座
SD/SDHC/SDXC記憶卡插槽
Ethernet
DI GND
DI4
DI3
DI2
DI1
DO2
DO1
DO+(12V)
AC24V
AC24V
Reserved
MIC IN
Line OUT
Audio GND
RS485-
RS485+
狀態LED
網路LED
重設鍵
介接環
攝影機身
本圖所示為取下外罩的攝影機。
使用 T25 星形螺絲起子取下頂部即
可安裝 SD 卡。

TC-15
中文 (繁體)
硬體架設
3
R J 4 5 線 徑 ( 單 位：m m )
3-1. 連結RJ45乙太網路線
12
3
45
6
78
(D) (B) (C)
(A)
(E)
100
防水接頭組件
螺母(C)
外罩(D)
墊片(E)
密封塞(B)
密封螺母(A)
準備一條乙太網路纜線並撕
除部分外鞘。
將外罩嵌入螺母。 將密封塞嵌入外罩。
將撕除部分外鞘的乙太網路
纜線穿過密封螺母與外罩。
用RJ45插頭拑住纜線。 將RJ45插頭推入外罩，然後
旋緊密封螺母。
將墊片貼合至外罩前端。
組裝步驟
建議纜線規格：O.D. 5.5~7
連接乙太網路纜線與RJ45纜線，並將接頭鎖緊。
請務必使用 CAT5e 纜線。

TC-16
3-2. 連接電源線及 I/O 纜線。
如果您需要連接 I/O 纜線與 24V 電源，請拆下攝影機的頂部。 將高速半圓形攝影機
裝上安裝位置前，請先完成下列作業：
如果只要連接乙太網路線，請跳過此步驟並移至 3-3 節。
1-3
1-2
1-1
量好纜線長度同時連上介接環
將纜線穿過半圓形上蓋及防水連接器
裝上安裝架
3-2-1. 穿過防水連接器配線
防水連接器總成
密封環(C)
護罩(D)
鎖帽(E)
密封環(B)
螺帽(A) • 線徑：13 ~ 16 AWG (1.2 ~ 1.8 mm)
• 須有適用於M20六角螺帽的套筒扳手。
穿過防水連接器

TC-17
中文 (繁體)
1. 按上圖所示，將防水連接器拆解成組件(A) ~ (E)。
2. 取下半圓形上蓋底部的塑膠塞墊，妥善保留M20六角螺帽以便後續使用。
3. 按配線數量，取下橡膠密封環(B)的密封墊(C)。
4. 如有感測器及警報器等外接裝置時，請按下圖所示，將IO線路按(E --> D --> B --> A)的
順序穿過防水連接器。密封環(B)上有16個可供線徑1.2及1.8 mm線路穿過的線孔。
5. 將密封環(B)推入密封罩(D)。
6. 鎖緊鎖帽(E)。
(E)(D)(B)(A)
(C)
(B)
(D)
3-2-2. 連接纜線：
Ethernet
DI GND
DI4
DI3
DI2
DI1
DO2
DO1
DO+(12V)
AC24V
AC24V
Reserved
MIC IN
Line OUT
Audio GND
RS485-
RS485+
AC 24 V DI接地
AC 24 V DI4
保留 DI3
麥克風輸入 DI2
線路輸出 DI1
音訊接地 DO2
RS485 - DO1
RS485 + DO+(12V)
線徑：13 ~ 16 AWG
剝線長度：6 ~ 7 mm
螺絲：M2
1. 用小的平口螺絲起子，將IO線路固定在隨附的端子
座上。您亦可向VIVOTEK另購IO組線。
M20 hex nut
DO 腳位 的最大輸出負載為
50mA

TC-18
2. 將網線及IO線路穿過安裝架、半圓形頂蓋上的開口、直到介接環。將橡膠密封塞墊塞入半圓
形上 蓋。
安裝架
半圓形上蓋
介接環
1. 使用者需自備IO線路。
2 切勿接觸電路板以免遭靜電放電損壞。
注 意：
3. 將隨附的接地線接上半圓形上蓋，穿過安裝支架，以便後續再將另一端接上接地導管。
4. 如果您的攝影機配備有除濕裝置，請移除位於頂部的呼吸孔的密封件。
2
3
4

TC-19
中文 (繁體)
1
2
3
組裝防水連接器的上端。
1. 將密封環塞進球形外罩頂蓋的凹槽。用黑色小螺絲(M4 x 8)將介接環連上半圓形上蓋。請注
意：彈簧接點應對準半圓形上蓋的除濕單元。
2. 將半圓形上蓋接入安裝支架。
3. 用隨附的六角扳手固定兩者間的連接。
完成後，上段應如此圖所示。然後將攝
影機及上段拿到安裝現場。 安裝架
介接環
板間連接器
除濕單元
3-2-3. 接上安裝支架
密封環
