Vixen Air VXF1GP1R User manual

VXF1GP1R
INSTALLATION GUIDE
PAGE 1 of 2
BEFORE BEGINNING YOUR INSTALLATION
Read through the instruction guide before getting started with the installation. Professional installation is recommended for
this product.
CONTENTS
Single Gauge Black Powder Coated Metal Dash Panel
One 3-Position Momentary Rocker Switch (Pre-installed)
SAFETY INSTRUCTIONS
Make sure your battery ground is detached before getting your installation started.
Employ equipment for eye protection during drilling operations.
IMPORTANT: If the vehicle is dropped or raised too fast when activating the valve using the switch, a flow control
valve (not provided) can be installed to reduce the air intake or exhaust of the air spring.

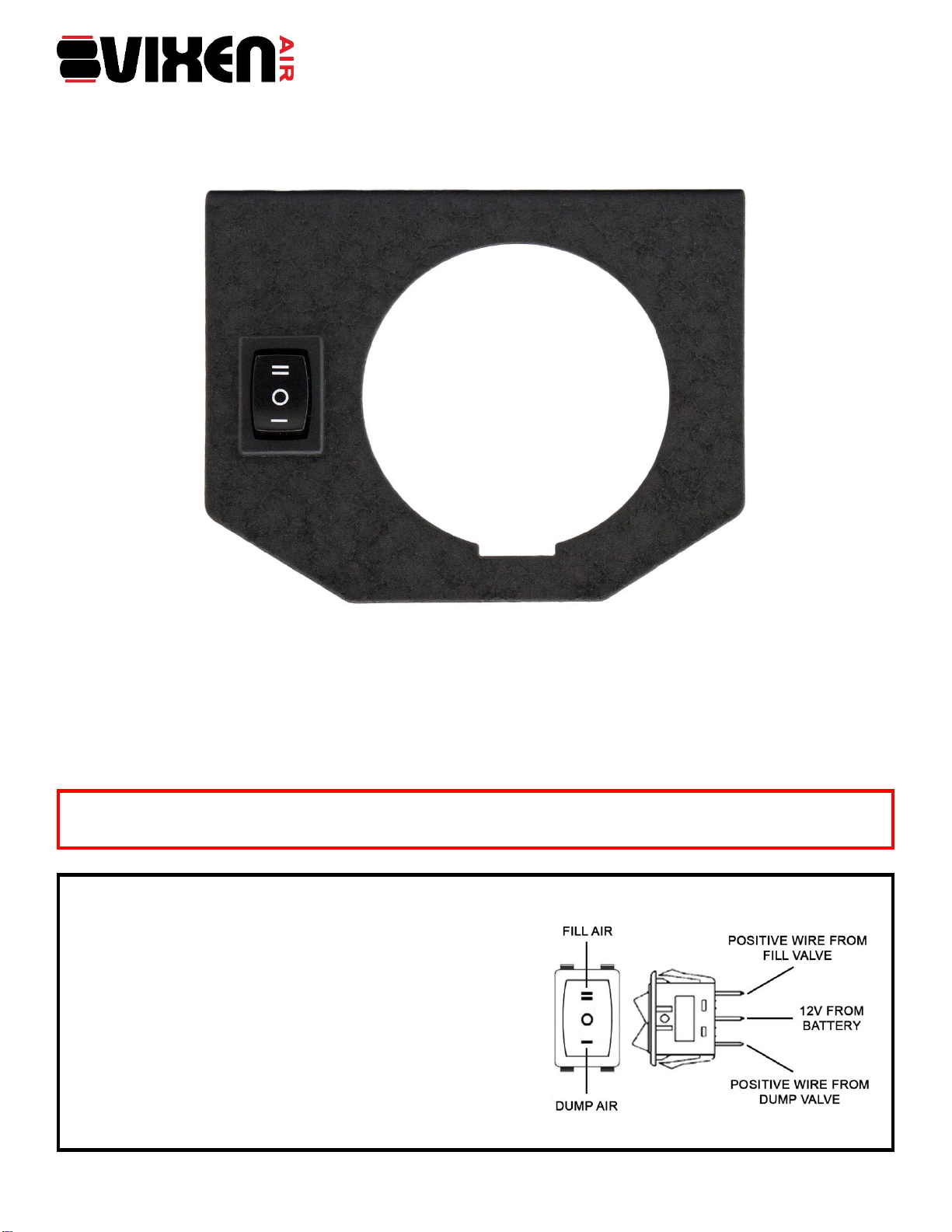

ROCKER SWITCH WIRING AND PANEL INSTALLATION
Connect the "two lines" connector to the positive (+) wire
of the air valve that is going to fill air into the air spring.
Connect the "O" connector to the 12V, you may use the
same wire that you used to connect the positive wire of
the gauge's bulb.
Connect the "one line" connector to the positive (+) wire
of the air valve that is going to dump air from the air
spring.
Install your air gauge on the panel.
Using the dash panel's screw holes as a template mark
the screws hole location on the surface to be installed
and secure the panel with two screws (not provided).

VXF1GP1R
INSTALLATION GUIDE
PAGE 2 of 2
DIMENSIONS
