QUICK START GUIDE
Model: S3821w-C0
VIZIO

• The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert
the user to the presence of un-isolated, dangerous voltage within your Unit that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
• The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and servicing instructions in the literature accompanying
your Unit.
• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
• The wall socket should be located near your Unit and be easily accessible
• Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit,
unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.
• Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord
and contact your dealer immediately. Do not try to repair your Unit yourself.
• Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the internal
components may function abnormally. Unplug the power cord immediately and contact your dealer for repair.
Continued use of your Unit may cause fire or electric shock.
• Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in environments with
heavy dust or high humidity may cause fire or electric shock.
• Ensure that the power cord and any other cables are unplugged before moving your Unit.
• When unplugging your Unit, hold the power plug,not the cord.Pulling on the power cord may damage the wires
inside the cord and cause fire or electric shock. When your Unit will not be used for an extended period of time,
unplug the power cord.
• To reduce risk of electric shock, do not touch the connector with wet hands.
• Insert the remote control battery in accordance with instructions.Incorrect polarity may cause the battery to leak
which can damage the remote control or injure the operator.
• See the important note and rating located on the bottom of the unit.
• WARNING - This equipment is not waterproof.To prevent a fire or shock hazard, do not place any container filled
with liquid near the equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain, or moisture.
• CAUTION - Danger of explosion or fire if battery is mistreated. Replace only with the same or specified type.
• Do not leave the battery exposed to direct sunlight for a long period of time with doors and windows closed. Do
not disassemble the battery or dispose of it in fire.
• Disconnect the mains plug to shut off when you experience trouble or the device is not in use. The mains plug
shall remain readily operable.
Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric
shock or fire.To prevent your Unit from being damaged,the following rules should be observed for its installation,use,
and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions
in a safe place for future reference.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug.A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong.The wide blade or
the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus.When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as when the power supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
• To reduce the risk of electric shock or component damage, switch off the power before connecting other
components to your Unit.
• Unplug the power cord before cleaning your Unit.A damp cloth is sufficient for cleaning. Do not use a liquid or a
spray cleaner on your Unit. Do not use abrasive cleaners.
• Always use the accessories recommended by the manufacturer to insure compatibility.
• When moving your Unit from an area of low temperature to an area of high temperature, condensation may
form in the housing.Wait before turning on your Unit to avoid causing fire, electric shock, or component damage.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable
operation of your Unit and to protect it from overheating, be sure these openings are not blocked or covered. Do
not place your Unit in a bookcase or cabinet unless proper ventilation is provided.
• Never push any object into the slots and openings on your Unit enclosure. Do not place any objects on the
top of your Unit. Doing so could short circuit parts causing a fire or electric shock. Never spill liquids on your Unit.
• The power cord must be replaced when using different voltage than the voltage specified. For more information,
contact your dealer.
• When connected to a power outlet, power is always flowing into your Unit.To totally disconnect power, unplug
the power cord.
h
IMPORTANT SAFETY INSTRUCTIONS

3
PACKAGE CONTENTS
This Quick
Start Guide
Remote Control
with Batteries
High Definition Sound Bar
Digital Optical
Cable
Stereo RCA to 3.5mm
Audio Cable
Coaxial Audio
Cable
Power
Adapter
2 x Sound Bar Wall
Mount Brackets
Wall Mount
Template
2 x Wall
Mount Screws
(Size: M4 x 10)

4
CONTROLS & CONNECTIONS
Back of Sound Bar
Power Port USB (5)
USB In
OPTICAL (4)
Digital Optical Audio In
DIGITAL (3)
Coaxial In
AUX (1)
Analog Audio In
AUX (1)
Analog Audio In

5
Control Buttons are located here:
Back of Sound Bar
Input
Power
Volume
+
-
Bluetooth Input
(Hold to force pair, See “Bluetooth Pairing” on page 12)

6
FIRST-TIME SETUP
*Not all TVs have the audio outputs shown above. To connect the Sound Bar directly
to your other devices (Blu-ray player, game system, etc) see your device’s user manual.
1
AND CONNECT IT TO YOUR TV
CHOOSE ONE CABLE:
BETTER
GOOD
GOOD GOOD BETTERBETTER
3.5MM TO
RCA CABLE
3.5MM TO
RCA CABLE
DIGITAL COAXIAL
CABLE**
DIGITAL OPTICAL
CABLE**
**When using either of the Digital Inputs, if there is no audio: (A) try setting the TV
output to PCM or (B) Connect directly to your Blu-ray/other source, some TVs do not
pass through digital audio.
Back of Sound Bar

7
2
Connect the Power Adapter
to the Sound Bar.
Plug the Power Adapter
into a Power Outlet.
1

8
BACK OF SUBWOOFER 3
4
5
Connect a Power Cable
to the Subwoofer.
Plug the Power Cable into
a power outlet.
Flip the Power Switch into
the On position.

9
For the best surround sound experience, position the Sound Bar as shown.
The Sound Bar should be close to ear level.
Sound Bar is centered
below the TV.
6

10
7
Remove the battery cover
by gently sliding it away
from the remote.
8
Insert the included batteries
and gently slide the battery
cover back into place.
9Turn your TV on, then press the Power button
on the remote to turn the Sound Bar on.
Press the Input button to switch between
audio sources. For example, if you
connected your TV to Input 1, set the Sound
Bar to Input 1.
Hardware Setup is complete.
Power
Input
Top Top

11
Volume +
Press to increase volume.
Volume –
Press to decrease volume.
USING THE REMOTE
Previous
Press to return to previous track.
(Changes Treble and Bass levels)
Power
Press to turn on or off.
Mute
Press to mute/unmute.
Input
Press to change input source.
Enter/Play/Pause
Press to select an option.
Press to Play or Pause.
Next
Press to skip to the next track.
(Changes Treble and Bass levels)
Treble
Press to adjust the treble levels.
Bass
Press to adjust the bass levels.
TruVolume
Press to enable/disable TruVolume.
TruSurround HD
Press to enable/disable TruSurround HD.

12

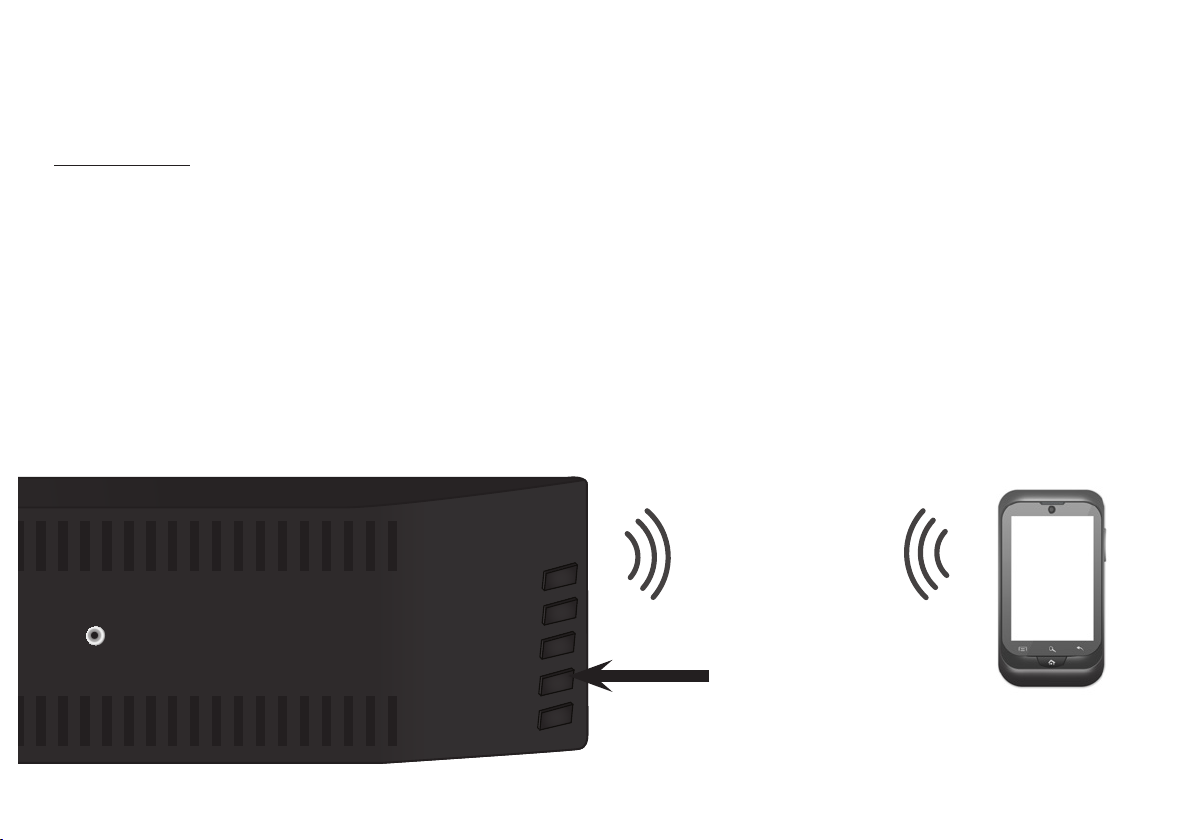

BLUETOOTH PAIRING
To pair the Sound Bar with a Bluetooth device:
1. Press and hold the Bluetooth button on the Sound Bar for five (5) seconds or use the BT Pair menu option from the
remote (see “ Adjusting Sound Bar Settings ” on page 14). When the Sound Bar is in Bluetooth Pairing Mode, the LED
Indicators on the Display Panel on the front of the Sound Bar will light sequentially from left to right and back again.
Once the device is paired, the LED Indicators will stop flashing.
2. You can now search for the Sound Bar (VIZIO S4221w) using your Bluetooth device. For more information, see the
documentation that came with your device.
3. Play audio from your Bluetooth device.Volume can be controlled on your source device and
the Sound Bar.
Back of Sound Bar

13
USING BLUETOOTH MODE
Your Sound Bar supports music streaming from smartphones, tablets, and computers with Bluetooth capability.
Device compatibility will vary, see your device’s documentation for more information. Once you have paired your
source device to the Sound Bar, as long as you stay within range of the Sound Bar, your device should remain
paired, even if you change the input on the Sound Bar.
Maximizing Signal
A Bluetooth signal has a range of up to 30 feet. Keep in mind that Bluetooth is a compressed audio format, so
streamed music may lose some integrity when compared to a wired connection.
Try the following if your sound quality is less than optimal:
• If you hear any break-up or disconnect while streaming music from your device, move the source device
closer to the Sound Bar.
• Be sure that there are no solid obstructions in the line-of-sight between the Sound Bar and the source
device.
• Other wireless devices can affect Bluetooth range, including wireless security cameras, wireless
video baby monitors, cordless phones, and microwave ovens. Turning off or moving these devices
may improve Bluetooth range.
Your Sound Bar is not equipped with a microphone, so it cannot operate as a hands-free
device for a smartphone.
Reduce the volume levels on your device and on the Sound Bar before pressing Play. High volume
levels can damage your hearing.

14
ADVANCED SETUP
DIGITAL OPTICAL
CABLE
Connect up to five (5) different devices
to the Sound Bar (devices shown are
examples-you can use any device).
To listen to a device, change the input
source on the Sound Bar.
Optical, Coaxial, and 3.5mm cables
transmit audio only. If connecting a
video device, you will need a separate
video connection from the device to
your TV.
Game Console Network Media Player Tablet/MP3 Player/Laptop
USB
THUMB DRIVE*
3.5mm AUDIO
CABLE
DIGITAL COAXIAL
CABLE
RCA AUDIO
CABLE
*Supports .WAV file format playback only
Back of Sound Bar

15
WALL MOUNTING THE SOUND BAR
Back of Sound Bar Wall-Mount
Screw Holes
Insert and tighten twoWall-Mount Screws with a Phillips-head
screwdriver into the Wall-Mount Screw Holes.
1
2
Place the included wall mounting template against the wall
under your TV. Mark the four bracket holes using a pencil.

16
Be sure your screws are attached
to wood studs or drywall anchors
(for drywall) or concrete anchors
(for brick/concrete walls). Wall
mounting hardware is not included.
If you are unfamiliar with power tools or the layout of
electrical wiring in the walls of your home, consult a
professional installer.
15.75 in
(400 mm)
Wall Mount Screw
Screw Size: M4 x 10
3

17
There is no power.
• Press the POWER button on the remote control or on the top of your Sound Bar.
• Ensure the power cord is securely connected.
• Plug a different device into the electrical outlet to verify that the outlet is working correctly.
There is no sound.
• Increase the volume. Press Volume Up on the remote control or on the top of your Sound Bar.
• Press MUTE on the remote to ensure the Sound Bar is not muted.
• Press INPUT on the remote or on the top of your Sound Bar to select a different input source.
• When using either of the Digital Inputs, if there is no audio: (A) try setting the TV output to PCM or (B) Connect directly to
your Blu-ray/other source, some TVs do not pass through digital audio.
• Your TV may be set to variable audio output. Confirm that the audio output setting is set to FIXED or STANDARD, not
VARIABLE. Consult your TV’s user manual for more detailed information.
• If using Bluetooth,ensure that the volume on your source device is turned up and that the device is not muted.
I hear buzzing or
humming.
• Ensure all cables and wires are securely connected.
• Connect a different source device (TV, Blu-ray player, etc) to see if the buzzing persists. If it does not, the problem may
be with the original device.
• Connect your device to a different input on the Sound Bar.
The remote
isn’t working.
• Replace the remote batteries with new ones.
• Point the remote directly at the Sound Bar when pressing a button.
• If using a Bluetooth connection, some of the buttons on the remote may not be supported by the streaming
application. (e.g., Pandora doesn’t support the Back button.)
HELP & TROUBLESHOOTING

DO YOU HAVE QUESTIONS?
LET US HELP!
YOUR PRODUCT INCLUDES FREE LIFETIME TECH SUPPORT
Phone:
Email:
Web:
[phone] (TOLL-FREE)
[e-mail]
http://store.VIZIO.com/support
Hours of operation:
Monday - Friday: 5 am TO 9 pm (pST)
Saturday - Sunday: 8 am TO 4 pm (pST)
The VIZIO support team is highly
trained and is based in the
United States.
We can help with:
• New Product Setup
• Connecting Your Devices
• Technical Problems
• And More
We speak English • Se habla Español • Nous parlons Français

Available at www.VIZIO.com This Product Sold Separately
The VIZIO Co-Star™ Stream Player merges live TV and streaming entertainment into one experience,
turning any HDTV into the ultimate smart TV. Using the latest version of Google TV™, Co-Star decks out
your existing HDTV with apps, full-screen Web browsing and the best in streaming entertainment.And
with 1080p Full HD resolution, built-in Wi-Fi, and 3D-readiness,VIZIO Co-Star is the ultimate entertainment
upgrade for any high-definition television.
VIZIO RECOMMENDS

Available at www.VIZIO.com This Product Sold Separately
Introducing the new E-series slim frame design.The VIZIO E-series LED TV is shattering the mold in a
way only VIZIO can, with high-quality design and picture at the best value. With a stunningly slim outer
frame design – and LED with 1080p Full HD for rich colors and vivid details, this HDTV gives you the best
picture at the best value.
VIZIO RECOMMENDS
