VOKKERO ELITE EUROPE
User Guide
Version 1.1
211553
Wireless Interface (WI)

VOKKERO ELITE EUROPE Wireless Interface (WI) - 211553 V1.1
2 Page / 17
• This guide describes the functionality of the Vokkero® ELITE WI product, options and accessories. It explains how to configure it to allow an
extension of the conference system to a wired network.
• No part of this document may be reproduced or transmitted (in electronic or paper, or photocopying) without the agreement of VOGO. This
document may be changed without notice. All trademarks mentioned in this guide are the subject of intellectual property rights.
Web www.VOKKERO.com
VOGO
101, place Pierre Duhem,
Immeuble Les Centuries II,
34000 Montpellier, France
www.vokkero.com

VOKKERO ELITE EUROPE Wireless Interface (WI) - 211553 V1.1
3 Page / 17
Table des matières
ENGLISH 4
INFORMATIONS 5
DISCLAIMER 5
TECHNICAL SUPPORT 5
INTRODUCTION 8
ENVIRONMENTAL RECOMMENDATIONS 9
WARNINGS 9
RECOMMANDATIONS REGARDING USE 9
DISPOSAL OF WASTE BY USERS IN PRIVATE HOUSEHOLDS WITHIN THE EUROPEAN UNION 9
PREAMBLE 10
1. SYSTEM DESCRIPTION 11
1.1. VOKKERO® ELITE WI interface 11
1.1.1. Device interface description 11
1.1.2. General features 11

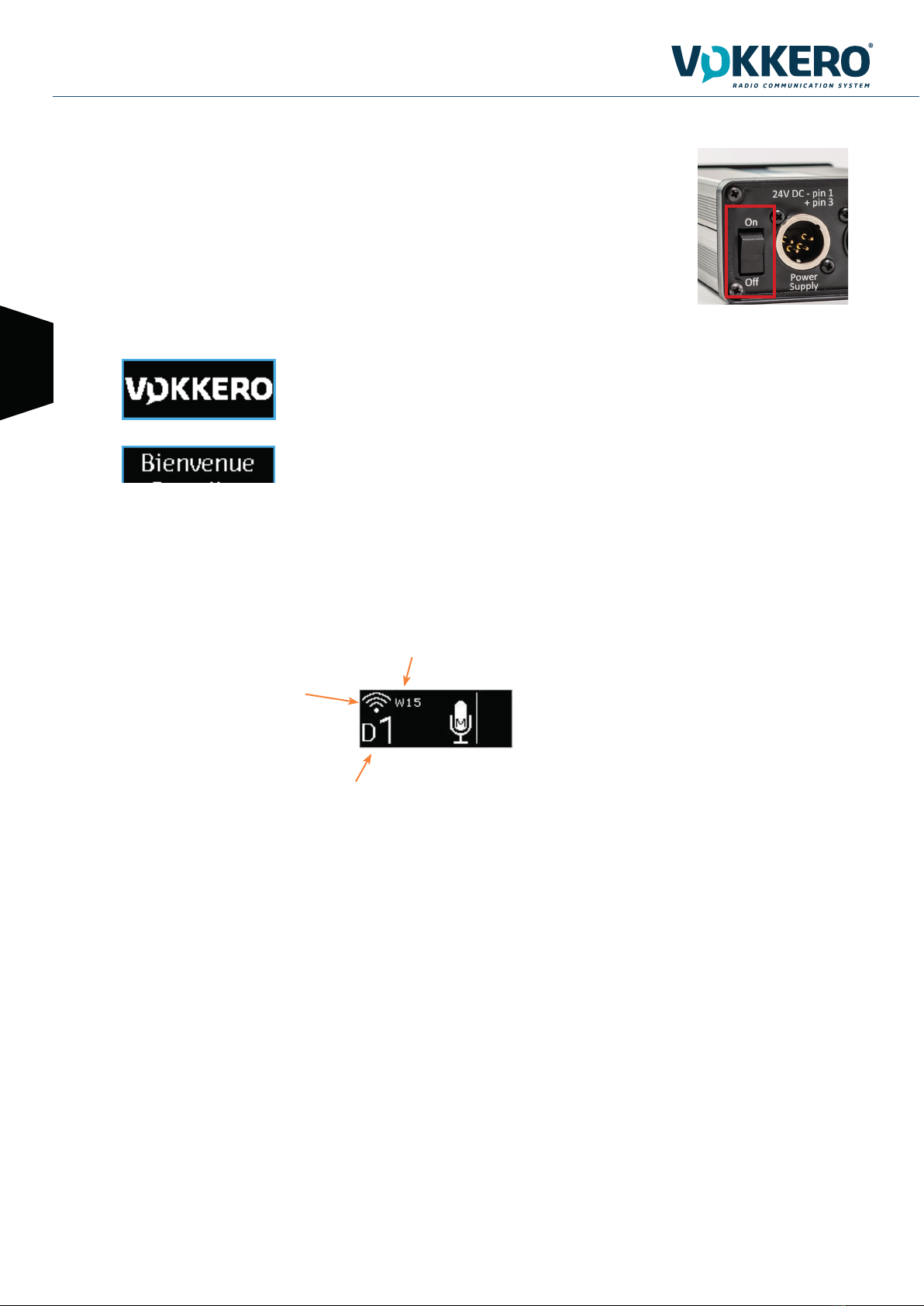

2. STARTING THE INTERFACE 12
2.1. Description of screen icons (default) 12
2.2. Description of screen icons (default) 12
2.3. How the interface works 12
1.1.3. CHANNEL/GROUP selection 12
1.1.4. “CALL” BUTTON 12
1.1.5. SETTINGS BUTTON 13
3. RADIO CONFIGURATION 14
1.1. Connection 14

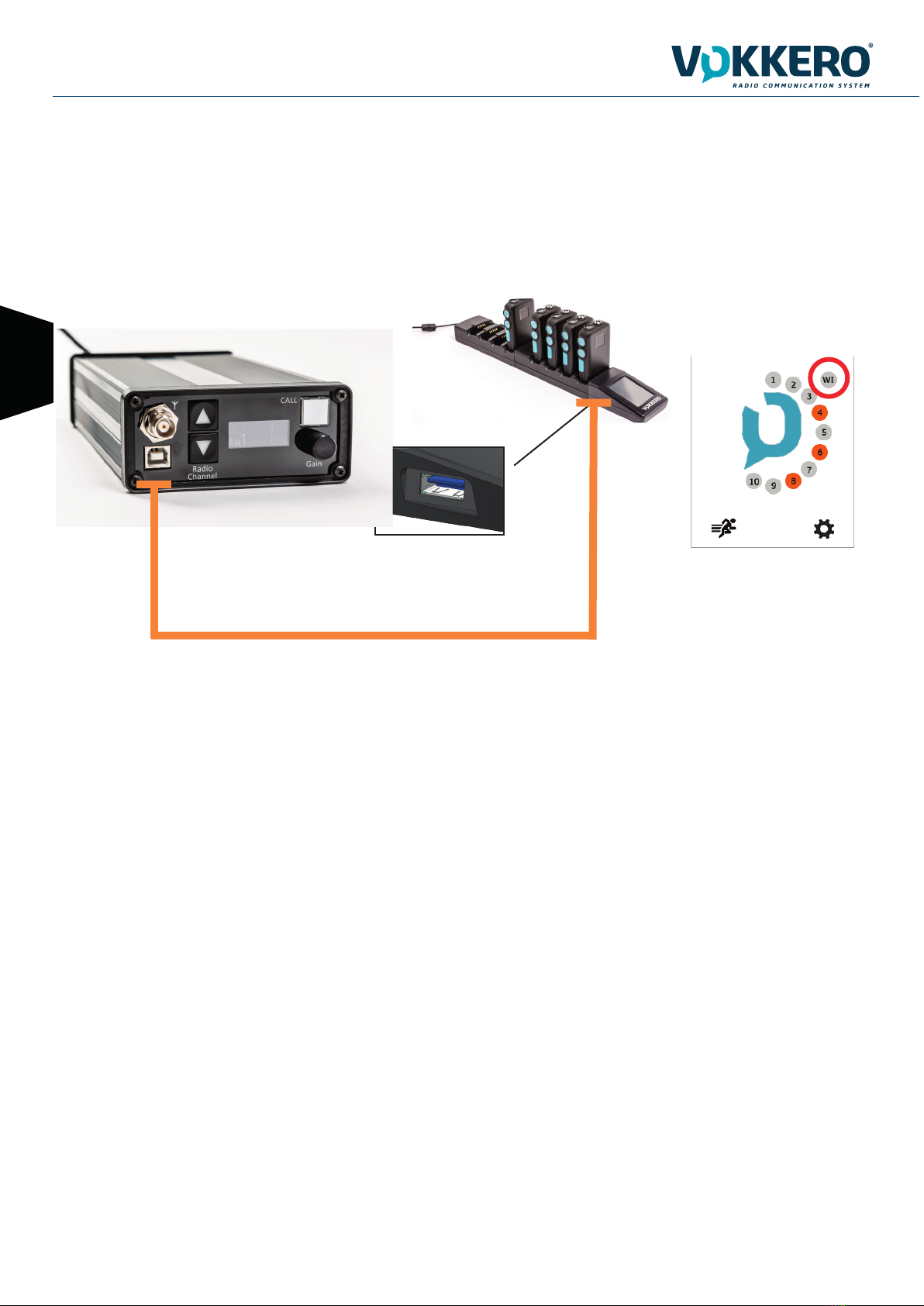

3.1. Configuration with the VOKKERO® ELITE conference system 14
4. AUDIO CONFIGURATION 15

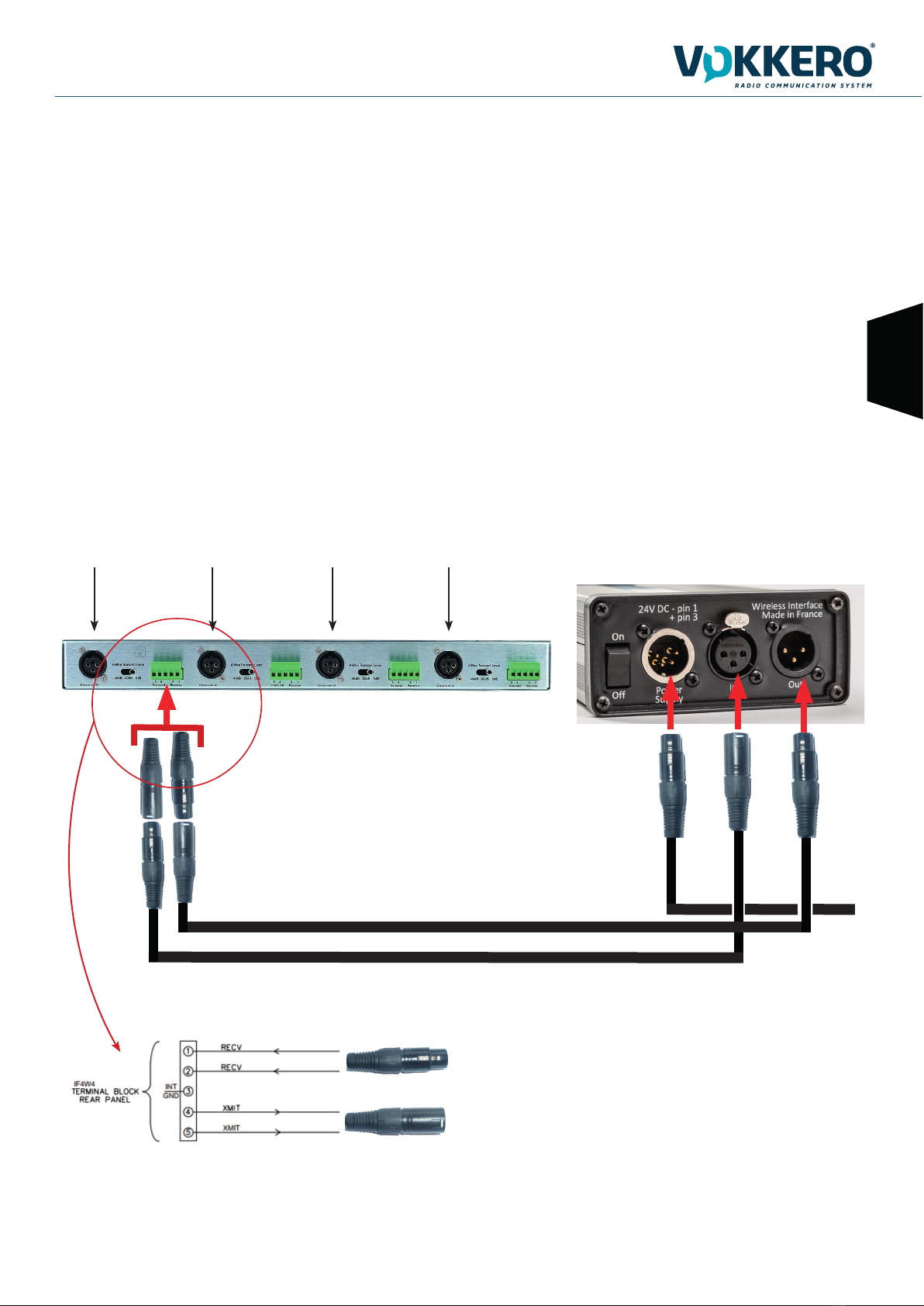

1.2. Configuration with 4-wire Intercom systems 15
4.1.1. Clearcom 4-wire interface 15
1.2.1. GreenGo 4-wire interface 16

VOKKERO ELITE EUROPE Wireless Interface (WI) - 211553 V1.1
4 Page / 17
GB
ENGLISH

5 Page / 17
VOKKERO ELITE EUROPE Wireless Interface (WI) - 211553 V1.1
GB
INFORMATIONS
Document Information
Title VOKKERO ELITE EUROPE
Subtitle Wireless Interface (WI)
Document type User Guide
Version Version 1.1
This document applies to the following products:
Nom Référence
VOKKERO ELITE EUROPE - Wireless Interface (WI) Up to: VO8161AE
DISCLAIMER
This document and the use of any information contained therein, is subject to the acceptance of the VOKKERO terms and conditions. They can
be downloaded from www.vokkero.com
VOKKERO makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make
changes to specifications and product descriptions at any time without notice.
VOKKERO reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without
express permission is strictly prohibited. Copyright © 2016, VOKKERO.
VOKKERO is a registered trademark in the EU and other countries.
TECHNICAL SUPPORT
Website
Our website contains a lot of useful information: information on modules and wireless modems, user guides, and configuration software and
technical documents which can be accessed 24 hours a day.
E-mail
If you have technical problems or cannot find the required information in the provided documents, contact our Technical Support.
Helpful Information when Contacting Technical Support
When contacting Technical Support, please have the following information ready:
• Product type (for example ELITE WI)
• Firmware version (for example V1.0)
• A clear description of your question or the problem
• A short description of the application

6 Page / 17
EU Declaration of Conformity
WE
VOGO
101, place Pierre Duhem, Immeuble Les Centuries II
34000 Montpellier, France
[phone]
www.vogo-group.com
www.vokkero.com
Declare that the DoC is issued under our sole responsibility and refers to the following products:
Apparatus model/Product: VOKKERO ELITE 4 WIRE INTERFACE - NAP
Type: VO8161AE, VO8161AF and VO8161AG
Object of the declaration:
The object of the declaration described above is in conformity with the relevant Union harmonisation
legislation:
Directive 2014/53/UE (RED)
The following harmonised standards and technical specifications have been applied:
Title: Date of standard/specification
EN 300 220-2 V3.2.1 2018/06
EN 300 422-1 V2.1.2 2017/01
EN 303 204 V3.0.0 2020/05
EN 303 659 V0.0.2 2020/04
EN 301 489-1 V2.2.3 2019/11
EN 301 489-3 V2.1.1 2019/03
EN 301 489-9 V2.1.1 2019/04
EN 62368-1 2014 + A11 : 2017
EN 62311 2008
The device complies with the requirements for human exposure to electromagnetic fields. The installation of the
equipment (with its antenna) must guarantee a minimum distance of 20cm from any person. The antenna must
not be co-located or operating in conjunction with any other antenna or transmitter.
July 21th 2020 Pascal Saguin, Senior Vice President

7 Page / 17
USE of VOKKERO ELITE in EUROPEAN UNION
USAGE RESTRICTIONS
Some countries in the European Union do not allow all the channels available in VOKKERO ELITE. This equipment is
intended to be used only inside sports arenas (Stadium...). The table below lists the channels available in the VOKKERO
ELITE system and specify the associated potential usage restrictions.
Channel
Frequency (MHz)
Emission
power (dBm)
Comments
D1 869,525 / 866,3 27 / 27 No restrictions
D2 867,5 / 874,2 27 / 27 No restrictions
D3 869,525 / 830,75 27 / 20 Restrictions
D4 874,2 / 830,25 27 / 20
Restrictions and
Wireless Interface needed
S1 869,525 27 No restrictions
S2 866,3 27 Wireless Interface needed
S3 874,2 27 Wireless Interface needed
S4 866,9 27 Wireless Interface needed
S5 867,5 27 Wireless Interface needed
S6 830,25 20 Restrictions
S7 830,75 20 Restrictions
S8 864,75 14 No restrictions – Limited emission power
S9 870,5 27
Restrictions and
Wireless Interface needed
S10 871,5 27
Restrictions and
Wireless Interface needed
S11 872,5 27
Restrictions and
Wireless Interface needed
S12 829,25 20 Restrictions
S13 831,75 20 Restrictions
S14 868,3 14 No restrictions – Limited emission power
S15 864,75 27 License required
S16 868,3 27 License required
•
No restrictions: Usable channel in all European Community countries without restrictions.
•
Restrictions: The use of this channel can be restricted in some European countries.
•No restrictions - Limited emission power: the radiated power of VOKKERO ELITE has been decreased
on this channel to allow usage in all European Community countries without restrictions.
•Wireless Interface needed: The use of this channel is only possible with VOKKERO ELITE WIRELESS
INTERFACE – NAP which acts as the Network Access Point of the system.
•License required: A temporary license is required to use this channel.
For channels with usage restrictions, refer to appendix 1 (National Implementation) of recommendation ERC / REC
70-03 available on the ECO (European Communication Office) website:
https://www.ecodocdb.dk/document/category/ECC_Recommendations?status=ACTIVE
Inside the stadium, a spectrum referent may be available to assist in frequency allocation.
For the use of ELITE in Europe (outside the EU), please contact customer support:
“
www.vokkero.com /Support/Technical Support”. In the VOKKERO HELPDESK space, log in with your identifiers (or
sign up to create your account) to access the support.

VOKKERO ELITE EUROPE Wireless Interface (WI) - 211553 V1.1
8 Page / 17
GB
INTRODUCTION
All rights to this manual are the exclusive property of VOKKERO. All rights reserved. Copying this manual (without written permission from the
owner) via printing, copying, recording or by any other means, translating this manual (in full or partially) into any other language, including all
programming languages, using any electrical, mechanical, magnetic or optical devices, manually or any by other methods, is prohibited.
VOKKERO reserves the right to change the technical specifications or functions of its products, or to cease manufacturing any of its products, or
to cease technical support for one of its products without notice in writing and urges its customers to make sure that the information they have
is valid.
VOKKERO configuration software and programs are available free of charge in a non-modifiable version. VOKKERO can make no guarantees,
including guarantees concerning suitability and applicability for a certain type of application. Under no circumstances can the manufacturer, or
the distributor of an VOKKERO program, be held liable for any damage caused by the use of the aforesaid program. Program names, as well as
all copyright relating to programs, are the exclusive property of VOKKERO. Any transfer, granting of licences to a third party, leasing, hire, trans-
port, copying, editing, translation, modification into another programming language or reverse engineering are prohibited without VOKKERO’s
prior written authorisation and consent.

9 Page / 17
VOKKERO ELITE EUROPE Wireless Interface (WI) - 211553 V1.1
GB
ENVIRONMENTAL RECOMMENDATIONS
All superfluous packaging materials have been eliminated. We have done everything possible to make it easy to separate the packaging into
three types of materials: cardboard (box), expanded polystyrene (filler material) and polyethylene (packets, foam protective sheets). Your device
is composed of materials that can be recycled and reused if it is dismantled by a specialist company. Please observe local regulations concer-
ning the manner in which waste packaging material, used batteries and your obsolete equipment are disposed of.
WARNINGS
Valid for VOKKERO ELITE EUROPE - Wireless Interface (WI): VO8161AE
Read the instructions in the manual.
The safety of this product is only guaranteed when it is used in accordance with its purpose.
Maintenance should only be carried out by qualified persons.
Please note: Do not install the equipment close to a heat source or in damp conditions.
Please note: When the equipment is open, do not carry out any operations other than the ones set out in this document.
Please note: Do not open the product as there is a risk of electrical shock.
Please note: For your own safety, you must ensure that the equipment is switched off before carrying out any work on it.
Please note: For your own safety, the power supply circuit must be SELV (Safety Extra Low Voltage) and must be from
limited power sources.
The product must be equipped with a switching mechanism so that the power can be cut. It must be easily accessible. Any electrical connec-
tion of the product must be equipped with a protection device against voltage spikes and short-circuits.
RECOMMANDATIONS REGARDING USE
• Before using the system, check that the power supply voltage shown in the user manual corresponds to your supply. If it doesn’t, please
consult your supplier.
• Place the device against a flat, firm and stable surface.
• The device must be installed in a location that is sufficiently ventilated so that there is no risk of internal heating and it must not be cove-
red with objects such as newspapers, cloths, curtains, etc.
• The device must never be exposed to heat sources such as heating equipment.
• Do not place the device close to objects with naked flames such as lit candles, blowtorches, etc.
• The device must not be exposed to harsh chemical agents or solvents likely to damage the plastic or corrode the metal parts.
DISPOSAL OF WASTE BY USERS IN PRIVATE HOUSEHOLDS WITHIN THE EUROPEAN UNION
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.
Instead, it is your responsibility to dispose of your waste by taking it to a collection point designated for the recycling of electrical and electronic
appliances. Separate collection and recycling of your waste at the time of disposal will contribute to conserving natural resources and guarantee
recycling that respects the environment and human health. For further information concerning your nearest recycling centre, please contact your
nearest local authority/town hall offices, your household waste collection company or the shop where you bought the product
This symbol on the devode or its packaging means the use of a DC voltage.

VOKKERO ELITE EUROPE Wireless Interface (WI) - 211553 V1.1
10 Page / 17
GB
PREAMBLE
The instructions given below will make it simple and easy for you to start using your VOKKERO® ELITE Wireless Interface (WI) communication
system.
All of the operations described are shared by the versions of the VOKKERO® ELITE WI product listed below:
VO8161AE
Note: the reference number for your device can be found on the label located on the base of the device.
The system is made up of the following elements:
• Wireless Interface box (WI)
• A power supply
• A radio antenna
• An antenna offset kit (optional)
The WI interface makes it possible to operate a VOKKERO® ELITE wireless conference system with a wired communication system. In order to
be able to configure the interface, you will need to link the equipment to a VOK-KERO® ELITE configurator/charger. When using it for the first
time, you will need to configure it in order to ensure that the system is compatible with the VOKKERO® ELITE conference system.
All of the WI system’s operational parameters are controlled by the configurator. This lets you access the settings menu via a touchscreen.

11 Page / 17
VOKKERO ELITE EUROPE Wireless Interface (WI) - 211553 V1.1
GB
1. SYSTEM DESCRIPTION
1.1. VOKKERO® ELITE WI interface

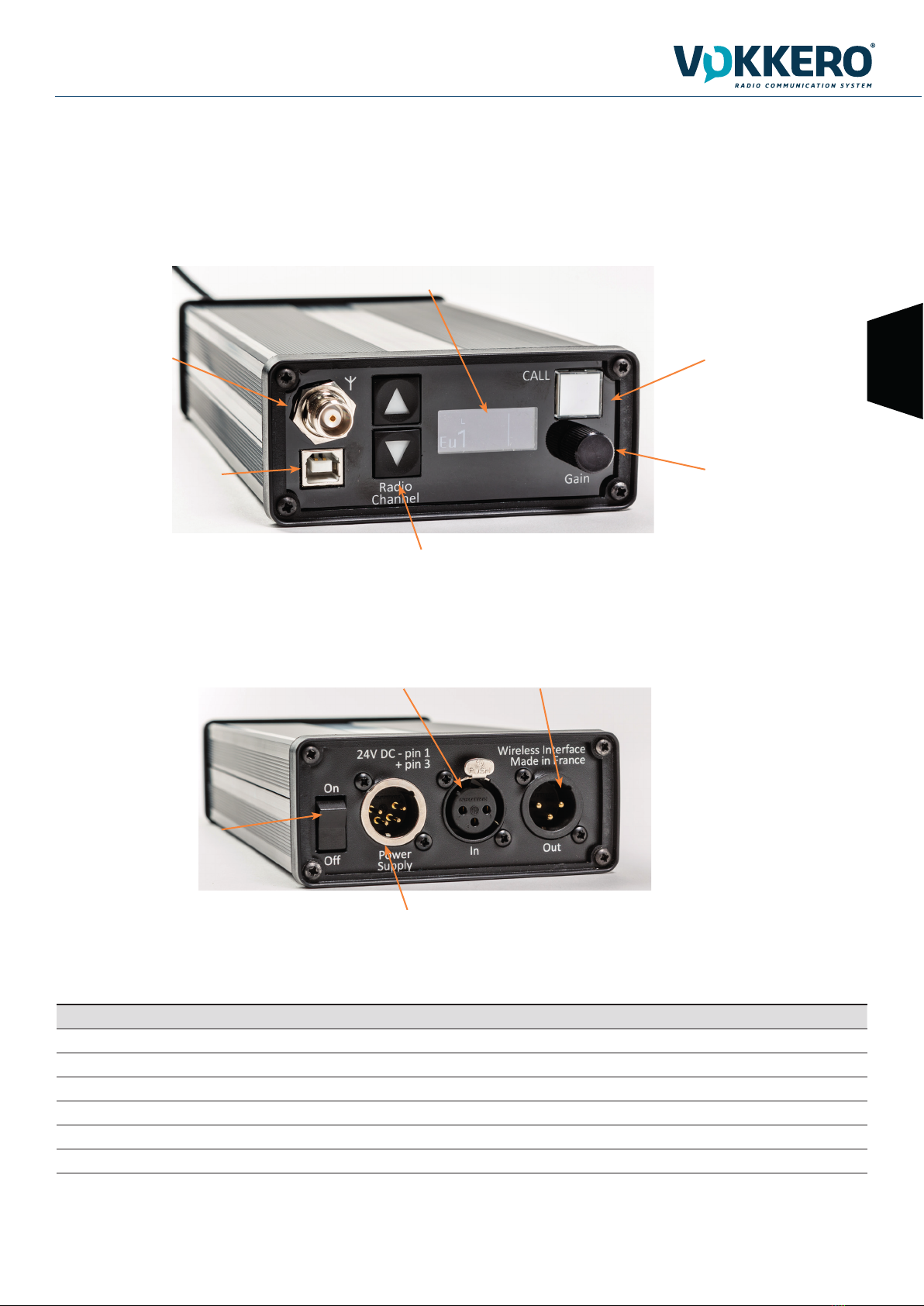

1.1.1. Device interface description
RF ANTENNA
TNC output for radio antenna
offsetting
1.1.2. General features
Parameters Value
Supply voltage 24V nominal
Maximum consumption 300mA
Supply Mains supply
Operational temperature range -0°C / +45°C
Dimensions 230 x 110 x 50mm
Weight 650g
USB socket
USB connector (Type B) for
device configuration
“CALL” BUTTON
Not active for ELITE products
SETTINGS BUTTON
For accessing the menu and
adjusting the device’s audio
LCD SCREEN
Displays operational device
information
CHANNEL/GROUP SELECTION
For changing the channel or the group
ON/OFF
For switching the device on
POWER OUTLET
Mains unit (comes supplied with the device)
AUDIO IN
Device audio input
AUDIO OUT
Device audio output

VOKKERO ELITE EUROPE Wireless Interface (WI) - 211553 V1.1
12 Page / 17
GB
2. STARTING THE INTERFACE
Before connecting the power supply, please ensure that the switch on the device is set to OFF
• To switch the device on, set the “On/Off” switch to ON.
• To switch the device off, set the “On/Off” switch to OFF.
2.1. Description of screen icons (default)
Network Status
This icon indicates that the ter-
minal is connected to a network.
Channel
The number of the com-
munication channel
Function
Shows the device’s function
The WI device should always be identified by function 14 or 15.
NOTE 1: all settings, including the volume settings, will be retained when the device is switched off and will remain the same once the device is
switched back on.
2.2. Description of screen icons (default)
Once you have switched on the device, the LCD screen will light up and the VOKKERO® logo
will be displayed.
The “Welcome” screen will then be displayed, followed by the device name. By default, the
product’s name will be “ELITE”. This name can be modified on the configurator.
2.3. How the interface works
1.1.3. CHANNEL/GROUP selection
When the device is switched on, you can change the communication channel (or group) with the 2 “high and low ar-rows” located on the front
of the device. Pressing on the “up arrow” button will move it up a position, while pressing on the “down arrow” button will move it down a
position.
1.1.4. “CALL” BUTTON
The “CALL” button is inactive with ELITE system.

13 Page / 17
VOKKERO ELITE EUROPE Wireless Interface (WI) - 211553 V1.1
GB

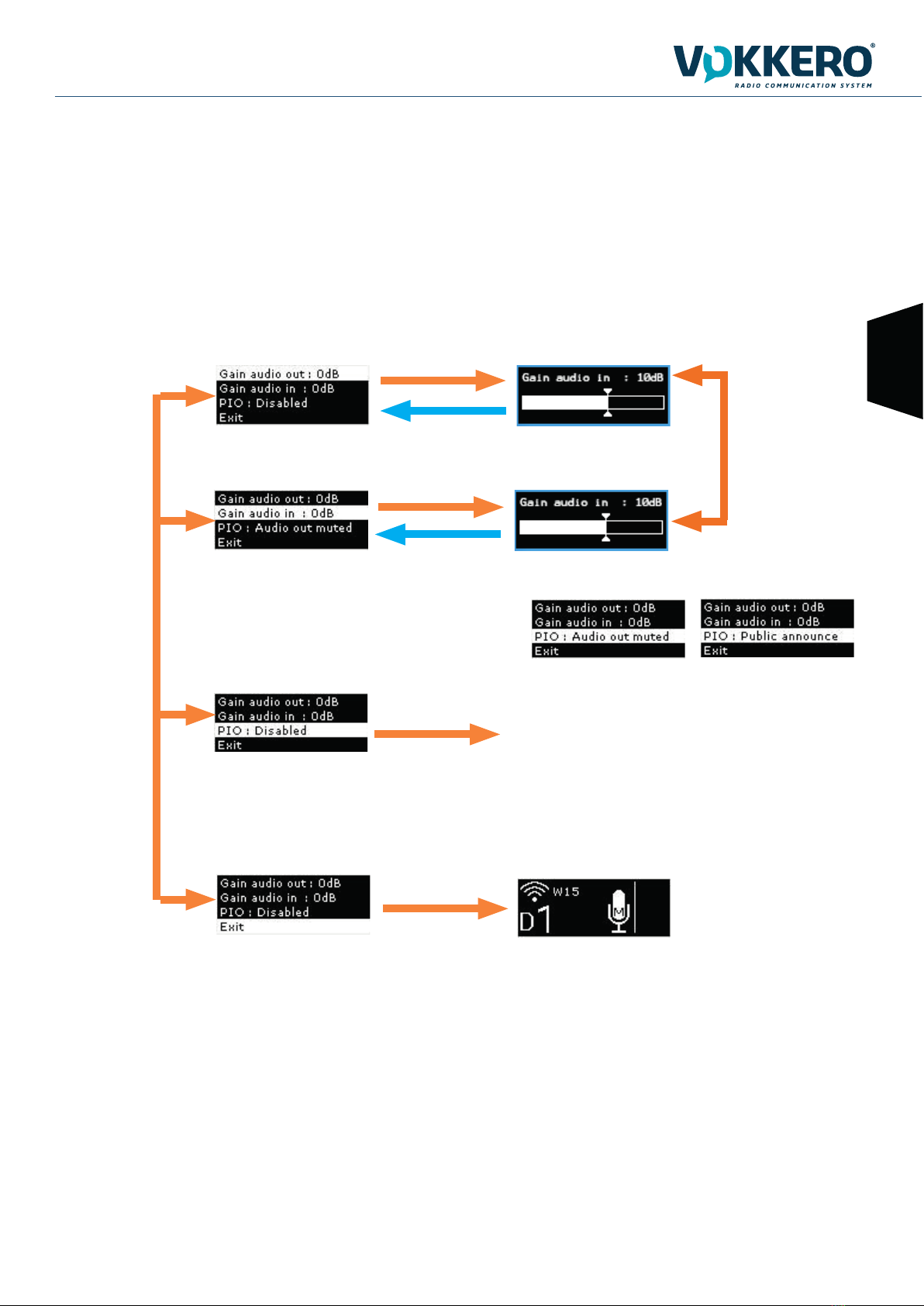

1.1.5. SETTINGS BUTTON
The settings button is a continuous rotation button with a validation function. A long press on the button will let you switch to audio configura-
tion mode for input/output.
Rotating the button will allow you to navigate between the different available options. Pressing the button will allow you to validate.
The following settings are available:
• Out audio gain: access the audio out gain settings menu
• In audio gain: access the audio in gain settings menu
• PIO: Set the way the WI acts on its audio output in case a PIO button is pressed on one or several ELITE terminals
Rotation
Button
Press on the button
to validate your
selection
Press on the button
to validate your
settings
Press on the button
to exit
Press on the button to
change the PIO option
Rotate the button
to adjust the level
Disabled : PIO press on the terminals does not impact
the WI
Audio out muted : PIO press on the terminals mute the
audio out on the WI
Public announcement : PIO press on the terminals un-
mute the audio out on the WI which is muted otherwise

VOKKERO ELITE EUROPE Wireless Interface (WI) - 211553 V1.1
14 Page / 17
GB
3. RADIO CONFIGURATION
1.1. Connection
The interface can be connected to the configurator using the USB socket on the top of the device. It must be linked to the USB socket of the
VOKKERO® ELITE configurator/charger. The USB cable comes supplied with your ap-pliance.
The WI icon will be displayed on the configurator’s home screen.
USB cable
USB socket
(Type A Female)
USB socket
(Type B Female)
3.1. Configuration with the VOKKERO® ELITE conference system
The WI interface must be configured at the same time as the other conference system equipment. If the WI interface is connected during the
quick config operation, it will then be configurated automatically and will be ready for use.
To find out how to launch the quick config operation on the configurator/charger, please consult the VOKKERO® ELITE conference system user
manual: 211426 (VOK_ELITE_V1_GB)

15 Page / 17
VOKKERO ELITE EUROPE Wireless Interface (WI) - 211553 V1.1
GB
4. AUDIO CONFIGURATION
1.2. Configuration with 4-wire Intercom systems
The WI interface is designed to be connected to a 4-wire intercom. Below you will find 2 configuration examples:
4.1.1. Clearcom 4-wire interface
• Connect a cable between the green connector of the clearcom interface and two XLR 3 pts male and female.
In order to identify the cabling, refer to the Clearcom IF4W4 user guide.
• Connect an XLR 3 pts cable (male/female) between the “OUT1” connector of the 4-wire interface system and the “IN” connector of the
Vokkero ELITE wireless interface.
• Connect an XLR 3 pts cable (male/female) between the “IN1” connector of the 4-wire interface system and the “OUT” connector of the
Vokkero ELITE wireless interface.
• Connect the Vokkero ELITE wireless Interface power cable to another power supply.
These cables are not included in the kit
Mains
outlet
cable
Pin 2
Pin 2
Pin 3
Pin 3
Connect the adapteur as follows:
Pin 1--- Common
Pin 2 --- Line 1
Pin 3 --- Line 2
Power source Power source Power source Power source

VOKKERO ELITE EUROPE Wireless Interface (WI) - 211553 V1.1
16 Page / 17
GB
These cables are not included in the kit
Mains outlet cable

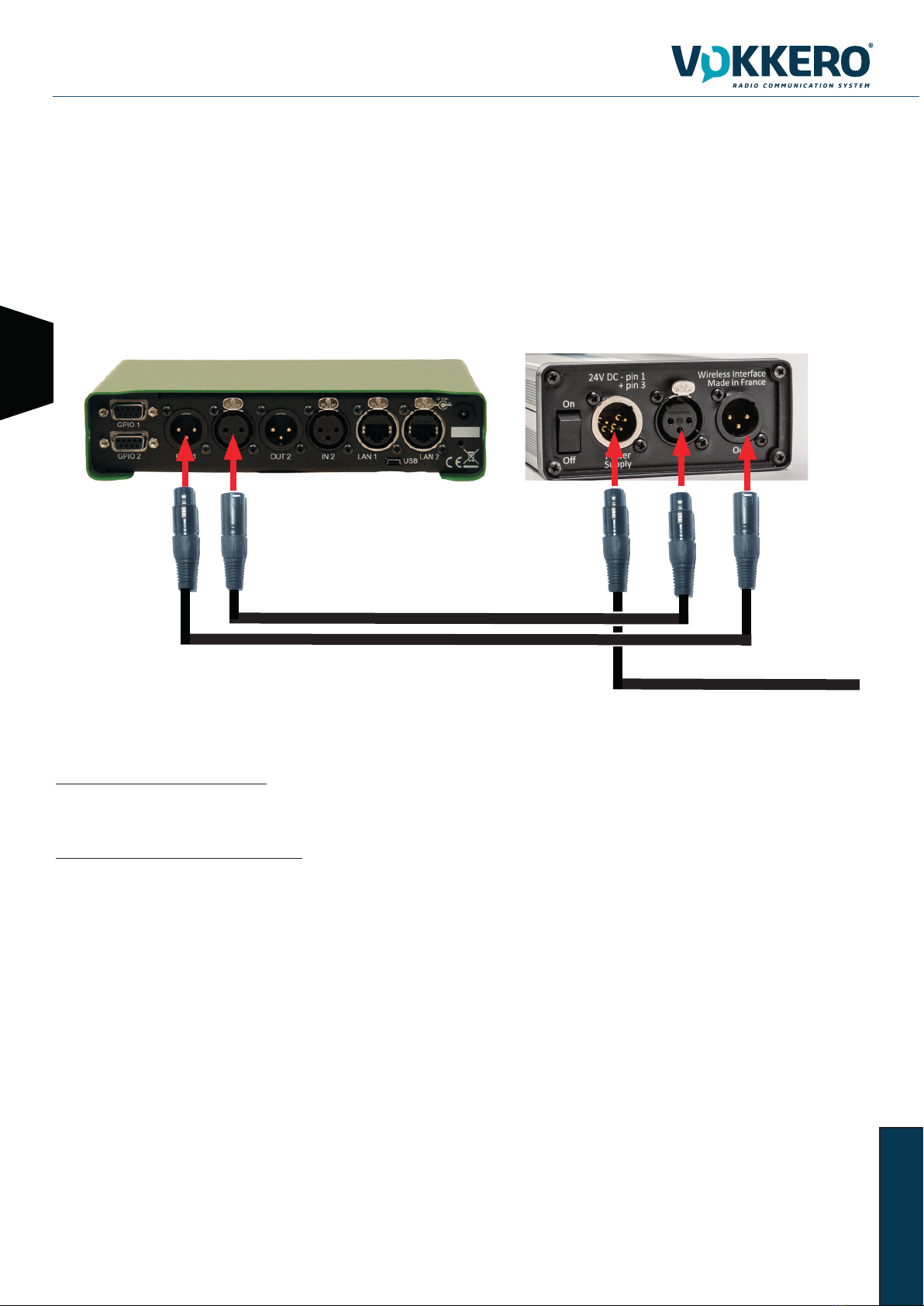

1.2.1. GreenGo 4-wire interface
• Connect an XLR 3 pts cable (male/female) between the “OUT1” connector of the 4-wire interface system and the “IN” connector of the
Vokkero ELITE wireless interface.
• Connect an XLR 3 pts cable (male/female) between the “IN1” connector of the 4-wire interface system and the “OUT” connector of the
Vokkero ELITE wireless interface.
• Connect the Vokkero ELITE wireless Interface power cable to another power supply.
Adopted settings for the WI interface:
Out Audio Gain: 0dB
In Audio Gain: 12dB
Adopted settings for the GreenGo interface:
4-wire interface gain: 6db
Threshold: -45dB
