Volfoni ActivHub IR100 User manual
Model VPES-02000-A
Document : MUV110065-B00 ActivHub_IR100_User_Manual
Compatible with EDGE1.2 glasses (VPEG-01100)
00
SUMMARY
1. Overview
1.1 General Presentation
1.2 ActivHub IR100 Composition
2. Product Description
2.1 Infra-Red Emitter / Synchronizer
2.1.1 Emitter at a glance
2.1.2 Basic Specification
2.1.3 Direct Infra-Red Spread of The Emitter
2.1.4 Room Configuration
3. ActivHub IR100 Fastening
4. Connection & Synchronization
4.1 System Connection
4.2 Technical Specifications
5. Regulatory Standards
6. Warranty
7. Contacts
ENGLISH
1.
Overview
1.1
General presentation
The ActivHub IR100 kit allows easy integration in less
than 30 min with existing digital theaters using a standard
screen
The system is compatible with EDGE1.2 glasses
provided by Volfoni.
ActivHub IR100: all integrated 3D infra-red emitter
Infra-red emitterworkingwith quality andlightweight3D glasses
Cost saving solution for auditoriums up to 100 seats
Easy and fast set-up with any 3D-Ready™ projectors
No silver screen required, image quality preserved at all seating
position
Systems are provided with a new universal mount
making installation even faster (installation
process is the same as described in section 3) :
ActivHub IR100: all integrated 3D infra-red emitter
•
Infra-redemitterworkingwith quality andlightweight3D glasses
•
Cost saving solution for auditoriums up to 100 seats
•
Easy and fast set-up with any 3D-Ready™ projectors
•
No silver screen required, image quality preserved at all seating
Position
1.2
ActivHub IR100 composition
Thank you for using our ActivHub IR100. Before starting,
please check if the following parts are included in the
package :
A full ActivHub IR100 includes :
ActivHub IR100
1 SUB-D37/SUB-D9 cable
1 SUB-D9/VESA cable
1 SUB-D9/BNC cable
1 Universal mount fastening
1 Power supply adapter
1 Power supply cable
1 Activ 3D glasses tester with 3 batteries
2.
Product Description
2.1
Infra-red Emitter /Synchronizer
Long Range Emitter
/
Synchronizer
Model Name: VPES-02000-A
Long Range IR Emitter with built-in Synchronizer (VPES-02000) is a
compact and very powerful technology for viewing 3D content
in (bar, club, school, museum, events…) and small theater (up to
100 seats).
Thanks to its lightweight design, the ActivHub IR100 enhances heat
dissipation (LED life protection). It is provided with a universal mounting
headforsecurity andis easy to install.
2.1.1
Emitter at a glance
SYNC IN(DB9)
Mounting Hole
Power on emitter by using power supply adapter : LED will be off
Connect synchronization cable to emitter : If a signal coming from
projector is detected (2D or 3D mode), LED will be fixed red
2.1.2
Basic specifications
IR Wavelength: 940nm
Max emitting range: Up to 75m (246 feet)
Power supply: 24VDC, 3A Power Adapter
Dimension: 361 x 70 x 44 mm (14.1 x 2.75 x 1.8 inches)
Weight: 500 grams (17,64 oz)
2.1.3
Direct infra-red spread of the emitter
45°
45°
30°
50m
15°
60m
65m
0°
15°
30°
2.1.4
Room configuration
12m
18m
22m
21m
18m
13m
3. ActivHub IR100 Fastening
Step
INSTALLATION
Usethewallbasetomarkeach
holeto drill witha pencil.
Step
Drill the holes with the given bit (for wood surface only)
Step 3
Insert wall anchors
(For solid concrete and drywall
only)
Step 4
Tightly screw the base to the wall
Step 5
Assemble the arm to the base
andthenscrewtheemitteronit

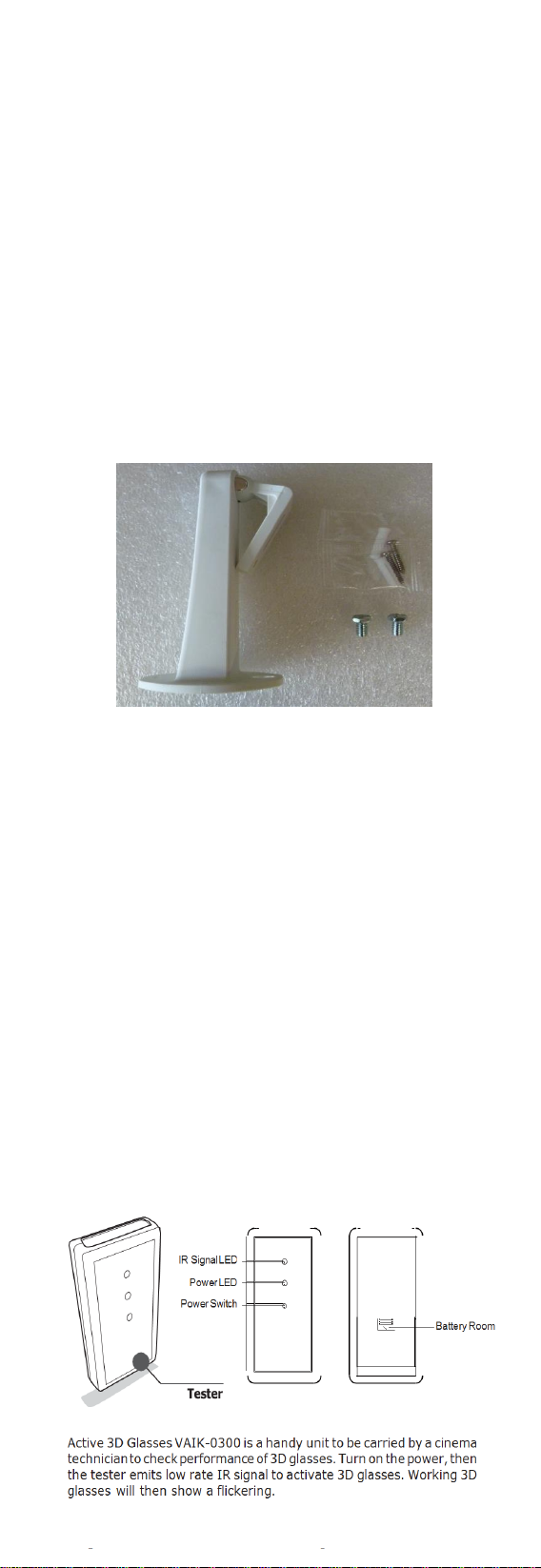

WALL FASTENER
Before installing the emitter in the front of the screen, make sure
you have all the needed tools and the instruction manual. This
wall fixing part is provided with all the screws and wall anchors you
might need. Follow the instructions to fasten this kit.
1 2 3 4
5
Parts
Qty
Product description
1
2
Mounting plate
2
2
Screw covers
3
1
Extension
4
1
Adjusting Knuckle
5
1
Emitter plate
WALL TYPES & HOLES SIZES
1/2” drywall
wood stud solid concrete
NOT
INCLUDED
13 mm
(1/2”)
NOT
INCLUDED
32mm (11/4”)
NOT
INCLUDED
44 mm (1 3/4”)
1
2
4.7 mm
(3/32”)
2.5 mm
(3/32”)
6.35 mm
(1/4”)
If the graphic card
has 3 pin mini-DIN
SYNC output port,
connect the IR emitter
with this DIN 3 SYNC
Cable only.
Outlet
DIN3-DB9 SYNCCable
(accessory)
OR
VGA SYNC Splitter
(accessory)
Long Range
IR Emitter

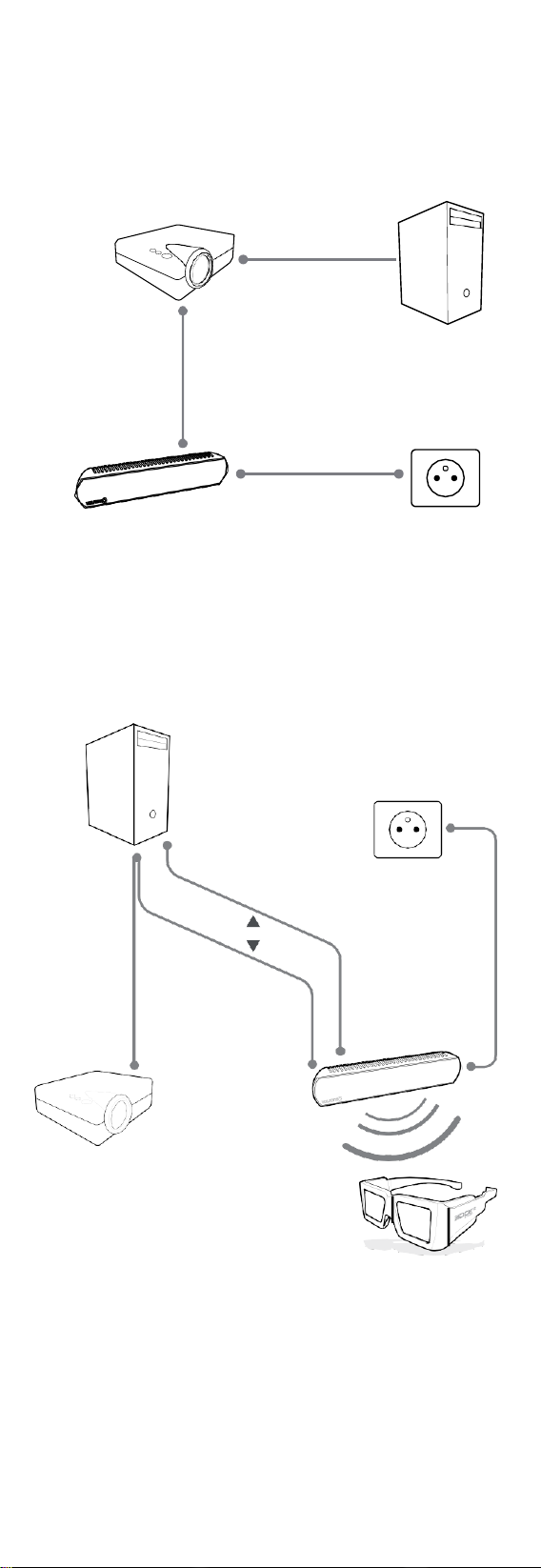

4. CONNECTION & SYNCHRONIZATION
4.1
System connection
Compatible 3D
video projector
3D video player
HDMI cable
SUB-D37 female / SUB-D9 female
(3 meters by default - up to 30 meters)
Power Supply 24V-240V
(3 meters provided)
ActivHub IR100
Outlet
3D Ready
PC System
120Hz 3D Ready
Projector
Wireless 3D
Active
Glasses

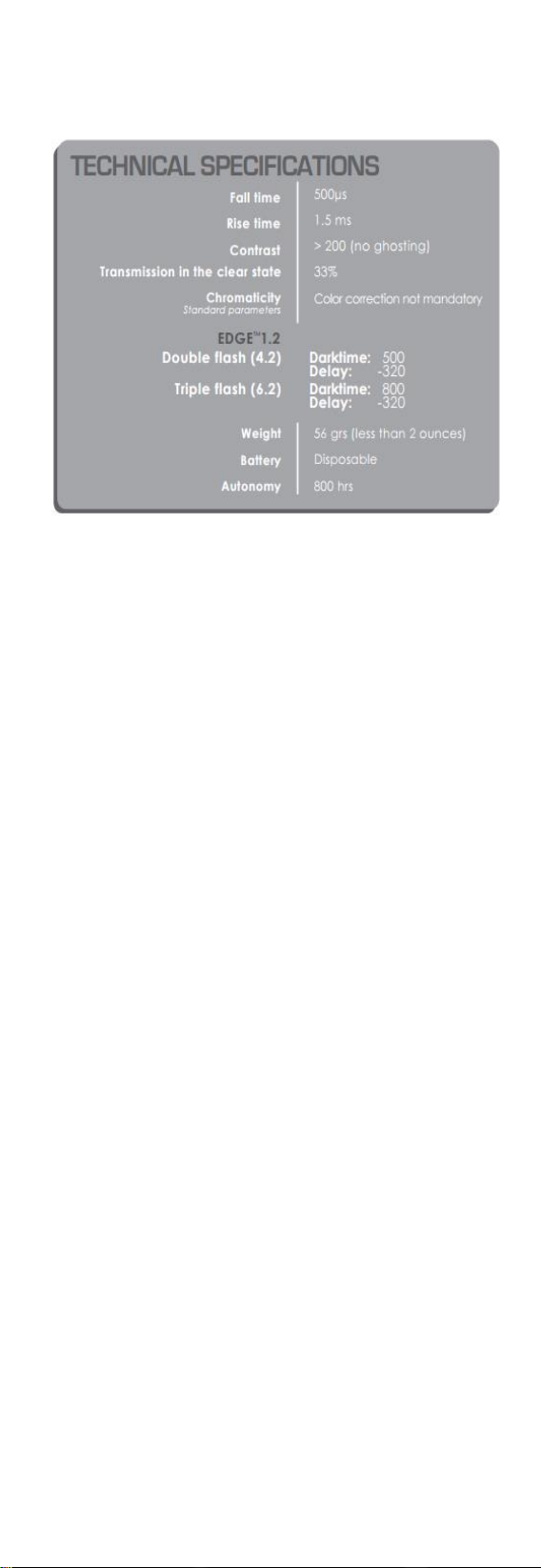

4.2
Technical specifications
Please see below the connection diagram for the settings.
Please refer to the following technical board for the digitalprojector.
These parameters are for information, it could be adapted if
necessary.
Warning: Depending on your equipment and the room
configuration, you may have to adjust these parameters. We
recommend to confide the set-up of 3D parameters and color
adjustments directly to integrators.
For any trouble, please consult our website
www.volfoni.com,
5. REGULATORYSTANDARDS
European Union –Disposal Information
According to local laws and regulations your product
should be disposed of separately from household waste.
When this product reaches its end of life, take it to a
collection point designated by local authorities.
Some collection points accept product for free. The
separate collection and recycling of your product at the
time of disposal will help conserve natural resources and
ensure that it is recycled in a manner that protects human
health and the environment.
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must
accept any interference received, including interferences
that may cause undesired operation.
CE Certification
This device complies with CE Certification.
Electrical Safety (IEC 60950-1)
This device complies with IEC 60950-1
6. Warranty
The ActivHub IR100 is warrantiedto the original purchaser for three
years according to local legislation. Infra-red emitter/
synchronizer and cables should be returned in original box along
with original proof of purchase. Infra-red emitter/synchronizer
that are broken or scratched are not covered.
Volfoni does not cover uninterrupted or error-free operation of the
product under warranty.
7. Contacts
Distributed by Volfoni SAS
2474, RD 6007
Le Logis de Bonneau
Les Bureaux du Parc
06270 Villeneuve-Loubet
France
Distributed in USA by Volfoni Inc.
3450,CahuengaBd West.
Unit 504
Los Angeles, CA
90068 –USA
Distributed in Spain by Volfoni Iberia
4, Ronda Guglielmo Marconi
46980 Paterna (Valencia)
Spain
Technical support
www.volfoni.com
Commercial support
contact@volfoni.com
