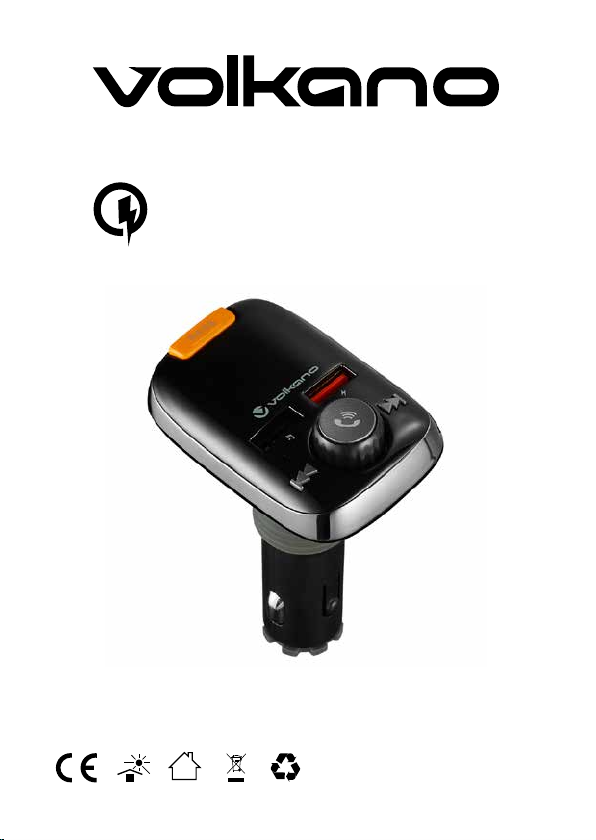

volkano Turbocharger Series User manual

INSTRUCTION MANUAL
Please read and retain these instructions for future reference.
VK-3038-BK
Turbocharger Series
BLUETOOTH CAR MODULATOR
WITH BASS BOOSTER
QUICK CHARGE QC3.0

2
HIGHLIGHTS
• SD Card Slot
• Aux Input
• USB Media Input
• Hands-Free Calling
• LED Display Screen
• 2 x USB Charging Ports
• Bluetooth V 5.0
• Bass Booster
• Quick Charge QC 3.0
• 180° Rotation
• Bluetooth Audio Receiver
• USB Charging Output:
Port 1: QC 3.0: 5 V DC, 3.0 A /
9 V DC, 2.0 A / 12 V DC, 1.5 A
Port 2: 5 V DC, 0.5 A
• Bluetooth:
Version: 5.0
Profiles: A2DP, AVRCP, HFP
Range: 10m
• Max. Size for USB Drive: 32 GB
• Charge Input: 12 - 24 V DC
• Supported Formats: MP3
• Volkano Turbocharger Series Metal Bluetooth Car Modulator
• Instruction Manual
• Aux Cable
TECHNICAL SPECIFICATIONS
PACKAGE CONTENTS

3
DESCRIPTION OF PARTS
1
2
3
Volume +
Volume -
Volume Control Knob
Right Top

BASS
98.0
4
DESCRIPTION OF PARTS
1. Aux Input
2. Cigarette Lighter Plug
3. Micro SD Card
4. Bass Button
5. USB Charging Port 2 or USB Media Input
6. Microphone
7. Previous Song / Radio Channel Down Button
8. LED Display Screen
9. USB Charging Port 1
10. Next Song Button / Radio Channel Up
11. Answer / End Call / Play / Pause Button
4
8
9
10
5
6
7
11
Front

Plug the modulator into your vehicle’s Cigarette Lighter or Power
Port. Tune your Radio to an unused FM frequency, then tune your
Turbocharger to the same frequency by short pressing the
Previous Song / Radio Channel Down Button or the
Next Song / Radio Channel Up Button to navigate through the
frequencies.
Insert a Micro SD Card loaded with MP3 / WMA files into the Micro
SD Card Slot. Music files on the card will play automatically.
To enter Aux Mode, plug an aux cable (included) into the Aux Input
and plug the other end of the cable into the device that you wish to
play audio from.
Insert a USB Flash Drive loaded with MP3 / WMA files into USB
Charging Port 2. Music files on the drive will play automatically.
If your Smartphone and Cable supports Quick Charge, it will charge
based on the Qualcomm QC 3.0 Protocol. Please check the official
Qualcomm QC product list of supported devices through the
following link:
https://www.qualcomm.com/documents/quick-charge-device-list
USB MODE
SETUP
AUX MODE
QC3.0 USB PORT
5
MICRO SD CARD MODE

6
BLUETOOTH MODE
Pairing with Bluetooth Devices
Your Turbocharger Modulator must be paired to a Bluetooth device
before its Bluetooth Mode can be used. It is only necessary to pair
your modulator once with each device.
1. Open the Bluetooth Menu on the device you wish to pair. Some
devices require you to select “search for devices” or “add new
device” in order to create a Bluetooth pairing.
2. Plug the Modulator into your vehicle’s Cigarette Lighter or
Power Port.
3. Wait until you see “Turbocharger” on your device screen.
4. Select “Turbocharger” on your device and follow any further
prompts to pair. Once pairing is complete, the Turbocharger
Modulator will be ready to play audio via Bluetooth.
Note: If you are unsure on how to access your Bluetooth Menu on
your device, please refer to your device’s instruction manual.
Locating the Bluetooth Menu
iPhone, iPad, and iPod Touch
a) On your device, go to Settings.
b) Select Bluetooth. If Bluetooth is not on, turn it on.
c) The iPhone / iPad / iPod will automatically search for
new devices.
Android™ Phones and Tablets
a) On your device, go to the Settings menu.
b) Select Bluetooth (on older Android devices Bluetooth is
found in the Wireless & Networks Menu). If Bluetooth is not
on, turn it on.
c) Select “Search for Devices” if your phone or tablet does not
automatically search for new devices.

Connecting with Paired Devices
Once the Modulator is switched on, it will automatically connect
with the last paired Bluetooth device that is on and within range. If
the Turbocharger Modulator does not connect automatically, open
the Bluetooth menu on your device and select “Turbocharger” from
the Bluetooth device list.
Changing the Volume
Function Operation
Increase Volume Rotate the Volume Dial Clockwise on the
Modulator
Decrease Volume Rotate the Volume Dial Anti-clockwise on the
Modulator
Bluetooth & USB Modes
Function Operation
Navigate to Next
Track
Short press the Next Song / Radio Channel
Up Button on the Modulator
Navigate to Previous
Track
Short press the Previous Song / Radio
Channel Down Button on the Modulator
Play or Pause Track Short press the Answer / End Call / Play /
Pause Button on the Modulator
7

8
Controlling Phone Calls
Status Function Operation
Incoming Call
Answer Call
Short press the Answer /
End Call / Play / Pause Button
on the Modulator
Reject Call
Press and Hold the Answer
/ End Call / Play / Pause Button
for 3 seconds on the Modulator
Call In
Progress End Call
Short press the Answer /
End Call / Play / Pause Button
on the Modulator
Redial Redial
Double press the Answer /
End Call / Play / Pause Button
on the Modulator
Switch Calls Switch Calls
Press and Hold the Answer
/ End Call / Play / Pause Button
on the Modulator for 3 seconds
during a phone call.

9
• The product should only be used with the parts provided by the
manufacturer.
• This product is intended for indoor use only.
• The Turbocharger Modulator is intended for personal use only.
Commercial use invalidates the warranty and the supplier cannot
be held responsible for injury or damage caused when using the
device for any other purpose than that which it was intended for.
• This is not intended for use by children, or persons with reduced
physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or
instruction concerning use of the device by a person responsible
for their safety. Extreme caution must be exercised.
• Children should be supervised to ensure that they do not play
with the Turbocharger Modulator. Packaging must never be
left within reach of children since it is potentially dangerous.
SAFETY PRECAUTIONS

10
All product and company names are trademarks™ or registered®
trademarks of their respective holders. Use of them does not imply
any affiliation with or endorsement by them.
DISCLAIMER
ENVIRONMENTALLY FRIENDLY DISPOSAL
Do not dispose of electrical appliances as unsorted
municipal waste, use separate collection facilities.
Contact your local government for information
regarding the collection systems available.
If electrical appliances are disposed of in landfills
or dumps, hazardous substances can leak into the
groundwater and get into the food chain, damaging
your health and well being.
Before Cleaning: Ensure that your Turbocharger Modulator is not
plugged into your cigarette lighter before cleaning or maintaining it.
Cleaning: Wipe down the surface of your Turbocharger Modulator
using a soft, slightly damp cloth.
Do not use any harsh or abrasive cleaning chemicals or materials
on your Turbocharger modulator as doing so may damage or
scratch the surface finish.
Do not expose your Turbocharger Modulator to high temperatures
for extended periods of time.
Do not store in temperatures over 140°F (60°C).
CLEANING & CARE INSTRUCTIONS

This Volkano Turbocharger Series Modulator includes a standard
12-month limited warranty against manufacturing defects and
faults. Should your product be unboxed with any faulty parts,
poor finishing or visible damage, or fail to perform due to a
manufacturing defect or poor workmanship, please return it with
your proof of purchase (till slip or invoice) to the store of purchase
for an exchange, or repair, depending on the store’s returns policy.
This warranty commences from the date of purchase.
Kindly retain your proof of purchase as well as the packaging for
your warranty period.
NOTE:
The Warranty does not apply to a Product that:
a.) Has failed due to excessive wear and tear beyond what is
considered to be reasonable.
b.) Has been misused or neglected.
c.) Has been damaged accidentally or by acts of God including fire
and flooding.
d.) Has been used or operated contrary to operating or
maintenance instructions outlined in this manual.
The Store of Purchase / Seller cannot accept any returned products
that have not been returned with accordance with this warranty or
which does not follow their own Returns Policy. Please refer to the
Store of Purchase / Sellers Returns Policy for details.
Should you require any further assistance or have any questions on
your warranty, please contact the store of purchase.
WARRANTY
