POTATO CUTTERS: 47703, 47713, 47714 AND 47715
Project:
Item Number:
Quantity:
Potato Cutters: 47703, 47713, 47714 and 47715 The Vollrath Company, L.L.C.
The Vollrath Company, L.L.C.
1236 North 18th Street
Sheboygan, WI 53081-3201 U.S.A.
Customer Service: 800.628.0830
Canada Customer Service: 800.695.8560
T
ec
h
n
i
ca
lS
erv
i
ces:
800
.
628
.
0832
Technical Services Fax: 920.459.5462
©2013 The Vollrath Company L.L.C. Form Number L35572 2/13
Printed in
US
A
www.vollrath.com

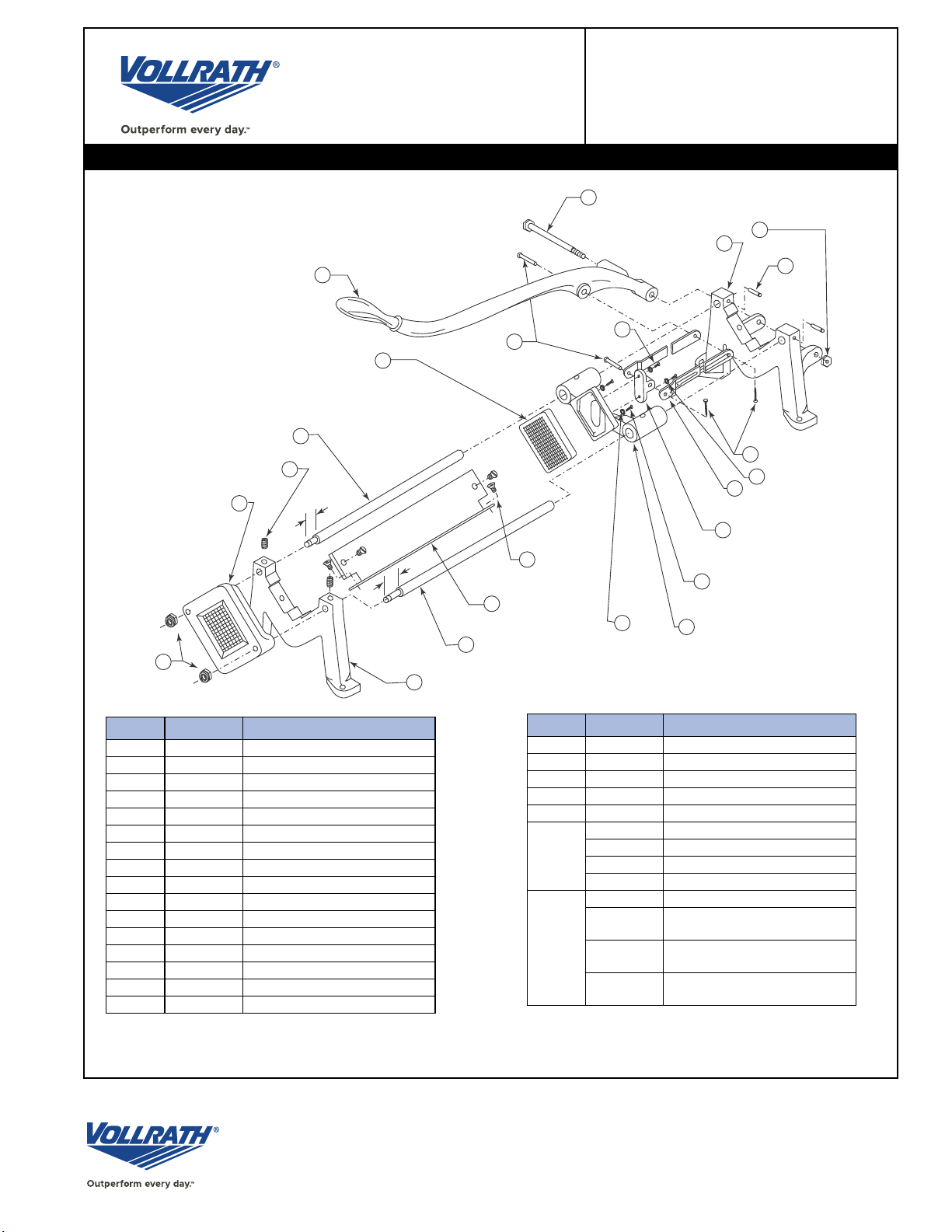

Potato Cutters: 47703, 47713, 47714 and 47715
45617 Parts Bag contains items 1, 5, 6, 8, 11, 12, 13, 14,
16, 17, 18, and 21
1
2
3
4
5
L
S
20
21
23
19
22
18
16
17
15
14
13
12
10
9
8
7
6
11
Item Part No. Description
1 21773-1 5/16" Nyl Locknut
2 45609-1 Front Leg
3 45613-1 Long Thread Slide Rod
4 45615-2 Guide Fence
5 21918-1 Screw
6 21819-1 #10 Lockwasher
7 45610-1 Pusher Plate
8 21906-3 12-24 x 3/4" Screw
9 45766-1 Pusher Plate Bracket
10 45755-2 Handle and Block Link
11 21823-1 #12 Lockwasher
12 21798-1 Cotter Pin
13 21917-1 Dowel Pin
14 21776-1 3/8" Nyl Locknut
15 45608-1 Back Leg
16 21905-3 10-24 x 1/2" Screw
Due to continued product improvement, please consult
www.vollrathco.com for current product specifications.
17 21995-3 5" x 3/8" Hex Bolt
18 45767-1 Round Head Rivet
19 45611-1 Handle
20 45614-1 Short Thread Slide Rod
21 21904-3 1/4-20 x 1/4" Set Screw
22 45602-1 Wedge Pusher Block
45754-1 9/32" Pusher Block
45752-1 3/8" Pusher Block
45753-1 7/16" Pusher Block
23 45603-1 Wedge Cutting Die
45751-1 9/32" Cutter Block,
9 blades = 10 cubes across
45749-1 3/8" Cutter Block,
7 blades = 8 cubes across
45750-1 7/16" Cutter Block,
6 blades = 7 cubes across
Item Part No. Description
