FAN WITH
HUMIDIFIER
MIST COMFORT
90
PRODUCT MANUAL
VOLT POLSKA Sp. z o.o.
ul. Bitwy pod Płowcami 76
81-771 Sopot
www.voltpolska.pl

[e-mail] (58) 341-05-06 | [e-mail] (58) 341-38-80 | [e-mail]
(22) 100-42-99
Thank you for purchasing fan with humidifier MIST COMFORT 90 by VOLT
Polska.Please read this user manual before starting the device.
IMPORTANT SAFETY INSTRUCTIONS
1. Wet hands can not be used to contact power plugs. In order to avoid risk of
electrical shock
2. When to start the fan, do not tough the film in the tank, or else you will feel
painful or be in danger.
3. When the tank is dry, the water levels switch automatically cut to protect. To
continue, just pour in some water.
4. Guard against debris into the net hood and mouth to avoid damage to wetting
fan.
5. If the body if the body tilted, first cut off the power supply for further
processing. Before cutting off the power, do not decompose the body to avoid
any accidents.
6. 40°C or above water should not be used into water tank.
7. Do not put any metals, chemicals or others should not be put into water bottle
holder to avoiding abnormal atomization and danger.
8. Please replace the mosquito mat when switch it off 5 minutes later to make it
cool.
9. The inflammable should not be put on the surface of mosquito repellent.
10. For infants the elderly or infirm, do not stay directly to the mist fan for a long
time when it works.
11. The mist fan should work under the condition of rated power.
12. If the power line damages, must use components from the manufacturer or
maintenance department to replace.
13. The mist fan should be put more than 30cm away from wall and far away
from curtain and cloth.
14. Mist fan should not be used when on the incline ground.
15. Finger or others should not be put into air outlet or inlet to avoid machine
broken easily.
16. Do not lean mist fan or turn over or will let the water spilt out.
17. Pull out power line if not use mist fan.
18. Do not let children play with ice box.
19. Do not let Children, disabilities and common sense absence man to use this
product unless under the guidance of professionals

[e-mail] (58) 341-05-06 | [e-mail] (58) 341-38-80 | [e-mail]
(22) 100-42-99
Technical information
1. Misting Board
2. Front Grill
3. Blade Lock Nut
4. Blades
5. Grill Lock Nut
6. Back Grill
7. Grill Ring
8. Motor Shaft
9. Motor Cover
10. Motor Holder
11. Main Holder
12. Power Connection Line
13. Holder Fixed Screw
14.Control panel
15. Decorate Panel
16. Water Tank
17. Main Body
18. Base
19. Wheels
20.Base Lock Nut
21. Misting Tube
22.Remote Control
Assembling the appliance:
- Install the five castors on the base (18).
- Install the body into the base (18), and use the base lock nut (20) to screw on
the base tightly.
- Connect power connection line (12), and put it into the main body (17), and tight
up by holder fixed screw (16).
- Install the back grill (6), and tight up by grill lock nut (5) on the motor cover (9)
- Install the blades (4) on to the motor shaft (8), and anticlockwise by blade lock
nut (3).
Installation
- Be sure to remove all packaging material from inside
the appliance.
- Ensure that the fan is switched off from the supply mains before start any

[e-mail] (58) 341-05-06 | [e-mail] (58) 341-38-80 | [e-mail]
(22) 100-42-99
installation or assembly operation.
- The appliance should be used with its base fitted.
- Install misting board (1) on the front grill (2) and screw up by misting board lock
screws.
- Put the front grill (2) and back grill (6) together, and screw to fasten by grill ring,
and tight up by grill lock nut.
ATTENTION!
•Make sure the products unplugged from the mains before filling or refelling the
water tank.
•Only use water in the water tank. Do not add any chemicals, oils or other
additives.
•Only use cold or lukewarm water in the water tank. The water must not be
warmer than 40°C.
Place the fan on a dry and stable surface and insert the plug on the socket; the
unit will emit a short “BIP” sound indicating that pow er is supplied. For your
convenience the unit can be operated by using control panel in the main body or
by using remote control included.
Operation the appliance:

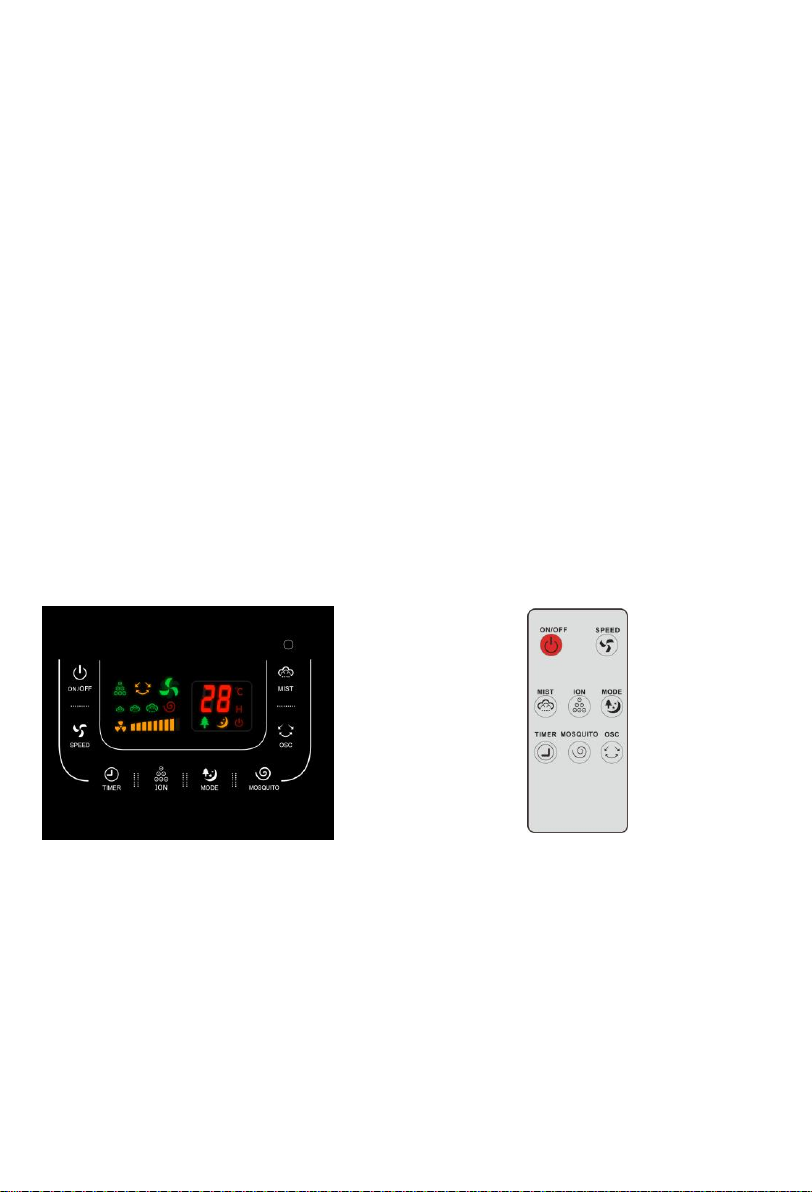

Touch panel Remote control

[e-mail] (58) 341-05-06 | [e-mail] (58) 341-38-80 | [e-mail]
(22) 100-42-99
Filling water:
- Push the water tank upward and remove the water tank.
- Unscrew the filler cap and fill with water.
- Screw the filler cap and put the water tank back in position.
- CAUTION: The temperature of water should not be 40ºC above.
Operating the ice box:
- Turn off the appliance and pull out plug from the electrical outlet.
- Take out water tank, and then take out the ice box from appliance.
- Put the ice box into refrigerator for freezing
- After freezing, put the ice box on water holder make temperature lower.
- It can be reused.
Operating aroma tank:
- Take aroma case out on the body rear shell.
- Put several drops aroma liquid into the aroma case, and
put the aroma case back in position.
- Slowly the aroma evaporates and be full of room while the mist fan working.
ON/OFF button:
- Firstly push ON/OFF button, the indicator light is on.
- Secondly push ON/OFF button, the wind speed is in the low level by default.
Meanwhile, the indoor temperature shows on the panel.
Thirdly push ON/OFF button, all stop working, all indicator lights off.
Speed button:
- Firstly push speed button, the wing speed is in the medium level
- Secondly push speed button, the wind speed is in the high level
- Thirdly push speed button, the wind speed returns to the low level.
Mode button:
- Natural mode →Sleep mode →Normal mode
Natural mode : The wind imitate the blow of natural wind based on strong and
soft wind.
Sleep mode: the first half hour after running as strong and
soft natural wind, it becomes med natural wind and the
second half hour it changes to soft natural wind until the end of preset time.
Normal mode: The wind blow based on Low/Med/High speed.
Mist function:
- Mist function can be used separately, or worked together with the fan.
- Firstly push Mist button, the mist spray in low volume.
Secondly push Mist button, the mist spray in medium volume.

[e-mail] (58) 341-05-06 | [e-mail] (58) 341-38-80 | [e-mail]
(22) 100-42-99
- Thirdly push Mist button, the mist spray in high volume.
- Note: While the mist function work normally, the indicator light on the body shell
is blue, while the water is lacking, the indicator light is red.
plus or minus pole.
Oscillation function:
- The oscillation function makes it possible to direct the flow from the apparatus
so that it automatically alternates
over a range of 75º
- To activate this function, push the OSC button. The yellow light of OSC on.
- Press it again to stop oscillation, yellow light of Osc off. Ionic function:
- Mist function can be used separately, or worked together with the fan.
- The appliance can generate negative ions generated by the ionizer emanate
from the unit throughout the room and cause dust, pollen, pet dander etc to
clump together and drop out of the air.
- Push the ion button, green light of Ion function on,
- Push it again to stop working, the green light of Ion function off.
Mosquito repellent function
- Mosquito repellent function can be used separately, or worked together with the
fan.
- Put the mosquito repellent tablet (not included with the product) into its hole on
the body rear shell.
- Push Mosquito button red light of mosquito repellent on, to avoid the
mosquitoes annoy.
- Push it again to stop working, red light of mosquito repellent off.
Note:
- Turn off the power when you replacing the mosquito repellent tablet, wait for 10
minutes then replacement in order to avoid burns or electric shock.
- Do put the mosquito repellent tablet in contact with eyes or mouth. If put in
mouth by accident, wash mouth and seek medical care immediately.
-Note: While the mist function work normally, the indicator light on the body shell
is blue, while the water is lacking, the indicator light is red.
plus or minus pole.

[e-mail] (58) 341-05-06 | [e-mail] (58) 341-38-80 | [e-mail]
(22) 100-42-99
CLEANING AND MAINTENANCE
NOTED: Before cleaning the appliance always disconnect the power plug from
the receptacle.
1. DO NOT dip the device in water, or splash it with any other liquids.
2. DO NOT use solvents or any other chemical products for cleaning it. When
you do not use it, after cleaning it, store the fan in a dry place.
3. When you have finished using the fan at the end of the season, wipe off any
dust to maintain it in good working order for the next season; if necessary
disassemble the grille and remove the fan; clean them with a soft damp cloth.
Remove the water tank and clean it with lukewarm water; before replace the
water tank in the unit make sure it is completely dry. Draining the water out of the
unit placing a container underneath the water drain (indicated with an arrow in
below picture) and let any water remaining in the water reservoir drain out.
SPECIFICATION
Power: 90W
Voltage: 220V-240V / 50Hz

[e-mail] (58) 341-05-06 | [e-mail] (58) 341-38-80 | [e-mail]
(22) 100-42-99
FILL IN IF NEEDEED
(*) Cross incorrect
I agree to pay the cost of inverter repair due to:
* expiration of the warranty period / * warranty void
Before proceeding with the repair, service will inform by phone
about the exact costs of the repair.
Please attach a copy of the purchase document (receipt or invoice)
to the complaint.
The full regulations of service repairs can be found on our website
www.voltpolska.pl
DATA OF PURCHASE
SHIPPING ADDRESS
SIGNATURE/STAMP
DAMAGE DESCRIPTION
SERVICE COMMENTS
WARRANTY CARD
