Volumair TURBISOL 56 User manual

EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : [phone] – Fax : [phone]
SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510
TURBISOL 56, 112, 164
User manual
Edition of 24/07/2020

User manual - TURBISOL 56, 112, 164 202007-473-ENGP2
You just acquired one of our
machines and all the team
of Europe Projection thanks
you for the condence
you have granted us.
Manufacturer of professional
equipments for paint and
llers, we have put our
know-how for 25 years
at the service of the
users of our machines.
Our technical & commercial
team is at your disposal
for any further information
you may need about the
machine you just acquired.
EUROPE PROJECTION
228, avenue Olivier Perroy
13790 ROUSSET
Tél : [phone]
Fax : [phone]
SUMMARY
1. USER MANUAL............................................................. p. 3
1.1. Importance of the manual .........................................p. 3
1.2. Receivers of the manual............................................p. 3
2. WARNING .................................................................... p. 4
2.1. Safety .....................................................................p. 4
2.2. Electric connection ...................................................p. 6
2.3. End-of-life of the product ..........................................p. 6
3. YOUR MACHINE ........................................................... p. 7
3.1. Description..............................................................p. 7
3.2. Technical characteristics ...........................................p. 7
3.3. Identication of the components ................................p. 8
4. USE OF THE MACHINE ................................................. p.10
4.1. Prerequisites............................................................p.10
4.2. Starting up ..............................................................p.10
4.3. Error codes..............................................................p.10
5. MAINTENANCE............................................................. p.11
6. DECLARATION OF CONFORMITY ................................... p.13
7. WARRANTY CONDITIONS.............................................. p.15

202007-473-ENG User manual - TURBISOL 56, 112, 164 P3
1. USER MANUAL
1.1. IMPORTANCE OF THE MANUAL
This manual is a key part for the use of your machine. It summarizes the procedures of starting-up, cleaning
and maintenance of the device and also the safety instructions you need to observe.
Read carefully all the working and safety instructions and the warnings included in this manual before
starting your machine.
Most of the accidents are caused by the non-compliance of the safety standards and rules.
This manual must be kept near the machine, within reach of the user and held in good condition until the
nal destruction of the machine.
In case of loss or deterioration of the manual, you can ask the machine manufacturer mentioned on page
4 for a copy at any moment.
1.2. RECEIVERS OF THE MANUAL
This manual is intended to any staff which will manipulate the machine :
- people in charge of the transport of the machine
- people in charge of the use of the machine
- people in charge of the cleaning and maintenance of the machine
- people in charge of the nal destruction of the machine

User manual - TURBISOL 56, 112, 164 202007-473-ENGP4
2. WARNING
2.1. SAFETY
Using the machine in an incorrect way or in non-compliance of the safety instructions indicated in
this manual can cause death or serious injuries.
Read carefully all the working and safety instructions and the warnings contained in this manual
before starting your machine.
• Respect all the safety standards before running the equipment.
• Use the equipment only for the applications specied in the manual.
• Always remain alert when using the equipment.
• Transport the machine using the handles or the appropriate grips.
• During the breaks, disconnect electrically the machine.
• Run the equipment to its nominal voltage.
• Let at least 50 cm of free space between the equipment and any obstacle so that the air ow
is not blocked.
• Know how to quickly stop the equipment in case of necessity.
• Never use the equipment while it is running abnormally or it is defective.
• Do not direct a water jet or ammable liquid on the machine.
• Never direct an air jet or product jet on a person or an animal.
• Do not touch warm surfaces of the equipment.
• Always wear adequate body protections (glasses, gloves, overall and mask) and pay attention
to long hair.
• Never touch moving parts.
• Do not insert any object or the hands inside the protection grids to avoid any accident or
damage to the machine.
• For any outside job, only use appropriate extension cords.
• Maintain the equipment carefully and clean it properly after every use.
• Disconnect the equipment before any intervention.
• Avoid absolutely to unscrew any connection while the machine is under pressure.
• Check the damaged parts.
• Do not clean the plastic parts with solvant.
• In case of damage of the electric cable or the plug, do not run the machine and contact a
licensed After-Sale Service to put genuine parts instead of the defective ones.
• In case of needed After-Sale Service, always specify the machine model and its serial number.
• For any replacement of parts, only use genuine parts.
• Do not modify the machine.
• Do not cut or dismantle the protection grids.
• Do not open the electric box.

202007-473-ENG User manual - TURBISOL 56, 112, 164 P5
IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL
MODIFICATION WITHOUT ADVANCED NOTICE.
2. WARNING (continued)
2.1. SAFETY (continued)
WORKSPACE
• Maintain the workspace clean and clear.
• Ambient operating temperature must be from 5°C and 35°C.
• Do not use the equipment in a potentially explosive area.
• Do not place any potentially inammable objects in close proximity to the machine.
• Take away every not qualied person from the working area of the machine, as well as children and
animals.
• In case of installation of the machine on scaffolding or a plan above ground level, attach the machine
to avoid any fall while operating.
• Do not install the equipment on an inclined surface to avoid the risks of unexpected moves or falls.
HOSES
• Always use hoses and connections adapted to the used product (genuine parts), do not try to x it.
• Do not walk on the hoses, do not bend them.
• Do not use the hoses to pull the machine.
STORAGE
• Keep the equipment in a clean and clear area in which the temperature does not exceed +35°C.

User manual - TURBISOL 56, 112, 164 202007-473-ENGP6
2. WARNING (continued)
2.2. ELECTRIC CONNECTION
The electric connection of the machine must be on a 16A - 230V plug with a differential circuit
breaker.
Before any intervention on the machine, make sure that every energy supply is cut (air and
electricity).
GROUND CONNECTOR
All the machines must be connected to the ground when they work to protect the operator from electric
shocks. Our machines are all equipped with standardized connection plugs.
Electric connection must be made by a qualied technician. It is fobidden to modify or dismantle the
machine, especially the electric box.
Repairs must be made by an authorized center or our After-sale Service.
During any intervention on the machine, make sure that the ground is well reconnected.
EXTENSION CORDS
During the use of an extension cord, make sure that it is not crushed or damaged and that it contains a
ground. Check that the section of the used extension cord is sufcient to support the machine when it is
working. A too thin extension cord can cause voltage drops or overheating of the machine.
In case of use of a cable reel, it is imperative to unwind it entirely, otherwise, the equipment can be
damaged. The section must be proportional to the length of the cord.
2.3. END OF LIFE OF THE PRODUCT
At its end-of-life, the machine must not be eliminated with the other household waste. The
uncontrolled elimination of waste can harm the environment or human health. Individuals are
invited to contact the distributor which sold them the product or to inquire with their city hall
to know where and how to get rid of the product so it can be recycled while respecting the
environment.
Under the regulation of Waste of Electrical and Electronic Equipments (WEEE), we undertake to
process the used EEEs according to the following provisions: applicable only to products on the
market since 08/13/05, under the brands EUROPE PROJECTION or VOLUMAIR, products of other
brands sold by our company (upon presentation of the corresponding invoices), products that
operate using electrical energy (for example, thermal washers or compressors do not fall into this
category).
Treatment modality
WEEE returns collected by our clients/distributors at their own expense to our collection points in
Antony (92) or Rousset sur Arc (13). Upon receipt, the products are sorted by our employees and
directed to the most appropriate processing channels.
For any further information, please contact our hotline [phone] or [e-mail].

202007-473-ENG User manual - TURBISOL 56, 112, 164 P7
3. YOUR MACHINE
3.1. DESCRIPTION
Machines designed for the application of thermal and acoustic insulation products for attics, ceilings and
walls: cellulose wadding, glass wool, reproof product, hemp and rock wool (from model 112).
3.2. TECHNICAL CHARACTERISTICS
56-Evo2 112 112/2 164 164/2
Electrical supply 230 V / 50 and 60 Hz
Maximum current 11 A 12 A 16 A
Motor power 0,55 kW 0,75 kW
Transmission by chain
Turbine 3300 L/min -
1400 W 3360 L/min - 1650 W 5000 L/min - 2 x 1400 W
Electronic control no yes
Pressure 0,3 bar
Flow rate for cotton
wadding
0 to 28
bags/h 0 to 50 bags/h 0 to 55 bags/h
Tank capacity 220 L
Suction turbine lter 1 2
Cooling turbine lter - 1
Product hose length Ø63 x 25 m
Product outlet diameter 63 mm
Inatable tyres Ø 300
Wire-guided remote
control 25 m Start / Stop
Loading height 122 cm 108 cm 122 cm 108 cm 122 cm
Dimensions (L x w x h) 105 x 68
x 142 cm
105 x 80
x 122 cm
101 x 68
x 142 cm
105 x 80
x 122 cm
116 x 67
x 151 cm
Weight 95 kg 95 kg 112 kg 109 kg 116 kg
Noise level 101 Lwa 104 Lwa 100 Lwa
Do not use water or moistened cotton wadding at the risk of clogging the machine.

11256
A
B
C
D
F
E
User manual - TURBISOL 56, 112, 164 202007-473-ENGP8
3. YOUR MACHINE (continued)
3.3. IDENTIFICATION OF THE COMPONENTS

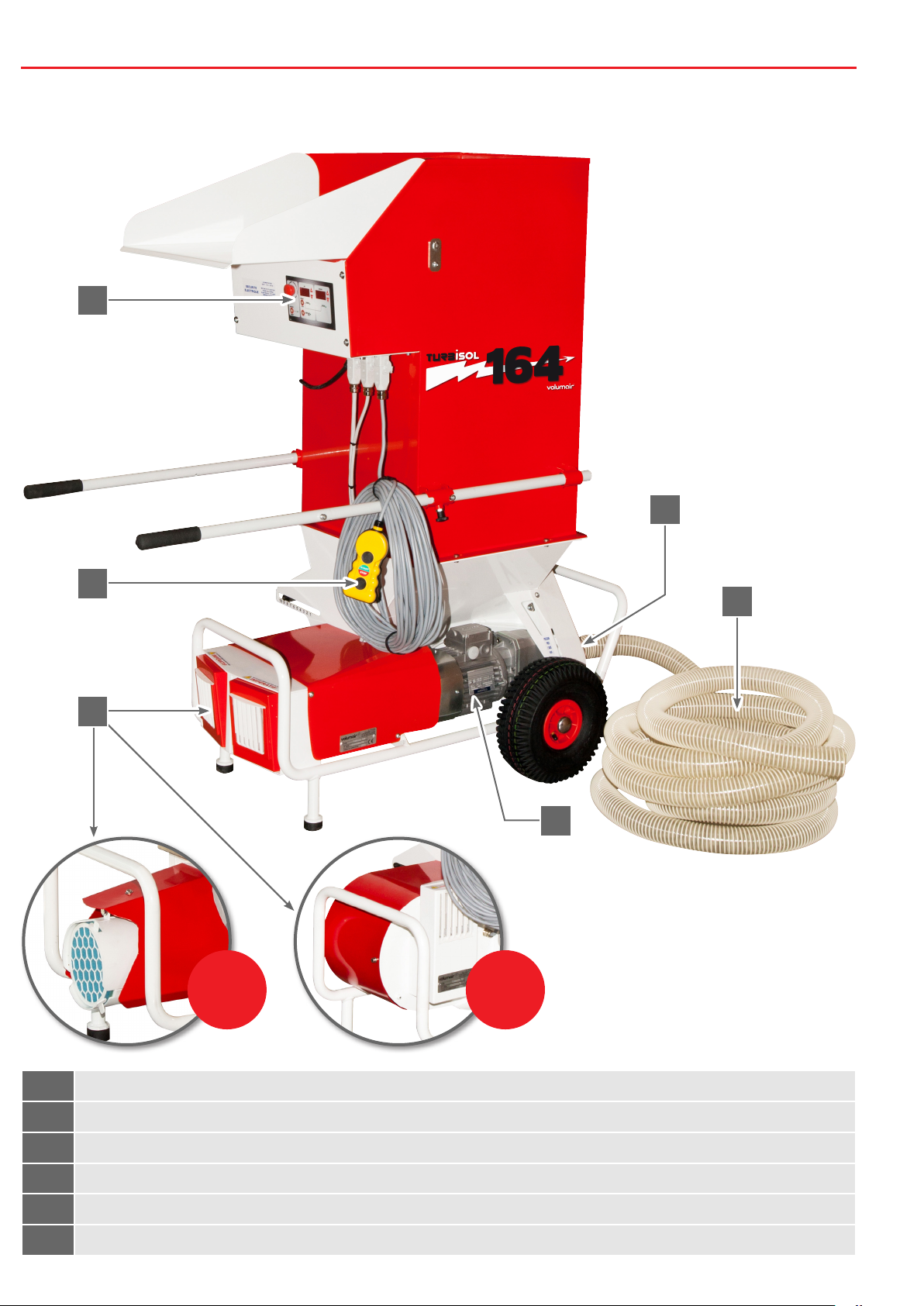

AProduct hose
BProduct outlet
CGeared motor
DRemote control
ETurbines
FControl panel (see details on the next page)

CARDAGE
SOUFFLAGE
SEUL
MOTEURTURBINE
DÉPART
STOP
AIR
A
R
R
E
T
D
'
U
R
G
E
N
C
E
-
A
R
R
E
T
D
'
U
R
G
E
N
C
E
-
A
R
R
E
T
D
'
U
R
G
E
N
C
E
-
MARCHE
ARRET
13013
1L1 L4 32 L2 L3
AU G4 65 7 H
202007-473-ENG User manual - TURBISOL 56, 112, 164 P9
3. YOUR MACHINE (continued)
3.3. IDENTIFICATION OF THE COMPONENTS (continued)

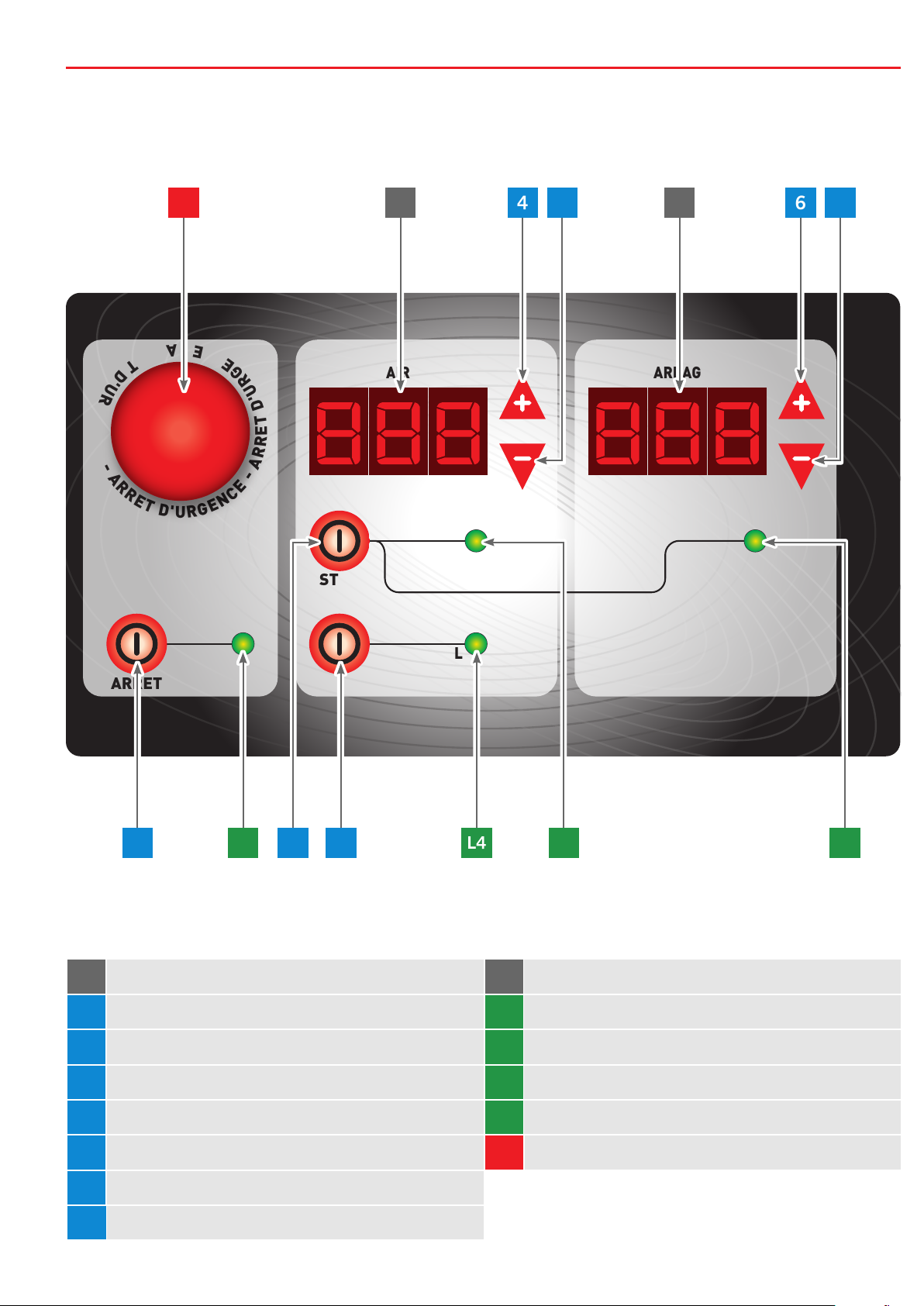

KTurbines speed in % display LMotor speed in % display
1Start / Stop of the machine L1 Power on light
2Start / Stop of the working cycle L2 Turbines running light
3Start of the turbines alone L3 Motor running light
4Increase the turbines speed L4 BLOWING ONLY running light
5Decrease the turbines speed AU Emergency stop
6Increase the carding motor speed
7Decrease the carding motor speed

User manual - TURBISOL 56, 112, 164 202007-473-ENGP10
4. USE OF THE MACHINE
4.1. PREREQUISITES
• The electric connection has to be 230 V - 16 A - 50 or 60 Hz with a 3 x 2,5 mm cable reel of 40m
maximum, completely unreeled.
4.2. STARTING UP
1. Once the machine has been connected, the machine is in the stop mode, the display (G) shows OFF.
2. One push of the ON/OFF button (1), the display (G) shows the set value of the turbines speed in %,
the warning light (L1) lights up, the machine is ready.
3. Press the button (2), the turbines will start. The light (L2) lights up and the light (L3) ashes.
4. After 6 seconds, the carding motor starts up and the light (L3) remains lighted up.
5. Let the machine run on empty for about 30 seconds to verify its good functionning.
6. The machine is ready for work. Place the bundle of product to spray and make it fall down into the
tank.
7. Use the remote control to start or stop the running of the machine.
8. To modify the product ow-rate, increase or decrease the speed of the carding motor with help of the
(6) and (7) buttons.
9. In BLOWING ONLY mode (light (L4) lighted up), the carding motor does not run.
10. Once the work is done, press the START/STOP button to stop the running. The carding motor stops
(the light (L3) lights off). After 6 seconds the turbines also stop and the light (L2) lights off.
4.3. ERROR CODES
The different error codes show up on the display (G).

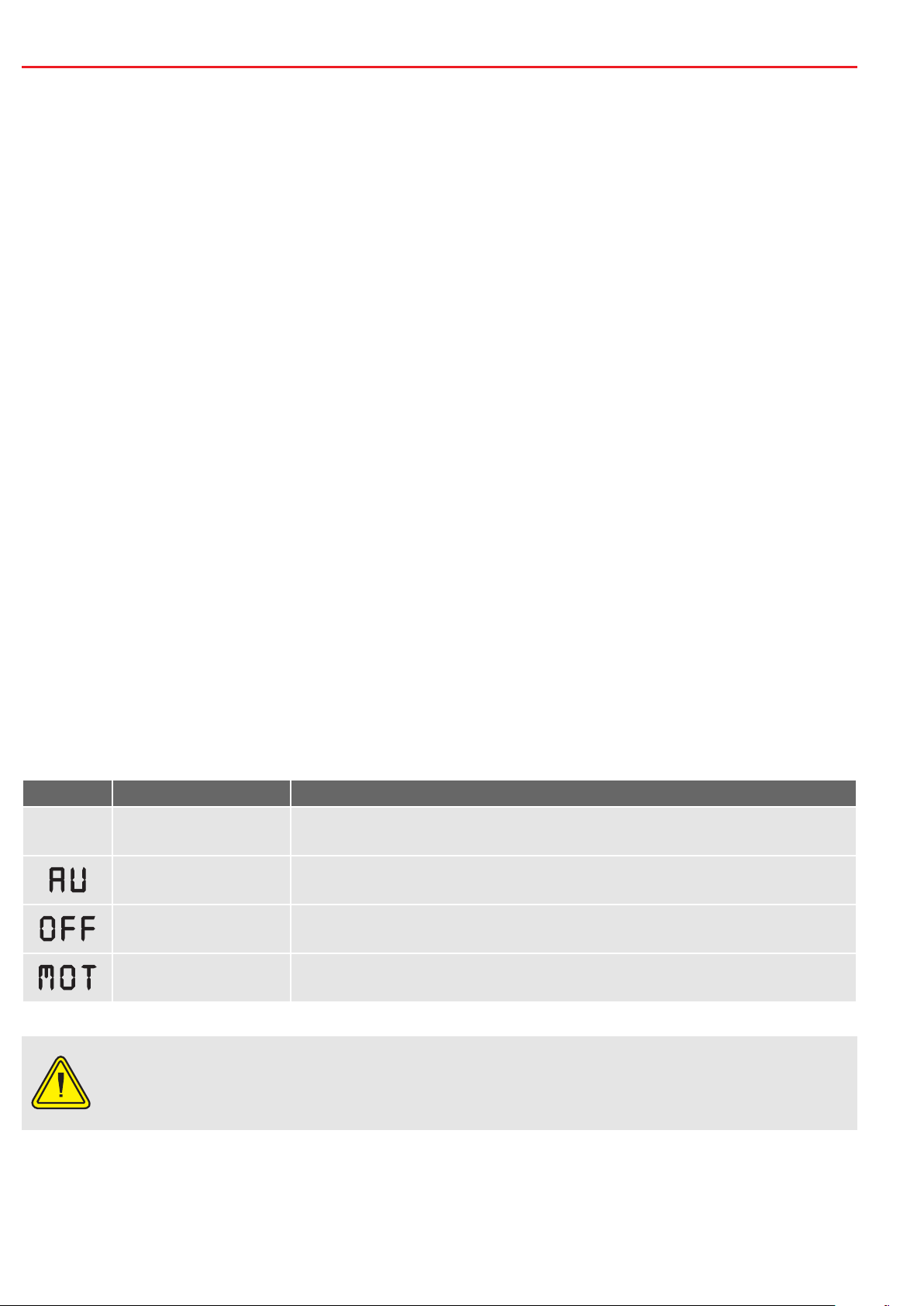

CODES DEFINITION TO DO
No display. Plug the machine into the power supply, assure the power supply is
230 V, verify the fuse in the electric box.
Emergency stop is
on. Unlock the emergency stop button (AU).
Machine is in the
stop mode. Switch the machine on by pressing on the button (1).
Default control
engine. Set the machine to "OFF" for one minute and then switch it back on.
If the problem persists or if in doubt on the good running of the machine, do not try to repair
it by yourself or to dismantle it.
Contact an authorized After-Sale Service or our hotline : [phone].

202007-473-ENG User manual - TURBISOL 56, 112, 164 P11
5. MAINTENANCE
AFTER EVERY USE
• Let the machine run until all the product has been evacuated of the tank.
• Put the machine in BLOWING ONLY mode (button (3)) to evacuate the last remains of product from
the hose.
• Clean the air lter of product propulsion. The clogging of this lter affects the machine efciency.
• Clean the air lter of the turbines cooling. The clogging of this lter can overheat the turbines and
damage it.
In case of an intensive use of the machine, these lters shall be cleaned up more regularly.
Stop the machine and clean the lters, then restart working.

User manual - TURBISOL 56, 112, 164 202007-473-ENGP12

202007-473-ENG User manual - TURBISOL 56, 112, 164 P13
6. DECLARATION OF CONFORMITY
THE MANUFACTURER : EUROPE PROJECTION
228, avenue Olivier Perroy
13790 ROUSSET
DECLARES THAT THE EQUIPMENT DESIGNATED BELOW :
Trademark : VOLUMAIR
Type : Blowing machine
Model : TURBISOL 56, 112, 164
COMPLIES WITH THE ARTICLE:
• the R.233-73 article of the Labour Code
THE DIRECTIVES :
• Machines 2006/42/CE
• Low voltage 2014/35/UE
• CEM 2014/30/UE
• ROHS 2011/65/UE
• Noise emissions 2005/88/CE
AND WITH THE STANDARDS:
• NF EN ISO 12100
• NF EN 60204-1
• NF EN ISO 13857
ROUSSET, JANUARY 20th 2020
Patrick BOREL
President
EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510

User manual - TURBISOL 56, 112, 164 202007-473-ENGP14

202007-473-ENG User manual - TURBISOL 56, 112, 164 P15
7. WARRANTY CONDITIONS
Each product is delivered inspected and tested.
We exclude any warranty for visible defects for which the customer did not claim within 48 hours.
The equipments sold are covered by the warranty during the period dened by the manufacturer from
the date of purchase, the date on the original proof of purchase being authentic and under the conditions
dened by the manufacturer.
This warranty covers any equipment against any manufacturing or material defect of for normal use and
service. Insofar as the customer is presumed to be a professional of the same specialty, the guarantee
covers only the lack of realization of the equipment rendering it unt for its use not likely to be detected by
a professional buyer.
The defects or deteriorations caused by natural wear, external accident or a modication, use, storage or
treatment of equipments not planned by the manufacturer, nor specied by ourselves, are excluded from
any warranty.
Are expressly excluded from the warranty the defects coming from: a bad use, the application of abrasive
or corrosive products, an inappropriate installation, the negligence, an insufcient maintenance or cleaning
chemical, electrochemical or electric inuences, any change in the normal process of use.
The following wearing parts are not covered by the warranty: rotors, stators, driving shafts, connecting rods,
seals, cleaning balls, spray guns, lance, nozzle, hose, needle kits, cylinders, piston rods, prime/spray valve
assy, seal kits, membranes, suction and delivery valves, carding machine vanes, lters, oils.
The warranty also excludes the equipments: on which the serial number was erased or made illegible, on
which unauthorized people made attempts of repair which were totally or partially dismantled.
Defective equipment will be removed by us. Any shipment of equipment by the customer will be at its own
expense. The guarantee will be subject to the presentation of the purchase invoice. We will then be able to
perform an equipment analysis to determine if the defect is covered by the warranty.
If the defective equipment is covered by the warranty, it will be repaired or replaced free of charge. Repaired
equipment (under warranty) will be delivered to the customer free of charge.
If the defective equipment is not covered by the warranty, we will issue a quote for the repair that we will
submit to the customer’s agreement. The costs of removal and shipping of equipment not covered by the
warranty will be charged to the customer, whether or not the latter accepts the repair estimate.
Except as otherwise required by law, this warranty is exclusive of all other warranties, including the statutory
warranty of hidden defects.
In case of intervention of our services on a breakdown caused by the customer or an outage excluded in the
conditions referred to above, the costs of repair and transport will be billed to the customer.
We exclude all liability for indirect damages suffered by the customer, such as, but not limited to, loss of
income, turnover, loss of prots, loss of image, of any kind whatever.
In all cases, our liability shall be limited to the amount paid by the customer for non-compliant equipment.
Any action of the customer against us relating to the guarantee of the equipments will be prescribed within
the period of 1 year as from the day of the discovery of the defect. It is up to the customer to prove the day
of this discovery.
Our equipments are covered by a warranty (parts and labour) of 12 months following the purchase.
The duration of this warranty can be extended by 6 months by completing the warranty extension
form within 4 weeks after purchasing on our website www.euromair.com (section Warranty).

EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : [phone] – Fax : [phone]
SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510
User manual - TURBISOL 56, 112, 164 202007-473-ENGP16
