VonHaus 3500024 User manual
1600W PADDLE
MIXER
3500024 - Instruction Manual
CONTENTS
Safety Instructions 1
Safety Instructions 2
Safety Instructions/Safety Symbols 3
Specification 4
Mixer Assembly 5
Operation 6
Speed Adjustment Dial/Working with Paint & Mortar Mix 7
Carbon Brush Replacement 8
Cleaning & Maintenance 9
Warranty/Decleration of Conformity 10
WARNING
Please read and understand these Safety Warnings, Safety Symbols and Instructions carefully and retain
for future use
1
INTENDED USE
The machine has been designed to mix
liquid and powdery building materials
such as paint, mortar, adhesive, plaster
and similar substances. The relevant
mixing action (which depends on the
consistency of the materials and the
quantity that has to be mixed) must
be set up for the appropriate mixing tool.
This manual must be kept in a safe place
so that the information that it contains is
always available. This operating manual
must accompany the equipment if it
is transferred to somebody else.
SAFETY INSTRUCTIONS
When using power tools, you must
observe the following basic safety
precautions in order to ensure protection
from electric shocks, injury and fire.
Read and follow all the instructions
before using this power tool. Look after
the notes on safety.
CORRECT SUPPLY VOLTAGE
The power supply voltage must match the
information quoted against the tools.
Use of an approved RCD circuit breaker
between the machine and the electrical
power point is highly recommended.
CORRECT EXTENSION CORD
Only use an approved extension cable
that is suitable for the machine’s power.
When the extension cable is on a reel,
unroll the cable in its entirety.
SWITCH OFF THE MACHINE
IMMEDIATELY IN CASE OF
Malfunction in the mains plug, power
cable or damaging of cable.
Broken switch.
Smoke or strong smell of burning.
WORK AREA SAFETY
Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
Do not operate power tools in explosive
atmospheres, such as in the presence
of flammable liquids, gases or dust.
Power tools create sparks which may
ignite the dust or fumes.
Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools.
Unmodified plugs and matching outlets
will reduce risk of electric shock.
Avoid body contact with earthed
surfaces, such as pipes, radiators, ranges
and refrigerators. There is an
increased risk of electric shock if your
body is earthed.
Do not expose power tools to rain or wet
conditions.
Water entering a power tool will increase
the risk of electric shock.
Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the
risk of electric shock.
When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric
shock.
If operating a power tool in a damp loca-
tion is unavoidable, use a residual current
device (RCD) protected supply. Use of an
RCD reduces the risk of
WARNING
Please read and understand these Safety Warnings, Safety Symbols and Instructions carefully and retain
for future use
electric shock.
PERSONAL SAFETY
Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power
tool while you are tired or under the
influence of drugs,alcohol or medication.
A moment of inattention while
operating power tools may result in
serious personal injury.
Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing
protection used for appropriate
conditions will reduce personal injuries.
Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or
battery pack, picking up or carrying the
tool.
Carrying power tools with your finger on
the switch or energizing power tools that
have the switch on invites accidents.
Remove any adjusting key or spanner
before turning the power tool on. A
spanner or a key left attached to a
rotating part of the power tool may result
in personal
injury.
Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in
unexpected situations.
Dress appropriately. Do not wear loose
clothing or jewellery.
Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewel-
lery or long hair can be caught
in moving parts.
If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are
connected and properly used. Use of dust
collection can
reduce dust-related hazards.
POWER TOOL USE AND CARE
Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job
better and safer at the rate for which it
was designed.
Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the
switch is dangerous and must be re-
paired.
Disconnect the plug from the power
source and/or the battery pack from the
power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive
safety measures reduce the risk of
starting the power tool accidentally.
Store idle power tools out of the reach of
children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands
of untrained
users.
Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other
condition that may affect the power tool’s
operation. If damaged, have the power
tool repaired before use. Many
accidents are caused by poorly
maintained power tools.
Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to bind
and are easier to control.
WARNING
Please read and understand these Safety Warnings, Safety Symbols and Instructions carefully and retain
for future use
Use the power tool, accessories and tool
bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to be
performed.
Use of the power tool for operations
different from those intended could result
in a hazardous situation.
PRECAUTIONS ON USING MIXER
The equipment must never be used in
surroundings where an explosive
atmosphere exists. Never mix in solvents
or substances containing solvent that
have flash points below 21°C.
Do not let the cable touch any parts of
your body.
3
Only use the extension cable approved
for use in the working area.
The unit must only be started and
stopped when it is inside a mixing vessel.
Ensure that the mixing vessel is placed on
a solid, secure base.
Never reach into the mixing vessel with
your hands or any other object during the
mixing process.
We recommend that you always wear in-
dustrial safety gloves and safety goggles
when working with the mixer.
Wearing close-fitting clothes is
mandatory.
Always allow for reaction torque
Always wear a dust mask
WARNING
Please ensure you understand their meanings before operating this product in order to prevent
personal injury and avoid damage to the tool.
Read and understand the
Instruction Manual before
use.
Always refer to Instruction
Manual if in any doubt of
operation, maintenance and
care.
Always wear protective
gloves.
Wear a dust mask
Always wear eye and ear protection.
Double Insulation when
servicing. Only use identical
replacement parts.
SPECIFICATION
1600 50
230 0-680/ 0-990
W Hz
V~ min-1
RATED
FREQUENCY
RATED
VOLTAGE
NO LOAD
SPEED
POWER

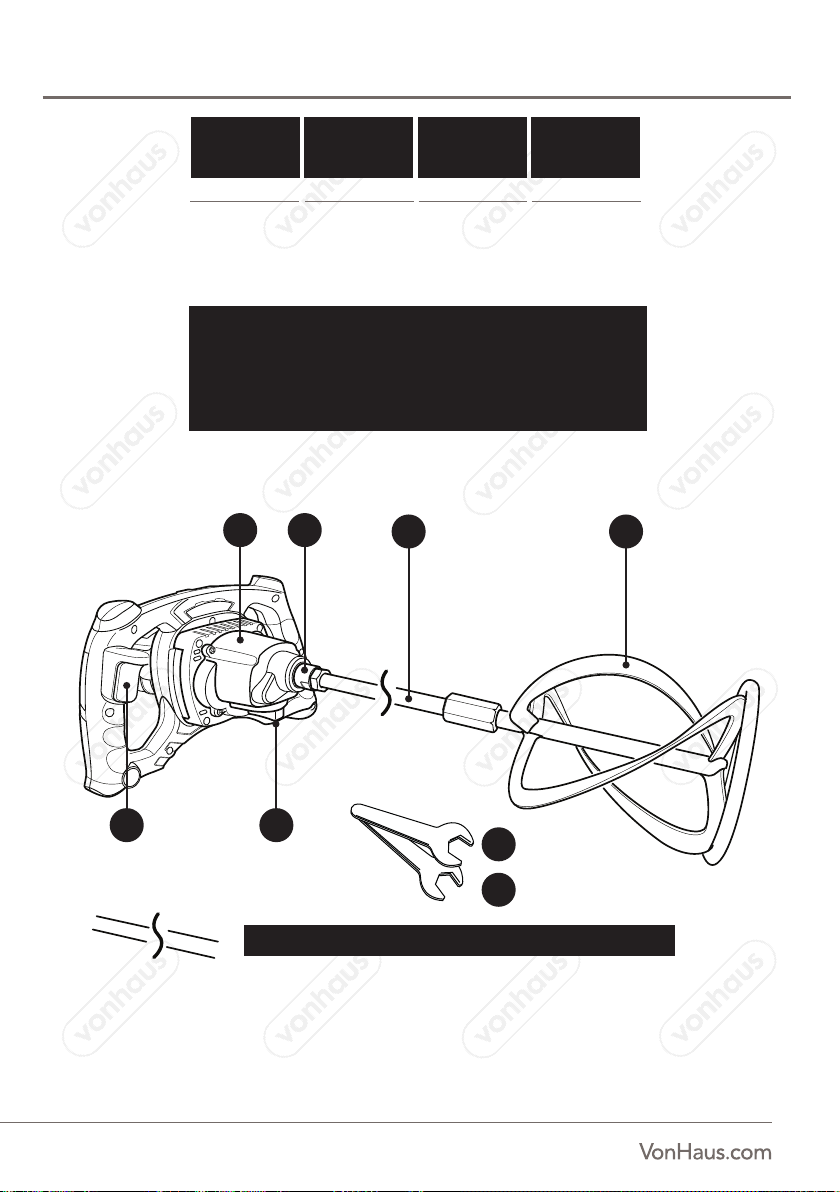

1. Mixing Stem
2. Mixing Paddle
3. Thread Attachment
4. Motor
5. On/Off Trigger
6. Safety Switch (see page 6)
7. Gear Selection Dial (see page 7)
8. Mixing Stem Spanner
9. Mixing Paddle Spanner
10. Carbon Brush Cap (see page 8)
1 2
34
5 7
NOTE Length has been shortened for illustration purposes
8
9
5

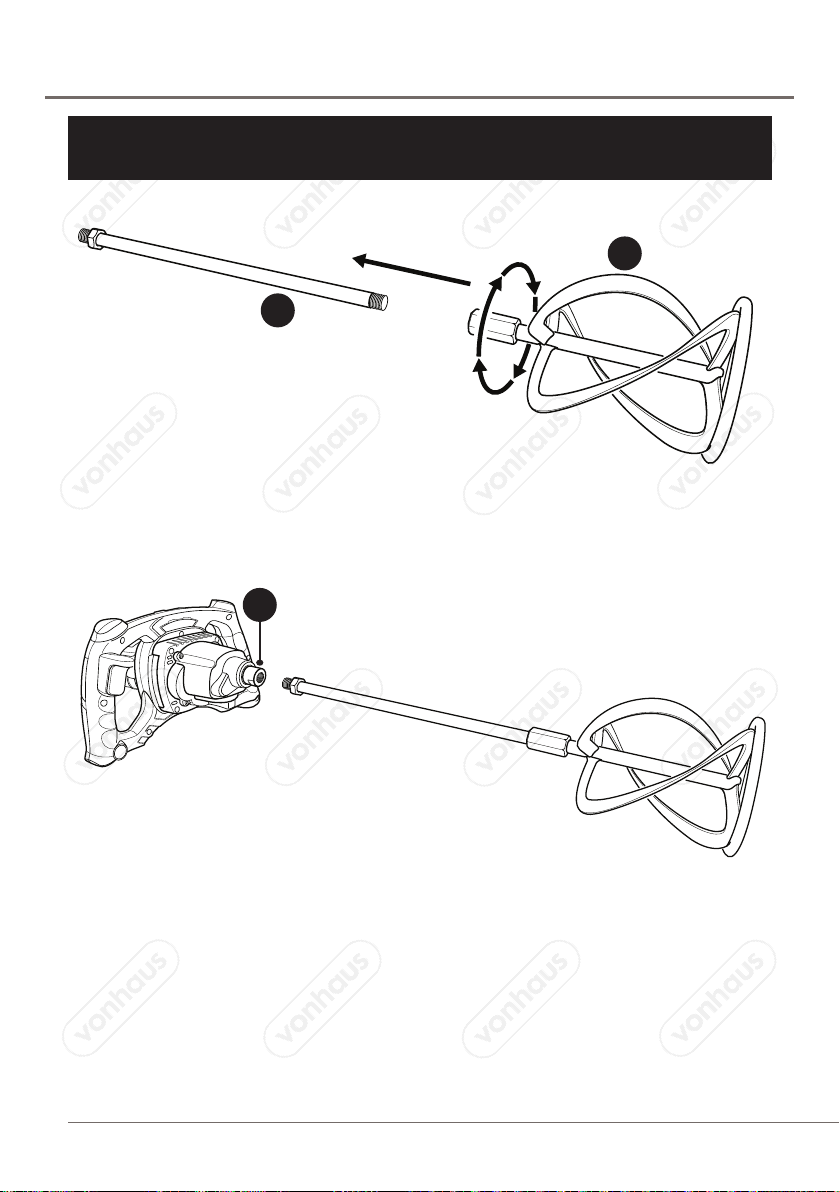

MIXER ASSEMBLY
Before performing any assembly, cleaning or maintenance tasks, always ensure the powertool is
switched off and is disconnected from the mains supply
1
2
3
Screw the assembled MIXING STEM (1) and MIXING
PADDLE (2) into the THREAD ATTACHMENT (3).
Use the two spanners provided to secure. Use the
MIXING STEM SPANNER (8) to hold the thread on
the MIXING STEM (1) and the MIXING PADDLE
SPANNER (9) to hold the thread on the MIXING
PADDLE (2).
Turn only the MIXING PADDLE SPANNER (9) to
tighten and secure.
Proceed in the reverse sequence to disassemble and
clean the mixer.
First screw the MIXING STEM (1) and MIXING
PADDLE (2) together.

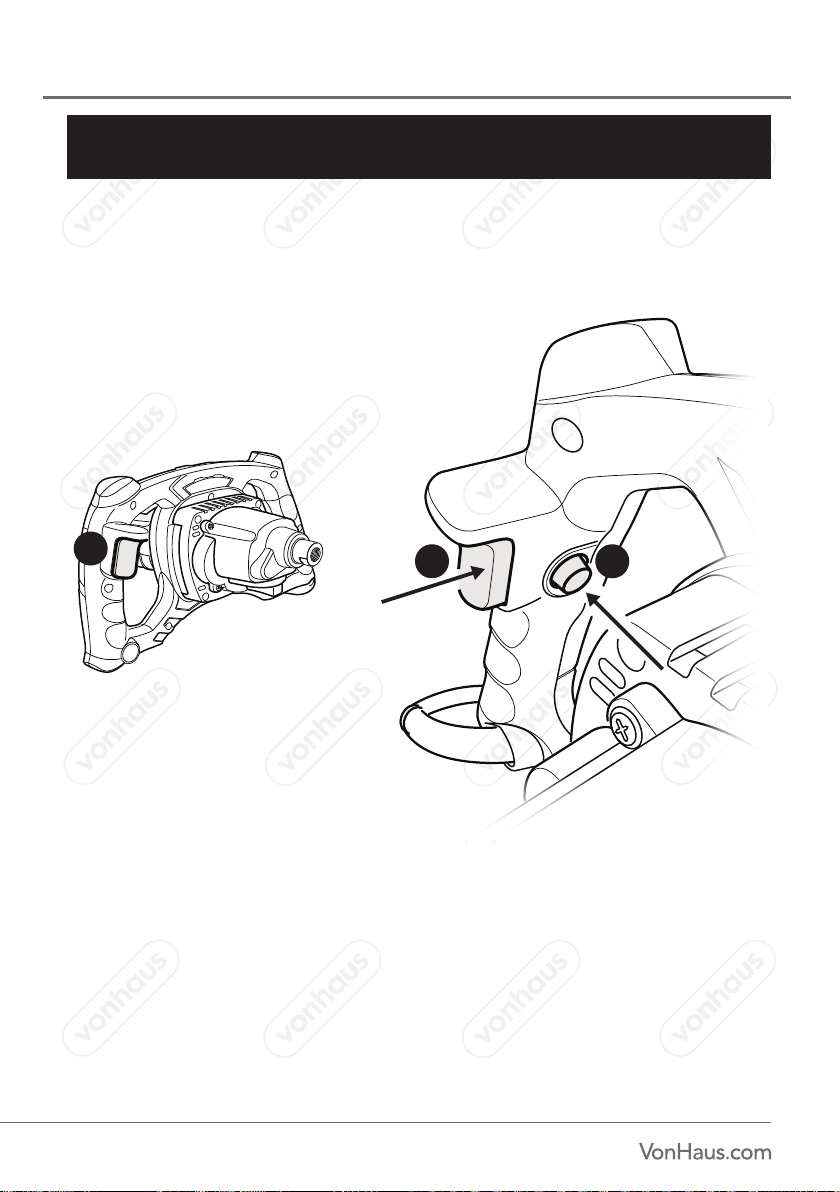

OPERATION
To switch on the mixer, depress the SAFETY SWITCH
(6) and then pull the ON/OFF TRIGGER (5).
WARNING Always ensure the MIXING STEM (1) & MIXING PADDLE (2) are completely secure
as outlined in the Mixer Assembly Section of this manual
5 6
5
Release the ON/OFF TRIGGER (5) to cease
operation.
7
GEAR SELECTOR
WARNING The GEAR SELECTION DIAL (7) should only be changed when the unit is stopped,
in order to prevent the gearing from being damaged.
The switch position enables you to work at higher or
lower speeds of rotation.
Rotate to the desired speed setting. Ensure the
speed icon aligns with the arrow marker.
The mixer should be run at low speed before it is
immersed in or removed from the mixture.
The mixer must be moved around inside the mixing
vessel during the mixing process. Continue the mixing
process until all of the mixing components have been
processed.
7
7
WORKING WITH PAINT
& MORTAR MIX
IMPORTANT Always stop the mixer before
switching speeds using the GEAR
SELECTION DIAL (7).
IMPORTANT Always stop the mixer before
switching speeds using the GEAR
SELECTION DIAL (7).

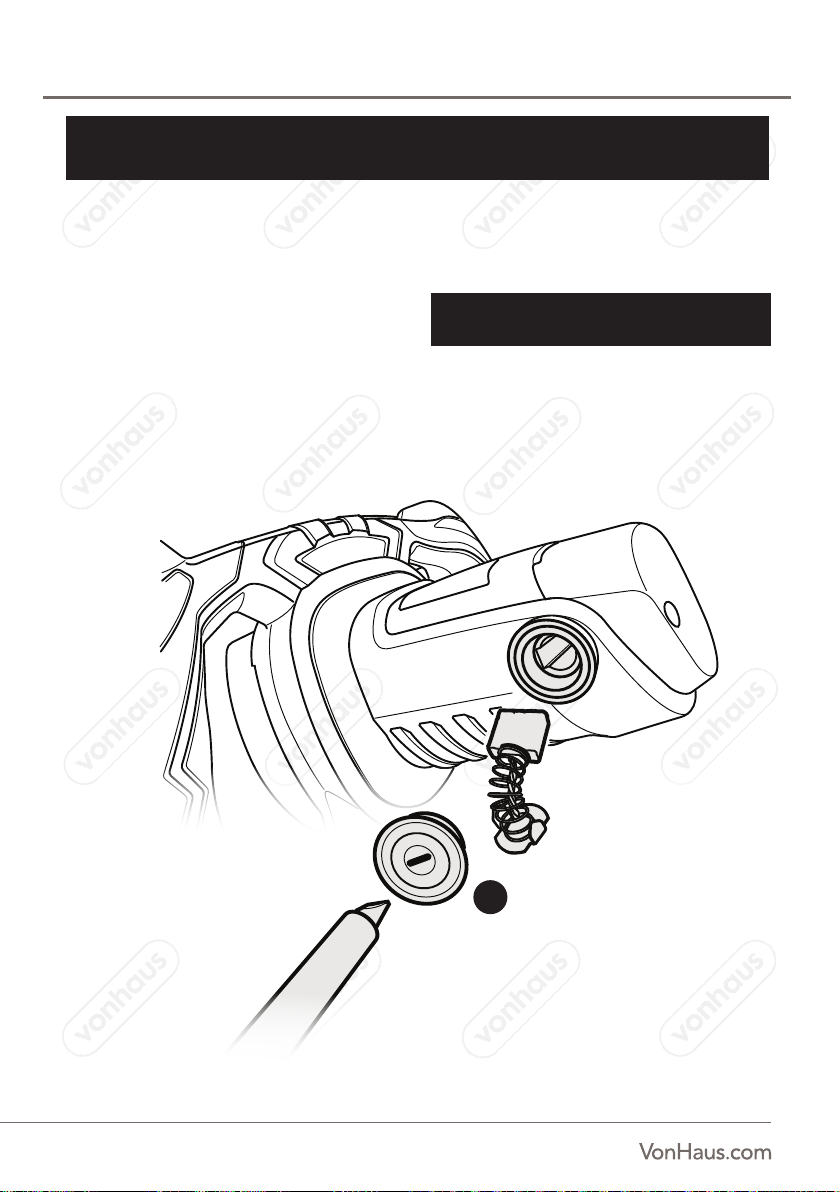

CARBON BRUSH REPLACEMENT
Before performing any assembly, cleaning or maintenance tasks, always ensure the powertool is
switched off and is disconnected from the mains supply
If excessive sparking occurs you may have to replace
the carbon brushes.
Locate the CARBON BRUSH CAP (10) at the top of
the mixer, either side of the ventilation slots.
Using a flat head screwdriver, rotate the CARBON
BRUSH CAP (10) in an anticlockwise direction to
open.
Replace the Carbon Brush.
Screw the CARBON BRUSH CAP (10) in a clockwise
direction to secure.
10
NOTE The Carbon Brush size is 7x13x18mm
CLEANING & MAINTENANCE
Remove the plug from the mains socket before
carrying out any adjustment, servicing or
maintenance.
Always store the power tool in a dry place.
If the supply cord is damaged, it must be replaced by
a qualified service technician.
Keep the ventilation slots and motor housing as free
of dirt and dust as possible.
Clean the unit by rubbing it with a clean cloth and
blow it clean using low-pressure compressed air is
recommended.
Before performing any assembly, cleaning or maintenance tasks, always ensure the powertool is
switched off and is disconnected from the mains supply
ATTENTION It is recommended that
you always clean the unit immediately
after using it. Clean the mixer regularly
by rubbing it with a damp cloth and soft
soap.
Do not use cleaners or solvents; these
may damage the surface finish of the
mixer.
Ensure liquids do not get into the inside
of the unit.
9
If you are having difficulty using this product and require support,
DISPOSAL INFORMATION
COPYRIGHT
WARRANTY
Please recycle where facilities exist. Check with your local authority for recycling advice.
All material in this instruction manual are copyrighted by DOMU Brands.
Any unauthorised use may violate worldwide copyright, trademark, and other laws.
To register your product and find out if you qualify
for a free extended warranty please go to
www.Vonhaus.com/warranty.
Please retain a proof of purchase receipt or
statement as proof of the purchase date.
The warranty only applies if the product is used
solely in the manner indicated in the Warnings page
of this manual, and all other instructions have been
followed accurately. Any abuse of the product or
the manner in which it is used will invalidate the
warranty.
Returned goods will not be accepted unless re-
packaged in its original packaging and accompanied
by a relevant and completed returns form. This does
not affect your statutory rights.
No rights are given under this warranty to a
person acquiring the appliance second-hand or for
commercial or communal use.
DECLARATION OF CONFORMITY
We:
DOMU Brands Ltd
5th Floor The Tower
Deva City Office Park
Manchester
M3 7BF
Declare under our sole responsibility that the product:
SKU: 3500024
Description: VonHaus 1600W Paddle Mixer
To which this declaration relates is in conformity with the following directives:
2014/30/EU, 2014/42/EC, 2011/65/EU.
VonHaus is a registered trademark of DOMU Brands Ltd
Made in China for DOMU Brands Ltd M24 2RW.
Thank you for purchasing the Paddle Mixer.
