Vooni AA-4308 User manual

1
Manual
Vooni Video Grabber
AA-4308
EN - SE - DE - DK - NO - FI

2
Your Package Contains:
1. 2. 3.
4. 5. 6.
7.
1. Vooni Video Grabber
2. 5 V power adapter
3. RCA - SCART adapter
4. RCA-cable
5. AV-cable
6. USB-cable
7. Manual

3
Safety Information:
1. Carefully read the instructions in this manual and save
the manual for future reference.
2. Follow the manufacturer's instructions for use of this
product.
3. Clean with a dry cloth only.
4. Do not use the product close to any heat source.
5. Unplug the product from the wall socket during lightning
storms or when it is not being used.
6. Do not expose the product to moisture, as this poses a
risk of fire or electrical shock.
7. If the product is damaged, please refer all repairs to
qualified personnel.
N.B.! Do not connect the audio output from a high-power
amplifier to the product's audio input.
Use:
The Vooni Video Grabber allows you to record high-quality
video material from a range of video sources, such as
Video8, Hi8, SVHS, VHS and DVD. You can also take
snapshots while you record video material.
The memory card saves your recording in AVI format.
File size is 13-15 Mb per minute.
Any segments you record that are more than two hours
long will be divided into parts.
A serial number (0001, 0002 etc.) is automatically assigned
as the file name. The files can then be transferred to a
computer and be renamed.

4

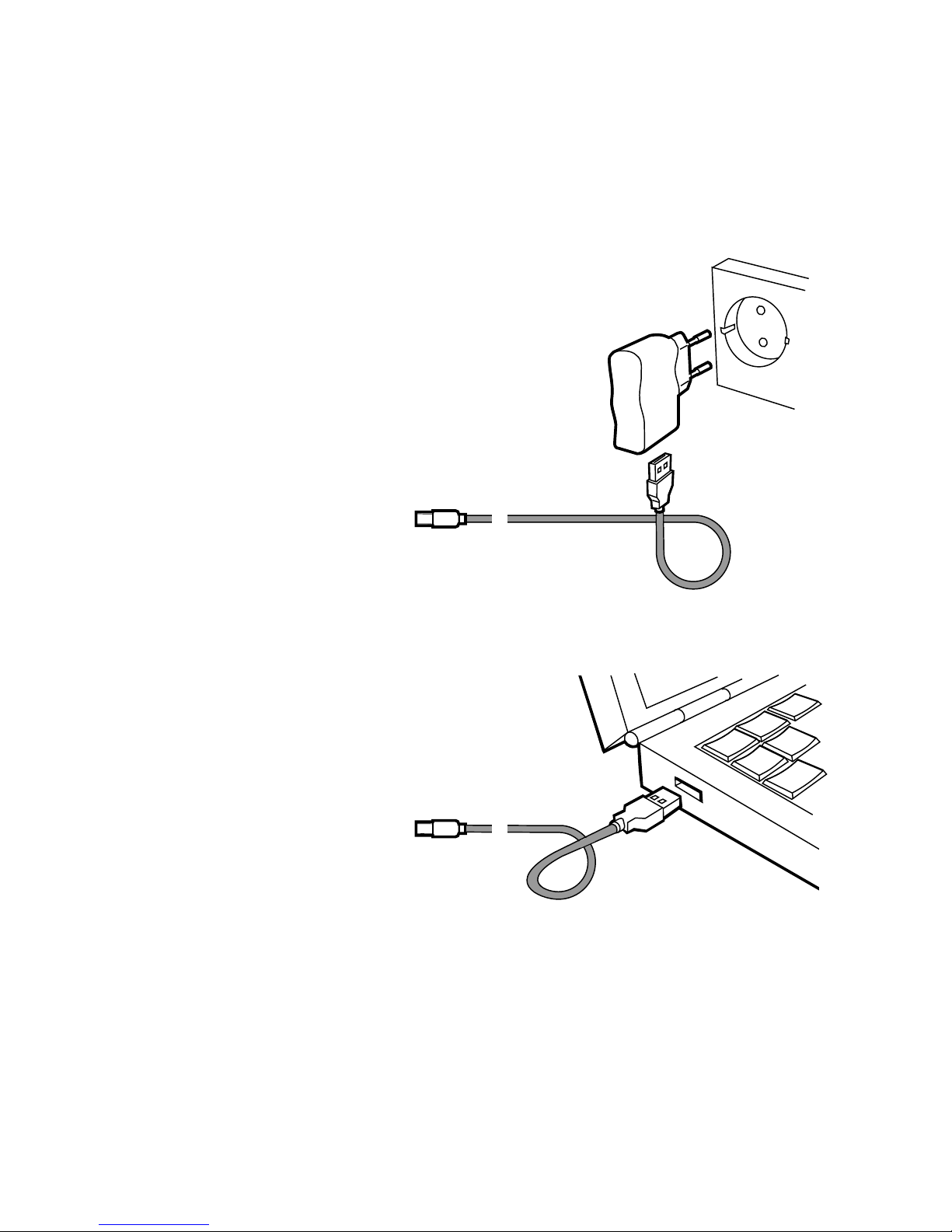

Charging the Battery:
B Via the computer's USB port
A Via the power mains
Charge your Vooni Video Grabber for at least three
minutes before turning it on.
It takes approximately 30 minutes to charge the device fully.
The built-in battery can be charged in two ways:
2
6
6

5
Installing the Memory Card:
In order to remove the memory card, gently press inward
and then carefully remove the card.
Connections
AV OUT HDMI OUT IN-R IN-L IN-V
3.5 mm
video output
HDMI-
output
L-
AUDIO
VIDEO
R-
AUDIO
Outputs
Inputs
Memory
card slot
Mini USB
A micro SD memory card (not included) must be used.
For optimal results, a memory card with speed class 10
is recommended.

6
OK
VOL-
VOL+
Operation:
On/Off
Menu
Select mode
Start/stop
recording
The buttons within the
cross perform different
functions depending on
the mode selected
Play mode:
Video recording mode:
OK
VOL-
VOL+
OK
VOL-
VOL+
Start/stop
recording
Go back in
the file list
Go forward in
the file list
Increase the volume
Lower the volume
Record without sound
Take a snapshot

7

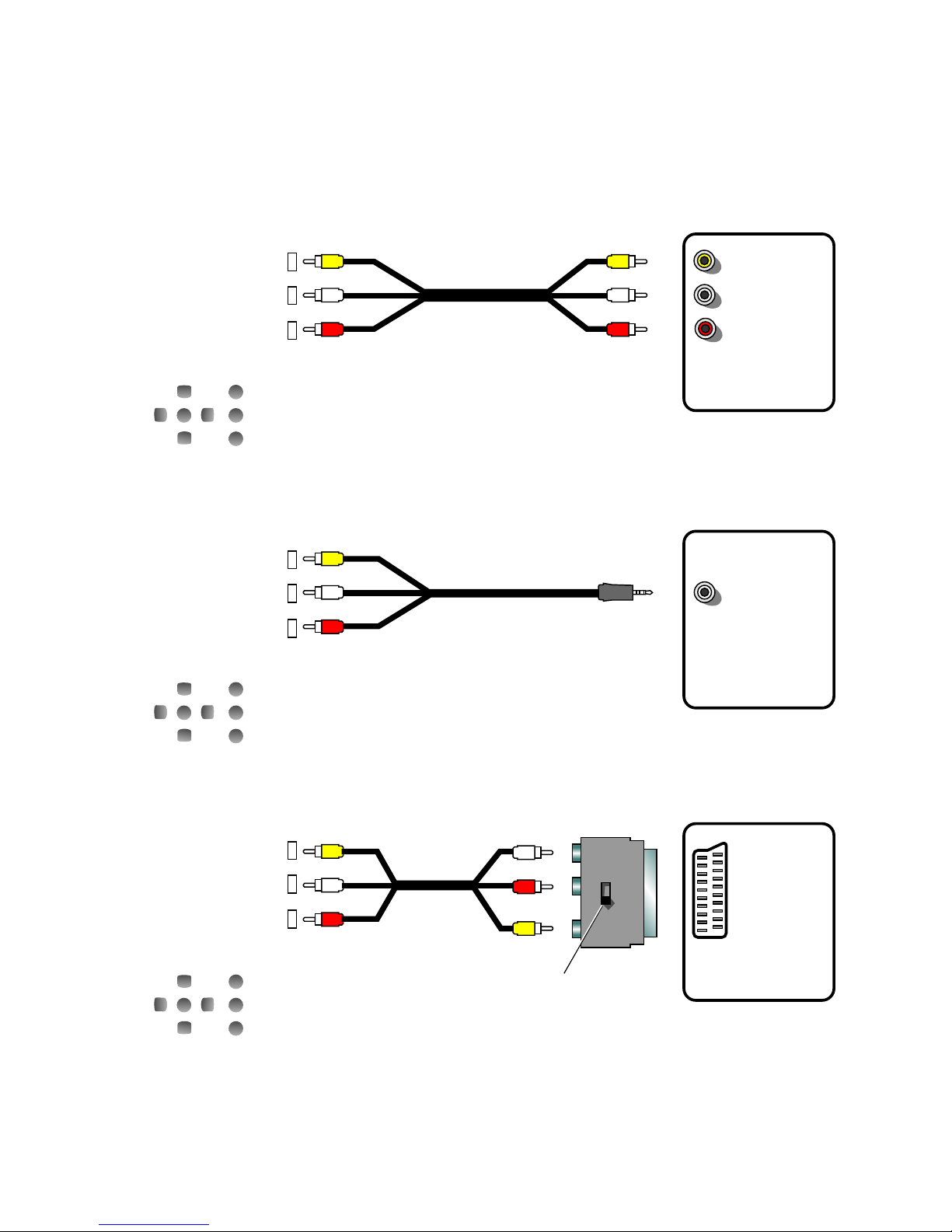

Connecting a Video Source:
Connect your Vooni Video Grabber to the video source in
one of the following ways:
OK
VOL- VOL+
CVBS
Source
4.
AUDIO OUT - L
AUDIO OUT - R
Yellow
White
Red
OK
VOL- VOL+
Source
5.
AV OUT
OK
VOL- VOL+
Source
SCART
4.
Yellow
White
Red
Yellow
White
Red
Yellow
White
Red
3.
OUT
IN
Other cables and adapters may also be used; however,
such are not included with the Vooni Video Grabber.
Slider switch in
the OUT position
Yellow
White
Red

8
Starting Your Vooni Video Grabber:
Make sure that the battery is charged and that the memory
card is in place. Press the On/Off Menu button for
approximately three seconds.
OK
VOL-
VOL+
TF VGA PAL 00:51:09
VOL 4
Upon being powered up, the Vooni Video Grabber starts
off in video recording mode and the following information
is shown on the display:
SD-card
in place
Video recording
mode
Video format
Time
Battery
charge
status
Volume level
N.B.! If no memory card is in place, the message
No Card appears on the display.

9
M
OK
Settings in the Video Recording Mode
OK
VOL-
VOL+
TF VGA PAL 00:51:09
VOL 4
Press the On/Off Menu button briefly once more to gain
access to the settings.
OK
VOL-
VOL+
TF VGA PAL 00:51:09
VOL 4
Press OK to gain access to
the underlying menu.
N.B.! The selected alternative is shown in yellow in the
main menus; however, it appears in blue in the
underlying menus.
OK
VOL-
VOL+
Scroll between the various
menu alternatives by using
the VOL+ and VOL- buttons.
OK
VOL-
VOL+
Press OK to save the
selected alternative.
OK
VOL-
VOL+
TF VGA PAL 00:51:09
VOL 4
Press the On/Off Menu
button to leave the settings
mode.
M
OK

10

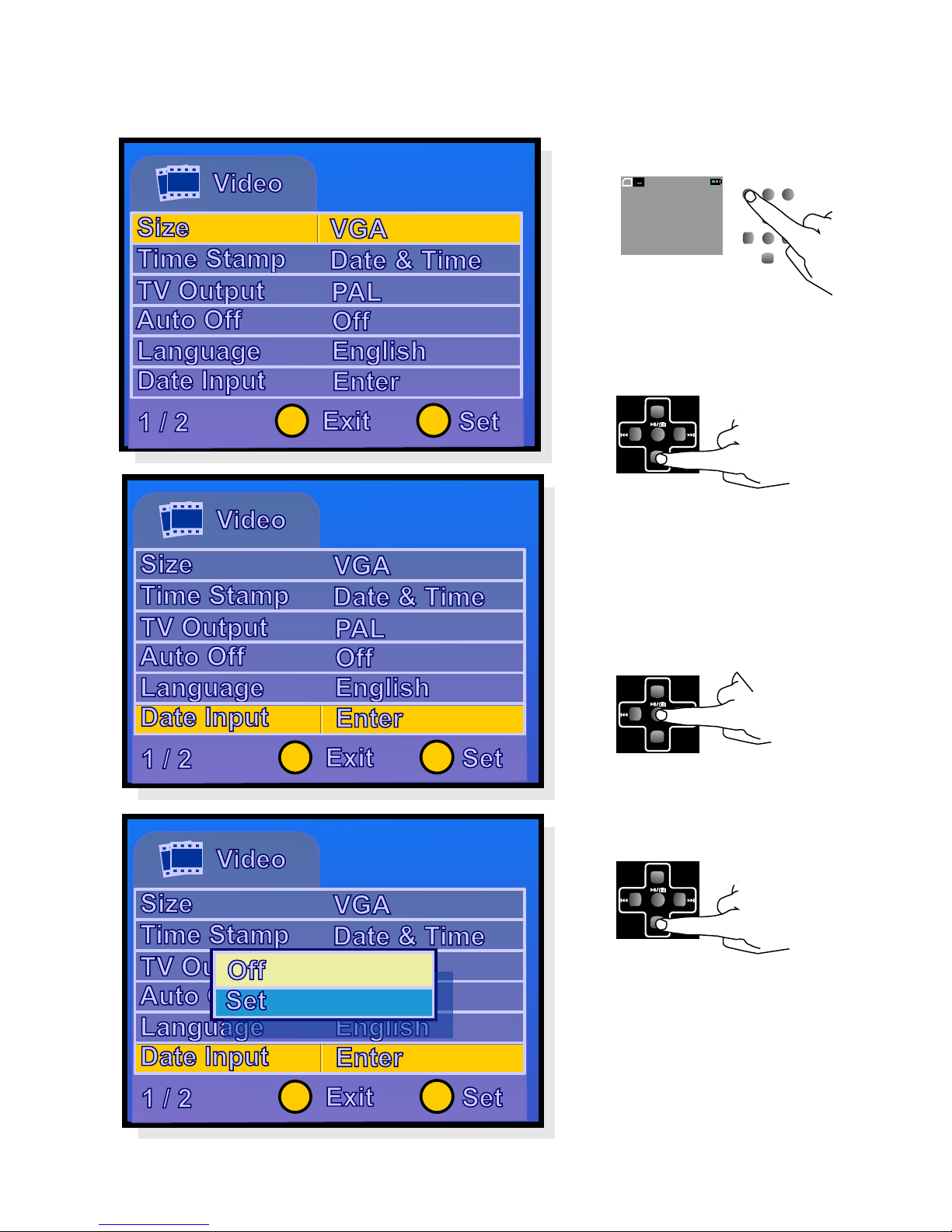

OK
VOL-
VOL+
Using the VOL- button,
scroll down to:
Date input Enter
OK
VOL-
VOL+
Press OK to reveal an
underlying menu.
OK
VOL-
VOL+
Using the VOL- button,
scroll down to: Set.
Please note that the blue
field is now highlighted.
OK
VOL-
VOL+
TF VGA PAL 00:51:09
VOL 4
M
OK
M
OK
M
OK

11
Then use the button to
scroll further to the month etc.
Press OK to save the settings
and return to the settings
menu.
OK
VOL-
VOL+
Using the button, scroll
down to the year.
OK
VOL-
VOL+
Set the correct year by using
the VOL- and VOL+ buttons.
OK
VOL-
VOL+
OK
VOL-
VOL+
OK
OK
OK
Setting the Date and Time
.
In the video recording mode, briefly press the On/Off
Menu button
Once all the settings are made, return to the video recording mode by pressing
the On/Off Menu button. The selected settings remain saved even if the device
is switched off.

12
Other Settings
The other settings in the video recording menu are made
in the same way as you set the time and date.
The available settings are:
Input video format (Size) VGA or QVGA
Date and time visible on the recorded film (Time Stamp)
This time can be set independently of the time set in the
Vooni Video Grabber. For instance, if the video was
recorded in the summer of 1996, the date can be
inserted here.
TV system (Output) PAL or NTSC. PAL is used in Europe.
Automatic shut-off (Auto off) can be set to Off or to 15, 30
or 45 minutes.
Language: Several languages can be selected.
Time and date (Date input) Refer to the previous page.
Sound On or Off.
Software version.

13

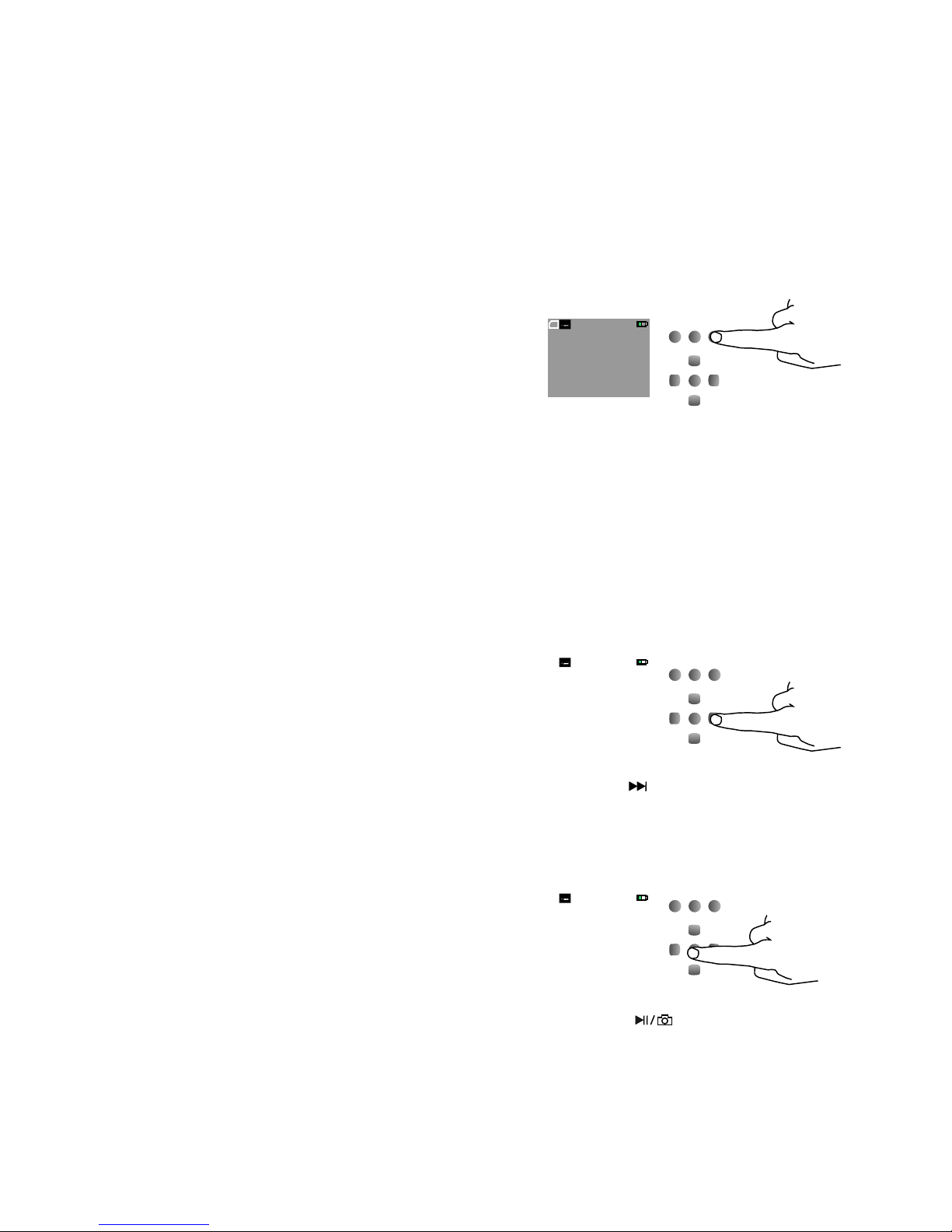

Recording:
1. Connect your Vooni Video Grabber to the video source.
2. Turn on the video source.
3. Turn on your Vooni Video Grabber
4. Press the REC button to begin recording.
The counter in the top
right-hand corner of the
screen turns red.
5. Press PLAY on the video source to begin playing your
video. The film is now also visible on the screen on
your Vooni Video Grabber.
While your film is being recorded, you can do
the following:
a. Record the film without
sound.
b. Take snapshots
6. Press the REC button to stop and save the recording.
OK
VOL-
VOL+
TF VGA PAL 00:51:09
VOL 4
Press the button.
Press it once more and the sound
is once again recorded.
OK
VOL-
VOL+
TF VGA PAL 00:51:09
VOL 4
Press the button. The
snapshot is automatically given a
serial number as its file name.
OK
VOL-
VOL+
TF VGA PAL 00:51:09
VOL 4

14
Settings in Play Mode:
Press the MODE button to select the play mode.
OK
VOL-
VOL+
TF VGA PAL 00:51:09
VOL 4
Your Vooni Video Grabber is now in play mode.
OK
VOL-
VOL+
Press the On/Off Menu button briefly once more to get to
the settings.
OK
VOL-
VOL+
TF VGA PAL 00:51:09
VOL 4
OK
VOL-
VOL+
Scroll between the various
menu alternatives by using
the VOL+ and VOL- buttons.
M
OK

15
Press OK to gain access to
the underlying menu.
OK
VOL-
VOL+
Using the VOL- button,
scroll down to your desired
alternative. Please note
that the blue field is now
highlighted.
OK
VOL-
VOL+
Press OK to save the
settings and return to the
settings menu.
OK
VOL-
VOL+

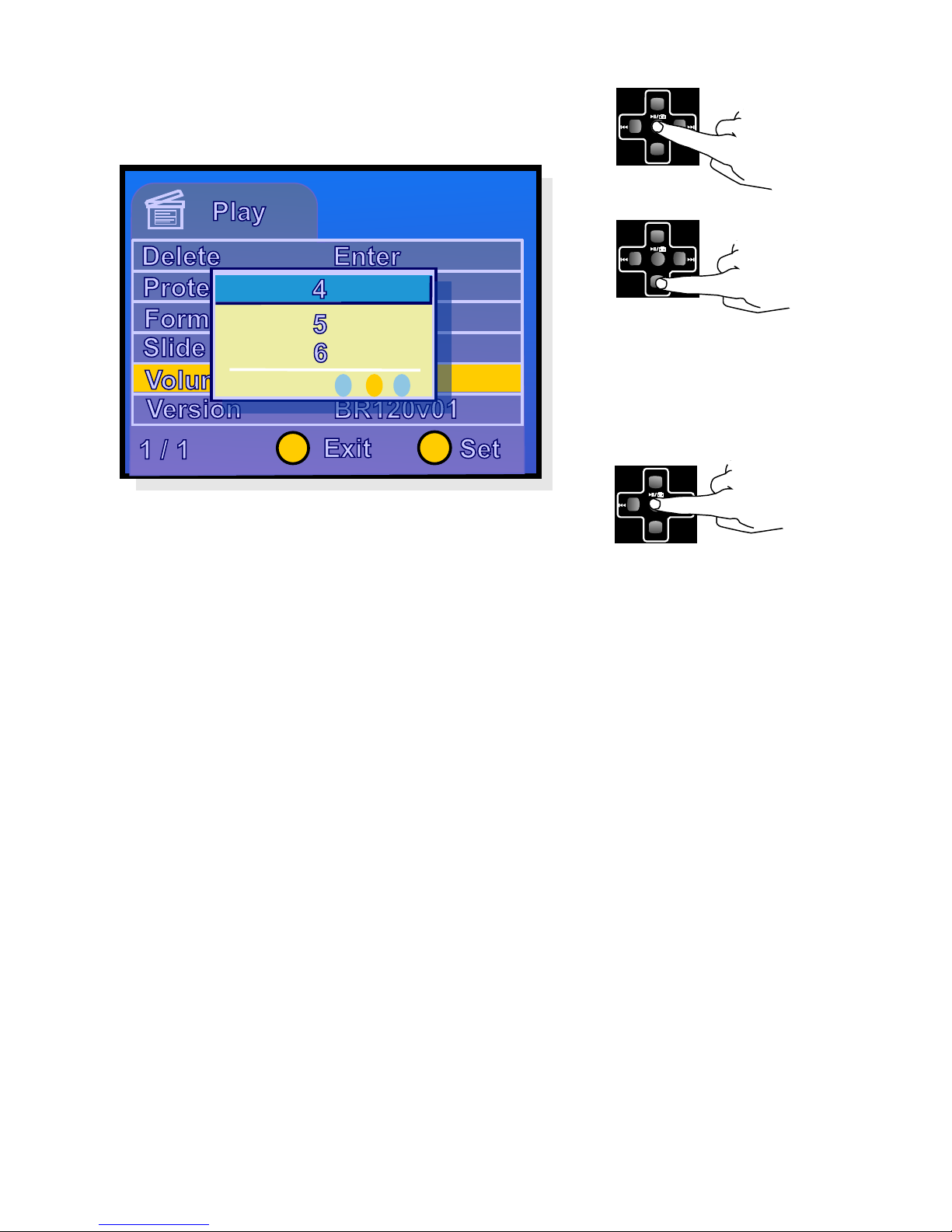

The following settings can be
made in play mode:
Delete removes the current film or snapshot.
Protect prevents the films from being deleted. You can
select single films, all of them or select from the
miniatures that are displayed. Protected files are
indicated with a padlock.
Format formats the memory card and deletes all the files,
even those that are protected.
Slide show presents the snapshots in the form of a
slide slow.
Volume sets the volume level between 1 and 8.
Software version.
M
OK
1 1 3

16

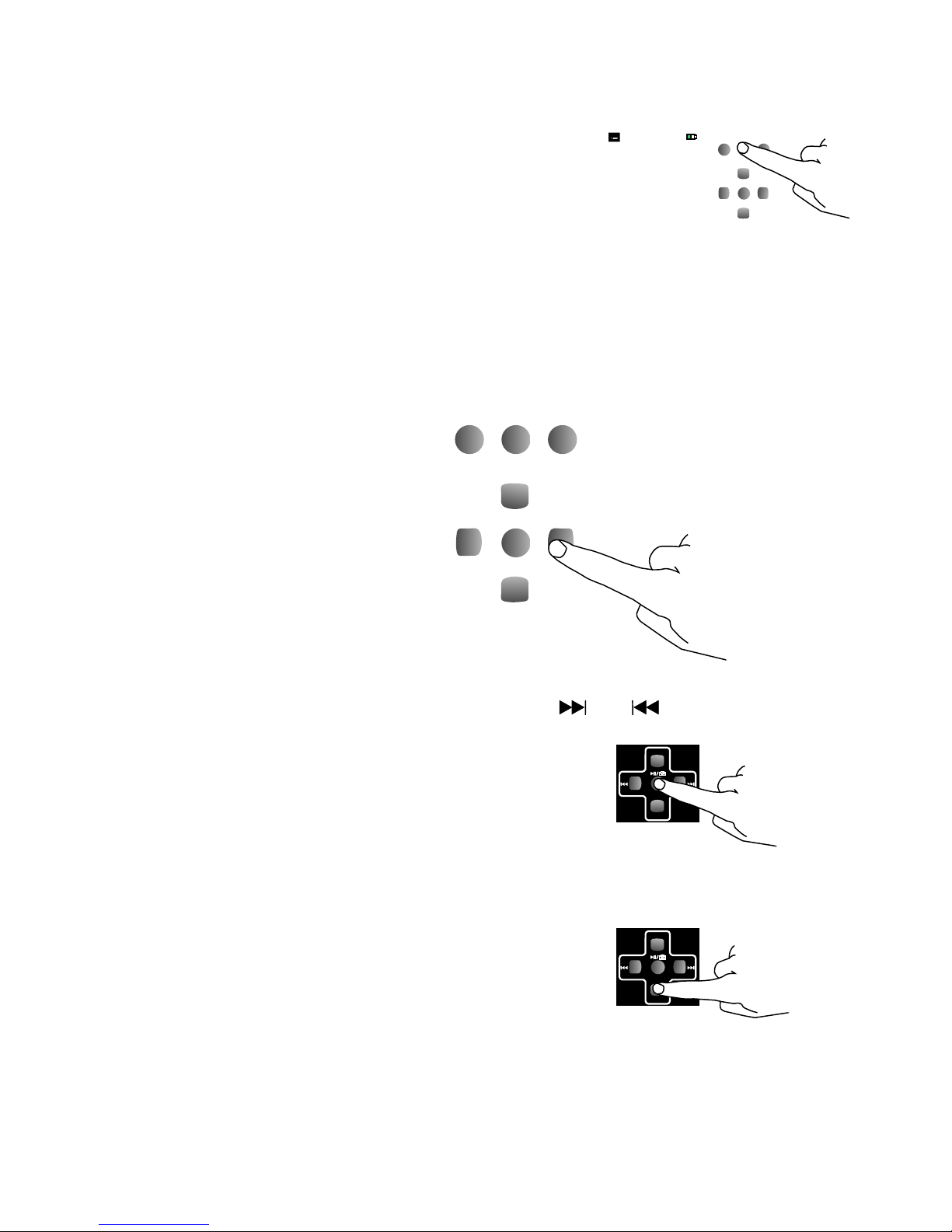

Playback
1. Turn on your Vooni Video Grabber
2. Use the MODE button to select
the play mode.
Your Vooni Video Grabber is now in play mode.
OK
VOL-
VOL+
TF VGA PAL 00:51:09
VOL 4
OK
VOL-
VOL+
3. Select the desired film using the or buttons.
4. Press OK to play the film.
OK
VOL-
VOL+
You can zoom in and out on snapshots in several steps
by pressing the OK or VOL+ button.
OK
VOL-
VOL+
Pressing the VOL- button will zoom back and ultimately
data about the image file are shown.

17
OK
VOL- VOL+
TV
SCART
4.
3.
OUT
IN
Slider switch
in the IN position
Yellow
White
Red

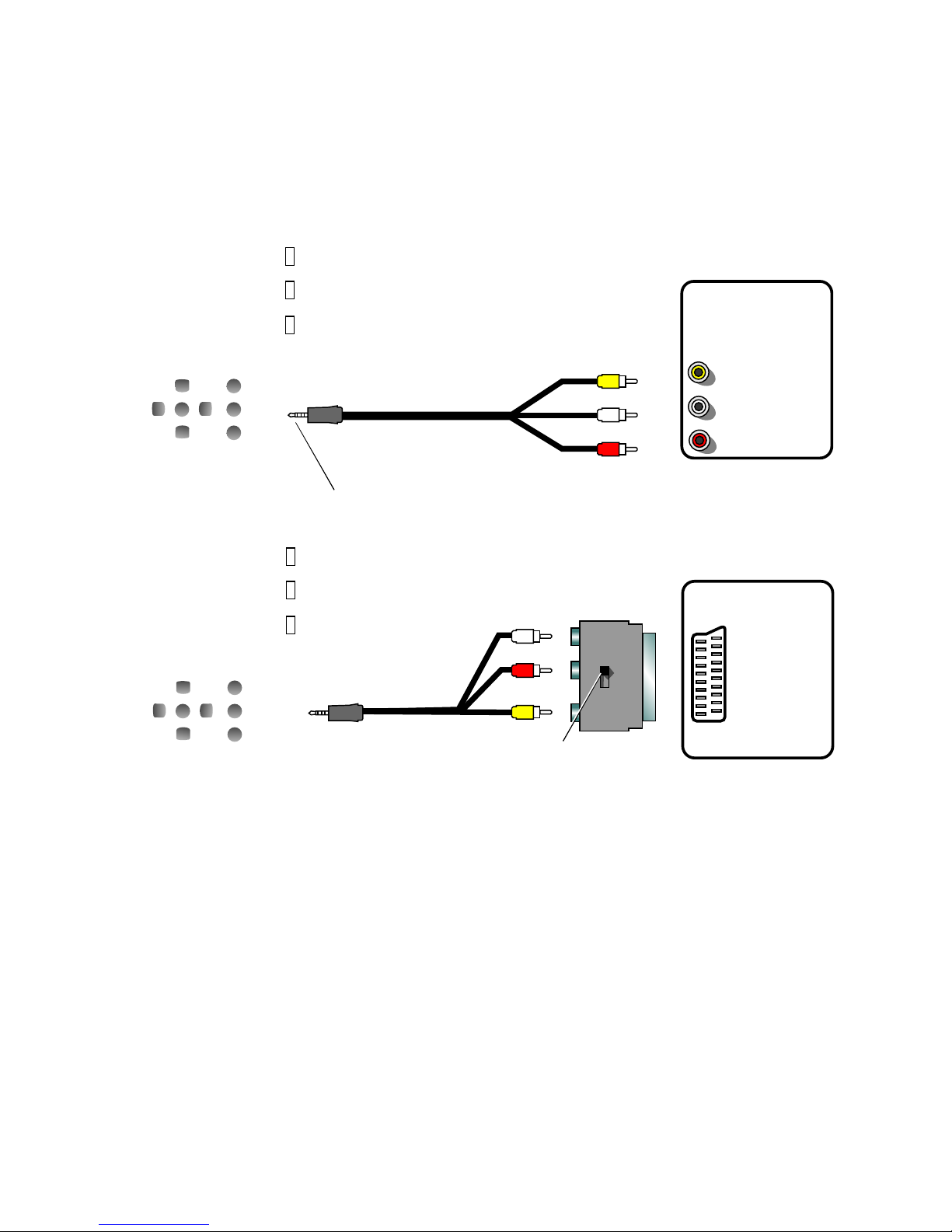

You can connect your Vooni Video Grabber to a TV
receiver via the AV cable (5) or by using an HDMI cable
(not included).
OK
VOL- VOL+
TV
5.
Yellow
White
Red
CVBS
AUDIO IN - L
AUDIO IN - R
Showing Recordings on TV
3.5 mm video output
If you want to connect to the SCART input on your TV,
use the accompanying RCA - SCART adapter (3).
Video Grabber now turns black and you will see the film
on the TV screen instead.

18

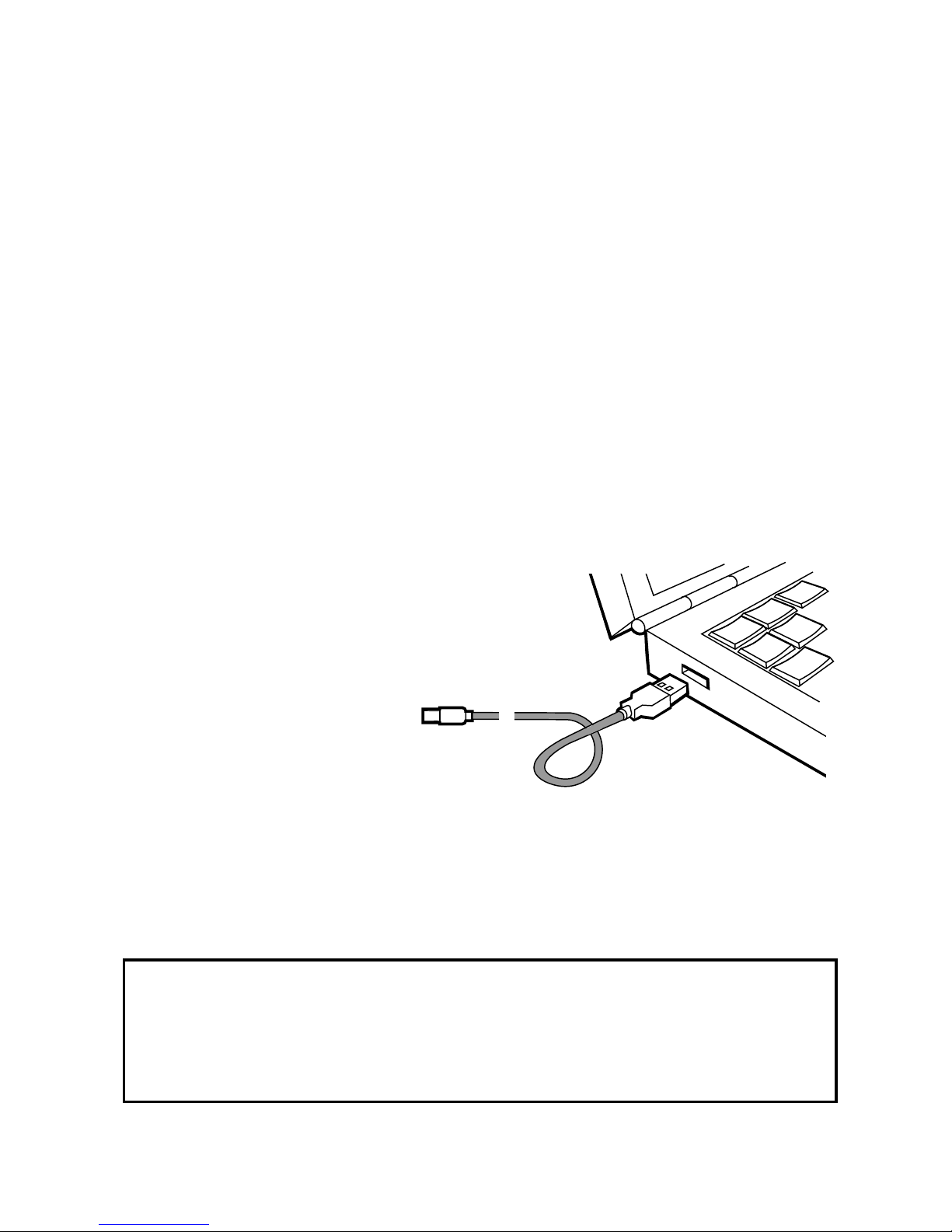

Copying to a Computer
6.
1. Start the Computer.
3. Your Vooni Video Grabber now appears as a
removable disc drive on the computer.
N.B.! Do not playback video material while your Vooni
Video Grabber is connected to the computer. This may
damage both your computer and your Vooni
Video Grabber.
By connecting your Vooni Video Grabber to a computer,
you can process your recorded films and images on the
computer itself. A drive routine will automatically be
installed onto your computer the first time you connect
the device to your computer. Your Vooni Video Grabber
then appears as a removable disc drive on the computer,
so you can copy and rename, or delete your films.
How to copy your recordings onto your computer:
2. Connect your Vooni Video Grabber
to the computer by using the USB cable.

19
Troubleshooting
If the Vooni Video Grabber's software seizes up, the
system can be reset by inserting a pin or similar object
into the small hole found on the back of the device.
If the screen remains black in spite you having pressed
the On/Off Menu button for a protracted period, the
battery may be dead. Connect the charger and try again.
If you do not succeed in recording video material to your
Vooni Video Grabber, the cables may be incorrectly
connected or be connect too loosely.
When using the RCA - SCART adapter (3), make sure
that the slider switch on the adapter is the OUT position
while recording and in the IN position when playing it
back on the TV.

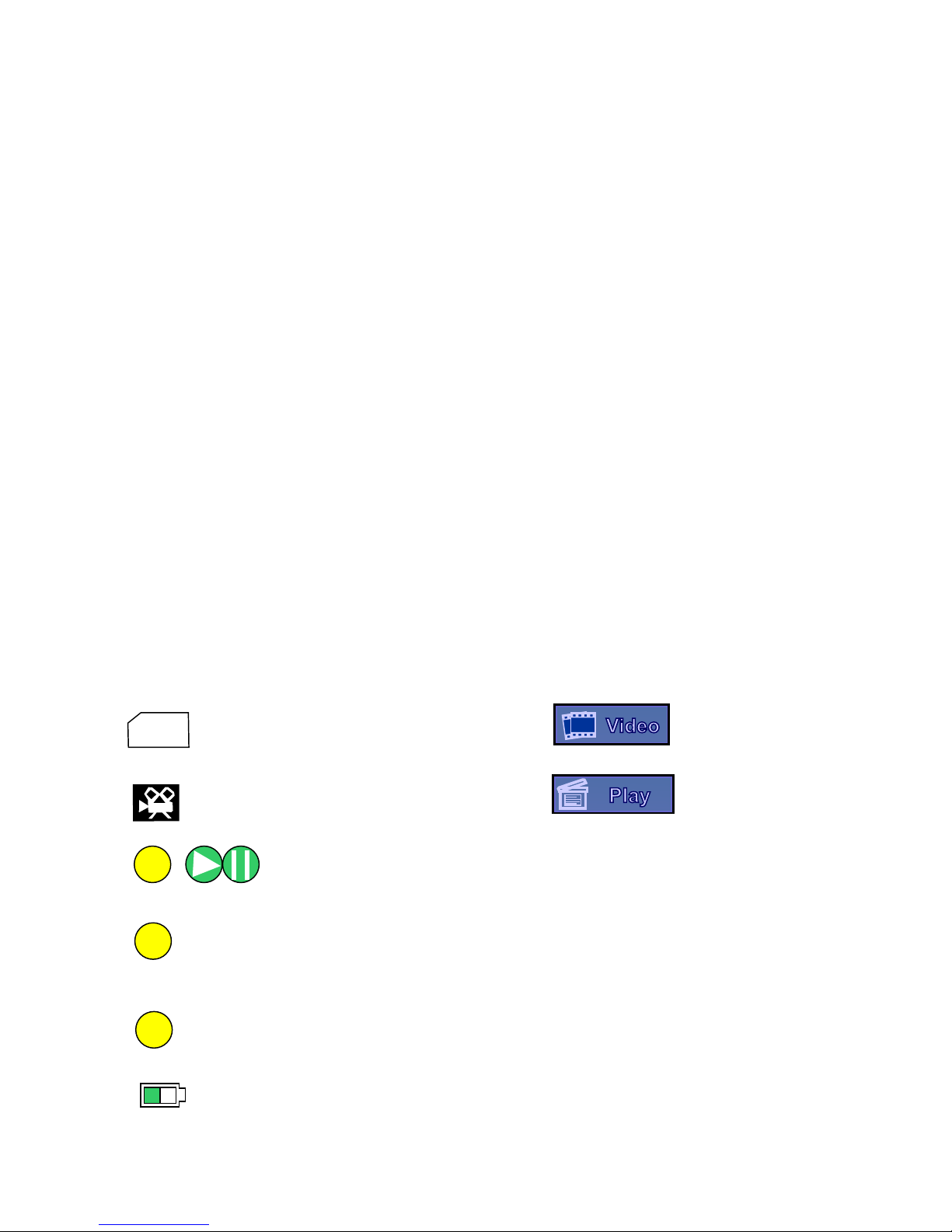

Screen Symbols
TF
OK
MExit
OK Set
Press the On/Off Menu button
to leave the setting mode.
Available button alternatives
Film
Memory card
Press OK to save your
selected setting. .
Battery-charge indicator
Video recording
mode
Play mode
May 2015 Illustrerad Teknik AB

1
Manual
Vooni Video Grabber
AA-4308
EN - SE - DE - DK - NO - FI
