Vortex Radian TRH-LVL1 User manual

Radian™
TRIPOD LEVELING HEAD
PRODUCT MANUAL

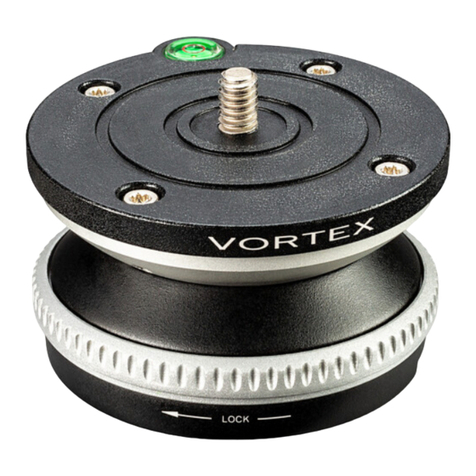

Radian™TRIPOD LEVELING HEAD
2 3
Quick-Release
Locking Knob Bubble Level
Leveling Head
Locking Knob
Attaching/Removing the Leveling Head
To mount the leveling head to the tripod:
1. Lift the Quick-Release Locking Latch on the tripod.
2. Press and hold the Quick-Release Button and fully
seat leveling head into the tripod. Once seated, the
leveling head can be oriented in any direction.
3. Rotate the Quick-Release Locking Latch down to
the locked position.
4. To remove the leveling head, follow these steps in
reverse order.
NOTE: If needed, the locking latch can be repositioned
by shifting the latch to the left and rotating the latch
up/down to reposition.
Quick-Release
Locking Latch
Quick-Release Plate
Press the Quick-Release
Button on the tripod to seat
the leveling head.
Counterweight Hook
To help stabilize the tripod in windy
conditions, hang a weight from the
Counterweight Hook.

Radian™TRIPOD LEVELING HEAD
4 5
BASIC ADJUSTMENTS
Tilt Action
The leveling head’s tilt can be adjusted by unlocking the
leveling head. This allows you to position your optic at the
desired angle, or pan the optic while glassing.
• To unlock the leveling head, rotate the Leveling Head
Locking Knob clockwise (viewing from the top) until
the leveling head moves freely. Adjust to your desired
position and lock the leveling head.
• To lock the leveling head, rotate the Leveling Head
Locking Knob counter-clockwise (viewing from the top)
until you feel tension on the knob. Do not overtighten.
Attaching Optics to Radian™Leveling Head
The leveling head uses Arca-Swiss style quick-release plates. To mount your optic to
the tripod:
1. Twist the Quick-Release Locking Knob counter-clockwise to remove the Quick-Release Plate.
2. Attach the plate to your optic. Be sure to tighten the Mount Bolt from the bottom side of the
plate and flip the D-ring so it lies flat.
3. Place the Quick-Release Plate back into the tripod head and turn the Quick-Release Locking
Knob clockwise to securely lock the plate in the head.
NOTE: To mount binoculars to the tripod, a binocular
adapter is required. Purchase Vortex®binocular adapters
from your local dealers.
NOTE: Some optics are designed to be Arca-Swiss
compatible and can be mounted to the tripod head without
the need for plates.
TIP: Purchase additional quick-release plates for your
optics so it is easy for you to switch equipment.
Rotate the
Leveling Head
Locking Knob to
adjust position or
lock in place.
Quick-Release Plate
and Mount Bolt
Quick-
Release
Locking
Knob

Radian™TRIPOD LEVELING HEAD
6 7
VIP WARRANTY
OUR UNCONDITIONAL PROMISE TO YOU.
We promise to repair or replace the product. Absolutely free.
Unlimited
Unconditional
Lifetime Warranty
[e-mail] • 800-426-0048
Note: The VIP Warranty does not cover loss,
theft, deliberate damage, or cosmetic damage
not affecting product performance.
For additional information, and the most up-to-date
product manuals, visit VortexOptics.com

M-00297-0
© 2020 Vortex Optics
® Registered Trademark and TM Trademark of Vortex Optics.
