RECCE PRO® HD
RECCE Pro®HD Monocular
Carry precision and speed at your fingertips with the
RECCE Pro
®
HD monocular. HD glass, an MRAD milling
reticle, and a compact design make it the perfect solution
for shooters who need to spot and call shots from the bench,
or in the line of duty. An integrated utility clip provides
quick external access on webbing for flat-edged surfaces.
Weighing in at 10.5 ounces, it’s ready to handle any
environment with fully waterproof and fogproof construction.
SPECIFICATIONS
Images are for representation only.
Product may vary slightly from what is shown.
SKU RP-100
MAGNIFICATION X OBJECTIVE LENS DIAMETER 8 x 32
LINEAR FIELD OF VIEW (@1000 YDS.) 400'
ANGULAR FIELD OF VIEW 7.6°
CLOSE FOCUS 5.0'
EYE RELIEF 14.5mm
DIOPTER RANGE ±3
EYECUP STYLE Winged
LENGTH 6.0"
WEIGHT 10.5 oz.
Caution: Monoculars are not intended for looking at the sun or
other intense light sources. Such viewing could damage the retina
and cornea of your eyes – even to the point of causing blindness.

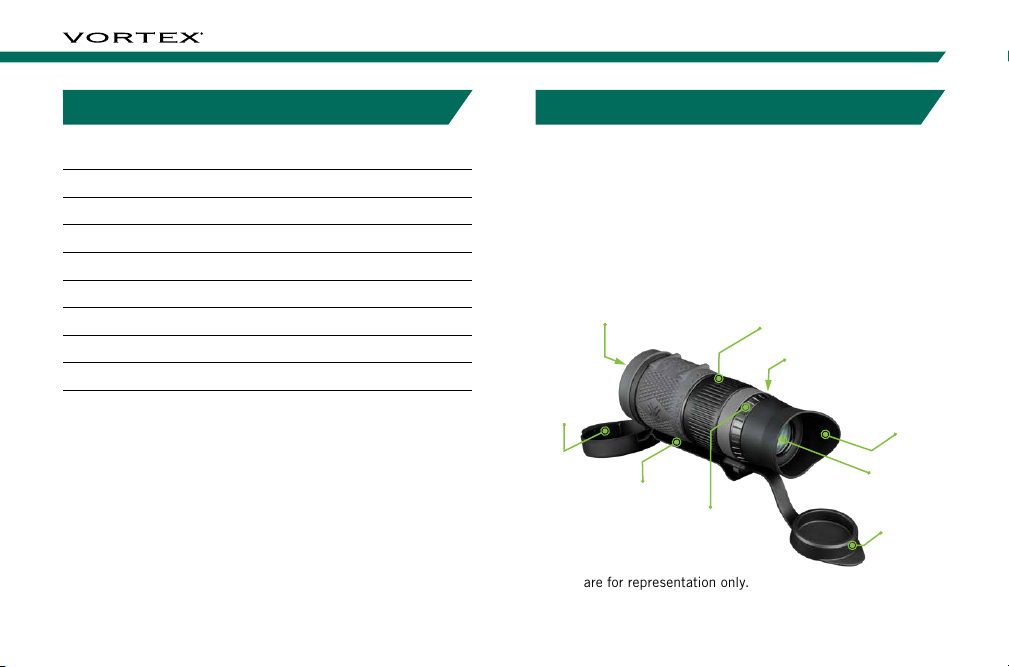

Winged Eyecup
Reticle
Focus
Wheel
Image Focus Wheel
Objective Lens
Integrated
Objective
Lens Cap
Integrated
Ocular
Lens Cap
Lanyard
Attachment
Ocular Lens
Utility Clip

4 5
RECCE PRO® HD
Rotate
to focus
Rotate
to focus
reticle

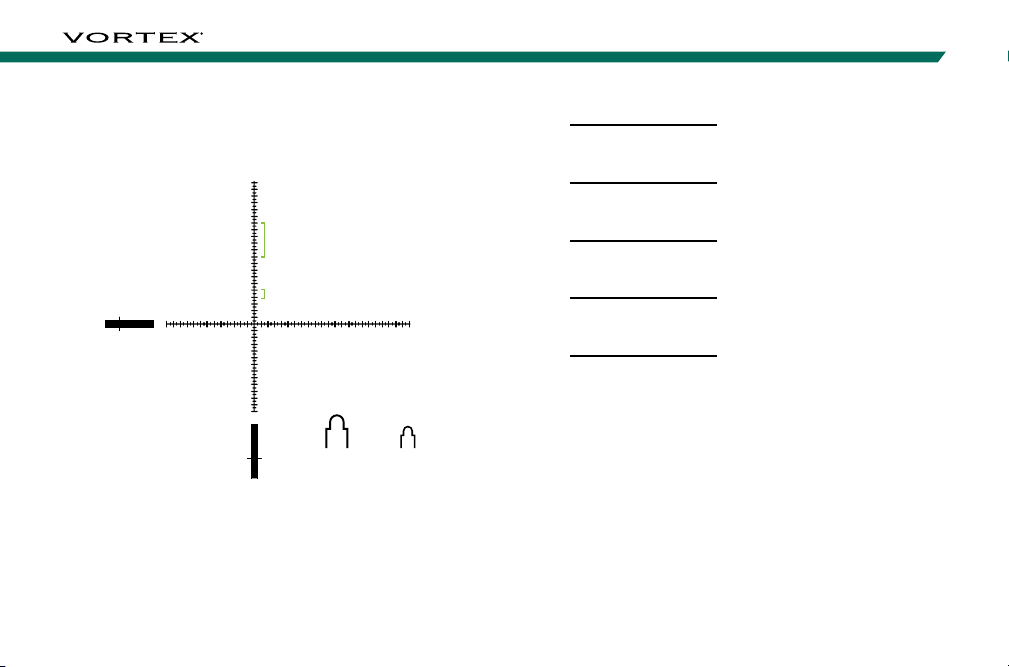

USING THE RANGING RETICLE
The R/T reticle is based on an angular measurement called
the milliradian (MRAD) which allows you to calculate ranges
when comparing the reticle to an object of a known dimension.
The key to effective ranging with this reticle is knowing the
measurements of common objects in your vicinity.
68
66
64
62
60
58
56
54
52
50
48
46
44
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
12 10 8 6 4 2 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68
2
4
6
8
10
12
20
40
20
40
200m 300m 400m 500m 600m
The R/T reticle uses a
system that is based
on a silhouette for
quick ranging.
All silhouette dimensions are
accurate at the listed ranges.
28 cm / 11"
50 cm / 20"
35 cm / 14"
44 cm / 17"
79 cm / 31"
BASIC OPERATION
Adjust eyecup for best viewing
Adjust the Eyecups
The heavy-duty Winged
Eyecup folds up and down
for optimal viewing with or
without eyeglasses. If you are viewing with eyeglasses, fold
the eyecup down for best viewing. The Eyecup will rotate
to accommodate use with either your left or right eye.
Adjust the Image Focus
To adjust the image focus,
rotate the Image Focus Wheel
until the image is in focus.
Adjust the Reticle Focus
The Reticle Focus Wheel
adjusts the sharpness of the
reticle. While looking at a
blank wall or blue sky, rotate
the Reticle Focus Wheel
until the reticle is in focus.

6 7
RECCE PRO® HD
Ranging with MRAD
MRAD measurements are effective for ranging using a
simple formula. Knowing the size of the target or a nearby
object is essential to using these formulas.
For the most accurate solution, use the longest dimension.
If the object is taller than it is wide, it is best to use the
object’s height in the formula. Using either the vertical
or horizontal MRAD scale, place the reticle on a target of
known dimensions and read the number of MRAD spanned.
You will obtain the best results if measured to the nearest
1/10th MRAD.
Accurate measuring will depend on a very steady hold. The
optic should be firmly braced using a rest or a tripod. Once
you have an accurate MRAD reading, use the formula to
calculate the distance.
Target Size (inches)
Measured MRAD
x 25.4 = Range (m)
Target Size (inches)
Measured MRAD
x 27.77 = Range (yds.)
Target Size (yds.)
Measured MRAD
x 1000 = Range (yds.)
Target Size (m)
Measured MRAD
x 1000 = Range (m)
Target Size (cm)
Measured MRAD
x 10 = Range (m)
5 MRAD
1 MRAD
68
66
64
62
60
58
56
54
52
50
48
46
44
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
12 10 8 6 4 2
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68
2
4
6
8
10
12
20
40
20
40
200m 300m 400m 500m 600m
200m 300m
Subtensions

8 9
RECCE PRO® HD
Utility Clip
The versatile Utility Clip allows quick attachment of the
RECCO Pro®HD to WITH MOLLE/PALS webbing, pocket
edges, or other equipment.
Lanyard
The Lanyard can be worn around the neck or used as a
safety cord when carrying it by the Utility Clip.
Attach the Lanyard in a few simple steps:
ACCESSORIES
1. Detach the
clip from
the Lanyard.
2. Push the
loop end
through the
Lanyard
Attachment
point on the
monocular.
3. Pull the clip
through the
loop and
cinch tight.
4. Re-attach
the clip to
the Lanyard.
Quick Ranging with Silhouettes
The silhouettes used in the R/T reticle
are based on an average 20-inch
shoulder width and 11-inch head
width. To use, simply match the
object being ranged to the closet
silhouette in shape and read the
indicated yardage. You may also use
other dimensions on the silhouette
and compare to objects of known
dimension to obtain range estimation.
68
66
64
62
60
58
56
54
52
50
48
46
44
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
12 10 8 6 4 2
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68
2
4
6
8
10
12
20
40
20
40
200m 300m 400m 500m 600m
Ranging a 6' target (2 yards) at 4 MRAD yields 500 yards.
2 yds.
4 MRAD
x 1000 = 500 yds.
200m 300m
200m 300m

10 11
RECCE PRO® HD
Integrated Objective and Ocular Lens Caps
The RECCE Pro®HD has Integrated Objective and Ocular
Lens Caps. The Ocular Lens Cap is designed to fit snugly
inside the Winged Eyecup.
MOLLE/PALS Compatible Pouch
The RECCE Pro®HD comes with a pouch that may be
attached to articles of gear or clothing using MOLLE/PALS
straps.
Note: If the optic is exposed to moisture, keep the caps off and allow
the optic to dry out completely before putting it in the case for storage.
MAINTENANCE
Cleaning
Your RECCE Pro®HD monocular requires very little routine
maintenance other than periodically cleaning the exterior
lenses. The exterior may be cleaned by wiping with a soft
cloth. When cleaning the lenses, be sure to use products that
are specifically designed for use on coated optical lenses.
• Be sure to blow away any dust or grit on the lenses prior to
wiping the surfaces.
• Using your breath, or a very small amount of water or pure
alcohol can help remove stubborn dried water spots.
Lubrication
All monocular components are permanently lubricated, so no
additional lubricant should be applied.
Note: Do not attempt to disassemble any monocular components.
Disassembling of the monocular may void warranty.
Storage
If possible, avoid storing your scope in direct sunlight or any
very hot location for long periods of time.

12 13
RECCE PRO® HD
NOTICE
Virtual Patent Marking Notice by Vortex Optics
This product may be protected by patents in the U.S. and
elsewhere for Vortex Optics. http://vtx.legal website is
provided to satisfy the virtual patent marking provisions
of various jurisdictions including the virtual patent marking
provisions of the America Invents Act and provide notice
under 35 U.S.C. §287(a). Please visit http://vtx.legal to
view list of products that may be covered by one or more
U.S./Foreign patents or published patent applications.
VIP WARRANTY™
OUR UNCONDITIONAL PROMISE TO YOU.
We promise to repair or replace
the product. Absolutely free.
Unlimited.
Unconditional.
Lifetime Warranty.
You do not have to register, save the box, or a
receipt for the Warranty to be honored.
Learn more at VortexOptics.com
[e-mail] • 1-800-4VORTEX
Note: The VIP Warranty™does not cover loss, theft, deliberate
damage, or cosmetic damage not affecting product performance.
For additional and latest manuals, visit VortexOptics.com
