Voscom VOS-8FOM-D232T Series User manual

VOS-8FOM-D232T/R series
8-Channel Duplex RS-232 Data Transmission
Installation Manual
Fiber Optic Transmission Systems
VOSCOM TECHNOLOGIES CO.,LIMITED
WWW.VOSCOM.COM
TM

Important Safety Instructions EN_1
1. Readthese instructions. Keep these instructions. Heed allwarnings. Follow all instructions.
5. Donot use this apparatus near water. Cleanonly with dry cloth.
7. Donot block any ventilation openings. Install in accordance with the manufacturers
instructions.
8. Donot install near any heat sources such as radiators, heatregisters, stoves,or other
apparatus (includingamplifiers) that produce heat.
9. Donot defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has twoblades withone wider than the other. Agrounding type plug has two blades and a third
grounding prong. The wideblade or the third prong are provided for your safety. Ifthe provided
plug doesnot fitinto your outlet consult an electrician for replacement of the obsolete outlet.
10. Protectthe power cord from being walked on or pinched particularly at plugs,convenience
receptacles, andthe points where they exit from the apparatus.
13. Referall servicingto qualifiedservice personnel. Servicing is required when the apparatus
has beendamaged in any way, suchas power-supply cord or plug is damaged, liquid has been
spilled or objects havefallen into the apparatus,the apparatushas been exposed to rain or
moisture, doesnot operatenormally,or has been dropped.
14. Apparatusshall not be exposed to dripping or splashing and that no objects filled with liquids,
such asvases shall be placed on the apparatus.
15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatusto rain or
moisture.
16. Installation should be done only by qualified personnel and conform to all local codes.
20. CAUTION: These servicing instructions arefor useby qualified service personnel only.To
reduce therisk of electric shock do not perform any servicing other than that contained in the
operating instructionsunless youare qualifiedto do so.
Website:www.voscom.com

Product Overview En_2
The VOS-8FOM-D232T/R can transmission8-Channel
duplex data over singlemodeor multimode optical
cable.
Stand-alone orrack-mount. The cards can be inserted
into our 14 slots,19inch 4U or 6U rack-mountable
card cage (VOS-CH04 or VOS-CH06).
System Diagram:
Model Number
Transmitter Receiver Fiber Mode Wavelengths Optical
Power
Budget
Maximum
Transmission
Distance
Multi-Mode 1310nm/1550nmVOS-8FOM-D232MRVOS-8FOM-D232MT
•The OpticalPower Budgetdata fitMulit-mode(62.5/125 m),Single-Mode(9/125 m).
•When using50/125 m multimode fiber, subtract3 dBfrom the optical power budget.
•Optical transmissiondistance is limited to optical loss of thefiber and any additional loss introduced by connectors,
splices andpatch panels.
•Maximum transmissiondistance is also limited by fiber bandwidth.
•Power adapteris manufactured by thirdparty and is supplied with fitted screw-terminal outputcables.Power
adapter included(for standalone) US, European, UK or Australian powerplug.
•Please feelfree to consult factory for anyspecial requirement and customization
Note:
16dB 2km
Single-Mode
VOS-8FOM-D232SRVOS-8FOM-D232ST 12dB 20km
Models and Optical Power Budget:
•Multi-mode Fiber Support forDistances up to 2.0 km
•Single-Mode Fiber Support forDistances up to 100 km
•No EMIor RFIand no ground loops
•Stand aloneor rack-mount
•Duplex Rs232Data transmission over onefiber
Features:
Data
88
1310nm/1550nm
VOS-8FOM-D232ST-4
VOS-8FOM-D232ST-6
VOS-8FOM-D232SR-4
VOS-8FOM-D232SR-6
Single-Mode
Single-Mode
1310nm/1550nm
1310nm/1550nm
18dB
25dB
40km
60km
Fiber optic Cable
VOS-8FOM-D232T
Transmitter VOS-8FOM-D232R
Receiver
8 x Data
RS-232
8 x Data
RS-232
Note: More detailspecification please find inthe datasheet or our website: www.voscom.com

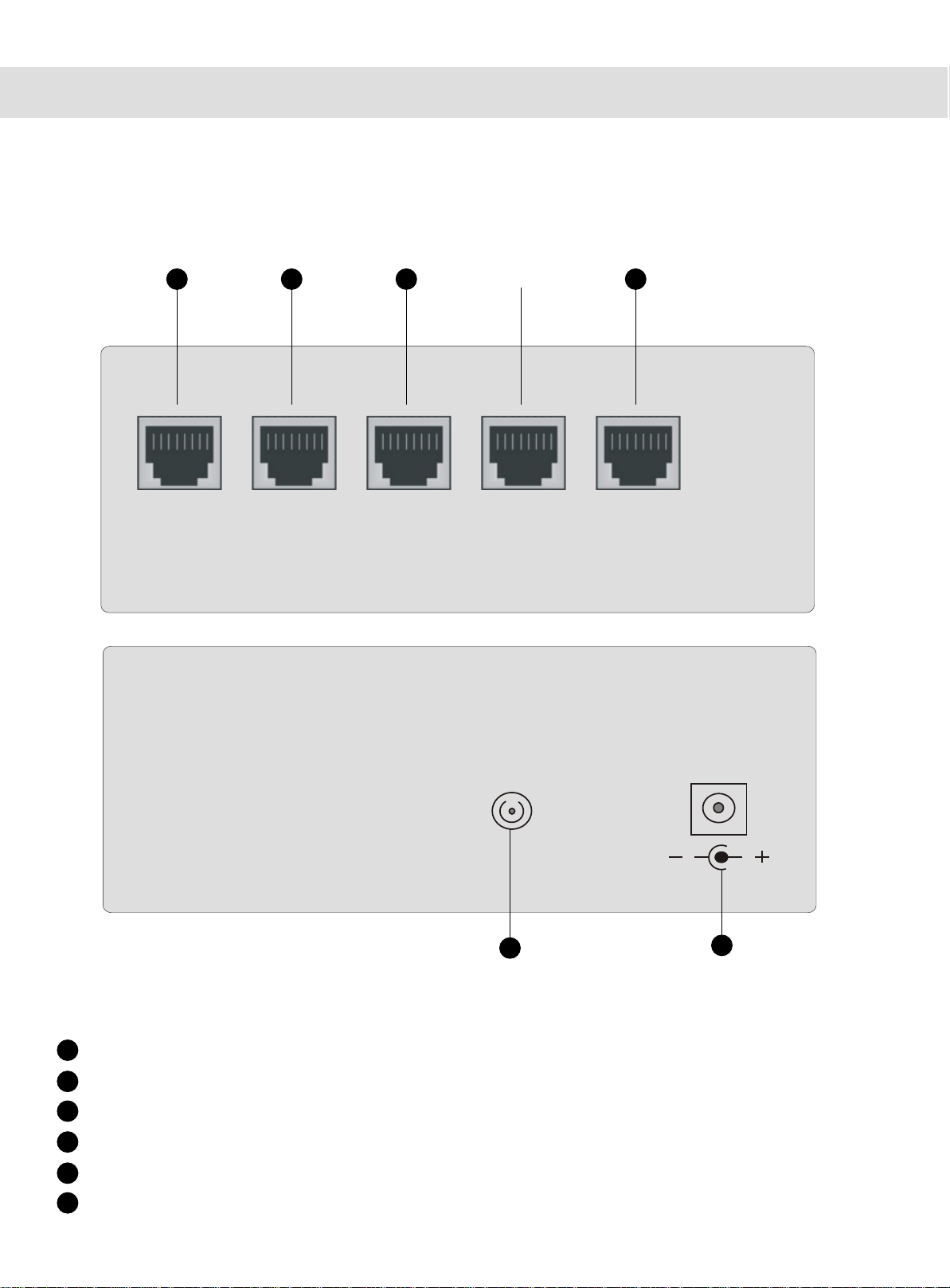

Panel & Cable Connection En_3
Installation Instructions:
NOTE1: Digital optic transmitter andreceiver shouldbe used in pairs, one is Transmitter
(LED is red), theother is Receiver (LED is green).
FTX
REAR PANEL
DC5V
12
1
1
2
3
Fiber OpticConnector, FC/PC or ST/PC
Stand-alone Power supply Connector, DC5V3A Input.
Data Connector, RJ-45 Connector, duplex data1 & data2 input/output.
FRONT PANEL
LAN1
/EXT1 DATA
AUDIO1
/EXT2 AUDIO2 /EXT3 LAN2 /EXT4
3456
None
1
4
5
6
Data Connector, RJ-45 Connector, duplexdata3 & data4 input/output.
Data Connector, RJ-45 Connector, duplexdata5 & data6 input/output.
Data Connector, RJ-45 Connector, duplexdata7 & data8 input/output.

Panel & Cable Connection En_4

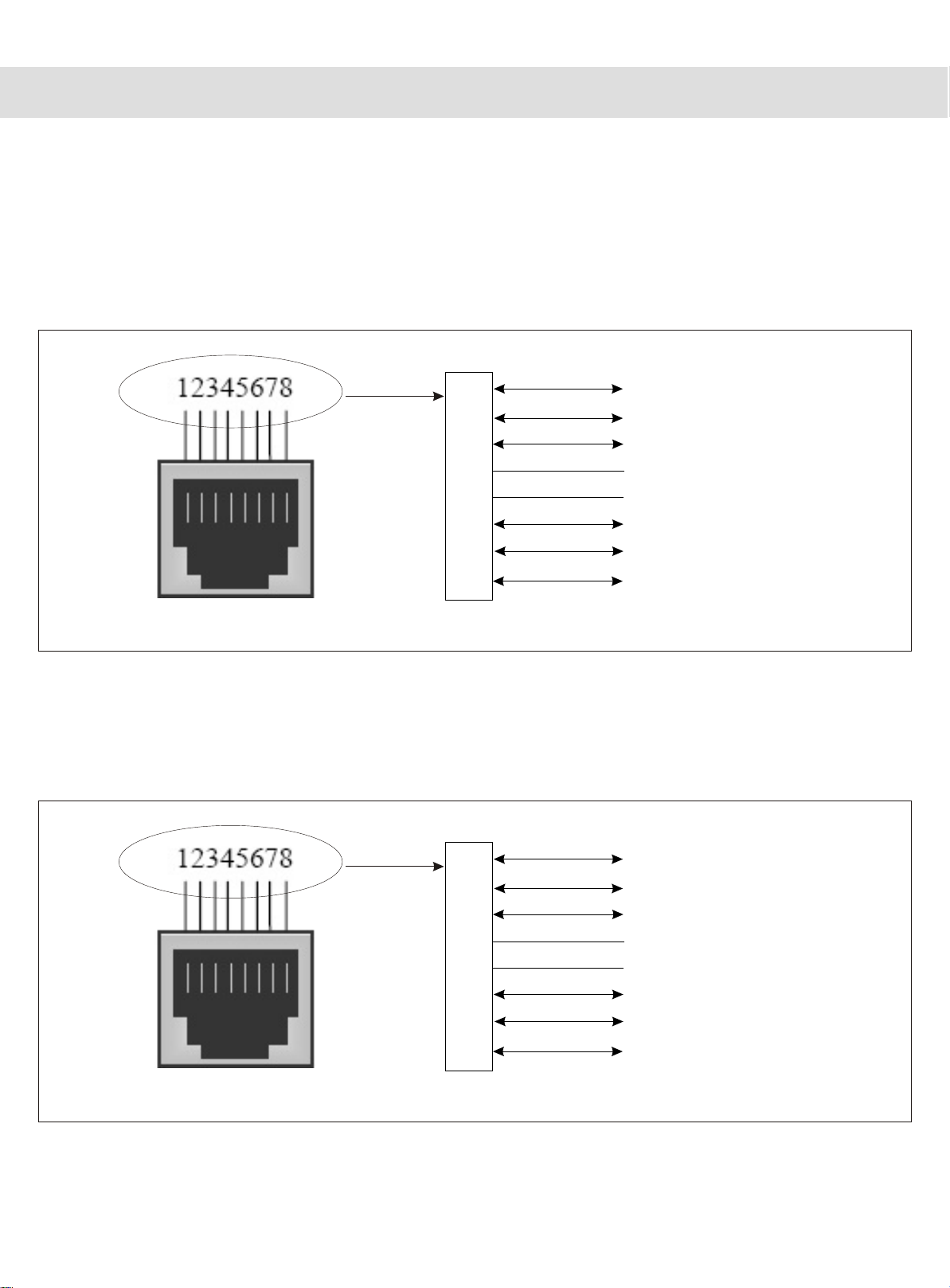

RJ-45 interface specification
Website:www.voscom.com

Panel & Cable Connection En_5
Transmitter (Rs232 Data):
8-Channel Duplex Rs232 Data Connection (Input/Output)
Connect 1-CHRS-232 RXD
Connect 1-CHRS-232 TXD
1
2
3
4
5
6
7
8
None
PIN
Connect 1-CHRS-232 GND
Connect 2-CHRS-232 TXD
Connect 2-CHRS-232 RXD
None
Connect 2-CHRS-232 GND
Transmitter LAN1/EXT1: 1-CH & 2-CH Rs232 input/output
Website:www.voscom.com
LAN1/EXT1
Input/Output
Transmitter AUDIO1/EXT2: 3-CH & 4-CH Rs232 input/output
AUDIO1/EXT2
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Connect 3-CHRS-232 RXD
Connect 3-CHRS-232 TXD
1
2
3
4
5
6
7
8
None
PIN
Connect 3-CHRS-232 GND
Connect 4-CHRS-232 TXD
Connect 4-CHRS-232 RXD
None
Connect 4-CHRS-232 GND
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output

Panel & Cable Connection En_6
Transmitter AUDIO2/EXT3: 5-CH & 6-CH Rs232 input/output
Website:www.voscom.com
AUDIO2/EXT3
Transmitter LAN2/EXT4: 7-CH & 8-CH Rs232 input/output
LAN2/EXT4
Connect 5-CHRS-232 RXD
Connect 5-CHRS-232 TXD
1
2
3
4
5
6
7
8
None
PIN
Connect 5-CHRS-232 GND
Connect 6-CHRS-232 TXD
Connect 6-CHRS-232 RXD
None
Connect 6-CHRS-232 GND
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Connect 7-CHRS-232 RXD
Connect 7-CHRS-232 TXD
1
2
3
4
5
6
7
8
None
PIN
Connect 7-CHRS-232 GND
Connect 8-CHRS-232 TXD
Connect 80CHRS-232 RXD
None
Connect 8-CHRS-232 GND
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Transmitter (Rs232 Data):
8-Channel Duplex Rs232 Data Connection (Input/Output)

Panel & Cable Connection En_7
Connect 1-CHRS-232 RXD
Connect RS-232 TXD1-CH
1
2
3
4
5
6
7
8
None
PIN
Connect RS-232 GND1-CH
Connect RS-232 TXD2-CH
Connect RS-232 RXD2-CH
None
Connect 2 RS-232 GND-CH
Receiver LAN1/EXT1: 1-CH & 2-CH Rs232 input/output
Website:www.voscom.com
LAN1/EXT1
Input/Output
Receiver AUDIO1/EXT2: 3-CH& 4-CHRs232 input/output
AUDIO1/EXT2
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Connect 3 RS-232 RXD-CH
Connect RS-232 TXD3-CH
1
2
3
4
5
6
7
8
None
PIN
Connect RS-232 GND3-CH
Connect RS-232 TXD4-CH
Connect RS-232 RXD4-CH
None
Connect 4 RS-232 GND-CH
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Receiver (Rs232 Data):
8-Channel Duplex Rs232 Data Connection (Input/Output)

Panel & Cable Connection En_8
Receiver AUDIO2/EXT3: 5-CH& 6-CHRs232 input/output
Website:www.voscom.com
AUDIO2/EXT3
Receiver LAN2/EXT4: 7-CH & 8-CH Rs232 input/output
LAN2/EXT4
Connect 5-CHRS-232 RXD
Connect 5-CHRS-232 TXD
1
2
3
4
5
6
7
8
None
PIN
Connect 5-CHRS-232 GND
Connect 6-CHRS-232 TXD
Connect 6-CHRS-232 RXD
None
Connect 6-CHRS-232 GND
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Connect 7-CHRS-232 RXD
Connect 7-CHRS-232 TXD
1
2
3
4
5
6
7
8
None
PIN
Connect 7-CHRS-232 GND
Connect 8-CHRS-232 TXD
Connect 8-CHRS-232 RXD
None
Connect 8-CHRS-232 GND
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Input/Output
Receiver (Rs232 Data):
8-Channel Duplex Rs232 Data Connection (Input/Output)

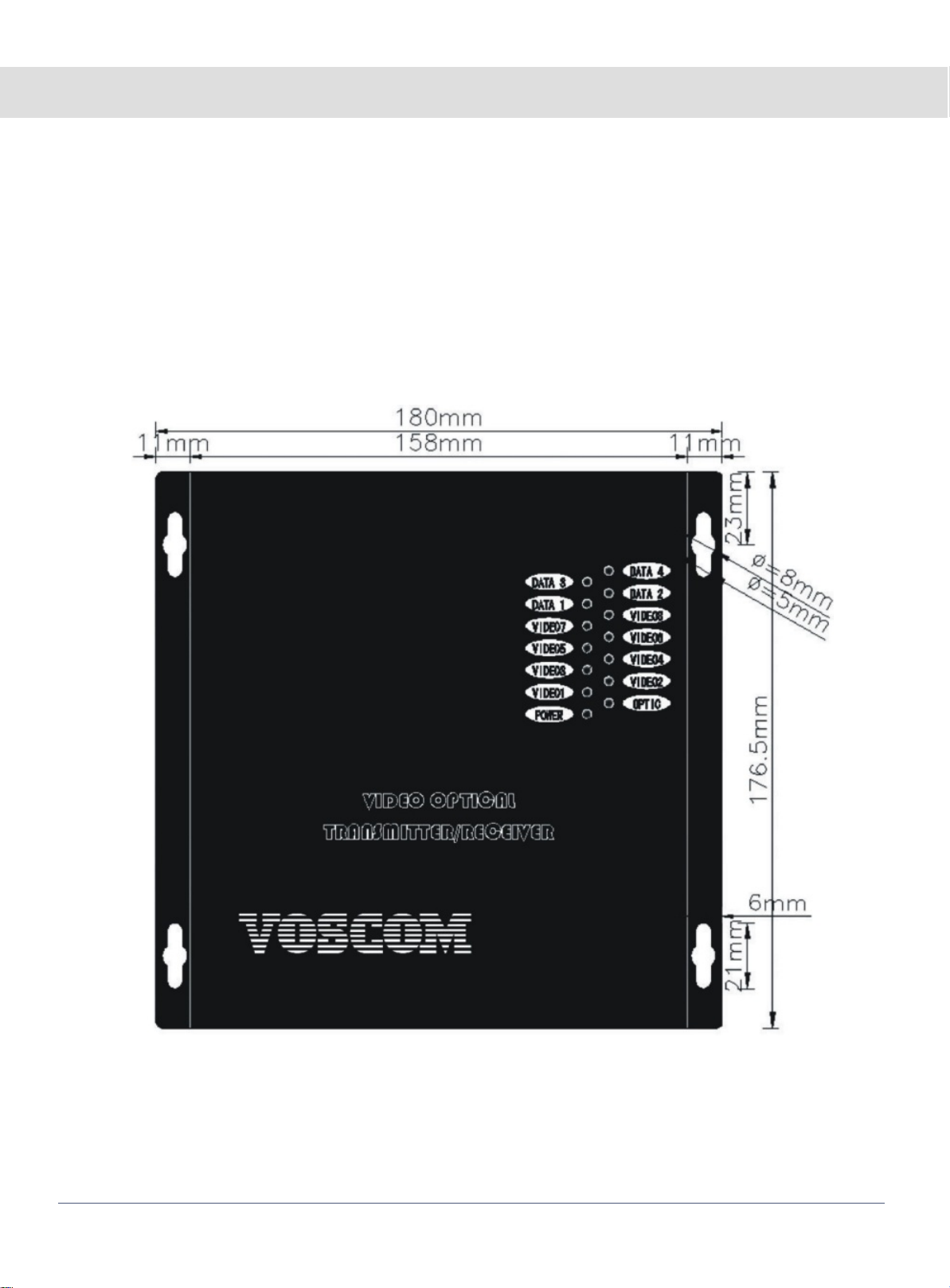

Stand-alone Installation En_9
The VOS-8FOM-D232T transmitter/VOS-8FOM-D232R receivercan be mounted into a rackor can
be used as astand-alone module. As a stand-alone module, the unit can be placed on a desktop
or canbe mountedto awall.
NOTE: Before mounting the VOS-8FOM-D232T transmitter/VOS-8FOM-D232R receiver, please
ensure that there is adequate space at both ends forviewing the front-panel LEDsand for making
the variousrear-panel cableconnections.
Stand-alone Mounting Size: 176.5mm x 158mm x 59mm
Website:www.voscom.com

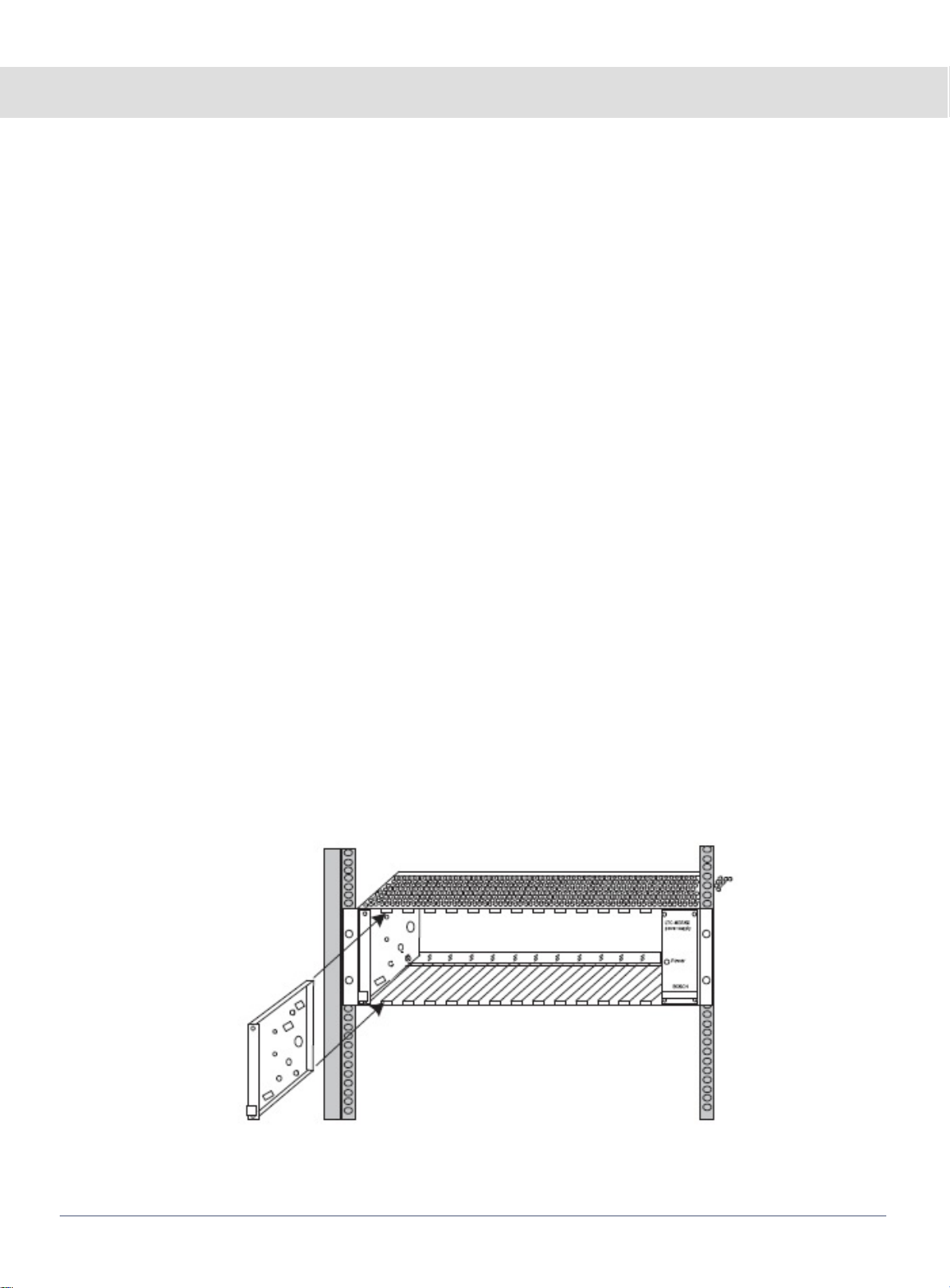

Rack-mount Installation En_10
Installation Instructions
Typical Configurations:
1:Install the video card into a standard 19inch rack, usinguser-supplied rack-mounting
hardware. Becareful to not damage exposed objects on the back of the card cage unit.
2:If asecondary earth ground connectionis needed, a grounded wire with a ground lug can be
attached to the rackusing the protruding screw provided on the right side of the chassis.
3:If desired, blank panels may beinstalled tocover unused slots. A single blank panel coversa
single slot opening.
4:Each fiber optic plug-in module is equipped with a POWER LED indicator that illuminates
when power is applied to the rack unit.
5:Fiber optic plug-in modules(video cards) can be installed into anyof theavailable 14slots
of thecard cage. Most modules require onlya single slot width, but others, such as the 8-Ch
video Series, require two slot widths.
VOS-CH04:
19 inch4U,14 video card slots, suit for 1-ch,2-ch,4-ch,8-ch(two slots)video cards.
Support oneslide-in power supply AC100V~AC240V
VOS-CH06:
19 inch6U,16 video card slots, suit for 1-ch,2-ch,4-ch,8-ch(two slots)video cards.
Support two slide-in power supply AC100V~AC240V, one for redundancy.
Website:www.voscom.com
The VOS-8FOM-D232Ttransmitter/VOS-8FOM-D232R receivercan be installed into our rack mount
chassis,VOS-CH04 orVOS-CH06, whichcan be mounted into an industry-standard 19-inch
equipment rack.

Troubleshooting En_11
Indicator Status Meaning Possible Cause Corrective Action
Power LED
Light Power isbeing applied
to the module. --- No actionrequired.
Not Light Power isnot being
applied to the module.
Check powerconnection.
If moduleis rackmounted,
reseat moduleor power
supply asnecessary.
Power connectionis
faulty.
Power supplyhas failed. Replace powersupply.
Loss ofpower occurs due
to trippedcircuit
breaker(s), blownfuse(s),
or faultyelectrical
service.
Check circuit breaker(s),
fuse(s), orelectrical
service asnecessary.
LED indicators on thefront-panel of the transmitter/receiverallow youto monitor signal status,
laser status,data activity, contact closure activation, and operatingpower. Table A~D provide
information aboutthe front-panelindicators and associated troubleshooting guidelines.
Table A: Power Links
Indicator Status Meaning Possible Cause Corrective Action
Video LED(VIDEO 1,VIDEO 2....)
Light Incoming video signal
is present on thechannel. --- No actionrequired.
Not Light
on Transmitter Incoming video signal is not present on the
channel.
Check power connection
to the video source.
Video source is not
powered on.
Video source is not
connected to the
transmitter.
Check BNC connections.
Coaxial cable is
defective. Replace cable.
Table B: Video Links
Not Light
on Receiver Incoming video signal is not present on the
channel.
Optical signal is not
being receivedfrom the
transmitter. Optic Fault
LED is also not light.
Refer tothe Optic Fault
LED section in this table.
Video source is not
powered on. Check power connection
to the video source.
Video source is not
connected to the
transmitter.
Check BNC connections.
Coaxial cable connected
to the transmitter is
defective.
Replace cable.
Website:www.voscom.com

Troubleshooting En_12
Indicator Status Meaning Possible Cause Corrective Action
Data(RS485/RS232/RS422) LED
Flashing
Data is being transmitted
onto the fiber by the data
port or is being received
from thefiber by the
data port.
--- No actionrequired.
Table C: Data Links
Indicator Status Meaning Possible Cause Corrective Action
Optic LED
Light The optical signal is being
received andlaser is
operatingproperly.
--- No actionrequired.
Not Light
Table B: Optic Links
Not Light
Data isnot being
transmitted ontothe
fiber bythe data port or
is notbeing received
from thefiber by the
data port.
Data isnot present on
the channel. No actionrequired.
Data connectionis faulty. Check dataconnections.
Data communication
cable isdefective. Replace cable.
The optical signal is
not beingreceived.
Remote fibermodule is
not poweredon. Check power connections.
Replace powersupply if
necessary.
Fiber optic cable is not
connected. Check fiberoptic
connections.
Fiber optic cable
connectors aredirty or
are damaged.
Clean, polish, or replace
fiber opticcable
connectors asnecessary.
Fiber optic cable is
defective. Replace cable.
A problemexists with
the optical power
budget.
Verify thatlosses infiber
optic cable do not exceed
the optical power budget
specification of the fiber
optic link. If the losses do
exceed theoptical power
budget, contactProduct
Support.
Website:www.voscom.com

Return & Warranty Policy En_13
Warranty Introduction
All VOSCOM manufactured productsare warrantedto be free from defects in manufacturing and
materials forthe warranty term of 3 years. VOSCOM will repair or replace any equipmentor parts
proved tobe defectiveduring the term of the warranty.
VOSCOM shall not beobligated to replace or repair equipment that has been damaged by fire,
war, acts of God, or similar causes, or equipment that has been serviced by unauthorized
personnel, altered,improperly installed or abused.
This Returnand Warranty Policy Statement applies to VOSCOM equipment purchased directly
from VOSCOMTechnology Co.,Ltd. If you did not acquire the VOSCOM equipment directly, return
the equipmentto the place of purchase.
Returning VOSCOM products
Before youcan return any product to VOSCOM, you mustobtain a Return Material Authorization
(RMA). Thisapplies to all product returns, including warranty repair/replacements, nonwarranty
repairs, advancereplacements, and credit returns.
To obtain an RMA, (Download from www.voscom.com), and please complete the RMA asmuch
detail aspossible, thensend the RMA to our customer service support:
FAX: [phone]
E-mail: [email protected]
Customer Servicewill provide you with an RMA number andan RMA acknowledgment form that
confirms yourrequest.
Once youhave theRMA, repackage the product appropriately and attach the RMA
acknowledgement formon the outside of the package. Then send the product to the return
location givenby the customer service center.
All productsmust be returned freight prepaid within 30 days of obtaining an RMA. We reserve
the rightto cancel the RMA after 30 days. If you fail to returnthe product within the 30 days,
please contactCustomer Service to get a new RMA.
We will not accept unauthorized returns or freight collection returns; we will return these to
you atyour expense.
If areturned product contains parts that are no longer available orrepairable, wewill contact
you todiscuss resolution and return of the material.
Website:www.voscom.com

En_14
Warranty repair/replacements
Subject to the terms of thelimited warrantyin effect at the time of purchase, VOSCOM will
repair or replace a product that fails to meet the terms provided,within the product's warranty
period. The actual warranty period starts from either:
a): The dateof shipment from VOSCOM's facility (point of origin)
b): The manufacturer'sdate code (if the shipment date is unknown).
For allwarranty repairs, VOSCOM will coverparts and labor. We willreturn equipment via the
same incomingshipment methodat no additional charge.
Non-warranty repairs
For allnon-warranty repairs, VOSCOMwill provide you with a repair estimate that includes
charges for parts, labor (in half-hourincrements), and all shipping. Repair chargesmay be
based on a flatrate or parts and labor, andwill varybased on actual equipment and condition.
You may payfor non-warranty repaircharges by purchase order.
Advance replacement
Advance replacementproducts are new or like-new refurbished products and carry a full original
equipment warranty. VOSCOM will send advance replacementproduct to replace defective
equipment that has failed upon initial install for up to 60 daysfrom the original date of shipment.
We will ship advance replacements in the next business day.
Our repair department will evaluate thereturned product to determine whether itis a warranty
or non-warranty replacement and bill you accordingly. We will invoice advance replacements at
shipment and credit youupon receipt of the defective product. If we determine, however, that the
returned product is in good working order or that performance issues were due to improper
installation, misuse, abuse, or other user-relatedcauses, we will issue no credit and you will
remain responsible for payingthe invoice.
Note: Advance replacementis not available forcustom products.
Credit returns
VOSCOM will refund or credit new, standard production items that are unused and in the original
unopened shipping cartons for a period of 60 days fromthe original date of shipment. All returned
merchandise is subject to a 20% restocking fee. Products that have failedupon initial install within
60 daysfrom the date of shipment (or date of manufacture if shipment date is unknown) may be
returned for credit without a restocking fee. (Products purchased as part of a kit must be returned
through Advance replacement.)
As withadvance replacements,if we determine that the returnedproduct isin good working
order orthat performance issues were due to improper installation, misuse, abuse, or other
user-related causes,we will issue no credit and you will remain responsible for payingthe invoice.
Note: Credit isnot availablefor custom products.
Return & Warranty Policy
Website:www.voscom.com

Packing List & Support En_15
Manufacture Packing List:
Fiber OpticTransmitter 1
Fiber OpticReceiver 1
Power Adapter 2
User Manmual 1
Network Cablewith RJ-45 connector (If the product with RJ-45 port)
Note:
1): VOSCOM reservesthe right to change specifications without notice.
2): You can download the latest PDF document here: www.voscom.com
3): Online Technical Support please E-mail:[email protected]
4): More detail product information please E-mail: [email protected], or contact
with our sales staff.
5): Return defective products please download RMA here: www.voscom.com
6): Get an
acknowledgment RMA number please complete the RMA as much detail as possible
and thenE-mail: [email protected]or FAX:[phone]
Website:www.voscom.com

WARNING
TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
DO NOT LOOK INTO OPTICAL PORTS WITH POWER ON.
Headquarters Information: Distributor Information:
VOSCOM TECHNOLOGIES CO., LIMITED
Hangzhou , Zhejiang , P.R.CHINA 310004
Tel:[phone]
Fax:[phone]
Web:www.voscom.com
E-Mail:[email protected]
[email protected]
[email protected]
