Voscom VOS-2FOM-DCCT Series User manual

VOS-2FOM-DCCT/R series
2-Channel Duplex Contact Closure Transmission
Installation Manual
Fiber Optic Transmission Systems
VOSCOM TECHNOLOGIES CO.,LIMITED
WWW.VOSCOM.COM
TM

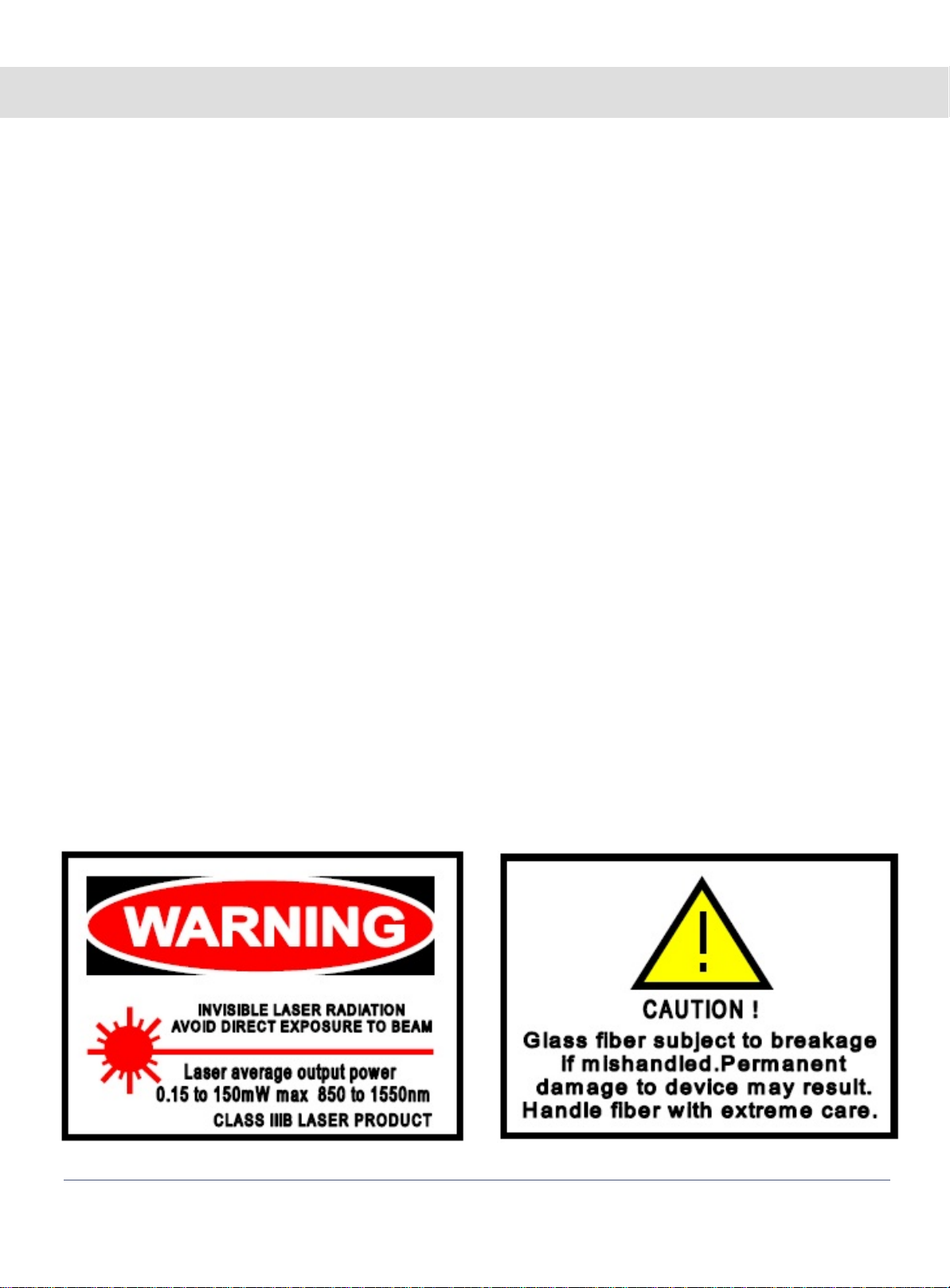

Important Safety Instructions EN_1
1. Readthese instructions. Keep these instructions. Heed allwarnings. Follow all instructions.
5. Donot use this apparatus near water. Cleanonly with dry cloth.
7. Donot block any ventilation openings. Install in accordance with the manufacturers
instructions.
8. Donot install near any heat sources such as radiators, heatregisters, stoves,or other
apparatus (includingamplifiers) that produce heat.
9. Donot defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has twoblades withone wider than the other. Agrounding type plug has two blades and a third
grounding prong. The wideblade or the third prong are provided for your safety. Ifthe provided
plug doesnot fitinto your outlet consult an electrician for replacement of the obsolete outlet.
10. Protectthe power cord from being walked on or pinched particularly at plugs,convenience
receptacles, andthe points where they exit from the apparatus.
13. Referall servicingto qualifiedservice personnel. Servicing is required when the apparatus
has beendamaged in any way, suchas power-supply cord or plug is damaged, liquid has been
spilled or objects havefallen into the apparatus,the apparatushas been exposed to rain or
moisture, doesnot operatenormally,or has been dropped.
14. Apparatusshall not be exposed to dripping or splashing and that no objects filled with liquids,
such asvases shall be placed on the apparatus.
15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatusto rain or
moisture.
16. Installation should be done only by qualified personnel and conform to all local codes.
20. CAUTION: These servicing instructions arefor useby qualified service personnel only.To
reduce therisk of electric shock do not perform any servicing other than that contained in the
operating instructionsunless youare qualifiedto do so.
Website:www.voscom.com

Product Overview En_2
The can transmission2-Channel
duplex over singlemodeor multimode
optical cable.
Stand-alone orrack-mount. The cards can be inserted
into our 14 slots,19inch 4U or 6U rack-mountable
card cage (VOS-CH04 or VOS-CH06).
VOS-2FOM-DCCT/R
contact closure

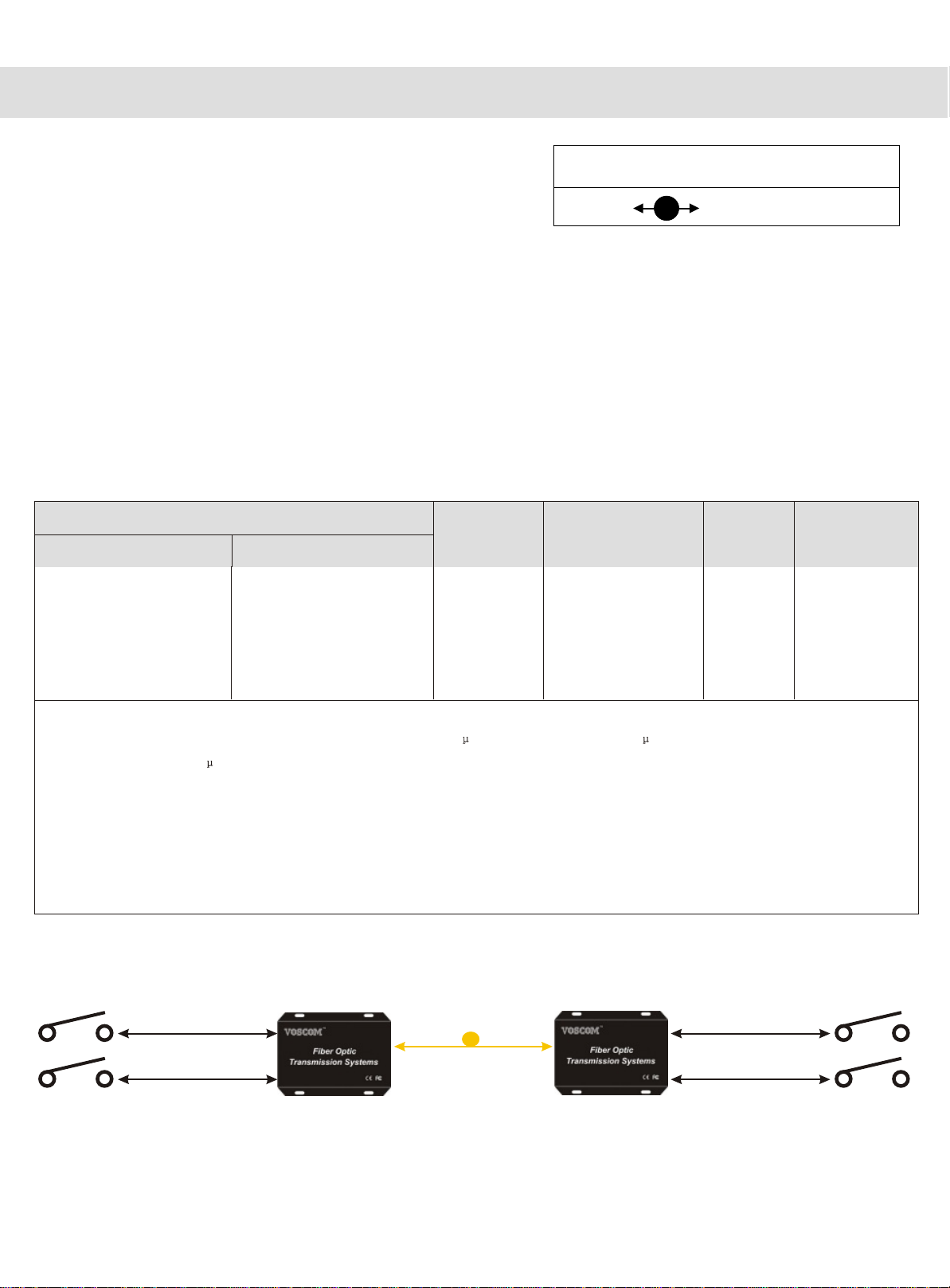

System Diagram:
Model Number
Transmitter Receiver Fiber Mode Wavelengths Optical
Power
Budget
Maximum
Transmission
Distance
Multi-Mode 1310nm/1550nmVOS-2FOM-DCCMRVOS-2FOM-DCCMT
•The OpticalPower Budgetdata fitMulit-mode(62.5/125 m),Single-Mode(9/125 m).
•When using50/125 m multimode fiber, subtract3 dBfrom the optical power budget.
•Optical transmissiondistance is limited to optical loss of thefiber and any additional loss introduced by connectors,
splices andpatch panels.
•Maximum transmissiondistance is also limited by fiber bandwidth.
•Power adapteris manufactured by thirdparty and is supplied with fitted screw-terminal outputcables.Power
adapter included(for standalone) US, European, UK or Australian powerplug.
•Please feelfree to consult factory for anyspecial requirement and customization
Note:
16dB 2km
Single-Mode
VOS-2FOM-DCCSRVOS-2FOM-DCCST 12dB 20km
Models and Optical Power Budget:
•Dry Contact Closure or TTL data overone fiber
•Multi-mode Fiber Support for Distances up to 2.0 km
•Single-Mode Fiber Support for Distances up to 100 km
•No EMI or RFI and noground loops
•Stand alone or rack-mount
Features:
Note: More detailspecification please find inthe datasheetor our website: www.voscom.com
Contact Closure
22
1310nm/1550nm
Fiber optic Cable
VOS-2FOM-DCCT
Transmitter VOS-2FOM-DCCR
Receiver
2 xDuplex ContactClosure
Dry CC orTTL Data
Dry CC orTTL Data
2 xDuplex ContactClosure
Dry CC orTTL Data
Dry CC orTTL Data
VOS-2FOM-DCCST-4
VOS-2FOM-DCCST-6
VOS-2FOM-DCCSR-4
VOS-2FOM-DCCSR-6
Single-Mode
Single-Mode
1310nm/1550nm
1310nm/1550nm
18dB
25dB
40km
60km

1
1
2
3
Fiber OpticConnector, FC/PC or ST/PC
Stand-alone Power supply Connector, DC5V2A Input.
Contact ClosureConnector, Terminal Block,contact closure input /output.
Panel & Cable Connection En_3
Installation Instructions:
NOTE1: Digital fiber optic transmitterand receivershould be used in pairs, one is Transmitter
(LED is red), theother is Receiver (LED is green).
DC5V
1 2 3 4
DATA
3
POWER
OPTIC
EXT
FRONT PANEL
REAR PANEL
EXT2
D1
D2
FTX
1
V1
V2
EXT1
C+ C- D+ D-
None
A+ A- B+ B-
2
None
Website:www.voscom.com

Panel & Cable Connection En_4
Website:www.voscom.com
8 Pin Terminal Block
A+
A-
B+
B-
C+
C-
D+
D-
Connect CC-1( )Forward
Connect CC-2 (Backward)
PIN
Connect CC-1(Backward)
Connect CC-1(Backward)
Connect CC-2(Backward)
Connect CC-1( )Forward
Connect CC-2( )Forward
Connect CC-2( )Forward
C+ C- D+ D-A+ A- B+ B-
Receiver: 2-Channel Duplex Contact Closure Connection (Input/Output)
Transmitter: 2-Channel Duplex Contact Closure Connection (Input/Output)
Output
Output
Output
Output
Input
Input
Input
Input
Installation Instructions:
NOTE1: Digital fiber optic transmitterand receivershould be used in pairs, one is Transmitter
(LED is red), theother is Receiver (LED is green).
8 Pin Terminal Block
A+
A-
B+
B-
C+
C-
D+
D-
Connect CC-1( )Forward
Connect CC-2 (Backward)
PIN
Connect CC-1(Backward)
Connect CC-1(Backward)
Connect CC-2(Backward)
Connect CC-1( )Forward
Connect CC-2( )Forward
Connect CC-2( )Forward
C+ C- D+ D-A+ A- B+ B-
Input
Input
Input
Input
Output
Output
Output
Output

Stand-alone Installation En_5
The transmitter and receiver canbe mounted into a rack orcan
be used as astand-alone module. As a stand-alone module, the unit can be placed on a desktop or
can bemounted toa wall.
VOS-2FOM-DCCT VOS-2FOM-DCCR
NOTE: Before mounting the transmitterand receiver, please
ensure that there is adequate space at both ends forviewing the front-panel LEDsand for making
the variousrear-panel cableconnections.
VOS-2FOM-DCCT VOS-2FOM-DCCR
Website:www.voscom.comWebsite:www.voscom.com
Stand-alone Mounting Size: 142mm x 107mm x 25mm

Rack-mount Installation En_6
Installation Instructions
Typical Configurations:

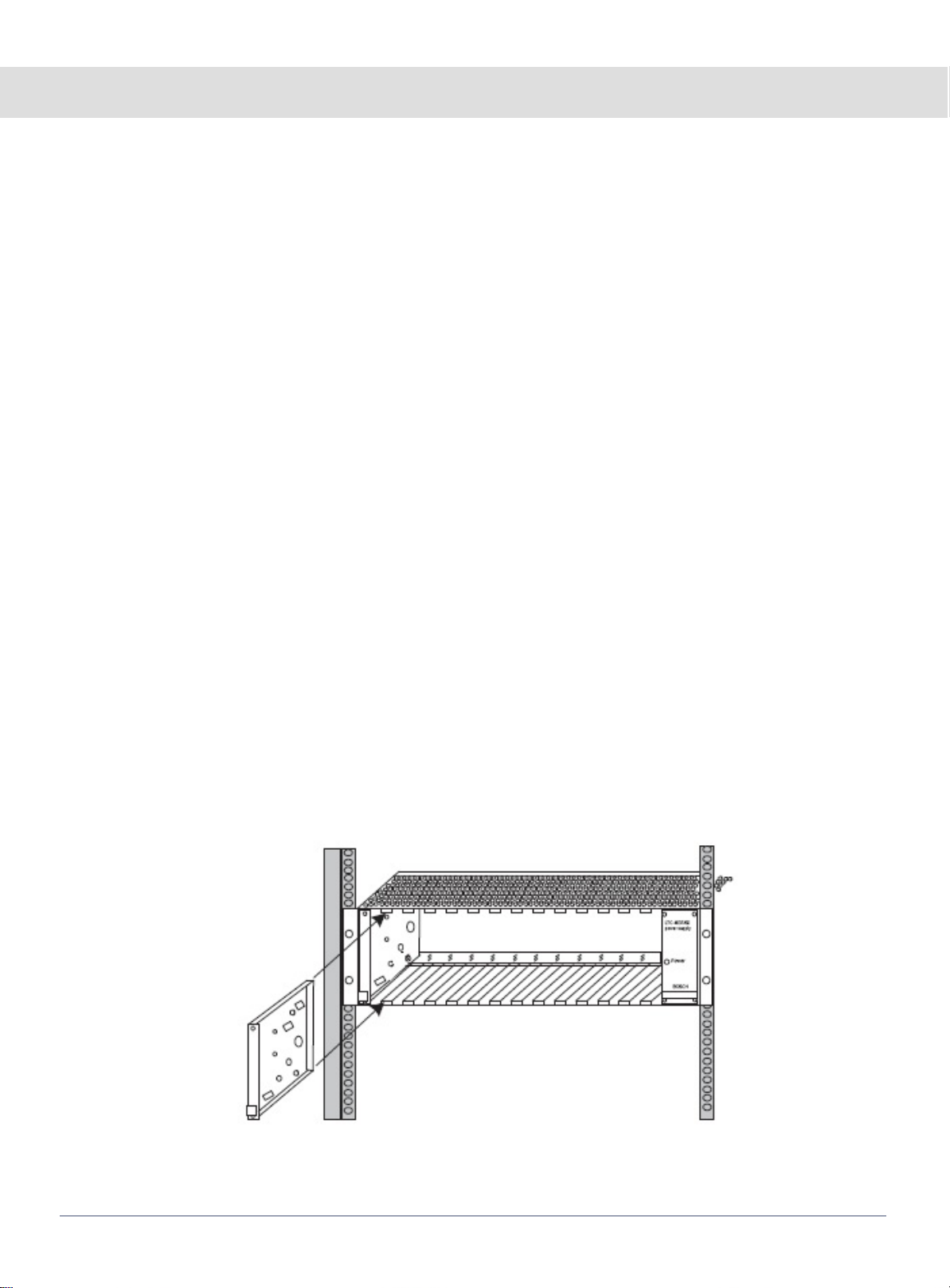

1:Install the video card into a standard 19inch rack, usinguser-supplied rack-mounting
hardware. Becareful to not damage exposed objects on the back of the card cage unit.
2:If asecondary earth ground connectionis needed, a grounded wire with a ground lug can be
attached to the rackusing the protruding screw provided on the right side of the chassis.
3:If desired, blank panels may beinstalled to cover unused slots. A single blank panel coversa
single slot opening.
4:Each fiber optic plug-in module is equipped with a POWER LED indicator that illuminates
when power is applied to the rack unit.
5:Fiber optic plug-in modules(video cards) can be installed into anyof theavailable 14slots
of thecard cage. Most modules require onlya single slot width, but others, such as the 8-Ch
video Series, require two slot widths.
VOS-CH04:
19 inch4U,14 video card slots, suit for 1-ch,2-ch,4-ch,8-ch(two slots)video cards.
Support oneslide-in power supply AC100V~AC240V
VOS-CH06:
19 inch6U,16 video card slots, suit for 1-ch,2-ch,4-ch,8-ch(two slots)video cards.
Support two slide-in power supply AC100V~AC240V, one for redundancy.
Website:www.voscom.com
The transmitter/ receiver canbe installed into our rack mount
chassis, VOS-CH04or VOS-CH06, which can be mounted into an industry-standard 19-inch
equipment rack.
VOS-2FOM-DCCT VOS-2FOM-DCCR

Troubleshooting En_7
Indicator Status Meaning Possible Cause Corrective Action
Power LED
Light Power isbeing applied
to the module. --- No actionrequired.
Not Light Power isnot being
applied to the module.
Check powerconnection.
If moduleis rackmounted,
reseat moduleor power
supply asnecessary.
Power connectionis
faulty.
Power supplyhas failed. Replace powersupply.
Loss ofpower occurs due
to trippedcircuit
breaker(s), blownfuse(s),
or faultyelectrical
service.
Check circuit breaker(s),
fuse(s), orelectrical
service asnecessary.
LED indicators on thefront-panel of the transmitter/receiverallow youto monitor signal status,
laser status,data activity, contact closure activation, and operatingpower. Table A~D provide
information aboutthe front-panelindicators and associated troubleshooting guidelines.
Table A: Power Links
Indicator Status Meaning Possible Cause Corrective Action
Video LED(VIDEO 1,VIDEO 2....)
Light Incoming video signal
is present on thechannel. --- No actionrequired.
Not Light
on Transmitter Incoming video signal is not present on the
channel.
Check power connection
to the video source.
Video source is not
powered on.
Video source is not
connected to the
transmitter.
Check BNC connections.
Coaxial cable is
defective. Replace cable.
Table B: Video Links
Not Light
on Receiver Incoming video signal is not present on the
channel.
Optical signal is not
being receivedfrom the
transmitter. Optic Fault
LED is also not light.
Refer tothe Optic Fault
LED section in this table.
Video source is not
powered on. Check power connection
to the video source.
Video source is not
connected to the
transmitter.
Check BNC connections.
Coaxial cable connected
to the transmitter is
defective.
Replace cable.
Website:www.voscom.com

Troubleshooting En_8
Indicator Status Meaning Possible Cause Corrective Action
Data(RS485/RS232/RS422) LED
Flashing
Data is being transmitted
onto the fiber by the data
port or is being received
from thefiber by the
data port.
--- No actionrequired.
Table C: Data Links
Indicator Status Meaning Possible Cause Corrective Action
Optic LED
Light The optical signal is being
received andlaser is
operatingproperly.
--- No actionrequired.
Not Light
Table B: Optic Links
Not Light
Data isnot being
transmitted ontothe
fiber bythe data port or
is notbeing received
from thefiber by the
data port.
Data isnot present on
the channel. No actionrequired.
Data connectionis faulty. Check dataconnections.
Data communication
cable isdefective. Replace cable.
The optical signal is
not beingreceived.
Remote fibermodule is
not poweredon. Check power connections.
Replace powersupply if
necessary.
Fiber optic cable is not
connected. Check fiberoptic
connections.
Fiber optic cable
connectors aredirty or
are damaged.
Clean, polish, or replace
fiber opticcable
connectors asnecessary.
Fiber optic cable is
defective. Replace cable.
A problemexists with
the optical power
budget.
Verify thatlosses infiber
optic cable do not exceed
the optical power budget
specification of the fiber
optic link. If the losses do
exceed theoptical power
budget, contactProduct
Support.
Website:www.voscom.com

Return & Warranty Policy En_9
Warranty Introduction
All VOSCOM manufactured productsare warrantedto be free from defects in manufacturing and
materials forthe warranty term of 3 years. VOSCOM will repair or replace any equipment or parts
proved tobe defectiveduring the term of the warranty.
VOSCOM shall not beobligated to replace or repair equipment that has been damaged by fire,
war, acts of God, or similar causes, or equipment that has been serviced by unauthorized
personnel, altered,improperly installed or abused.
This Returnand Warranty Policy Statement applies to VOSCOM equipment purchased directly
from VOSCOMTechnology Co.,Ltd. If you did not acquire the VOSCOM equipment directly, return
the equipmentto the place of purchase.
Returning VOSCOM products
Before youcan return any product to VOSCOM, you mustobtain a Return Material Authorization
(RMA). Thisapplies to all product returns, including warranty repair/replacements, nonwarranty
repairs, advancereplacements, and credit returns.
To obtain an RMA, (Download from www.voscom.com), and please complete the RMA asmuch
detail aspossible, thensend the RMA to our customer service support:
FAX: [phone]
E-mail: [email protected]
Customer Servicewill provide you with an RMA number andan RMA acknowledgment form that
confirms yourrequest.
Once youhave theRMA, repackage the product appropriately and attach the RMA
acknowledgement formon the outside of the package. Then send the product to the return
location givenby the customer service center.
All productsmust be returned freight prepaid within 30days of obtaining an RMA. We reserve
the rightto cancel the RMA after 30 days. If you fail to returnthe product within the 30 days,
please contactCustomer Service to get a new RMA.
We will not accept unauthorized returns or freight collection returns; we will return these to
you atyour expense.
If areturned product contains parts that are no longer available orrepairable, wewill contact
you todiscuss resolution and return of the material.
Website:www.voscom.com

En_10
Warranty repair/replacements
Subject to the terms of thelimited warrantyin effect at the time of purchase, VOSCOM will
repair or replace a product that fails to meet the terms provided,within the product's warranty
period. The actual warranty period starts from either:
a): The dateof shipment from VOSCOM's facility (point of origin)
b): The manufacturer'sdate code (if the shipment date is unknown).
For allwarranty repairs, VOSCOM will coverparts and labor. We willreturn equipment via the
same incomingshipment methodat no additional charge.
Non-warranty repairs
For allnon-warranty repairs, VOSCOMwill provide you with a repair estimate that includes
charges for parts, labor (in half-hourincrements), and all shipping. Repair chargesmay be
based on a flatrate or parts and labor, andwill varybased on actual equipment and condition.
You may payfor non-warranty repaircharges by purchase order.
Advance replacement
Advance replacementproducts are new or like-new refurbished products and carry a full original
equipment warranty. VOSCOM will send advance replacementproduct to replace defective
equipment that has failed upon initial install for up to 60 daysfrom the original date of shipment.
We will ship advance replacements in the next business day.
Our repair department will evaluate thereturned product to determine whether it is a warranty
or non-warranty replacement and bill you accordingly. We will invoice advance replacements at
shipment and credit youupon receipt of the defective product. If we determine, however, that the
returned product is in good working order or that performance issues were due to improper
installation, misuse, abuse, or other user-relatedcauses, we will issue no credit and you will
remain responsible for payingthe invoice.
Note: Advance replacementis not available forcustom products.
Credit returns
VOSCOM will refund or credit new, standard production items that are unused and in the original
unopened shipping cartons for a period of 60 days fromthe original date of shipment. All returned
merchandise is subject to a 20% restocking fee. Products that have failedupon initial install within
60 daysfrom the date of shipment (or date of manufacture if shipment date is unknown) may be
returned for credit without a restocking fee. (Products purchased as part of a kit must be returned
through Advance replacement.)
As withadvance replacements,if we determine that the returnedproduct isin good working
order orthat performance issues were due to improper installation, misuse, abuse, or other
user-related causes,we will issue no credit and you will remain responsible for payingthe invoice.
Note: Credit isnot availablefor custom products.
Return & Warranty Policy
Website:www.voscom.com

Packing List & Support En_11
Manufacture Packing List:
Fiber OpticTransmitter 1
Fiber OpticReceiver 1
Power Adapter 2
User Manmual 1
Network Cablewith RJ-45 connector (If the product with RJ-45 port)
Note:
1): VOSCOM reservesthe right to change specifications without notice.
2): You can download the latest PDF document here: www.voscom.com
3): Online Technical Support please E-mail:[email protected]
4): More detail product information please E-mail: [email protected], or contact
with our sales staff.
5): Return defective products please download RMA here: www.voscom.com
6): Get an
acknowledgment RMA number please complete the RMA as much detail as possible
and thenE-mail: [email protected]or FAX:[phone]
Website:www.voscom.com

WARNING
TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
DO NOT LOOK INTO OPTICAL PORTS WITH POWER ON.
Headquarters Information: Distributor Information:
VOSCOM TECHNOLOGIES CO., LIMITED
Hangzhou , Zhejiang , P.R.CHINA 310004
Tel:[phone]
Fax:[phone]
Web:www.voscom.com
E-Mail:[email protected]
[email protected]
[email protected]
