Voscom VOS-2H3G-ADCEMT User manual

VOS-2H3G-ADCET/R series
2-Channel 3G-SDI + 2 Duplex Audio + 1 Duplex Data
+ 2 Simplex (or 1 Duplex) Contact Closure
+ IP Ethernet
Installation Manual
Fiber Optic Transmission Systems
VOSCOM TECHNOLOGIES CO.,LIMITED
WWW.VOSCOM.COM
TM

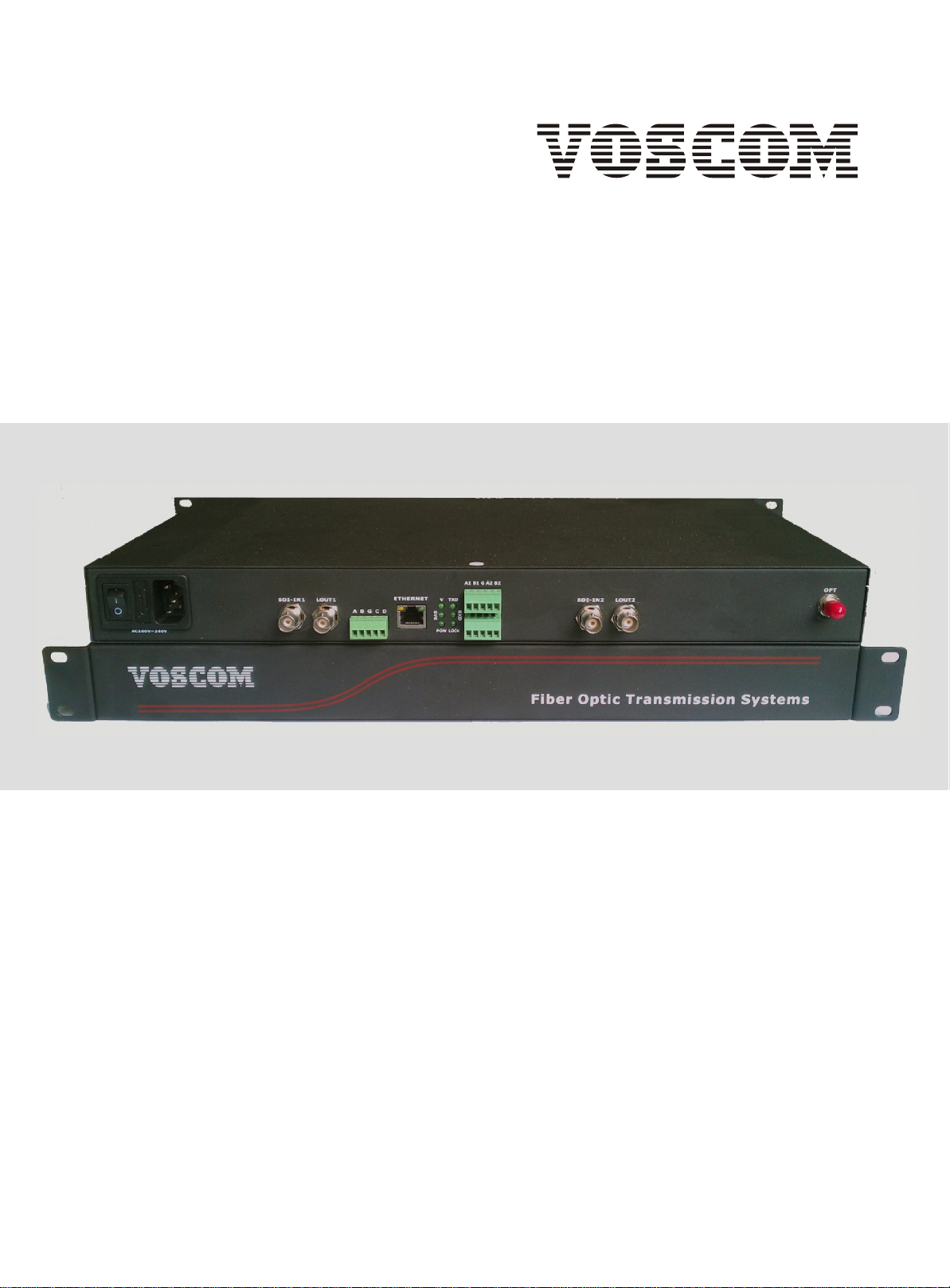

19inch 1U Rack version

Important Safety Instructions EN_1
1. Readthese instructions. Keep these instructions. Heed allwarnings. Follow all instructions.
5. Donot use this apparatus near water. Cleanonly with dry cloth.
7. Donot block any ventilation openings. Install in accordance with the manufacturers
instructions.
8. Donot install near any heat sources such as radiators, heatregisters, stoves,or other
apparatus (includingamplifiers) that produce heat.
9. Donot defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has twoblades withone wider than the other. Agrounding type plug has two blades and a third
grounding prong. The wideblade or the third prong are provided for your safety. Ifthe provided
plug doesnot fitinto your outlet consult an electrician for replacement of the obsolete outlet.
10. Protectthe power cord from being walked on or pinched particularly at plugs,convenience
receptacles, andthe points where they exit from the apparatus.
13. Referall servicingto qualifiedservice personnel. Servicing is required when the apparatus
has beendamaged in any way, suchas power-supply cord or plug is damaged, liquid has been
spilled or objects havefallen into the apparatus,the apparatushas been exposed to rain or
moisture, doesnot operatenormally,or has been dropped.
14. Apparatusshall not be exposed to dripping or splashing and that no objects filled with liquids,
such asvases shall be placed on the apparatus.
15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatusto rain or
moisture.
16. Installation should be done only by qualified personnel and conform to all local codes.
20. CAUTION: These servicing instructions arefor useby qualified service personnel only.To
reduce therisk of electric shock do not perform any servicing other than that contained in the
operating instructionsunless youare qualifiedto do so.
Website:www.voscom.comWebsite:www.voscom.com

Product Overview En_2
22
3G-SDI
The VOS-2H3G-ADCET/R provides forthe digital transmission of 2-Channel uncompressed
2.97Gbps 3G-SDI(SMPTE 424M), 1.485Gbps HD-SDI (SMPTE 292) or 270 Mbps SD-SDI
(SMPTE 259M) 1080P HDvideo overfiber, support2 duplex analog audio, 1 duplex RS232 /RS485
data, 2simplex or 1 duplexcontact closure, and 1-channel 10M/100M IP Ethernet, also support
one loopback output for local display, anddual outputs for two displays inthe remote end.
Model Number
Transmitter Receiver Fiber Mode Wavelengths Optical
Power
Budget
Maximum
Transmission
Distance
Multi-Mode 1310nm/1550nmVOS-2H3G-ADCEMRVOS-2H3G-ADCEMT
•The OpticalPower Budgetdata fitMulit-mode(62.5/125 m),Single-Mode(9/125 m).
•When using50/125 m multimode fiber, subtract3 dBfrom the optical power budget.
Note:
16dB 300m
Single-Mode
VOS-2H3G-ADCESRVOS-2H3G-ADCEST 12dB 20km
Models and Optical Power Budget:
Audio
1310nm/1550nm
Data
1122

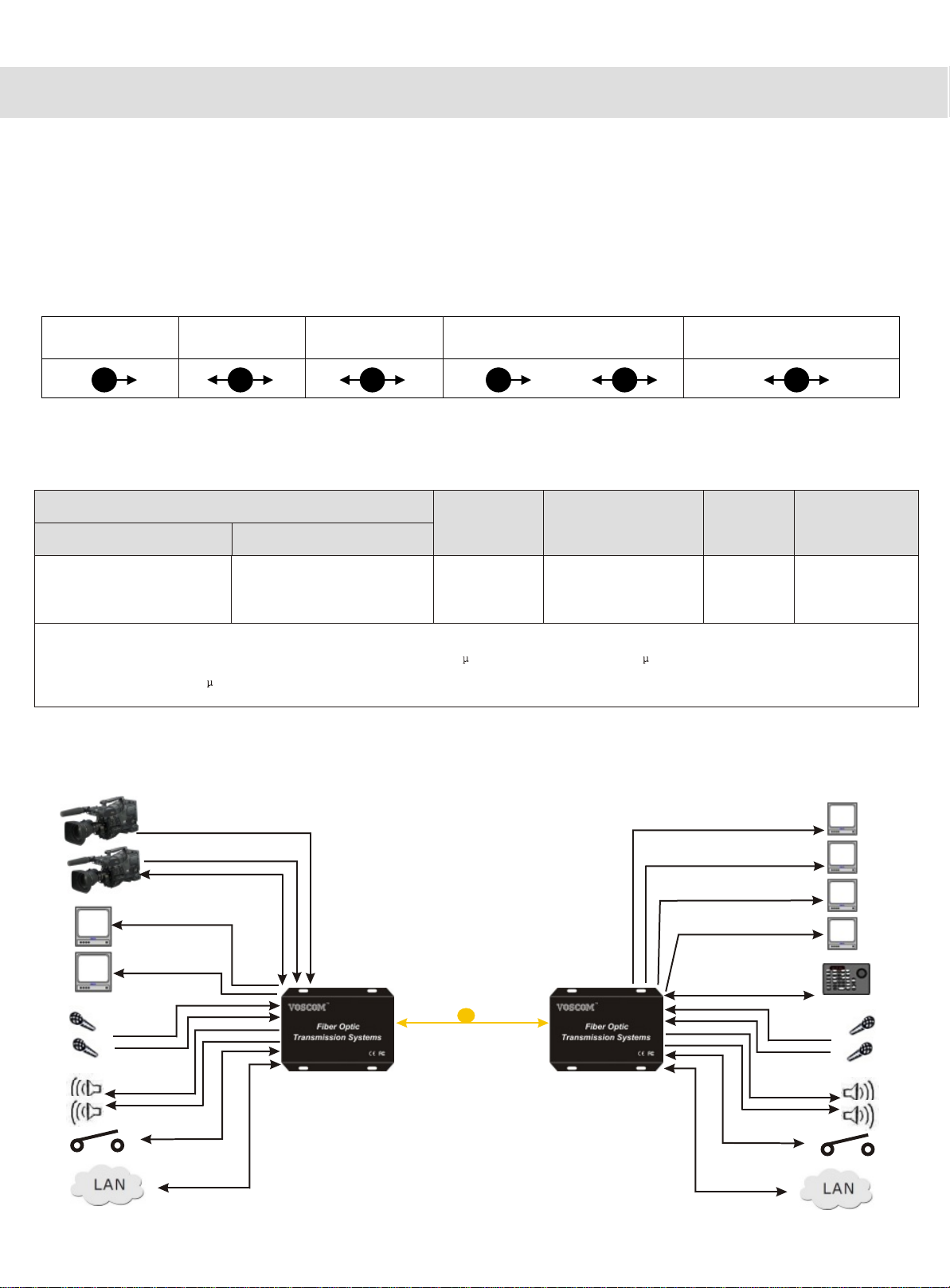

System Diagram:
Ethernet
11
Contact Closure
22or 11
1 Fiber opticCable
VOS-2H3G-ADCET
Transmitter VOS-2H3G-ADCER
Receiver
Loop output
1 x Duplex Data
3G/HD-SDI Source
with PTZ Mount
3G/HD-SDI Input
3G/HD-SDI Output
3G/HD-SDI Output
PTZ Controller
1 x Duplex Data
IP Ethernet
2 DuplexAudio
Contact Closure
IP Ethernet
2 DuplexAudio
Contact Closure
Display
Display

Panel & Cable Connection En_3

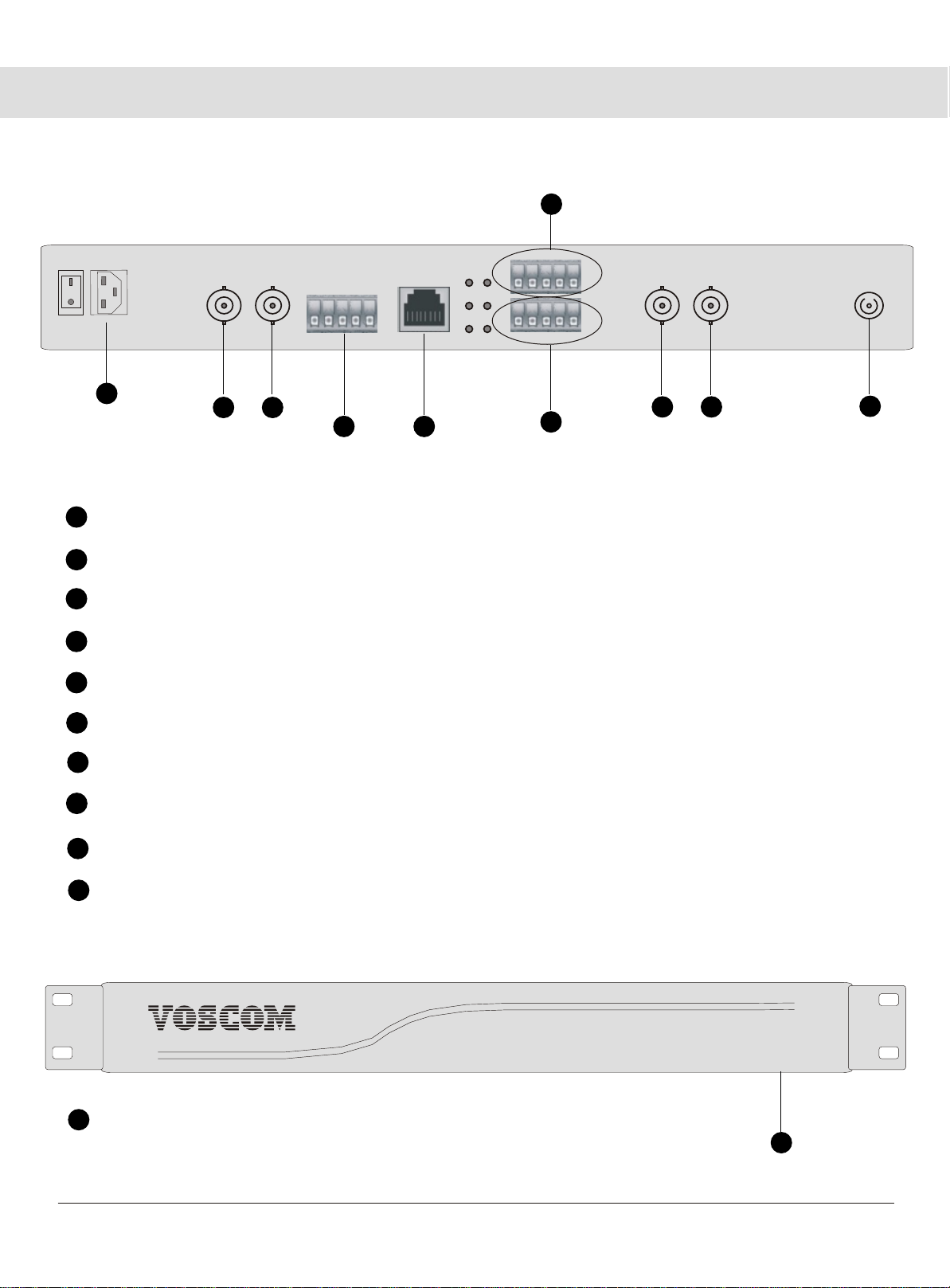

Transmitter Panel:
1
3
4
5
SDI-IN2 Connector: The Second Channel3G-SDI/HD-SDI video input.
LOUT2 Connector: The Second Channel 3G-SDI videoLoopback output for loacal display.
5-PIN Terminal BlockData Connector: 1-Channel Duplex Rs232/R485 Data Input/Output.
6Ethernet Connector: Standard RJ-45 10M/100M Ethernet, Automatic support MDI/MDI-X.
75-PIN Terminal BlockAudio Connector: 2-Channel Duplex Analog Audio Input/Output.
9Fiber Optic Connector: support FC/PC or ST/PC optical connector.
1
Website:www.voscom.comWebsite:www.voscom.com
85-PIN Terminal BlockCC Connector: 2 Simplex or 1 duplex Contact Closure Input/Output.
ON
OFF
AC100V~240V
OPT
SDI-IN1
LOUT1
POW
SYS
VTXD
LOCK
RXD
A B G C D
ETHERNET
A1 B1 G A2 B2
A3 B3 G A4 B4
SDI-IN2 LOUT2
234
1
1
2
SDI-IN1 Connector: The First Channel3G-SDI/HD-SDI video input.
LOUT1 Connector: The First Channel 3G-SDI videoLoopback output for loacal display.
567
8
9
10
10
Power supplyConnector: AC100V~240V Input
TRANSMITTER FRONT PANEL
Fiber Optic Transmission Systems
TRANSMITTER REAR PANEL
11
11
19inch, 1U Rack-mount Transmitter.

Panel & Cable Connection En_4
Receiver Panel:
1
3
4
5
SDI-OUT3 Connector: The Second Channel 3G-SDI/HD-SDI videoOutput 1.
SDI-OUT4 Connector: The Second Channel 3G-SDI/HD-SDI videoOutput 2.
5-PIN Terminal BlockData Connector: 1-Channel Duplex Rs232/R485 Data Input/Output.
6Ethernet Connector: Standard RJ-45 10M/100M Ethernet, Automatic support MDI/MDI-X.
75-PIN Terminal BlockAudio Connector: 2-Channel Duplex Analog Audio Input/Output.
9Fiber Optic Connector: support FC/PC or ST/PC optical connector.
1
Website:www.voscom.comWebsite:www.voscom.com
85-PIN Terminal BlockCC Connector: 2 Simplex or 1 duplex Contact Closure Input/Output.
ON
OFF
AC100V~240V
OPT
SDI-OUT1
SDI-OUT2
POW
SYS
VTXD
LOCK
RXD
A B G C D
ETHERNET
A1 B1 G A2 B2
A3 B3 G A4 B4
SDI-OUT3 SDI-OUT4
234
1
1
2
SDI-OUT1 Connector: The First Channel 3G-SDI/HD-SDI videoOutput 1.
SDI-OUT2 Connector: The First Channel 3G-SDI/HD-SDI videoOutput 2.
567
8
9
10
10
Power supplyConnector: AC100V~240V Input
RECEIVER FRONT PANEL
Fiber Optic Transmission Systems
RECEIVER REAR PANEL
11
11
19inch, 1U Rack-mount Receiver

Panel & Cable Connection En_5

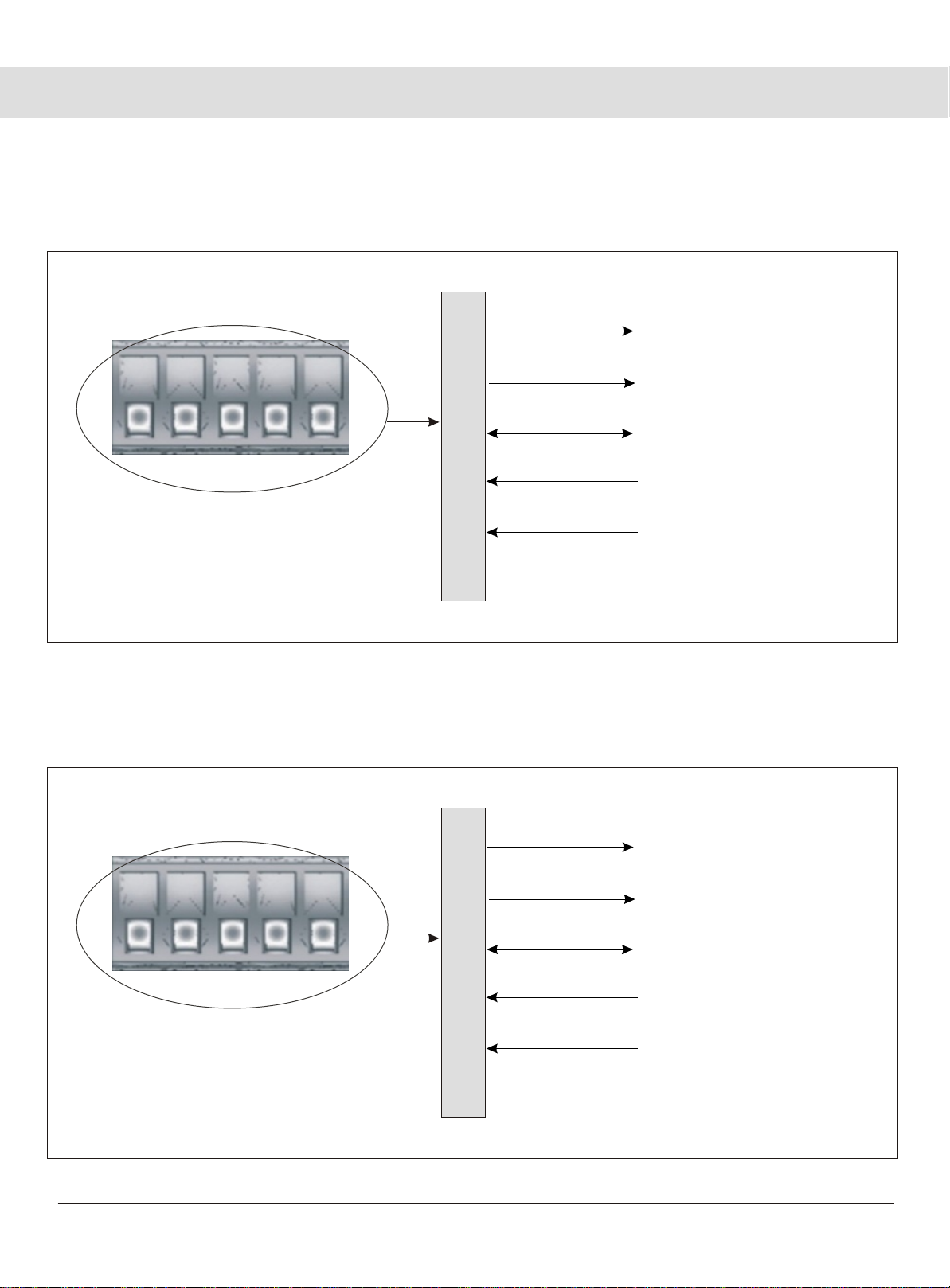

5 Pin Terminal Block
A
B
G
C
D
Conect Ground(GND)
PIN
Conect DataRs485+(A)
Conect DataRs232 RXD
Receiver (Data): 1-Channel Duplex Rs232/Rs485 Data (Input/Output)
Transmitter (Data): 1-Channel Duplex Rs232/Rs485 Data (Input/Output)
Data Connection:
Input/Output
Input/Output
Input/Output
A B G C D
Conect DataRs485-(B)
Input/Output
Conect DataRs232 TXD
Input/Output
5 Pin Terminal Block
A
B
G
C
D
Conect Ground(GND)
PIN
Conect DataRs485+(A)
Conect DataRs232 RXD
Input/Output
Input/Output
Input/Output
A B G C D
Conect DataRs485-(B)
Input/Output
Conect DataRs232 TXD
Input/Output
Website:www.voscom.comWebsite:www.voscom.com

Panel & Cable Connection En_6
5-Pin Terminal Block PIN
Transmitter (Audio): 2-Channel Duplex Audio (Input/Output)
Audio Connection:
A3 B3 G A4 B4
A3
B3
G
A4
B4
1st-Channel AudioInput
Conect all GND tothis PIN
Input/Output
2nd-Channel AudioInput
Receiver (Audio): 2-Channel Duplex Audio (Input/Output)
Website:www.voscom.comWebsite:www.voscom.com
Input
1st-Channel AudioOutput
2nd-Channel AudioOutput
Input
Output
Output
5-Pin Terminal Block PIN
A3 B3 G A4 B4
A3
B3
G
A4
B4
1st-Channel AudioInput
Conect all GND tothis PIN
Input/Output
2nd-Channel AudioInput
Input
1st-Channel AudioOutput
2nd-Channel AudioOutput
Input
Output
Output

Panel & Cable Connection En_7
5-Pin Terminal Block PIN
Transmitter (Contact Closure): 2-Channel Simplex CC Input
2-Channel Simplex Contact Closure Connection:
A1 B1 G A2 B2
A1
B1
G
A2
B2
2-Channel CC Input
None
2-Channel CC Input
Receiver (Contact Closure): 2-Channel Simplex CC Output
Input
1-Channel CCInput
1-Channel CCInput
Input
Input
Input
NOTE: the device can support 2 simplex or 1 duplex contact closure,
but it only can be configurated by factory, so you need to choose the
configuration before the order.
5-Pin Terminal Block PIN
A1 B1 G A2 B2
A1
B1
G
A2
B2
2-Channel CC Output
None
2-Channel CC Output
Output
1-Channel CC Output
1-Channel CC Output
Output
Output
Output

Panel & Cable Connection En_8
5-Pin Terminal Block PIN
Transmitter (Contact Closure): 1-Ch Duplex CC Input/Output
1-Channel Duplex Contact Closure Connection:
A1 B1 G A2 B2
A1
B1
G
A2
B2
1-Channel CC Input
None
1-Channel CC Input
Receiver (Contact Closure): 1-Ch Duplex CC Input/Output
Input
1-Channel CCOutput
1-Channel CCOutput
Input
Output
Output
NOTE: the device can support 2 simplex or 1 duplex contact closure,
but it only can be configurated by factory, so you need to choose the
configuration before the order.
5-Pin Terminal Block PIN
A1 B1 G A2 B2
A1
B1
G
A2
B2
1-Channel CC Input
None
1-Channel CC Input
Input
1-Channel CC Output
1-Channel CC Output
Input
Output
Output

Panel & Cable Connection En_9
3G-SDI TRANSMMITTER
3G-SDI RECEIVER
A1 B1 G A2 B2
ON
SDI-IN1
LOUT1
VTXD
ETHERNET SDI-IN2 LOUT2
OPT
A B G C D
SYS RXD
OFF
AC100V~240V POW LOCK
A3 B3 G A4 B4
A1 B1 G A2 B2
ON
SDI-OUT1 SDI-OUT2
VTXD
ETHERNET SDI-OUT3 SDI-OUT4
OPT
A B G C D
SYS RXD
OFF
AC100V~240V POW LOCK
A3 B3 G A4 B4
Power Supply
Power Supply
Display Display
3G-SDI Input
3G-SDIInput
Local Loopback
Local Loopback
1-Channel DuplexRS-232/RS-485 Data3G/HD-SDI Source
with PTZ Mount
3G/HD-SDI Source
with PTZ Mount
2-ChannelDuplex Audio
Display Display Display Display
Control Device
2-ChannelDuplex Audio
IPEthernetIPEthernet
Contact Closure
Contact Closure
3G-SDI Output 3G-SDI Output 3G-SDI Output 3G-SDI Output
DuplexRS-232/RS-485 Data

Stand-alone Installation En_10
The transmitter/ receiver can bemounted into arack orcan
be used as a stand-alone module. Asa stand-alone module,the unit can beplaced on adesktop
or canbe mounted toa wall.This manual isfor the 19inch 1U rack.
VOS-2H3G-ADCET VOS-2H3G-ADCER
NOTE: Before mounting the transmitter/ receiver, please
ensure that there is adequate space at both ends forviewing the front-panel LEDsand for
making the various rear-panelcable connections.
VOS-2H3G-ADCET VOS-2H3G-ADCER
Standard 19inch 1U Rack: 483mm x 250mm x 44.5mm
Website:www.voscom.comWebsite:www.voscom.com

Troubleshooting En_11
Indicator Status Meaning Possible Cause Corrective Action
Power LED
Light Power isbeing applied
to the module. --- No actionrequired.
Not Light Power isnot being
applied to the module.
Check powerconnection.
If moduleis rackmounted,
reseat moduleor power
supply asnecessary.
Power connectionis
faulty.
Power supplyhas failed. Replace powersupply.
Loss ofpower occurs due
to trippedcircuit
breaker(s), blownfuse(s),
or faultyelectrical
service.
Check circuit breaker(s),
fuse(s), orelectrical
service asnecessary.
LED indicators on thefront-panel of the transmitter/receiverallow youto monitor signal status,
laser status,data activity, contact closure activation, and operatingpower. Table A~D provide
information aboutthe front-panelindicators and associated troubleshooting guidelines.
Table A: Power Links
Indicator Status Meaning Possible Cause Corrective Action
Video LED(VIDEO 1,VIDEO 2....)
Light Incoming video signal
is present on thechannel. --- No actionrequired.
Not Light
on Transmitter Incoming video signal is not present on the
channel.
Check power connection
to the video source.
Video source is not
powered on.
Video source is not
connected to the
transmitter.
Check BNC connections.
Coaxial cable is
defective. Replace cable.
Table B: Video Links
Not Light
on Receiver Incoming video signal is not present on the
channel.
Optical signal is not
being receivedfrom the
transmitter. Optic Fault
LED is also not light.
Refer tothe Optic Fault
LED section in this table.
Video source is not
powered on. Check power connection
to the video source.
Video source is not
connected to the
transmitter.
Check BNC connections.
Coaxial cable connected
to the transmitter is
defective.
Replace cable.
Website:www.voscom.com

Troubleshooting En_12
Indicator Status Meaning Possible Cause Corrective Action
Data(RS485/RS232/RS422) LED
Flashing
Data is being transmitted
onto the fiber by the data
port or is being received
from thefiber by the
data port.
--- No actionrequired.
Table C: Data Links
Indicator Status Meaning Possible Cause Corrective Action
Optic LED
Light The optical signal is being
received andlaser is
operatingproperly.
--- No actionrequired.
Not Light
Table B: Optic Links
Not Light
Data isnot being
transmitted ontothe
fiber bythe data port or
is notbeing received
from thefiber by the
data port.
Data isnot present on
the channel. No actionrequired.
Data connectionis faulty. Check dataconnections.
Data communication
cable isdefective. Replace cable.
The optical signal is
not beingreceived.
Remote fibermodule is
not poweredon. Check power connections.
Replace powersupply if
necessary.
Fiber optic cable is not
connected. Check fiberoptic
connections.
Fiber optic cable
connectors aredirty or
are damaged.
Clean, polish, or replace
fiber opticcable
connectors asnecessary.
Fiber optic cable is
defective. Replace cable.
A problemexists with
the optical power
budget.
Verify thatlosses in fiber
optic cable do not exceed
the optical power budget
specification of the fiber
optic link. If the losses do
exceed theoptical power
budget, contactProduct
Support.
Website:www.voscom.com

Return & Warranty Policy En_13
Warranty Introduction
All VOSCOM manufactured productsare warrantedto be free from defects in manufacturing and
materials forthe warranty term of 3 years. VOSCOM will repair or replace any equipmentor parts
proved tobe defectiveduring the term of the warranty.
VOSCOM shall not beobligated to replace or repair equipment that has been damaged by fire,
war, acts of God, or similar causes, or equipment that has been serviced by unauthorized
personnel, altered,improperly installed or abused.
This Returnand Warranty Policy Statement applies to VOSCOM equipment purchased directly
from VOSCOMTechnologies Co.,Ltd. If you did not acquire the VOSCOM equipment directly, return
the equipmentto the place of purchase.
Returning VOSCOM products
Before youcan return any product to VOSCOM, you mustobtain a Return Material Authorization
(RMA). Thisapplies to all product returns, including warranty repair/replacements, nonwarranty
repairs, advancereplacements, and credit returns.
To obtain an RMA, (Download from www.voscom.com), and please complete the RMA asmuch
detail aspossible, thensend the RMA to our customer service support:
FAX: [phone]
E-mail: [email protected]
Customer Servicewill provide you with an RMA number andan RMA acknowledgment form that
confirms yourrequest.
Once youhave theRMA, repackage the product appropriately and attach the RMA
acknowledgement formon the outside of the package. Then send the product to the return
location givenby the customer service center.
All productsmust be returned freight prepaid within 30 days of obtaining an RMA. We reserve
the rightto cancel the RMA after 30 days. If you fail to returnthe product within the 30 days,
please contactCustomer Service to get a new RMA.
We will not accept unauthorized returns or freight collection returns; we will return these to
you atyour expense.
If areturned product contains parts that are no longer available orrepairable, wewill contact
you todiscuss resolution and return of the material.
Website:www.voscom.comWebsite:www.voscom.com

En_14
Warranty repair/replacements
Subject to the terms of thelimited warrantyin effect at the time of purchase, VOSCOM will
repair or replace a product that fails to meet the terms provided,within the product's warranty
period. The actual warranty period starts from either:
a): The dateof shipment from VOSCOM's facility (point of origin)
b): The manufacturer'sdate code (if the shipment date is unknown).
For allwarranty repairs, VOSCOM will coverparts and labor. We willreturn equipment via the
same incomingshipment methodat no additional charge.
Non-warranty repairs
For allnon-warranty repairs, VOSCOMwill provide you with a repair estimate that includes
charges for parts, labor (in half-hourincrements), and all shipping. Repair chargesmay be
based on a flatrate or parts and labor, andwill varybased on actual equipment and condition.
You may payfor non-warranty repaircharges by purchase order.
Advance replacement
Advance replacementproducts are new or like-new refurbished products and carry a full original
equipment warranty. VOSCOM will send advance replacementproduct to replace defective
equipment that has failed upon initial install for up to 60 daysfrom the original date of shipment.
We will ship advance replacements in the next business day.
Our repair department will evaluate thereturned product to determine whether it is a warranty
or non-warranty replacement and bill you accordingly. We will invoice advance replacements at
shipment and credit youupon receipt of the defective product. If we determine, however, that the
returned product is in good working order or that performance issues were due to improper
installation, misuse, abuse, or other user-relatedcauses, we will issue no credit and you will
remain responsible for payingthe invoice.
Note: Advance replacementis not available forcustom products.
Credit returns
VOSCOM will refund or credit new, standard production items that are unused and in the original
unopened shipping cartons for a period of 60 days fromthe original date of shipment. All returned
merchandise is subject to a 20% restocking fee. Products that have failedupon initial install within
60 daysfrom the date of shipment (or date of manufacture if shipment date is unknown) may be
returned for credit without a restocking fee. (Products purchased as part of a kit must be returned
through Advance replacement.)
As withadvance replacements,if we determine that the returnedproduct isin good working
order orthat performance issues were due to improper installation, misuse, abuse, or other
user-related causes,we will issue no credit and you will remain responsible for payingthe invoice.
Note: Credit isnot availablefor custom products.
Return & Warranty Policy
Website:www.voscom.comWebsite:www.voscom.com

Packing List & Support En_15
Manufacture Packing List:
Fiber OpticTransmitter 1
Fiber OpticReceiver 1
Power Adapter 2
User Manmual 1
Note:
1): VOSCOM reservesthe right to change specifications without notice.
2): You can download the latest PDF document here: www.voscom.com
3): Online Technical Support please E-mail:[email protected]
4): More detail product information please E-mail: [email protected], or contact
with our sales staff.
5): Return defective products please download RMA here: www.voscom.com
6): Get an
acknowledgment RMA number please complete the RMA as much detail as possible
and thenE-mail: [email protected]or FAX:[phone]
Website:www.voscom.comWebsite:www.voscom.com

WARNING
TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
DO NOT LOOK INTO OPTICAL PORTS WITH POWER ON.
Headquarters Information: Distributor Information:
VOSCOM TECHNOLOGIES CO., LIMITED
Hangzhou , Zhejiang , P.R.CHINA 310004
Tel:[phone]
Fax:[phone]
Web:www.voscom.com
E-Mail:[email protected]
[email protected]
[email protected]
