Letter to the Patient
Your physician has prescribed the Avid IF2™ as part of your treatment plan.
The Avid IF2 is an interferential stimulator. It will help reduce pain and
other symptoms of your condition.
The Avid IF2 sends small pulses of current through electrodes* on your
skin. These pulses pass through the skin and activate nerves. The Avid IF2
activates sensory nerves at low levels. This causes a tingling sensation
and helps with pain. Motor nerves are activated at higher levels. This
helps increase circulation.
Always follow the instructions of your physician to get the most out
of your treatment. He or she knows your specific condition and the
Avid IF2 settings. He or she will instruct you on the proper settings for your
individual condition.
If you have any questions about the Avid IF2 or need any assistance
in setting up or maintaining this equipment, or to report unexpected
operations or events, contact VQ OrthoCare at 800.452.7993.
NOTE: The Avid IF2 is not a substitute for full medical evaluation and
treatment. Talk to your physician or therapist if you have any questions
about the Avid IF2 or your treatment plan. The Avid IF2 should only be
used by the person for whom it is prescribed.
* For use only with stimulating electrodes, commonly referred to as “electrodes” throughout this manual

Avid IF2 Patient Manual | 3
ENGLISH

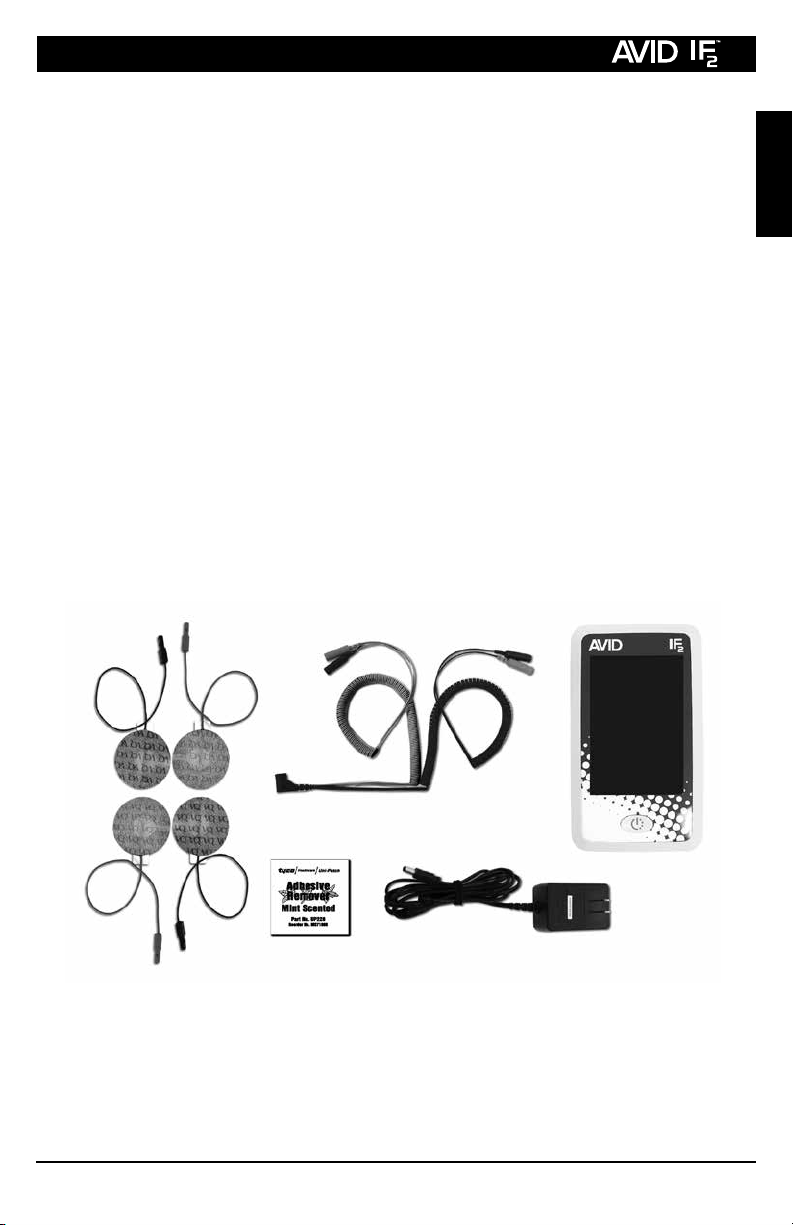

The Avid IF2™ Interferential Stimulation System is operated with:
• Avid IF2 Interferential device
• Non-Sterile, reusable electrodes (See “Treatment Sessions” and
“Electrode Use and Care”)
• Lead wire that connects the device to the electrodes
Accessories
• AC Adapter/Charger
• Adhesive Remover Towelettes
• Additional packages of non-sterile, reusable electrodes
(depending on your doctor’s protocol)
• Patient Manual (this booklet)
• Protocol
System Components & Accessories

4 | Avid IF2 Patient Manual
ENGLISH
CAUTION: Federal law restricts this device to sale by, or on the order of,
a practitioner licensed by the law of the State in which he/she practices
to use or order the use of this device.
NOTE: Please read the following prescription information carefully before
using the Avid IF2™. If you have any questions regarding this information,
consult with your physician or therapist before proceeding.
Interferential Stimulation can be used in the following applications:
• Symptomatic relief of post surgical and/or post traumatic acute pain
• Symptomatic relief of chronic intractable pain
• Relaxation of muscle spasms
• Maintaining and increasing range of motion
• Increasing local blood circulation
CONTRAINDICATION:
Stimulators should not be used on patients with cardiac demand pacemakers.
WARNINGS:
• The long-term eects of chronic electrical stimulation are unknown.
• Stimulation should not be applied over the carotid sinus nerves, particularly
in patients with a known sensitivity to the carotid sinus reflex.
• Stimulation should not be applied over the neck or mouth; severe spasm of
the laryngeal and pharyngeal muscles may occur and the contractions may
be strong enough to close the airway or cause diculty in breathing
• Stimulation should not be applied directly on the eyes.
• Electrodes should not be placed on the chest in such a configuration that
would allow electrical current delivered by the device to flow through the
chest because it may cause a cardiac arrhythmia.
• Stimulation should not be applied transcerebrally.
• Stimulation should not be applied over swollen, infected, or inflamed areas
or skin eruptions, e.g. phlebitis, thrombophlebitis, varicose veins, etc.
• Stimulation should not be applied over, or in proximity to, cancerous lesions.
• Due to the potential for causing skin burns, this device should only be used
with electrodes which limit the current density to 0.25W/cm2
Precautions & Prescription Information

Avid IF2 Patient Manual | 5
ENGLISH
WARNINGS CONT.:
• Stimulation should not be applied transthoracically in that the introduction
of electrical current may cause cardiac arrhythmias.
• Simultaneous connection of a patient to a high frequency surgical medical
electronic equipment may result in burns at the site of the stimulator
electrodes and possibly damage to the Avid IF2.
• Application of electrodes near the thorax may increase the risk of cardiac
fibrillation.
• Any electrodes that have current densities exceeding 2mA/cmmay require
the special attention of the operator.
PRECAUTIONS:
• Safety of stimulators for use during pregnancy has not been established.
• Caution should be used for patients with suspected or diagnosed heart
problems.
• Stimulation should not be applied across or through the head, directly
on the eyes, covering the mouth, on the front of the neck (especially the
carotid sinus), or from electrodes placed directly on the chest and upper
back or crossing over the heart.
• Caution should be used for patients with suspected or diagnosed epilepsy.
• Caution should be used in the presence of the following:
- When there is a tendency to hemorrhage following acute trauma or
fracture
- Following recent surgical procedures when muscle contraction may
disrupt the healing process
- Over the menstruating or pregnant uterus
- Over areas of the skin which lack normal sensation
• Some patients may experience skin irritation or hypersensitivity due to
electrical stimulation or electrical conductive medium. The irritation can
usually be reduced by using an alternative conductive medium or alternate
electrode placement.
• Electrode placement and stimulation setting should be based on the
guidance of the prescribing practitioner.
• Keep out of the reach of children.
• Keep lead wires away from children; the length of the lead wire could cause
entanglement of a baby or small child, potentially causing strangulation.

6 | Avid IF2 Patient Manual
ENGLISH
PRECAUTIONS CONT.:
• Use only with the lead wires and electrodes recommended for use by
the manufacturer.
• Portable stimulators should not be used while driving, operating machinery,
or during any activity in which involuntary muscle contractions may put the
user at undue risk of injury.
• Do not trim electrodes as cut edges may aect even distribution of
stimulation.
• Do not immerse electrodes in water.
• Electronic monitoring equipment (such as ECG monitors and ECG alarms)
may not operate properly when the Avid IF2 is in use.
• Wireless communications equipment such as wireless home network
devices, mobile phones, cordless telephones and their base stations,
walkie-talkies can aect the Avid IF2 and should be kept at least 1 (one)
meter away from the equipment. In addition, the presence of RFID and
security systems (e.g., electromagnetic anti-theft systems, and metal
detectors) might interfere with the operation of the Avid IF2 stimulator.
ADVERSE REACTIONS:
Skin irritation and burns beneath the electrodes have occasionally been
reported with the use of electrical stimulators.
If you experience any symptoms of skin irritation or any unusual reactions while
using the Avid IF2, discontinue use immediately and contact VQ OrthoCare’s
Patient Care Department at 800.452.7993 or consult your physician.
Precautions & Prescription Information
(Cont.)

Avid IF2 Patient Manual | 7
ENGLISH
Controls & Features

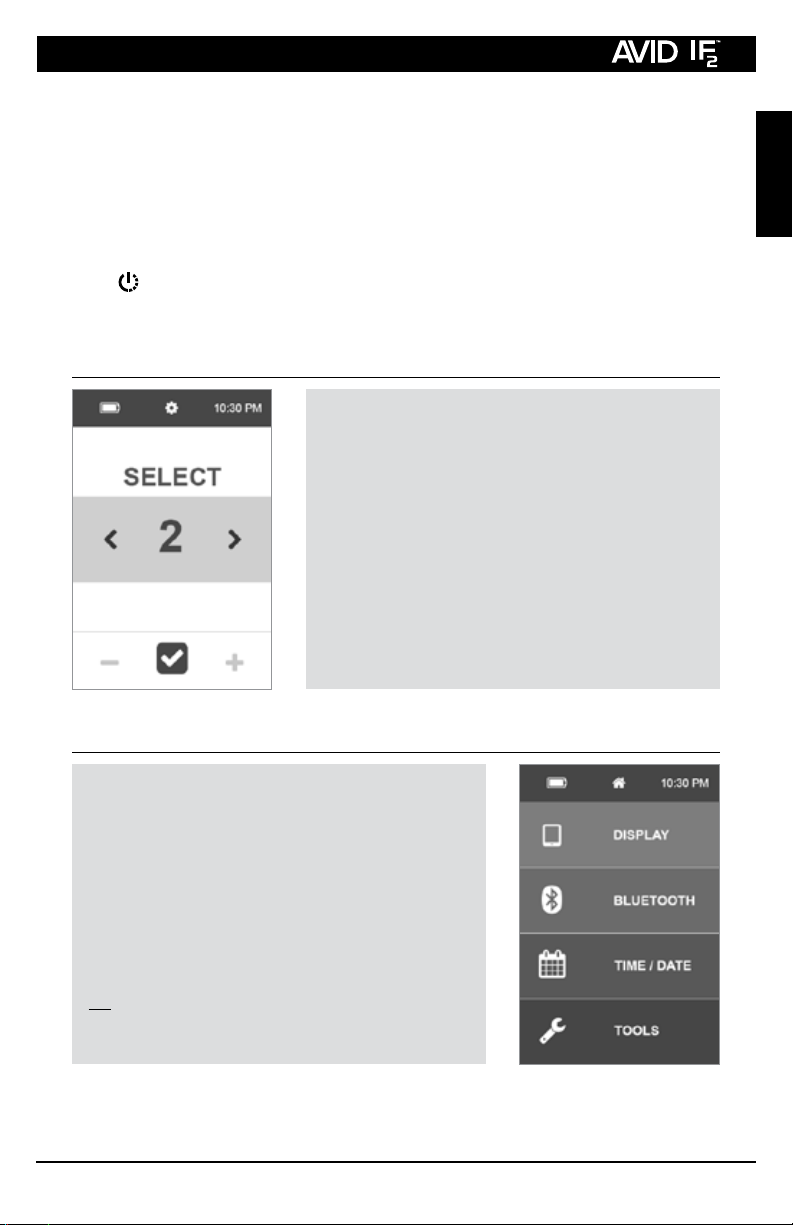

The Avid IF2™ is a touch screen device, allowing the user to control the
device on the screen and providing information regarding its operation and
status. Virtually all of the functions of the device are viewed and controlled
via a finger touch on the screen.
The “ ” button at the bottom will turn the device on. Pressing and holding
this button will turn the device OFF.
Main Display Screen
Settings Menu
The battery symbol in the upper left corner will display
the battery status. Press on the battery and the screen will
show you the battery life available and whether or not the
device is using the AC adapter.
 This button accesses the settings for the device.
The Time is displayed in the upper right corner of the screen.

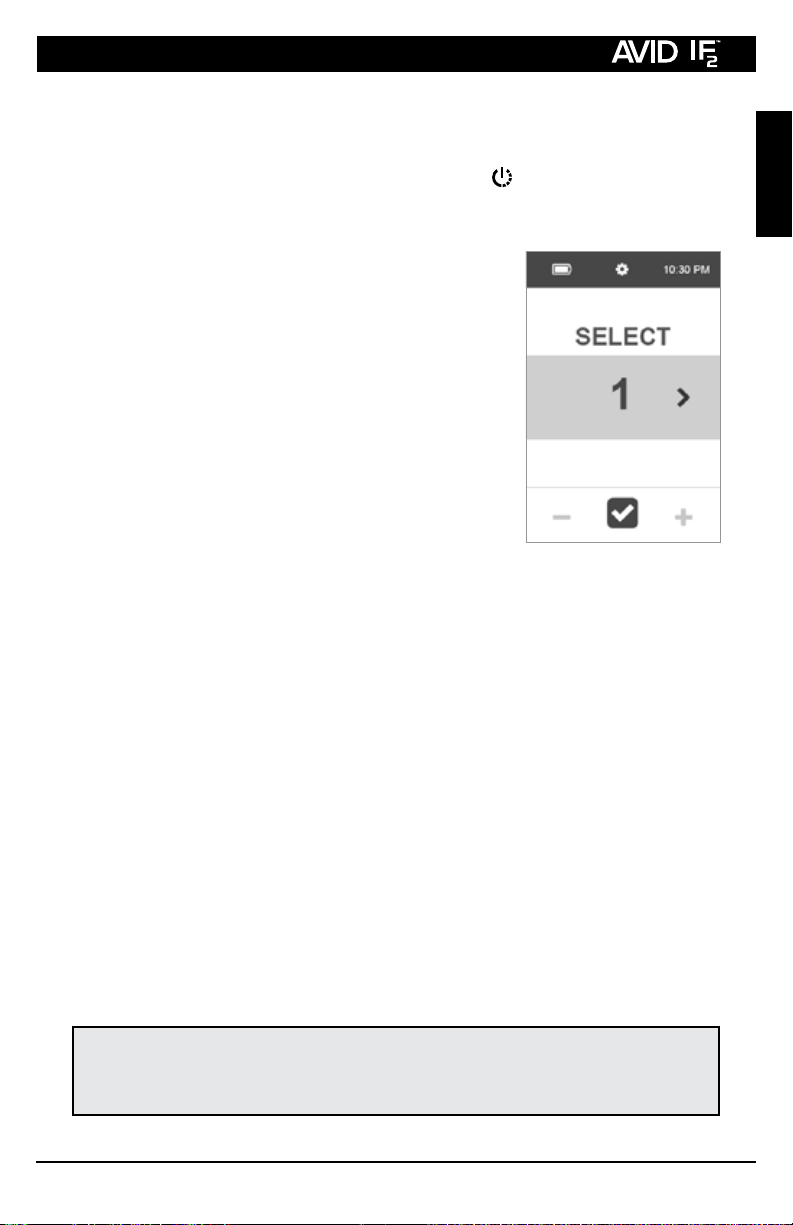

The number in the middle of the screen is the protocol.
You may have one or more to choose from, depending on
your physician’s prescription.
Increases the protocol number on the screen.
 Decreases the protocol number on the screen.
 Selects the setting shown on the screen.
1. Display: Language, Brightness, Audible beep, Night
Mode, Compliance Display.

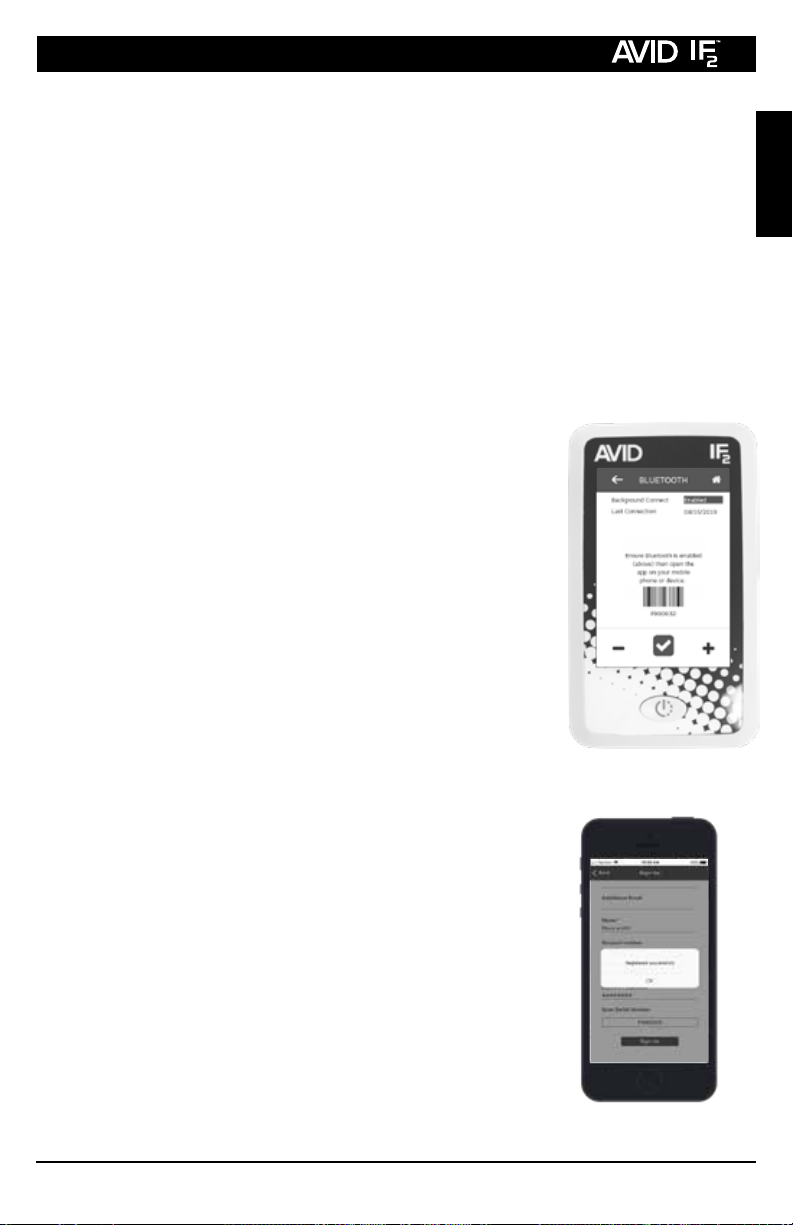

2. Bluetooth: Enable connection (Avid IF2 is bluetooth
ready) and Last Connection Date. During stimulation,
the bluetooth function is automatically disabled.
3. Time/Date: Set clock to 12 or 24 hr, set time and date
4. Tools: This is used by clinicians and technicians to
program your device.
The settings function will only display when treatment is
not running.

8 | Avid IF2 Patient Manual
ENGLISH
CAUTION:
DO NOT apply lotions, oils or other ointments to the skin prior to the application
of electrodes. Topical agents may increase the risk of skin irritation.
DO NOT clean the skin with anything other than soap and water. Other cleaning
agents may interfere with proper conduction.
USE OF electrodes smaller than 2” round or 2x2” square is not recommended
as increased power density could cause skin irritation or burn.
USE OF electrodes for long periods of time without removal may cause skin
irritation.
In the event of skin irritation, discontinue use immediately and contact VQ OrthoCare’s
Patient Care Department at 800.452.7993 or consult your physician or therapist.
Starting Your Treatment Sessions
1. Prepare the skin. Electrode application sites must be clean, dry, unbroken
skin surfaces. To reduce the risk of skin irritation, follow these instructions
for proper skin care before treatment.
^Wash site of electrode placement with mild soap and water before
applying electrodes.
^Rinse all soap o the skin before continuing.
^Dry the skin thoroughly.
^Trim excess body hair from electrode sites with scissors. Be
careful not to cut (or break) the skin. DO NOT SHAVE THE SKIN
IMMEDIATELY PRIOR TO STIMULATION. Shaving will create small
cuts in the surface layer of skin.
2. Inspect each electrode and lead wire before application. Do not
proceed if there is any doubt about the integrity or proper function of any
electrode or lead wire. Connect the lead wire to the electrodes. Make
sure there is no bare metal exposed at the connection points. Do not
use unnecessary force in connecting the electrodes to the lead wires. If
they do not fit, use a dierent set of electrodes and call VQ OrthoCare
to report the situation and receive a replacement set of electrodes.
Save the non-working electrodes for evaluation by VQ OrthoCare’s
Quality Assurance Department; DO NOT THROW THEM AWAY!
3. Gently remove the electrodes from the plastic liner. Place the electrodes
on the sites prescribed by your physician or therapist and press them
firmly onto the skin. Electrodes should be placed at least one inch
apart from each other. Skin irritation or burn could result.

Avid IF2 Patient Manual | 9
ENGLISH
CAUTION: If using pain medication and/or other pain management de-
vices, exercise caution when increasing the amplitude of the Avid IF2.
4. Insert the lead wire into the Avid IF2™ with the strain relief pointing
towards the bottom of the Avid IF2.
5. Turn the Avid IF2 on by pressing the on/o ( ) button. The device will
run through a self-test, displaying the VQ OrthoCare logo and then show
the protocol screen.
6. Scroll through the presets by pressing the 
or buttons until the number indicated for
the protocol is shown. Press the to select
a preset, as directed by your physician or
therapist. Most devices will have two default
presets to choose from unless additional
presets were prescribed by your physician.
7. Increase the stimulation intensity level by
repeatedly pressing and releasing the 
button until you feel a comfortable tingling
sensation or as directed by your physician or
therapist.

10 | Avid IF2 Patient Manual
ENGLISH
Normal Running Screens
1. The top of the screen displays the battery status, the “home” button and
the time. While treatment is running, the Home button (  ) will return you
to the Select Protocol Screen. When treatment is o, the Settings icon
(  ) will be in the top middle of the screen.
2. The middle of the screen displays the
intensity of the stimulation.
3. Below the intensity is the timer. For programs
with a set time, it will count down. For
continuous programs, the timer will count up.
4. The bottom right corner is the increase 
stimulation button.
5. The bottom left corner is the decrease 
stimulation button.
6. The bottom middle is the pause button  .
7. These are the screens that appear during most of your treatment time.
Press the or button to change stimulation intensity. For your safety,
the keypad locks after 30 seconds of inactivity. If you see the lock in
the middle of the lower line, pressing the display anywhere below the
top row will show the unlock icon (  ), which can be pressed to unlock
the device) You can then increase the intensity.

Avid IF2 Patient Manual | 11
ENGLISH

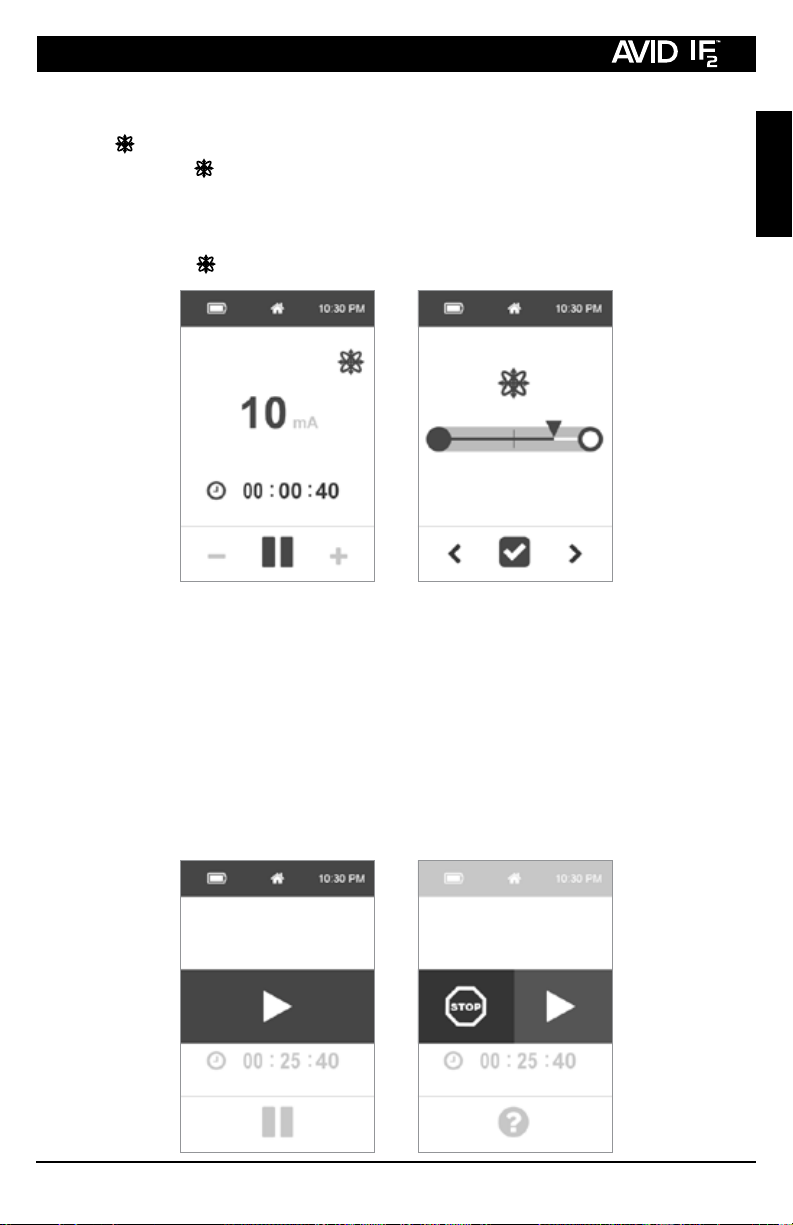

8. When the intensity is equal to or greater than 10 mA, a “Vector” symbol
( ) will appear under the clock and the stimulation can be vectored.
Press the symbol, then adjust the stimulation to the right or left until
you feel it concentrated where you have the most pain. The intensity
of one channel will increase while the other channel will decrease. This
targets the stimulation so that it concentrates where you have the most
pain. The symbol rotates to indicate channels are vectored.
9. At any time, you can press the pause button to pause stimulation. The
screen will show a pause sign at the bottom and a “Play” button (  ) in
the middle to resume treatment. The intensity will slowly increase from
zero up to its last setting. If locked, you need to touch screen once to
wake the device and second time to make a change.
10. If at any time you wish to discontinue treatment, press the  button at
the top. The screen will show a stop sign and a play button. Press the stop
sign to stop treatment and return to the main treatment screen. Press the
play button to resume treatment. Alternatively, you can press and hold the
on/o button and the device will turn o completely.

12 | Avid IF2 Patient Manual
ENGLISH
Completing Your Treatment Sessions
Treatment Outcome Questions
After the treatment is complete, device will
beep and the screen will show “TREATMENT
COMPLETE.” Press the button to return to
the Select Protocol Screen or the button at
the bottom of the device to turn it o. After 10
minutes of inactivity, the device will shut o to
conserve power.
Disconnect the lead wires from the electrodes.
Remove the electrodes from your skin. Place
them on the plastic liner and place the plastic
liner in the resealable pouch. See also Electrode
Use and Care on page 16.
Your device is programmed to ask outcome questions related to your
treatment to track your progress and benefit from your treatment. Use the
and to choose the correct answer and to select your answer. The
range of answers is listed under the question.
Grip the lead wire close to the socket and pull straight out to disconnect the
lead wire from the device.

Avid IF2 Patient Manual | 13
ENGLISH
Avid App
The Avid IF2 is Bluetooth enabled to provide important treatment and
outcome related information to your prescribing physician via an app.
Use of the app is voluntary and will not interfere with your treatment in
any way. However, providing this information to your physician will help
him or her facilitate changes to your treatment plan to promote optional
outcomes for your injury as well as providing valuable information to
ensure authorization for continued supplies.
Figure B
To set up your Avid IF2 device with the app:
1. Download from Google Play or the Apple App
Store. Search for “Avid IF2.” Open the app and
click on “Sign Up” at the bottom of the screen.
2. Fill out the requested information. A user name
and password is required as well as your e-mail
address. An additional e-mail can be entered
for your physician to receive reports. Enter your
name as you want it to appear on your reports.
If no name is entered, your user name will
appear on reports to your physician. Enter your
VQ OrthoCare account number (It is a 5-digit
alpha-numeric code located on your delivery
contract at the top of the page and on your patient
orientation checklist, if you received one).
3. At “Scan Serial Number,” turn on your device, go
to Settings and then press “Bluetooth.” Make
sure the Bluetooth is enabled. At the bottom of the
screen it says “Serial Number” and has a bar code.
Press “Scan” on your phone and scan the bar code
on the device (Figure A).
4. Press “Sign Up” at the bottom. You should see a
pop up that says “Registered Successfully.” Press
“OK” (Figure B).
5. The app will open to the connection page and you
should see your device listed. Go to the Bluetooth
screen on the device and open it. The app should
connect automatically or press “Connect” on the app.
Figure A

14 | Avid IF2 Patient Manual
ENGLISH
6. The app will send you an e-mail to confirm your sign-
up. Open the e-mail, click on the link to verify your
e-mail and your set up is complete (Figure C).
Figure C
If you do not verify your e-mail address, the app will not
let you sign in again (Figure D).
7. Keep the app open and it will connect to the device
overnight. The app will NOT disrupt your treatment and
will NOT shut the device o to upload information.
8. If your device has not uploaded information in a week
or more, you will get a message reminding you to
open you app again to update information. To upload
your data, press “Send Data.” This will take you to the
Bluetooth screen. Follow the instructions below. To
start a treatment instead, press “Skip” (Figure E).
To manually connect to the the app:
1. Turn on your Avid IF2 Device and go to Settings .
Choose Bluetooth. Make sure Bluetooth is enabled.
2. Open the app on your phone. It should connect
automatically. If not, press “Connect” next to your
device. After upload, press the two plugs at the top to
disconnect (Figure F).
3. If you are already connected to the app and want to
refresh your data, press “Get Data” at the bottom of the
Device Information Screen.
Figure E
Figure D
Figure F

Avid IF2 Patient Manual | 15
ENGLISH
To manually connect to the the app:
1. The app can be used to adjust your display settings.
It can only adjust the device when it is connected.
2. From the Device Information Screen (Figure G),
choose “Settings” at the bottom of the screen.
You can change the language, brightness, audible
alarm, and sleep mode. These settings are also
adjustable on the device.
To view your data on the app:
1. From the device Information Screen, press Usage Data at the bottom
of the screen. You will see each preset that has been used in treatment
as well as the questions that are asked and answered on the device.
2. To only see treatments, press “Usage” at the top of the page. Press
any individual treatment line to see the details of that treatment.
3. To only see outcome questions, press “Questions” at the top of the
page. Press any individual question line to see specific answers. If a
question was not asked, you will see “UA” for “Unasked.”
To disconnect your device from the app:
From the Device: Turn the Avid IF2 o by pressing and holding the .
From the App: Press the two plugs in the upper right corner of the screen.
Connected
Not connected
If you have any problems with the app, please contact Customer Service
at [phone].
Figure G

16 | Avid IF2 Patient Manual
ENGLISH
NOTE: The electrodes supplied with this Avid IF2 have been designed
specifically for use with this product. They must not be manipulated, cut,
or altered in any way. This may aect the even distribution of stimulation
and/or its intensity beyond the recommended 0.25W per cm2maximum.
NOTE: Do not place electrodes on cut, broken or irritated skin. If irritation
occurs, consult with your physician or therapist.
To apply self-adhesive, reusable electrodes:
^Attach the electrodes to the lead wires provided with the Avid IF2.
^Grasp an electrode by the edge and gently peel away the electrode
from its plastic liner.
^Apply the electrodes to the treatment area by firmly pressing the
electrode against the skin. Check for proper adhesion. Your physician
or therapist will show you where to apply the electrodes.
^Always make sure electrodes are placed at least one inch apart
from each other.
To remove the electrodes:
^Grasp the electrode by the edge and gently remove it from the skin.
Return it to the plastic liner.
^Replace the electrodes on the plastic liner in the resealable pouch
provided.
CAUTION: Never remove the electrode by pulling on the wire. This
may damage your electrode.
CAUTION: Be careful when using the Avid IF2 while sleeping.
Wires may tangle and become loose.
Electrode Use and Care
WARNING: This product should be used only under the direct supervision of a
registered healthcare practitioner. Product should be used according to the in-
structions in this manual. Improper use of this or any electrode may result in a
patient burn. Due to the potential for causing skin burns, devices must be limited
to 0.25W per cm2. Electrodes should not be placed on the body so that the Avid
IF’s electrical current flows across the chest. This may cause cardiac arrhythmia.

Avid IF2 Patient Manual | 17
ENGLISH
Replacing Electrodes:
^Electrode life varies due to skin condition, skin preparation, storage,
climate and care. For most patients, electrodes will last for approximately
7-10 applications and removals.
^If your electrodes start to dry out, gently rub a few drops of water into
the gel on the electrode to remoisten.
^After repeated use, reusable electrodes lose their adhesion, deliver
less stimulation and shorten battery life. Replace electrodes that do
not stick uniformly or cause discomfort.
CAUTION: DO NOT attempt to clean the Avid IF2 while in use.
Maintenance, care and cleaning of the Avid IF2 is quick and easy when
these instructions are followed:
Case: Clean the outside of the Avid IF2 case as needed with a damp
cloth and mild soap. Never immerse the Avid IF2 in any liquid. This could
seriously damage the internal electronics. Avoid using cleaning fluids or
solvents to remove stains and dirt. This may damage the casing. DO NOT
use abrasive materials on the LCD viewing area.
Lead wire: Do not bend or crimp the lead wire. Do not use the lead wire if
it is moist or wet – allow to air dry for at least one hour. Always remove the
lead wire by firmly grasping the connector. If possible, tuck in excess length
of the lead wires to avoid interference with normal activity. These wires only
need to be cleaned if they become dirty. Wipe with a damp cloth and dry
thoroughly.
AC Adapter: The Avid IF2 is powered by a non-removable, rechargeable,
internal battery or an AC Adapter. When the AC Adapter is plugged in, it will
charge the internal battery and supply power for operating the device. Use
only the AC Adapter provided (Globtek Model # GTM96180-1811-2.0). Use
of other AC Adapters may damage the Avid IF2. The AC adapter serves as
the only means to disconnect the device from the mains supply.
Care and Maintenance

18 | Avid IF2 Patient Manual
ENGLISH
Technical Data & Specifications
Physical:
Power source: Internal, rechargeable, 7.4V. Lithium
Ion battery. Optional VQ Orthocare
AC Adapter.
Size: 2.90” (73 mm) x 4.95” (125 mm) x 1.00”
(25 mm) without belt clip
Weight: 6.8 oz. (193 g)
Lead wire length: 22.0” (55.88 cm) unstretched
Electrical tolerances: All electrical specifications are ± 10% into a
500 ohm load for each channel and using
the AC Adapter, unless stated otherwise
Treatment timer: 1-30 minutes in one-minute increments
35 minutes - 8 hours in five-minute
increments or continuous
Compliance timer: 0 min - 999 days, in 1-min increments
Number of preset programs: 1 - 20, according to physician orders
Cycles: 1 - 99
Next preset: 1 - 20 or OFF
Expected Service Life 2.5 years
Operating Conditions Temperature:
Relative Humidity:
Atmospheric Pressure:
5⁰ C to 40⁰ C
15% - 93%
700 to 1060 hPa
Storage and Transport Temperature:
Relative Humidity:
Atmospheric Pressure:
-25⁰ C to + 70⁰ C
30% - 93%
700 to 1060 hPa
* At the end of the product service life, you may dispose of the device
according to your local governing ordinances or recycling plans. Contact
your local authorities to determine the proper method for disposal since
this is electronic equipment contains a lithium-ion battery and potentially
biohazardous parts and accessories.
