Vstreet UDP-4812 User manual
Visit our website at www.thevstreet.com
Assembly Instructions
Universal Decoy Pole
(UDP-4812)
Thank you for purchasing the Universal Decoy Pole. The
pole adjusts to the length of four feet, eight feet and twelve
feet. Use as necessary. Parts included t popular decoy
styles.
Durable steel pole construction with integrated foot pegs
ensure secure anchoring. Easy to use quick clips lock the
pole sections together for easy adjusting. Cables attach the
quick clips to the pole to prevent loss.
Package Contents
qPart A: (1) 1” x 47” round tube
qPart B: (1) 3/4” x 47” round tube with foot peg
qPart C: (1) 3/4” x 47” round tube with foot peg and
crimped bottom end
qPart D: (1) 1” x 7” round tube with square end
qPart E: (1) 3/4” x 5 3/4” round tube with
(2) holes
qPart F: (4) 1/4” quick clips
Assembly
Assembly can be done in a 4’ length, 8’ length and 12’ length.
1. Four foot pole assembly.
a. Connect part C (3/4” x 47” round tube with
foot peg and crimped bottom end) to part D
(1” x 7” round tube with square end) or use alone
depending on your decoy style.
b. Align the holes in the pole sections and
secure together with the quick clips.
ABC
C
D
E
F
F
D
For Decoy
Style B
Visit our website at www.thevstreet.com

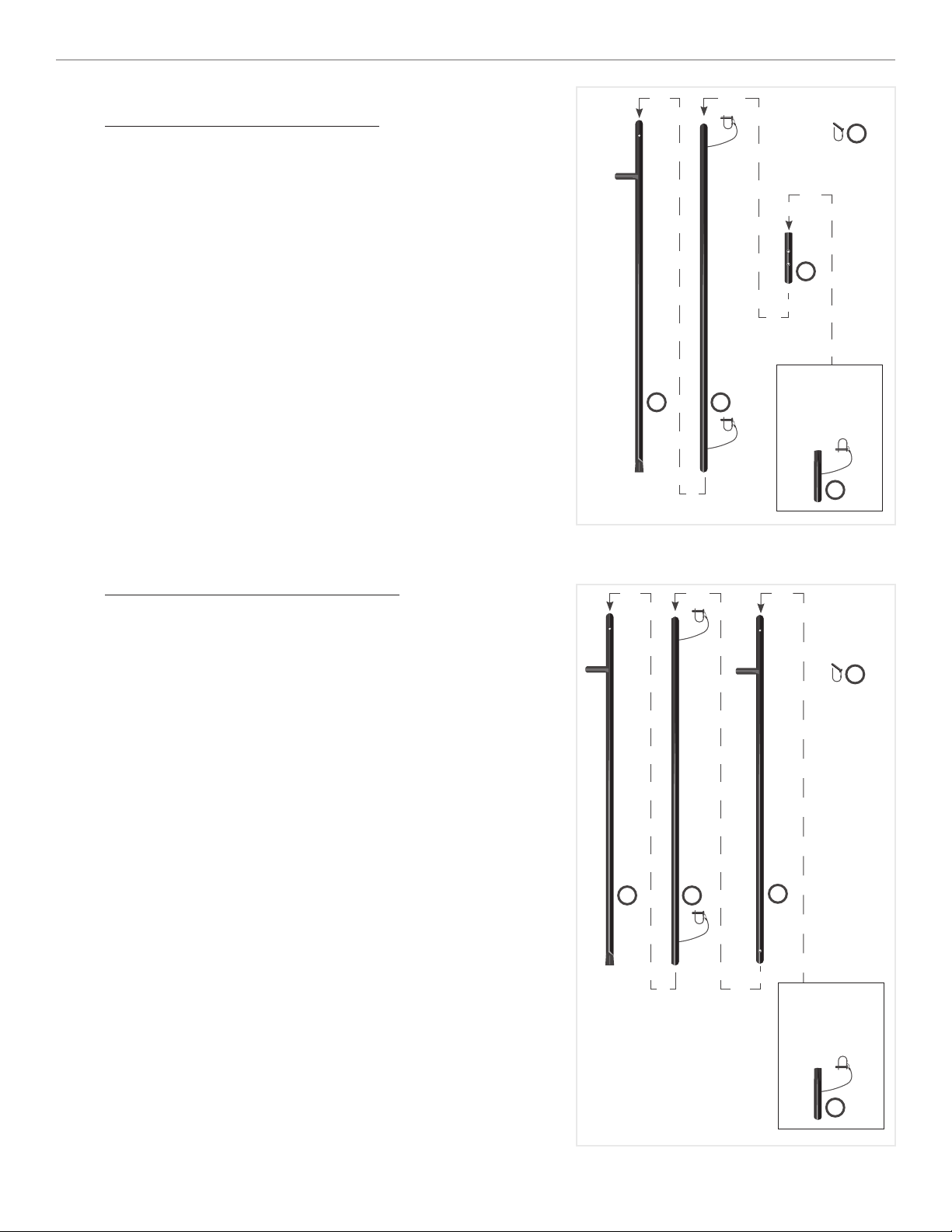

2. Eight foot pole assembly.
fStart with assembly for Decoy Style A.
a. Connect part C (3/4” x 47” round tube with foot
peg and crimped bottom end) to part A (1” x 47”
round tube). Align the holes in the pole sections
and secure together with the quick clips.
b. Connect part E (3/4” x 5 3/4” round tube) into
the other end of part A (1” x 47” round tube).
Align the rst hole in the pole sections and
secure together with the quick clips.
fContinue building for Decoy Style B.
c. Connect part D (1” x 7” round tube with square
end) over the exposed end of part E (3/4” x 5
3/4” round tube with (2) holes). Align the holes
in the pole sections and secure together with
the quick clips.
3. Twelve foot pole assembly.
fStart with assembly for Decoy Style A.
a. Connect part C (3/4” x 47” round tube with foot
peg and crimped bottom end) to part A (1” x 47”
round tube). Align the holes in the pole sections
and secure together with the quick clips.
b. Connect part B (3/4” x 47” round tube with foot
peg) to the exposed end of part A (1” x 47” round
tube). Make sure the foot peg is farthest from
part A. Align the holes in the pole sections
and secure together with the quick clips.
fContinue building for Decoy Style B.
c. Connect part D (1” x 7” round tube with square
end) into the other end of part B (3/4” x 47”
round tube with foot peg). Align the rst hole in
the pole sections and secure together with
the quick clips.
A
A
C
C
E
F
F
D
For Decoy
Style B
D
For Decoy
Style B
B
