58201
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 23e
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright©2023 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 58201
SAFETY OPERATION MAINTENANCESPECIFICATIONS
Table of Contents
Safety ......................................................... 2
Specifications ............................................. 5
Operation.................................................... 7
Maintenance and Servicing ........................ 9
Parts List and Diagram.............................. 12
Warranty .................................................... 15
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INFORMATION
When using helmet, basic safety precautions should always be followed to
reduce the risk of personal injury and damage to equipment.
The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense
and caution are factors which cannot be built into this product, but must be supplied by the operator.
Read all instructions before using this helmet!
1. Do not use the Welding Helmet if the lens is
cracked, if the lens or sensors are dirty, or if
the lens or front retaining frame is loose.
2. Keep work area clean. Cluttered
areas invite injuries.
3. Observe work area conditions. Do not use
welding helmets in damp or wet locations.
Do not expose to rain. Keep work area well
lit. Do not use auto-darkening helmets in the
presence of flammable gases or liquids.
4. Keep children away. Children must never
be allowed in the work area. Do not let them
handle this helmet. Dress properly. Do not
wear loose clothing or jewelry. Keep your hair,
clothing and gloves away from moving parts.
5. Store idle equipment. When not in use,
helmets must be stored in a dry location
to inhibit rust. Always lock up helmets
and keep out of reach of children.
6. Dress properly. Do not wear loose clothing
or jewelry as they can be caught in moving
parts. Protective gear is essential to protect
against welding rays, some examples are: a
leather welding apron, welding sleeves, jeans
without cuffs, work boots. Wear restrictive
hair covering to contain long hair.
7. Use breathing and hearing protection.
Wear a NIOSH-approved respirator and
hearing protection when welding.
8. Stay alert. Watch what you are doing, use
common sense. Do not weld when you are tired.
9. Do not weld if under the influence of
alcohol or drugs. Read warning labels on
prescriptions to determine if your judgment
or reflexes are impaired while taking drugs.
If there is any doubt, do not weld.

Page 3For technical questions, please call 1-888-866-5797.Item 58201
SAFETYOPERATIONMAINTENANCE SPECIFICATIONS
WARNING
INHALATION HAZARD:
Welding and Plasma Cutting Produce
TOXIC FUMES.
Exposure to welding or cutting exhaust
fumes can increase the risk of developing
certain cancers, such as cancer of the
larynx and lung cancer. Also, some
diseases that may be linked to exposure
to welding or plasma cutting exhaust
fumes are:
• Early onset of Parkinson’s Disease
• Heart disease • Ulcers
• Damage to the reproductive organs
• Inflammation of the small intestine or
stomach • Kidney damage
• Respiratory diseases such as
emphysema, bronchitis, or pneumonia
Use natural or forced air ventilation and
wear a respirator approved by NIOSH to
protect against the fumes produced to
reduce the risk of developing the above
illnesses.
10. Check for damaged parts. Before using any
helmet, any part that appears damaged should be
carefully checked to determine that it will operate
properly and perform its intended function. Check
for alignment and binding of moving parts; any
broken parts or mounting fixtures; and any other
condition that may affect proper operation. Any
part that is damaged should be properly repaired
or replaced by a qualified technician. Do not use
the helmet if any switch does not operate properly.
11. Replacement parts and accessories. When
servicing, use only identical replacement parts.
Use of any other parts can render helmet ineffective,
possibly causing eye damage, and will void the
warranty. Only use accessories intended for
use with this helmet. Approved accessories
are available from Harbor Freight Tools.
12. Maintenance. For your safety, service
and maintenance should be performed
regularly only by a qualified technician.
13. This helmet provides protection for intended
purposes only. There are certain applications
for which this helmet was designed. Do not
modify this helmet and do not use this helmet
for a purpose for which it was not intended:
a. The Welding Helmet is not
suitable for laser welding.
b. The Welding Helmet will not protect
against severe impact hazards.
c. The Welding Helmet will not protect against
explosive devices or corrosive liquids.
14. Use only at temperatures within the operating
range for your model as stated on the
specifications chart in this manual.
15. Maintain the helmet and lens correctly
to help ensure reliable protection:
a. Clean filter’s surfaces regularly. Keep sensors
and solar cells clean using a clean lint-
free tissue/cloth. Do not use any solvents
on filter’s screen or helmet components.
Protect filter from liquid and dirt contact.
Do not immerse the filter in water.
b. Should the Auto-Darkening Welding Helmet
not darken upon striking an arc, stop
welding immediately and have the helmet
checked by a qualified service technician.
c. Regularly replace the Front Lens Cover
if it becomes cracked, scratched,
pitted, or otherwise damaged.
d. Do not make any modifications to either the
Auto-Darkening Filter or the rest of the helmet,
other than those specified in this manual. Do
not use any replacement parts other than
those specified in this manual. Unauthorized
modifications and replacement parts will
void the warranty and expose the user to
the risk of personal injury. Do not open or
tamper with the Auto-Darkening Filter.
16. Do not place the Welding Helmet’s Auto-
Darkening Filter on a hot surface.
17. SEVERE PERSONAL INJURY and/or
BLINDNESS may occur if the user fails to
follow the aforementioned warnings and/or
fails to follow the operation instructions.
18. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
SAVE THESE INSTRUCTIONS.

Page 4 For technical questions, please call 1-888-866-5797. Item 58201
SAFETY OPERATION MAINTENANCESPECIFICATIONS
Button/Coin Battery Warnings
WARNING
INGESTION HAZARD:
This product contains a
button cell or coin battery.
This symbol means:
INGESTION HAZARD: This product contains a
button cell or coin battery.
1. Immediately dispose of used batteries
and keep away from children. Do NOT
dispose of batteries in household trash.
2. Even used batteries may cause
severe injury or death.
3. Call a local poison control center
for treatment information.
4. Do not mix old and new batteries, different
brands or types of batteries, such as alkaline,
carbon-zinc, or rechargeable batteries.
5. Ensure the batteries are installed correctly
according to polarity (+ and -).
6. Remove and immediately discard batteries from
equipment not used for an extended period of time.
7. Non-rechargeable batteries are not to be recharged.
8. Do not force discharge, recharge, disassemble,
heat above 158°F or incinerate. Doing so
may result in injury due to venting, leakage
or explosion resulting in chemical burns.

Page 5For technical questions, please call 1-888-866-5797.Item 58201
SAFETYOPERATIONMAINTENANCE SPECIFICATIONS
Specifications
Description Auto-Darkening Welding Helmet
Power Source Solar powered cell with battery assistance (two
replaceable 3V CR2450 lithium batteries)
Operating Temperature 14° to 131° F
Resting Shade Shade # 4
Shade Range 4/5-8/9-13 variable
UV/IR Protection Up to DIN 16 at all times
Lens Type ANSI Z87.1, CSA Z94.3 approved
Viewing Area 4.45" x 2.99" (13.30 sq. in.)
Welding Protection
Types
Stick welding (SMAW); TIG DC∾ TIG pulse DC; TIG pulse AC;
MIG/MAG/C02; MIG/MAG pulse; Plasma arc cutting (PAC); Plasma arc
welding (PAW); Air carbon arc cutting (CAC-A); Oxyfuel gas welding
(OFW); Oxygen cutting (OC); Grinding. Not for Laser Welding.
Lens Switching Speed (Clear to Dark) 1/25,000 seconds
Delay Control Controls dark-to-light state from 0.1 to 1.0 seconds
Sensitivity Adjustment Adjustable for ambient lighting (including
sun light) and other welding arcs
Grinding Mode Transforms helmet to grinding shield without shade flickering
Power ON / OFF Manual and Automatic
Shell Material High Impact-Resistant Polyamide Nylon
Storage Temperature -4° to 158° F
Weight 25 ounces
Features Ratcheting headband with padded sweatband,
4 independent arc sensors.
Battery (Included) CR2450, 3V battery x 2.

Page 6 For technical questions, please call 1-888-866-5797. Item 58201
SAFETY OPERATION MAINTENANCESPECIFICATIONS
Shade Guide Chart
Guide for Shade Numbers
Shade numbers are given as a guide only and may be varied to suit individual needs.
PROCESS ELECTRODE SIZE ARC CURRENT
(Amperes)
MINIMUM
PROTECTIVE
SHADE
SUGGESTEDa
SHADE NO.
(Comfort)
Shielded Metal Arc
Welding (SMAW)
Less than 3" (2.5 mm) Less than 60 7 —
3-5" (2.5 – 4.0 mm) 60 –160 8 10
5-8" (4.0 – 6.4 mm) 160 – 250 10 12
More than 8" (6.4 mm) 250 – 550 11 14
Gas Metal Arc Welding
(GMAW) and Flux-Cored
Arc Welding (FCAW)
Less than 60 7 —
60 –160 10 11
160 – 250 10 12
250 – 550 10 14
Gas Tungsten Arc
Welding (GTAW)
Less than 50 8 10
50 –150 8 12
150 – 500 10 14
Air Carbon Arc
Cutting (CAC-A)
LIGHT:Less than 500 10 12
HEAVY:500 –1000 11 14
Plasma Arc Welding (PAW)
Less than 20 6 6 to 8
20 –100 8 10
100 – 400 10 12
400 – 800 11 14
Plasma Arc Cutting (PAC)
LIGHT: Less than 300 8 8
MEDIUM: 300-400 9 12
HEAVY: 400-800 10 14
Torch Brazing (TB) — — 3 or 4
Torch Soldering (TS) — — 2
Carbon Arc Welding (CAW) — — 14
PLATE THICKNESS
PROCESS IN MM SUGGESTED SHADE NO.a(Comfort)
Oxyfuel Gas Welding (OFW)
Light
Medium
Heavy
Under 1/8"
1/8 to 1/2"
Over 1/2"
Under 3 mm
3 to 13 mm
Over 13 mm
4 or 5
5 or 6
6 or 8
Oxygen Cutting (OC)
Light
Medium
Heavy
Under 1"
1 to 6"
Over 6"
Under 25 mm
25 to 150 mm
Over 150 mm
3 or 4
4 or 5
5 or 6
As a rule of thumb, start with a shade that is too dark to see the weld zone. Then go to a lighter shade which
gives sufficient view of the weld zone without going below the minimum. In oxyfuel gas welding, cutting, or
brazing where the torch and/or the flux produces a high yellow light, it is desirable to use a filter lens that
absorbs the yellow or sodium line of the visible light spectrum.
Data from ANSI Z49.1 : 2012

Page 7For technical questions, please call 1-888-866-5797.Item 58201
SAFETYOPERATIONMAINTENANCE SPECIFICATIONS
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Function
The Auto-Darkening Welding Helmet is designed to protect the eyes and face from sparks, splatter, and
harmful radiation under normal welding conditions. The Auto-Darkening Filter automatically changes from
a clear state to a dark state when an arc is struck, and it returns to the clear state when welding stops.
Solar Cells
This Welding Helmet utilizes high performance solar cells as its power supply, and has two replaceable 3V CR2450
lithium batteries as power backup. Refer to Maintenance section for battery replacement information.
Shades
User-selectable variable shades from 5 to 8 and 9 to 13 are adjusted with the Shade Range
and Shade Control on the Digital Screen (shade variable). This product is in full conformity
with related DIN, ISO, EN379 safety standards and ANSI Z87.1-2015 standard.
Filters
The ultra high performance of UV and IR Auto-Darkening filters provides the user’s eyes
and face with full protection against UV and IR radiation during the entire welding process,
even in clear state. The UV/IR protection level is up to shade 16 at all times.
Magnifying Cheater Lens
To attach a magnifying cheater lens (sold separately) to the inside of the helmet, slide the cheater lens
into place underneath the tabs located on the lower right and left sides of the Lens Retaining Frame.
Before Welding
The Auto-Darkening Welding Helmet comes ready
for use. Prior to first use, remove the protective film
from both sides of the Front Lens Cover and Inside
Lens Cover (if not already done). Check the Front
Lens Cover to make sure that it is clean, and that
no dirt is covering the four sensors on the front of
the Auto Darkening Filter Cartridge. Also check the
Inside Lens Cover and the Lens Retaining Frame,
and make sure that they are secured in place.
Important: Helmet is shipped without
Batteries installed. Before first use install
two CR2450 Lithium Batteries included with
the Helmet. Refer to Battery Installation or
Replacement on page 11 for instructions.
Adjust the position of the headband, select the correct
shade number for the welding application, and test
the helmet for proper operation as described below.
Inspect all operating parts before each use for signs
of wear or damage. Any scratched, cracked, or
pitted parts should be replaced immediately before
using again to avoid severe personal injury.
Front
Lens
Cover
Auto
Darkening
Filter
Cartridge
Tension
Adjustment
Knob
Grind Button

Page 8 For technical questions, please call 1-888-866-5797. Item 58201
SAFETY OPERATION MAINTENANCESPECIFICATIONS

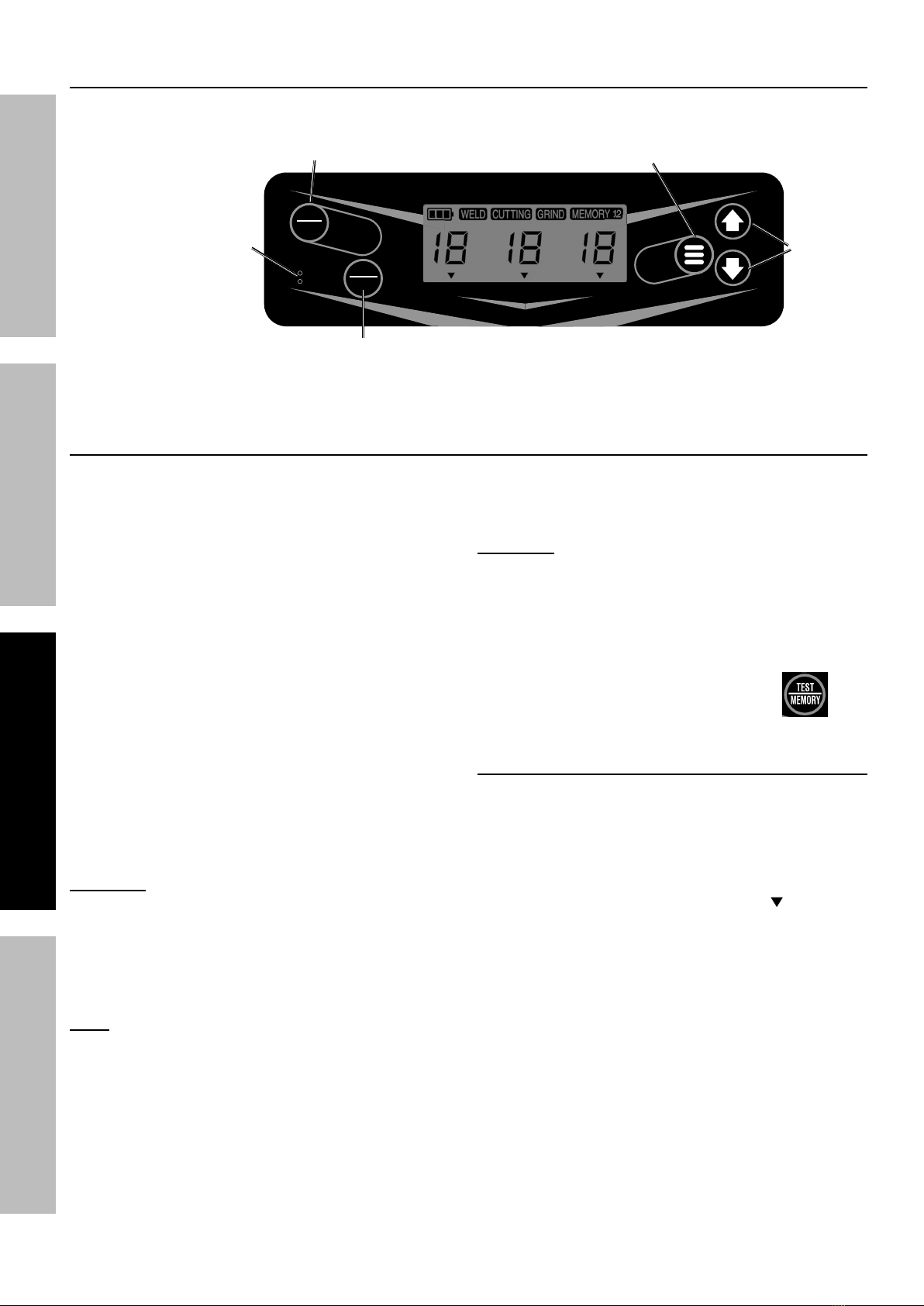

Controls
SHADE SENSI. DELAY
ON
MODE WELD
CUTTING
GRIND
GRIND
LOW BATTERY
TEST
MEMORY
SHADE
SENSI.
DELAY
Low Battery
Indicator/Grind Mode
Reminder Light
Power/Mode
Button Mode Control
Control
Buttons
Test/Memory
Button
Mode Selection and Shade Number
1. Use the Mode Control Button to select the
mode of operation. Make sure the correct
mode is selected for your application.
• Set to Weld Mode for welding applications.
In this mode the Auto-Darkening Filter
automatically changes from a clear state to a
dark state when an arc is struck. Select shade
level, time delay and sensitivity as required.
• Set to Grind Mode for grinding applications.
This turns off the shade function so the
helmet lens stays clear. Use this function
to provide protection while grinding. The
green light indicator will flash every three
seconds to signal helmet is in Grind Mode.
• Set to Cutting Mode for plasma or oxygen
acetylene cutting applications. In this mode
Auto-Darkening Filter automatically changes
from a clear state to a dark state when
cutting arc is initiated. Select shade level,
time delay and sensitivity as required.
CAUTION! After using the Grind Mode set the Helmet
to the proper shade setting before welding again.
2. Using the Shade Guide Chart on page 6, select
the shade range required by selecting Shade
Range using Mode Control Button, then press the
Control Buttons to the shade number required.
Note: If a selection of shades are recommended
for your application, try the darkest setting first.
3. The shade number can be set from 5 to 8 (cutting)
or from 9 to 13 (welding) depending on the shade
range selected. Press the Control Buttons until
desired Shade Number selected. Be sure that
the shade number of the Welding Helmet is the
correct shade number for your application.
4. Remember to check with the Shade Guide
Chart on page 6 to determine the proper
shade number for your application.
Important: Test the helmet auto-darkening filter
lens before welding. Press TEST/MEMORY
button to preview selected shade number. When
button is released the lens will return to resting
state (#4 Shade). If lens does not darken properly,
replace Batteries and try again. Do not use
Welding Helmet if it is not operating correctly.
Memory
1. Memory can store two records.
Press TEST/MEMORY button. The factory
memory settings will be shown under MEMORY 1.
MEMORY 1 icon is displayed at the top-right corner.
2. If factory settings require modification, short
press MODE CONTROL button. The “ ” below
the numbers will move left and right switching
between SHADE/SENSI/DELAY modes.
3. Short press CONTROL BUTTONS to adjust
the value of selected mode “SHADE/SENSI/
DELAY”. The adjustments will be automatically
saved and will replace the factory settings.
4. If MEMORY 2 settings require modification,
press TEST/MEMORY button. MEMORY 2
icon will now be displayed at top-right corner.

Page 9For technical questions, please call 1-888-866-5797.Item 58201
SAFETYOPERATIONMAINTENANCE SPECIFICATIONS

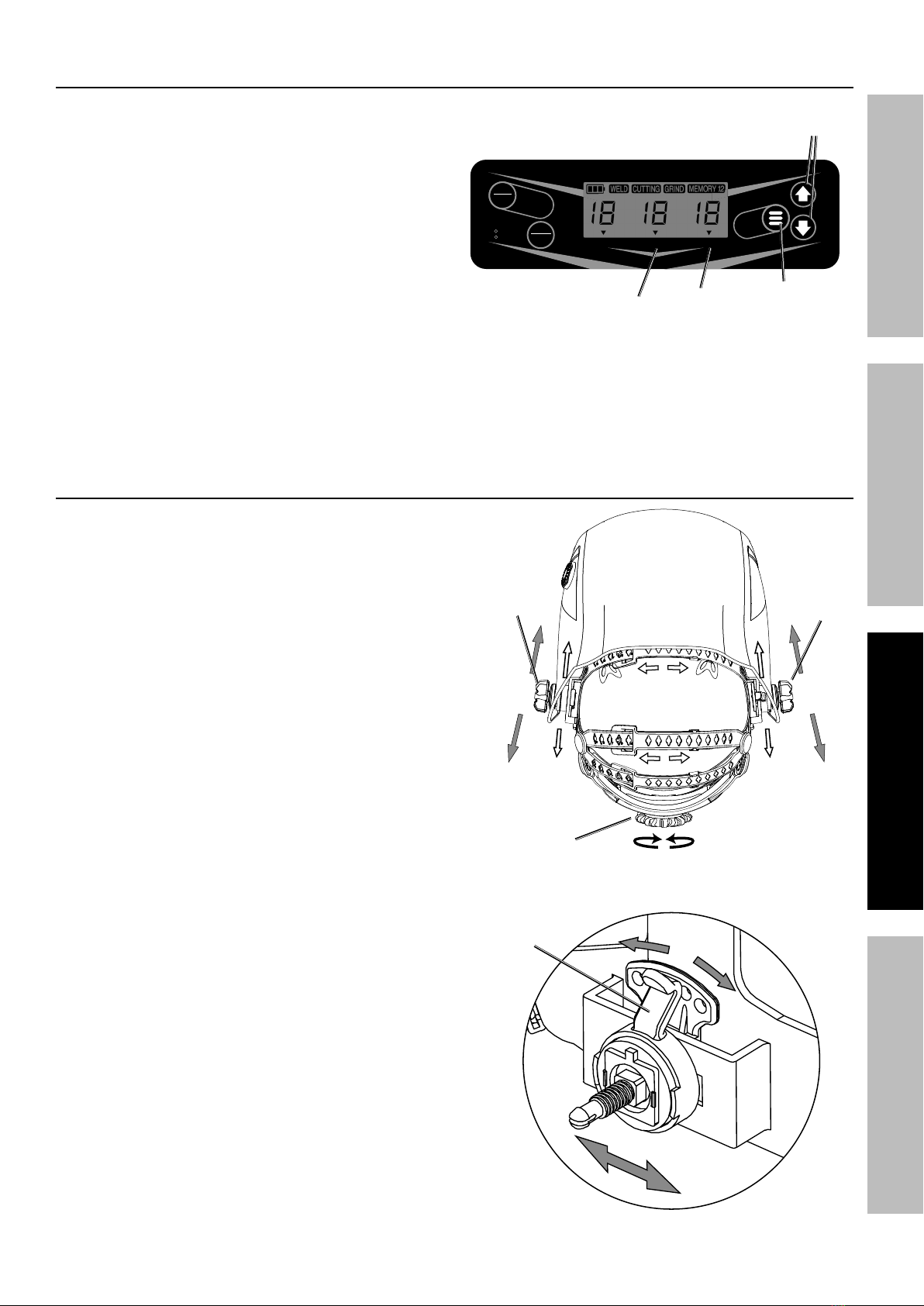

Time Delay and Sensitivity
1. At the moment the welding operation is started, the
filter screen automatically changes from clear to
dark. The operator can vary the amount of time it
takes the filter to return to a clear state after welding
stops by adjusting Time Delay on the Digital Screen.
2. Press Mode Control Button until Time Delay is
selected. Use the Control Buttons to delay time
between 0 ("S" short) and 10 ("L" long).
3. The sensitivity setting changes the amount
of light needed to make the filter react. To
adjust sensitivity press Mode Control Button
until Sensitivity is selected. Use The Control
Buttons to adjust sensitivity of the sensors.
4. Use the Control Buttons while Sensitivity is selected
to set the sensitivity between 0 (Low sensitivity) and
10 (High sensitivity).
SHADE SENSI. DELAY
ON
MODE WELD
CUTTING
GRIND
GRIND
LOW BATTERY
TEST
MEMORY
SHADE
SENSI.
DELAY
Sensitivity
Display
Time Delay
Display
Mode Control
Control
Buttons
Adjusting Headband
Adjust the Headband so that the Helmet is seated
securely on your head as low as possible and close
to your face using the following procedure:
a. Adjust the Headband width by turning
the Headband Adjustment Knob while
wearing the Helmet to make sure the Front
Lens Cover is aligned with your eyes and
the Helmet fits firmly on the head.
b. Adjust the Headband height by tightening
or loosening the Top Straps until the
Helmet fits snug on your head.
c. Adjust the distance between the front of
the Helmet and your face by loosening the
Tension Adjustment Knobs and sliding the
Headband harness forward or back.
d. To adjust the tilt angle, loosen the right Tension
Adjustment Knob and push the top of the Angle
Adjustment Lever outward until the Lever’s
stop tab clears the notches. Rotate the Lever
forward or back to the desired position, then
release the Lever to engage the stop tab.
e. Once the Headband is properly adjusted,
lower the Helmet over your face until the
proper angle is found. Then turn the Tension
Adjustment Knobs on either side of the
helmet, locking the helmet’s angle in place.
TOP
‘T’
‘T’
‘W’
‘Y’
Headband
Adjustment
Knob
Tension
Adjustment
Knob
Tension
Adjustment
Knob
Top Straps
Angle
Adjustment
Lever
T
I
L
T
A
N
G
L
E
FORE-AFT ADJUSTMENT

Page 10 For technical questions, please call 1-888-866-5797. Item 58201
SAFETY OPERATION MAINTENANCESPECIFICATIONS
Maintenance
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment.
If damage or abnormal operation occurs, have the problem corrected before further use.
BEFORE EACH USE, inspect the general condition of the tool. Check for loose
hardware, misalignment or binding of moving parts, cracked or broken parts, damaged
electrical wiring, and any other condition that may affect its safe operation.
Note: Replace the Lens Cover(s) if they are cracked, scratched, soiled, pitted or damaged in any way. For
additional information regarding the parts listed in the following pages, refer to Parts List and Diagram on page 12.

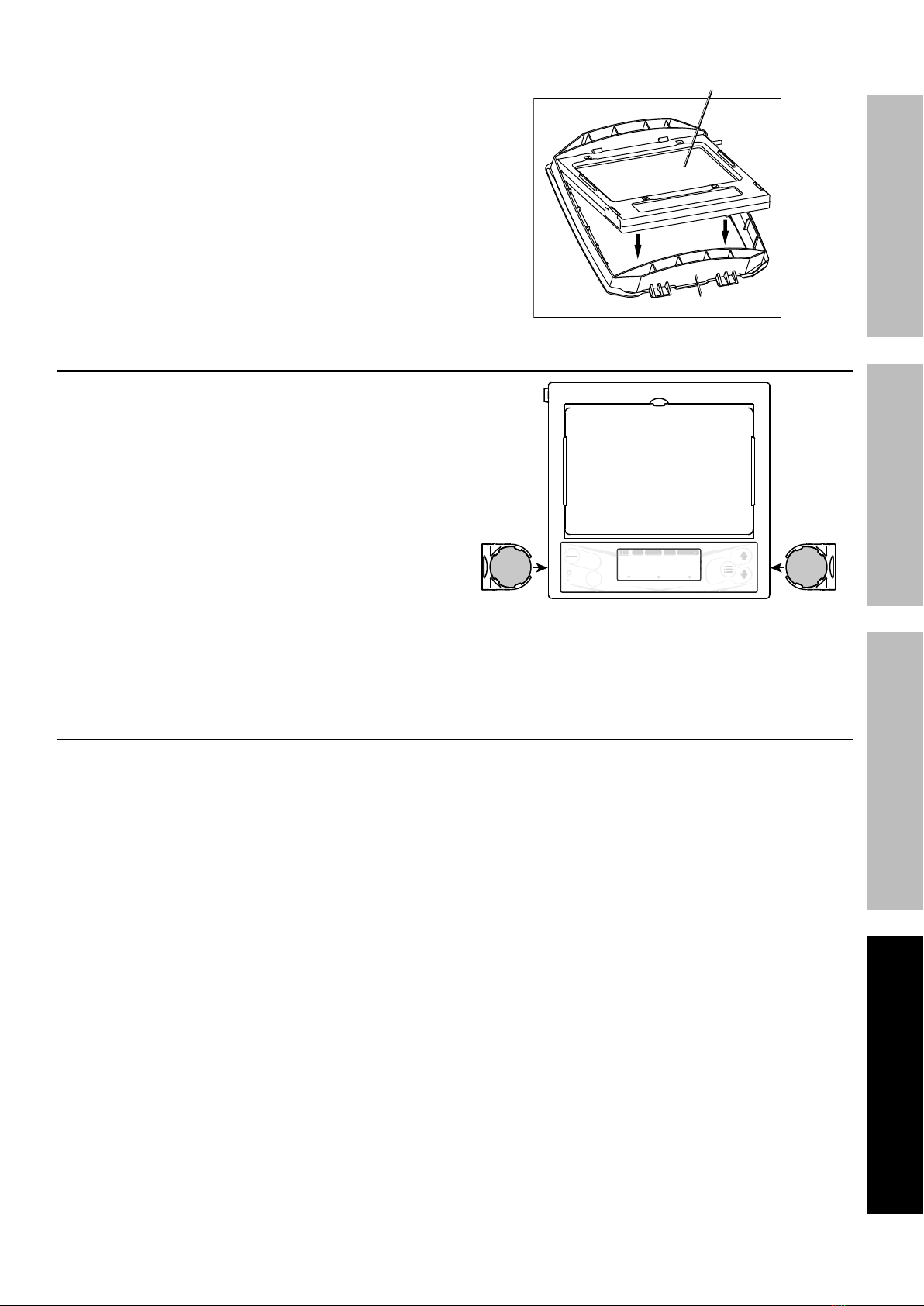

Front Cover Lens Replacement
1. Unlock Lens Holder Lock to remove Lens Holder
(E). Lift up to remove/replace Front Cover Lens (B).
Lens Holder (E)
2. Remove Front Cover Lens from Shell (A). Refer
to Parts List and Diagram on page 12.
3. If replacing Front Cover Lens remove any protective
film from both sides of new Front Cover Lens.
4. Install new Front Cover Lens into Shell
the same way it was removed.
NOTICE: Front Cover Lens must be in place during
welding. Weld spatter will permanently damage
Auto Darkening Filter and voids warranty.
Inside Cover Lens Replacement
1. Replace Inside Cover Lens (D) if damaged.
Place fingernail in recess below view window
and flex Inside Cover Lens upwards until
releases from edges of view window.
2. If replacing Inside Cover Lens remove any protective
film from both sides of new Inside Cover Lens.
3. Line up the new Inside Cover Lens with the flanges
at the sides of the lens and snap it into place.
Filter Lens Replacement
1. Unplug wire from grind control case. Unlock Lens
Holder Lock. Remove Auto Darkening Filter (C).
WARNING! TO PREVENT SERIOUS INJURY
AND BLINDNESS:
Replace the filter lens ONLY with an exact
replacement. Other lenses may not protect
properly from welding light, or may not fit helmet
closely enough to block all light at the edges.
2. Flex top end of Lens Holder to
remove Auto Darkening Filter.
3. Remove any protective film from
both sides of the new Lens.

Page 11For technical questions, please call 1-888-866-5797.Item 58201
SAFETYOPERATIONMAINTENANCE SPECIFICATIONS
4. Install new Filter Lens into the Lens Holder
and install Lens Holder assembly into Shell.
5. Plug Auto Darkening Filter wire
into grind control case.
Auto-Darkening
Filter (C)
Lens Holder (E)
Battery Installation or Replacement
To install Batteries before first use or when
the LOW BATTERY LED begins to turn red,
indicating Batteries need replaced:
a. Remove the Auto Darkening Filter (C)
from the Lens Holder (E) as described
in Filter Lens Replacement.
b. Slide both Battery Holders out of the
Auto Darkening Filter. Remove the
used batteries (if applicable).
c. Place two new CR2450 Lithium Batteries inside
the Battery Holders and put the Battery Holders
back into the Auto Darkening Filter. Make sure
the new Batteries are installed correctly.
d. Replace the Auto Darkening Filter into the Lens
Holder and install Lens Holder into Shell.
DELAY
SENSI.
SHADE
GRIND
LOWBATTERY
MODE
ON
WELD
CUTTING
GRIND
MEMORY
SHADE
SENSI.
DELAY
18
18
18
18
18
WELD
CUT
TING
GRIND
MEMORY
12
12
CR2450
+
CR2450
+
Common Problems and Remedies
1. Irregular Darkening Or Dimming
a. Headband has been set unevenly on
both sides of helmet (unequal distances
from the eyes to filter’s lens).
b. Reset Headband to reduce difference
in distances to filter, if necessary.
2. Auto-Darkening Filter Does
Not Darken Or Flickers
a. Front Lens Cover is soiled or
damaged (change the cover).
b. Sensors are soiled (clean surface of the sensors).
c. Welding current is too low (turn
Sensitivity Adjustment Knob to the
“HI” position, if necessary).
d. Check batteries and verify they are in
good condition and installed properly.
Also, check battery surfaces and
contacts and clean if necessary.
e. Make sure “POWER/MODE” button has
been pushed, the user can monitor the
settings from the display panel.
3. Slow Response
Operating temperature is too low (do not
use at temperatures below 14° F).
4. Poor Vision
a. Front/Inside Lens Cover and/
or Filter soiled (change it).
b. Insufficient ambient light.
c. Shade number is incorrectly set
(reset shade number).
5. Welding Helmet Slips
Headband is not adjusted properly
(must be lowered).
Stop using the Helmet immediately if any
of these problems cannot be corrected.

Page 12 For technical questions, please call 1-888-866-5797. Item 58201
SAFETY OPERATION MAINTENANCESPECIFICATIONS
Parts List and Diagram
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL
AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY
REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO
MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS
OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES
THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Parts List
Part Description Qty
A Shell (Welding mask) 1
B Front Cover Lens 1
C Auto Darkening Filter (Including
2xCR2450 lithium battery)
1
D Inside Cover Lens 1
E Lens Holder 1
FHeadgear Assembly
(Including Sweatband)
1
1 Sweatband 1
2 Washer 1
3 Washer 1
4 Fixed Washer 2
5 Rubber Washer 2
6 Block Nut 2
7 Gear Washer 1
8 Angle Limitation Washer 1
9 Right Boot Screw 1
10 Left Boot Screw 1
11 Adjustable Headband 1
12 Front Headgear 1
13 Butterfly 2

Page 13For technical questions, please call 1-888-866-5797.Item 58201
SAFETYOPERATIONMAINTENANCE SPECIFICATIONS
12
8
9
11
10
12 1313
7
3
4
4
56
5
6
B C D E F
A
Assembly Diagram

Page 14 For technical questions, please call 1-888-866-5797. Item 58201
SAFETY OPERATION MAINTENANCESPECIFICATIONS
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175508591 when ordering parts.

Page 15For technical questions, please call 1-888-866-5797.Item 58201
SAFETYOPERATIONMAINTENANCE SPECIFICATIONS
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

26677 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
