VXI Tuffset 200302F User manual

Fold
Fold
Fold
Fold
Fold
Fold
Part #: 200302F
A/W#: 200303F
Art size: 16" x 5.50"
Fold size: 4" x 5.50"
Color: 1/1 Black
Paper Stock: 65lb. Finch White Opaque Vellum Cover

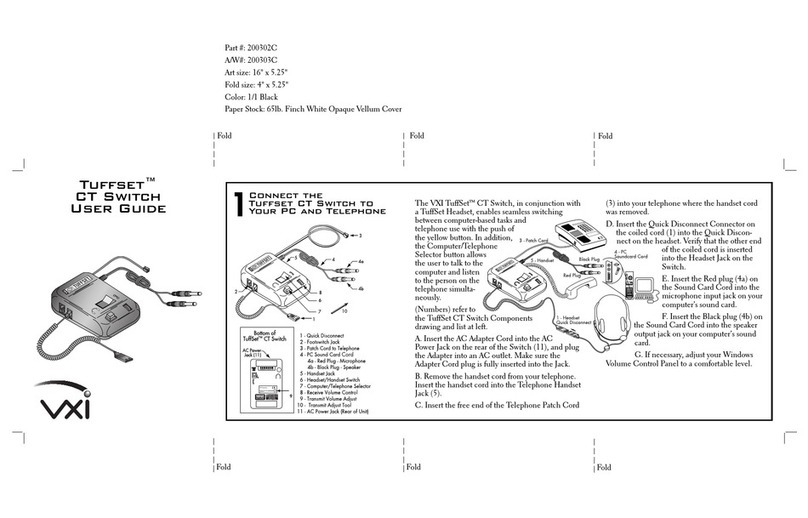

Tuffset™
CT Switch
User Guide 1Connect the
Tuffset CT Switch to
Your PC and Telephone The VXI TuffSet™CT Switch, in conjunction with
a VXI Headset, enables seamless switching
between computer-based tasks and tele-
phone use with the push of a button.
In addition, the Computer/
Telephone Selector button
allows the user to talk to
the computer and
listen to the person
on the telephone
simultaneously.
(Numbers) refer to
the TuffSet CT
Switch Components drawing and list at
left.
A. Insert the AC Adapter Cord into the AC
Power Jack on the rear of the Switch (11), and plug
the Adapter into an AC outlet. Make sure the
Adapter Cord plug is fully inserted into the Jack.
B. Remove the handset cord from your telephone.
Insert the handset cord into the Telephone Handset
Jack (5).
C. Insert the free end of the Telephone Patch
Cord (3) into your telephone where the handset
cord was removed.
D. Insert the Quick Disconnect Connector
on the coiled cord (1a) into the Quick Dis-
connect on the headset. Verify
that the other end of the coiled
cord is inserted into the Head-
set Jack on the Switch (1).
E. Insert the Red plug (4a) on
the Sound Card Cord into the
microphone input jack on your
computer’s sound card.
F. Insert the Black plug (4b) on the
Sound Card Cord into the speaker
output jack on your computer’s sound
card.
G. If necessary, adjust your Windows Volume
Control Panel to a comfortable level.

Fold
Fold
Fold
Fold
Fold
Fold
Normal Operation
All trademarks are the property of their respective owners.
P/N 200302F ©2001 - 2004 VXI CORPORATION
A. Press the left side of the Headset/Handset
switch (6) to select the headset.
B. Remove your tele-
phone handset from your
phone and make a call.
C. Adjust the Receive
Volume (8) to a comfort-
able listening level.
D. If necessary, adjust the
Microphone Volume Control
(9) (located on the underside
of unit) with the small adjustment tool (10)
provided:
If the other person cannot hear you, gently
turn the gain control clockwise.
To reduce the sensation of hearing your own
voice in your earpiece, gently turn the gain
control counterclockwise as you speak.
E. To dictate to your computer, depress the
If you have headset questions, please contact:
VXI Corporation Technical Support [phone]
Headquarters [phone]
email [email protected]
website www.vxicorp.com
VXI LIMITED WARRANTY
1. If your VXI Tuffset™CT Switch fails to work for any reason during the first
two years from the date of purchase as shown by the purchaser’s warranty
registration, VXI will repair or replace the switch, at its election, free of
charge. Without warranty registration, the warranty period begins on the
date of manufacture. To register your warranty, you may do so online at
www.vxicorp.com, or by calling customer service at 1-800-742-8588. All
products returned to VXI after the two-year warranty period will be repaired
as “out of warranty” products, and purchaser will be billed for such repairs
pursuant to the Out-of-Warranty Repair provisions set forth below.
2. The obligations of VXI under this warranty shall be limited to repair or
replacement (at our option) of any part returned, freight prepaid to VXI.
Returned products require a Return Authorization that may be requested
from VXI at 800-742-8588 or www.vxicorp.com.
3. THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRAN-
TIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
Some jurisdictions do not permit the exclusion of implied warranties and
the foregoing exclusions may not apply to you.
4. In no event shall VXI be responsible for any other damages whatsoever
including direct, indirect, special, incidental, consequential or otherwise for
breach of this or any other warranty, express or implied.
5. Products returned to VXI for Out-of-Warranty repairs, freight prepaid and
with proper Return Authorization, will be returned to the customer at VXI’s
expense within five (5) days of VXI’s receipt of payment.
OUT-OF-WARRANTY REPAIRS
VXI will repair out-of-warranty headsets for a charge as may be applicable as
of the date of receipt by VXI. Please call 800-742-8588 for current repair
charges. See return details above. Out-of-warranty repairs are warranted to
be free from defects in material and workmanship for ninety (90) days.
2
locking Computer/Telephone Selector button (7).
This redirects the microphone signal from the
telephone to the computer. While dictating you
will be able to hear the person speaking on the
telephone, but the person on the telephone
will not hear you. To talk on the
telephone, press and release the
button again.
F. To use the telephone
handset, press the right side
of the Headset/Handset
switch (6).
