W Box Technologies 0E-TELBSET User manual

Telephone Test Set
www.wboxtech.com
0E-TELBSET
User Manual
• Multi-lingual (English, French, Spanish)
• Rugged water and rainproof housing
• Angled Bed-of-nails and Piercing clip
cord set
• Large backlit LCD
• Glow in the dark keypad
• On-hook voltage and off-hook current
readings
• Caller ID/Call Waiting Caller ID and error
detection
• Last number called or received list
• Amplied line monitoring
• Soft key menu system
• Data Defender™keeps digital lines safe
• Detects and identies DSL and T1 lines
• DTMF Digit Capturing
• Displays Ring Frequency & Ring Voltage

2
User Manual
Table of Contents
About this Manual.....................................................................................3
Introduction..........................................................................................3
Symbols and Icons ...............................................................................3
Terms and Descriptions ........................................................................4
Safety Information ................................................................................5
Design Features........................................................................................6
0E-TELBSET Description .........................................................................7
Angled Bed of Nails with piercing cord set .............................................8
LCD Display Screen ..............................................................................8
Talk Mode ............................................................................................9
Memory Storage.................................................................................10
Detection Warnings.............................................................................11

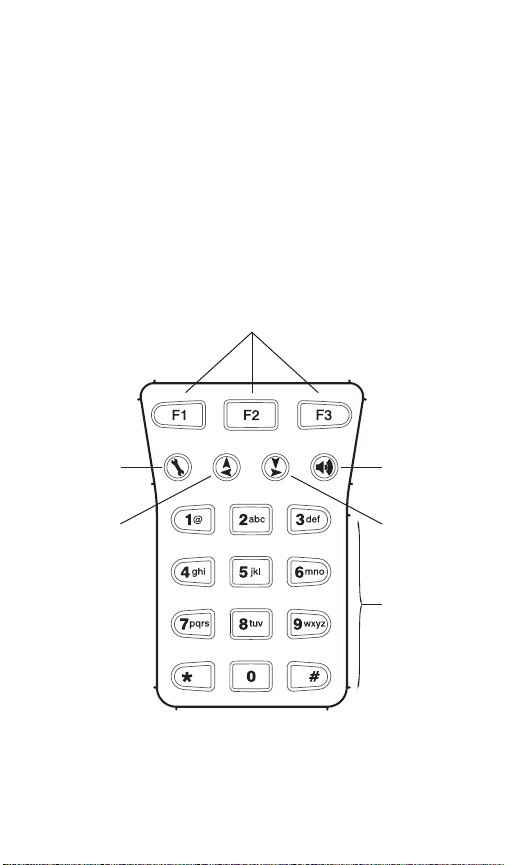

Keypad ..............................................................................................12
Operations..............................................................................................14
Turning the Unit On/Off .......................................................................14
Automatic Power Down.......................................................................14
POTS General Guidelines ....................................................................15
Operation Notes .................................................................................15
Talk/Bell/Monitor ................................................................................15
Talk Setting (Talk Mode) ......................................................................16
Off-Hook Protection (Data Defender™)...........................................16
Call Waiting/Caller ID....................................................................17
Speed Dial...................................................................................17
Flash...........................................................................................17
Mute Button ...........................................................................................18
Bell Setting (Bell Mode) ...........................................................................18
Monitor Setting (Monitor Mode) ...............................................................19
Setup Menu............................................................................................20
Memory Dial.......................................................................................20
Recent Call List ..................................................................................22
Language...........................................................................................22
Number Format..................................................................................22
Ring Volume.......................................................................................22
Display Contrast .................................................................................22
Backlight level ....................................................................................22
Auto Power Off...................................................................................22
Maintenance ..........................................................................................23
Battery Replacement ..........................................................................23
Cleaning ............................................................................................23
Storage..............................................................................................24
Warranty Information ..........................................................................25
Disposal.............................................................................................25
Specifications .........................................................................................26

3
Symbol Definition
Warning: Potential for personal injury
Caution: Potential for damage to or destruction of equipment
Conformité Européenne: Conforms with European Economic
Area directives
Disposal information: Do not place equipment and/or its
accessories in the trash. Items must be properly disposed of
in accordance with local regulations.
ABOUT THIS MANUAL
The 0E-TELBSET is a self-contained, battery-powered, telephone test set for
use by installers and repair technicians. Its state of the art design makes it
rugged and water resistant. The 0E-TELBSET is ideal for temporary
communication and servicing and installing telephone and data lines. It
comes with a protective silicon boot as well as a deluxe cord set made from
nylon cloth covered test lead wire. Also available is an optional carrying case
that holds the test set.

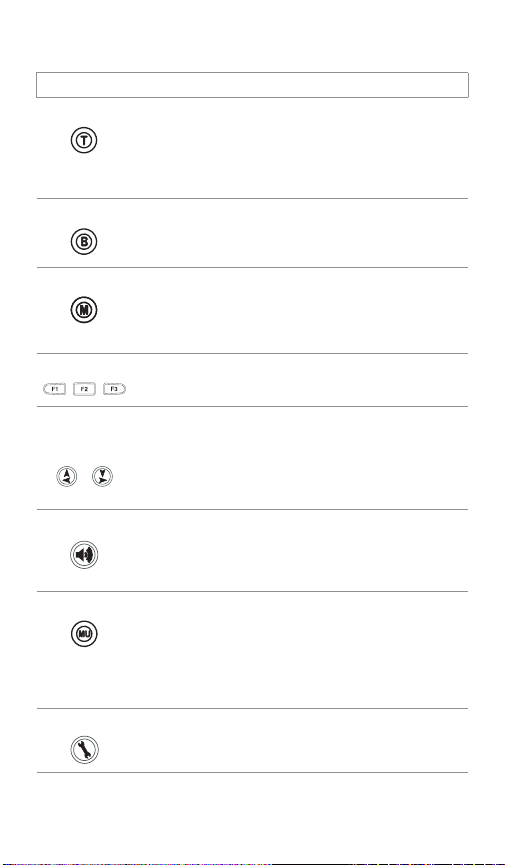

Symbols & Icons
The following symbols are used throughout the manual or in the display
screen of the 0E-TELBSET to help you avoid personal injury and
potential damage to the test equipment (Table 1).
Table 1. SymbolsandIcons

4
Terms Description and Uses
Talk Mode In this mode, the 0E-TELBSET goes “off hook” and
produces a dial tone when connected to a POTS line. While
off-hook the 0E-TELBSET can dial phone numbers from its
keypad or via internal memory slots.
Bell Mode This is the “on hook” or “off” mode. In this mode, caller ID and
the Ringer are activated when a call is being received.
Monitor Mode Monitor mode allows listening to a line without loading it.
It displays line voltage, on-hook Caller ID and any detected
DTMF digits on the line.
POTS line “Plain Old Telephone Service” the basic form of wired
residential and small business service connection.
Hook flash Rapid depression and release of the switch hook which is
used for placing a call on hold, notifying an operator of the
completion of a call, or signaling a PBX.
DTMF Dual Tone Multi-Frequency is the signaling between the sub-
scriber and switching equipment from push button telephones.
Tone Tone dialing mode uses the DTMF method to signal the
switching equipment for each numbered button press.
Pulse Pulse dialing mode signals the central office or switch by
opening and closing the telephone loop a specific amount of
times depending on the number dialed.
CID and
CWCID Caller ID is 1200 BAUD modem data sent between the first
and second ring with information about the incoming call for
display on a phone that recognizes CID. Call Waiting Caller
ID is the same information sent to the phone while a call is in
progress preceded by a call waiting tone.
Tip and Ring Tip and Ring are the historical names for the two leads of a
POTS line. Tip is the black lead and Ring the red lead of the
cord set. Contrary to modern standards, the black lead is a
positive voltage with respect to the red lead.
Table 2.TermsandDescriptions
Terms and Descriptions
Table 2 defines the terms used throughout the manual and provides
information to assist you with proper operation and understanding of the
unit and its functions.

5
Notification Definition
xxV TOO HIGH,
DISCONNECT NOW! High Voltage detection appears when the voltage
on the cable is unsafe and exceeds 65 volts peak
AC or DC.
Safety Information
To ensure safe operation of the 0E-TELBSET, follow the instructions
carefully and observe the warning and caution messages listed in Table 3.
Failure to observe warnings can result in damage to the unit.
Table 3.SafetyInformation

6
DESIGN FEATURES
• Largest Backlit LCD display on the market
• Ergonomically designed body for comfortable use
• Rainproof and highly water/dust resistant case to IP54 standard
• Drop tested up to 20 ft
• 60 inch Angled Bed of Nails with piercing pin cord set
• Glow in the Dark keypad
• Metal spring loaded belt clip
• Loud speaker with fine volume adjustment
• Adjustable earpiece volume, hearing aid compatible
• Microphone mute with toggle on/off locking feature
• Soft key menu system simplifies user interface and customization
• Contact list of up to 8 names and phone numbers
• Supports three languages: English, Spanish and French
• Measures and displays ring frequency and voltage
• Supports both CID and CWCID
• Cushion boot for extra protection in ultra-harsh environments
• Data Defender™detects lines with data – DSL, T1, etc. (Data Defender is
a trademark of Independent Technologies)
• High line voltage protection with override options
• Active monitor circuitry minimizes load on subscriber line
• DigitView™, DTMF digit detection and display in Monitor mode, diagnose
premise equipment
• PwrSave™circuitry for Extra Long battery life

7
0E-TELBSET DESCRIPTION
The Telephone Test Set is illustrated in Figure 1.
Figure 1.
Metal
Spring-Loaded
Belt Clip
Mute Button
Graphical
LCD Screen
Microphone
Keypad
Receiver
TELEPHONE TEST SET
0E-TELBSET
Loud
Speaker
Battery
Door
Talk, Bell,
Monitor Buttons

8
Figure 3.LCDDisplayScreen
Figure 2.(A)AngledBed-of-NailswithPiercingClipand(B)No-FaultCord
Setwithdustcap
A
B
A
LCD Display Screen Descriptions
The 0E-TELBSET has a transflective graphical LCD display screen,
shown in Figure 3 below. The LCD display screen shows the following:
modes and related icons, memory and battery life indicator.
Angled Bed of Nails with Piercing Clip Cord Set
One angled bed of nails with piercing pin cord set is located at the bottom
of the 0E-TELBSET. The connectors enable you to securely connect with
individual telephone cable connectors.

9
Talk Mode
When the Talk button is pressed, the 0E-TELBSET goes off hook and
displays the line condition on the LCD display screen. The following
information is displayed on the screen when 0E-TELBSET goes off hook:
• mA – The loop current measured on the line, normal polarity
and reverse polarity.
• Telephone Icon – Indicates that the 0E-TELBSET is operating in
Talk Mode.
• Tone/Pulse Icon – Displays whether the 0E-TELBSET is in DTMF
tone or pulse dial mode.
• Speaker Icon – Appears when the loudspeaker is active.
• Microphone Icon – Indicates if the microphone is muted or
unmuted .
• Battery Icon – Displays remaining battery life. A new set of batteries has
four bars .
• Recall Soft Key – Press F1 to go to the Speed Dial screen.
• Tone Soft Key – Press F2 to toggle between tone and pulse dialing.
• Options Soft Key – Press F3 to activate a popup menu for dialing A-D
and Pause.

10
Battery Life Indicator ( )
The battery life icon appears in the upper right corner of the LCD display
screen to demonstrate the approximate remaining battery life. A new set of
batteries shows four bars. The number of bars decreases as the battery is
nearing depletion. At about 4.2 volts the battery icon has no bars. At about
3.5 volts the screen starts to fade. Results may be unreliable at this point.
Note: The 0E
TELBSET
will turn off if the power supply goes
out of regulation from a low battery condition.
Table 4.MemoryStorage
Values Description
1 2 3 4 5 6 7 8 The unit has eight memory storage locations. The
slot number is reverse video if in use.
Memory Dial Each memory slot has the option to view or enter a
name and number.
Memory Name Up to 16 characters can be entered to identify the
number stored in that location.
Memory Number Up to 32 digits can be saved in each of the 8
memory locations.
Memory Storage
While in the Setup menu, numbers 1-8 will be displayed representing the
8 name and number memory locations. By selecting a memory location
number you will be able to edit or erase an entry. See Table 5 for a
description of the display screen updates when Memory Storage is in use.
Note: Refer to the Using Memory Storage section on page 17 to
learn how to store multiple number values for testing purposes.

11
Detection Warnings
When entering Talk mode the 0E-TELBSET performs several tests before
going off-hook. These tests include high and low voltage checks and data
detection. The following describes the types of warning screens that might
be encountered.
Figure 4.1 The voltage warning display screen is presented if the voltage
detected on a cable exceeds 65 volts peak AC or DC. If this screen appears,
the 0E-TELBSET disconnects from the line and retries every few seconds.
The 0E-TELBSET should be disconnected immediately from the source of
voltage to prevent damage.
Figure 4.2 The high current warning is displayed if the current on the
line exceeds 125mA. If this screen appears, the 0E-TELBSET should be
disconnected immediately from the source of the current.
Figure 4.3 If a line is in use, the 0E-TELBSET will display the line in use
screen. To connect, press the F2 soft key.
Figure 4.4 If data is found, the Data Present warning is displayed with the
measured KHz.
Figure 4.DetectionWarningScreens
Figure 4.1OverVoltageWarning
Figure 4.3 LineinUseWarning
Figure 4.2 OverCurrentDetectionWarning
Figure 4.4DataPresentWarning
Note: The 0E
TELBSET
continually checks for the presence of
voltage on a connected cable.

12
Keypad
The 0E-TELBSET is equipped with a glow in the dark keypad. There are
seven control buttons illustrated in Figure 5. Three buttons, appearing on
the top row of the keypad, are used with the corresponding menu option
displayed on the LCD screen. A Setup button will access the setup menu in
Monitor or Talk modes. The Up/Left, Down/Right buttons are used to scroll
through menu options or adjust the volume. The speaker button activates
the Tel Scope’s™loudspeaker. The twelve digit telephone keypad is used
to dial a number or send DTMF tones. The button functions are explained
in Table 5.
Figure 5.KeypadandControlButtons
The F1, F2, and F3 keys select the option
represented on the screen above it
Setup Button Speaker Button
Down/Right
arrow button
12 digit DTMF
buttons
Up/Left
arrow button

13
Table 5.Keypad
Button Function
Talk ▪The Talk button is used to power on the 0E-TELBSET and
goes “Off Hook” if appropriate line voltage is detected.
▪While in talk mode, the Talk button can be pressed to
“Flash” the line.
▪The Setup menu is accessible in Talk mode.
Bell ▪Pressing the Bell mode button will power off the 0E-TELBSET.
▪Goes “on-hook” if the 0E-TELBSET was in Talk mode
▪Bell mode is used for caller ID and the incoming call ringer.
Monitor ▪Monitor mode is used to listen for line condition and measure
line voltages.
▪DTMF digits are captured and displayed.
▪The setup menu is accessible in Monitor mode.
F1/F2/F3 ▪F1, F2, and F3 correspond to the options displayed on the LCD
screen directly above them.
Up/Left
Down/Right
Arrows
▪In Talk and Monitor mode, these buttons are used to adjust
the volume.
▪In the Setup mode, these buttons are used to scroll though
options, delete an entry, or add a space.
Speaker ▪The Speaker button activates the loudspeaker on the back of
the 0E-TELBSET and mutes the microphone.
▪Hold the Speaker button down for 2 seconds to toggle the
backlight on/off.
Mute ▪The Mute button silences the microphone while in Talk mode.
▪When the loudspeaker is on, the mute button will mute
the loudspeaker and activate the microphone, a push to
talk function.
▪In Monitor mode, hold the Mute button down to mute the
loudspeaker.
Setup ▪The Setup button will display the setup menu in Monitor
or Talk mode.

14
To ensure safe operation of the 0E-TELBSET, follow the instructions
carefully and pay attention to the warning and caution symbols. Failure
to observe warnings can result in severe injury or death and can damage
the unit.
Turning the Unit On/Off
Turn Unit On
•Press the Talk or Monitor mode buttons on the side of the OE-
TELBSET. The 0E-TELBSET immediately measures voltage (monitor
mode) or current (talk mode) when powered ON.
Turn Unit Off
•Press the Bell mode button to power off the 0E-TELBSET. The “OE-
TELBSET” screen will be displayed for 10 seconds before unit is fully
powered off.
Automatic Power Down
The 0E-TELBSET has automatic power-off for all modes to conserve the
battery. The default power-off time is set for 20 minutes of no activity. To
change the automatic power-off, refer to page 18 in the Setup Mode portion
of the instruction manual. To “wake up” the test set when the OE-
TELBSET has timed out and powered OFF, press the TALK or MON button.
POTS Testing General Guidelines
The 0E-TELBSET is intended for temporary connection for servicing phone
lines.
OPERATIONS

15
Figure 6.
UsingtheTALK/BELL/MON
andmuteButtons
Connecting to a POTS line
The angled bed of nails with piercing pin cord set attached to the OE-
TELBSET must be used to properly connect to telephone lines. Connect to
Tip and Ring on a 66 block, 110 block, or modular adaptor (banjo). Because
typical phone line voltage is negative, the red lead is connected to Ring
(negative), and the black lead is connected to positive ground (Tip).
Important Points to Note
The angled bed of nails with piercing clip cord set attached to the OE-
TELBSET must be used to properly connect to telephone lines.
• For 66/110 blocks, affix the angled bed of nails with piercing pin cord
set to tip and ring.
• When testing from an RJ11, use an appropriate modular adaptor (banjo).
Important Safety Points to Note
xx Volts, DISCONNECT NOW! message appears when the voltage
surpasses 65 volts peak AC or DC. It is not recommended to
operate the0E
TELBSET
on cable systems exceeding a voltage
value of 65 volts or current in excess of 125 mA.
Internal components of the 0E
-TELBSET
are protected to 270
volts peak AC or DC and a voltage clamp will activate. Connecting
the unit to cabling systems with voltage above 270 volts peak AC or
DC may damage the test unit and pose a safety hazard for the user.
The T/B/M (TALK/BELL/MON)
T/B/M buttons are on the left side of the 0E-TELBSET. The following
subsections describe how the 0E-TELBSET works in each of the three
settings.

16
The TALK Setting (TALK Mode)
The “TALK” or off-hook position takes the 0E-TELBSET “off hook” on a
standard “POTS” (plain old telephone service) voice phone line. While the
0E-TELBSET is off-hook, it can dial numbers either directly from the
keypad or from its memory dial slots (see page 17, figures 9-4).
Off-Hook Protection
The 0E-TELBSET checks for low voltage, high voltage, and presence of
data before going off-hook. Once off-hook, the 0E-TELBSET checks for
excess loop current.
•The 0E-TELBSET must measure 18 volts or more on the line it is
connected to (a voltage level indicating a live but not in use line) before it
will go off hook. If the 0E-TELBSET doesn’t go off hook, it displays
“Off-Hook Protection”, the voltage measured for the line, and an option
to “Connect” on its LCD screen. To connect, press the F2 button under
“Connect” to go off hook despite this voltage reading and attempt to
operate normally (Because the 0E-TELBSET's internal voice circuits are
line powered, it won’t work if there’s insufficient power on the line).
•The 0E-TELBSET also checks for line voltage exceeding 65 volts. If it
finds the line voltage exceeds this level, it doesn’t go off-hook but
displays the messages: “xxV,TOO HIGH!” and “DISCONNECT
NOW!!” (see page 9 figure 4.1). It continues to monitor the line voltage
for about five minutes, then powers down if the high voltage has not
been removed. The 0E-TELBSET will automatically go off-hook if the
voltage goes below the 65 volt threshold. The line current will be
displayed on the top line of the LCD. The 0E-TELBSET detects the
polarity of the connection and will reverse-video the line current to
indicate a reverse connection.
•In addition to the voltage checks when going off-hook, the OE-
TELBSET uses patented Data Defender™technology to check for data
being present on the line. If data is detected, “Off-Hook Protection”,
“Signal: xxx KHz” and “Active Data Found” are displayed. The average
signal frequency of the largest amplitude data energy is displayed. An
override soft key option, “Connect”, is displayed and by pressing F2 the
0E-TELBSET will go off-hook. The override feature may be needed
should

17
high frequency energy be present on a circuit due to stray coupling. The
Data Defender™circuitry is active in monitor mode and will display signal
frequency and “Active Data Found” if data is present. Data Defender™is
a trademark of Independent Technologies, Patent number 6,556,661.
DSL Detection The 0E-TELBSET average frequency reading will be
either in the range of 70 to 90 KHz at the premise (upstream) end of an
active DSL link or 260 to 280 KHz at the DSLAM (downstream) end due to
the pilot tones.
T1 Detection The 0E-TELBSET average frequency reading will read the
carrier frequency between 700 and 800 KHz on a T1 line.
CWCID
In Talk mode the 0E-TELBSET supports Call Waiting Caller ID (CWCID or
Type 2 Caller ID). When a call is already in progress, an incoming call’s ID is
displayed on the screen. During this the label “CWCID” replaces the line
current field. The user can switch to the incoming call by pressing the Talk
button to “Flash” the line.
Speed Dial
In Talk mode, function key F1 (“Recall”) accesses a screen for speed
dialing. From the Speed Dial screen, press the zero (0) key to dial the last
number dialed or a Memory Dial slot by pressing 1 through 8. The soft
function keys provide further access to the Memory Dial slots or Recent Call
List by pressing the soft key and scrolling through the slots using the arrow
keys. Press the Dial soft key to dial the currently displayed number.
Flash
To flash the phone line, press the “T” (Talk) button while off hook. The Flash
function breaks the phone line connection for 0.6 seconds, simulating a
phone “hookflash” signal. Hookflashes are often used to transfer calls or to
activate special PABX or central-office features.

18
Volume Control
Use the and keys to adjust receiver and loudspeaker volume.
During adjustment a bar graph is displayed to show the volume percentage.
The receiver and loudspeaker have separate volume settings. Volume levels for
Talk mode and Monitor mode are set and stored independently.
Using the Multi-function Mute Button
When the test set hook in the TALK mode and the loudspeaker is
is off
OFF, you can mute the 0E-TELBSET microphone by pressing down the mute
button on the right-hand side of the 0E-TELBSET (see Page 13, figure 6). If you
tap the button for less than 2 seconds, the mute lock feature is enabled and the
microphone icon is in reverse video. The test set will remain muted until you
press the button again. If you hold this button down for more than 2 seconds,
the mike will be muted only while the button is held down; as soon as you let go,
it will resume operating normally.
When the test set is off hook in the TALK mode with the loudspeaker ON,
the microphone is automatically muted to prevent feedback. The mute
button is used to turn the loudspeaker OFF and the microphone ON so that
you can talk to the remote party over the phone line. The microphone is only
ON while the mute button is being held down. Under these conditions, when
the mute button is pressed, the speaker icon is displayed in reverse video
and the microphone icon is displayed normally.
When the test set is in the Monitor mode with the loudspeaker ON, the mute
button is used to mute the loudspeaker. The loudspeaker is only OFF while
the mute button is being held down in a push to talk like operation. While
muted, the speaker icon on the screen is displayed in reverse video.
The BELL Setting (BELL Mode)
Figure 7.CallerIDScreen
W Box
631-692-1000

19
The BELL mode is the “off state” of the 0E-TELBSET. The keypad is
disabled and the 0E-TELBSET is in its lowest power state. The test set
monitors the phone line to which it is connected for ringing and Caller ID
signals. If it detects an incoming ring, it sounds the electronic ringer. If the
0E-TELBSET detects incoming Caller ID information, it will test the signal
for correct format, checksum, and display the frequency and RMS voltage
of the ring signal at the top of the screen. In Bell Mode, if the 0E-TELBSET
is not taken off hook while it is ringing, it will power OFF again about 10
seconds after the end of ringing.
The MON Setting (MONITOR Mode)
Figure 8.MonitormodeScreen
The MON position (MONITOR mode) causes the 0E-TELBSET to use its
high impedance amplifier so that you can listen to a line without loading it.
On-hook Caller ID is also received, checked and displayed in this mode. The
line voltage is measured and displayed, with reverse polarity indicated by a
reverse video icon. The 0E-TELBSET also monitors the line it is connected
to for DTMF signals. If it detects any of the 16 valid DTMF signals it will
display the characters on the LCD.

20
•Headset Icon –Indicates that the 0E-TELBSET is in Monitor Mode .
• xxV – The voltage measured on the line, normal and reverse
polarity .
• Speaker Icon – Appears when the loudspeaker on the back is active .
• Battery Icon – Displays remaining battery life. A new set of batteries has
four bars .
When the test set is in the Monitor mode with the loudspeaker ON, the mute
button is used to mute the loudspeaker. The loudspeaker is only OFF while
the mute button is being held down. While muted, the speaker icon on the
screen is displayed in reverse video.
Volume Control
Use the and keys to adjust receiver and loudspeaker volume.
During adjustment a bar graph is displayed to show the volume percentage.
Volume levels for Talk mode and Monitor mode are set and stored
independently.
Setup Menu
To enter the Setup Menu, the phone must be in talk or monitor mode (not
Off Hook Protection mode). By pressing the Setup key, the 0E-TELBSET
will present a list of options that can be modified. The 0E-TELBSET
command keys now take on their setup-mode functions/identities. You can
use the or scroll keys to move to different items. Pressing the
Setup key will exit the setup menu.
Setup mode automatically exits after 2 minutes without a key press.
Memory Dial –The Memory Dial entry displays the eight memory dial records
that are available (see figure 9). The digits in reverse video identify slots
that are not empty. Press a numeric key to jump immediately to that slot.
Alternately, press function key F3 to access slot #1 of the Memory Dial list.
In the Memory Dial list, use the arrow keys to move up and down between
entries. Function key F3 opens the entry for editing and function key F1
deletes (clears) an entry (see figure 9.2). When in Talk mode, function key
F2 (Call) dials the currently displayed number.
Table of contents
Other W Box Technologies Test Equipment manuals
Popular Test Equipment manuals by other brands

KITO
KITO Harrington DHLT CALIBRATION PROCEDURE

Gamry Instruments
Gamry Instruments Universal Dummy Cell 3 Operator's manual

MARTINDALE
MARTINDALE PD690 instructions

Epcom
Epcom EPMONTVI4K user manual

Cornelius
Cornelius Water Flow Device Test Kit installation instructions

Extech Instruments
Extech Instruments prc20 user guide

TRANSMATION
TRANSMATION CheckMate 300 quick start guide

Macurco
Macurco CME1-FTG User instructions

REED
REED R9030 instruction manual

Rohde & Schwarz
Rohde & Schwarz Hameg IEEE-488 GBiP Interface HO740 FITTING INSTRUCTION

Velleman
Velleman WFS210 Getting started

Tektronix
Tektronix TDS 600B Performance Verification Manual
