Würth Pro Value Series User manual

VERTICAL WALL BED
INSTRUCTIONS - FULL & QUEEN

Würth Baer Supply
www.wurthbaersupply.com • 800-289-2237 • Fax: [phone]
2
Installation Instructions
AFlat Bars x2 x2
BPistons (non locking)
Full: 90kg, Queen: 110kg x2 x2
CMattress Supports x2 x2
DMounting Plates (left and right) x2 x2
ESaddle locking plates x2 x2
FBrackets to attach wall bed to wall x2 x2
GDoor brackets x12 x12
HLegs (left and right) x2 x2
ITube (for attaching legs) x1 x1
JSlats x40 x42
KSlat caps x80 x84
LWrench x1 x1
M1 Allen key #4 x1 x1
M2 Allen key #5 x1 x1
NThreaded inserts x16 x16
OM8 x 16mm Screws x16 x16
P#10 x 55mm Screws x8 x8
Hardware
FQ

3
Würth Baer Supply
www.wurthbaersupply.com • 800-289-2237 • Fax: [phone]
Installation Instructions
Q#8 x 15mm Screws x44 x44
R#10 x 15mm Screws x4 x4
S#10 x 30mm Screws x4 x4
TM5 x 15mm Screws x2 x2
UM6 x 30mm Bolts x4 x4
VM8 x 50mm Bolts x8 x8
WM8 x 70mm Bolts x3 x3
XWashers x8 x8
YNylon Washers (for pivoting legs) x4 x4
ZM5 Nuts (for saddle locks) x2 x2
AA M8 Locking nuts x6 x6
BB Temporary stoppers x2 x2
Hardware - Continued
FQ
Note: Pro Value oers a 5 year limited warranty on slat bases used in the wall bed as well as the mechanisms. The warranty covers the replacement of parts
with manufacturing defects and/or breakage caused by regular use. It does not cover damages caused by poor installation or misuse of the product.
Professional installation suggested. The bed must be secured to the wall into wood or metal studs.

Würth Baer Supply
www.wurthbaersupply.com • 800-289-2237 • Fax: [phone]
4
Installation Instructions
Conversion Table
Inside Measurements
Width Depth Height
Full 1454mm / 57-1/4” 368mm / 14-1/2” 2006mm 79”
Queen 1606mm / 63-1/4” 368mm / 14-1/2” 2137mm 84-1/8”
Outside Measurements
Width Depth Height
Full 1492mm / 58-3/4” 406mm / 16” 2044mm 80-1/2”
Queen 1644mm / 64-3/4” 406mm / 16” 2175mm 85-5/8”
*All measurements are for 19mm (3/4”) board.
Full Wall Bed
Qty Width Length Thickness
A2 406mm / 16” 2044mm / 80-1/2” 19mm 3/4”
B2 406mm / 16” 1454mm / 57-1/4” 19mm 3/4”
C1 330mm / 13” 1454mm / 57-1/4” 19mm 3/4”
D1 660mm / 26” 1454mm / 57-1/4” 19mm 3/4”
E2 724mm / 28-1/2” 1999mm / 78-11/16” 19mm 3/4”
F1 76mm / 3” 457mm / 18” 16mm 5/8”
Queen Wall Bed
Qty Width Length Thickness
A2 406mm / 16” 2175mm / 85-5/8” 19mm 3/4”
B2 406mm / 16” 1606mm / 63-1/4” 19mm 3/4”
C1 330mm / 13” 1606mm / 63-1/4” 19mm 3/4”
D1 660mm / 26” 1606mm / 63-1/4” 19mm 3/4”
E2 800mm / 31-1/2” 2129mm / 83-13/16” 19mm 3/4”
F1 76mm / 3” 457mm / 18” 16mm 5/8”
A = Exterior
B - C - D - E = Inset
E E
E E
Full
Queen
*Suggested dimensions.

5
Würth Baer Supply
www.wurthbaersupply.com • 800-289-2237 • Fax: [phone]
Installation Instructions
79mm
31
8
"
176mm
615
16
"
353mm
13 7
8
"
450mm
17 3
4
"
240mm
97
16
"
290mm
11 7
16
"
156mm
61
8
"
197mm
73
4
"
64mm
21
2
"
64mm
21
2
"
290mm
11 7
16
"
Drilling Guide
Back Front
Bottom
The holes should be 3/8” (9mm)
in diameter and 1/2” (13mm) deep
for the threaded inserts.
*All measurements are for 19mm (3/4”) board.

Würth Baer Supply
www.wurthbaersupply.com • 800-289-2237 • Fax: [phone]
6
Installation Instructions
Step Installing The Mounting Brackets
1
Left side
Right side
Front
Front
Bottom
O + N
D
0 x16
N x16
D x2
Wood
Step Assembling The Cabinet
2
See conversion guide for suggested cabinet dimensions.

7
Würth Baer Supply
www.wurthbaersupply.com • 800-289-2237 • Fax: [phone]
Installation Instructions
Step Securing To The Wall
3R
*Needs to be secured into
atleast two wood or metal
studs.
Step Assembling The Frame
4
W = x 3
Q
Q = x4
R = x4
X = x8
F = x2
Nylon wall anchors are NOT recommended.
*Professional installation recommended.
4.1 - Attach the two half frames with W
4.2 - Attach the at bar A to the frame with V.
A = x 2
V = x8
A

Würth Baer Supply
www.wurthbaersupply.com • 800-289-2237 • Fax: [phone]
8
Installation Instructions

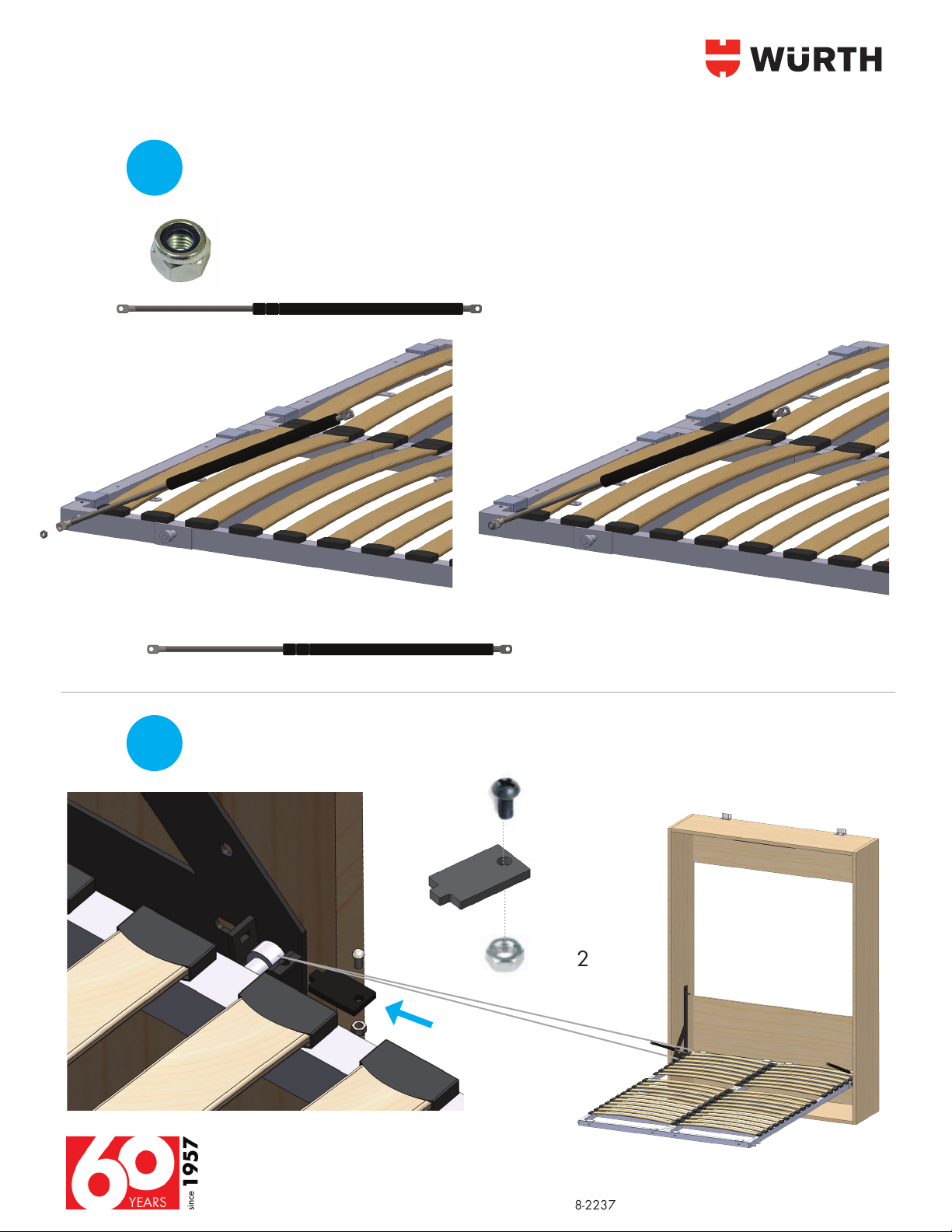

Step Attaching The Pistons To The Frame
5
AA = x 2
B = x2
Step Installing The Frame Onto The Mounting Brackets
6
Secure the longer metal ends of the pistons to the frame.
This end →
T = x2
E = x2
Z = x2

9
Würth Baer Supply
www.wurthbaersupply.com • 800-289-2237 • Fax: [phone]
Installation Instructions
Step Installing The Pistons To The Cabinet
7
Tilt the frame inside past the cabinet edge to mount the pistons on the mounting
brackets through the opening between the slats.
Step Installing The Legs
8
8.1 Install the temporary stoppers BB onton the top corners of the bed cabinet.
AA = x 2
8.2 Secure the legs to the bed frame.
Do not overtighten.
8.3 Install tube to both legs. H
U
H
U
I
BB = x 2
AA = x 2
Y = x 4
U = x 4
M1 =

Würth Baer Supply
www.wurthbaersupply.com • 800-289-2237 • Fax: [phone]
10
Installation Instructions
Step Installing The Door Brackets
9
714mm
28-1/8”
714mm
28-1/8”
256mm
10-1/16”
102mm
4”
4”
102mm
Top
Bottom
The door brackets must point downward. Install the door brackets in alignment with the
support bars on the bed frame.
Measurements (right) are for the
placement of this hole along the doors.
Q = x 24
G = x12
Install the handle (not included) on the other side of the door during this step. Handle should be
mounted at a height to comfortably allow the user to pull the bed down (approximately 1/3 of the way
down from the top of the door.)

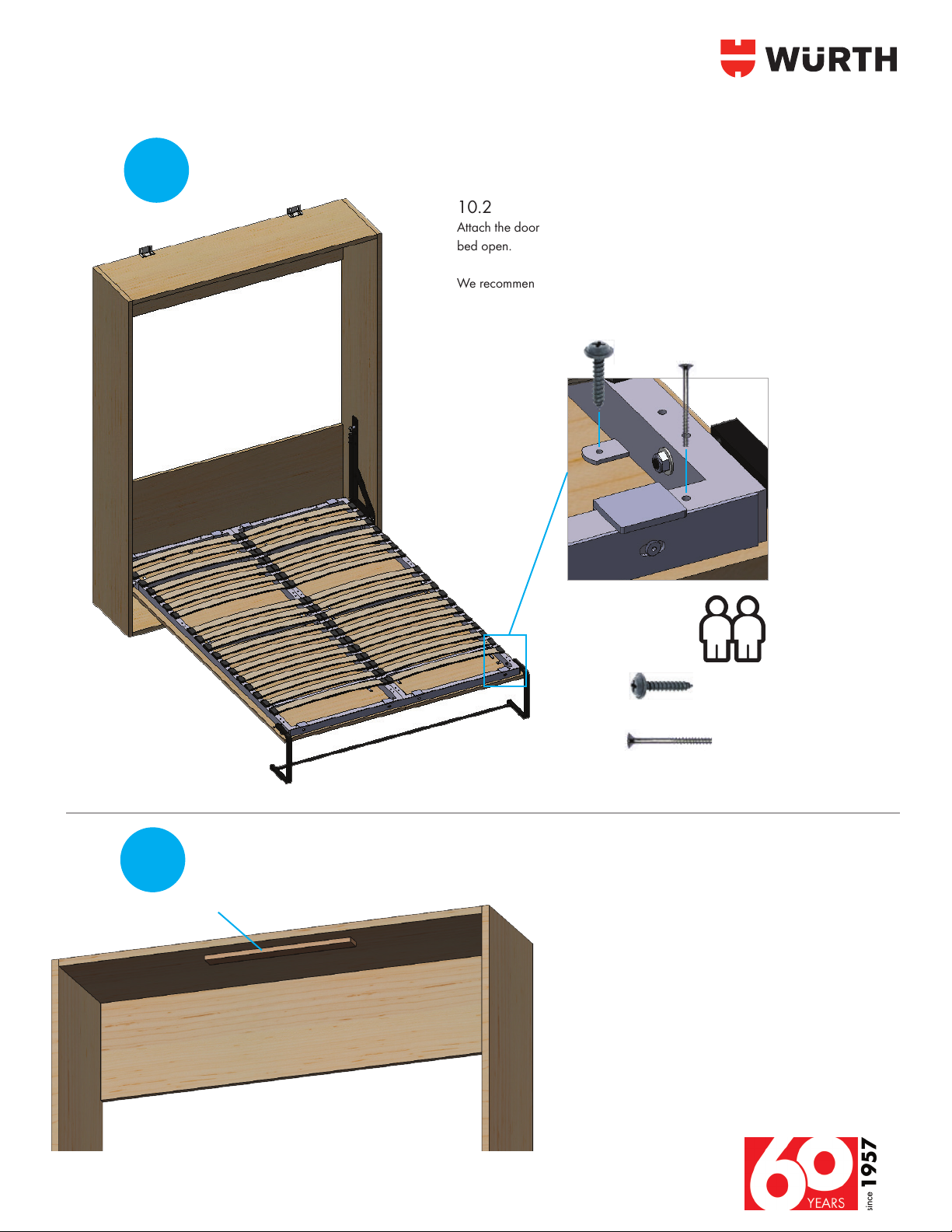

Step Installing The Doors
10
10.1 Hook the door brackets onto the frame and push down until they are
rmly in place. Center the doors on the frame.

11
Würth Baer Supply
www.wurthbaersupply.com • 800-289-2237 • Fax: [phone]
Installation Instructions
Step Installing The Doors
10
10.2
Attach the doors to the frame while putting weight on the frame to keep the
bed open.
We recommend to have someone else sit on the frame during this step.
Q = x 20
P = x8
For this step x2
Step Installing The Permanent Stopper
11
Install the stopper (not included) on the inside top of the
cabinet where it will allow for the door to close ush to the
front of the cabinet.
Permanent Stopper
QP

Würth Baer Supply
www.wurthbaersupply.com • 800-289-2237 • Fax: [phone]
12
Installation Instructions
Step Installing The Slats
12
Place a cap on both ends of the slats. Insert the slats into
their designated holes along the frame.
J K
K
K = x 8
J = x 4
Step Installing The Mattress Supports
13
Insert the mattress supports into the
designated holes on the bed frame.
C = x 2 C

13
Würth Baer Supply
www.wurthbaersupply.com • 800-289-2237 • Fax: [phone]
Installation Instructions
Using The Wall Bed
The wall bed is assembled and shown in
lowered position.
1 2
Pivot the leg towards the inside of the unit.
Make sure leg is fully retracted.
3Pull up gently to close. The leg serves as a mattress retaining system.
The pistons insure that the door closes properly and remains closed.
Bed model may vary.
Note: The bed will not stay open on its own
without the weight of a mattress.
Load Rating
Bed Size Mattress Size
(Mattress not included) Thickness Dynamic Static
Full 1372 x 1905mm (54 x 75”) 25mm (10”) 154kg (340 lbs) 454 kg (1000 lbs)
Queen 1524 x 2032mm (60 x 80”) 181 kg (400 lbs)
