Wabtec RICON KlearVue K Series User manual

KlearVue™
K-Series®Folding Platform
DOT – Public Use Lift
12/12/18 32DSSK06.D 2018 RICON CORPORATION
All Rights Reserved
U.S. and foreign patents pending
Printed in the United States of America
SERVICE MANUAL

i
TABLE OF CONTENTS
DECEMBER 2018
32DSSK06.D
K-SERIES PUBLIC USE SERVICE MANUAL
This Ricon service manual is for use by qualified service technicians, and
is not intended for use by non-professionals (do-it-yourselfers). The man-
ual provides essential instructions and reference information, which sup-
ports qualified technicians in the correct installation and maintenance of
Ricon products.
Qualified service technicians have the training and knowledge to perform
maintenance work properly and safely. For the location of a service tech-
nician in your area, call Ricon Product Support at 1-800-322-2884.
“DOT – Public Use Lift” verifies that this platform lift meets the public use
lift requirements of FMVSS no. 403. This lift may be installed on all vehi-
cles appropriate for the size and weight of the lift, but must be installed on
buses, school buses, and multi-purpose passenger vehicles other than
motor homes with a gross vehicle weight rating (GVWR) that exceeds
10,000 lbs (4,536 kgs).
Customer Name:
Installing Dealer:
Date Installed:
Serial Number:

ii
TABLE OF CONTENTS DECEMBER 2018
32DSSK06.D
K
-
SERIES PUBLIC USE SERVICE MANUAL
REVISION RECORD
REV PAGES DESCRIPTION OF CHANGE ECO
32DSSK06.
D
Cvr Update to K-Series cover
1-1 Update address, website, logo.
1-4 Update to Figure 1-1 to add item 25 for Armored Cable and Cover.
1-5 Added Armored Cable and Cover description.
2-16 Added Safety Checklist for Front Rollstop.
3-12 Update to Figure 3-10 Wiring Diagram Sheet 2.
4-10 Update to Figure 4-4 Public Use Electrical System to add Rollstop
Pressure Detection PCA.
4-11 Added item 32 to Spare Parts List for Rollstop Pressure Detection PCA.
4-15 Update to Spare Parts List, items 10, 10A, 10B.
4-16 Update to Spare Parts List, items 10B.

iii
TABLE OF CONTENTS
DECEMBER 2018
32DSSK06.D
K-SERIES PUBLIC USE SERVICE MANUAL
Chapter Page
I. INTRODUCTION .......................................................................................................................1-1
A. WARRANTY INFORMATION.............................................................................................................1-2
B. SHIPMENT INFORMATION ...............................................................................................................1-3
C. GENERAL SAFETY PRECAUTIONS ................................................................................................1-3
D. MAJOR COMPONENTS ....................................................................................................................1-4
II. INSTALLATION ........................................................................................................................2-1
A. GENERAL MECHANICAL INSTALLATION......................................................................................2-1
1. LIFT LOCATION............................................................................................................................................ 2-1
2. LIFT INSTALLATION GUIDELINES ............................................................................................................. 2-1
3. LIFT INSTALLATION INTO VANS................................................................................................................ 2-2
4. LIFT INSTALLATION INTO BUSSES........................................................................................................... 2-5
B. ELECTRICAL INSTALLATION..........................................................................................................2-6
1. INSTALL MAIN CIRCUIT BREAKER............................................................................................................ 2-7
2. ROUTE AND CONNECT MAIN POWER CABLE......................................................................................... 2-7
3. CONNECT CONTROL PENDANT................................................................................................................ 2-8
4. GROUND (COMMON) CONNECTIONS ...................................................................................................... 2-9
5. INTERLOCK DEVICE INSTALLATION ................................................................................................................ 2-10
C. FINAL ADJUSTMENTS ...................................................................................................................2-10
1. LIMIT SWITCH ADJUSTMENT................................................................................................................... 2-10
2. PLATFORM TILT ADJUSTMENT ............................................................................................................... 2-12
3. PLATFORM FOLDING LINKAGE ADJUSTMENT...................................................................................... 2-14
4. PLATFORM PRESSURE SWITCH CHECK AND ADJUSTMENT................................................................... 2-14
D. VERIFY INSTALLATION..................................................................................................................2-15
E. SAFETY CHECKLIST FOR VEHICLE MANUFACTURER .............................................................2-15
F. CUSTOMER ORIENTATION............................................................................................................2-15
III. MAINTENANCE AND REPAIR .................................................................................................3-1
A. LUBRICATION ...................................................................................................................................3-1
B. CLEANING .........................................................................................................................................3-2
C. MAINTENANCE SCHEDULE.............................................................................................................3-2
D. TROUBLESHOOTING .......................................................................................................................3-3
1. LIFT TROUBLESHOOTING..................................................................................................................................... 3-3
2. PUMP SOLENOID LED STATUS INDICATOR ............................................................................................ 3-4
3. BRIDGEPLATE CABLE ASSEMBLY REPLACEMENT................................................................................ 3-4
4. LIMIT SWITCH STATES............................................................................................................................... 3-6
E. HYDRAULIC CIRCUIT DIAGRAM .....................................................................................................3-7
F. ELECTRICAL WIRING DIAGRAM.....................................................................................................3-8
1. DIAGRAM LEGENDS ................................................................................................................................... 3-8
2. WIRING DIAGRAM.................................................................................................................................................. 3-11
IV. SPARE PARTS .........................................................................................................................4-1
APPENDIX 1: K-SERIES LIFT SPECIFICATIONS ....................................................................................4-29

iv
TABLE OF CONTENTS DECEMBER 2018
32DSSK06.D
K
-
SERIES PUBLIC USE SERVICE MANUAL
This page intentionally left blank.

1 - 1
I
N
TRODU
C
TIO
N
DECEMBER 2018
32DSSK06.D
K-SERIES PUBLIC USE SERVICE MANUAL

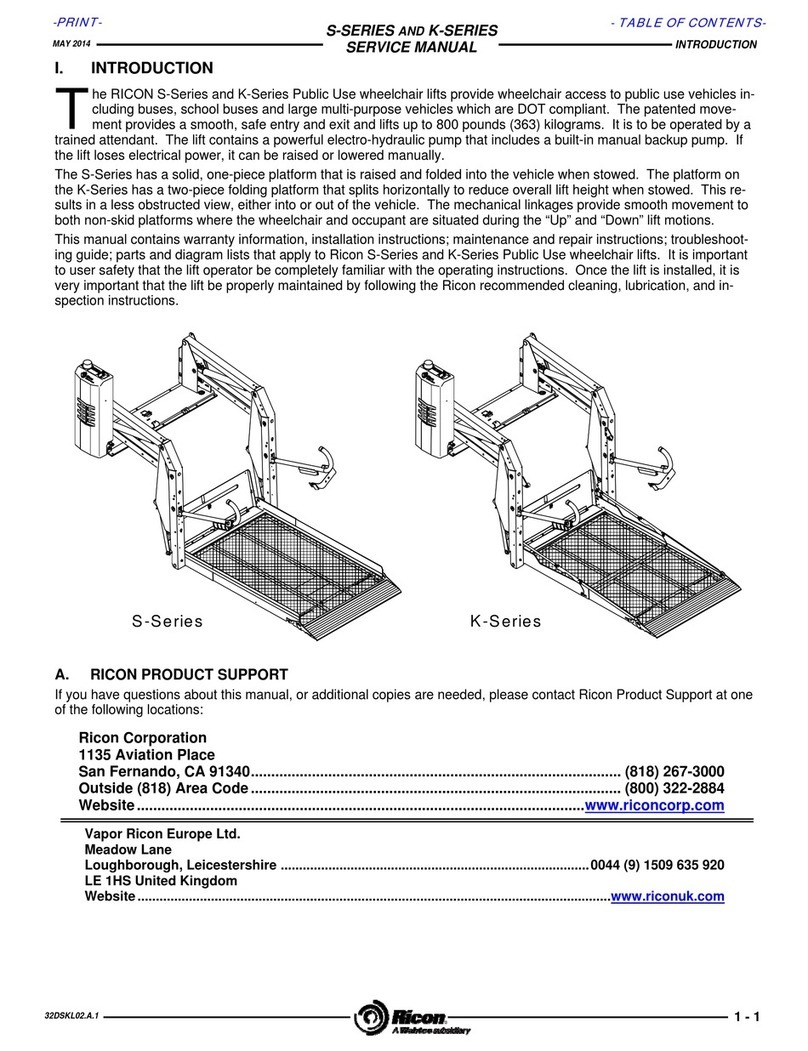

I. K-SERIES PUBLIC INTRODUCTION
he RICON K-Series®Public Use wheelchair lift provides wheelchair access to vans and buses. The patented
movement provides smooth, safe entry and exit, and can lift up to 800 pounds (364 kilograms). The platform is
raised with an electro-hydraulic pump. The pump has a built-in manual backup pump, allowing it to be raised or
lowered manually.
By using the lift control switches, the platform is unfolded from the vehicle (deployed). The passenger boards the large
non-skid platform and the operator uses the control switches to gently lower the platform to the ground. After the pas-
senger departs, the platform is raised and folded into the vehicle (stowed). The lift platform splits and folds horizontally
when stowed.
This manual contains operation and maintenance instructions and a troubleshooting guide for the lift. It is important to
user safety that the lift operators be completely familiar with the Operating Instructions chapter of the operator manual
(32DSSK05). Once the lift is installed, it is very important that the lift be properly maintained by following the Ricon rec-
ommended cleaning, lubrication, and inspection instructions.
If there are questions about this manual, or additional copies are needed, please contact Ricon Product Support at one
of the following locations:
Ricon Corporation
1135 Aviation Place
San Fernando, CA 91340 ......................................................................................... [phone]
Outside (818) Area Code.......................................................................................... [phone]
World Wide Website ........................................................................................................ www.riconcorp.com
Vapor Ricon Europe Ltd.
Meadow Lane
Loughborough, Liecestershire LE11 1HS
United Kingdom................................................................................................[phone] 920
Fax .....................................................................................................................[phone] 939
T

1 - 2
INTRODUCTION DECEMBER 2018
32DSSK06.D
K -SERIES PUBLIC USE SERVICE MANUAL
RICON FIVE-YEAR LIMITED WARRANTY
RICON K-SERIES®PUBLIC
FIVE-YEAR LIMITED WARRANTY
Ricon Corporation (Ricon) warrants to the original purchaser of this product that Ricon will repair or replace,
at its option, any part that fails due to defective material or workmanship as follows:
• Repair or replace parts for a period of one year from the date of purchase.
• Labor costs for specified parts replaced under this warranty for a period of one year from the date of pur-
chase. A Ricon rate schedule determines the parts covered and labor allowed.
• Repair or replace lift power train parts for a period of five years from the date of purchase. A list of parts
covered can be obtained from Ricon Product Support.
If you need to return a product: Return this product to Ricon. Please give as much advance notice as possi-
ble, and allow a reasonable amount of time for repairs.
This warranty does not cover: Malfunction or damage to product parts caused by accident, misuse, lack of
proper maintenance, neglect, improper adjustment, modification, alteration, the mechanical condition of the ve-
hicle, road hazards, overloading, failure to follow operating instructions, or acts of nature (i.e., weather, light-
ning, flood).
Note: Ricon recommends that this product be inspected by a Ricon authorized service technician at least
once every six months, or sooner if necessary. Required maintenance should be performed at that time.
WARNING
THIS PRODUCT HAS BEEN DESIGNED AND MANUFACTURED TO EXACT SPECIFICATIONS.
MODIFICATION OF THIS PRODUCT IN ANY RESPECT CAN BE DANGEROUS.
This warranty is void if:
• The product has been installed or maintained by someone other than a Ricon dealer or a qualified service
technician.
• The product has been modified or altered in any respect from its original design without written authoriza-
tion by Ricon.
Ricon disclaims liability for any personal injury or property damage that results from operation
of a Ricon product that has been modified from the original Ricon design. No person or com-
pany is authorized to change the design of this Ricon product without written authorization by
Ricon.
Ricon's obligation under this warranty is exclusively limited to the repair or exchange of parts
that fail within the applicable warranty period.
Ricon assumes no responsibility for expenses or damages, including incidental or consequential
damages. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply.
Important: The warranty registration card must be completed and returned to Ricon within 20
days after installation of this Ricon product for the warranty to be valid. The warranty is not
transferable.
The warranty gives specific legal rights. There may be other rights that vary from state to state.

1 - 3
I
N
TRODU
C
TIO
N
DECEMBER 2018
32DSSK06.D
K-SERIES PUBLIC USE SERVICE MANUAL
A. SHIPMENT INFORMATION
Because of the specialized nature of this product, Ricon does not sell directly to the user. Instead, the product is
distributed through a woldwide network of authorized Ricon dealers, who perform the actual installation.
When the product is received, unpack the product and check for freight damage. Claims for any damage should be
made to the carrier immediately.
Verify that the installation kit contains all items listed on the enclosed packing list. Please report any missing items
immediately to the Ricon Product Support department. The warranty and owner registration cards must be com-
pleted and returned to Ricon within 20 days to validate the warranty.
NOTE: Sales or Service Personnel must review the Warranty and the Operator Manual with the user to be certain that
they understand how to safely operate the product. Instruct the user to follow the operating instructions without
exception.
B. GENERAL SAFETY PRECAUTIONS
The following general safety precautions must be followed during installation, operation, service, and maintenance:
Under no circumstances should installation, maintenance, repair, and adjustments be attempted without the imme-
diate presence of a person capable of rendering aid.
An injury, no matter how slight, must be attended to. Administer first aid or seek medical attention immediately.
Protective eyeshields and appropriate clothing should be worn at all times.
To avoid injury, exercise caution when operating lift and be certain that hands, feet, legs, and clothing are not in the
path of platform movement.
Batteries contain acid that can burn. If acid comes in contact with skin, immediately flush affected area with water
and wash with soap.
Always work in a properly ventilated area. Do not smoke or use an open flame near battery.
Do not lay anything metallic on top of battery.
Check under vehicle before drilling to avoid drilling into frame, subframe members, wiring, hydraulic lines, fuel lines,
fuel tank, etc.
Read and thoroughly understand the operating instructions before operating lift.
Inspect the lift before each use. If an unsafe condition, unusual noises or movements exist, do not use lift until the
problem is corrected.
Never load or stand on the platform until the installation is complete. Upon completion of installation, test load the
lift mounting integrity at 100% of its rated load capacity.
Stand clear of doors and platform and keep others clear during operation.
The product requires regular maintenance. A thorough inspection is recommended at least every six months. The
lift must always be maintained at the highest level of performance.

1 - 4
INTRODUCTION DECEMBER 2018
32DSSK06.D
K -SERIES PUBLIC USE SERVICE MANUAL
C. MAJOR LIFT COMPONENTS
The terms used throughout this manual are illustrated in Figure 1-1 and defined in Table 1-1. Refer to the parts dia-
grams and lists in Chapter IV for more details.
RSM00805
0
FIGURE 1-1: K-SERIES MAJOR COMPONENTS

1 - 5
I
N
TRODU
C
TIO
N
DECEMBER 2018
32DSSK06.D
K-SERIES PUBLIC USE SERVICE MANUAL
TABLE 1-1: K-SERIES MAJOR COMPONENT TERM DEFINITIONS
TERM DESCRIPTION
Left, right, front, rear Position references when installed lift is viewed from outside of vehicle.
Baseplate Bolts to vehicle floor; provides secure foundation for lift structure.
Bridgeplate
(inboard rollstop)
Plate that bridges gap between platform and baseplate when platform is at floor level. Also
acts as a rear rollstop when platform is in motion.
Bridgeplate load
sensor
Senses if weight is present on the lowered bridgeplate.
Control pendant Hand-held device used to control platform motions.
Cycle counter Visible at top rear of housing. It records number of times platform has moved from floor level
to ground and back to floor level.
Front platform
section
Front portion of platform that unfolds during deploy and folds during stow. See “Platform fold-
ing linkage”.
Front rollstop Front barrier prevents wheelchair from inadvertently rolling off of platform during platform
movement.
Handrail (left and right) Provides handhold for standing passenger.
Hydraulic cylinder (left and right) Telescoping single-acting cylinders convert hydraulic pressure into platform
lifting and folding force.
Hydraulic power unit Contains hydraulic pump driven by electric motor that produces pressure to raise and fold
platform, and a pressure release valve to unfold and lower it.
Manual backup pump
handle
Used to operate manual back up-pump (located on hydraulic power unit cover).
Platform folding
linkage
(left and right) Links that cause front platform section to unfold as it deploys or fold as it
stows.
Platform hinges Three hinges provide a flexible connection between front and rear platform sections.
Platform light (left and right) Provide illumination of platform surface when lift is in use.
Rear platform section Rear portion of platform that is folded by linkage located within the vertical arms.
Serial number This is the location of lift serial number decal.
Stow-lock catch Engages latch located on bottom of bridgeplate when platform is fully stowed.
Threshold beam (upper and lower) Light-beams detect presence of objects in threshold area.
Top and bottom arms (left and right) Upper and lower links that connect vertical arms to baseplate.
Vertical arm (left and right) Connects platform to top and bottom arms.
Visual and audible
alarms
Announce when something has passed over threshold. Activated by threshold beams.
Armored Cable and
Cover
Front Barrier sensor with cable.
END OF TABLE

1 - 6
INTRODUCTION DECEMBER 2018
32DSSK06.D
K -SERIES PUBLIC USE SERVICE MANUAL
This page intentionally left blank.

2 - 1
32DSSK06.D
INS
T
A
LLATIO
N
DECEMBER 2018 K-SERIES PUBLIC USE SERVICE MANUAL
II. INSTALLATION
his chapter contains instructions for installing the RICON K-Series®Public Use wheelchair lift into most vans and
busses, although custom installations are also possible in other types of vehicles. Due to the wide range of lift
applications, specific information for every possible application is not available. The following general procedures
will apply to most installations. Contact the Ricon Product Support department for instruction on installations not cov-
ered. To install lift, refer to following sections and perform procedures carefully and in the order that they are presented.
Be certain that installation instructions are followed exactly and do not eliminate any steps or modify product.
NOTE: Carefully review the installation instructions (32ii351e) that are supplied with this lift before beginning the fol-
lowing procedures. Where these procedures conflict, the installation instructions take precedence.
A. GENERAL MECHANICAL INSTALLATION
1. LIFT LOCATION
The installation surface must be flat and level. It is recommended that lift be installed on a ½", minimum, high-
grade plywood sub-floor. However, this additional installation height may not be acceptable in cases where over-
head clearance is limited.
NOTE: Check for proper travel clearance through doorway.
a. With doors fully open, place/position lift in vehicle doorway as close as possible to door, with lift's baseplate
assembly parallel to side of vehicle.
b. Allow a distance of 3/4", if possible, between door and adjacent part of lift. Adjust the left and right side of
lift to accommodate subframe members.
c. Verify proper clearance of door frame, passenger seats, and outer edge of vehicle floor and possible inter-
ference with wires, fluid lines, subframe members, etc.
2. LIFT INSTALLATION GUIDELINES
The lift mounting is a very important step. Improper mounting or fastening of baseplate can adversely affect lift per-
formance. Although fastening details may vary from one vehicle to the next, these general principles apply:
Be certain that all mounting bolts are properly installed and tightened. Bolts used to fasten baseplate assembly
to vehicle floor must have a minimum strength rating of SAE Grade 5 and be torqued to 28 ft lbs, dry. Recog-
nize that the most important bolts are those along the rear of lift, since these retain the majority of the load.
Refer to Figures 2-1 and 2-5. Improper torquing sequence of baseplate bolts may result in a warped or bowed
baseplate, which can cause platform to move erratically.
RSM0004800
CORRECT BOWED UP
TIGHTEN HERE
LOOSE N HERE TIGHTEN HERE
LOOSE N HERE
BOWED DOWN
FIGURE 2-1: EXAMPLES OF BASEPLATE WARPAGE
T

2 - 2
INSTALLATIO
N
DECEMBER 2018
32DSSSK06.D
K-SERIES PUBLIC USE SERVICE MANUAL
Refer to Figure 2-2. On Ford van installations, clamping bars are used to help evenly distribute floor loading
and should only be cut if needed to clear a subframe member. A subframe member must be used to support
clamping bar.
12"
MINIMUM UNSUPPORTED
CLAMPING BAR LENGTH
CLAMPING BAR
SUBFRAME WHERE POSSIBLE
CLAMPING BAR SUPPORTED BY
SUBFRAME MEMBER
VEHICLE FLOOR
FIGURE 2-2: FORD VAN CLAMPING BAR ARRANGEMENT
3. LIFT INSTALLATION INTO VANS
This is a general procedure for installing Ricon lifts into Ford, Dodge, and Chevrolet full size vans.
a. Refer to Figure 2-3. Use four 1" x 3/8" bolts, 3/8" washers, 3/8" lock washers, and 3/8" hex nuts to assem-
ble two bracket assembly kits.
NOTE: The top bracket must overlap bottom bracket, and both slots must face outward.
RSM0004100
BOTTOM BRACKET
TWO PER BRACKET ASSEMBLY
TOP BRACKET
(LEVEL WITH VEHICLE FLOOR)
VEHICLE FLOOR LEVEL
VEHICLE STEPWELL
FIGURE 2-3: STEPWELL BRACKET
b. Position brackets on stepwell and adjust height of both bracket assemblies so that top bracket is level with
vehicle floor. Tighten bracket assembly bolts.
c. Verify that lift is fully folded (stowed) with handrails folded tight against vertical arms. If necessary, use
manual pump.
WARNING
LIFT WEIGHT IS APPROXIMATELY 340 - 370 LBS. USE EXTREME CARE WHEN POSITIONING BECAUSE
STEPWELL BRACKETS MAY TIP. THIS PROCEDURE MUST NOT BE ATTEMPTED BY ONE PERSON.

2 - 3
32DSSK06.D
INS
T
A
LLATIO
N
DECEMBER 2018 K-SERIES PUBLIC USE SERVICE MANUAL
d. Refer to Figure 2-4. With doors fully open, position lift in vehicle doorway so that back of lift is supported
by vehicle floor, and front of lift is supported by both bracket assemblies.
RSM0004200
BRACKET ASSEMBLY
LIFT FRONT
VEHICLE FLOOR
LIFT REAR
FIGURE 2-4: BRACKET ASSEMBLY
e. Fasten Baseplate to Floor:
NOTE: If Ricon power door operators are used, install them first. They may influence location of lift.
Be certain baseplate is flush against vehicle floor. The baseplate may be slightly offset in door opening to
provide proper clearance for passenger seats.
Before drilling, verify that lift position does not interfere with closing of vehicle doors or operation of passen-
ger seats.
If this lift is being installed in a Dodge van with sliding doors, omit the bolts in baseplate holes 7 and 8.
f. Mark and Drill Holes:
CAUTION
Before drilling holes, verify that underlying wires and tubing will not be damaged.
1) Refer to Figure 2-5. Mark and drill five 25/64" baseplate mounting holes (1, 2, 3, 4, and 5) through ve-
hicle floor. (On Dodge and GM vans, you must drill through vehicle floor and subframe).
RSM0004300
FIGURE 2-5: VAN BASEPLATE HOLES
2) Place five 8" x 3/8" carriage bolts (use 4" x 3/8" bolts on Ford vans) into holes to secure position.
3) Refer to Figure 2-6 on the following page. Match and align top holes of stepwell brackets 6, 7, 8, and
9, with baseplate holes 6, 7, 8, and 9. Mark lower stepwell bracket holes 10, 11, 12, and 13 onto vehi-
cle step.
4) Remove five carriage bolts installed in step 2). Carefully push lift into vehicle interior.
5) Drill 1/4" dia holes through marked locations 10, 11, 12, and 13.

2 - 4
INSTALLATIO
N
DECEMBER 2018
32DSSSK06.D
K-SERIES PUBLIC USE SERVICE MANUAL
RSM0004400
VEHICLE FRONT
VEHICLE REAR
FIGURE 2-6: STEPWELL BRACKET HOLE LOCATIONS
g. Fasten Bracket Assemblies and Lift:
1) Use 1-1/2" x 5/16" sheet metal screws with 5/16" lock washers to secure lower brackets to vehicle step
holes 10 through 13.
NOTE: If the screw in position 13 interferes with proper door operation, do not install.
2) Reposition lift and verify that surface beneath lift is free of obstacles.
3) Insert five 8" x 3/8" carriage bolts through mounting holes at rear of baseplate assembly, and insert four
1-1/2" x 3/8" carriage bolts through baseplate and bracket assemblies. Place 3/8" washers, lock wash-
ers, and nuts under bracket assemblies, and finger tighten nuts.
NOTE: On Dodge and GM vans, place five 4" x 4" plates, 3/8" washers, lock washers and hex nuts on 8" x 3/8"
carriage bolts under van and finger tighten. On Ford models, reinforce vehicle floor with clamping bars.
They are installed in positions 1, 2, 3, 4, and 5 and run across width of baseplate towards center of van.
4) Before tightening carriage bolts, verify that lift is level with vehicle floor. Adjust bracket assembly bolts if
necessary.
5) Tilting lift towards inside of van may hinder its initial unfolding. Install lift with its baseplate assembly as
level as possible. Tightening carriage bolts requires special care to keep baseplate assembly from
warping when secured to vehicle floor. If baseplate assembly warps, the vertical arms will not be paral-
lel. Make corrections by shimming at appropriate locations. To help prevent warping, tighten the eight
carriage bolts (six on Dodge van with sliding door) to 28 ft. lbs. in the appropriate sequence:
DODGE WITH SWING DOORS, ALL FORD AND GM VANS .......... 3, 1, 2, 4, 5, 6, 7, 8, 9
DODGE WITH SLIDING DOORS ...............................................................3, 1, 2, 4, 5, 6, 9
NOTE: Vertical arms must be parallel for proper operation. Adjust bolts as required. Best results are obtained
when lift is mounted on plywood. Shims, although best avoided, may be used if required.
6) Make certain that holes 14 and 15 on the front of each bracket assembly are drilled through, and 5/16"
bolts are inserted to lock position of bracket assemblies.

2 - 5
32DSSK06.D
INS
T
A
LLATIO
N
DECEMBER 2018 K-SERIES PUBLIC USE SERVICE MANUAL
4. LIFT INSTALLATION INTO BUSES
Refer to Figure 2-7. Clamping bars are used on most bus installations to help distribute floor loading and should be
cut only if needed to clear a subframe member. Use the flange of a subframe member to support the clamping bar.
(BAR)
SUBFRAME
VEHICLE FLOOR
CROSS MEMBER
SUBFRAME WHERE POSSIBLE
CLAMPING BAR SUPPORTED BY
MINIMUM UNSUPPORTED
CLAMPING BAR LENGTH
12"
FIGURE 2-7: BUS CLAMPING BAR ARRANGEMENT
WARNING
LIFT WEIGHT IS APPROXIMATELY 340-370 LBS. TAKE EXTREME CARE WHEN POSITIONING BECAUSE
STEPWELL BRACKETS MAY TIP. THIS PROCEDURE MUST NOT BE ATTEMPTED BY ONE PERSON.
a. Open doors fully and position lift so that it is centered in vehicle doorway. Close doors and move lift out-
ward until it clears doors by a minimum of ½”. The baseplate must be parallel to side of bus. Open manual
pump release valve (CCW) and allow folded platform to fully settle against latch on baseplate. Verify that
interference is not present between lift and doors. Reposition lift, if necessary. Close pump release valve;
do not overtighten valve.
CAUTION
Before drilling holes, verify that underlying wires and tubing will not be damaged.
b. Refer to Figure 2-8. Mark and drill ten 25/64" baseplate mounting holes (1 thru 10) through vehicle floor.
1245
67910
3
8
FIGURE 2-8: BUS BASEPLATE HOLES
c. Fasten lift:
7) Insert ten 4” x 3/8” carriage bolts through baseplate and vehicle floor.
8) Install five support tubes on bolts underneath vehicle floor (across baseplate), i.e., from 1 to 5, 2 to 6,
etc, and secure lift to vehicle floor with 3/8” washers, lock washers and hex-nuts.
9) Use care when tightening carriage screws to prevent baseplate warpage. If baseplate assembly warps,
vertical arms will not be parallel. Make corrections by shimming at appropriate locations. To help pre-
vent warping, tighten the eight carriage screws to 28 ft-lbs in following sequence:
2, 3, 6, 7, 1, 4, 5, 8
NOTE: Vertical Arms must be parallel for proper operation. Adjust screws as required. Best results are ob-
tained when lift is mounted on plywood. Shims, although best avoided, may be used if required.

2 - 6
INSTALLATIO
N
DECEMBER 2018
32DSSSK06.D
K-SERIES PUBLIC USE SERVICE MANUAL
B. ELECTRICAL INSTALLATION
CAUTION
Do not route any wire while it is connected to the battery.
Route wires clear of moving parts, brake lines, and the exhaust system. Secure to the vehicle.
When routing an electrical wire through vehicle floor or walls, use a grommet to protect wires from chafing.
Check underside of vehicle before drilling to avoid damage to fuel lines, vent lines, brake lines, or wiring.
RSM0043800
4 AWG POWER CABLE:
SHORT CABLE NOT TO EXCEED 12”,
CONNECTED BETWEEN BATTERY (OR
MAIN POWER SOURCE) AND MAIN
CIRCUIT BREAKER
90 AMP MAIN
CIRCUIT BREAKER
BUS BAR
8 AMP CIRCUIT
BREAKER
GROUND
18 AWG WIRE
(BLUE)
10 AWG WIRE
(RED)
SPOOL VALVE
(DECELERATION)
LH PUMP
TERMINAL
BRACKET
4 AWG POWER CABLE:
LONG CABLE CONNECTED
BETWEEN MAIN CIRCUIT
BREAKER AND POSITIVE
CONNECTION BLOCK
POSITIVE CONNECTION
BLOCK
(CUTAWAY SHOWN FOR
CLARITY)
12V PUMP
HARNESS
HYDRAULIC POPPET
VALVE (DOWN)
PRESSURE SWITCH
MAIN POWER HARNESS
CONNECTED TO
SOLENOID
SIDE PUMP
SOLENOID
BUS BAR
8 AMP CIRCUIT
BREAKER
TOP PUMP SOLENOID
4 AWG GROUND CABLE
FROM BATTERY TERMINAL
A
MOTOR TERMINAL BOOT
FACTORY INSTALLED ON PUMP
A
B
MOTOR TERMINAL BOOT
KIT P/N 37152 SHIPPED WITH PUMP HANDLE
ATTACH TO TERMINAL
B
FIGURE 2-7: ELECTRICAL INSTALLATION DIAGRAM

2 - 7
32DSSK06.D
INS
T
A
LLATIO
N
DECEMBER 2018 K-SERIES PUBLIC USE SERVICE MANUAL
1. INSTALL MAIN CIRCUIT BREAKER
a. Disconnect battery.
b. Mount main circuit breaker inside engine compartment within 12 inches of battery (to minimize length of un-
protected cable). Avoid installing near a heat source.
2. ROUTE AND CONNECT MAIN POWER CABLE
CAUTION
Check under-side of vehicle before drilling to avoid damage to fuel lines, vent lines, brake lines, or wiring.
NOTE: For applications where power cable is to pass through sheet metal, drill a 3/4" hole and use wire clamp pro-
vided. For applications where cable is to pass through plywood, drill a 1" hole and use black plastic grom-
met provided.
a. Refer to Figures 2-7 and 2-8. Drill a hole through vehicle floor near or under pump solenoids so power ca-
ble can reach positive stud of side solenoid (the stud on side solenoid that is not connected to top solenoid
with a bus bar). Drill hole where the installed pump cover will cover it.
A
B
0.75” DIAMETER FOR FLOOR METAL
1.00” DIAMETER FOR OTHER
MATERIAL
30” PLATFORM WIDTH = 3.375”
32” PLATFORM WIDTH = 4.375”
A
RSM0043900
HYDRAULIC PUMP
BASEPLATE
B
1.25”
FIGURE 2-8: POWER CABLE ACCESS HOLE
b. Refer to Figure 2-7. Install supplied heavy ring terminals to each end of the short (12" long) 4 AWG power
cable. Install one ring terminal, only, to one end of long power cable. Use an appropriate crimp tool (such
as Ricon hammer tool, part of kit P/N 01243).
c. Connect ring terminal end of long 4 AWG power cable to 90A main circuit breaker, then route power cable
underneath vehicle floor and up through hole in floor.
d. Refer to Figure 2-7. Detach Kit P/N 37152 (Shipped with pump handle) then install onto ring terminal con-
nector before installing ring terminal onto positive connection block.
e. Tie power cable to vehicle chassis, and to pump assembly harness using cable ties. Avoid pinch points,
exhaust system, moving parts, and brake lines. Verify that power cable is secure.
CAUTION
Be sure that there is no interference with any parts that
could damage power cable or other wires in any way.

2 - 8
INSTALLATIO
N
DECEMBER 2018
32DSSSK06.D
K-SERIES PUBLIC USE SERVICE MANUAL
f. Refer to Figure 2-9. Cut excess wire from long cable, install heavy ring terminal, and then connect to side
solenoid. Verify that red wire from main circuit breaker (if applicable) is connected to positive solenoid pole.
RSM0044000
POSITIVE CONNECTION
BLOCK TERMINAL
GROMMET 4 AWG POWER CABLE
INSTALL BOOT (KIT 37152)
FIGURE 2-9: CABLE ROUTING
g. Connect 12" cable, with ring terminals, from positive battery terminal to main circuit breaker terminal.
3. CONNECT CONTROL PENDANT
a. Refer to Figure 2-10. Connect hand-held control pendant to six-pin connector at left side of baseplate and
secure cable with supplied bracket and cable clamps.
PENDANT INTERFACE
INTERLOCK INTERFACE
STRAIN RELIEF
CABLE CLAMP
BRACKET
FIGURE 2-10: STRAIN RELIEF KIT
b. Install wall portion of dovetail clip (pendant storage) in an appropriate and safe location near lift.
CAUTION
Be sure that harness does not interfere with any moving
parts, or binds against any parts, or is pinched in any way.

2 - 9
32DSSK06.D
INS
T
A
LLATIO
N
DECEMBER 2018 K-SERIES PUBLIC USE SERVICE MANUAL
4. GROUND (COMMON) CONNECTIONS
a. 12VDC Systems
12VDC powered lifts are chassis grounded and do not require a separate ground cable connection to battery.
However, if the common side of the lift electrical system is connected to chassis with a cable, the cable must be
attached in a manner that provides a reliable electrical connection. If ground cable is attached to an existing
ground circuit, the circuit must be capable of conducting an additional 90 amps.
b. 24VDC Systems
1) Ricon recommends that a dedicated ground cable be used in 24VDC installations. A 4GA cable, or
heavier, must be used.
2) Refer to Figure 2-11. The ground cable is connected from the negative stud (-) on pump motor to the
negative battery terminal.
24V TOP SOLENOID
4GA POWER CABLE
FROM
CIRCUIT BREAKER
24V SIDE SOLENOID
4GA GROUND CABLE
TO
BATTERY TERMINAL GROUND
CONNECTION
GROUND
CONNECTION
SEE
NOTE
SEE
NOTE
NOTE: CONNECT THESE TERMINALS TO
PIN 3 (WHITE) OF PUMP CONNECTOR.
FIGURE 2-11: 24VDC DUAL SOLENOID WIRING
