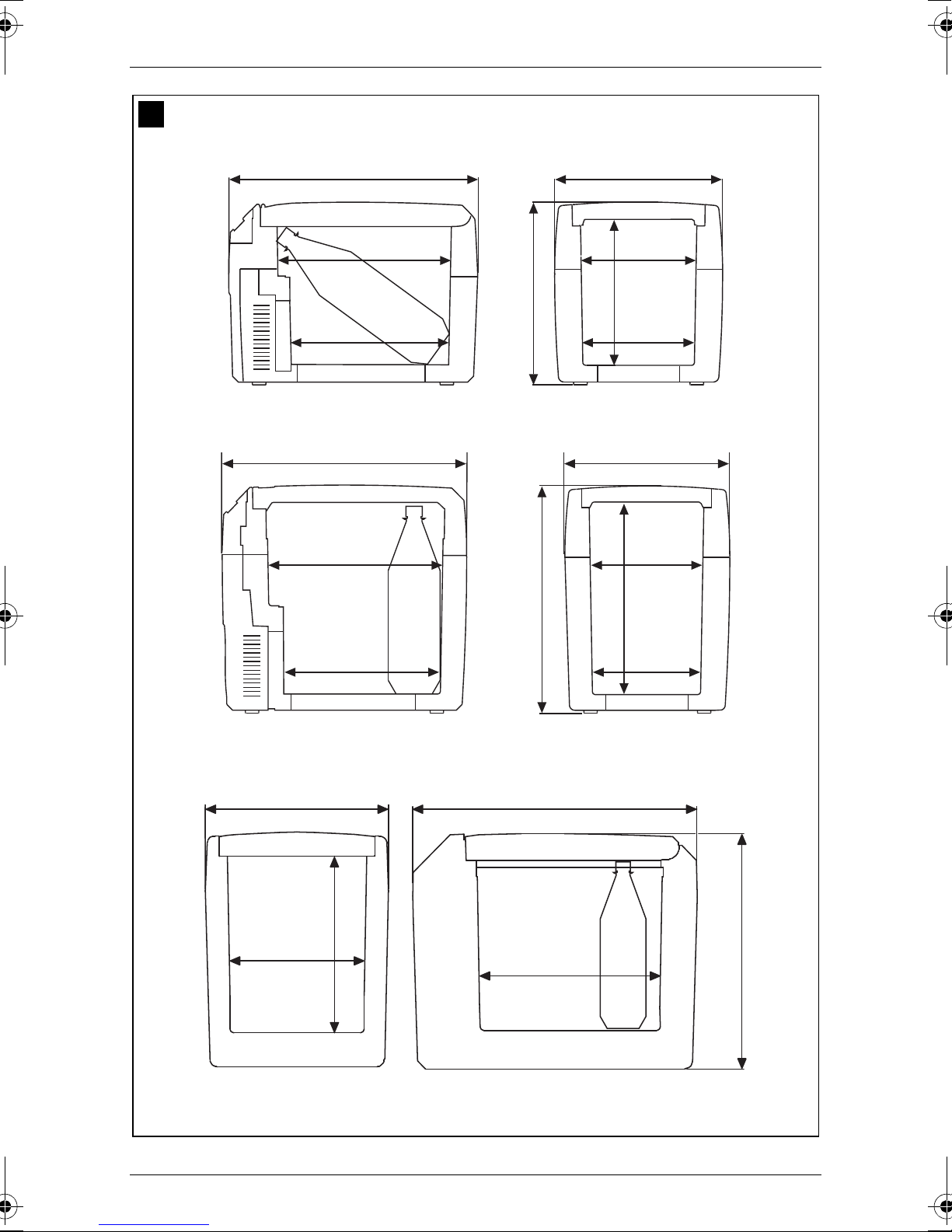

TC-14_35.book Seite 1 Mittwoch, 14. September 2011 9:34 09

TC-Serie
2
550
340
460
1,5/2 L
376
265
350
1
TC-14FL-AC
TC-21FL-AC
TC-35FL-AC
450
323
250
303
208
201
260
328
1,5/2 L
450
319
288
1,5/2 L
303
420
198
208
352
TC-14_35.book Seite 2 Mittwoch, 14. September 2011 9:34 09

TC-Serie
3
2
ABC D E F
12/24 V DC
3
4
TC-14_35.book Seite 3 Mittwoch, 14. September 2011 9:34 09

TC-Serie
4
5
TC-14_35.book Seite 4 Mittwoch, 14. September 2011 9:34 09

EN
Information on using the installation instructions TC-series
16
Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is passed on to
another person, this operating manual must be handed over to the user
along with it.
The manufacturer cannot be held liable for damage resulting from
improper usage or incorrect operation.
List of contents
1 Information on using the installation instructions . . . . . . . . . . . . . . . 16
2 Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4 Use as intended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7 Cleaning and servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
1 Information on using the installation
instructions
DDANGER!
Safety instruction: Failure to observe this instruction will cause
fatal or serious injury.
!WARNING!
Safety instruction: Failure to observe this instruction can cause
fatal or serious injury.
!CAUTION!
Safety instruction: Failure to observe this instruction can lead to
injury.
TC-14_35.book Seite 16 Mittwoch, 14. September 2011 9:34 09

EN
TC-series Safety notes
17
ANOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
INOTE
Supplementary information for operating the product.
➤Action: This symbol indicates that action is required on your part. The
required action is described step-by-step.
✓This symbol describes the result of an action.
fig. 15, page 3: This refers to an element in an illustration. In this case,
item 5 in figure 1 on page 3.
Please observe the following safety instructions.
2 Safety notes
2.1 General safety
DDANGER!
On boats: If the appliance is powered by the mains, ensure that
the power supply has a residual current circuit breaker.
!WARNING!
Do not operate the device if it is visibly damaged.
This device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
Persons whose physical sensory or mental capacities prevent
them from using this device safely should not operate it without
the supervision of a responsible adult.
Electrical devices are not toys.
Always keep and use the device out of the reach of children.
Children must be supervised to ensure that they do not play with
the device.
If this device's power cable is damaged, it must be replaced by
the manufacturer, customer service or a similarly qualified
person in order to prevent safety hazards.
TC-14_35.book Seite 17 Mittwoch, 14. September 2011 9:34 09

EN
Safety notes TC-series
18
!CAUTION!
Disconnect the device from the mains
– before cleaning and maintenance
–afteruse
Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
Only connect the device as follows:
– With the DC cable to a DC plug socket in the vehicle (e. g.
cigarette lighter)
– Or with the 230 V connection cable to the 230 V AC mains
supply
Check that the voltage specification on the type plate
corresponds to that of the energy supply.
The cooling device is not suitable for transporting caustic
materials or materials containing solvents.
Never pull the plug out of the socket by the cable.
If the cooler is connected to the DC socket: Disconnect the
cooler and other power consuming devices from the battery
before connecting the quick charging device.
If the cooler is connected to the DC socket: Disconnect the
cooler or switch it off when you turn off the engine. Otherwise
you may discharge the battery.
2.2 Operating the device safely
DDANGER!
Do not touch exposed cables with your bare hands. This
especially applies when operating the device with an AC mains
power supply.
!CAUTION!
Before starting the device, ensure that the power supply line
and the plug are dry.
ANOTICE!
Do not use electrical devices inside the cooler unless they are
recommended by the manufacturer for the purpose.
TC-14_35.book Seite 18 Mittwoch, 14. September 2011 9:34 09

EN
TC-series Scope of delivery
19
Do not place the device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the
heat that arises during operation does not build up. Make sure
that the device is sufficiently far away from walls and other
objects so that the air can circulate.
Ensure that the ventilation slots are not covered.
Do not fill the inner container with ice or fluid.
Never immerse the device in water.
Protect the device and the cable against heat and moisture.
3 Scope of delivery
Refrigerator
Connection cable for 220-240 Vw
Connection cable for 12/24 Vg
Instruction manual
Check before starting up the device that all parts are available belonging to
the scope of delivery.
4 Use as intended
The refrigerator can be used to cool and keep foodstuffs warm. The device
can be also used for camping purposes.
If you want to cool medicine, check please if the cooling capacity of the de-
vice corresponds to the requirements of the respective pharmaceuticals.
All materials processed in the refrigerator are safe for foodstuffs.
TC-14_35.book Seite 19 Mittwoch, 14. September 2011 9:34 09

EN
Technical description TC-series
20
5 Technical description
The cooling box is suitable for mobile use. It can cool goods up to max. 30 °C
under ambient temperature (thermostatic switch-off with approx. +1 °C) or
keep them cool or warm them up to max. 65 °C or keep them warm.
If the device has reached the set temperature range, then it will automatically
switch over to the energy save mode. In this mode only the energy is con-
sumed which is required to reach the temperature inside the box.
The cooling is a wear-free thermo-electric cooler with heat removal through
a ventilator.
The cooling box is equipped with an automatic priority circuit. Thus it is en-
sured that with simultaneous connection to the alternating current circuit and
to a 12/24-V-battery, the alternating current circuit will be used.
6 Operation
INOTE
Before you put the new refrigerator into operation, you should clean
it inside and outside with a damp cloth for hygienic reasons (see
also chapter “Cleaning and servicing” on page 23).
6.1 Tips to save energy
INOTE
A ventilator in the interior space of the cooling box provides for the
circulation of the cold air within the box. Thus a better cooling ca-
pacity will be achieved. In order that the cold air cannot reach the
outside when opening the cooling box, this is equipped with a
switch which turns off the ventilator as soon as the lid is opened.
Choose a well ventilated installation location which is protected against
direct sunlight.
Allow warm food to cool down first before placing it in the device to keep
cool.
Do not open the cooling device more often than necessary.
Do not leave the cooler unit open for longer than necessary.
If you want to set an increased energy efficiency and a limited cooling
capacity for the cooler unit, use the cooler’s ECO mode.
TC-14_35.book Seite 20 Mittwoch, 14. September 2011 9:34 09

EN
TC-series Operation
21
6.2 TC-35FL-AC: Opening the cooler
The TC-35FL-AC cooler must be unlocked for opening (fig. 4, page 3).
6.3 Switch on the cooling box
ANOTICE!
Take care that there are only objects or goods in the cooling box
which may be cooled or heated to the selected temperature.
➤Place the cooling box on a stable base.
INOTE
The plug is safe against wrong polarity: You can plug it only in one
direction into the (fig. 3, page 3) socket.
➤Connect the cooling box
– with the connecting cable contained in the scope of delivery to a 220-
240 V socket or...
– with the supplied connecting cable to the 12/24 V socket in the vehicle
(fig. 3, page 3).
➤Press the button “ON/OFF” at the control panel (fig. 2A, page 3) to
switch on the cooling box.
✓The cooling box starts to cool or heat the interior space.
6.4 Switch over between cooling and heating
➤If you want to switch over between cooling and heating, press the button
“HOT/COLD” (fig. 2D, page 3).
INOTE
The control unit of the cooling box has a memory function. It mem-
orises the selected temperature range for each mode (cooling and
heating). Thus the temperature range which is previously selected
in the mode is set again with each switching on or switching over.
Operating display Operating mode
red (fig. 2B, page 3) heating
blue (fig. 2C, page 3) cooling
TC-14_35.book Seite 21 Mittwoch, 14. September 2011 9:34 09

EN
Operation TC-series
22
✓The red or blue operating display lights up and the device starts to cool/
heat.
➤When you want to finish the cooling or heating process, press the button
“ON/OFF” (fig. 2A, page 3).
➤When you stop using the cooler, disconnect it from the mains.
6.5 Select temperature
The status display of the temperature (fig. 2F, page 3) indicates the select-
ed temperature range. With an increasing number of illuminating LEDs, the
intensity of the temperature range also increases.
INOTE
The following temperature indications are subject to tolerances and
are dependent on the measuring position.
Interior space-temperature at approx. 25 °C ambient temperature:
➤If you want to select the temperature to cool/heat, press the button
“Temp” (fig. 2F, page 3), until the requested temperature range is
reached.
6.6 Connect to the cigarette lighter
INOTE
When you connect the cooling box to the cigarette lighter of your
vehicle (fig. 3, page 3), observe that you have to turn on the igni-
tion, if necessary, so that the device is supplied with current.
Status display Temperature range
Cooling
seven illuminating LEDs approx 1 °C in the interior space
an illuminating LED approx 12 °C in the interior space
(ECO mode)
Heating seven illuminating LEDs approx 65 °C in the interior space
an illuminating LED approx 50 °C in the interior space
TC-14_35.book Seite 22 Mittwoch, 14. September 2011 9:34 09

EN
TC-series Cleaning and servicing
23
6.7 Removing the lid
You can remove the lid of the cooler (fig. 5, page 4):
➤Open the lid until it is at a ca. 30° angle to the cooler.
➤Pull the lid forwards and lift it off diagonally.
7 Cleaning and servicing
!WARNING!
Always disconnect the device from the mains before you clean and
service it.
ANOTICE! Risk of damage
Never clean the cooler under running water or in dish water.
Do not use abrasive cleaning agents or hard objects during
cleaning as these can damage the cooler.
➤Occasionally clean the device interior and exterior with a damp cloth.
8 Disposal
➤Place the packaging material in the appropriate recycling waste bins
wherever possible.
MIf you wish to finally dispose of the product, ask your local recycling
centre or specialist dealer for details about how to do this in
accordance with the applicable disposal regulations.
TC-14_35.book Seite 23 Mittwoch, 14. September 2011 9:34 09

EN
Troubleshooting TC-series
24
9 Troubleshooting
Fault Possible cause Suggestion
Your box does not func-
tion and the fan impeller
which is visible from
outside does not rotate.
The cigarette lighter in
your vehicle does not
conduct any voltage.
In the most vehicles, the ignition switch
must be switched on, so that the cigarette
lighter has voltage.
The ignition is switched
on and the box does not
work.
Disconnect the plug
immediately from the
socket and execute the
following checks.
The socket of the ciga-
rette lighter is dirty.
This results in a poor
electrical contact.
Clean the socket of the cigarette lighter
with a non-metallic brush and a solvent, so
that the middle contact pin is clean. If your
cooling box plug becomes very warm in
the cigarette lighter box, either the socket
must be cleaned or the plug is possibly not
correctly assembled.
The fuse of the con-
necting cable is burnt
through.
Replace the fuse of the connecting cable
(5 A).
The vehicle fuse is
burnt through.
Replace the vehicle fuse of the cigarette
lighter (usually 15 A). (Observe the operat-
ing instructions in your motorcar for this).
Your box does not cool
satisfactorily and the fan
impeller at the outside
does not rotate.
The ventilator motor is
defective.
The repair can be executed only by an
authorized customer service.
Your box does not cool
satisfactorily and the fan
impeller at the outside
does not rotate.
The ventilator motor
for the inner ventilator
is defective.
The repair can be executed only by an
authorized customer service.
The thermo-electric
element is defective.
The integrated power
unit is defective.
The repair can be executed only by an
authorized customer service.
TC-14_35.book Seite 24 Mittwoch, 14. September 2011 9:34 09

EN
TC-series Technical data
25
10 Technical data
Subject to changes due to technical progress and availability.
TC-14FL-AC TC-21FL-AC TC-35FL-AC
Content: 14 l 21 l 35 l
Input voltage: 12/24 Vg/220–240 Vw
Power input: 46 W (12 Vg)
50 W (24 Vg)
64 W (220–240 Vw)
Temperature range: Cooling: up to approx. 1 °C interior space-temperature
(up to 30 °C under ambient temperature)
Heating: up to approx. 65 °C interior space-temperature
Weight: 5,5kg 7kg 10kg
Inspection/Certificate:
TC-14_35.book Seite 25 Mittwoch, 14. September 2011 9:34 09

Europe
aDometic Austria GmbH
Neudorferstrasse 108
2353 Guntramsdorf
[phone]
[phone]
Mail: [e-mail]
hDometic Switzerland AG
Riedackerstrasse 7a
CH-8153 Rümlang (Zürich)
[phone]
[phone]
Mail: [e-mail]
lDometic Denmark A/S
Nordensvej 15, Taulov
DK-7000 Fredericia
[phone]
[phone]
Mail: [e-mail]
mDometic Spain S.L.
Avda. Sierra del Guadarrama, 16
E-28691 Villanueva de la Cañada
Madrid
[phone]
[phone]
Mail: [e-mail]
pDometic S.N.C.
ZA du Pré de la Dame Jeanne
F-60128 Plailly
[phone]
[phone]
Mail: [e-mail]
qDometic Finland OY
Mestarintie 4
FIN-01730 Vantaa
[phone]
[phone]
Mail: [e-mail]
CDometic Italy S.p.A.
Via Virgilio, 3
I-47100 Forlì
[phone]
[phone]
Mail: [email protected]
LDometic Norway AS
Skolmar 24
N-3232 Sandefjord
[phone]
[phone]
Mail: firmapo[email protected]
NDometic Benelux B.V.
Ecustraat 3
NL-4879 NP Etten-Leur
[phone]
[phone]
Mail: [email protected]
UDometic Scandinavia AB
Gustaf Melins gata 7
S-42131 Västra Frölunda (Göteborg)
[phone]
[phone]
Mail: [email protected]
4Dometic UK Ltd.
Dometic House · The Brewery
Blandford St. Mary
Dorset DT11 9LS
[phone]
[phone]
Mail: [email protected]
Overseas + Middle East
8Dometic Australia
1 John Duncan Court
Varsity Lakes QLD 4227
[phone]
[phone]
Mail: [email protected].au
5WAECO Impex Ltd.
Suites 2207-2211 · 22/F · Tower 1
The Gateway · 25 Canton Road,
Tsim Sha Tsui · Kowloon
Hong Kong
[phone]
[phone]
Mail: [e-mail]
7WAECO Impex Ltd.
Taipei Office
2 FL-3 · No. 56 Tunhua South Rd, Sec 2
Taipei 106, Taiwan
[phone]
[phone]
Mail: [e-mail]
6Dometic AB
Regional Office Middle East
P O Box 74775
Dubai, United Arab Emirates
[phone]
[phone]
Mail: [e-mail]
0Dometic Marine Division
2000 N. Andrews Ave. Extension
Pompano Beach, FL 33069 USA
[phone]
[phone]
Mail: [e-mail]
kDometic WAECO International GmbH
Hollefeldstraße 63 · D-48282 Emsdetten
[phone] · [phone]
Mail: [email protected] · Internet: www.dometic-waeco.de
www.dometic-waeco.com
4445100164 09/2011
TC-14_35.book Seite 112 Mittwoch, 14. September 2011 9:34 09
