Contents CD-30
14
Please read this manual carefully before starting the machine. Keep it
in a safe place for future reference. If the device is resold, this manual
must be handed over to the purchaser along with the device.
Contents
1 Notes on using the instruction manual. . . . . . . . . . . . . . . . . . . . . . . 15
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4 Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8 Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9 Defrosting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
11 Troubleshooting checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
CD-30.book Seite 14 Dienstag, 22. Juni 2010 3:38 15

CD-30 Notes on using the instruction manual
15
1 Notes on using the instruction manual
The following symbols are used in this instruction manual:
Caution!
Safety instruction, failure to observe this instruction can cause
injury or damage the device.
Caution!
Safety instruction, relating to a danger from electrical current or
voltage. Failure to observe this instruction can damage the device
and impair its function and cause injury.
Note
Supplementary information for operating the device.
➤Action: this symbol indicates that you need to do something.
The required action is described step-by-step.
✓This symbol indicates the result of an action.
Please observe the following safety instructions.
2 Safety instructions
2.1 General safety
zOnly connect the device to the 12 or 24 Volt DC power supply in your
vehicle.
zIf the cable is damaged, it must be replaced to prevent possible electrical
hazards.
zDo not operate the device if it is visibly damaged.
zDisconnect the cooling device and other power consuming devices from
the battery before connecting the quick charging device.
zThis device may only be repaired by specialist personnel. Inadequate repairs
can lead to considerable hazards.
Should your device need to be repaired, please contact WAECO
Customer Services.
CD-30.book Seite 15 Dienstag, 22. Juni 2010 3:38 15

Safety instructions CD-30
16
zEnsure that the condenser is sufficiently ventilated.
zOn boats: If the device is powered by the mains, ensure that the power
supply has a ground fault interrupter circuit. Mortal danger!
zCheck that the voltage specification on the type plate corresponds to that
of the energy supply.
zThe cooling device is not suitable for transporting caustic materials or
materials containing solvents.
zDo not open the refrigerant circuit under any circumstances.
zDefrost the device before its function is impaired by ice build-up.
zFood may only be stored in its original packaging or in suitable containers.
Electrical devices are no toys!
Please keep and use the device out of the reach of children.
2.2 Operating the device safely
zBefore starting the device ensure that the power supply line and the plug
are dry.
zDo not place the device near flames or other heat sources (heating, direct
sunlight, gas ovens etc.).
zDo not immerse the device in water.
zProtect the device and the cable against heat and moisture.
zWAECO cannot be held liable for damage resulting from improper usage
or incorrect operation.
zFor HGV operation:
Empty the coolbox and switch the device off (see “Switching off the
coolbox” chapter on page 20), before the driver's cabin is tipped up.
CD-30.book Seite 16 Dienstag, 22. Juni 2010 3:38 15

CD-30 Scope of delivery
17
3 Scope of delivery
4 Proper use
The drawer coolbox is suitable for use in HGVs, boats or caravans and has
been designed for a maximum permanent inclination of 30°.
The cooling device can be used at ambient temperatures of between -20 °C
and 55 °C and a maximum air humidity of 90% in constant operation.
The device is suitable for cooling foodstuffs.
If you wish to cool medicines, please check if the cooling capacity of the
device is suitable for the medicine in question.
All materials used in the cooling device are compatible for use with
foodstuffs. The refrigerant circuit is free of CFCs.
Before exposing the cooling device to extreme conditions,
please contact the manufacturer.
5 Technical description
The cooling device can cool goods or keep goods cool in a temperature
range from -2 °C to +12 °C.
The coolbox is equipped with a battery monitor which switches the
compressor off and on again and thereby protects both the battery and
compressor against damage. The switch-off and switch-on points measured
at the connection terminals of the compressor are listed in the “Technical
data” chapter on page 24.
Quantity Description
1 Drawer coolbox
2 Mounting bracket
1 Operating instructions
CD-30.book Seite 17 Dienstag, 22. Juni 2010 3:38 15

Installation CD-30
18
6 Installation
Ensure that the positive cable is connected to the positive terminal
and the negative cable to the negative terminal.
To avoid voltage loss and therefore a drop in performance, the
cable route should be kept as short as possible and should not
be interrupted if this is possible. For this reason avoid additional
switches, plug or power strips.
When choosing the installation location, ensure that the air heated
by the liquefier can be drawn off.

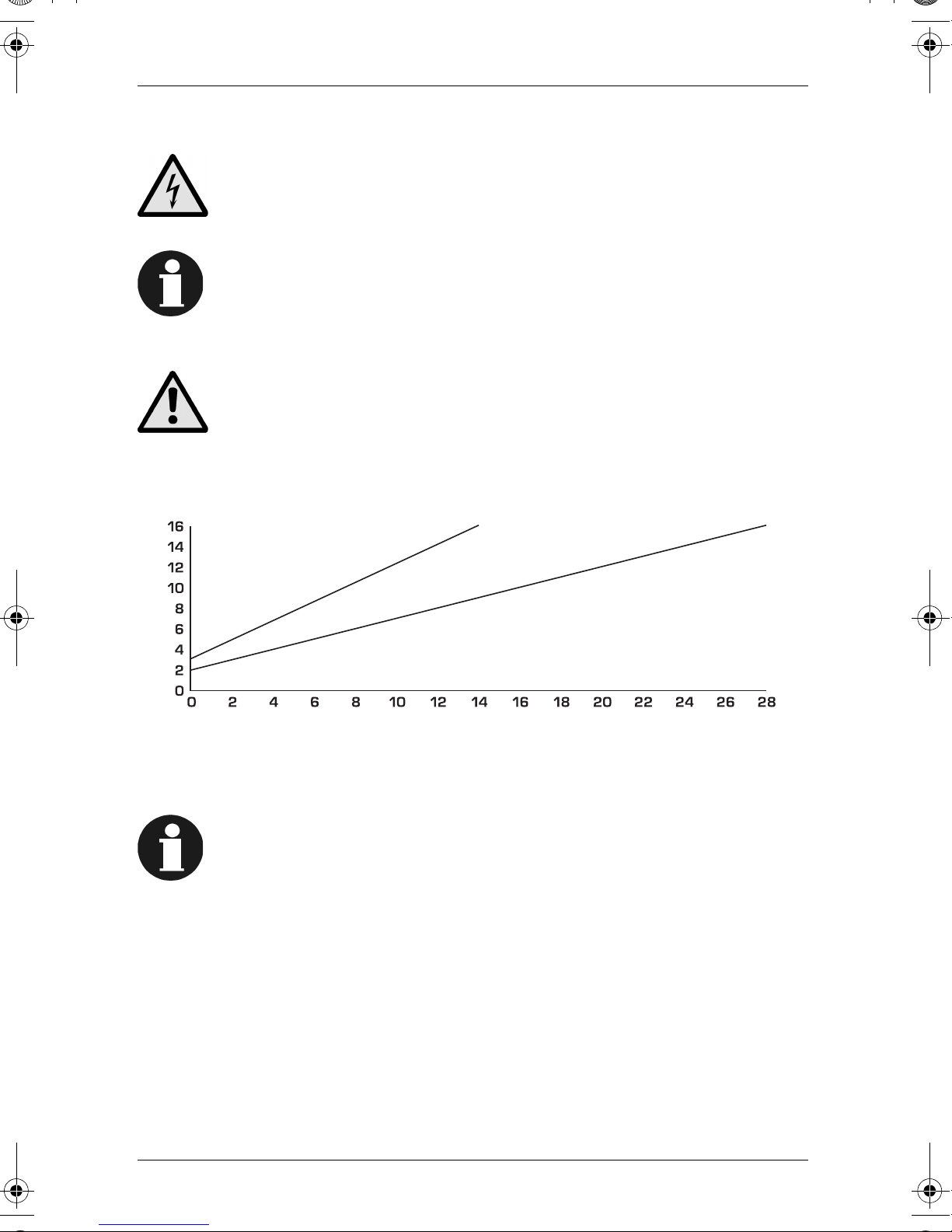

➤Determine the necessary cable cross section of the intake line using the
diagram below:
➤Connect your cooling device as directly as possible to the battery terminal
or to an outlet with a fuse of at least 15 A (12 V) or 7.5 A (24 V).
To screw the device in place use the screwing holes provided on

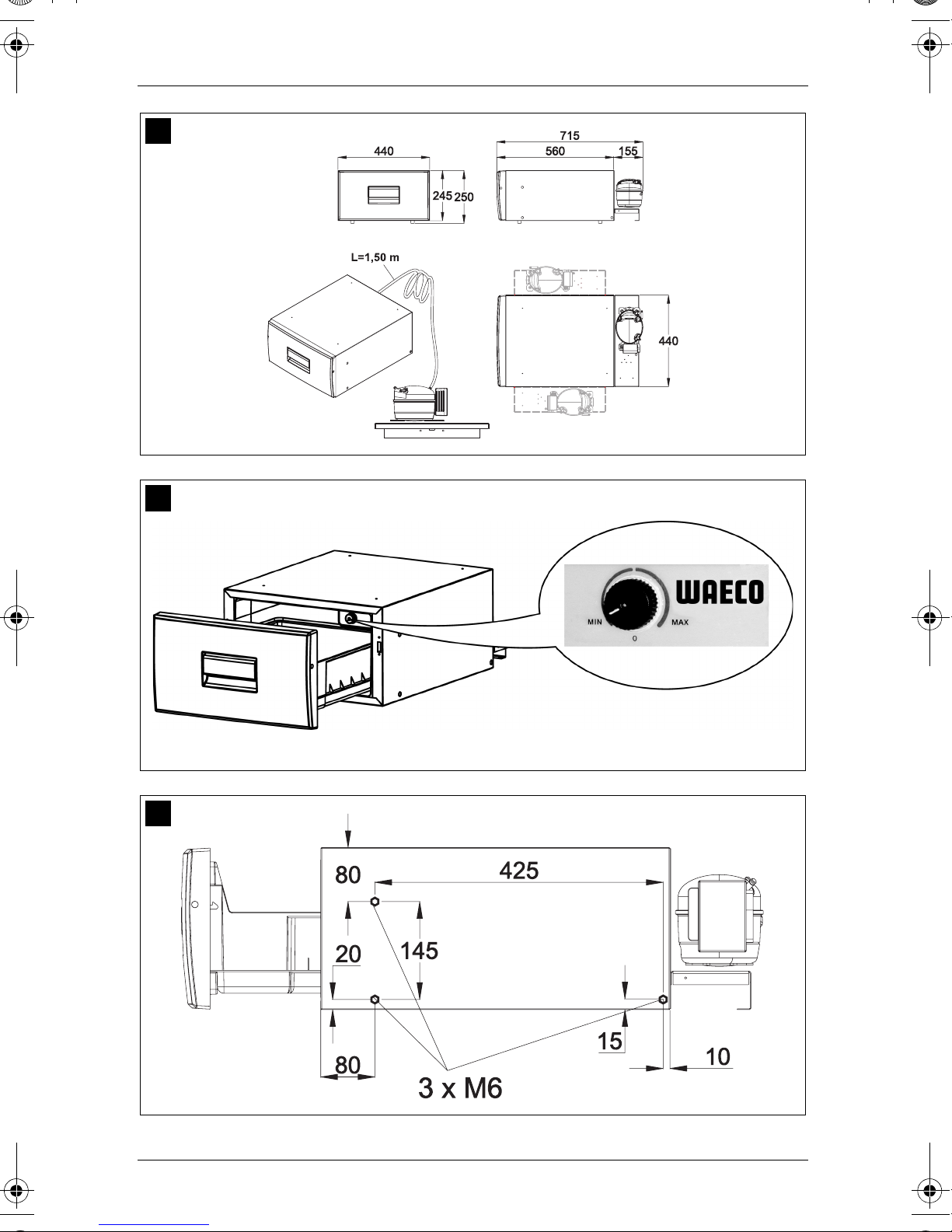

the side of the device (see fig. 3, page 2).
12 Volt device
24 Volt device
Metres of cable (m)
Cable cross section (mm²)
CD-30.book Seite 18 Dienstag, 22. Juni 2010 3:38 15

CD-30 Operation
19
7 Operation
Before starting your new cooling device for the first time, you
should clean it inside and outside with a damp cloth for hygienic
reasons (please also refer to the “Cleaning and care” chapter on
page 20).
7.1 Energy saving tips
zChoose a well ventilated installation location which is protected against
direct sunlight.
zAllow food to cool down first before placing it in the device.
zDefrost your cooling device as soon as a layer of ice forms.
zAvoid unnecessarily low temperatures.
zDo not open the cooling device more often than necessary.
zDo not leave the device open longer than necessary.
zClean the condenser of dirt (dust etc.) at regular intervals.
7.2 Switching on the coolbox
➤Open the coolbox drawer.
➤To switch on the coolbox, turn the thermostat knob clockwise
(see fig. 2 A, page 2).
✓The coolbox starts cooling the interior.
Ensure that the objects placed in the coolbox are suitable for
cooling/warming to the selected temperature.
7.3 Selecting the temperature
The switch on the thermostat (see fig. 2, page 2) displays the selected
temperature.
Switch position Temperature range
(independent of ambient temperature)
MAX approx. -2 °C in interior
MIN approx. +12 °C in interior
CD-30.book Seite 19 Dienstag, 22. Juni 2010 3:38 15

Cleaning and care CD-30
20
➤If you wish to set the temperature to cooling, turn the thermostat knob
(see fig. 2, page 2), to the desired temperature range.
➤If you wish to stop using the coolbox, disconnect the connecting cable
from the battery.
7.4 Switching off the coolbox
➤Open the coolbox drawer.
➤To switch off the coolbox, turn the thermostat knob (see fig. 2 A, page 2)
to the “0” position.
✓The coolbox is switched off.
8 Cleaning and care
If you wish to leave the cooling device switched off for a longer
period, clean it and leave the drawer slightly open. This will
prevent unpleasant odours from forming.
Caution!
Switch the coolbox off before cleaning it (see “Switching off the
coolbox” chapter on page 20).
Caution!
Do not clean the coolbox under flowing water or in dish water.
Caution!
Do not use abrasive cleaning agents or hard or sharp objects
during cleaning as these can damage the coolbox.
➤Clean the interior of the coolbox with a damp cloth from time to time.
➤Clean the exterior of the device with a damp cloth.
➤Clean the condenser of dirt (dust etc.) at regular intervals.
CD-30.book Seite 20 Dienstag, 22. Juni 2010 3:38 15

CD-30 Defrosting
21
9 Defrosting
Humidity can form frost in the interior of the cooling device. This reduces the
cooling capacity. Defrost the device in good time to avoid this.
Caution!
Do not remove the layer of ice with hard or sharp tools. These can
damage the plastic of the vaporiser.
➤Take the food or other objects out of the device and place it in another
cooling device to keep it cool, if necessary.
➤Switch the cooling device off (see “Switching off the coolbox” chapter on
page 20) and leave the drawer open.
➤Wipe off the water resulting from defrosting or – if present – empty the
collecting tray.
10 Disposal
➤Place the packaging material in the appropriate recycling waste bins
wherever possible.
If you wish to finally dispose of the device, ask your local
recycling centre or specialist dealer for details about how to
do this in accordance with the applicable disposal regulations.
CD-30.book Seite 21 Dienstag, 22. Juni 2010 3:38 15

Troubleshooting checklist CD-30
22
11 Troubleshooting checklist
Caution!
This device may only be repaired by specialist personnel.
Inadequate repairs can lead to considerable hazards.
Compressor does not run
Key
UKL : Voltage between the positive and negative electronic terminals
UON : Switch on voltage of the electronic connection terminals
(see “Technical description” chapter on page 17)
UOFF : Switch off voltage of the electronic connection terminals
(see “Technical description” chapter on page 17)
Interior temperature too low in the “MIN” thermostat setting
Feature Possible cause
UKL=0 Volt Connection supply line interrupted
Battery/main electronic switch defective (if installed)
Additional supply line fuse has blown (if installed)
UKL≤ UON Battery voltage is too low
During attempted start up
UKL≤ UOFF
Loose cable connection/poor contact (corrosion)
Cable cross section too small
Battery capacity too low
During attempted start up
UKL≥UON.
Ambient temperature too high
Insufficient ventilation
Condensor is dirty
Fan defective (if installed)
Electric circuit between
the pins in the compressor
interrupted
Defective compressor
Feature Possible cause Remedy
Compressor runs
continuously
Thermostat sensor has no contact to the
vaporiser
Secure the sensor
Short circuit in the thermostat line Change the thermostat
Thermostat defective
Compressor runs for a
long time
Large quantities have been frozen in the
vaporiser compartment
CD-30.book Seite 22 Dienstag, 22. Juni 2010 3:38 15

CD-30 Troubleshooting checklist
23
Cooling capacity drops, interior temperature rises
Noises
radio or television interference in the vehicle
Feature Possible cause Remedy
Compressor runs for a
long time/continuously
Vaporiser iced over Defrost the vaporiser
Cooling area insulation is
insufficient (moist/wet)
Adjust/replace the drawer seal
Ambient temperature too high
Insufficient ventilation Ensure that the device is
sufficiently ventilated
Condensor is dirty Clean the condenser
Fan defective (if installed) Replace the fan
Compressor does not
run often Battery capacity exhausted Charge the battery
Feature Possible cause Remedy
Loud humming A component of the refrigerant
circuit cannot move freely, the
component is lying against the
wall or against a foreign body or
is jammed between the cooling
device and the wall
Move the component carefully
so that it can move freely
Fan noise (if installed)
Feature Possible cause Remedy
Reception interference
when the compressor
is running
The electronic connection of the
cooling device is not directly
clamped on to the battery
Connect the cooling device as
directly as possible to the battery
CD-30.book Seite 23 Dienstag, 22. Juni 2010 3:38 15

Technical data CD-30
24
12 Technical data
This device is CFC-free.
Capacity: 30 l
Switch off voltage: 10.4 V at 12 V power supply
22.8 V at 24 V power supply
Switch on voltage: 11.7 V at 12 V power supply
24.2 V at 24 V power supply
Connection voltage 12 or 24 V DC
Medium power
consumption:
40 Watts
Temperature range: approx. -2 °C to +12 °C
Compressor
running time:
20 % at 20 °C ambient temperature
40 % at 32 °C ambient temperature
(at 5 °C device interior temperature)
Weight: approx. 18 kg
Testing/certification:
CD-30.book Seite 24 Dienstag, 22. Juni 2010 3:38 15

Europe
Dometic Austria GmbH
Neudorferstrasse 108
2353 Guntramsdorf
℡[phone]
[phone]
Mail: [email protected]
Dometic Switzerland AG
Riedackerstrasse 7a
CH-8153 Rümlang (Zürich)
℡[phone]
[phone]
Mail: [e-mail]
Dometic Denmark A/S
Nordensvej 15, Taulov
DK-7000 Fredericia
℡[phone]
[phone]
Mail: [email protected]
Dometic Spain S.L.
Avda. Sierra del Guadarrama, 16
E-28691 Villanueva de la Cañada
Madrid
℡[phone]
[phone]
Mail: [email protected]
Dometic S.N.C.
ZA du Pré de la Dame Jeanne
F-60128 Plailly
℡[phone]
[phone]
Mail: [email protected]
Dometic Finland OY
Mestarintie 4
FIN-01730 Vantaa
℡[phone]
[phone]
Mail: [email protected]
Dometic Italy S.p.A.
Via Virgilio, 3
I-47100 Forlì
℡[phone]
[phone]
Mail: [e-mail]
Dometic Norway AS
Skolmar 24
N-3232 Sandefjord
℡[phone]
[phone]
Mail: [e-mail]
Dometic Benelux B.V.
Ecustraat 3
NL-4879 NP Etten-Leur
℡[phone]
[phone]
Mail: [e-mail]
Dometic Scandinavia AB
Gustaf Melins gata 7
S-42131 Västra Frölunda
(Göteborg)
℡[phone]
[phone]
Mail: [email protected]
Dometic UK Ltd.
Dometic House · The Brewery
Blandford St. Mary
Dorset DT11 9LS
℡[phone]
[phone]
Mail: [email protected]
A
CH
DK
E
F
FIN
I
N
NL
S
UK
Overseas + Middle East
WAECO Pacific Pty. Ltd.
1 John Duncan Court
Varsity Lakes QLD 4227
℡[phone]
[phone]
Mail: [e-mail]
WAECO Impex Ltd.
Suites 2207-2211 · 22/F · Tower 1
The Gateway · 25 Canton Road
Tsim Sha Tsui · Kowloon
Hong Kong
℡[phone]
[phone]
Mail: [e-mail]
WAECO Impex Ltd.
Taipei Office
2 FL-3 · No. 56 Tunhua South Rd, Sec 2
Taipei 106, Taiwan
℡[phone]
[phone]
Mail: marketi[email protected].tw
Dometic AB
Regional Office Middle East
P O Box 74775
Dubai, United Arab Emirates
℡[phone]
[phone]
Mail: [e-mail]
Dometic Marine Division
2000 N. Andrews Ave. Extension
Pompano Beach, FL 33069 USA
℡[phone]
[phone]
Mail: [e-mail]
AUS
HK
ROC
UAE
USA
Dometic WAECO International GmbH
Hollefeldstraße 63 · D-48282 Emsdetten
℡[phone] · [phone]
Mail: [e-mail] · Internet: www.dometic-waeco.de
D
www.waeco.com
4445100059 06/2010
CD-30.book Seite 2 Dienstag, 22. Juni 2010 3:38 15
