Item no. 2382

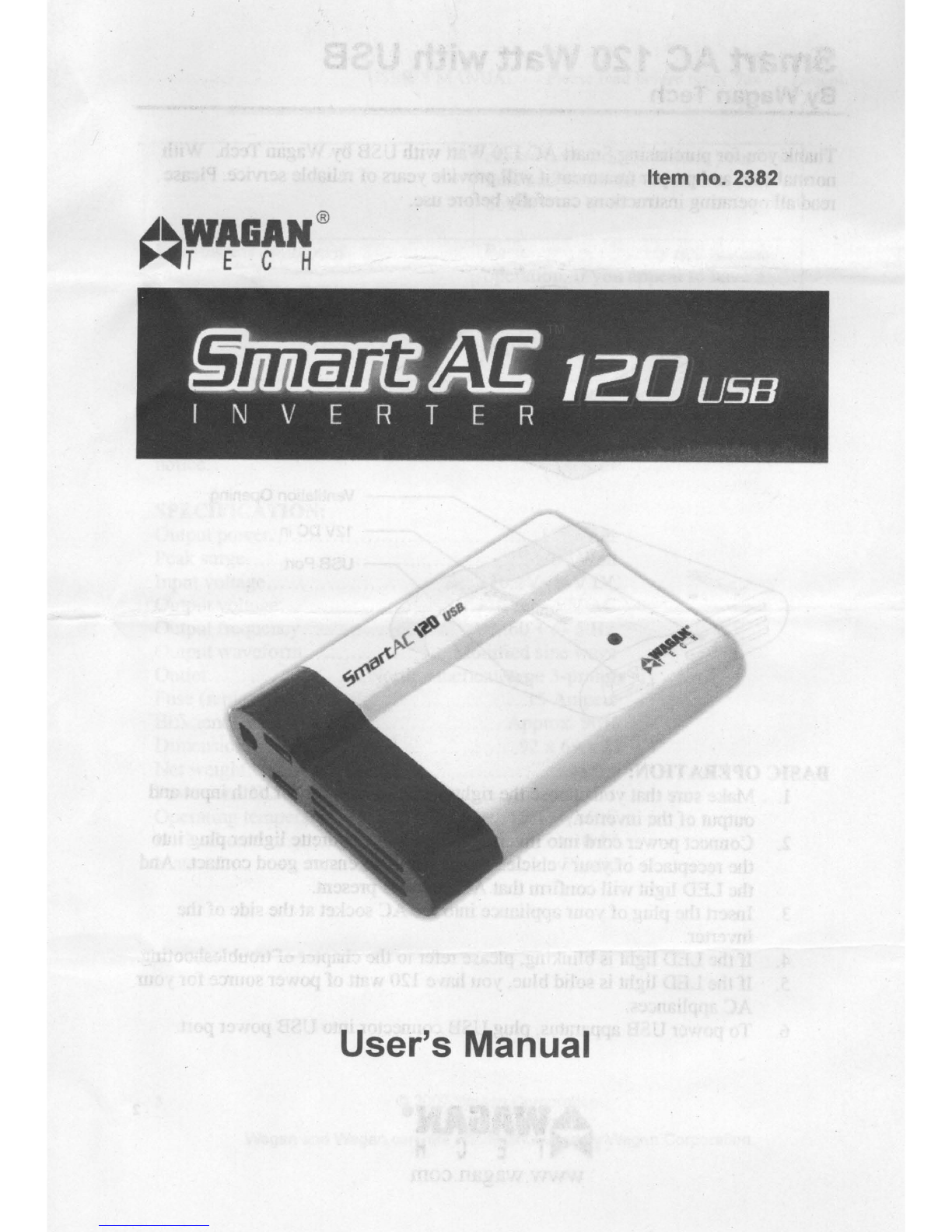

User's Manual
Smart AC 120 Watt with USB
By Wagan Tech
Thank
you for purchasing Smart AC qo Watt withUSB by Wagan Tech. With
normal care and propertreatment it will provide years
of
reliable service. Please
read all operating instructions carefully before use.

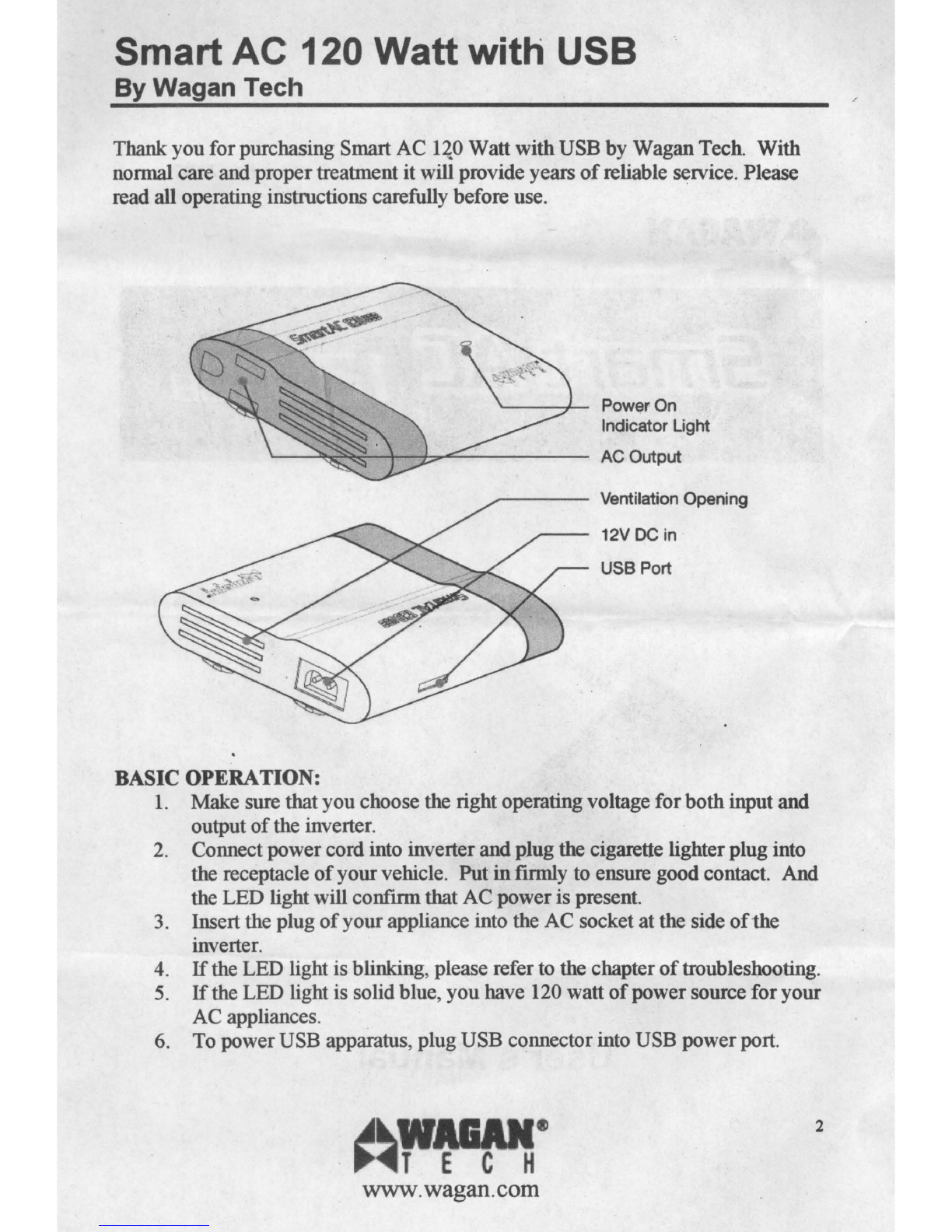

Power On
Indicator
light
\------:~~_4-+,.....:::..-----
AC Output
~---
Ventilation Opening
,,---
12V
DC
in
USB Port
BASIC
OPERATION:
1.
Make sure that you choose the right operating voltage forbothinput and
output
of
the inverter.
2.
Connect power cord into inverterand plug the cigarette lighter plug into
the receptacle
of
yourvehicle. Put infmnly to ensure good contact. And
the LED light will confmn that AC poweris present.
3.
Insert the plug
of
your appliance into the AC socket at the side
of
the
inverter.
4.
If
the LED light is blinking, please refer to the chapter
of
troubleshooting.
5.
If
the LED light is solid blue, you have 120 watt
of
power source for your
AC appliances.
6.
To power USB apparatus, plug USB connector into USB powerport.
2
T C H
www.wagan.com
USER'S MANUAL -Please read before using this equipment.
SPECIAL
RECOMMENDATION:
1.
Unplug
the
inverter when it
is
not
in
use.
2.
Unplug
the
inverter when starting the vehicle's motor.
3.
If
the blue
LED
light blinks,
tum
offyour appliance, unplug the inverter,
and restart the engine
in
yourvehicle.
It
is simply the low-battety
warning when indicates that the voltage
of
yourbattety is getting low.
SAFETY
PRECAUTION:
1.
Do not open the case
of
the inverter. The high voltage inside
the
unit
is
the same type
of
power as yourelectrical outlets at
home.
2.
Do not let the cord
of
the
inverteror
any
appliances' cord restrict your
driving.
If
operating from amoving vehicle, we recommend that secure
the
inverter
to
prevent it from shifting around while the vehicle
is
in
operation
3.
Be careful not
to
touch the tip
of
the cigarette lighterplug directly after
usage. The plug
may
be hot and could cause minorburns.
4.
Do not operate this inverter inoraround water. Water can damage the
inverter, and water damage is not covered under warranty. Also,
do
not
operate the Inverterusing wet hands.
The
ACvoltage
of
the unit makes
If
onelectrical shock hazard
if
operated with wet hands.
5.
Do not connect the Inverter directly to another AC power source. Damage
may
result, and such damage will void
the
inverter's warranty.
6.
Know
the wattage requirements
of
your appliance, only operate items
which are
120
watts orless.
7.
Use common sense. This device produces powerjust like your wall
outlets at
home
and should be treated seriously.
8.
Keep
'away
from children
3©2007
wagan
Corporation.
All Rights Reserved.
wagan
and wagan.com are trad,emarks used by
wagan
Corporation.
Smart AC 120 Watt with USB
By Wagan Tech
BATTERY
USE:
I. To avoid over-discharging your vehicle's battery, we recommend running your
engine
fix
10-20 minutes
to
recharge the vehicle's battery aller every 2-3
hours
of
operating the inverter.
2.
II'you choose
to
usc on adapter
to
connect the inverter directly to your battery
terminals,
it
is
important
to
connect the '+' wire
to
the '+' terminal and
the'
-'
wire to the
'-'
terminal.
If
YOU CONNECT THE
WI~S
TO
THE
INCQRRECT TERMINALS, YOU WILL REVERSE THE POLARITY
AND DAMAGE THE INVERTER. REVERSED POLARITY WILL
INSTANLY VOID THE WARRANTY OF YOUR INVERTER.
3.
If
you choose
to
operate abattery charger
to
replenish your battery's voltage.
be sure to disconnect the inverter lirst. Failure to disconnect the inverter prior
to
connecting acharger may result in on input spike which will damage the
inverter.
CONNECTING
TilE
INVERTER'S INPUT
TO
BATTERY
CIfARGER
WILL
VOID
TIfE
WARRANTY, AND MAY DAMAGE
TIfE
INVERTER.
4.
Make sure the battery's voltage dose not exceed
16
volts DC.
CONNECTING
TilE
INVERTER
TO
ADC
POWER
SOURCE
GREATER
TIfAN
16
V
DC
WILL
VOID
TilE
WARRANTY, AND MAY DAMAGE
TilE
INVERTER.
TROUBLESHOOTING:
Irthe
inverter does not
app~ar
to
be functioning properly, there are several reasons
why the inverter may not be responding:
Problem Solution
Poor contact Clean contact parts thoroughly
Receptacle has
no
power Check car fuse, replace damage
fuse. Check receptacle wiring.
Repair
if
necessary.
Fuse is blown The fuse
is
located inside the DC
plug. Replace fuse with afuse
of
equivalent value.
Battery voltage
is
too low Start the engine to recharge the
batterY, replace battery
if
needed.
Shut down on overload Reduce the wattage
of
your load
to
lower than 120watt.
Thermal shutdown Under heavy loads for extended
periods
of
time, the inverter will
shutdown
to
prevent damage to
A"flM
e
.
www.wagan.com
4
USER'S MANUAL -Please read before using this equipment.
excess heat. Simply·reduce your
load
and
allow the inverterto cool
--
down.
Low-battery shutdown Recharge yourbattery and resume
operation.
If
you appear to have a
problemwhich is not listed above,
you may call
our
customer service
department at 510-490-9221.
NOTE:
Allspecifications typical at nominal line, halfload, and
25°C /77°F unless otherwise noted. Specifications subjected to change without
notice.
SPECIFICA
nON:
Output power
'"
120 Watt
Peak surge 300 Watt
Input voltage 10.2Y-16Y
DC
Outputvoltage 110 +/ -5 Y AC
.Outputfrequency ,60 +/ -5Hz
Output waveform Modified sine wave
Outlet North Americantype 3-prong
Fuse (replaceable)
15
Ampere
Efficiency (full load)., Approx. 90%
Dimensions (L x W
xH
mm) :92 x69 x
21
Net weight 0.5kg
Power
on
LED display
'"
Yes
Operating temperature 55°C +/- 5°C
No load current <O.IA
Material Plastic
5©2007
vyagan.
Corporation.
AffRights Reserved.
W8gan
and
W8gan.com are trademarks used
by
W8gan Corporation.
Smart AC 120 Watt with USB
By Wagan Tech

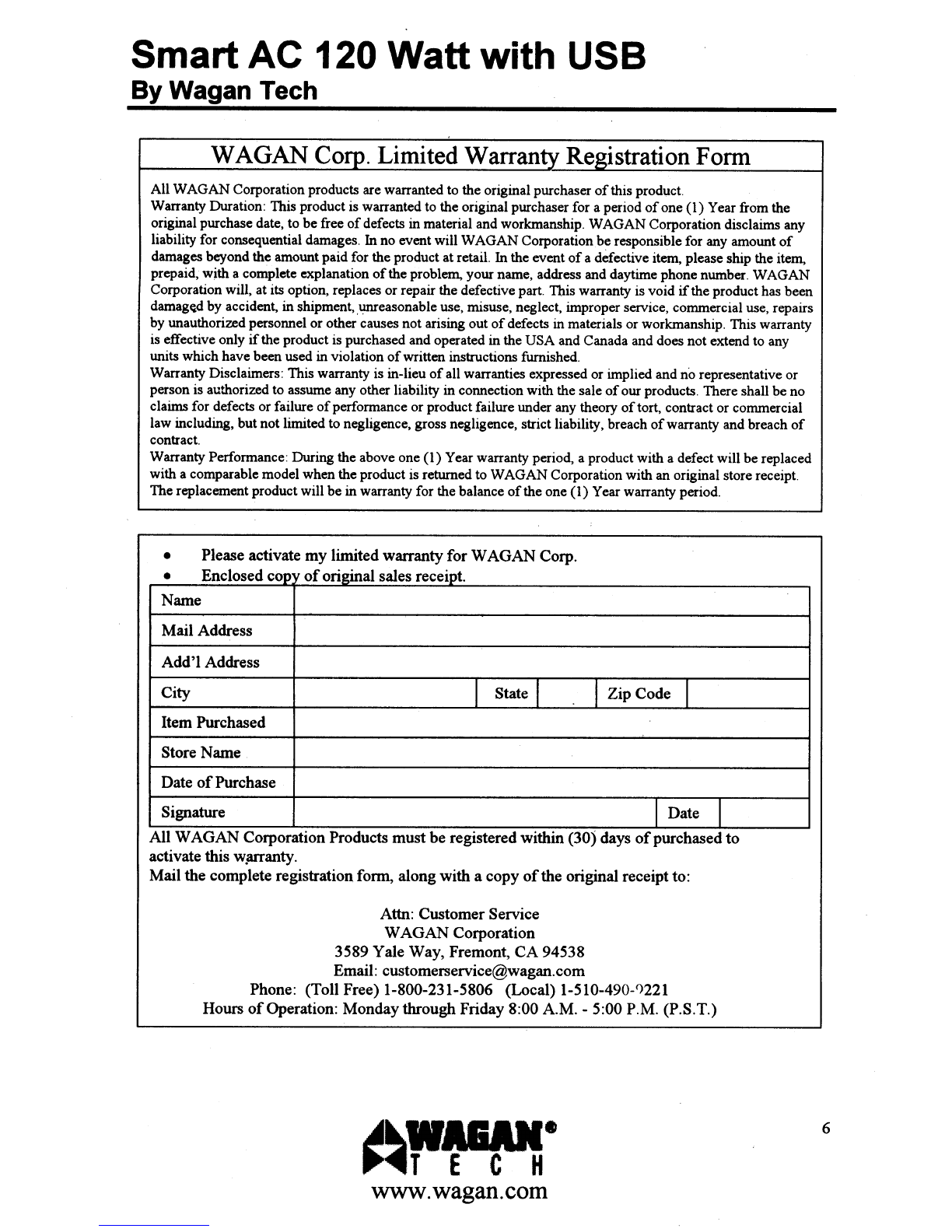

WAGAN Corp.
Limited
Warranty
Registration
Form
All WAGAN Corporation products are warranted to the original purchaser
of
this product.
Warranty Duration: This product is warranted to the original purchaser for aperiod
of
one (1) Year from the
original purchase date, to be free
of
defects in material and workmanship. WAGAN Corporation disclaims any
liability for consequential damages. In no event will WAGAN Corporation be responsible for any amount
of
damages beyond the amount paid for the product at retail. In the event
of
adefective iteM, please ship the item,
prepaid, with acomplete explanation
of
the problem, your name, address and daytime phone number. WAGAN
Corporation will, at its option, replaces or repair the defective part. This warranty is void
if
the product has been
damagc;d by accident, in shipment,.unreasonable use, misuse, neglect, improper service, commercial use, repairs
by unauthorized personnel or other causes not arising out
of
defects in materials or workmanship. This warranty
is effective only
if
the product is purchased and operated in the USA and Canada and does not extend to any
units which have been used in violation
of
written instructions furnished.
Warranty Disclaimers: This warranty
is
in-lieu
of
all warranties expressed or implied and no representative or
person is authorized to assume any other liability in connection with the sale
of
our products. There shall be no
claims for defects or failure
of
performance or product failure under any theory
of
tort, contract or commercial
law including, but not limited to negligence, gross negligence, strict liability, breach
of
warranty and breach
of
contract.
Warranty Performance: During the above one (1) Year warranty period, aproduct with adefect will be replaced
with acomparable model when the product is returned to WAGAN Corporation with an original store receipt.
The replacement product will be in warranty for the balance
of
the one (1) Year warranty period.
•Please activate my limited warranty for WAGAN Corp.
El
d
f"alal
•nc ose cop' o
ongm
ses receipt.
Name
Mail Address
Add'l Address
City IState IIZip Code I
Item Purchased
Store Name
Date
of
Purchase
Signature IDate I
All WAGAN Corporation Products must be registered within (30) days
of
purchased to
activate this
w~anty.
Mail the complete registration form, along with acopy
of
the original receipt to:
Attn: Customer Service
WAGAN Corporation
3589 Yale Way, Fremont,
CA
94538
Email: [email protected]
Phone: (Toll Free) 1-800-231-5806 (Local) 1-510-490-0221
Hours
of
Operation: Mondaythrough Friday 8:00
AM.
-5:00 P.M. (P.S.T.)
A'WAliAJl
e
~T
E C H
www.wagan.com
6
Applications
Included
Accessories
Product ',,1',
, ,
>;
"H
,,
,,.
Watts'~
iPod 8
iPod Nano 8
Cell phone charger 8
Portable video game 12
Portable DVD player 18
Video game console 20
Laptop computer
75
13" television 100
Carry
case
Vehicle
I
Airline
adapter
Specifications
Continuous
Power
120W
Max.
Power
(10
minutes)
150W
Peak
Power
300W
Input
Voltage
12V/15V
DC
AC
Receptacle
11
OV
No
Load
Current
<0.1
Output
Waveform
Modified
Sine
Wave
Efficiency
(full
load)
Approx.
90%
Power
On
LED
Display
Yes
Weight
...•••...•••••.....................................
160g
©
2006-2008
Wagan Corp., USA
WAGANCORP.
3589 Yale Way Fremont,
CA
94538 USA
All trade names are registered trademarks of respective manufactures listed.
iPod is atrademark
of
Apple Computer, Inc., registered
in
the U.S. and other countries.
All specifications and features are subject to change without prior notice. Actual contents may differ slightly from tha
Item no. 2382

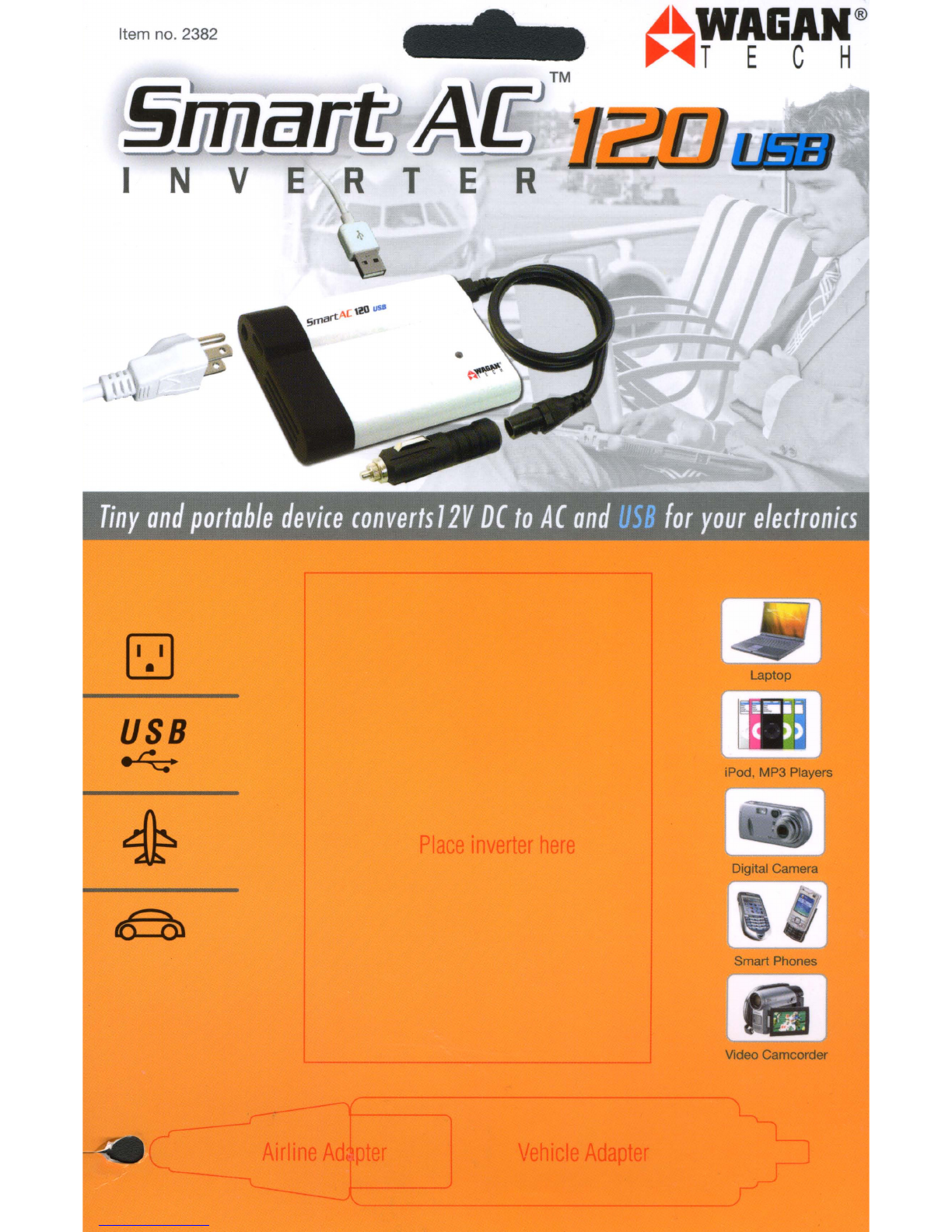

INvET
A~WAGAN®
~~T
E C H
USB
Plac
nv
tr
Laptop
iPod, MP3 Players
Digital Camera
Smart Phones
Video Camcorder
Item no. 2382
A~WAGAN®
~~T
E C H
Run
your
electronics on the
go!
~
Run
&
charge
your
electronics in
your
car,
boat,
RV
or
on the
airplane!
~
USB
power
output to
charge
and
run
your
iPod™,
Treo™, BlackberryTM,
and
cell phones
~
120-watt
11
OV
AC
power
is
perfect
for
laptops,
DVD players,
game
consoles,
digital
cameras
and
more!
~
Safety features include: Over-voltage,
Overload,
Short-circuit,
and
Over-temperature protection,
and
Low
voltage
shutoff.
Power On
Indicator Light
'-----
AC
Output
Ventilation Opening
12V DC in
USB Port
.J
