Warmbier PGT 120 User manual

Wolfgang Warmbier
Untere Gießwiesen 21
D-78247 Hilzingen
www.warmbier.com
User's Manual
PGT 120
Up to Serial No. 00259

PGT 120 User's manual (up to SN: 00259)
Part No. 7100.PGT120 _
Page2of13 V0108
Table of contents
INTRODUCTION....................................................................................................................3
INSTALLATION.....................................................................................................................4
OPERATION..........................................................................................................................5
Wrist strap test.....................................................................................................................5
Coil cord test........................................................................................................................5
Footwear test (single shoe)................................................................................................5
Wrist strap and footwear test..............................................................................................6
Footwear in series ...............................................................................................................6
CONFIGURATION.................................................................................................................8
CONNECTORS......................................................................................................................9
WALL MOUNTING INSTRUCTIONS...................................................................................10
SPECIFICATIONS...............................................................................................................11
PICTURES...........................................................................................................................12

PGT 120 User's manual (up to SN: 00259)
Part No. 7100.PGT120 _
Page3of13 V0108
Introduction
The Personnel Grounding Tester PGT120 is an electronic test instrument for checking
personnel grounding systems such as wrist straps, coil cords and footwear. The PGT120 is
suitable for compliance verification of the above products, according to the IEC 61340-5-1
Edition 1.0 (2007-08) or ANSI/ESD S20.20-2007 (2007-03).
•The unit operates with 3 independent measuring circuits for the left shoe, the right shoe
and the wrist strap. This makes it possible to measure all the values at the same time
•It is possible to enable or disable separately the measuring circuits.
•The order of tests is random.
•Footwear measurement can be configured to measure in series with hands free for
passenger gates.
•Visual and audible test results and a dry relay contact for door opener
•Use the optionally available "Calibration Unit " Part No. 7100.PGT120.CU to check the
unit Hi and Lo limit values

PGT 120 User's manual (up to SN: 00259)
Part No. 7100.PGT120 _
Page4of13 V0108
Installation
The Unit is for desktop or wall mounting. The optionally available wall mounting frame (Part
No. 7100.PGT100.101) can be used to fix the unit to a wall.
The power is either supplied by a 9V battery or by a power supply. Insert the batteries by
opening the battery compartment flap on the bottom side of the unit. Take care of the proper
polarity. Close the battery compartment flap again.
It is strongly recommended to remove old or empty batteries to avoid battery
leakage.
For heavy use or footwear in series mode, we recommend using the external power supply.
Use only an original power supply connected to the "AC12V" socket on the rear. On plugging
in external power, the internal battery is disconnected.
The battery should be removed to avoid wear out.
Do not connect any conducting articles with PGT120 except original accessories (power
supply, battery and foot wear electrode) and the door opener.
Connect the foot electrode with the coloured marked plugs to the back of the unit for
footwear test.

PGT 120 User's manual (up to SN: 00259)
Part No. 7100.PGT120 _
Page5of13 V0108
Operation
This tester has no power switch. Pressing an electrode or activating "footwear in series"
activates the electrical circuit.
The measuring voltage is preset to 100V. Use the DIP switches 4+5 to adjust the voltage to
either 30V or 50V.
Wrist strap test
► Settings: Only wrist strap or OR is activated (DIP switch 1+2)
Put on the wrist strap and connect it via a coil cord to the snap or to the socket on the left
side of the unit.
Press the left electrode and keep it pressed. A peep signal indicates the start of
measurement. After a short measuring time the result is displayed.
OK Green LED flashes The measured value is o.k.
Hi-Fail Red LED flashes,
audible signal Above the resistance upper limit
Lo-Fail Red LED flashes,
audible signal Below the resistance lower limit
(not applicable if lower limit is disabled)
Release the electrode.
Coil cord test
► Settings: Only wrist strap or OR is activated (DIP switch 1+2)
To check only the coil cord, connect the coil cord to the 3mm snap located inside the wrist
strap symbol and to the 10mm snap or socket on the left side of the unit.
Press the left electrode and keep it pressed. A peep signal indicates the start of the
measurement. After a short measuring time the result is displayed.
OK Green LED flashes The measured value is o.k.
Hi-Fail Red LED flashes,
audible signal Above the resistance upper limit
Lo-Fail Red LED flashes,
audible signal Below the resistance lower limit
(not applicable if lower limit is disabled)
Release the electrode.
Footwear test (single shoe)
► Settings: Only footwear or OR is activated (DIP switch 1+2)

PGT 120 User's manual (up to SN: 00259)
Part No. 7100.PGT120 _
Page6of13 V0108
Stand on the foot electrode, then press the right electrode and keep it pressed. A peep
signal indicates the start of measurement. After a short measuring time the result is
displayed.
OK Green LED flashes The measured values of both shoes are o.k.
Hi-Fail
right Red LED flashes,
audible signal Right shoe above the resistance upper limit
Hi-Fail
left Red LED flashes,
audible signal Left shoe above the resistance upper limit
Lo-Fail
right Red LED flashes,
audible signal Right shoe below the resistance lower limit
(not applicable if lower limit is disabled)
Lo-Fail
left Red LED flashes,
audible signal Left shoe below the resistance lower limit
(not applicable if lower limit is disabled)
Release the electrode.
Wrist strap and footwear test
► Settings: AND function is activated (DIP switch1+2)
Put on the wrist strap and connect it via a coil cord to the snap or socket on the left side of
the unit.
Stand on the foot electrode, then press one electrode and keep it pressed. A peep signal
indicates the start of measurement. After a short measuring time the result is displayed.
OK Green LED flashes All measured values are o.k.
Hi-Fail Red LED flashes,
audible signal Above the resistance upper limit
Lo-Fail Red LED flashes,
audible signal Below the resistance lower limit
(not applicable if lower limit is disabled)
Release the electrode.
The OK signal only appears when all measured values are within the limits.
Footwear in series
► Settings: Footwear in series activated (DIP switch 6)
► Limitation: The upper limit values cannot be changed in this mode
The footwear test can be accomplished hands free, without touching a electrode. This is
useful in combination with passenger handling gates. The resistance is measured between
the two shoes. This mode cannot directly indicate the faulty shoe. Press the Shoe electrode
on the instrument to identify it.

PGT 120 User's manual (up to SN: 00259)
Part No. 7100.PGT120 _
Page7of13 V0108
Stand with both feet onto the foot electrode. If the shoes are dissipative the measurement
starts automatically with a peep signal. After a short measuring time the result is displayed
and the connected gate will open.
OK Green LED flashes The measurement of the footwear in series is o.k.
Hi-Fail Red LED flashes,
audible signal Above the resistance upper limit for series connection
Lo-Fail Rote LED flashes,
audible signal Below the resistance lower limit
(not applicable if lower limit is disabled)
You can step of the foot electrode.
Even if footwear in series is active, you can perform a test according chapter 0 to chapter 0
by pressing a electrode, for example to identify a bad shoe.
In this case the upper limit is 70MΩfor each shoe. Dip switch 3 is without function.

PGT 120 User's manual (up to SN: 00259)
Part No. 7100.PGT120 _
Page8of13 V0108
Configuration
The unit can be configured with the DIP switches on the rear according to the table below.
Standard settings are marked bold.
Switch 1 Switch 2 Test mode
OFF OFF "OR" (wrist strap or footwear test)
ON OFF Only footwear test
OFF ON Only wrist strap test
ON ON "AND" (wrist strap and footwear test)
Switch 3 Footwear upper limit
OFF 35 MΩ
ON 70 MΩ
ΩΩ
Ω
Switch 4 Switch 5 Test voltage
OFF OFF 30 V
OFF ON 50 V
ON ON 100 V
Switch 6 Footwear test mode
OFF test according to switch 1 + 2
ON footwear in series active
Switch 7 Lower limit
OFF Lower limit disabled
ON Lower limit enabled
Switch 8 Door opener
OFF inactive
ON active

PGT 120 User's manual (up to SN: 00259)
Part No. 7100.PGT120 _
Page9of13 V0108
Connectors
The connectors for the power supply, the foot electrodeand the door opener are located on
the rear side of the unit. Use a "RJ12" western modular plug to connect the dry contact of
the door opener.
The door opener relay is triggered and stays on for 3 seconds when the test result indicates
OK.
This function must be enabled with DIP switch 8.
Normally Open Pin 3,4
Normally Closed Pin 2,3
165432 Door Opener
123456
Connector viewContact function

PGT 120 User's manual (up to SN: 00259)
Part No. 7100.PGT120 _
Page 10 of 13 V0108
Wall mounting instructions
(Part No. 7100.PGT100.101)
Fix the wall mounting plate with the supplied dowels and screws and stick the self-adhesive
Velcro tapes according to the picture.
1. The surface of the plate and the bottom side of the PGT120 have to be clean, dry and
free of grease.
2. Remove protecting foil of the velcro tapes and do not touch the sticky side.
3. Apply the velcro tapes according to the picture onto the mounting plate.
4. Remove the second protecting foil of the velcro tapes and press the PGT120 against
them.
5. After 24 Hour curing time the PGT120 can be removed from the wall mounting plate
Before removing the unit, please unplug all wires.
Hold the unit on both sides and pull it forwards. To fix it again, press it back onto the velcro
tapes.
Wall mounting plate
ca. 10mm
velcro tape

PGT 120 User's manual (up to SN: 00259)
Part No. 7100.PGT120 _
Page 11 of 13 V0108
Specifications
Operating voltage: 9VE6F22battery
external power supply 230V / 50Hz
Operating conditions: 15 ... 40°C up to 75% relative humidity,
non condensing
Storage conditions: -10 ... 60°C up to 85% relative humidity,
non condensing
Connectors: Wrist strap 10mm snap, 4mm snap, 4mm socket
Foot electrode 2sockets4mm
Door opener Western socket 6 pin RJ-12
external 12VAC power supply (Use only for the original power
supply supplied with the instrument)
Measuring ranges: Wrist strap 750kΩ... 35MΩ(0Ω... 35MΩ)
(selectable) Footwear - each shoe 100kΩ... 70MΩ(0Ω... 70MΩ)
100kΩ... 35MΩ(0Ω... 35MΩ)
Footwear in series 200kΩ...140MΩ(0Ω... 140MΩ)
(Hands-free-Mode)
Tolerance ±10%
Test voltage: open circuit voltage 30V ±10%
50V ±10%
100V ±10%
Signals: Green LED “OK”
Rote LED’s
and buzzer “Hi-Fail“ or ”Lo-Fail”
Door opener Dry contact “OK“
Door opener time 3 seconds
Contact ratings: max. voltage 60V
max. current 2A
max. power 50 VA
Operating modes: Single test ”OR“
Double test "AND"
Only wrist strap test
Only footwear test
Hands-free-Mode
Weight: app. 500g
Dimensions: 150x200x63mm
Serial number: On the side of the unit
Complies with CE

PGT 120 User's manual (up to SN: 00259)
Part No. 7100.PGT120 _
Page 12 of 13 V0108

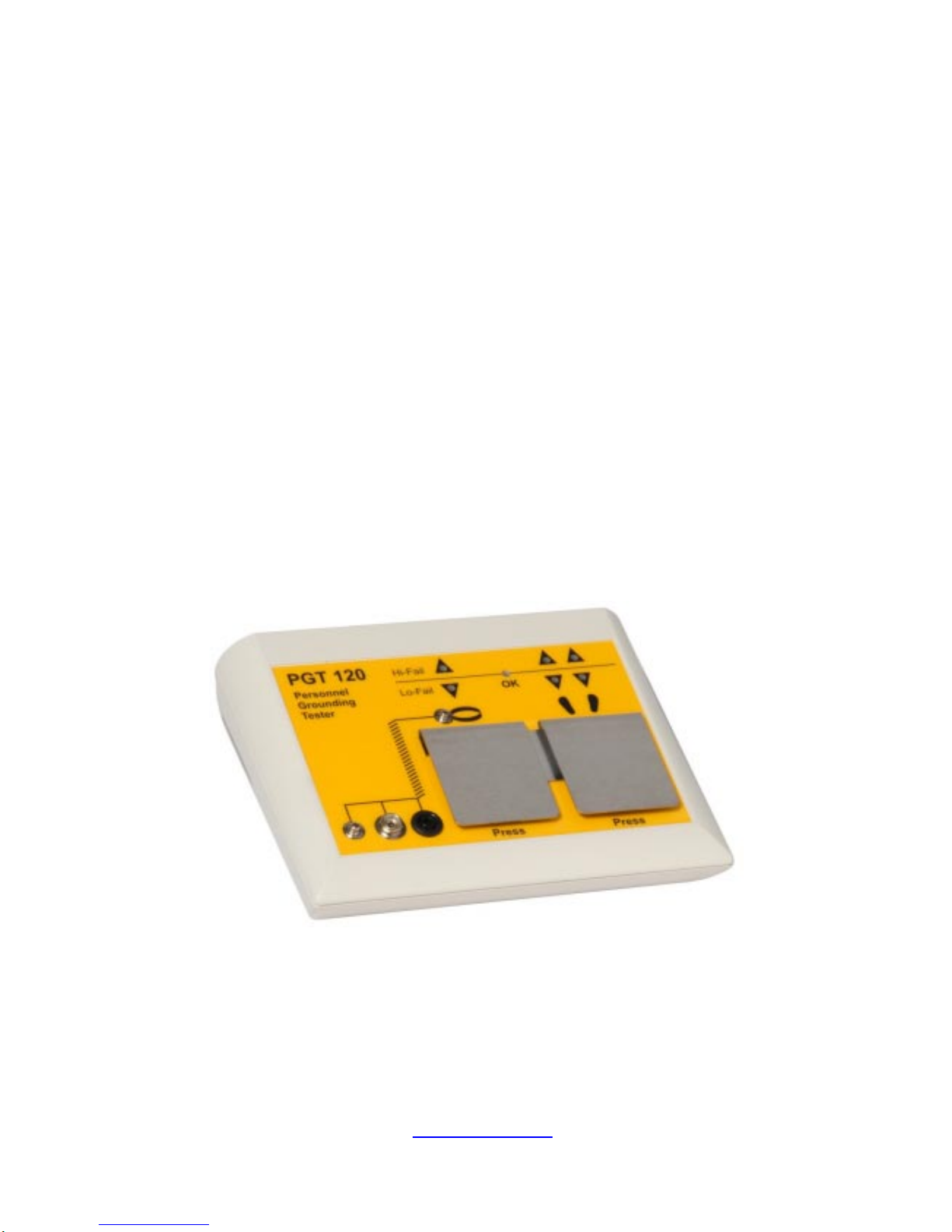

Pictures
Press Press
Hi-Fail Lo-Fail
OK
PGT 120
Personnel Grounding Tester
LED "upper limit exceeded" LED "below low limit" LED "measured value
in the limit"
Schuhwerkprüfung
male snap 3mm
"below low limit" LED "upper limit exceeded" LED
wrist strap test
electrode for
wrist strap test electrode for
footwear test
connections for
wrist strap test

PGT 120 User's manual (up to SN: 00259)
Part No. 7100.PGT120 _
Page 13 of 13 V0108

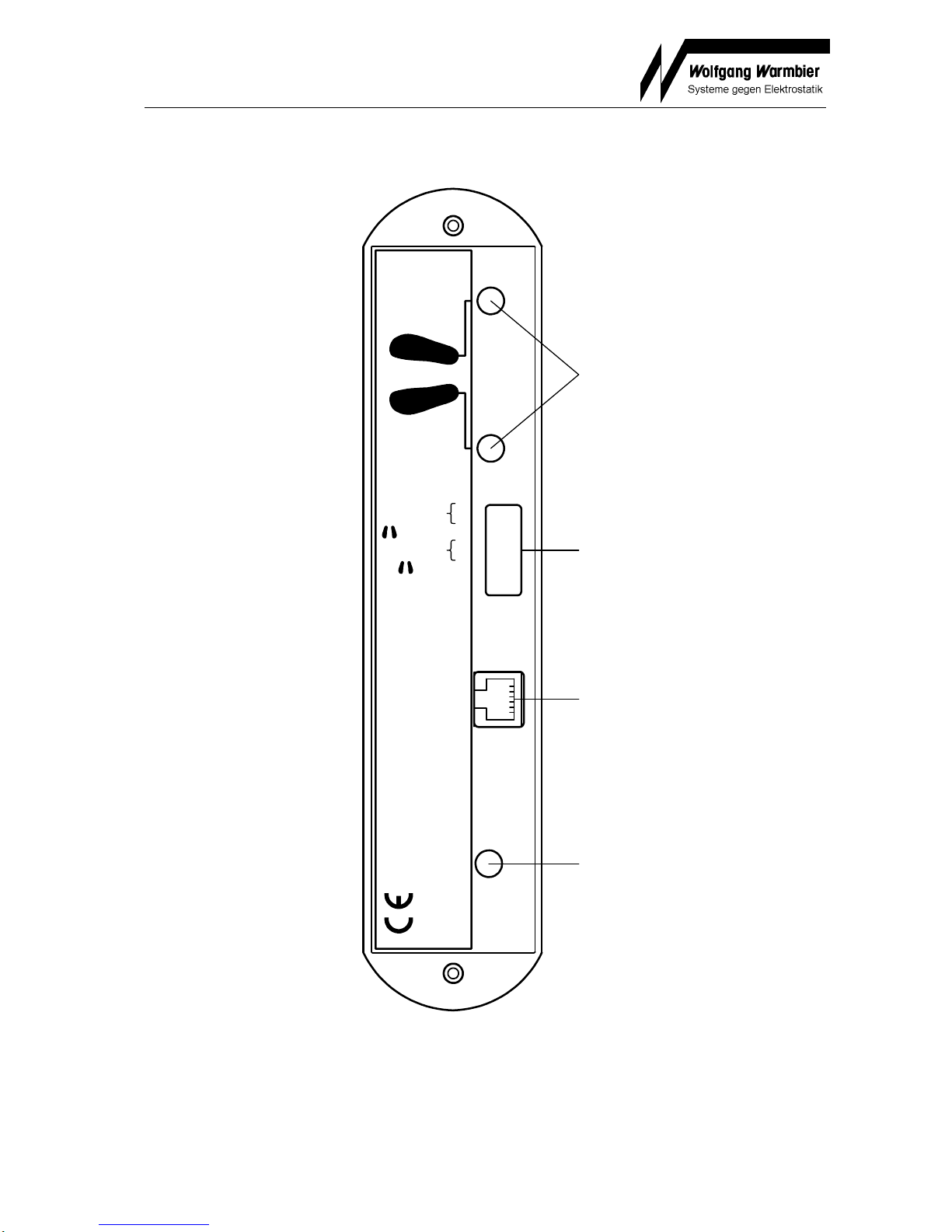

socket for
door opener sockets for
foot electrode
socket for
external
power supply
Dip-Switch
AC 12 V Door opener
54
3267
81
OFF ON
mode
voltage
low limits
door opener
high limit
series
