WatchNet ENX Series User manual

ENX Series Systems

i
Table of Contents
1FEATURES AND SPECIFICATIONS..................................................................1
1.1 Overview .................................................................................................................................................1
1.2 Features ..................................................................................................................................................1
1.3 Specifications .........................................................................................................................................2
2OVERVIEW AND CONTROLS ...........................................................................4
2.1 Front Panel .............................................................................................................................................4
2.2 Rear Panel..............................................................................................................................................5
2.3 Alarm Input and Output Connection ...................................................................................................5
2.3.1 Alarm Input and Output Details.......................................................................................................6
2.3.2 Alarm Input Port................................................................................................................................6
2.3.3 Alarm Output Port.............................................................................................................................7
3OVERVIEW OF NAVIGATION AND CONTROLS ..............................................8
3.1 Login ........................................................................................................................................................8
3.2 Main Menu ............................................................................................................................................14
3.3 Search & Playback ..............................................................................................................................15
3.4 Information............................................................................................................................................17
3.4.1 HDD Information .............................................................................................................................18
3.4.2 BPS...................................................................................................................................................20
3.4.3 Log....................................................................................................................................................20
3.4.4 Version .............................................................................................................................................21

ii
3.4.5 Online Users....................................................................................................................................22
3.4.6 Remote Device Information...........................................................................................................22
3.5 Setting ...................................................................................................................................................23
3.5.1 General.............................................................................................................................................24
3.5.2 Encode .............................................................................................................................................25
3.5.3 Schedule ..........................................................................................................................................28
3.5.4 Network ............................................................................................................................................29
3.5.5 Alarm.................................................................................................................................................38
3.5.6 Detect ...............................................................................................................................................41
3.5.7 Display..............................................................................................................................................45
3.5.8 Default ..............................................................................................................................................47
3.6 Remote Device.....................................................................................................................................47
3.7 Advanced ..............................................................................................................................................49
3.7.1 HDD Management..........................................................................................................................49
3.7.2 Abnormality......................................................................................................................................52
3.7.3 Alarm Output....................................................................................................................................53
3.7.4 Manual Record................................................................................................................................53
3.7.5 Account.............................................................................................................................................55
3.7.6 Auto Maintenance...........................................................................................................................58
3.7.7 Config Backup.................................................................................................................................58
3.7.8 RAID Management.........................................................................................................................59
3.8 Shutdown ..............................................................................................................................................60
4SYSTEM UPGRADE.........................................................................................61
5WEB OPERATION............................................................................................62
5.1 General Introduction............................................................................................................................62
5.1.1 Preparation ......................................................................................................................................62
5.1.2 Log in................................................................................................................................................62
5.2 Main Interface ......................................................................................................................................63
5.2.1 Monitor Channel Menu Tree..........................................................................................................64
5.2.2 System Menu...................................................................................................................................66
5.2.3 Monitor Window Switch..................................................................................................................66

iii
5.2.4 Preview Window Switch.................................................................................................................66
5.2.5 PTZ Control......................................................................................................................................67
5.2.6 Color and More Setup....................................................................................................................68
5.3 Configuration ........................................................................................................................................70
5.3.1 System Information.........................................................................................................................70
5.3.2 System Configuration.....................................................................................................................71
5.3.3 Advanced.........................................................................................................................................87
5.3.4 Additional Function.........................................................................................................................96
5.4 Search ...................................................................................................................................................96
5.5 Alarm .....................................................................................................................................................99
5.6 About ...................................................................................................................................................100
5.7 Log out ................................................................................................................................................101
APPENDIX H TOXIC OR HAZARDOUS MATERIALS OR ELEMENTS................ 102

iv
Welcome
Thank you for purchasing our NVR!
This user’s manual is designed to be a reference tool for the installation and operation of your
system.
Here you can find information about this series NVR features and functions, as well as a detailed
menu tree.
Before installation and operation please read the following safeguards and warnings carefully!

v
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
We assume no liability or responsibility for all the fires or electrical shock caused by improper
handling or installation.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3．Installation
Keep upwards. Handle with care.
Do not apply power to the NVR before completing installation.
Do not place objects on the NVR
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
The NVR should be installed in a cool, dry place away from direct sunlight, inflammable,
explosive substances and etc.
This series product shall be transported, storage and used in the specified environments.
6. Lithium battery
Improper battery use may result in fire, explosion, or personal injury!
When replace the battery, please make sure you are using the same model!
7. Accessories
Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.

1
1FEATURES AND SPECIFICATIONS
1.1 Overview
This series product is designed for the management, storage and applications of high definition
video data. It adopts the LINUX OS and professional customized hardware platform. It consists
of several HDDs management systems, front-end high definition device management system,
high definition analysis system, and large-capacity video storage system. It uses the high-stream
flow data network transmission technology, multiple-channel video decode and display
technology. It realizes the smart management, safe storage, fast transmission, HD decode of the
huge-capacity and multiple-channel high definition video data.
1.2 Features
This series product has the following features:
User
Management
Different user rights for each group, one user belongs to one group.
The user right can not exceed the group right.
Storage
Function
Support central server backup function in accordance with your
configuration and setup in alarm or schedule setting.
Alarm
Function
Real-time respond to external alarm input as user pre-defined
activation setup.
Support centralized alarm server setup, alarm can auto notify the
user remotely; the alarm can be from the various peripheral
devices. .
Can generate an email to notify the user when an alarm occurred.
Network
Monitor
Transmit audio/video data from the IPC or the NVS connected to the
device to the network terminal simultaneously. Delaying time is
within 500ms (Network bandwidth support needed).
Max supports 20 connections.
Adopt the following audio and video transmission protocol: HTTP,
TCP, UDP, MULTICAST, RTP/RTCP and etc.
Support SMTP transmission for some alarm data or information.
Support web access for WAN.
Window Split
Adopts the video compression and digital process way to output
several-window to display in one monitor at the same compression
rate.
Support 1/4/9/16-window mode and etc.
Record
Support schedule record function. Support search and playback via
the Web or local-end.
Backup
Support USB record backup function. It can copy the record file to
the peripheral devices connected to the NVR via the USB port.
Network
Management
Realize NVR configuration and management via Ethernet.
Support device management via web.
Peripheral
Equipment
Support peripheral equipment connection, each peripheral
equipment control protocol and interface can be set freely.
Assistant
Function
Support system resource information and running status real-time
display.
Support log function.
Support local GUI output, support shortcut operation via the mouse. .
Support to browse video and audio of the remote IPC and NVS.

2
1.3 Specifications
Specifications
128-channel Series
64-channel Series
Main Processor
SandyBridge i5 Socket 1155-
pin 32nm CPU
SandyBridge i3 Socket 1155-
pin 32nm CPU
Operation System
Embedded LINUX system
Power
Support hot swap
Fan
Redundant dual ball bearing fan
MTBF>100 thousand hours
Support online replacement.
Memory
4GB（Max 8G）Server-level
（With ECC verification）
2GB（Max 8G）Server-level
（With ECC verification）
Case
1.2mm extra-thickness hot-dip galvanized steel.
High accuracy aluminum alloy slider.
Self-developed patent removable HDD bracket.
User Interface
WEB GUI
Network Protocol
RTP/RTCP, RTSP, UDP, HTTP, NTP, SNMP
Audio/Video
Audio/Video
Connection
384M connection
192M connection
Audio/Video
Transmission
384M transmission
192M transmission
Audio/Video
Storage
Based on 64-bit high-performance file system.
Video Resolution
1080P, 720P, D1, HD1, CIF, QCIF
Audio/Video
Search
Based on data library and menu tree. Support various search
engines.
Audio/Video
Setup
Support one camera or a batch of camera setup at the same
time.
Record Policy
Schedule record, manual record, alarm record
Alarm Record
Type
Video loss, motion detect, camera masking, external alarm.
Data
Management
HDD Amount
16 SATA HDDs （Max 4T space per HDD）
HDD Mode
One HDD, RAID0, RAID1, RAID5.
HDD Installation
Additional HDD bracket, support HDD hot swap.
Disk Array
Enclosure/Backup
Mini SAS port 3Gbps(Optional)
HDD Hotspare
Support global hotspare.
Network
Interface
Network Amount
4 100/1000Mbps Ethernet ports
Network Port
Feature
Dual-network cards load balance binding or four independent
1000Mbps Ethernet ports.
Others
Power
100V~240V，47~63Hz
Total Power
Consumption
10W~200W（Including HDD）
Working
Temperature
0℃~50℃
Working Humidity
5%~90%（Non-condense）
Storage
Temperature
-20℃~70℃
Storage Humidity
5%~90%（Non-condense）
Working Altitude
-60m~3000m

3
Dimensions
516.5mm(without the LCD length)×485mm(With
ear)×133.2mm（L*W*H）
Net Weight
20Kg (front panel:0.4Kg)
Installation Mode
Standard 19-inch rack installation

4
2Overview and Controls
This section provides information about the rear panel. When you install this series NVR for the
first time, please refer to this part first.
2.1 Front Panel
Front panel, it is shown as in Figure 2-1.
Figure 2-1
Please refer to the following sheet for detailed information.
SN
Name
Function
1
Power button
Press it once to turn on the device.
Press it for a long time to turn off the device (Usually we do not
recommend).
Press power button for a long time or pull out the power cable may
result in device auto restart.
2
System HDD
Indication light
The blue light flashes when system is reading or writing the system
HDD.
In the system HDD, there are device important configuration file,
factory default configuration file, device initial boot up data.
3
Alarm indication
light
The alarm indication light becomes on once an alarm occurred. It
becomes on via the software detection. The alarm includes local
alarm, no disk and etc.
4
Network
indication light
The network indication light is blue and it flashes when you connect
the device to the network.
5
USB port
/
6
16 HDD slot
/
After you remove the front panel, you can see there are 16 HDDs. From the left to the right and
from the top to the bottom, it ranges from 1~4, 5~8, 6~12, 13~16. See Figure 2-2.
You can see there are two indication lights on the HDD bracket.
The power indication light is at the top. The light is yellow after you connected the device to
the power.
The read-write indication light is at the bottom. The blue light flashes when system is reading
or writing the data.

5
Figure 2-2
2.2 Rear Panel
The general rear panel is shown as in Figure 2-3.
Figure 2-3
Please refer to the following sheet for rear panel button information.
SN
Function
SN
Function
1
Power socket
6
Video VGA output
2
Audio Input
7
eSATA port
3
Audio output
8
USB port
4
Bidirectional talk input
9
HDMI port
5
Network port
10
Alarm input, alarm output, RS485 port.
Important
Right now, system does not support audio input port. System supports HDMI1/HDMI2 port
by default. You need to purchase HDMI interface board if you want to use HDMI3-HDMI6
port.
2.3 Alarm Input and Output Connection
Please refer to the following sheet for alarm input and output connection.
There are two alarm input types for you to select: normal open (NO) and normal close (NC).
1. Alarm input
a. Please make sure alarm input mode is grounding alarm input.
b. Grounding signal is needed for alarm input.
c. Alarm input needs the low level voltage signal.
d. Alarm input mode can be either NC (normal Open) or NO (Normal Close)
e. When you are connecting two NVRs or you are connecting one NVR and one other device,
please use a relay to separate them,

6
2. Alarm output
The alarm output port should not be connected to high power load directly (It shall be less than
1A) to avoid high current which may result in relay damage. Please use the co contactor to
realize the connection between the alarm output port and the load.
3. Please make sure the front-end device has soundly earthed.
Improper grounding may result in chip damage.
2.3.1 Alarm Input and Output Details
You can refer to the following sheet Xfor alarm input and output information. See Figure 2-4.
Figure 2-4
Please refer to the following sheet and Figure 2-4 for detailed information.
1，2，3，4，5，
6，7，8，9，10，
11，12，13，14，
15，16
ALARM 1 to ALARM 16. The alarm becomes active in low voltage.
1-ON C，2- ON C，
3- ON C，4- ON
C，5- ON C，6- ON
C，7 - ON C，8-
ON
Eight groups of normal open activation output (on/off button)
G
GND cable.
485 A/B
The A/B cable to control the RS485 devices.
Tx and Rx
RS232 port. Tx is the data output cable and the Rx is the data input
cable.
2.3.2 Alarm Input Port
Please refer to the following sheet for more information.
Normal open or Normal close type.
Please parallel connect COM end and GND end of the alarm detector (Provide external
power to the alarm detector).
Please parallel connect the Ground of the NVR and the ground of the alarm detector.
Please connect the NC port of the alarm sensor to the NVR alarm input(ALARM)
Use the same ground with that of NVR if you use external power to the alarm device.

7
Figure 2-5
2.3.3 Alarm Output Port
Provide power to peripheral alarm device.
To avoid overloading, please read the following relay parameters sheet carefully.
RS485 A/B cable is for the A/B cable of the PTZ decoder.
Relay Specification
Model:
JRC-27F
Material of the
touch
Silver
Rating
（Resistance
Load）
Rated switch capacity
30VDC 2A, 125VAC 1A
Maximum switch power
125VA 160W
Maximum switch voltage
250VAC, 220VDC
Maximum switch currency
1A
Insulation
Between touches with same
polarity
1000VAC 1minute
Between touches with different
polarity
1000VAC 1minute
Between touch and winding
1000VAC 1minute
Surge voltage
Between touches with same
polarity
1500V (10×160us)
Length of open
time
3ms max
Length of close
time
3ms max
Longevity
Mechanical
50×106 times (3Hz)
Electrical
200×103 times (0.5Hz)
Temperature
-40℃~+70℃

8
3Overview of Navigation and Controls
Connect the device to the monitor and then connect a mouse and power cable. Click the power
button at the front panel and then boot up the device to view the video output. You can use the
mouse to implement some GUI operation.
3.1 Login
Right click mouse, you can see system pops up the login interface for you to input user name
and password.
You can use USB mouse to input. Click to switch between numeral, English character
(small/capitalized) and denotation.
Note:
For security reason, please modify password after you first login.
Continuous three times login failure will result in system alarm and five times login failure will
result in account lock.
Figure 3-1
After device booted up, the system is in multiple-channel display mode. See Figure 3-2.Please
note the displayed window amount may vary. The following figure is for reference only.
Figure 3-2
You can overlay the corresponding date, time and channel name on each screen. You can refer
to the following sheet for channel record or alarm status information.
Preview control bar
1
Recording status
3
Video loss
2
Motion detection
4
Monitor lock

9
When you move your mouse on the top middle pane of the preview window, you can see the
following preview control bar. See Figure 3-3.
Figure 3-3
Please refer to the following sheet for detailed information.
1
Main stream and extra
stream switch
3
Monitor source zoom in
2
Front-end bidirectional
talk
4
Close monitor source.
Navigation bar
The navigation bas is shown as below. See Figure 3-4.
Figure 3-4
①：Main interface
②：Output screen option:
Select corresponding output device and set the output window amount.
③：Window split:
System supports 1/4/8/9/16/25/36/64-window output mode. Please select the window mode and
then select the corresponding channels.
④：PTZ Setup
The PTZ setup is shown as in Figure 3-5.
Please note the commend name is grey once device does not support this function.
Double click the title to hide the PTZ menu interface.
Here you can control PTZ direction, speed, zoom, focus, iris, preset, tour, scan, pattern aux
function, light and wiper, rotation and etc.
Speed is to control PTZ movement speed. The value ranges from 1 to 8.The speed 8 is faster
than speed 1. You can use the remote control to click the small keyboard to set.
You can click and of the zoom, focus and iris to zoom in/out, definition and brightness.
The PTZ rotation supports 8 directions.
Figure 3-5

10
In the middle of the eight direction arrows, there is a 3D intelligent positioning key. See Figure
3-6.XPlease make sure your protocol supports this function and you need to use mouse to control.
Click this key, system goes back to the single screen mode. Drag the mouse in the screen to
adjust section size. The dragged zone supports 4X to 16X speeds. Drag the mouse from top to
the bottom to zoom in. Drag the mouse from bottom to up to zoom out. It can realize PTZ
automatically. The smaller zone you dragged, the higher the speed.
Figure 3-6
Here is a sheet for you reference.
Name
Function
key
function
Function
key
function
Zoom
Near
Far
Focus
Near
Far
Iris
close
Open
Preset/ Patrol/Pattern/Scan
In Figure 3-5, please click the “set” button. The interface is shown as below. See Figure 3-7.
Here you can set the following items:
Preset
Tour
Pattern
Border
Figure 3-7
In X328H328H328H Figure 3-5, click page switch button, the interface is shown as in Figure 3-8.
Here you can activate the following functions:
Preset
Tour
Pattern
Auto scan
Auto pan
Flip
Reset
Page switch

11
Figure 3-8
Note:
Preset, tour and pattern all need the value to be the control parameter. You can define it as
you require.
You need to refer to your speed dome user’s manual for Aux definition. In some cases, it
can be used for special process.
The following setups are usually operated in the Figure 3-5, Figure 3-7 and Figure 3-8.
Preset Setup
In Figure 3-5, use eight direction arrows to adjust camera to the proper position.
In Figure 3-7, click preset button and input preset number. The interface is shown as in Figure
3-9.
Now you can add this preset to one tour.
Figure 3-9
Activate Preset
In Figure 3-8, please input preset number in the No. blank, and click preset button.
Patrol setup (Tour Setup)
In Figure 3-7, click patrol button. The interface is shown as in Figure 3-10. Input preset number
and add this preset to a patrol (tour). For each patrol (tour), you can input max 80 presets.
Figure 3-10

12
Activate Patrol (tour)
In X341H341H341HFigure 3-7, input patrol (tour) number in the No. blank and click patrol button
Pattern Setup
In Figure 3-7, click pattern button and then click “begin” button. The interface is shown as in
Figure 3-11. Then you can go to Figure 3-5 to modify zoom, focus, and iris.
Go back to Figure 3-11 and click “end” button. You can memorize all these operations as pattern
1.
Figure 3-11
Activate Pattern Function
In Figure 3-8, input mode value in the No. blank, and click pattern button.
Auto Scan Setup
In Figure 3-9, click border button. The interface is shown as in Figure 3-12.
Please go to Figure 3-5, use direction arrows to select camera left limit
Then please go to Figure 3-12 and click left limit button
Repeat the above procedures to set right limit.
Figure 3-12
Activate Auto Scan
In Figure 3-8, click “Auto Scan” button, the system begins auto scan. Correspondingly, the auto
scan button becomes Stop button. Click stop button to terminate scan operation.
Flip

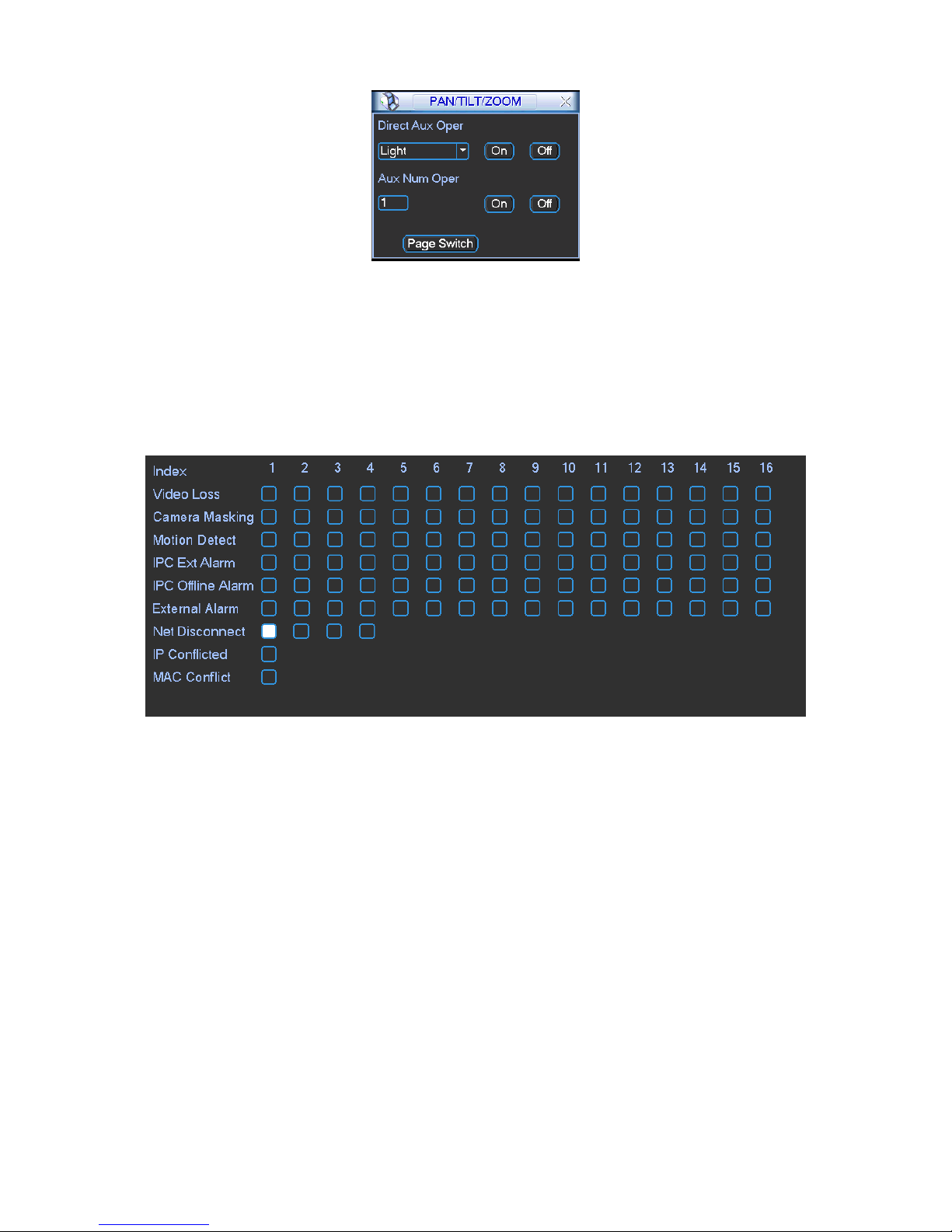

In Figure 3-8, click page switch button, you can see an interface is shown as below. See Figure
3-13. Here you can set auxiliary function. The aux value has relation ship with the Aux button of
the decoder.
Click page switch button again, system goes back to Figure 3-5.

13
Figure 3-13
⑤：Record Search
It is a shortcut search menu. Please refer to chapter 3.3 for detailed information.
⑥：Event Info
The event information is shown as below. See Figure 3-14.
It is for you to set the alarm information of current channel.
Figure 3-14
⑦：Network Setup
It is the shortcut network setup button. Please refer to chapter 3.5.4 for detailed information.
⑧: Output mode
It is the shortcut display setup button. Please refer to chapter 3.5.7 for detailed information.

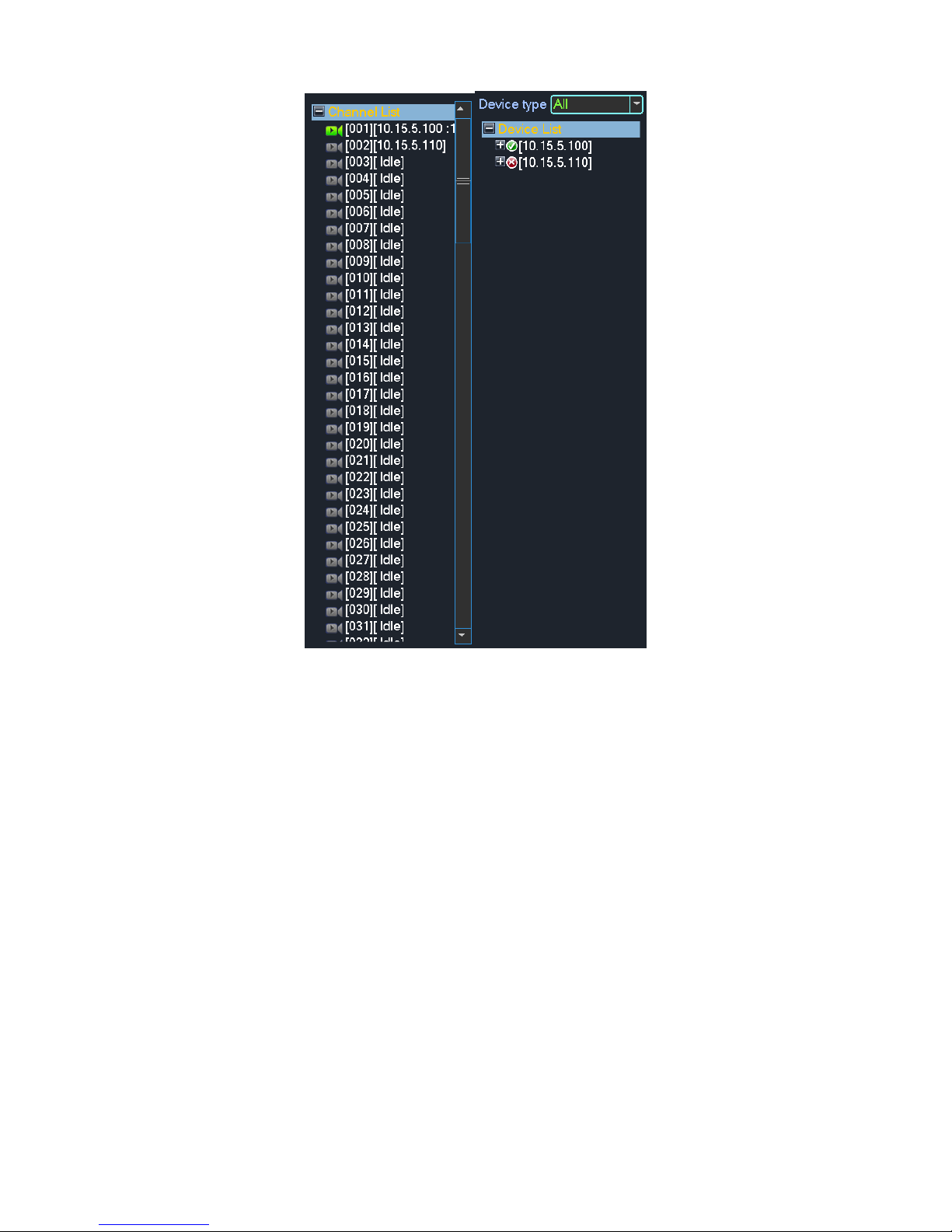

⑨：Device management
You can use the channel list and the device list to manage the connected remote device. The
channel list is on the left. Here you can view all connected channel information. The green color
in front of the camera name means current channel is recording now. The grey color means
current channel is not recording. The device list is on the right. Here you can view connected
device information. Green icon means current device is online while the red cross means current
device is offline. See Figure 3-15.

14
Figure 3-15
⑩：HDD management
It is the shortcut HDD management button. Please refer to chapter 3.7.1 for detailed information.
3.2 Main Menu
After you logged in, the system main menu is shown as below. See Figure 3-16. There are total
seven icons: search, Information, setting, remote device, backup, advanced and shutdown. Move
the cursor to highlight the icon, then double click mouse to enter the sub-menu.
