Waterco Hydrostorm ECO-V 150 Quick start guide

ECO-V 150 Pool Pump
Owners Manual Installations
Product Image to be supplied Joey.
This equipment must be installed and serviced by a qualified technician.
Improper installation can create electrical hazards which could result in property
damage, serious injury or death. Improper installation will void the warranty.
Notice to Installer
This manual contains important information about the installation, operation and safe
use of this product. Once the product has been installed this manual must be given
to the owner/ operator of this equipment.

Table of Contents
LOCATION ---------------------------------------------------- 01
INSTALLATION ----------------------------------------------- 01
ELECTRICAL CONNECTION -------------------------------- 02
THREE PHASE MOTOR -------------------------------------- 02
WIRING DIAGRAM ------------------------------------------- 02
PRIMING ------------------------------------------------------ 03
MAINTENANCE ---------------------------------------------- 04
FLUID TEMPERATURE -------------------------------------- 04
SERVICING --------------------------------------------------- 04
GENERAL SAFETY RULES --------------------------------- 05
WARNINGS FOR INSTALLATION AND -------------------- 06
ASSEMBLY TASKS
WARNINGS FOR ASSEMBLY AND ------------------------- 06
MAINTENANCE TASKS
TROUBLESHOOTING ---------------------------------------- 07
LOCATION
The pump must be located as close as practical to the pool. The pump must also be
in a position that enables easy access for periodic servicing. Care must also be
taken to position the pump in an area that is free from flooding in a well ventilated
and dry area.
INSTALLATION
Waterco Limited use the latest technology when designing and manufacturing our
pumps, a few simple precautions during installation will ensure years of trouble free
operation.
1. The pump suction line should be not smaller than 1 1/2” (40mm imperial).
2. The suction line is to have as few bends or elbows as possible. There must not be
an air trap on the suction line.
3. Use only the pump barrel unions supplied with the pump.
4. Bolt the pump to the required position (prevent movement).
5. The pump electrical cable must be wired for the proper voltage and rotation in
accordance with the wiring instructions.
6. All wiring (electrical) work must be carried out by licensed electricians and must be
installed in accordance to the local codes.
7. The motor must be grounded.
8. The weight of the plumbing and fittings is to be independently supported and not
carried by the pump.
9. The pump motor cooling fan must have a minimum clearance of 150mm.

~ IMPORTANT ELECTRICAL NOTICE ~
The electrical installation is to be done by a licensed electrician.
Each pump requires a circuit breaker to separate the pump from the electrical
supply.
The contact separation has to provide full disconnection in all poles under
overvoltage category III conditions.
If the pump is to be installed on a swimming pool or pond situation it is
MANDATORY that an earth leakage circuit breaker with a rated tripping current not
exceeding 30mA be installed.
Check the pumps name plate for the following: Voltage, Amp draw and Cycle.
The power cord, including the ground wire shall have a quality of 245 IEC66
(HO7RN-F) for models greater than 1Kw power input.
For models less than 1Kw input the quality shall be of 245 IEC57 (H05RN-F).
All installations must comply with local codes, based on IEC 364-7-702 requirements
Failure to bond pump to pool structure will increase risk for electrocution and could
result in injury or death. To reduce the risk of electric shock, the electrician must
comply with installation instructions and must bond the pump accordingly. In
addition, the licensed electrician must also conform to local electrical codes for
bonding requirements.
ELECTRICAL CONNECTION
Check that the information on the nameplate corresponds to the power supply.
Employ a competent electrician to ensure wiring installation is made in accordance
with any local electrical codes. Every motor requires either a fused disconnect switch
or a circuit breaker.
A SINGLE PHASE MOTOR has a built in thermal overload switch.
The Waterco ECO-V 150 pool pump is a premium efficiency variable speed motor
that provides tremendous program flexibility in terms of motor speed and time
settings. The variable speed Waterco ECO-V 150 is intended to enable running at
the lowest speeds needed to maintain a sanitary environment, which in turn
minimizes energy consumption. Pool size, the presence of additional water features,
chemicals used to maintain sanitary conditions, and environmental factors will impact
optimal programming necessary to maximize energy conservation.

GENERAL SAFETY RULES
1. The machines mentioned in the manual are specially designed for the pre-filtering
and re-circulation of water in swimming pools.
2. They are designed to work with clean water at a temperature not exceeding 35
degrees Celsius (95 degrees Fahrenheit).
3. The installation should be carried out in accordance to the safety instructions of
swimming pools, especially Standard HD 384.7.702, and the specific instructions for
each facility.
4. The rules enforce on accident prevention should be carefully followed.
5. Any modification of the pump requires the prior consent of the manufacturer.
Original replacement parts and accessories authorized by the manufacturer ensure a
high level of safety. The manufacturer of the pump assumes no liability for the
damage and injuries caused by unauthorized replacement parts and accessories.
6. During operation, some parts of the pump are subject to dangerous electric
voltage. Work may only be performed on each pump or on the equipment connected
to it after disconnecting them from the mains power, and after disconnecting the
starting device.
7. The user should make sure that assembly and maintenance tasks are carried out
by qualified authorized persons and that these persons have first carefully read the
instructions for service and installation.
8. The operating safety of the pump is only guaranteed if the installation and service
instructions are correctly followed.
9. The limit values stated in the. Technical table should not be exceeded under any
condition.
10. In the event of defective operation or fault, contact the technical support
department of the manufacturer or its nearest authorized agents.
11. If the supply cord is damaged, it must be replaced by an authorized service
agent.
12. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.

13. The appliance is not intended for use by young children. Young children should
be supervised to ensure that they do not play with the appliance.
The Waterco ECO-V 150 is for use with 208-230 Vrms nominal, and in pool pump
applications ONLY. Connection to the wrong voltage, or use in other application may
cause damage to equipment or personal injury.
The integrated electronics interface controls the speed settings as well as the run
durations. The Waterco ECO-V 150 can run at speeds ranging between 600 and
3450 RPM and is rated for 208-230 Vrms at an input frequency of 60 Hz.
Navigation Overview
+, - Increases/decreases selected value
Pressing any key following a change accepts the current value displayed inside
the setting
Refer Joey re panel image

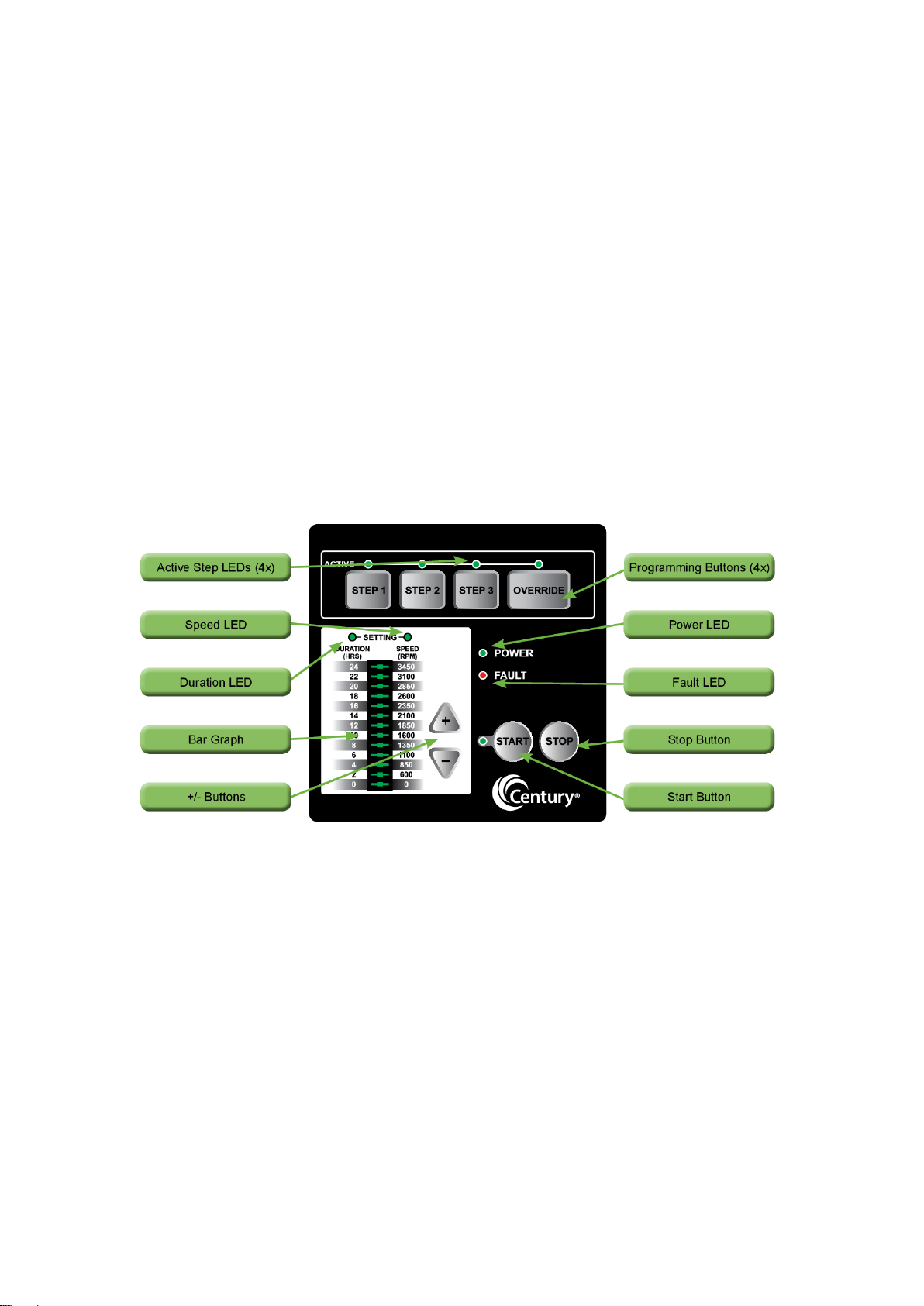

Figure 1: Waterco ECO-V 150 User Interface Button Descriptions
CAUTION
If power is connected to the Waterco ECO-V 150 motor, pressing any of the
following buttons referred to in section 2 could result in the motor starting. Failure to
recognize this could result in personal injury or damage to equipment.
Note: The START button must be pressed for the Waterco ECO-V 150 to operate.
The START LED will illuminate after the button has been pressed indicating the
Waterco ECO-V 150 is capable of operating. Pressing the stop button will turn off the
START LED and stop the motor if running.

Quick Start Instruction
If power is connected to the Waterco ECO-V 150 motor, pressing any of the
following buttons referred to in section 3 could result in the motor starting. Failure to
recognize this could result in personal injury or damage to equipment.

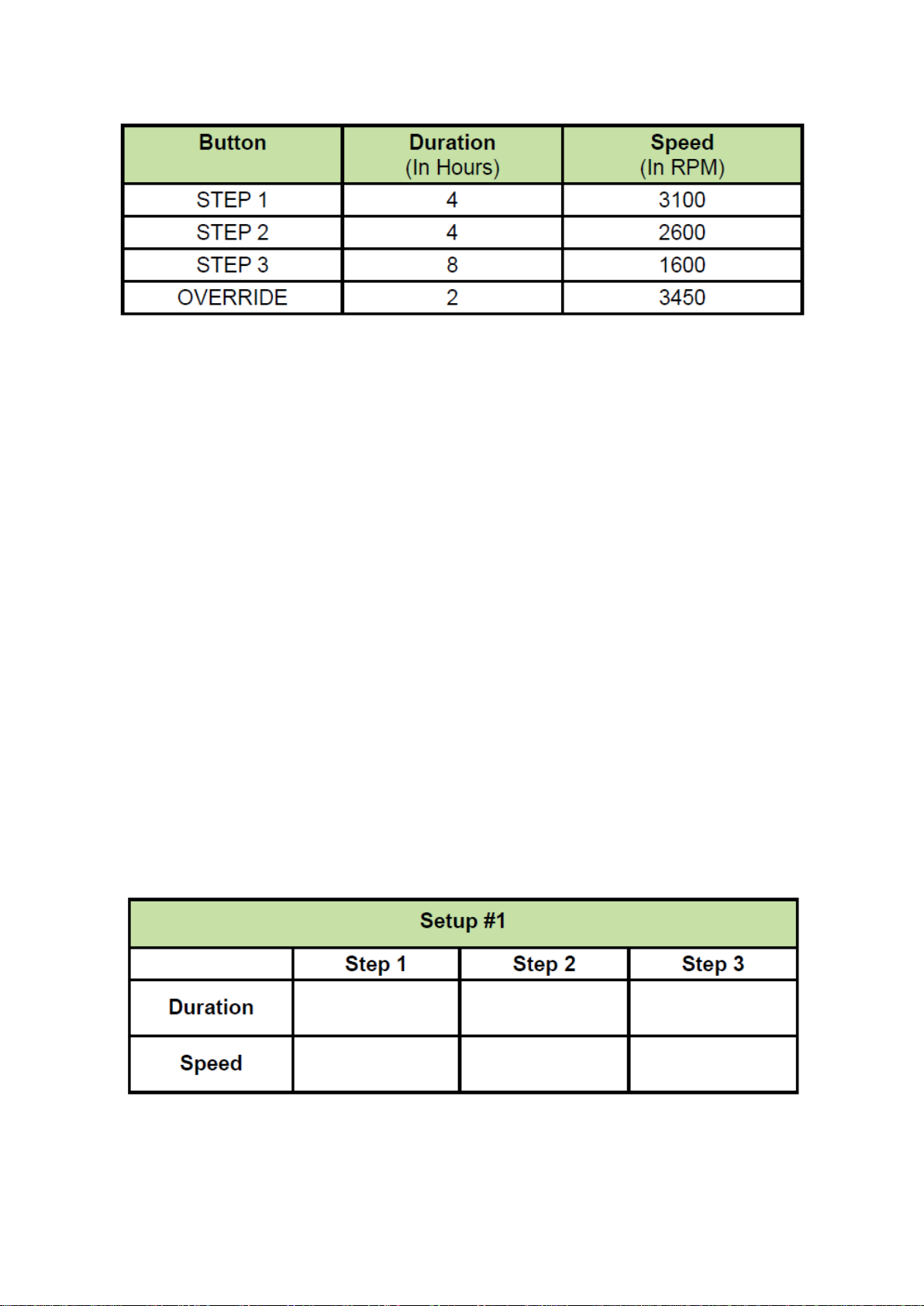

The following table describes the factory default settings for DURATION and SPEED
order:
Refer Joey re chart image
Pressing the START key will start the Waterco ECO-V 150 based on the factory
default schedule.
Note: If power is cycled to the Waterco ECO-V 150 and the user does not press the
STOP key, the Waterco ECO-V 150 will automatically start and run the
programmed default schedule shown in the chart above. This feature ensures that
the Waterco ECO-V 150 will re-start in the event of a power outage.
3.2 Quick Start Guide (User-defined custom schedule)
A Waterco ECO-V 150 user can set the program DURATION and SPEED for
STEP 1, STEP 2, STEP 3 & OVERRIDE keys.
Note: Waterco ECO-V 150 must be Stopped (Press STOP Key) for programming
DURATION and SPEED of the STEP 1, STEP 2, and STEP 3 keys. OVERRIDE
DURATION and SPEED can be programmed when the Waterco ECO-V 150 is
either stopped or running.
Press the STEP 1 key. The STEP 1 button and DURATION setting LEDs will
illuminate. The bar graph will show default DURATION for STEP 1.

Refer Joey re chart image
1. Press UP (+) or DOWN (-) arrows to change the DURATION
2. Press the STEP 1 key again to change the SPEED setting.
The SPEED setting LED will illuminate. The bar graph will show default SPEED for
STEP 1.
3. Press UP (+) or DOWN (-) arrows to change the SPEED.
4. Press any STEP or OVERRIDE key to save the DURATION and SPEED settings
for STEP 1. If the user decides not to save the settings, pressing the STOP key will
revert back to the previously stored setting.
5. Press STEP 2, STEP 3, or OVERRIDE key. Repeat steps 1- 4 to program the
corresponding DURATION and SPEED for each button.
6. Press START to run the Waterco ECO-V 150 based on the programmed 24 hour
schedule.
7. Pressing the STOP button will stop the Waterco ECO-V 150.
Note: The Waterco ECO-V 150 can only be set to operate on a 24-hour schedule. If
a user attempts to program a schedule with a combined duration for all three steps
greater than 24 hours, the Waterco ECO-V 150 software will retain the current STEP
time duration only, and will zero out the other two STEP time settings. As an
example, if STEP 1 equals eight (8) hours, STEP 2 equals nine (9) hours, and STEP
3 equals eight (8) hours –for a combined 25 hours –the Waterco ECO-V 150 will
retain the setting for the current Step being programed and zero out the remaining
two. For details regarding the set-up of the three steps as part of a 24-hour schedule,
see section 6.

4. Overview
Note: The Waterco ECO-V 150 can and should be optimized to suit individual pool
conditions. Specific conditions including pool size, other devices, features, and
environmental factors can all impact the optimal settings.
Program customization may require some trial and error to determine the most
satisfactory settings as dictated by the conditions. In all cases, setting the Waterco
ECO-V 150 at the lowest speed for the longest duration is the best strategy to
minimize energy consumption. However, conditions may require running the
Waterco ECO-V 150 at a higher speed for some duration of time each day to
maintain proper filtration to achieve satisfactory sanitation.
The User Interface is located on top of the Waterco ECO-V 150. To the right of the
STEP buttons is the OVERRIDE button. This button can be used to operate the
Waterco ECO-V 150 at speeds outside of the normal operating schedule.
Refer Joey re chart image
Figure 2: WatercoECO-V150 Overview

5. Wiring

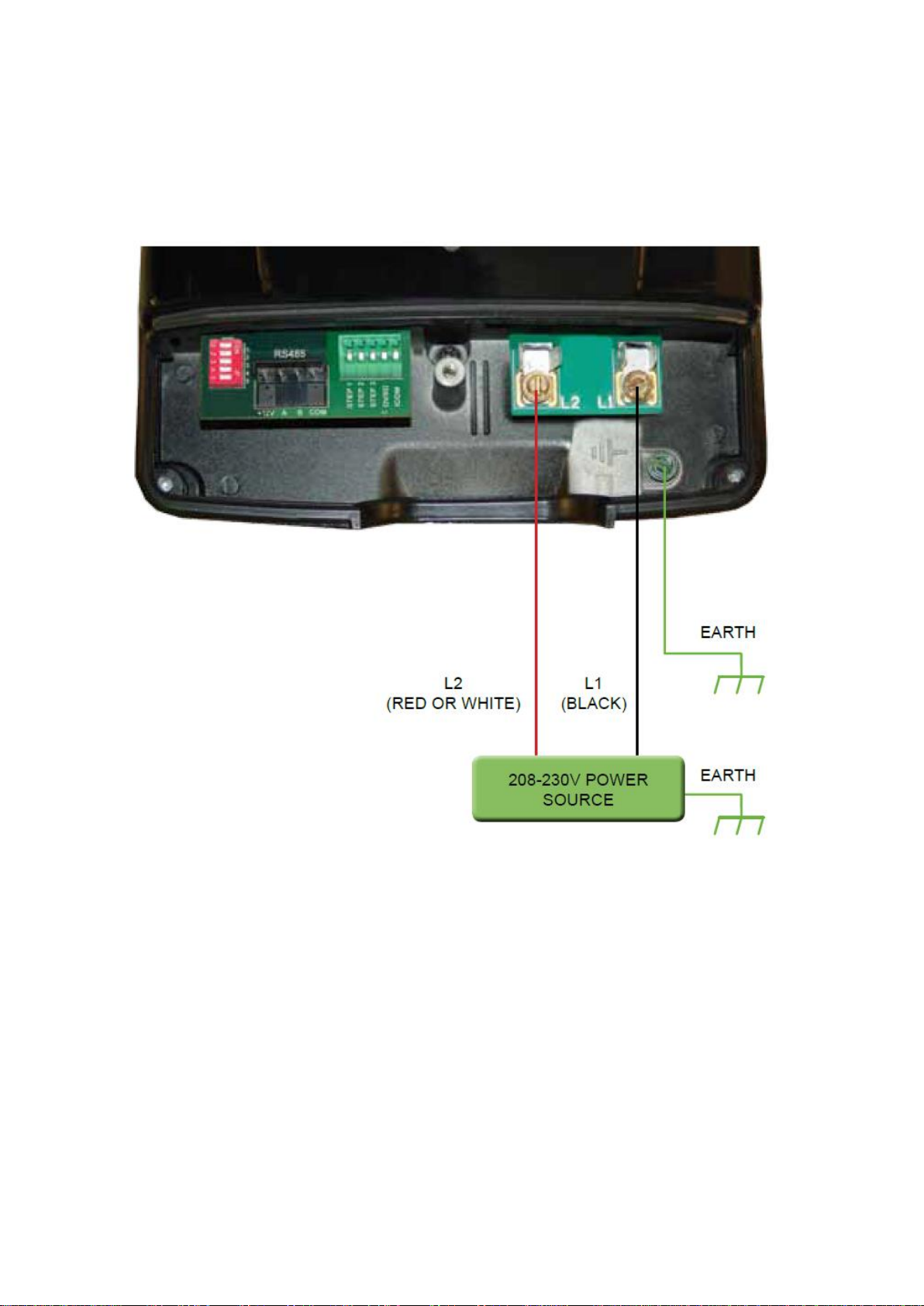

Warning: The Waterco ECO-V 150 controller must be wired according to the locally
adopted version of the NEC. A licensed, qualified electrician should complete the
wiring for this product. Failure to comply with this may result in death, serious
personal injury or property damage.

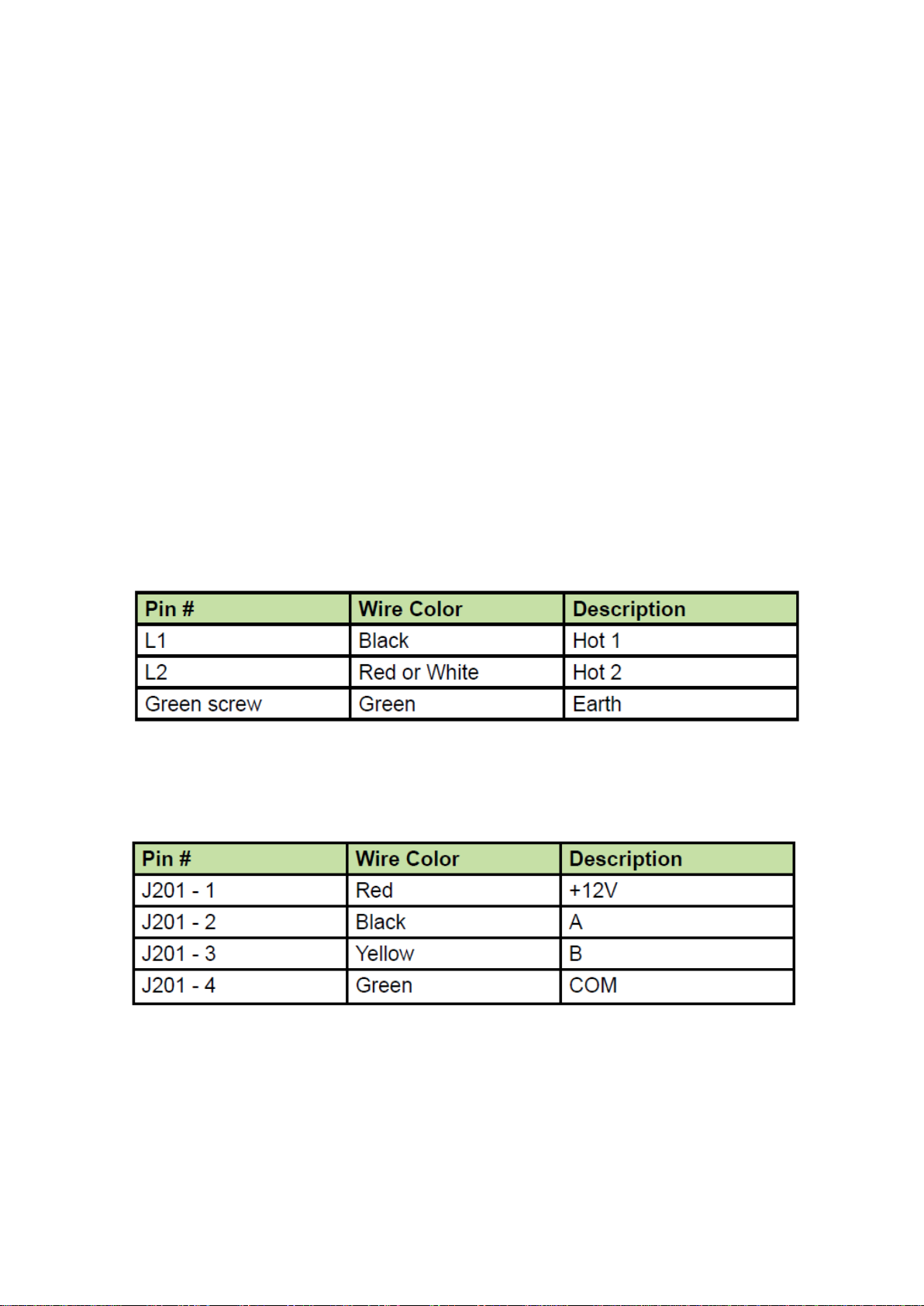

The Waterco ECO-V 150 controller must be wired according to the locally adopted
version of the NEC. A licensed, qualified electrician should complete the wiring for
this product.
The controller is designed to operate with 208-230 Vrms, single phase power.
The Waterco ECO-V 150 is designed to handle either a bare wire connection or a
quick disconnect connection. The quick disconnect tab is 0.250” and will handle any
commonly available mating connectors. For a direct wire connection, the wire
insulation should be stripped to a length of approxi-mately 0.33.” The terminal block
is capable of handling solid or stranded wire up to 12 AWG in size. The screw for
the mains connections should be properly tightened to a torque value of 10 in-lb.
Refer Joey re chart image
Table 1: Mains Connection
Refer Joey re chart image
Table 2: Communication Connection

Warning: Power should be turned off when installing, servicing, or repairing
electrical components. Observe all warning notices posted on the existing
equipment, Waterco ECO-V 150, and in these installation instructions.
Refer Joey re chart image
Figure 3: Mains Connection Diagram

WatercoECO-V150 Controller
Refer Joey re chart image
Figure 4: Wiring Diagram for Digital Inputs
Warning: Access to these terminals is in close proximity to the mains connectors
which carry line voltage capable of causing personal injury or damaging the
equipment if contact is made.
Power should be turned off when accessing this area.
Refer Joey re chart image
Figure 5: Digital Input connector

6 User Interface Operation
6.1 LED and Function Overview
Refer Joey re chart image
Figure 6: LED Functionality Table

6.2 User Interface Key Pad Overview
Caution: If power is connected to the Waterco ECO-V 150 motor, pressing any of
the following buttons referred to in this section 6.2 could result in the motor starting.
Failure to recognize this could result in personal injury or damage to equipment.
1. STEP 1 (Set Schedule) DURATION and SPEED
2. STEP 2 (Set Schedule) DURATION and SPEED
3. STEP 3 (Set Schedule) DURATION and SPEED
4. OVERRIDE (Settings) DURATION and SPEED
5. START
6. STOP
6.3 Set the Schedule
Caution: If power is connected to the Waterco ECO-V 150 motor, pressing any of
the following buttons referred to in this section 6.3 could result in the motor starting.
Failure to recognize this could result in personal injury or damage to equipment.
Set the DURATION and SPEED for the Waterco ECO-V 150 using the keys on the
User Interface. The schedule is based on a 24-hour schedule and will repeat each
day of the week.
Refer Joey re chart image
The highest speed rating for the Waterco ECO-V 150 is 3450 RPM and the lowest is
600 RPM. Unless a new user-defined schedule is entered, the Waterco ECO-V 150
will operate based on the following factory default schedule:

Refer Joey re chart image
Table 3: Factory default schedule
Schedule Tables
Use the tables below to record a personalized operating schedule. Recording the
planned schedule in the table below will make the programming process easier and
will help the user remember the custom settings in case of inadvertent loss of
schedule.
The user interface will not allow the user to program an overlap between different
STEPs of the schedule. The STEP currently being set will always take priority over
any previous settings. In the event a user attempts to program with a combined
duration greater than 24 hours, the current STEP setting will be retained whereas the
other two STEP settings will be cleared to zero hours requiring the user to reset
them.
Prior to beginning the actual programming process, it is advisable for the user to
review the planned schedule as outlined in chart form to ensure the cumulative
duration is not greater than 24 hours and no overlaps exist. It is always a good idea
to double check your programmed settings for accuracy once you have completed
the programming process.
Refer Joey re chart image

Refer Joey re chart image

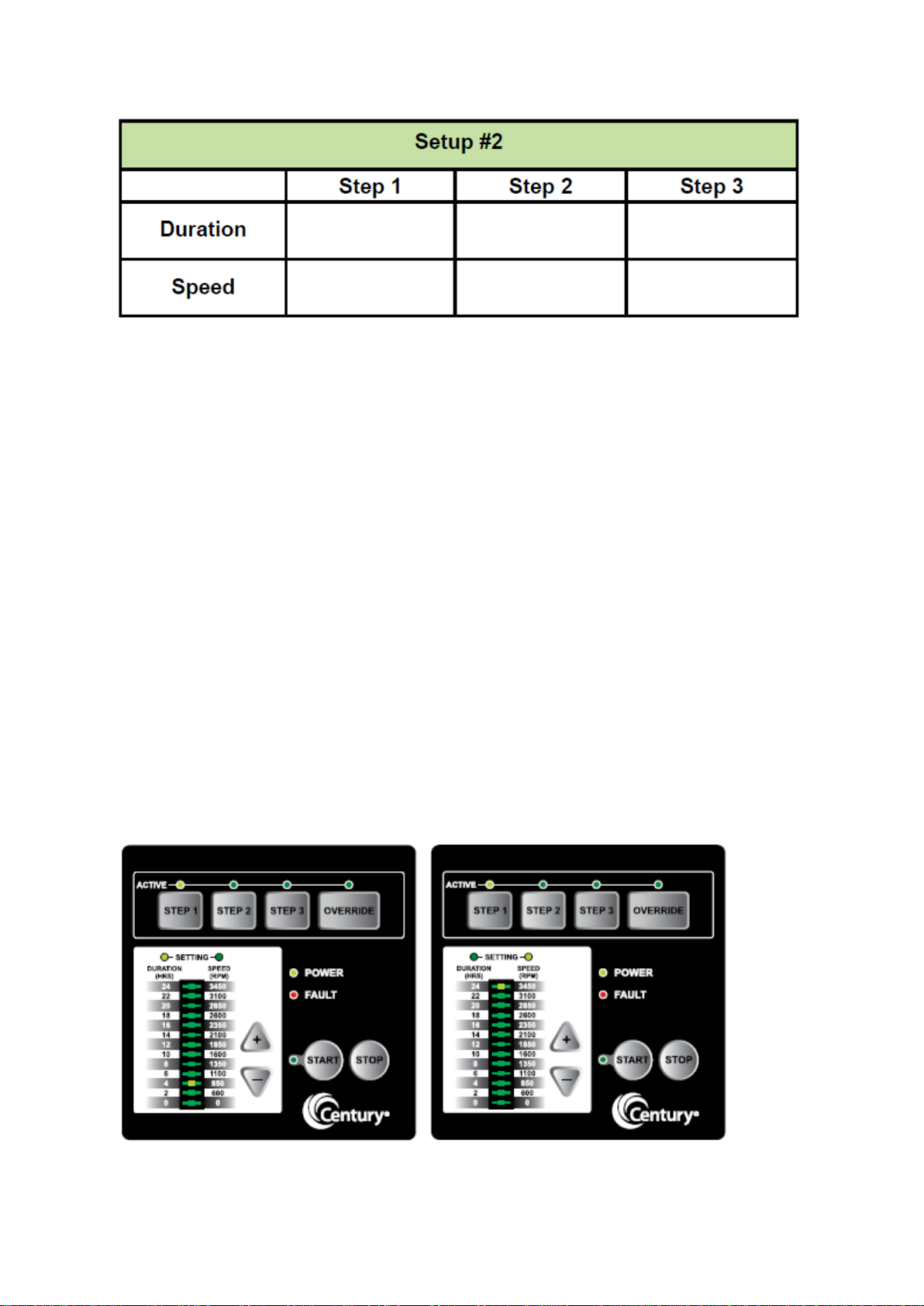

Table 4: Custom Schedule
6.4 Running WatercoECO-V150 from Keypad
Caution: If power is connected to the Waterco ECO-V 150 motor, pressing any of
the following buttons referred to in this section 6.4 could result in the motor starting.
Failure to recognize this could result in personal injury or damage to equipment.
1. Press the START key and the Waterco ECO-V 150 will run the programmed 24
hour duration schedule. The START event will be stored in the controller. Should a
power outage occur, the Waterco ECO-V 150 will automatically re-start at STEP 1
when power is restored.
2. The Waterco ECO-V 150 will always run the PRIMING sequence when it starts
from the OFF state, including when it automatically restarts following a power
outage. The default Prime setting is defined in the “Priming” section of this
document.
3. The Waterco ECO-V 150 then starts running in STEP 1 at the programmed
DURATION and SPEED. The “ACTIVE LED” for STEP 1 will turn ON. The
DURATION and SPEED setting LEDs along with the respective bar graph LED will
blink back and forth every three (3) seconds.

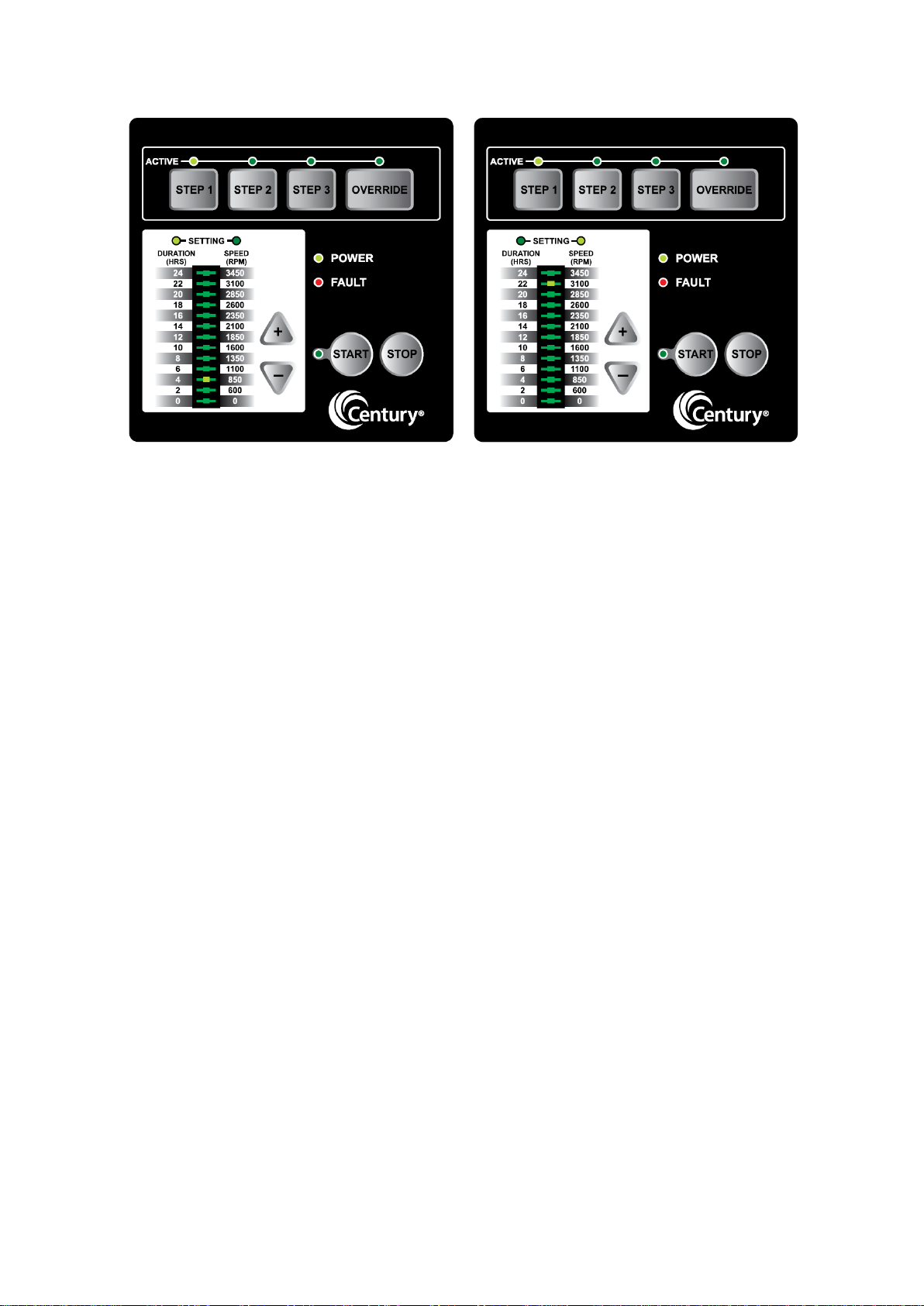

Refer Joey re chart image

4. This sequence will then repeat for STEP 2 and then STEP 3 without the Waterco
ECO-V 150 stopping.
5. At the end of STEP 3, the Waterco ECO-V 150 will wait if necessary for the
completion of the 24-hour schedule. During this waiting period (if applicable), all of
the “active step LEDs” will remain OFF.
However, the START LED will still be illuminated. After completion of the 24 hour
schedule, the system restarts at STEP 1 and this cycle will repeat indefinitely until
the user presses the STOP key.
Note: Pressing a STEP key other than for the STEP currently running will cause an
immediate transition to the newly selected STEP. The Waterco ECO-V 150 will
continue with the programmed schedule from that point forward.
Note: If STOP is pressed during normal schedule operation, the 24 hour schedule
will stop. When START is pressed again, the 24 hour schedule will start from STEP
1.
Note: If power is lost while the Waterco ECO-V 150 is running a 24 hour schedule,
upon restoration of power the Waterco ECO-V 150 will start the 24 hour schedule
from STEP 1.
Note: If a digital input (provided from an external source) is detected, the Waterco
ECO-V 150 will start running on the STEP 1, STEP 2, STEP 3, or OVERRIDE speed
corresponding to the digital input. Upon removing the digital input (provided from an
external source), the Waterco ECO-V 150 will stop and the user will need to press
START to begin the 24 hour schedule operation.
However, if START was already pressed prior to receiving a digital input, then the
Waterco ECO-V 150 will resume running the 24 hour schedule once the digital input
is removed.
NOTE: Pressing STOP at any time turns the Waterco ECO-V 150 OFF and clears
the start time for the 24 hour schedule.
6.5 OVERRIDE
The Waterco ECO-V 150 is equipped with an OVERRIDE feature, which can be
engaged to temporarily run at higher or lower speeds ranging between 600 to 3450
RPM. Once the OVERRIDE duration has elapsed, the Waterco ECO-V 150 will
automatically return to the programmed schedule.
1. Pressing the OVERRIDE key while the Waterco ECO-V 150 is running will cause
the Waterco ECO-V 150 to start running in the OVERRIDE mode at the programmed
DURATION and SPEED. The “active LED” for OVERRIDE will illuminate. The

DURATION and SPEED setting LEDs along with its respective bar graph LED will
blink back and forth at three (3) second intervals.
2. The UP (+) / DOWN (-) arrows allow the user to configure OVERRIDE DURATION
and SPEED. These settings can be changed while the Waterco ECO-V 150 is
running. These settings are stored each time the UP (+) / DOWN (-) arrows are
pressed.
Refer Joey re chart image
NOTE: When the OVERRIDE duration ends, the Waterco ECO-V 150 resumes the
24 hour schedule at the point in the currently programmed 24 hour schedule where it
normally would be running at that time.
The OVER-RIDE duration will not affect the start or stop times of the 24 hour
schedule. For example, if OVERRIDE runs during a period overlapping with a later
part of STEP 1 and an early part of STEP 2, the start time of STEP 3 is not affected.
Note: Pressing/Holding OVERRIDE key for more than three (3) seconds will cancel
OVERRIDE mode.
Note: During the OVERRIDE mode, the Waterco ECO-V 150 will not start with the
priming sequence.
Note: It is recommended that you do not set the OVERRIDE duration to 0 HRS.
Setting the OVERRIDE duration to 0 HRS will not allow you to change the duration
setting while the motor is running. The motor will have to be stopped in order to
change the OVERRIDE settings if the duration is set to 0 HRS.

6.6 Schedule Advance
Danger: Do not perform any maintenance on the motor while the motor is in
Schedule Advance Mode. The motor may start without warning. This event could
cause death or serious personal injury.
The Schedule Advance mode allows the user to press the START button at one time
of the day, with the 24-hour schedule starting at a different time of day. The Waterco
ECO-V 150 can run in the Schedule Advance mode (by using the OVERRIDE
button) and upon completion will begin the programmed 24 hour schedule at STEP 1
DURATION and SPEED.
The following steps should be followed to set Schedule Advance mode:
1. With the Waterco ECO-V 150 stopped, press and hold the START key for more
than three (3) seconds. The START LED will blink at a rate of one second per pulse.
The DURATION setting LED and respective bar graph LED will remain turned ON
until the Schedule Advance mode is complete.
Refer Joey re chart image
2. Press the UP (+) or DOWN (-) arrows to set the desired delay time after which the
24-hour schedule should start. The Schedule Advance mode will automatically start
after the desired delay time is selected. The Schedule Advance mode can be
cancelled by pressing the STOP key.
Note: The OVERRIDE button will still function when the Schedule Advance mode is
active. This will allow the user to run the Waterco ECO-V 150 during the period of
the Schedule Advance mode.

Note: While the Waterco ECO-V 150 is in the Schedule Advance mode, if a user
presses STEP 1, STEP 2, STEP 3 or the START key, the system will start the
normal schedule and the Schedule Advance mode will be cancelled.
Note: While the Waterco ECO-V 150 is in the Schedule Advance mode, if a user
presses the STOP key, then the Schedule Advance mode is cancelled.
Note: If power is lost while the Waterco ECO-V 150 is in the Schedule Advance
mode, then the 24-hour schedule will automatically start when power is restored.
6.7 Key Lockout
Caution: Key lockout will not prevent the motor from being stopped by pressing the
STOP button. If the motor is operating in “key lockout” mode, and being controlled
through a digital or serial input, the motor will only temporarily stop (4 min.) it will
then restart.
The Waterco ECO-V 150 user interface has a “key lockout” feature to prevent
unwanted changes to the settings.
To lock the keys, hold down the “STEP 1, STEP 2, and STEP 3” buttons all at the
same time for at least three seconds. The “active LEDs” for STEP 1, STEP 2, and
STEP 3 will blink for 30 seconds indicating that the keypad is locked.
The user can unlock the keys by holding down the same three STEP buttons for at
least three seconds. The “active LEDs” for STEP 1, STEP2, and STEP 3 will
illuminate temporarily indicating the keypad is un-locked.
Note: While operating in “key lockout” mode the motor can still be stopped by
pressing the stop key. If no digital or serial input is present the motor will remain
stopped. If the motor is being controlled by a digital or serial input the motor will only
temporarily stop for 4 minutes. See section 6.9 for more information on temporary
stop.

Refer Joey re chart image
6.8 Motor Pause
The Waterco ECO-V 150 user interface has a “motor pause” feature that will allow
the user to temporarily stop the Waterco ECO-V 150 for maintenance work without
disrupting the 24 hour schedule (i.e., for backwashing the filter). If the Waterco ECO-
V 150 is currently running, the user can press and hold the START button for more
than three (3) seconds and the Waterco ECO-V 150 will stop and remain off until the
user presses and holds the START button again for more than three (3) seconds.
The START and OVERRIDE buttons will blink once every second indicating that the
“motor pause” feature is enabled. These LEDs will stop blinking once this feature is
cancelled.
6.9 Temporary Stop with Digital / Serial Input
Caution: Temporary stop functionality only works while the Waterco ECO-V 150 is
being controlled by a digital or serial input. If the motor is being controlled by the
integrated key pad and STOP is pressed, the motor will stop and remain stopped.
The Waterco ECO-V 150 has a “temporary stop” feature that will immediately stop
the Waterco ECO-V 150 when being controlled by a serial or digital input. The user
can press the STOP button while the Waterco ECO-V 150 is running and the
Waterco ECO-V 150 will stop and stay off for four (4) minutes.
Once this time has elapsed, the Waterco ECO-V 150 will return to normal operation
and accept an input from digital or serial input source. Refer to section 9 for
additional details on digital inputs.
Note: If the Waterco ECO-V 150 is operating from serial or digital input, the ‘0 RPM’
LED of the bar graph will blink once every second indicating the “temporary stop”
