Madimack Elite Max User manual

1

INDEX

1
a. FOREWORD
Thank you for choosing the Madimack high efficiency inverter pool heat pump!
All our heat pumps are built and designed to the highest standard and are protected by our
extended warranty service for peace of mind.
Warranty registration is required to be submitted online in conjunction with the
commissioning page and warranty registration page in the Appendix section at the back of
the booklet www.madimack.com.au/warranty-registration.
Please read and fully understand all information provided before attempting to install the
pool heat pump.
For technical questions and further information please contact
[email protected].
We hope you enjoy using our heat pumps.
Thank you!

2
COVER THE BASICS:
1. Check that you have received the package in good condition
2. Every residential heat pump comes with two accessory boxes and the manual. The
manual will mention all the parts and where they belong to make sure that the unit is
commissioned, as per the 'commissioning' section, and that adequate water flow rate is
provided
3. Keep the surroundings of the unit clear of any debris, tree branches, and anything that
can affect the ventilation of the unit
4. Keep the invoice/packing slip in a safe place.
5. Register the unit for warranty as per the warranty section in this manual
6. Ensure that the unit is installed in an outdoor area, if it must be indoors the unit will need
to be ducted to the outside
7. The condensate drain will need regular check-ups for any blockages or debris
build ups, keeping it clean allows the condensate drain to escape easily to drainage
8. For Wi-Fi control make sure that you have full Wi-Fi strength in the heat pump area,
more than -50 DB is recommended for strong connection
9. Make sure that the unit is installed as per the ventilation diagrams to ensure efficient
heating rates

3
Safety
Precautions
b.

4
We have provided important safety messages in this manual for the installation, maintenance, and
repair of your heater.
Please read thoroughly and obey all safety messages.
Environmentally friendly R32 Refrigerant is used in this heat pump.
1.Warning
This WARNING sign denotes a hazard. It calls attention to a
procedure, practice, or the like, which, if not correctly performed or
adhered to, could result in personal injury or injury to a third party.
These signs are rare, but are extremely important.
a. Keep the heat pump away from fire source.
b. Unit must be placed in a well-ventilated area; indoor or enclosed areas
are not allowed.
c. Repair and disposal must be carried out by trained service personnel
d. Vacuum the system completely before welding. Welding should only be
carried out by professional trained personnel.

5
2.Attention
a. Please read the following instructions before installation, use and maintenance.
b. Installation must be completed only by competent persons only, and in accordance with this
manual.
c. Check all water connections are sealed and tested before operating the machine
d. Except for the methods recommended by the manufacturer, do not use any methods to
accelerate the defrosting process or clean the frosted parts.
e. If a repair is required, please contact the nearest after-sales service center. The repair
process must be strictly in accordance with this manual. Repairs made by unauthorized
persons may void the warranty.
f. Correctly set temperaturerequiredfor personal preference making sureto avoid overheating
or overcooling.
g. Please do use or stack substances or other materials which may block the air flows to the
inlet or outlet areas. Thiscauses the efficiency of the heater to be reduced, and may damage
the machine.
h. Do not use or stock combustible gas or liquids such as thinners, paint and fuel, to avoid fire!
i. In order to optimize the heating effect, please install heat preservation insulation on pipes
between swimming pool and the heater, and please use a recommended cover on the
swimming pool.
j. Connecting pipes of the swimming pool and the heater should be less than 10m.
3.Safety
a. Please keep the main power supply switch out of reach from the children.
b. If power is suddenly disconnected during operation, and later the power is restored, the heater
will start up automatically.
c. Please switch off the main power supply in high storm weather to prevent the machine from
damage that could be caused by lightning strikes.
d. Any repairs should be carried out in a well-ventilated area. Any source of ignition is prohibited
during the inspection.
e. Safety inspection must be carried before the maintenance or repair for heat pumps with R32
gas in order to minimize the risk.
f. If R32 gas leaks during the installation process, all operations must be stopped immediately and
call your local service center.

6
About
your heat
pump
c.

7
A. About your heat pump
1. Transportation
a. Always keep upright
b. Remove the screws attached to the tray and thread the lanyard.
c. Transported by a crane, the sling should handle at least 1260KG
d. Do not lift the water union, otherwise, the titanium heat exchanger inside the heat pump may be damaged.

8

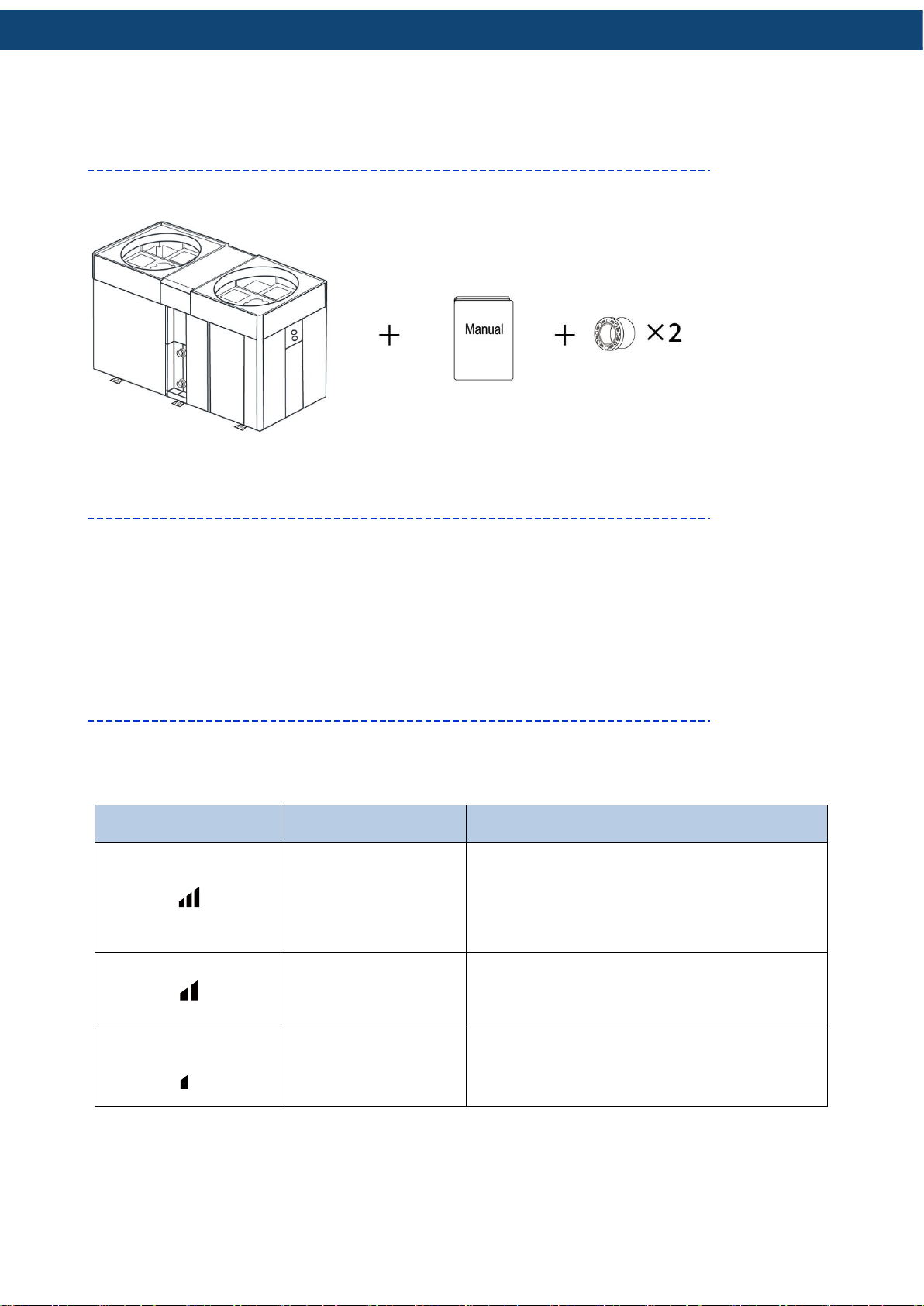

2. Accessories:
3. Operating condition and range:
To provide you comfort and pleasure, please set swimming pool water temperature efficiently and
economically.
The heat pump can work between air -10°C～43°C, and its ideal operation range is between air
15°C ~ 25°C.
4. Introduction of different modes:
a. The heat pump has three modes: Power and perfect and Silence.
b. They have different strengths under different conditions.
Mode
Modes
Strength
Power mode
Heating capacity: 20% to 100% capacity
Intelligent optimization
Fast heating
Perfect mode
Heating capacity: 20% to 80% capacity
Sound level: 3dB (A) lower than Power mode
Silence mode
Heating capacity: 20% to 50% capacity
use at night

9
5. Technical parameter
Model
EM2500
PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80%
Heating capacity (kW)
252.0
COP Range
7.0 - 15.0
PERFORMANCE CONDITION: Air 15°C/ Water 26°C/ Humid. 70%
Heating capacity (kW)
185.0
COP Range
5.5 - 8.0
PERFORMANCE CONDITION: Air 35°C/ Water 28°C/ Humid. 80%
Cooling Capacity (kW)
110.0
TECHNICAL SPECIFICATIONS
Operating air temperature (℃)
-15.0 ~ 43.0 ℃
Fan direction
Vertical
Power supply
400V/3 Ph/50Hz
Rated input power (kW)
5.7 - 35.8
Rated input current (A)
8.3 - 51.9
Max input current (A)
68
Sound level at 1m dB(A)
58.0 - 72.0
Sound level at 10m dB(A)
38.0 - 52.0
Advised water flux (L/min) ± 20%
1200
Water connection (mm)
110
Net dimension LxWxH (mm)
2601x1051x2069
Net Weight (kg)
1165
Remarks:
This heat pump is able to perform normal within air temp -15℃～43℃, efficiency will not be guaranteed out of this
range. Please take into consideration that the pool heater performance and parameters are different under various
conditions.
Related parameters are subject to adjustment periodically for technical improvement without further notice. For details
please refer to nameplate.

10
6. Dimension
A
B
C
D
E
F
G
H
EM2500
985
1892
1051
1040
2601
525
221
2069
Name
Size (mm)
Model

11
Installation
Guidance
d.

12
Ventilation requirements
1st case: Single unit –3 obstacles
Model number
EM2500
Distance A (mm)
2000
Distance B (mm)
2000
Distance C (mm)
2000
1- these are absolute minimum distances and where possible should always have a
greater difference. Under no circumstances should any of the distances be reduced as
performance will be affected. More ventilation is better.
2- Heat pumps should be located in an outdoor area and not to be placed indoors.
3- Louvered doors/windows are not acceptable means of ventilation
4- Heat pumps should not be placed in pits, under house decks, or any environment with
closed ventilation conditions, special distances above will not be applicable in those
instances.
5- If needed, ducts can be connected to the heat pump air discharge outlets (done by a
ducting contractor), ducts to be routed to an outdoor area to get rid of any cool air
generated by the system. Fresh air duct to be supplied into the room with room
ambient temperature.
Must be clear Top

13
2nd case: Single unit –3 obstacles
Model number
EM2500
Distance A (mm)
2000
Distance B (mm)
2000
Distance C (mm)
2000
Distance D (mm)
4000
1- These are absolute minimum distances and where possible should always have a
greater difference. Under no circumstances should any of the distances be reduced as
performance will be affected. More ventilation is better.
2- Heat pumps should be located in an outdoor area and not to be placed indoors.
3- Louvered doors/windows are not acceptable means of ventilation
4- Heat pumps should not be placed in pits, under house decks, or any environment with
closed ventilation conditions, special distances above will not be applicable in those
instances.
5- If needed, ducts can be connected to the heat pump air discharge outlets (done by a
ducting contractor), ducts to be routed to an outdoor area to get rid of any cool air
generated by the system. Fresh air duct to be supplied into the room with room
ambient temperature.
Must be clear Top

14
Plumbing Multiple units:
Multiple heat pumps acting as one system should be connected in Cascade (Parallel Connection).
Adequate flowrate should be provided to all the units in the system to ensure efficient heating
(Please refer to the commissioning section in the manual to learn about heat pumps
commissioning). The diagram below represents the cascade connection

15
1. Installation reminder
Only competent persons are authorized to install the heat pump and should be educated with the
relevant building codes and standards of their current state or local governing body for all electrical,
mechanical and water services to prevent danger or damage to the unit.
a. Location and water pipe connection
The inverter pool heat pump must be installed in a well-ventilated place.
b. Typical installation diagram
Installations can differ dependent on-site conditions below is only a representation of one
possibility.
Note: the inlet and outlet positions for the pipework is a representation only and can be
positioned differently

16
2. Placing the unit and water connections
a. Placing the unit and fixing
•The frame must be fixed by bolts (M10) to a concrete foundation or brackets. The concrete
foundation must be solid and fastened; the bracket must be strong enough and anti-rust
treated.
•Do not stack substances that will block air flow near the inlet or outlet area, and there should
be no obstruction within 50cm behind the machine. Suffocation of air reduces the efficiency
of the heater and could damage the unit.
•The machine may need an additional pump (not supplied). The recommended pump must
adhere to the specification-flux of the machine, please refer to the technical parameters.
b. Water connections
•The inlet and outlet water unions should not be installed with soft flexible pipes. The heat
pump must be connected with rigid pipes!

17
3.Wiring requirements
a. Connect the heat pump to an appropriate power supply, the voltage should comply with the
rated voltage of the product.
b. The machine must be earthed
c. Wiring must be handled by a professional technician according to the circuit diagram.
d. Install electrical protection device according to local code for wiring
e. The layout of power cable and signal cable should be orderly and not affecting each other.
Step 1. opening the maintenance panel
Remove three screws outside
Slide out the maintenance panel
Remove screws inside
Remove the junction box
