Waterco OXISWIM User manual

D U A L S A N I T I S A T I O N
Quick Reference Guide
Version: 1.1.3
November 2022

OXISWIM Quick Reference Guide
Page | 2
WARNING
This equipment must be installed and serviced by a
qualified technician.
Improper installation can create electrical hazards,
which could result in property damage, severe
injury, or death. Improper installation will void the
warranty. If you cannot obtain the information to a
particular question from this guide, please contact
the place of purchase or your nearest Waterco
branch for further details.
Notice to Installer
This manual contains essential information about
the installation, operation, and safe use of this
product. Once the product has been installed, this
manual must be given to the owner/ operator of this
equipment.

OXISWIM Quick Reference Guide
Page | 3
D U A L S A N I T I S A T I O N
Chemical start-up procedure

OXISWIM Quick Reference Guide
Page | 4
When starting up an Oxiswim Dual sanitation system on a new pool it is important to follow
some easy basic steps on water chemistry.
Step 1. Always start with balanced pool water.
Test and balance the below parameters
Test
Result
Free available chlorine
1.0ppm –2.0ppm
pH level
7.2-7.6
Total Alkalinity level
60ppm –80ppm
Calcium Hardness
180ppm-400ppm
Salinity (= total Pool salt & Mineral Crystals) For low salt cell use*
2000ppm –3000ppm
Phosphate level
Less than < 0.5ppm
pH Adjustment chemicals
To decrease pH - Use Perox pH Control or Aqua Health pH Decreaser (Dry Acid)
To increase pH - Use Aqua Health pH Increaser
Total Alkalinity adjustment chemicals
To decrease Total Alkalinity –Use Perox pH Control or Aqua Health pH Decreaser (Dry Acid)
To increase Total Alkalinity –Use Aqua Health Alkalinity increaser
Calcium Hardness adjustment chemicals
To increase Calcium hardness –use Aqua Health Hardness increaser.
Follow all instructions on the product packaging for dosage rates required.

OXISWIM Quick Reference Guide
Page | 5
Step 2. Adding the Oxiswim specialised products.
Now that we have a balanced pool, we can start adding the Oxiswim specialised products to
the pool water in easy-to-follow steps.
Specialised product
Dosage Rate
Expected Result
Perox Pro (Hydrogen Peroxide)
1.5 L per 10,000L
100ppm –300ppm
Perox Safe & Clear
500g will treat 50,000L of pool water.
0.4ppm –0.5ppm
Perox Activate
250ml per 50,000L of pool water
Biofilm Removal
Wait 24 hours and add Perox Start-up
Specialised product
Dosage Rate
Expected Result
Perox Start-up
250ml per 10,000L of pool water
Hinders Calcification
Note, DO NOT mix any chemicals together.
Dose chemicals at least 10 minutes apart.

OXISWIM Quick Reference Guide
Page | 6
INSTALLATION SET UP

OXISWIM Quick Reference Guide
Page | 7
Oxiswim Support Chemicals
When operating the system chlorine-free, the following chemicals are recommended:
•Perox Pro –Hydrogen peroxide designed explicitly for use in a swimming pool
•Perox Safe & Clear –Needed to generate chlorine dioxide from Oxiswim Sanitiser
•Perox Activate –Used to break down and remove body fats, oils, sun tan lotions, and
makeup. Prevents scum build-up around the water line and Prevents and removes
biofilms.
•Perox pH Control - Hybrid acid that is non-fuming, does not need to be diluted,
removes phosphates, clarifies the water, and will help prevent algae.
Safe to use with a chemical dosing system
•Perox Start-Up - Protects the surface of your pool and pipework from calcium
deposits reducing the consumption of hydrogen peroxide and chlorine
•Aqua~Health Concide / Aquachlor Long Life Algaecide -Activates hydrogen
peroxide in the pool water and helps prevent algae growth
•Perox Perfect - Used for green pool recovery or phosphate removal
•C5 Tablets - Prevents formation of biofilm and will reduce consumption of hydrogen
peroxide and chlorine
Filter Cleaners:
•Aqua~Health Natural Filter Cleaner or similar cartridge filter cleaner may also be
used
When running chlorine, you can continue to use the above support chemicals in conjunction
with liquid, powdered chlorine, or chlorine produced by a salt chlorinator.
Perox Pro is not used when running chlorine.
Do not use any polyquats or lanthanum chloride-based products at any time while using this
system.

OXISWIM Quick Reference Guide
Page | 8
CHEMICAL
INITIAL DOSE
MAINTENANCE
PEROX PRO
1.5 litres per 10,000 litres raises
Hydrogen Peroxide level by 100ppm
21 fl oz. per 1000 US gal raises HP level
by 100ppm
Approx. 0.09 litres (90ml per
10,000 litres per day)
1/8 fl oz. per 1000 US gal, per day
PEROX SAFE &
CLEAR
100 grams per 10,000 litres
1.6 oz per 1000 us gal
Every 3 months:
100 grams per 10,000 litres
1.6 oz per 1000 us gal
PEROX ACTIVATE
250mL per 50,000 litres
Every 3 months:
250mL per 50,000 litres
PEROX
START-UP
250mL per 10,000Litres
3.20 fl oz. per 1000 US
Every 6 months:
250mL per 10,000 litres
gal 3.20 fl oz. per 1000 US gal
COPPER ALGICIDE
100mL per 10,000 litres
1.3 fl oz. per 1000 US gal
Every 6 months:
100mL per 10,000 litres
1.3 fl oz. per 1000 US gal
C5
1 Tablet per 10,000 litres
1 Tablet per 2500 US gal
Every 3 months:
1 tablet per 50,000
1 tablet per 12500 US gal
PEROX PERFECT
Shock dose (green pool recovery,
phosphate
removal or use with Perox Activate);
300mL per 10,000 litres
3.80 fl oz. per 1000 US gal
Every 3 months:
250mls per 50,000
If using chlorine, refer to the recommended dosage rate for the individual product that you
are using.

OXISWIM Quick Reference Guide
Page | 9
WATER CHEMISTRY –Fresh Water Experience
When operating using hydrogen peroxide as a sanitiser, the following operating parameters
are recommended:
Test
Result
Perox Pro (hydrogen peroxide)
100ppm - 300ppm
pH level
7.2 - 7.6
Total Alkalinity level
60ppm - 80ppm
Calcium Hardness
180ppm - 400ppm
Salinity (= total Pool salt & Mineral Crystals) For low salt
cell use*
2000ppm-3000ppm
Phosphate level
Less than < 0.5ppm
Chlorine Dioxide
0.4ppm - 0.5 ppm

OXISWIM Quick Reference Guide
Page | 10
WATER CHEMISTRY –Chlorine use
When operating using chlorine as a sanitiser, the following operating parameters are
recommended:
Test
Result
Residual sanitiser chlorine
1.0ppm –3.0ppm
pH level
7.2-7.6
Total Alkalinity level
100ppm –150ppm
Calcium Hardness
180ppm –400ppm
Salinity (= total Pool salt & Mineral Crystals) For low salt cell
use*
2000ppm-3000ppm
Phosphate level (ppm)
Less than < 0.5ppm
PLEASE NOTE: The above information is a guide only. Please refer to the local laws that
govern a swimming pool or spa operation in your area. Always operate the system in
compliance with local laws.

OXISWIM Quick Reference Guide
Page | 11
Dosing Pumps - Hydrogen Peroxide Setting
Hydrogen Peroxide
Pool size
Tube Size
(L/min)
Summer Run
Time (hr)
Winter Run
Time (hr)
% Setting
10,000
3
8
5
1
20,000
3
8
5
2
30,000
3
8
5
3
40,000
3
8.5
5.5
3
50,000
3
8
5
4
60,000
3
8
5
5
70,000
3
8
5
6
80,000
3
8
5
7
90,000
3
8
5
8
100,000
3
8
5
9
110,000
3
8
5
10
120,000
3
8
5
11
pH Control
Pool size
Tube Size
(L/min)
Summer Run
Time (hr)
Winter Run
Time (hr)
% Setting
10,000
3
1
1
6
20,000
3
1
1
7
30,000
3
1
1
8
40,000
3
1
1
9
50,000
3
1
1
10
60,000
3
1
1
11
70,000
3
1
1
12
80,000
3
1
1
13
90,000
3
1
1
14
100,000
3
1
1
15
110,000
3
1
1
16
120,000
3
1
1
17

OXISWIM Quick Reference Guide
Page | 12
Dosing Pumps - Chlorine Setting
Chlorine
Pool size
Tube Size
(L/min)
Summer Run
Time (hr)
Winter Run
Time (hr)
% Setting
10,000
3
8
5
2
20,000
3
8
5
4
30,000
3
8
5
6
40,000
3
8.5
5.5
6
50,000
3
8
5
8
60,000
3
8
5
10
70,000
3
8
5
12
80,000
3
8
5
14
90,000
3
8
5
16
100,000
3
8
5
18
110,000
3
8
5
20
120,000
3
8
5
22
pH Control
Pool size
Tube Size
(L/min)
Summer Run
Time (hr)
Winter Run Time
(hr)
% Setting
10,000
3
1
1
7
20,000
3
1
1
8
30,000
3
1
1
9
40,000
3
1
1
10
50,000
3
1
1
11
60,000
3
1
1
12
70,000
3
1
1
13
80,000
3
1
1
14
90,000
3
1
1
15
100,000
3
1
1
16
110,000
3
1
1
17
120,000
3
1
1
18

OXISWIM Quick Reference Guide
Page | 13
PUMP PROGRAMMING PROCEDURE –OXISWIM
Please note: The Oxiswim system comes preset to operate on a pool with a water volume of
50,000 litres. If your swimming pool has a different water volume, please refer to the
recommended dosage rate charts in this quick reference guide for the appropriate
percentages of feed and timer operation times for your specific size pool.
Steps:
1 –Set Time
2 –Set Timer (Program)

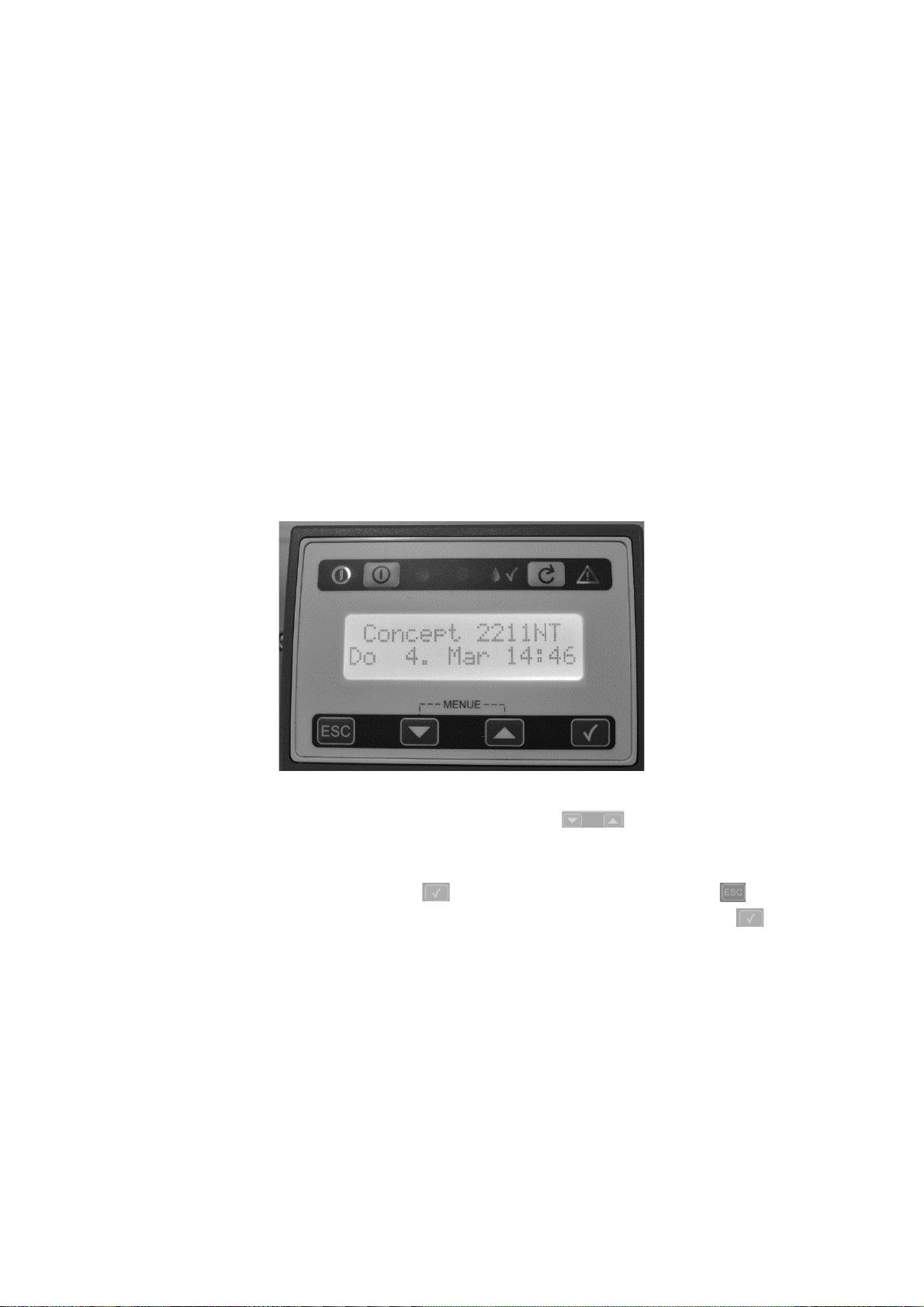

Welcome Screen
The welcome screen will look similar to the above. The only buttons needed for
programming are the buttons in blue on the bottom panel ( ). The up and down
arrows will let you scroll through the menu or individual digits. To enable programming
press the up and down arrow simultaneously to enter the menus. To navigate through the
setting in each menu use the tick button( ) to scroll right and the ESC button ( ) to
scroll left. When completing any changes in the menu always click the tick button ( ) to
get to the end of the changes to save the settings.

OXISWIM Quick Reference Guide
Page | 14

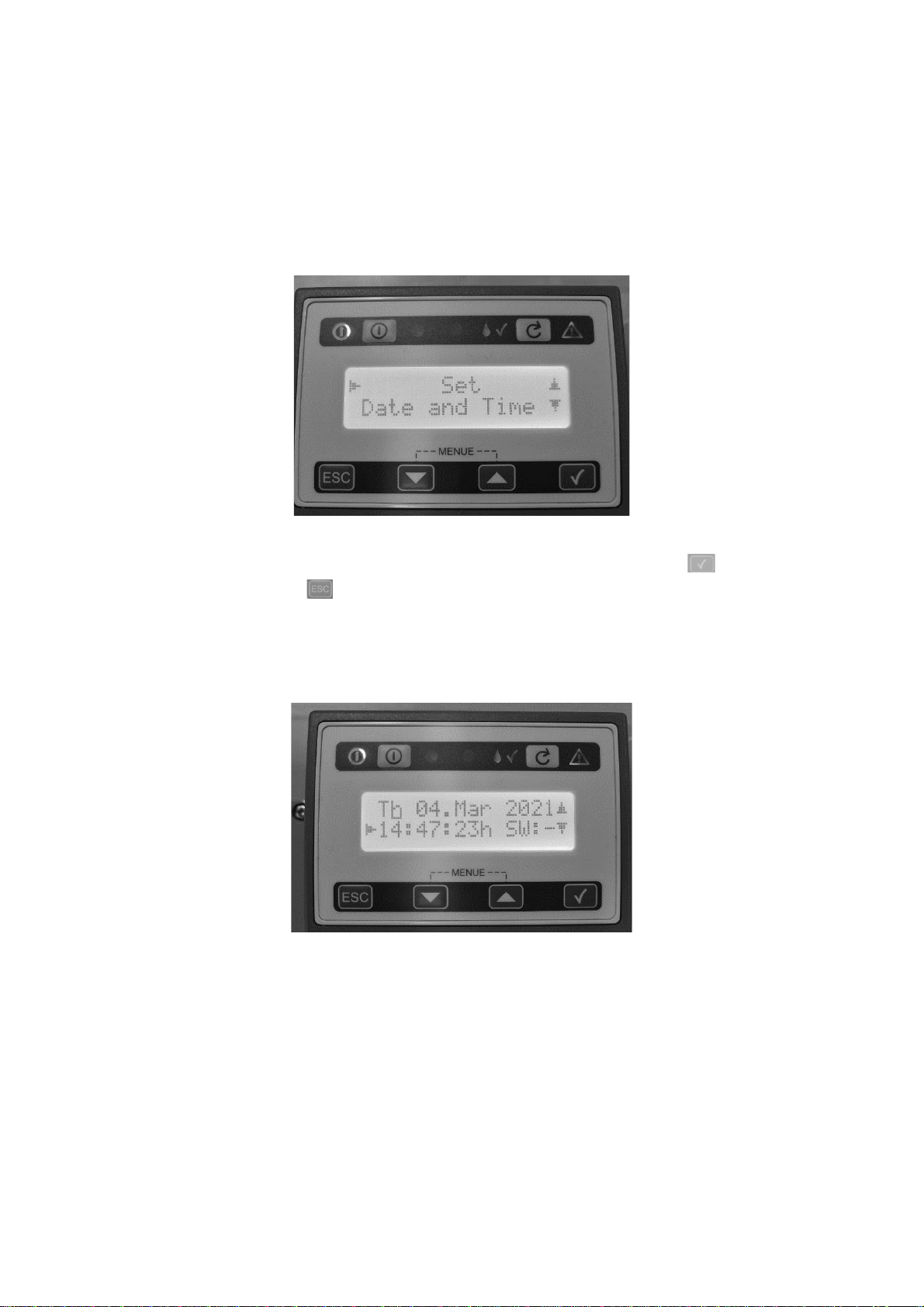

1. Set Time
Starting from the main screen press the Up and Down button simultaneously to enter the
menus. Scroll Up/Down until you see the Set Date and Time option. Select this option by
clicking the tick button.
Once in the setting, change the date and time to the current Australian Eastern Standard
Time (AEST). To scroll through the setting in each menu use the tick button ( )to scroll
right and the ESC button ( ) to scroll left. Use the up and down button to change the
setting values. When completing any changes in the menu always click the tick button to get
to the end of the changes to save the settings.
Please ensure the SW setting remains as pictured below (SW: -) before saving the changes.

OXISWIM Quick Reference Guide
Page | 15

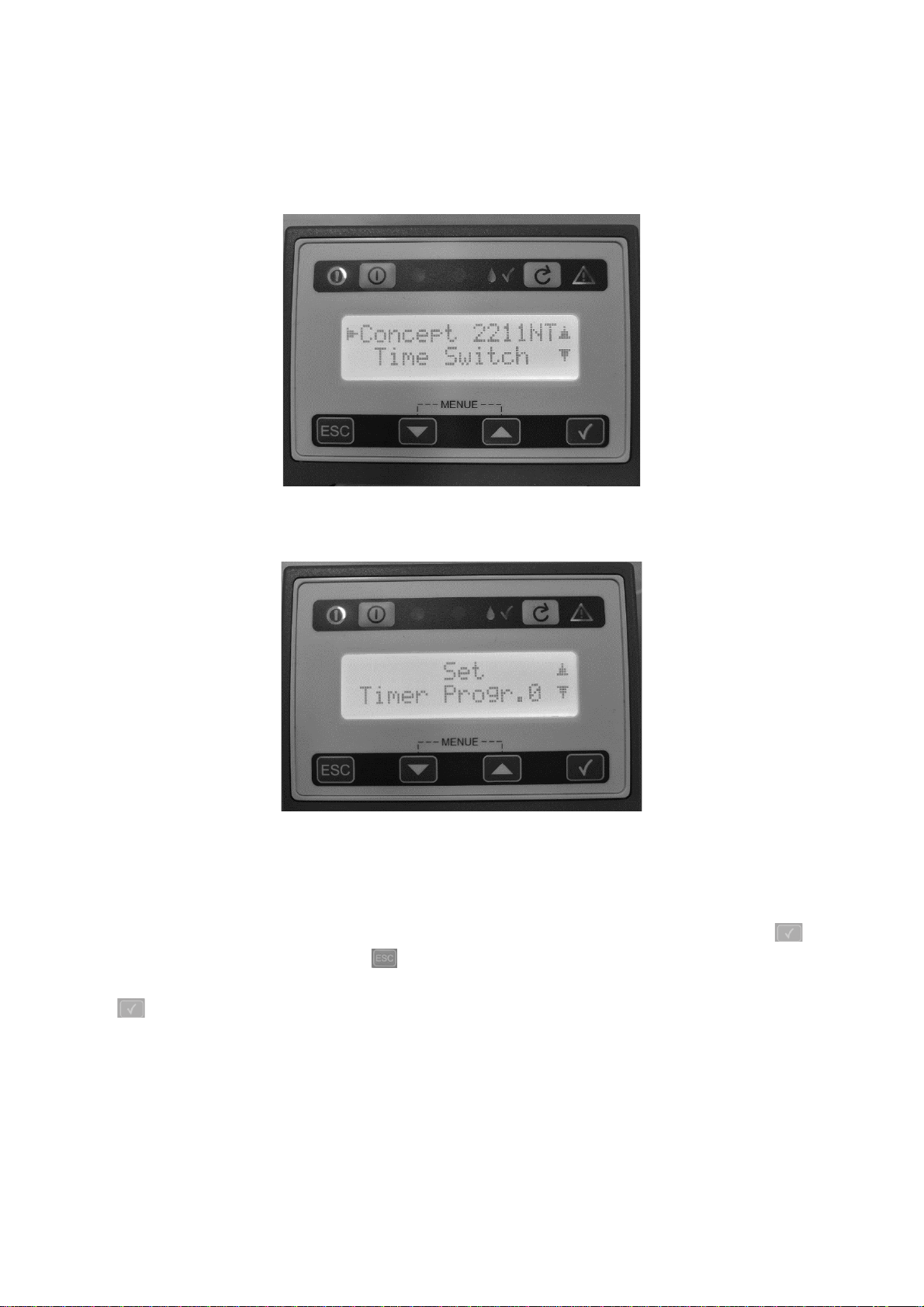

2. Set Timer
Starting from the main screen press the Up and Down button simultaneously to enter the
menus. Scroll and select the Time Switch option.
In the next menu select “Timer Progr.0”. For our uses, we will only be selecting Timer 0 as
the main timer on both the ACID and PEROXIDE pumps.

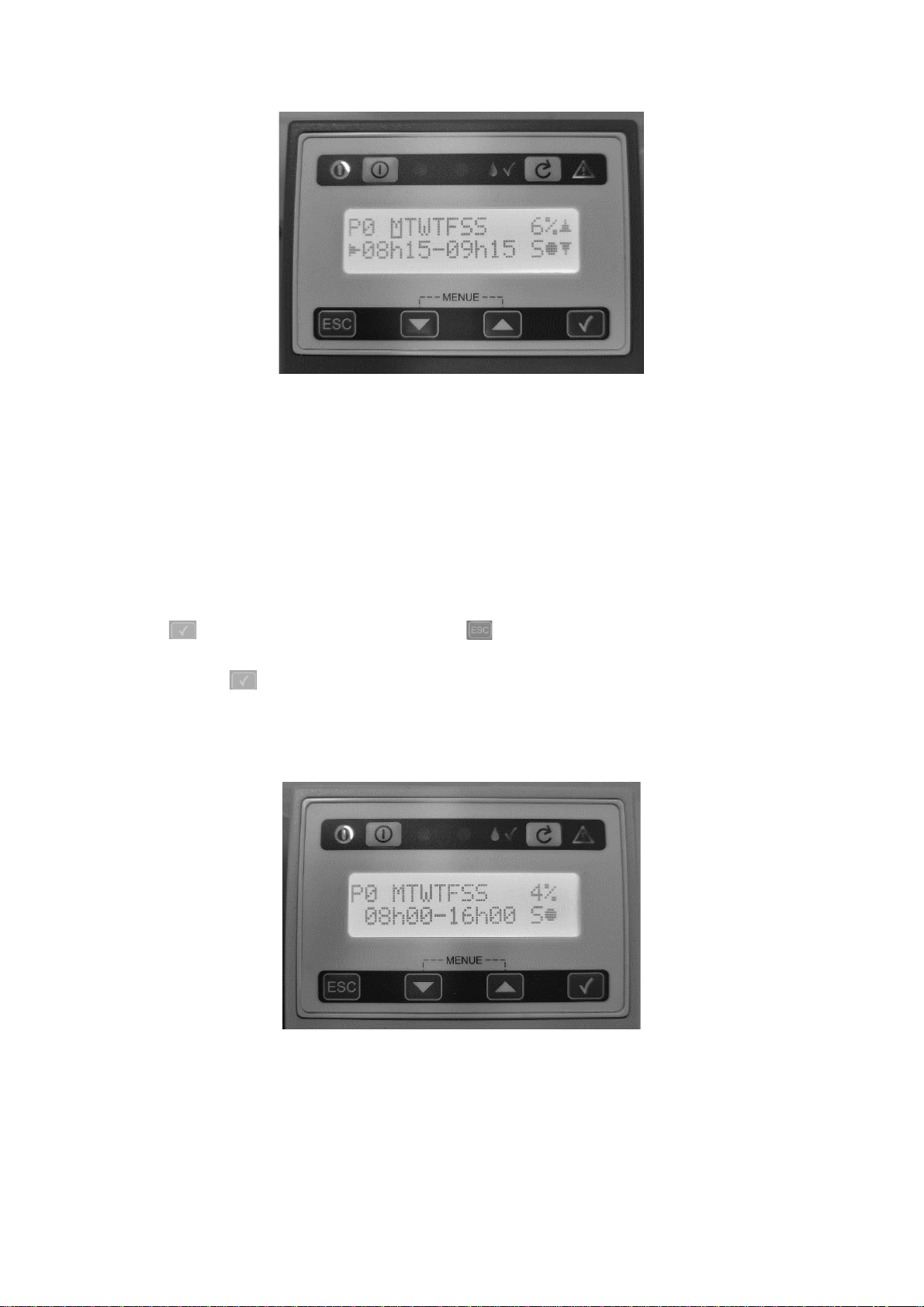

ACID Pump
For the Acid Pump, the default setting is for a 50,000 litre pool. To increase or decrease the
acid dose rate, change the % feed in the top right hand corner. Refer to the dose charts
located in the quick reference guide for assistance with determining the correct setting for
your particular size pool. To scroll through the setting in each menu use the tick button( )
to scroll right and the ESC button ( ) to scroll left. Use the up and down button to change
the setting values. When completing any changes in the menu always click the tick button
( ) get to the end of the changes to save the settings.

OXISWIM Quick Reference Guide
Page | 16
PEROXIDE Pump
For the Peroxide Pump, the default setting is for a 50,000 litre pool. The peroxide pump is
linked to the GPO outlet. The on/off times displayed on the screen will activate the GPO
when the switch box is set to Automatic. When the switch box is set to manual the GPO will
operate independently of the timer setting on the Peroxide Pump. The swimming pool
pump should be connected to the GPO on the control panel to ensure water is flowing when
the chemical pump is active. To increase or decrease the peroxide dose rate, change the %
feed in the top right-hand corner. To scroll through the setting in each menu use the tick
button( ) to scroll right and the ESC button ( ) to scroll left. Use the up and down
button to change the setting values. When completing any changes in the menu always click
the tick button( ) get to the end of the changes to save the settings.
