WaterLogic WL900 User manual

WL900 Manual Page 13 – Revision: 1-21-2021
SERVICE REQUIREMENTS
WARNING! Read and understand the contents of this manual before attempting to
service WL900 Water Treatment System. Failure to follow the instructions in this
manual could result in death, serious personal injury, or severe property damage.
Only trained and qualified technicians should attempt to install, maintain, or service
Waterlogic Equipment.
1. Visually inspect all electrical and water connections for signs of wear or damage.
2. Ensure there is adequate (minimum of 2”) clearance around the WL900 Water and Ice
Machine and clean the condenser grill and compressor fan to provide efficient cooling
system operation.
3. Sanitize the cold tank, ambient tank, and ice-making area per instructions in the pre-
installation procedures.
WARNING! SANITIZER MAY CONTAIN HAZARDOUS CHEMICALS. Use of proper
personal protective equipment such as rubber gloves and eye protection are required.
4. Clean and sanitize external surfaces of the WL900 Water and Ice Machine. Use soap and
water or chemicals that are compatible with ABS plastic and will not damage or degrade the
product surfaces.
5. Remove and clean the Faucet on every service visit.
6. Change out filters every 6 months, or as needed.

WL900 Manual Page 14 – Revision: 1-21-2021
REPLACEMENT COMPONENTS (CONSUMABLES)
Component
WLCP Part No.
Frequency of Replacement
Sediment Filter 22-1835 Every 6 Months
Carbon Pre-Filter 22-1840 Every 6 Months
RO Membrane Filter 22-1845 Every 6 Months
Carbon Post Filter 22-1850 Every 6 Months
Hot Tank Assembly 22-1660 Every 5 Years depending on use
CAUTION! Use only Waterlogic Replacement parts that can be obtained from Waterlogic
or an Authorized Waterlogic Dealer, failure to do so will void the Warranty.
See Installation and Service Manual for additional information.
Hot Tank Service
Hot Tanks (with controls) must be replaced every 5 years.
Surface Cleaning
Clean on a regular basis with damp lint free cloth. Never use harsh chemicals (alcohol or acid
based) or abrasive agents on any part of the product to avoid damage. A mild cleaner such as
Simple Green or equivalent is recommended.
Tank Sanitization
Clean and sanitize the inside of the ambient tank, ice bin, and cold tank on an annual basis to
inhibit issues with biofilm and mold. This process is covered in the Installation section.
DISPOSAL
End of Life
At the end of this product’s life, ensure that it is disposed of in an environmentally friendly
manner which is fully compliant with all Federal/State/Local Requirements and Guidelines.
Do not dispose of this appliance with normal household or business waste.

WL900 Manual Page 15 – Revision: 1-21-2021
WL900 MAIN DRAWING AND PARTS LIST
Yellow = Consumables
Green = Recommended
spare parts
145
213
22
142
83
15
79
16
173
172
84
133
12
129
132
15
174
187
182
143
138
105
181
176
15
180
178
177
179
141
228
21
167
212
20
224
175
215
219
168
134
8
103
130
130
137
228
228
228
2
9
135
135
11
6
4
3
7
135
135
228
5
17
158
N/A
127
169
170
171

WL900 Manual Page 16 – Revision: 1-21-2021
110
111
107
229
N/A
N/A
N/A
56
36
34
34
N/A
N/A
33
225
63
118
25
101
74
76
132
75
23
35
26
N/A
43
38
27
N/A
69
48
186
80
185
94
184
39
40
75
59
60
42
154
40
39
44
154
76
N/A
86
N/A
44
82
41
43
28
53
83
50
72
74
76
89
93
90
88
91
52
157
50
73
N/A
50
51
37
47
95
116
66
113
117
115
114
57
58
70
157
209
96
92
210
WL900 ICE UNIT DRAWING AND PARTS LIST

WL900 Manual Page 17 – Revision: 1-21-2021
No
WLCP Part
No.
Description Part No Purchase as:
1 22-1000 Base Panel Assembly 91-2250-0 Assembly
2 22-1005 FM Valve 1/4”PTC 11-1624-1 Individually
3 22-1010 Gutter FM Valve 11-1346-0 Assembly
4 22-1015 Caster 21-0313-0 Assembly
5 22-1020 Tube End 3/8” 31-0867-0 Assembly
6 22-1025 Base Panel 21-0403-4 Assembly
7 22-1030 Leg: Nob-less 11-0351-0 Assembly
8 22-1035 Booster Pump 41-1494-1 Individually
9 22-1040 Solenoid V/V: Raw Water 41-0789-3 Individually
10 22-1045 Wire AC #3 with Fuse and
Fuse Holder 41-2030-0 Individually
11 22-1050 Fixed Clip: Capacitor 25-0056-1 Individually

WL900 Manual Page 18 – Revision: 1-21-2021
12 22-1055 Compressor :
Samsung MSA670C-D1G 41-1828-1 Individually
13 22-1060 Refrigerant Step Valve 41-1607-1 Individually
14 22-1065 Left Side Panel Assy 91-3415-0 Assembly
15 22-1070 Drain Connector Assy 11-2467-0 Assembly
16 22-1075 Bulk Head 1/4”PTC 11-0297-0 Assembly
17 22-1080 Left Side Panel 21-0717-1 Assembly
18 22-1085 Ball Valve 1/4”PTC 11-0527-0 Assembly
19 22-1090 Drain Tube Assy PVC 91-2696-0 Assembly
20 22-1095 Spring Clip 17mm
Diameter 21-0521-0 Assembly
21 22-1100 Tube PVC 77-1188-0 Assembly
22 22-1105 Ice Unit Assembly 91-2783-0 Assembly
23 22-1110 Unit Panel 21-0709-0 Assembly Not Shown

WL900 Manual Page 19 – Revision: 1-21-2021

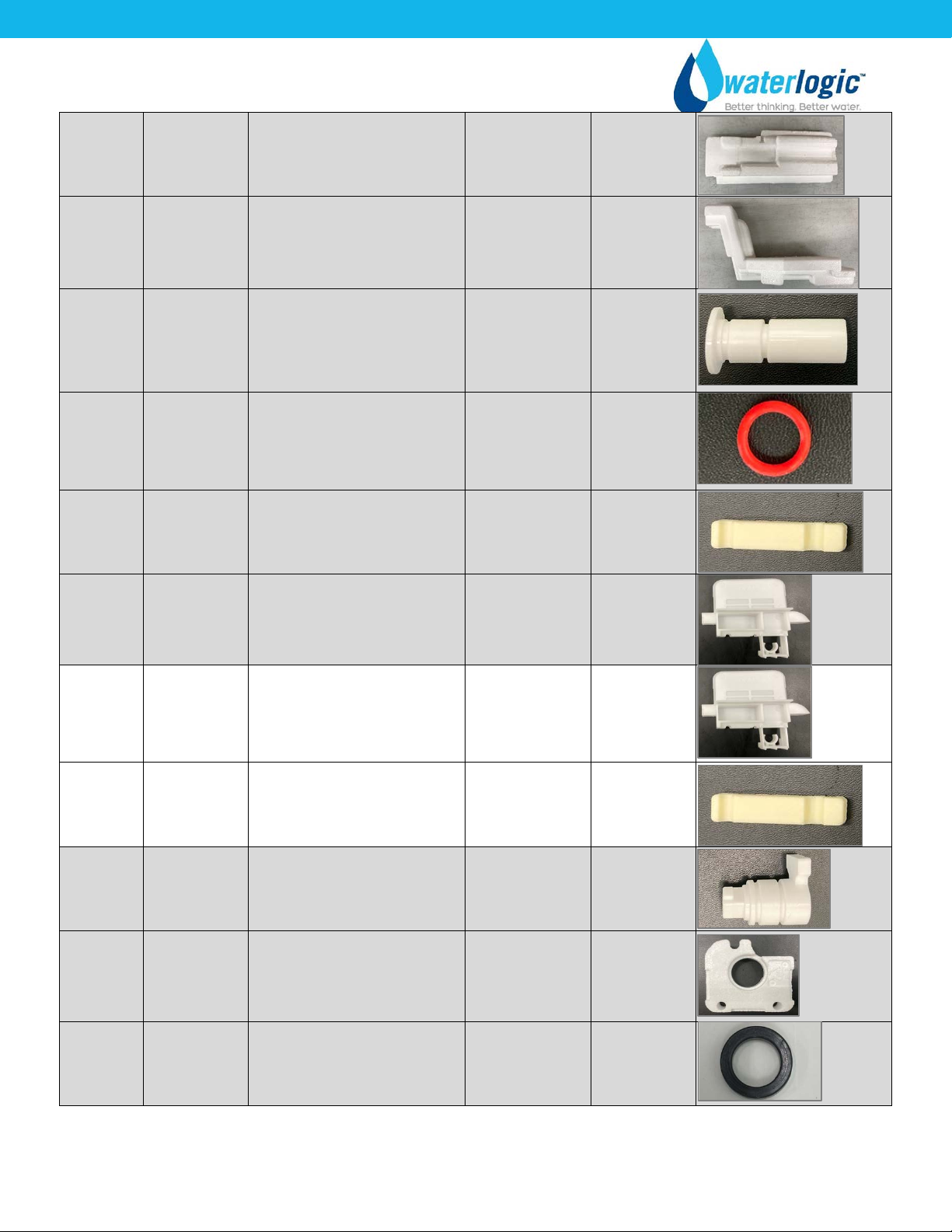

24 22-1115 Hook Ice Basket 11-2216-0 Assembly
25 22-1120 Ice Unit 11-2468-1 Assembly
26 22-1125 Seal Unit 31-0932-0 Assembly
27 22-1130 Bushing Spiral 11-2991-0 Assembly
28 22-1135 Sensor: Ice Full Transmit 41-0524-1 Assembly
29 22-1140 O-Ring P10A 31-0327-0 Assembly
30 22-1145 Ice Full Transmitter 11-0631-1 Assembly
31 22-1150 Sensor: Ice Full Receive 41-1810-0 Assembly
32 22-1155 O-Ring P10A 31-0327-0 Assembly
33 22-1160 Ice Full Receiver 11-0630-0 Assembly
34 22-1165 Rubber Bracket EVA 31-0934-0 Individually

WL900 Manual Page 20 – Revision: 1-21-2021
35 22-1170 Ice Basket 11-2470-1 Individually
36 22-1175 Ice Separator 11-2471-1 Individually
37 22-1180 Distributor Gasket 31-0885-0 Individually
38 22-1185 Head Pump Circulator
Seal 31-0324-1 Individually
39 22-1190 Cold Sensor Seal 31-0035-1 Individually
40 22-1195 Cold Water Level Sensor 41-1795-0 Individually
41 22-1200 Cold Water Temp Sensor 41-1801-0 Individually
42 22-1205 Pipe Assy SUS 3/8” 91-2763-0 Assembly
43 22-1210 Straight PTC Fitting 3/8 11-0434-0 Assembly
44 22-1215 Tee Fitting 3/8” 11-0435-0 Assembly
45 22-1220 O-ring P9 31-0329-0 Assembly

WL900 Manual Page 21 – Revision: 1-21-2021
46 22-1225 Pipe SUS 3/8” 21-0713-2 Assembly
47 22-1230 Pipe Bucket In 11-2493-1 Assembly
48 22-1235 Circulation Pump Head 11-2224-0 Assembly
49 22-1240 Water Distributor
Assembly 91-2764-0 Assembly
50 22-1245 O-Ring P8 31-0328-0 Assembly
51 22-1250 Distributor 91-2546-0 Assembly
52 22-1255 Connector Elbow 11-2215-1 Assembly
53 22-1260 Ice Discharge Motor 41-1911-0 Individually
54 22-1265 Auger Coupler Connector 11-2930-0 Individually
55 22-1270 Auger Bushing Connector
SUS 11-2931-0 Individually
56 22-1275 Spiral Auger 21-0839-2 Individually

WL900 Manual Page 22 – Revision: 1-21-2021
57 22-1280 EPS Upper Unit 61-1475-0 Individually
58 22-1285 EPS Lower Unit 61-1476-1 Individually
59 22-1290 Auger Coupler 11-2206-0 Individually
60 22-1295 O-Ring AN012 31-0880-0 Individually
61 22-1300 Rubber Bracket EVA 31-0934-0 Individually
62 22-1305 Rear Bracket Assy EVA 91-2765-0 Assembly
63 22-1310 Rear Bracket EVA 11-2487-0 Assembly
64 22-1315 Rubber Bracket EVA 31-0934-0 Assembly
65 22-1320 Ice Tray Rotational
Coupler 11-2220-2 Individually
66 22-1325 EPS Motor Panel 61-1782-0 Individually
67 22-1330 Motor Link Gasket 31-0881-0 Individually

WL900 Manual Page 23 – Revision: 1-21-2021
68 22-1335 O-Ring P22 31-0581-0 Individually
69 22-1340 Ice Circulation Pump 41-2022-0 Individually
70 22-1345 Circulation Pump EPS 61-1477-0 Individually
71 22-1350 Solenoid V/V: 3way
Water Supply Assembly 91-2679-0 Individually
72 22-1355 Sol V/V: 3way Filter Water
Supply 41-1800-0 Individually
73 22-1360 Elbow Fitting 1/2”S-
1/2”PTC 14-0085-0 Individually
74 22-1365 Straight Fitting 1/2”PTC 72-0029-0 Individually
75 22-1370 Elbow Fitting 1/2”PTC 11-0424-0 Individually
76 22-1375 Tubing 1/2” LLDPE 77-1194-0 Individually
77 22-1380 PE Tube Insulation 31-0939-0 Individually

WL900 Manual Page 24 – Revision: 1-21-2021

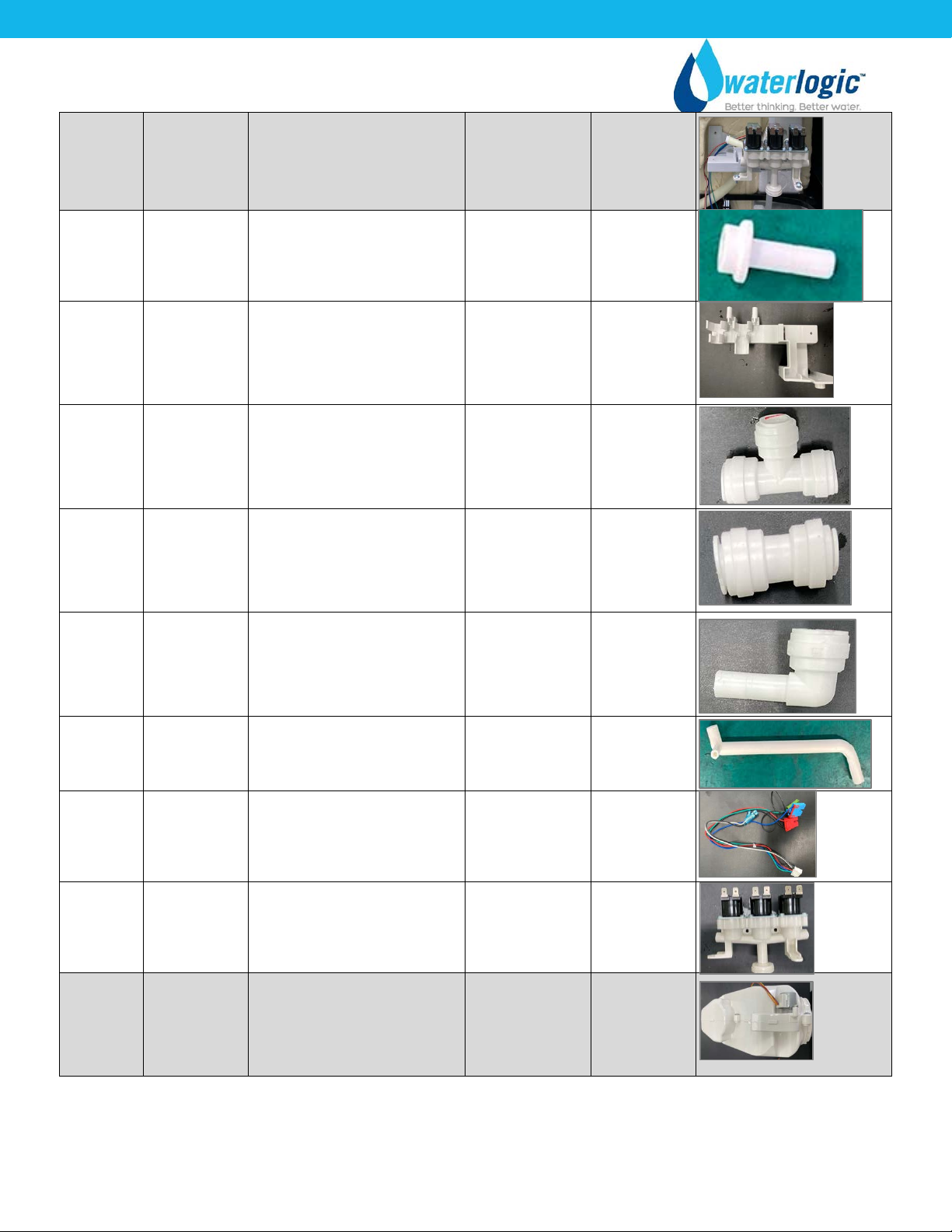

78 22-1385 Solenoid V/V: 3way
Dispense Assembly 91-2767-0 Individually
79 22-1390 Fitting End Plug 1/4” 11-0431-0 Individually
80 22-1395 Bracket Solenoid Valve
3way 11-2488-0 Individually
81 22-1400 Fitting Tee 1/2”PTC 11-2532-0 Individually
82 22-1405 Fitting Reducer 3/8”-
1/2”PTC 11-2533-0 Individually
83 22-1410 Stem Fitting Elbow 1/2”
PTC 14-0085-0 Individually
84 22-1415 Hot Tube 2way 31-0928-0 Individually
85 22-1420 DC Wire #2 41-1797-0 Individually
86 22-1425 Solenoid Valve for 3way
Dispense 41-1799-0 Individually
87 22-1430 Ice Chute Assembly 91-2760-0 Assembly

WL900 Manual Page 25 – Revision: 1-21-2021
88 22-1435 Link-Arm: Ice Door 11-2478-0 Assembly
89 22-1440 Link-Arm Door Pin 11-2210-0 Assembly
90 22-1445 Link-Arm: Motor 11-2477-0 Assembly
91 22-1450 Link-Arm Middle Pin 11-2211-0 Assembly
92 22-1455 E-Ring 21-0672-0 Assembly
93 22-1460 Ice Door Motor 41-1285-0 Individually
94 22-1465 Ice Chute Assembly Right
Half 11-2491-0 Assembly
95 22-1470 Ice Chute Assembly Left
Half 11-2492-0 Assembly
96 22-1475 Ice Chute Door 11-2204-1 Assembly
97 22-1480 Ice Chute Door Cover 11-2205-0 Assembly
98 22-1485 Ice Chute Door Outer Seal 31-0882-1 Assembly

WL900 Manual Page 26 – Revision: 1-21-2021
99 22-1490 Ice Chute Door Inner Seal 31-0883-1 Assembly
100 22-1495 3way Connector Assembly 91-2681-0 Individually
101 22-1500 3way Connector 11-2257-0 Individually
102 22-1505 Elbow Fitting 1/4”PTC 11-1236-0 Individually
103 22-1510 Straight Fitting 1/2” 72-0029-0 Individually
104 22-1515 1/2” Tubing LLDPE 77-1198-0 Individually
105 22-1520 1/2” Tubing LLDPE 77-1199-0 Individually
106 22-1525 C/A Water Tank
Assembly 91-2692-0 Assembly
107 22-1530 Ambient Water Tank 11-2484-0 Individually
108 22-1535 Lid Gasket Ambient Water
Tank 31-0890-1 Individually
109 22-1540 Ambient Tank Cover
Assembly 91-2761-0 Assembly
110 22-1545 Ambient Tank Cover 11-2469-0 Assembly

WL900 Manual Page 27 – Revision: 1-21-2021
111 22-1550 Medium Filter 51-0137-1 Assembly
112 22-1555 Ice Tray Motor Assembly 91-2915-0 Individually
113 22-1560 Ice Tray Stepping Motor 41-1624-0 Individually
114 22-1565 Ice Tray Motor Bracket 11-2226-1 Individually
115 22-1570 Wire DC #5 41-1613-3 Individually
116 22-1575 O-Ring P9 31-0329-0 Individually
117 22-1580 Rotational Coupler 11-2203-2 Individually
118 22-1585 Ice Evaporator 21-0705-1 Assembly
119 22-1590 Ice Temperature Sensor 41-0648-0 Assembly
120 22-1595 Lower Heater Bracket 21-0440-4 Assembly

WL900 Manual Page 28 – Revision: 1-21-2021
121 22-1600 EVA Bracket Upper 21-0669-1 Assembly
122 22-1605 Cover Unit Middle-Upper 11-2485-1 Individually
123 22-1610 Right Side Panel Assembly 91-3393-0 Assembly
124 22-1615 Cord Bushing 77-0049-0 Assembly
125 22-1620 Insulated Pad PE 31-0153-0 Assembly Not shown
126 22-1625 Power Cord Plug B 41-2020-0 Assembly
127 22-1630 Right Side Panel 21-0718-1 Assembly
128 22-1635 Hot Tank Panel Assembly 91-3392-0 Individually
129 22-1640 Transformer 41-2018-0 Individually
130 22-1645 Drain Valve 1/2” 11-2219-0 Individually
131 22-1650 Hot Tank Wire 41-0138-0 Individually

WL900 Manual Page 29 – Revision: 1-21-2021
132 22-1655 Hot Tank Panel 21-0710-0 Individually
133 22-1660 Hot Tank Assy (Tank,
Sensor, Bi-metals) 91-3376-0 Individually
134 22-1665 Drainage Switch 41-1119-0 Individually
135 22-1670 Straight Fitting 1/4”PTC 11-1323-0 Individually
136 22-1675 Hot Water Cleaning
Fitting Assembly 91-2226-0 Individually
137 22-1680 4way Connector 11-2258-0 Individually
138 22-1685 Elbow Fitting 1/4” 11-1236-0 Individually
139 22-1690 Elbow Stem Fitting 1/2”S-
1/2”PTC 14-0085-0 Individually
140 22-1695 Elbow Fitting 1/4” 11-0422-0 Individually
141 22-1700 Hot Tank Tube Drain 31-0929-0 Individually

WL900 Manual Page 30 – Revision: 1-21-2021
142 22-1705 Hot Outlet Tube 31-0824-0 Individually
143 22-1710 1/2” Tubing LLDPE 77-1200-0 Individually
144 22-1715 Bimetal
Thermostat/Overload 41-0366-1 Individually
145 22-1720 PCB Main Panel Assembly 91-3394-0 Individually
146 22-1725 Panel—Main PCB 21-0408-2 Individually
147 22-1730 Water Level Detection
Sensor 41-0569-0 Individually
148 22-1735 PCB Holder 77-0526-0 Individually
149 22-1740 Main PCB—CHP-5440S 41-1910-0 Individually
150 22-1745 Straight Tube 30mm 31-0979-0 Individually
151 22-1750 Hot Tank Air Gap
Assembly 91-2766-0 Individually
152 22-1755 Hot Tank Air Gap 11-2482-0 Assembly

WL900 Manual Page 31 – Revision: 1-21-2021
153 22-1760 Hot Tank Air Gap Cover 11-2483-0 Assembly
154 22-1765 Straight Tube 3/8” 31-0377-0 Assembly
155 22-1770 Air Vent Tube 31-0930-0 Assembly
156 22-1775 Tank Seal 31-0935-0 Assembly
157 22-1780 3/8” Tubing PE-RT 77-1192-0 Assembly
158 22-1785 Rear Panel 21-0407-3 Individually
159 22-1790 Wire DC #4 41-1612-0 Individually
160 22-1795 Wire DC #13 41-1614-0 Individually
161 22-1800 Wire DC #2 41-1347-0 Individually Not Shown
162 22-1805 Wire Solenoid Valve bank
to PCB 41-1796-1 Individually
163 22-1810 Surrounding Temperature
Sensor 41-1446-1 Individually
164 22-1815 5-Slot Filter Head
Assembly 91-3397-0 Individually

WL900 Manual Page 32 – Revision: 1-21-2021
165 22-1820 Filter Clip 11-0125-2 Individually
166 22-1825 Hanger 11-0758-0 Individually
167 22-1830 Filter Bracket 21-0406-3 Individually
168
22-1835
21-1200
Sediment Filter
51-9044-9
51-0027-0
Individually
169
22-1840
21-1205
Carbon Pre-Filter
51-9045-0
51-0028-0
Individually
170
22-1845
21-1210
RO Filter
51-9046-0
51-0035-0
Individually
171
22-1850
21-1215
Carbon Post-Filter
51-9047-0
51-0029-0
Individually
172 22-1855 Solenoid Valve: Drain
(Low Pressure) 41-1147-1 Individually
173 22-1860 Solenoid Valve: AFV 41-0500-1 Individually
174 22-1865 Front Middle Assembly 91-3417-0 Assembly
175 22-1870 Drip Tray 11-0756-1 Assembly
