Waterproof W1 5mm User manual

WETSUIT
USERS MANUAL
EN DE FR

2WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 3
Welcome to Waterproof, producer of award winning high quality diving suits and accessories.
Waterproof was established in Göteborg, Sweden 1984. The secret behind Waterproofs success
is very simple. We do our own diving! That is the only true way to find out where the need is and
adjust according to it. Hands on experience, built right into our suits, together with a never ending
curiosity of how to extend the limits of diving.
That is what we call Facing Reality.
#FACING
REALITY

4WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 5
Table of contents
Marking, warnings and instructions 5
General warnings 6
Temperature conditions 7
Waterproof World Wide Warranty 8
EC type examination and suit type 8
Assembly suit 9
Checking the suit 9
Putting on the wetsuit 10
Taking off the wetsuit 11
Before diving 11
Care Instructions 12
Maintenance and Repair 16
Cleaning 16
Storage 17
Service life 18
Product marking 19
Pictograms 20
Disposal 22
Accessories and spare parts 22
Included in Delivery 22
Sizes 23
How do I nd the right size for my suit? 24
User manual
These instructions concern the Waterproof diving suit models: W1, W4, W5, W7,
W8, W30, W50, W80, SD Combat, SD4.
Marking, warnings and instructions
This symbol is used to highlight risks and dangers which can lead to
death or serious bodily injury.
This symbol is used when special instructions need to be observed,
and for particularly useful information.
Designated use
Congratulations on purchasing a Waterproof wetsuit! This suit was carefully
manufactured from highest-quality materials. With reasonable care it will give
you many years of service. Wetsuit diving increases your comfort and safety.
W1, W4, W5, W7, W8, W50, W80, SD Combat, SD4.
These suits will provide you with thermal protection in and under water.
W30.
This suit offers some mechanical protection against external inuences.
The thermal protection of the body in the water and underwater is under
thermal performance class D acc. to EN14225-1.
FRANCAIS

6WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 7
General warnings
Please read the entire User manual before diving.
Failure to follow the instructions in this manual can result
in serious injury or death.
This suit is only to be used by an individual who has had specic
training in its use or who is under the supervision of an industry
recognized diving instructor.
The buoyancy of the suit will change depending on the depth.
Some materials used in this suit may cause allergic reactions.
Risks may arise due to overheating or hypothermia, which can lead
to death in extreme circumstances.
Safe performance of the suit depends upon the good physical condition
of the user and the diving environment. Adjust your equipment and
diving activities according to current conditions.
Heat insulation is lost with increasing water depth.
Choose the right suit for your planned dive and water temperature.
For more information see chapter Temperature conditions.
Only use suits that t you. For non-tting suits, hazards such as
hypothermia or constriction may occur.
Temperature Conditions
It is important for you to wear the appropriate suit for the corresponding water
temperature. To give you a hint, you can refer to the following table.
l
W30 is no suit acc. to EN14225-1. The thermal performance class is under
“CLASS D” because of the soft thin neoprene.
The specied temperature ranges were determined according to
EN14225-1 by measuring the thermal resistance of the suit materials.
This is a laboratory test in which accuracy of t with anatomically
preformed suits, tight cuffs or gas-tight zippers, as in Semidry suits,
are not taken into account.
There is no general rule as to which wetsuit should be worn at what
water temperature. The physical condition of the diver, his physique,
the work performance and working conditions have an inuence.
Suit Thermal performance class
of wetsuit material
Water temperature ranges
° C
W1, W8 5mm C16-24
W1, W8 7mm B10-18
W4, W7 5mm C16-24
W4, W7 7mm B10-18
W5 D >22
W50 C 16-24
W80 A 7-12
SD4 / SD COMBAT A7-12

8WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 9
You can request a copy of these standards from your national
standards organization.
The EC type assessment was handled by:
RINA SERVICES SPA (No. 0474)
Via Corsica, 12 - 16128 Genova, Italy
Tel. [phone]
Fax. [phone]
For suits:
W1 5mm, W1 7mm, W4 5mm, W4 7mm , W5, W7 5mm, W7 7mm, W8 5mm,
W8 7mm, W50, W80, SD Combat, SD4
Link to declaration of conformity’s: www.waterproof.eu
Assembly
Your suit will be delivered fully assembled.
Checking the suit before diving
Inspect the suit for damage.
If the suit is damaged, do not dive with it.
The suit must be checked by an authorized service station
and repaired if necessary.
• Remove any rings, watches and jewelry with sharp points.
• Do not wear anything that could damage the suit.
• Ensure that the zipper is properly lubricated.
• Pulling the zipper over an obstruction can break the zipper.
• Make sure the zipper is completely closed before you go into the water.
Checking the suit after diving
• After a dive, use fresh water to rinse your suit. Clean your zipper of debris.
• Dry your suit well, both inside and outside.
Waterproof World Wide Warranty
Waterproof warrants products purchased from a Waterproof dealer against
defects in materials and workmanship to the original purchaser for a period of
two years. The purchase must be veried by a valid sales receipt. The warranty
applies to common scuba diving and does not cover damage due to abuse,
neglect, improper usage, unauthorized repair or modications, lack of proper
maintenance or normal wear and tear. Lack of proper maintenance will cause
abnormal deterioration.
Warranty claims should be submitted to the dealer where the product was
purchased. The dealer delivers the product to Waterproof together with a copy
of the purchase receipt and a detailed described claim. The sender is responsible
for the shipping cost. Waterproof will, if it is a valid warranty claim, repair or
replace the product at its own discretion without charge. If the defect product
is unavailable Waterproof reserves the right to replace it by a similar product of
comparable value. The defect product that has been replaced is the property of
Waterproof. After repair/replacement the product will be sent back to the dealer
free of charge. If the product is not found to be covered by this program
Waterproof reserves the right to charge a handling fee.
EC type examination and suit type
The suits herein described are certied according to the Regulation (EU)
2016/425 PPE and exceed the minimum requirements of the EN14225-1:2017.
The risks identied in the risk assessment are presented on the basis of the
above warnings.
CE
Waterproof guarantees that the designated products comply with the
requirements and that Waterproof meets its obligations concerning the
Regulation (EU) 2016/425 PPE. Link to Regulation (EU):
eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX:32016R0425
EN14225-1:2017
The below suits have been tested by an independent institution in accordance
with the requirements of European standards EN14225-1:2017.

10 WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 11
Putting on the wetsuit
1. Unzip the wetsuit, make sure that the suit is fully unzipped.
2. Start with your feet and legs. Once you have the wetsuit lined up, pull your
wetsuit over your foot and ankle, gradually working it up over the knee one leg
at a time. Make sure that any wetsuit padding is properly aligned.
There shouldn’t be any large wrinkles or folds. Once the wetsuit is up around
mid thigh, switch to the other leg.
If either you or the wetsuit is wet and you have difculty pulling it on, consider
using plastic bags or socks on your feet. This can make it easier. Work out rolls
and ripples in the wetsuit as you move up your legs.
3. Once the suit is past mid thigh on both legs, gently pull the suit past your hips
until the seam is nestled snugly in your crotch. Now pull the suit up over your
torso and onto your shoulders.
4. Insert one arm at a time. Use the same method that you did with your legs.
Be careful with ngernails on the fabric. Gently pull the suit up your arms and
then lift it onto your chest.
5. If you have a rear-zip wetsuit, have a friend help you zip up. Reaching and
trying to zip it yourself can put strain on both the zipper and suit which could
damage the suit seams or teeth in the zipper. Use the webbing grip at the
zipper end.
6. Close the Velcro fastenings over the zipper and at the neck area. This prevents
the zipper from unzipping and make your suit more watertight. Also adjust the
arm and leg seals and close arm and leg zippers. If you have boots, hood or
gloves, make sure they are installed properly to get the best seal to prevent
water from getting into the suit.
Before diving
Weight yourself properly
Spend some time getting your weight right, work with your dealer and/or
instructor to become relaxed and comfortable with your diving system.
Buoyancy control
Practice buoyancy control with all of your equipment in controlled conditions in
conned water before diving in open water.
Taking off the wetsuit
1. Unzip the suit fully or have a friend or partner to unzip it if it is a rear-zip
wetsuit. Unzip arms and legs.
2. Remove the wetsuit from your neck and shoulders. Peel the wetsuit off of
your neck and down your shoulders. To get it off of your shoulders it helps to
slide a thumb between your shoulder and the wetsuit.
3. ”Peel off” the suit of your arms. One at a time, remove your arms from the
wetsuit. Be sure to use your ngertips rather than ngernails. Pull each arm
fully out of its sleeve, leaving the arms inside out.
4. Pull it down your torso and hips. Peel the suit down your torso like a banana.
Then you’ll want to pull it past your hips in a single motion. Wiggle if you need
to in order to get the wetsuit past your buttocks.
5. Roll the wetsuit down your legs. When you get to your ankles, put a hand
inside of the wetsuit at the ankle and use it to hold the wetsuit leg open while
you slide your foot out. Repeat with the other foot.

12 WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 13
Care Instructions
A prolonged exposure to heat, ozone, chlorine or UV rays causes
neoprene decomposition.
Dry zipper (if your suit has one)
The Dry zipper is the heart of your suit and its most expensive component.
With the right care the zipper it can last for the life of the suit. All zippers are
examined and pressure tested before leaving the factory. The dry zippers
can only be damaged by mishandling. Please treat with care. We cannot take
responsibility for zippers damaged by misuse.
When opening and closing the zipper be sure the teeth are in
alignment and that the supporting tape is not kinked. This will
normally require two hands.
Metal Zipper
•Clean zipper with fresh water after diving being sure to remove any debris
from between zipper teeth. Dry the zipper before storage.
• Lubricate the zipper with parafn wax or beeswax.
• Lubricate on the outside of the teeth only. A very small amount of wax
is sufcient.
• Make sure your zipper is always waxed.
• Avoid sticky waxes, as they tend to attract sand and grit.
DO NOT use silicone, silicone spray or petroleum based lubricants.
These products can damage your zipper and suit. Check your zipper
before each dive and make sure it runs smoothly.
Storage metal zipper
Store and transport the suit with metal zipper open. When the zipper is open,
it is very exible. When closed, it can easily break during transport.
Plastic-molded zipper
•Keep the zipper clean to avoid particles getting caught in the seal and
keeping it open.
• Avoid side stress on the zipper stringers when closing the slider.
• Move the slider in straight direction of the zipper.
•Do not use force to overcome a blocking or if the slider hooks up on the
reinforcing strap (if installed).Pull back, remove the cause of the blocking,
close carefully keeping the stringers parallel.
•Do not overstress the stringers of the open zipper at the ends in
sideway direction.
• When not in use keep the zipper dry and out of the sun.
Waterproof is using different types of plastic zippers. Please check
if you have a YKK Aquaseal® or a TIZIP Masterseal 10 and follow
the instructions exactly.
Care instructions for TIZIP Masterseal 10
Operating force
Opening and closing the TIZIP MasterSeal 10 requires moderate pulling force
on the slider. Please allow a slightly higher pulling force to undock the both
ends closed version. Some lubrication can help to reduce the pulling force on
the docking end. The chain is maintenance free.
Stability
The TIZIP MasterSeal 10’s performance in terms of strength and durability is very
good. However, sharp bending or twisting should be avoided. When closed, the
TIZIP MasterSeal 10 has a cross breaking strength of minimum 200 N/cm.
Storage and transportation
For storage, long- and short term and during transportation we recommend to
leave the zipper chain closed. The closed chain protects the sealing lips from dirt
and damage.
High humidity and temperatures over room temperature
MUST be avoided!

14 WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 15
Care instructions for YKK Aquaseal®
Smart use of zippers
Slowly move the slider when operating. Angular pulling may cause element
mis-engagement and may result in poor waterproof performance or damage
zippers. Overstretching of the top and bottom stops should be avoided.
AQUASEAL® zipper is sensitive to UV degradation, creasing, and
de-lamination and wear through friction. Folding or crushing the zipper
may affect its performance.
Cleaning
Regular cleaning with fresh water and use of a suitable lubricant is advised
in order to prevent damage to the tape and seals. Do not dry clean or
machine wash.
Lubrication
After cleaning the zipper, we recommend to apply lubricant to the zipper in order
to maintain the proper waterproof performance.

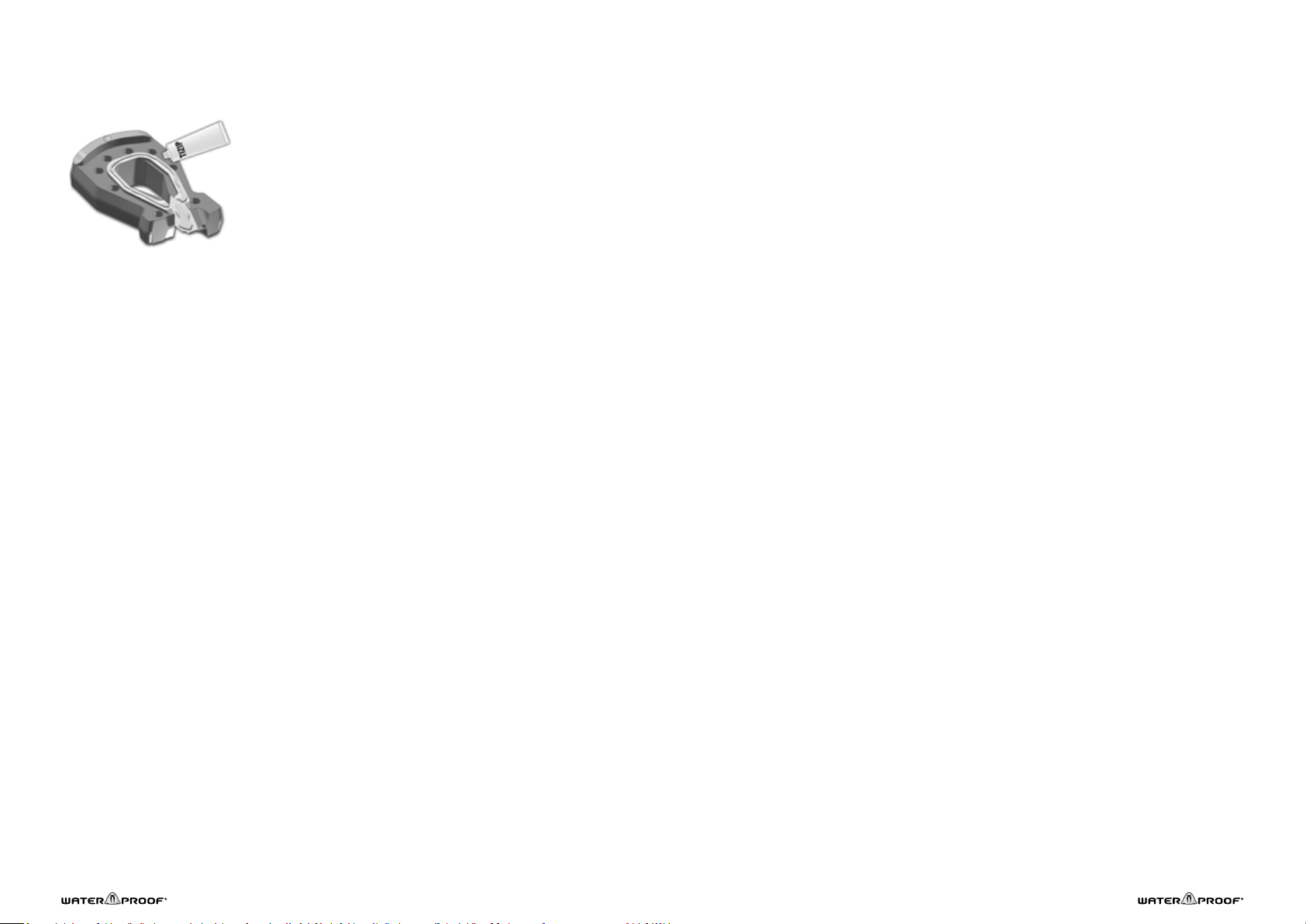

Apply lubricant to the Top-Seal as indicated
in the diagram. The lubricant will then distribute
along the zipper elements, by operating the slider
a few times.
Storage
Please do not fold or bend the zippers when they are stored. Please do not store
the garment/goods under the circumstances where it will be over 60°C (140°F).
Store with the zipper completely closed, taking care not to bend it. The storage
in an opened position for long period will cause zipper bending. If this occurs,
slight leaks are possible.
Lubrication
Both ends closed TIZIP MasterSeal 10 zippers need
to be lubricated on the docking end from time to
time. Please use the original TIZIP lubricant or
other available zipper lubricants. Carefully apply
over the docking end surfaces on front, back and
inside where they connect to the zipper chain.
Repeat before long term storage leaving the slider
closed and whenever the area is dry during use.
Cleaning
The TIZIP MasterSeal 10 is highly resistant to damage caused by dirt or sand.
However if dirt or sand are present, the zipper should be cleaned with soap and
water. Dirt particles can affect the sealing function if they get caught between
the chain proles. If the TIZIP MasterSeal 10 closure is used to protect life or
sensitive material, the sealing function and cleanliness of the chain area should
be thoroughly checked prior to every usage.

16 WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 17
Maintenance and repair
Maintenance and repair need to be made by Waterproof
Authorized Service Centers.
Cleaning
After the dive
Rinse your suit with fresh water after diving, taking particular care to clean sand
and salt from the zipper. Wash your suit occasionally with mild soap.
Dry your suit open in the shadow on a hanger.
For disinfection products please visit www.ew80-dive.eu/english/products/
Other cleaning products may be used only if authorized
by Waterproof.
Storage
Suits should not be hung for extended periods on narrow hangers, as the suit
material may become stressed where it passes over the hanger. Use extra wide
hangers especially designed for wetsuit storage (WP Hanger). Suits should never
be stored in a bag, it may create permanent creases in the suit material.
Store the suit away from sources of heat and away from sources of UV radiation
(mainly sunlight), as both of these may degrade the materials more rapidly.
If you do not use your suit for a long time, store it on a wide hanger in a cool and
dry place.
Do not leave your suit in a car in hot weather.
Go to point “zippers” and read how to store different
types of zippers.
Protect your suit from sharp objects.
Maximum storage period
Under optimal storage conditions a signicant deterioration of the product
properties can be excluded during a period of 3 years. Therefore, the maximum
duration of storage after initial use is 3 years.
Optimal storage conditions
• Normal room climate (as reference: 65% humidity, 21 ° C)
• Protected from light and without mechanical, chemical and physical inuences
• Inspected regularly (every six months)

18 WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 19
Service life
According to Regulation (EU) 2016/425 PPE personal protective
equipment (PPE), an expiry period is to be dened, after which
material aging may deteriorate the protective functions of the PPE.
Information about storage is found in the chapter “Storage.”
Maximum service life is not to be mistaken for the warranty period.
Information about warranty is found in the chapter
“Waterproof Worldwide Warranty.”
Maximum operating life
The maximum operating life is 10 years. It begins with rst use and ends after
10 years of use. The operating life may end sooner if the suit has defects which
prohibit further use. Note the date of rst use on the inspection chart and with a
waterproof pen on the suit itself.
If this date has not been marked on the suit or the chart, then date of
purchase will be used to compute operating life. If purchase date is
unknown, then the production date will serve.
Maximum service life
The maximum service life (expiry age) is 13 years. This is computed adding 3
years maximum storage + 10 years maximum operating life.
To nd the date of manufacture or your suit, please read the
chapter “Product Labels.”
Recommendations for the use of PPE in the industrial sector
Regular or intensive use and/or extreme conditions such as sharp
edges and chemical inuences lead to a reduced operating life.
The contractor must take this into account when making policy and
risk analysis in the workplace. The contractor has to take note of rst
date of use (rst commissioning of the suit) by documentation in the
maintenance chart in order to observe the operating life guidelines.

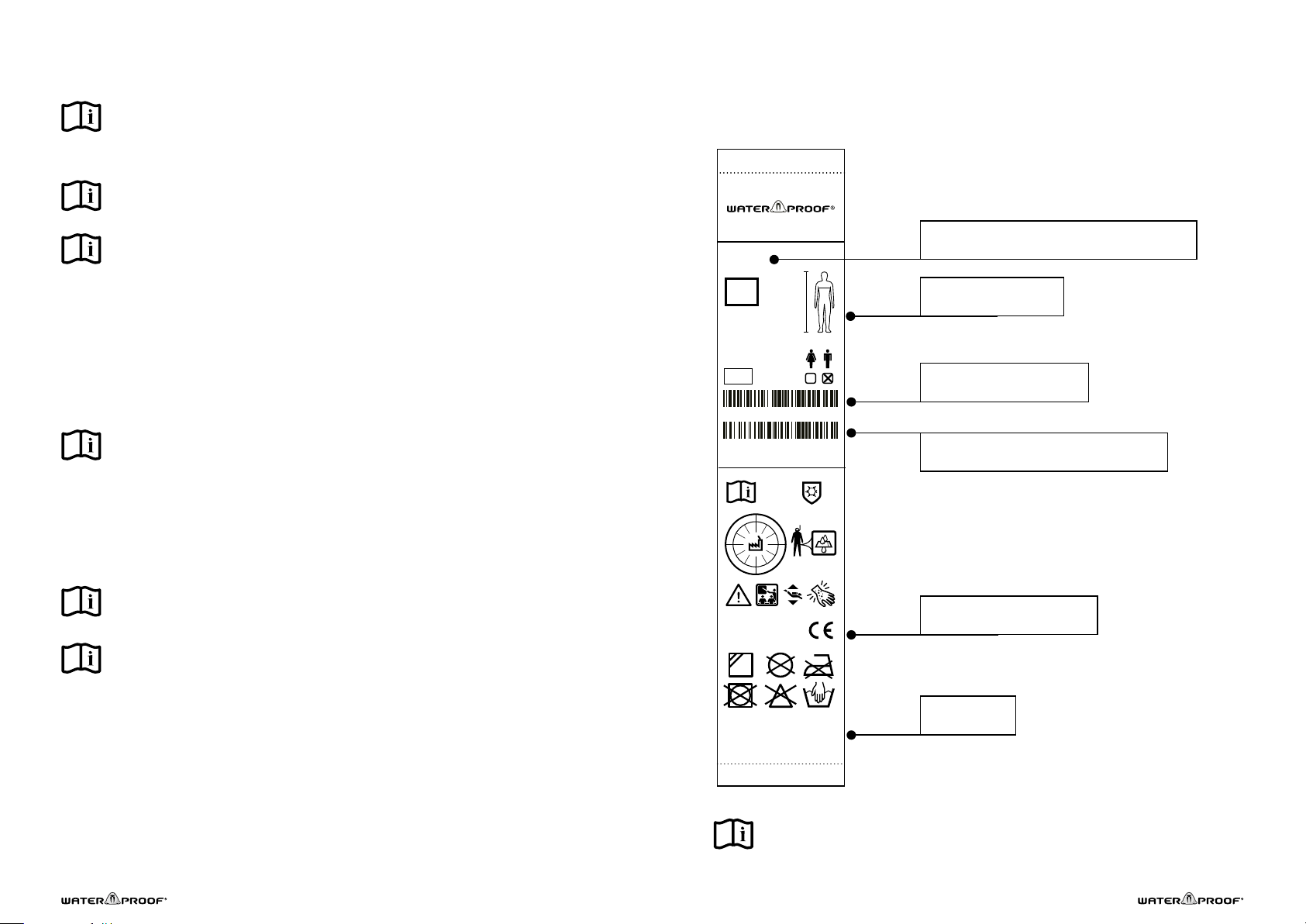

Product marking
The following labels are found on the product:
The label shown here may differ from your suit. The explanation
of the pictograms can be found in the chapter ”Pictograms”.
Designed and Developed by
Sweden
W1 7mm
011-123-00
EN 14225-1:2017
Nylon: 17%
Rubber: 83%
1619500110008
7340018506808
A: 173-179cm (5’8”-5’10”)
B: 97-103cm (38”-41”)
WATERPROOF DIVING
INTERNATIONAL AB Industrivägen 39
S-433 61 Partille Sweden
Made in China
M
A
B
LOT
B
1
2
3
4
5
6
7
8
9
1
0
1
1
1
2
2
0
1
9
2
0
2
0
2
0
2
1
2
0
2
2
Product name – Variant Item number
Serial- or Lotnumber
Norm and CE Marking
Address
Global Trade Item Number (GTIN)
Size and Gender

20 WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 21
Suit type: Drysuit. The pictogram of a diver with diving goggles
and snorkel symbolizes a diver, the symbol refers to a waterproof
suit.
Suit type: Wetsuit. The pictogram of a diver with diving goggles
and snorkel symbolizes a diver, the symbol refers to a wet suit.
Date of Manufacture. The year of production is marked in the circle
outside, the month is shown inside. The marking is indicated by a
dot in the corresponding elds. The central symbol represents a
manufacturing factory.
Rarely the materials used can cause allergic reactions!
It symbolizes a hand with skin irritations, which represents
the whole body and all allergies.
The buoyancy can change with depth.There is the risk that the
buoyancy of the suit will change depending on the depth. In the
middle of the pictogram is a diver shown. The arrows indicate the
change of buoyancy depending on water depth.
This suit is only to be used by an individual who has had specic
training in its use or who is under the supervision of an industry
recognized diving instructors. The pictogram is a classroom with
students and teachers shown.
Marking for a women’s or men’s model.
- X under Mr.: Man Model
- X under Lady: Lady Model
- X under Lady and Mr.: No gender-specic model
Size of the suit.
- Box: Size according to Waterproof size table, see chapter
”Sizes”.
- Body pictogram
A: Body height in cm (inches)
B: Chest circumference in cm (inches)
Pictograms
Pictogram Explanation
LOT
C
Read instructions before use
Please read this entire instruction manual before diving. Failure to
follow the instructions in this manual can result in serious injury or
death.
Warning
Symbol in this user manual are used to highlight risks and dangers
which can lead to death or serious bodily injury.
Thermal Performance Class acc. to EN14225-1
Serial Number
Lot Number
Hand wash at maximum 30 ° C (86 ° F)
Do not iron
Do not tumble dry
Do not bleach
Dry in the shade
Do not dry clean
Pictogram Explanation
LOT
C
LOT
C

22 WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 23
Disposal
If you want to dispose your suit, please take it to your local recycling center or
contact your local waste management company.
Accessories and spare parts
Keep in mind that accessories and spare parts must be approved by Waterproof.
You will nd the growing range of accessories at your dealer, in product catalogs
or on the Internet at www.waterproof.eu.
SD4
•Hood
SD COMBAT
•Hood
Included in Delivery
Sizes
Men’s W1, W4, W5,
W7, W8, SD4, SD
COMBAT
XS, S, S/t, M, M+, M/t, ML, ML/t, L, L+, L/t, XL, XL/t, XXL,
XXL/t, 3XL/t+
Men’s W30 3XS, XXS, XS, S, M, ML, L, XL, XXL, 3XL
Men’s W50, W80 XXS, XS, S, M, ML, L, XL, XXL, 3XL
Ladies W1, W4, W5,
W7, W8, SD4, SD
COMBAT
XS, S, M, M+, M/t, ML, ML/t, L, L+, L/t, XL, XXL
Ladies W30 3XS, XXS, XS, S, M, ML, L, XL, XXL, XXL
Ladies W50, W80 XXS, XS, S, M, ML, L, XL, XXL, XXL

24 WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 25

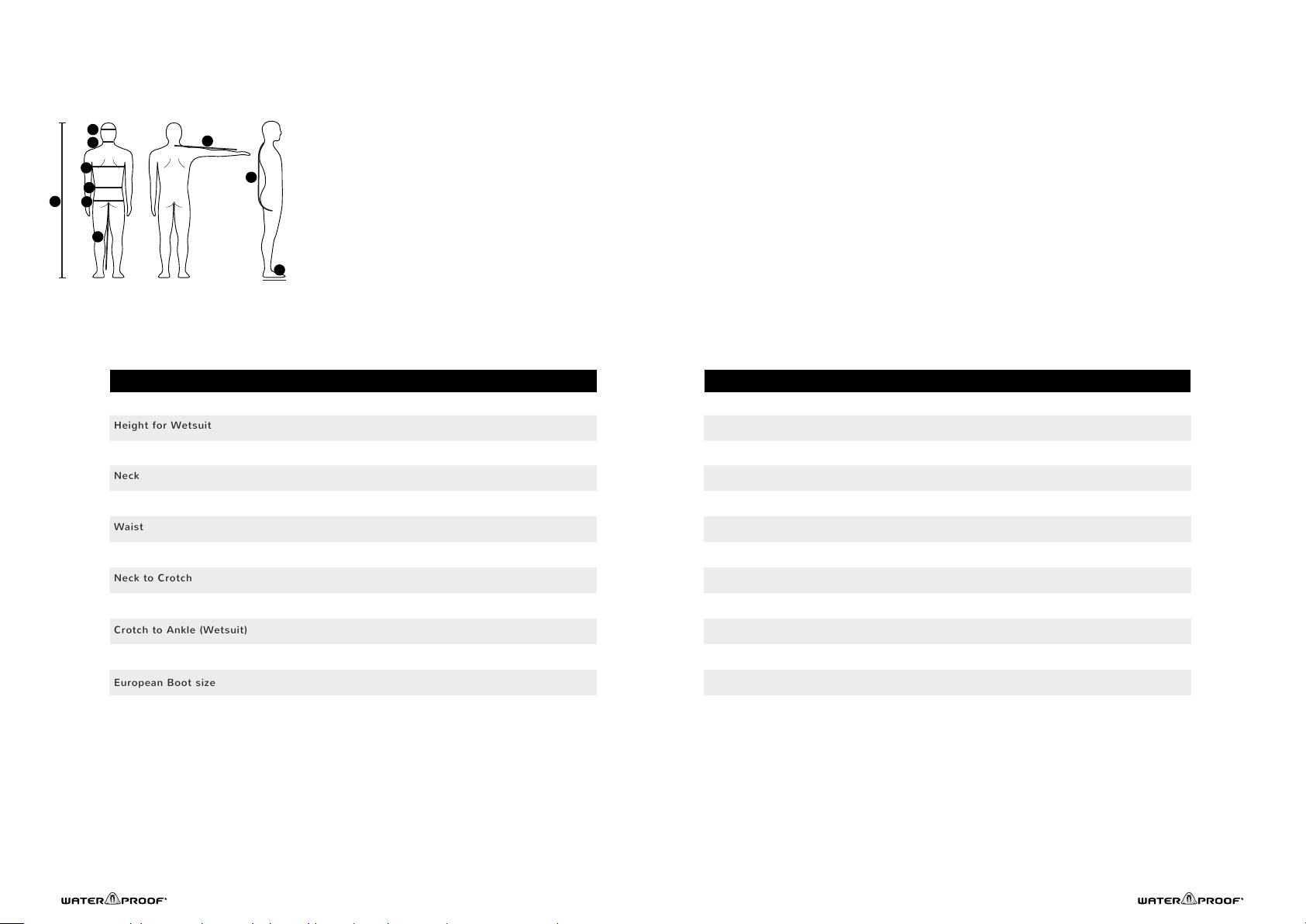

How do I find the right size?
Size really matters! Despite similarities in measurements or weight,
every person’s body is unique. Our size chart is a good starting point
to estimate your size but because a wetsuit should really t like
a second skin, we highly recommend that you visit an authorized
dealer to ensure a perfect t. We advise specically against buying
from other sources. It is better to be safe than sorry, so please seek
support from your local dealer.
1. Ask someone to take your body measurements.
When taking your measurements, it is important that your stand up straight
and that you keep the measuring tape as close to the body as possible. See next
page for information on how to measure and write down your measurements.
2. Check the size charts and choose the chart that corresponds best to your
measurements. Standard, Plus, Tall or Tall/Plus.
To ensure accuracy, check more than one size chart.
3. Mark your measurements in the size chart.
See the examples on the next page.
4. Choose your size.
Choose a size that approximates the average of all your measurements. It is
normal for your measurements to be spread out throughout different sizes.
Our suits have enough allowance and range of motion to accommodate these
variations. Keep in mind that soft body parts like the belly can be “compressed”
a bit. If you are unsure about what size to choose please contact your dealer.
5. Check if suit is available in your size.
Example: Ladies Wetsuit
Lisa checks the size tables and nds that she is closest to a Medium Plus size
in the PLUS size chart. She also checked the STANDARD size chart but found
that the suits are too tall compared to her height. Therefore she chooses the
M/+ size.
Ladies M/+ L/+
European Size D38 D42
Head 55
Neck 37
Chest 95
Waist 75
Hips 102
Neck to Crotch 78
Neck to Wrist 72
Crotch to Ankle (Wetsuit) 70
56
38
103
82
110
80
74
72
25 26
37 38-39
LADIES PLUS
Foot length
European Boot size
Height for wetsuit 165-171 169-175
96
79
105
75
73
71
25
166
LISA’S
MEASUREMENTS
(cm)

26 WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 27

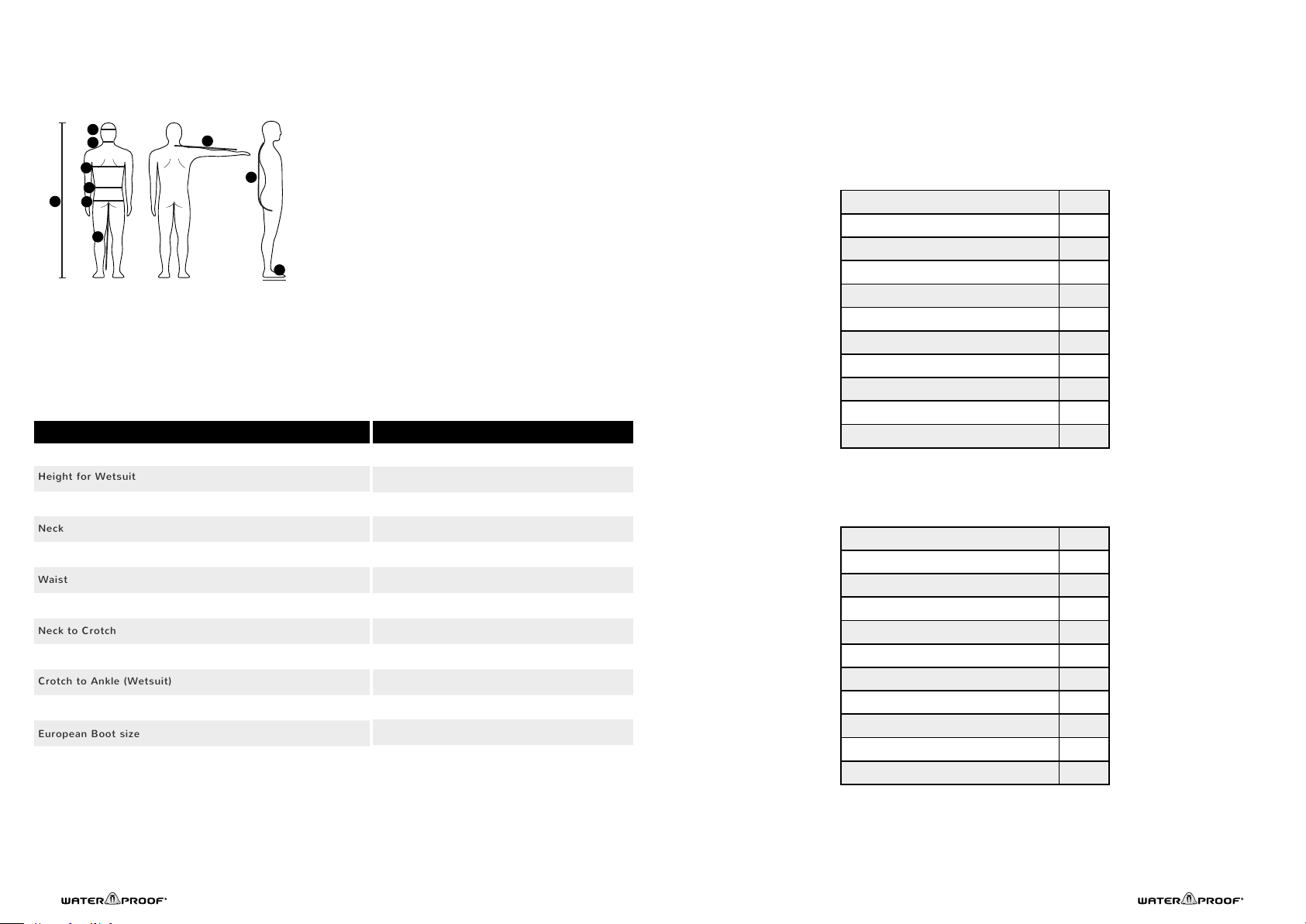

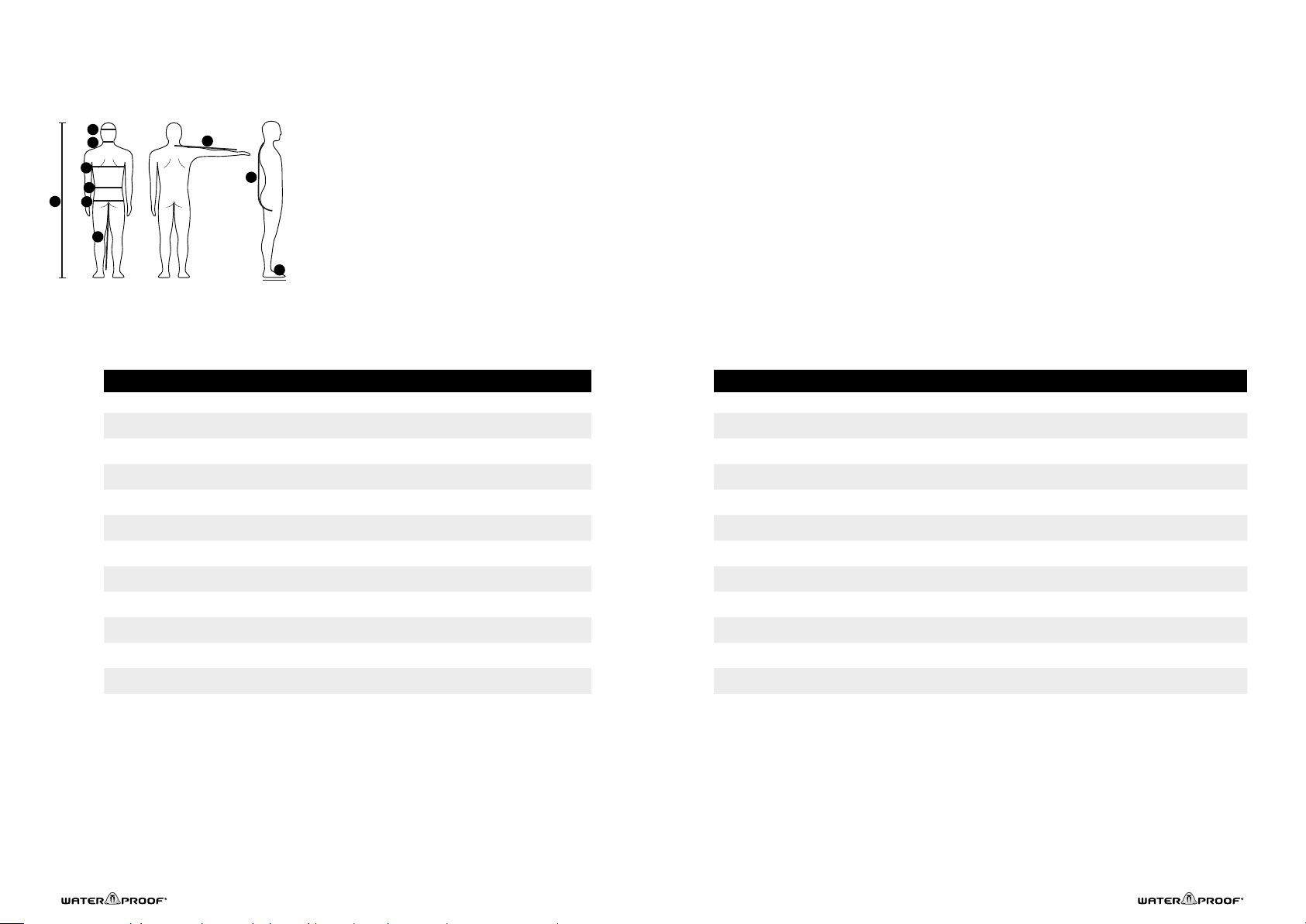

Size chart
1 Body height
2 Head
3 Neck
4 Chest
5 Waist
6 Hips (Maximum hips circumference)
7 Neck-Crotch (from 7th cervical vertebra
to center of crotch)
8 Neck-Wrist (from 7th cervical vertebra to wrist)
9 Length from crotch to ankle
10 Foot length
IMPORTANT!
Take body-near measurements
1
2
5
4
3
6
7
10
8
9
1 Body height
2 Head
3 Neck
4 Chest
5 Waist
6 Hips (Maximum hips circumference)
7 Neck-Crotch (from 7th cervical vertebra
to center of crotch)
8 Neck-Wrist (from 7th cervical vertebra to wrist)
9 Length from crotch to ankle
10 Foot length
(cm)MEN STANDARD
Men XSXXS3XS S
M ML L XL
C46C44C42 C48
C50 C52 C54 C56
169-175 171-177
57 57
58
37 38
39
92 96
100
78 83
88
92 96
100
80 81
82
73 74
75
71
167-173
56
36
88
73
88
79
72
70
165-171
56
35
84
68
84
78
71
69 72
73
XXL 3XL
C58 C60
175-181
58
40
104
93
104
83
76
74
177-183 179-185
58 59
41 42
108 112
98 103
108 112
84 85
77 78
75 76
181-187
59
43
116
108
116
86
79
77
183-189
60
44
120
113
120
87
80
78
26-- 27
27 28 28 29 30 31
European Size
Height for Wetsuit
Head
Neck
Chest
Waist
Hips
Neck to Crotch
Neck to Wrist
Crotch to Ankle (Wetsuit)
Foot length
European Boot size
European Size
Height for Wetsuit
Head
Neck
Chest
Waist
Hips
Neck to Crotch
Neck to Wrist
Crotch to Ankle (Wetsuit)
Foot length
European Boot size
38-39-- 40-42
40-42 43-44 43-44 44-45 46-47 47-48
173-179
(cm)
Ladies XS S M ML L XL
C34 C36 C38 C40 C42 C44
161-167 163-169 165-171
55 55 55
33 34 35
80 84 88
63 67 70
88 92 96
73 74 75
70 71 72
68 69 70
XXL
C46
167-173
56
35
92
74
100
76
73
71
169-175 171-177
56 56
36 37
96 100
77 81
104 108
77 78
74 75
72 73
173-179
56
37,5
104
84
112
79
76
74
23 24 25 26 26 27 -
35
XXS
C32
159-165
-
33
76
60
84
71
69
67
-
-
3XS
C30
157-163
-
32
72
56
80
70
68
66
-
-36 37 38-39 38-39 40-42 -
3XL
C48
175-181
-
38,5
108
88
116
80
77
75
-
-
LADIES STANDARD
(cm)
MEN STANDARD
Men XSXXS3XS S
M ML L XL
C46C44C42 C48
C50 C52 C54 C56
169-175 171-177
57 57
58
37 38
39
92 96
100
78 83
88
92 96
100
80 81
82
73 74
75
71
167-173
56
36
88
73
88
79
72
70
165-171
56
35
84
68
84
78
71
69 72
73
XXL 3XL
C58 C60
175-181
58
40
104
93
104
83
76
74
177-183 179-185
58 59
41 42
108 112
98 103
108 112
84 85
77 78
75 76
181-187
59
43
116
108
116
86
79
77
183-189
60
44
120
113
120
87
80
78
26-- 27
27 28 28 29 30 31
European Size
Height for Wetsuit
Head
Neck
Chest
Waist
Hips
Neck to Crotch
Neck to Wrist
Crotch to Ankle (Wetsuit)
Foot length
European Boot size
European Size
Height for Wetsuit
Head
Neck
Chest
Waist
Hips
Neck to Crotch
Neck to Wrist
Crotch to Ankle (Wetsuit)
Foot length
European Boot size
38-39-- 40-42
40-42 43-44 43-44 44-45 46-47 47-48
173-179
(cm)
Ladies XS S M ML L XL
C34 C36 C38 C40 C42 C44
161-167 163-169 165-171
55 55 55
33 34 35
80 84 88
63 67 70
88 92 96
73 74 75
70 71 72
68 69 70
XXL
C46
167-173
56
35
92
74
100
76
73
71
169-175 171-177
56 56
36 37
96 100
77 81
104 108
77 78
74 75
72 73
173-179
56
37,5
104
84
112
79
76
74
23 24 25 26 26 27 -
35
XXS
C32
159-165
-
33
76
60
84
71
69
67
-
-
3XS
C30
157-163
-
32
72
56
80
70
68
66
-
-36 37 38-39 38-39 40-42 -
3XL
C48
175-181
-
38,5
108
88
116
80
77
75
-
-
LADIES STANDARD

28 WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 29
Size chart
1 Body height
2 Head
3 Neck
4 Chest
5 Waist
6 Hips (Maximum hips circumference)
7 Neck-Crotch (from 7th cervical vertebra
to center of crotch)
8 Neck-Wrist (from 7th cervical vertebra to wrist)
9 Length from crotch to ankle
10 Foot length
IMPORTANT!
Take body-near measurements
1
2
5
4
3
6
7
10
8
9
1 Body height
2 Head
3 Neck
4 Chest
5 Waist
6 Hips (Maximum hips circumference)
7 Neck-Crotch (from 7th cervical vertebra
to center of crotch)
8 Neck-Wrist (from 7th cervical vertebra to wrist)
9 Length from crotch to ankle
10 Foot length
(cm)MEN STANDARD
Men XSXXS3XS S M ML L XL
C46C44C42 C48 C50 C52 C54 C56
169-175 171-177
57 57 58
37 38 39
92 96 100
78 83 88
92 96 100
80 81 82
73 74 75
71
167-173
56
36
88
73
88
79
72
70
165-171
56
35
84
68
84
78
71
69 72 73
XXL 3XL
C58 C60
175-181
58
40
104
93
104
83
76
74
177-183 179-185
58 59
41 42
108 112
98 103
108 112
84 85
77 78
75 76
181-187
59
43
116
108
116
86
79
77
183-189
60
44
120
113
120
87
80
78
26-- 27 27 28 28 29 30 31
European Size
Height for Wetsuit
Head
Neck
Chest
Waist
Hips
Neck to Crotch
Neck to Wrist
Crotch to Ankle (Wetsuit)
Foot length
European Boot size
European Size
Height for Wetsuit
Head
Neck
Chest
Waist
Hips
Neck to Crotch
Neck to Wrist
Crotch to Ankle (Wetsuit)
Foot length
European Boot size
38-39-- 40-42 40-42 43-44 43-44 44-45 46-47 47-48
173-179
(cm)
Ladies XS S
MML L XL
C34 C36
C38 C40 C42 C44
161-167 163-169
165-171
55 55
55
33 34
35
80 84
88
63 67
70
88 92
96
73 74
75
70 71
72
68 69
70
XXL
C46
167-173
56
35
92
74
100
76
73
71
169-175 171-177
56 56
36 37
96 100
77 81
104 108
77 78
74 75
72 73
173-179
56
37,5
104
84
112
79
76
74
23 24
25 26 26 27 -
35
XXS
C32
159-165
-
33
76
60
84
71
69
67
-
-
3XS
C30
157-163
-
32
72
56
80
70
68
66
-
-36
37 38-39 38-39 40-42 -
3XL
C48
175-181
-
38,5
108
88
116
80
77
75
-
-
LADIES STANDARD
(cm)MEN STANDARD
Men XSXXS3XS S M ML L XL
C46C44C42 C48 C50 C52 C54 C56
169-175 171-177
57 57 58
37 38 39
92 96 100
78 83 88
92 96 100
80 81 82
73 74 75
71
167-173
56
36
88
73
88
79
72
70
165-171
56
35
84
68
84
78
71
69 72 73
XXL 3XL
C58 C60
175-181
58
40
104
93
104
83
76
74
177-183 179-185
58 59
41 42
108 112
98 103
108 112
84 85
77 78
75 76
181-187
59
43
116
108
116
86
79
77
183-189
60
44
120
113
120
87
80
78
26-- 27 27 28 28 29 30 31
European Size
Height for Wetsuit
Head
Neck
Chest
Waist
Hips
Neck to Crotch
Neck to Wrist
Crotch to Ankle (Wetsuit)
Foot length
European Boot size
European Size
Height for Wetsuit
Head
Neck
Chest
Waist
Hips
Neck to Crotch
Neck to Wrist
Crotch to Ankle (Wetsuit)
Foot length
European Boot size
38-39-- 40-42 40-42 43-44 43-44 44-45 46-47 47-48
173-179
(cm)
Ladies XS S
MML L XL
C34 C36
C38 C40 C42 C44
161-167 163-169
165-171
55 55
55
33 34
35
80 84
88
63 67
70
88 92
96
73 74
75
70 71
72
68 69
70
XXL
C46
167-173
56
35
92
74
100
76
73
71
169-175 171-177
56 56
36 37
96 100
77 81
104 108
77 78
74 75
72 73
173-179
56
37,5
104
84
112
79
76
74
23 24
25 26 26 27 -
35
XXS
C32
159-165
-
33
76
60
84
71
69
67
-
-
3XS
C30
157-163
-
32
72
56
80
70
68
66
-
-36
37 38-39 38-39 40-42 -
3XL
C48
175-181
-
38,5
108
88
116
80
77
75
-
-
LADIES STANDARD

30 WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 31
Size chart
1 Body height
2 Head
3 Neck
4 Chest
5 Waist
6 Hips (Maximum hips circumference)
7 Neck-Crotch (from 7th cervical vertebra
to center of crotch)
8 Neck-Wrist (from 7th cervical vertebra to wrist)
9 Length from crotch to ankle
10 Foot length
IMPORTANT!
Take body-near measurements
1
2
5
4
3
6
7
10
8
9
1 Body height
2 Head
3 Neck
4 Chest
5 Waist
6 Hips (Maximum hips circumference)
7 Neck-Crotch (from 7th cervical vertebra
to center of crotch)
8 Neck-Wrist (from 7th cervical vertebra to wrist)
9 Length from crotch to ankle
10 Foot length
3XL/t+
F160
190-196
93
83
83
31
47-48
60
46
128
131
126
MEN PLUS
Men M/+ L/+
F50 F54
85
75
73
87
77
75
27
40-42
28
43-44
58
41
108
106
106
58
43
116
116
114
177-183
173-179
MEN TALL
ML/t
C152
S/t
C148
179-185
84
77
77
C150
183-189 185-191 187-193 189-195
86
79
79
181-187
85
78
78
M/t
C154
L/t XL/t
C156
88
81
81
87
80
80
XXL/t
C158
89
82
82
European Size
Height for Wetsuit
Head
Neck
Chest
Waist
Hips
Neck to Crotch
Neck to Wrist
Crotch to Ankle (Wetsuit)
Foot length
European Boot size
European Size
Height for Wetsuit
Head
Neck
Chest
Waist
Hips
Neck to Crotch
Neck to Wrist
Crotch to Ankle (Wetsuit)
Foot length
European Boot size
-
-
29
44-45
28
43-44
30
46-47
29
44-45
31
47-48
58
38
96
83
96
58
40
104
93
104
58
39
100
88
100
59
42
112
103
112
59
41
108
98
108
59
43
116
108
116
(cm)
(cm)
ML/t
C140C138
174-180
56
36
92
74
100
78
76
75
172-178
56
35
88
70
96
77
75
74
M/t
C142
L/t
176-182
56
36
96
77
104
79
77
76
26
--
38-39- -
LADIES TALL
Ladies M/+ L/+
D38 D42
55
37
95
75
102
78
72
70
56
38
103
82
110
80
74
72
25 26
37 38-39
LADIES PLUS
165-171 169-175
MEN
TALL/PLUS
3XL/t+
F160
190-196
93
83
83
31
47-48
60
46
128
131
126
MEN PLUS
Men M/+ L/+
F50 F54
85
75
73
87
77
75
27
40-42
28
43-44
58
41
108
106
106
58
43
116
116
114
177-183
173-179
MEN TALL
ML/t
C152
S/t
C148
179-185
84
77
77
C150
183-189 185-191 187-193 189-195
86
79
79
181-187
85
78
78
M/t
C154
L/t XL/t
C156
88
81
81
87
80
80
XXL/t
C158
89
82
82
European Size
Height for Wetsuit
Head
Neck
Chest
Waist
Hips
Neck to Crotch
Neck to Wrist
Crotch to Ankle (Wetsuit)
Foot length
European Boot size
European Size
Height for Wetsuit
Head
Neck
Chest
Waist
Hips
Neck to Crotch
Neck to Wrist
Crotch to Ankle (Wetsuit)
Foot length
European Boot size
-
-
29
44-45
28
43-44
30
46-47
29
44-45
31
47-48
58
38
96
83
96
58
40
104
93
104
58
39
100
88
100
59
42
112
103
112
59
41
108
98
108
59
43
116
108
116
(cm)
(cm)
ML/t
C140C138
174-180
56
36
92
74
100
78
76
75
172-178
56
35
88
70
96
77
75
74
M/t
C142
L/t
176-182
56
36
96
77
104
79
77
76
26
--
38-39- -
LADIES TALL
Ladies M/+ L/+
D38 D42
55
37
95
75
102
78
72
70
56
38
103
82
110
80
74
72
25 26
37 38-39
LADIES PLUS
165-171 169-175
MEN
TALL/PLUS

32 WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 33
3XL/t+
F160
190-196
93
83
83
31
47-48
60
46
128
131
126
MEN PLUS
Men M/+ L/+
F50 F54
85
75
73
87
77
75
27
40-42
28
43-44
58
41
108
106
106
58
43
116
116
114
177-183
173-179
MEN TALL
ML/t
C152
S/t
C148
179-185
84
77
77
C150
183-189 185-191 187-193 189-195
86
79
79
181-187
85
78
78
M/t
C154
L/t XL/t
C156
88
81
81
87
80
80
XXL/t
C158
89
82
82
European Size
Height for Wetsuit
Head
Neck
Chest
Waist
Hips
Neck to Crotch
Neck to Wrist
Crotch to Ankle (Wetsuit)
Foot length
European Boot size
European Size
Height for Wetsuit
Head
Neck
Chest
Waist
Hips
Neck to Crotch
Neck to Wrist
Crotch to Ankle (Wetsuit)
Foot length
European Boot size
-
-
29
44-45
28
43-44
30
46-47
29
44-45
31
47-48
58
38
96
83
96
58
40
104
93
104
58
39
100
88
100
59
42
112
103
112
59
41
108
98
108
59
43
116
108
116
(cm)
(cm)
ML/t
C140C138
174-180
56
36
92
74
100
78
76
75
172-178
56
35
88
70
96
77
75
74
M/t
C142
L/t
176-182
56
36
96
77
104
79
77
76
26
--
38-39- -
LADIES TALL
Ladies M/+ L/+
D38 D42
55
37
95
75
102
78
72
70
56
38
103
82
110
80
74
72
25 26
37 38-39
LADIES PLUS
165-171 169-175
MEN
TALL/PLUS
Size chart
1 Body height
2 Head
3 Neck
4 Chest
5 Waist
6 Hips (Maximum hips circumference)
7 Neck-Crotch (from 7th cervical vertebra
to center of crotch)
8 Neck-Wrist (from 7th cervical vertebra to wrist)
9 Length from crotch to ankle
10 Foot length
IMPORTANT!
Take body-near measurements
1
2
5
4
3
6
7
10
8
9
Enter your measured values
1 Body height
2 Head
3 Neck
4 Chest
5 Waist
6 Hips (Maximum hips circumference)
7 Neck-Crotch (from 7th cervical vertebra
to center of crotch)
8 Neck-Wrist (from 7th cervical vertebra to wrist)
9 Length from crotch to ankle
10 Foot length
Body Height
Head
Neck
Chest
Waist
Hips
Neck to Crotch
Neck to Wrist
Crotch to Ankle
Foot lenght
European Boot size
NAME.................................................................
Body Height
Head
Neck
Chest
Waist
Hips
Neck to Crotch
Neck to Wrist
Crotch to Ankle
Foot lenght
European Boot size
NAME.................................................................

34 WETSUIT_ENG_DE_FR_20200408
NASSTAUCHANZUG
GEBRAUCHSANWEISUNG
Willkommen bei Waterproof, Hersteller von preisgekrönten, hochwertigen Taucheranzügen und
Zubehör. Waterproof wurde 1984 in Göteburg, Schweden, gegründet. Das Erfolgsgeheimnis von
Waterproof ist sehr einfach: Wir sind selbst Taucher! Das ist der einzig wahre Weg, um herauszufinden,
was wirklich benötigt wird und noch besser gemacht werden kann. Mit unserer jahrzehntelangen
Praxiserfahrung und der nie endenden Neugier auf die Grenzen des Tauchsports werden unsere
Anzüge ständig weiterentwickelt,
Das nennen wir ”Facing Reality”.
EN DE FR

36 WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 37
Inhaltsverzeichnis
Kennzeichnung von Warnungen und Hinweisen
in dieser Gebrauchsanweisung 37
Bestimmungsgemäße Verwendung 37
Allgemeine Warnungen 38
Temperaturbedingungen 39
Die Waterproof-Gewährleistung 40
EG Baumusterprüfung und Anzugtyp 40
Zusammenbau 41
Überprüfung des Anzuges 41
An- und Ablegen 42
Vor dem Tauchen 43
Pege 44
Wartung 48
Reinigung 48
Lagerung 49
Gebrauchsdauer 50
Produktkennzeichnung 51
Piktogramme 52
Entsorgung 54
Zubehör- und Ersatzteile 54
Lieferumfang 54
Größen 55
Wie nde ich die richtige Größe für meinen Anzug? 56
Gebrauchsanweisung
Diese Gebrauchsanweisung bezieht sich auf folgende Waterproof-Taucheranzüge:
W1, W4, W5, W7, W8, W30, W50, W80, SD Combat, SD4.
Kennzeichnung von Warnungen und Hinweisen
in dieser Gebrauchsanweisung
Wird verwendet, um auf Risiken und Gefahren hinzuweisen.
Diese können unmittelbar zum Tod oder zu schwerer
Körperverletzung führen.
Wird verwendet, wenn besondere Hinweise zu beachten sind
oder wenn Tipps zur Anwendung und/oder besonders
nützliche Informationen gegeben werden.
Bestimmungsgemäße Verwendung
Herzlichen Glückwunsch zum Erwerb eines Waterproof-Nasstauchanzuges!
W1, W4, W5, W7, W8, W50, W80, SD Combat, SD4.
Diese Nasstauchanzüge dienen dem thermischen Schutz des Körpers im Wasser.
Sie wurden sorgfältig aus den besten Materialien hergestellt. Mit der gebotenen
Sorgfalt werden Ihnen diese Nasstauchanzüge viele Jahre gute Dienste leisten.
Sie erhöhen den Komfort und die Sicherheit beim Tauchen.
W30.
Dieser Anzug bietet einen geringen mechanischen Schutz gegen äußere Einüsse.
Der thermische Schutz des Körpers im Wasser unter der thermischen
Leistungsklasse D nach EN 14225-1.

38 WETSUIT_ENG_DE_FR_20200408 WETSUIT_ENG_DE_FR_20200408 39
Allgemeine Warnungen
Bitte lesen Sie die gesamte Gebrauchsanweisung vor dem Tauchen.
Die Nichtbeachtung der Anweisungen in dieser Gebrauchsanweisung
kann zu schweren Verletzungen oder zum Tod führen.
Dieser Anzug darf nur von einer Person benutzt werden, die speziell in
seinem Gebrauch ausgebildet wurde oder von einem von der
Industrie anerkannten Tauchlehrer beaufsichtigt wird.
Es besteht das Risiko, dass sich der Auftrieb des Anzuges in
Abhängigkeit von der Tauchtiefe ändert.
Gegebenenfalls können im Anzug verwendete Materialien bei
Personen allergische Reaktionen verursachen.
Es kann zu Risiken durch Überhitzungen oder Unterkühlungen
kommen, die bei extremen Bedingungen bis zum Tode führen
können.
Die sicher zu bewältigende Arbeitsleistung des Anzuges
hängt stark von der persönlichen Konstitution und Kondition sowie
den Einsatzszenarien ab. Stimmen Sie Ihre Aktivitäten und den
geplanten Tauchgang für die jeweils vorliegenden Bedingungen
aufeinander ab.
Sie verlieren mit zunehmender Wassertiefe Wärmeisolierung.
Verwenden Sie nur Anzüge, die Ihnen passen. Bei nicht passenden
Anzügen entstehen Gefahren wie z. B. Unterkühlungen
oder Beengung.
Benutzen Sie immer Anzüge, die für die jeweilige Wassertemperatur
und den Einsatz geeignet sind. Mehr Informationen nden Sie
unter Temperaturbedingungen.
Temperaturbedingungen
Es ist für Sie wichtig, den richtigen Anzug für die entsprechende Wasser-
temperatur zu tragen. Um Ihnen einen Anhalt zu geben, können Sie sich
an folgender Tabelle orientieren.
l
Der W30 ist kein Tauchanzug gem. EN 14225-1. Auf Grund des dünnen Materials
wird die „Thermische Leistungsklasse D” unterschritten.
Die angegeben Temperaturbereiche wurden nach EN 14225-1 durch
Messen des Wärmedurchgangswiderstandes der Anzugmaterialien
ermittelt. Dies ist ein Labortest, in dem Passgenauigkeit bei anatomisch
vorgeformten Anzügen, dichte Manschetten oder gasdichte Reißver-
schlüsse, wie bei Semidry-Anzügen, nicht berücksichtigt sind.
Es gibt keine allgemein gültige Regel im Hinblick darauf, welcher
Nasstauchanzug bei welcher Wassertemperatur zu tragen ist.
Dies wird u. a. durch die körperliche Verfassung des Tauchers,
seinen Körperbau, die Arbeitsleistungen und die Arbeitsbedingungen
beeinusst.
Anzug Thermische Leistungsklasse
des Nasstauchanzugs-
materials
Wassertemperaturbereiche
°C
W1, W8 5mm C16-24
W1, W8 7mm B10-18
W4, W7 5mm C16-24
W4, W7 7mm B10-18
W5 D >22
W50 C 16-24
W80 A 7-12
SD4 / SD COMBAT A7-12
