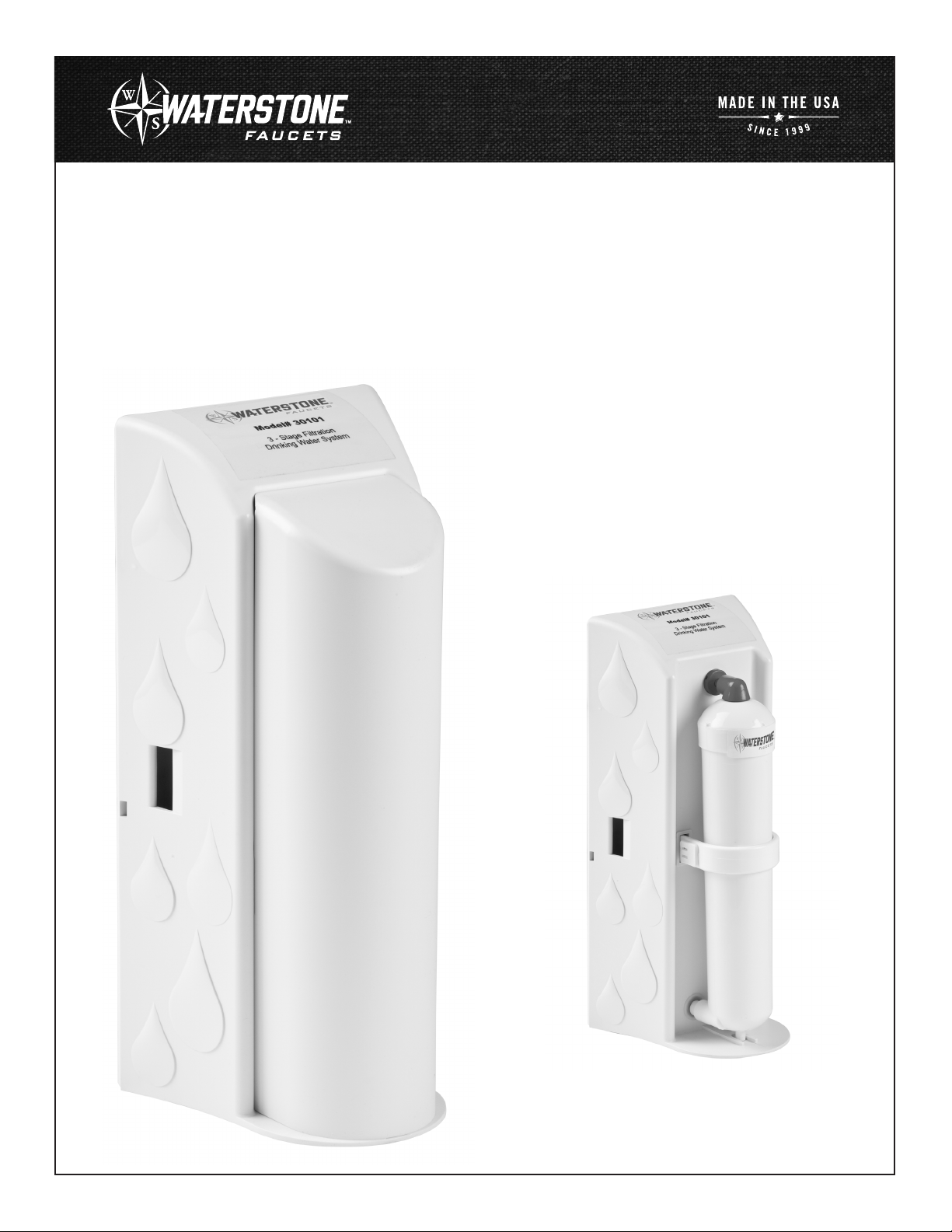

Waterstone 30101 User manual

Model #:
30101
Model #:
30102 Replacement Cartridge
MULTI-STAGE FILTRATION SYSTEM

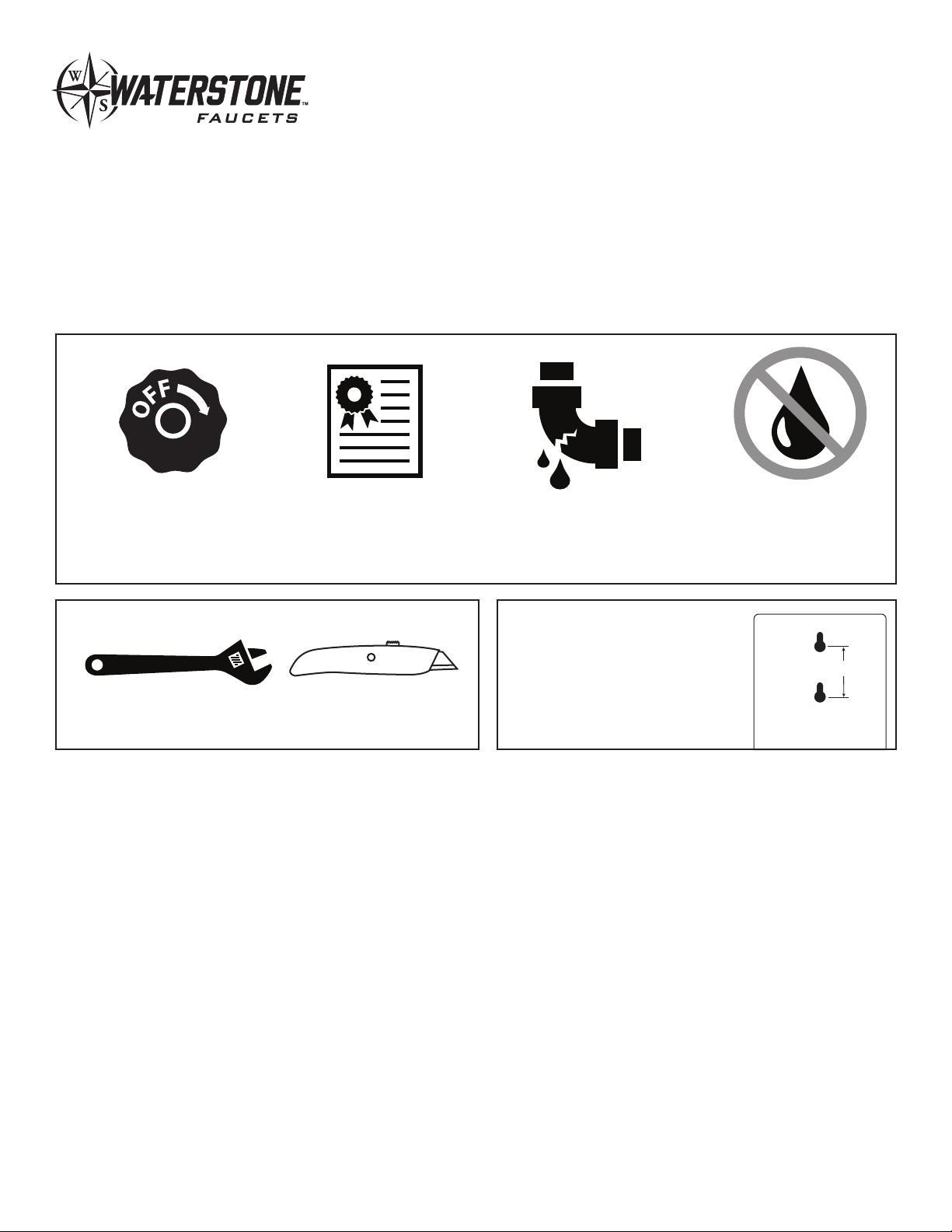

INSTALLATION INSTRUCTIONS

3”
1 2 3 4
Turn o water supply. Observe all local
plumbing codes.
Inspect waste and water
supplies for signs of damage.
Replace as necessary.
DO NOT use petroleum
based products on this
faucet.
REQUIRED TOOLS:
1. Adjustable Wrench 2. Utility Knife
OPTIONAL MOUNTING HOLES
Although unit will stand on its’own
under sink, unit can be mounted to
cabinet or wall if needed. Use mounting
holes on back to hang unit with screws.
BEFORE YOU BEGIN YOUR INSTALLATION:
INSTALLATION GUIDE
ABOUT THIS SYSTEM
Congratulations on your purchase of the 30101 Multi-Stage Filtration System.When properly maintained, this system will
provide you with years of trouble-free service. The next three sections contain important information on the proper care and
maintenance of your system, please take a few minutes to read through this information.
The following instructions outline a typical water treatment system installation. Consult local plumbing codes and building
regulations as they may pose dierent or additional requirements for the installation.The installer is responsible for ensuring
that the installation is in compliance with all applicable state and local regulations.
This system has been designed for installation by a licensed professional such as a contractor or plumber. Proper completion of
this installation will require basic familiarity with standard sink plumbing and proper use of common hand and power tools.
Improperly installed systems could result in water damage due to leaks or ooding.
The connection parts kit supplied with the 30101 Multi-Stage Filtration System includes components which represent the
most common under-sink plumbing connections currently in use within the United States. If these components do not match
the type of connections installed at your location, contact a local hardware or plumbing supplier to obtain the correct ttings.
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before
or after the system.

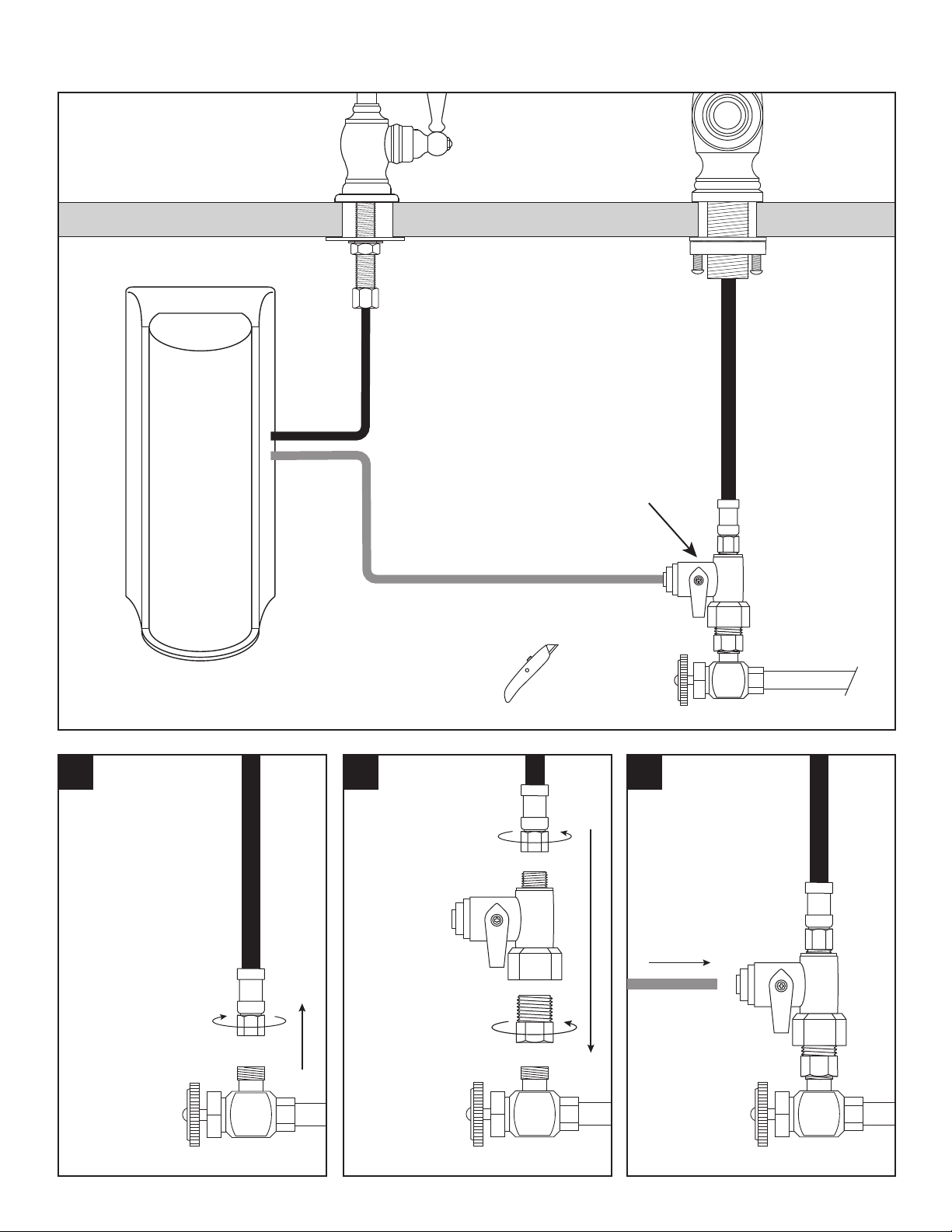

WATERSTONE COLD
ONLY FILTRATION FAUCET
BLUE HOSE
GREEN HOSE
KITCHEN FAUCET
SUPPLY HOSE
SUPPLY LINE
CONNECTOR
COLD WATER
SUPPLY
FILTRATION SYSTEM
A
B
2. 3.
1.
D
E
F
C
Turn o cold water at angle
stop (A). Relieve water
pressure by opening
faucet handle. Remove
cold water supply hose
(B) from angle stop.
Connect 3/4”supply
line connector (C)
snuggly onto angle
stop. For a smaller
1/2”connection,
use adapter (D).
DO NOT OVER
TIGHTEN!
Hand tighten
plus a 1/4 wrench
turn. Connect cold
water supply hose
onto supply line
connector. DO NOT
use teon tape.
MULTI-STAGE FILTRATION SYSTEM INSTALLATION
Take green hose (E) from
the ltration unit and insert
open end into opening on
supply line connector (F).
Once inserted, pull back on
hose to ensure a secure t.
OPTIONAL - To prevent tangles, shorten
hoses to desired length by cutting
with utility knife or scissors.

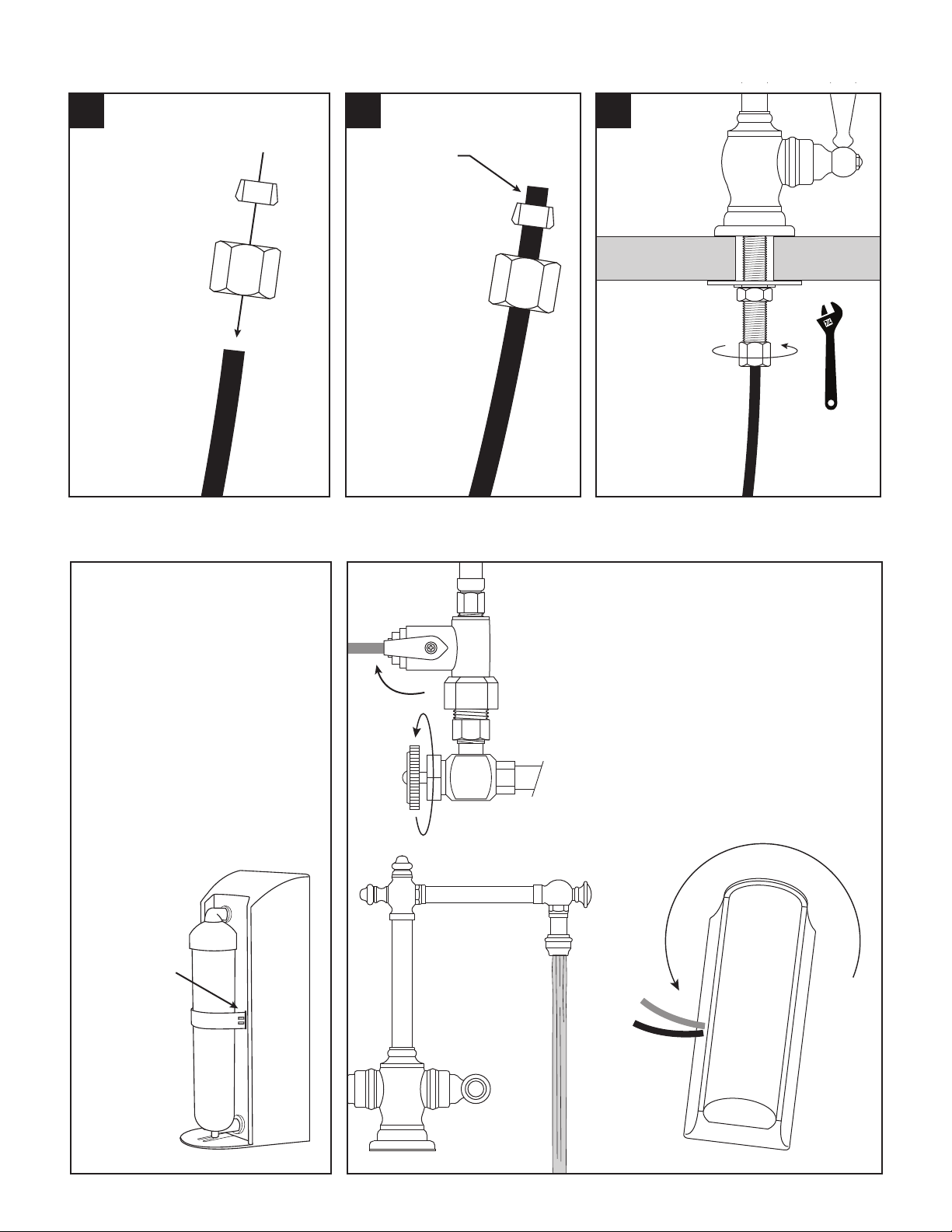

J
G
H
EXTEND 1/4”
5. 6.
4.
Slide compression nut (G)
over end of blue supply
tube (H). Slide ferrule (J)
onto end of blue supply
tube, long tapered end
rst.
Slide ferrule until 1/4”
of tubing is showing
out the end.
Insert extended
portion of tubing and
tighten compression
nut to end of faucet
shank with wrench.
K
L
RETAINING CLIPS
CARBON FINES
AND MILKY
APPEARANCE
IN WATER
INVERT UNIT
SYSTEM ACTIVATION AND INSPECTION
Open the dispensing faucet at the sink. Next, open the
feed water valve to the system (K), then angle stop (L).
Observe all tubing and connections for several minutes
to detect any leaks. Allow the faucet to run for at least
3 minutes, then close the faucet. During the 3-minute
ush, a small amount of carbon nes may be seen in
the initial ushing of the system.This is normal.The
water also may appear to be milky. This is due to air
being trapped in system. If practical, invert the unit
until air ceases to purge from the faucet. Check ttings
again for leaks after closing the faucet. The system is
now ready for use.
Check all tubing connections to ensure
they are rmly seated. CHECK TO SEE
THAT THE CARTRIDGE RETAINER
CLIP IS PROPERLY INSTALLED WITH
THE SLIDE LOCKS FULLY ENGAGED
IN FRAME SLOTS.The retainer clip
must be in place during long term ,
unattended operation of the system.
Failure to keep the retaining clip
properly engaged could result in
accidental leaks and ooding.

D
C
A
E
D
B
1.
4.
2. 3.

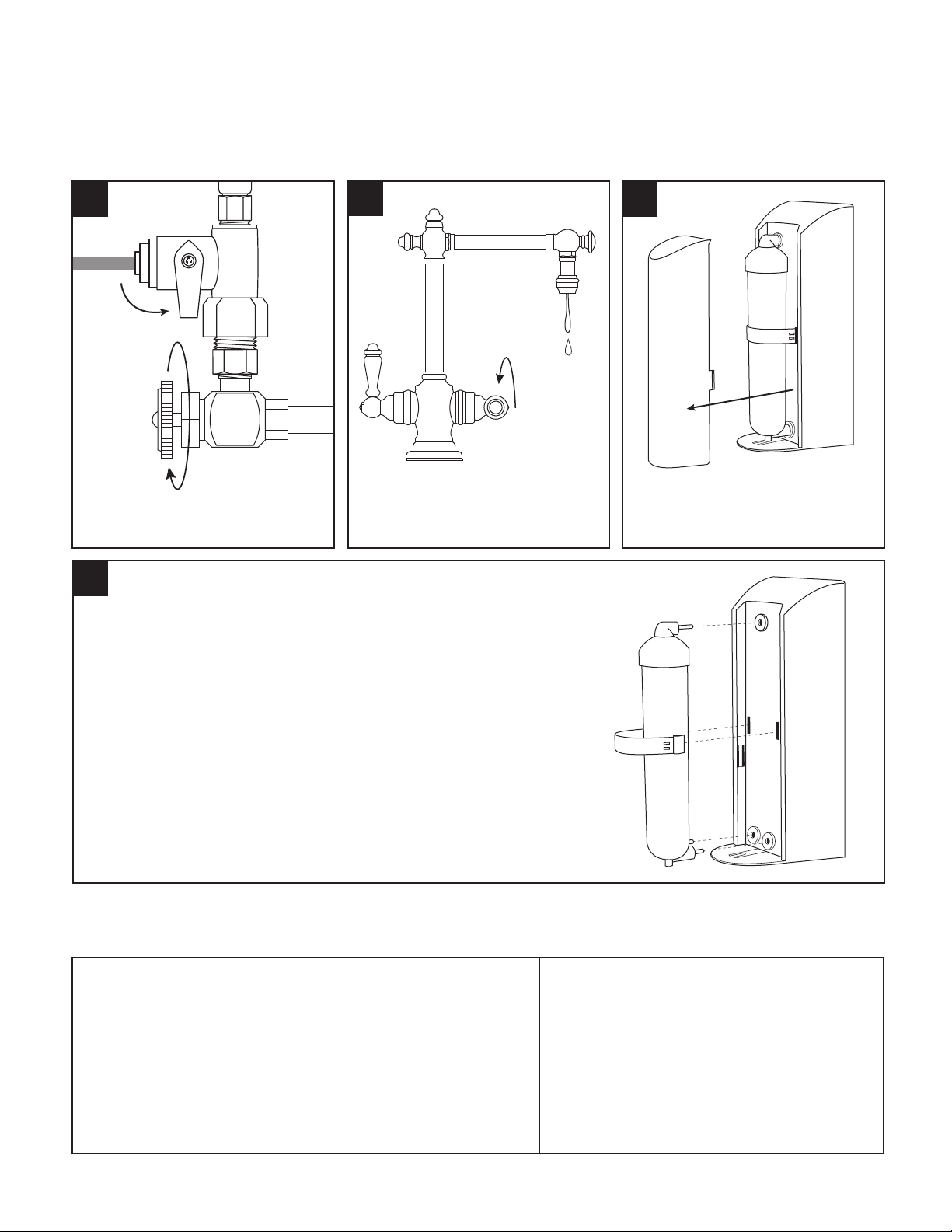

Squeeze and remove retaining clip (D). Pull cartridge (E) o system evenly at
top and bottom. Dispose of used cartridge. Install new cartridge, rocking gently
from side to side until cartridge tubes are properly engaged in unit connectors.
Re-install retaining clip, ensuring slide locks snap into place. If clip does not snap
easily into place through slots, cartridge is not fully inserted into connectors.
Failure to properly install retaining clip will result in accidental leaks and ooding.
Maintenance for the Multi-Stage Filtration System is quick and easy. All cartridges are designed to be changed without tools.When properly
maintained, the system will provide you with years of trouble-free service. Cartridges in this system must be replaced every 6-12 months to
maintain eciency and to ensure high water quality.
Turn o cold water at angle stop (A) or feed
water valve to the system (B).
Relieve water pressure by opening faucet
handle (C).
Squeeze sides to remove cover (D) from
front of system.
CARTRIDGE REPLACEMENT - Model # 30102
SYSTEM SPECIFICATIONS
System Life 1000 gallons
1st Stage Filter 20 micron Polypropylene
2nd Stage Filter 5 micron Polypropylene
3rd Stage Filter GAC
System Dimensions (6 3/4”w x 6 1/2”d x 15 3/4”h)
System weight (dry) 4.75 lbs.
Feed water Potable water
Min. feed pressure 40 psi
Max. feed pressure 100 psi
Min. feed temp 32°F
Max. feed temp 120°F

VEN-038-MSFS Rev. C
