INSTALLATION INSTRUCTIONS
Before Installation
Inspect the Package
Open the box and take out the system housing, all the components and connect fittings.
Inspect them according to the parts list to ensure nothing is left out or damaged during
shipping. If there are any parts cracked or broken, please do not proceed with the installation
and contact Waterdrop by Phone: [phone] Mon-Fri 8:00 AM-5:00 PM (PST) or by
Email: [e-mail]. Identify and get familiar with all components for quick
installation.
Specifications
To achieve the optimal performance, it is highly recommended to use the system within the
operational parameters.
Model
RO System Size (L*W*H)
Feed Water Pressure
Feed Water Temperature
Daily Production Rate
Feed Water Requirement
Power Specification
WD-G3-W / WD-G3-B / WD-G3-G
18.06”*5.68”*17.76”
14.5-87 PSI / 0.1-0.6 MPa
41-100 °F / 5–38 °C
400 GPD
Municipal Tap Water
Input 110~120V AC
Output 24V DC
NOTE:
•The Daily Production Rate is measured under 30 PSI dynamic feed water pressure and 77 °F
water temperature.
Required Tools:
•Variable speed drill
•Drill bit: 1/4” (for the waste line), 1 ” (for faucet hole)
•Adjustable wrench, pliers
•Screw driver
•Utility knife or scissors
•Flashlight
•Towel

2

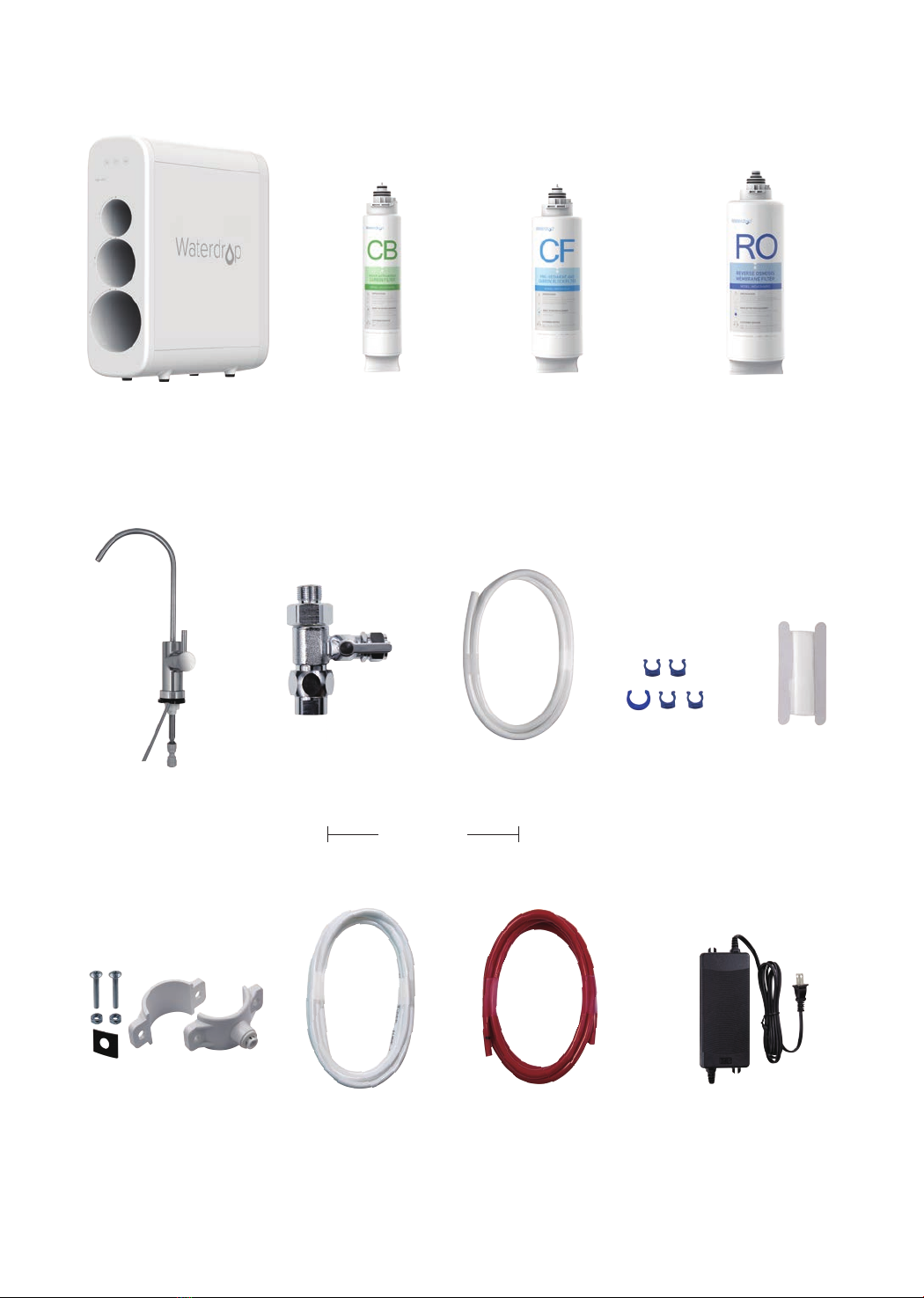

Parts List
System Housing
Feed Water Adapter
3/8”-1/2”
White 1/4” PE Tubing
RO Faucet
Power AdapterDrain Saddle 1/4”
Teflon Tape
Red 1/4” PE Tubing
White 3/8”PE Tubing Lock Clip
X 1 Set
X 1 Set
X 1 Set
X 1 Set
X 1
X 1 Set
X 60” X 60”
X 60” X 5
Pre-sediment and
Carbon Block Filter
(CF: WD-G3-N1CF)
X 1
Reverse Osmosis
Membrane Filter
(RO: WD-G3-N2RO)
X 1
Activated Carbon Filter
(CB: WD-G3-N3CB)
X 1
Preinstalled

3
Product Introduction

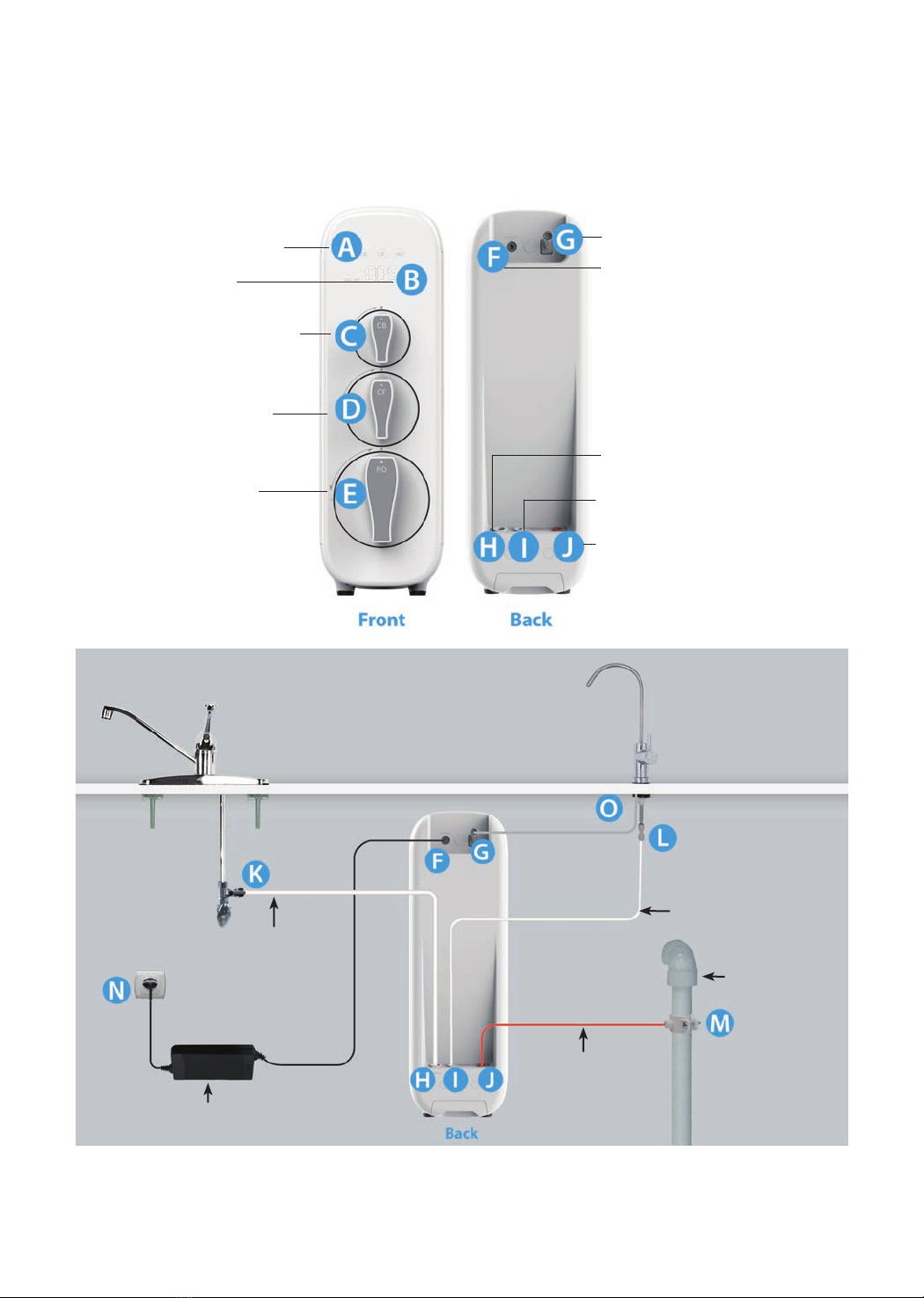

The brief introduction of various parts and sample connection are presented as follows.
Please identify and get familiar with these parts and connection points for a smooth
installation.
K
→
H, From Feed Water Adapter to“INPUT” Water Port
L
→
I, From Faucet Quick-Connect Fitting to“FILTERED”
Water Port
M
→
J, From Drain Saddle to“WASTE” Water Port
O
→
G, From Faucet Power Cord to“FAUCET”Connector
F
→
N, From“POWER”Port to Power Socket
H:“INPUT” Water Port
I:“FILTERED” Water Port
J:“WASTE” Water Port
Filtered Water Tubing
1/4" PE Tube
Input Water Tubing
3/8"PE Tube
Waste Water Tubing
1/4" PE Tube
Drain Pipe
Power Adapter
A: Filter Life Indicators
F: “POWER” Port
G:“FAUCET” Connector
B: Display Screen
C: Activated Carbon Filter
(CB)
D: Pre-sediment and
Carbon Block Filter (CF)
E: Reverse Osmosis
Membrane Filter (RO)
Sample Connection

M
→
J, From Drain Saddle to“WASTE” Water Port
O
→
G, From Faucet Power Cord to“FAUCET”Connector
F
→
N, From“POWER”Port to Power Socket
4
Installation Tips
How to Use the Quick-Connect Fittings
To connect:

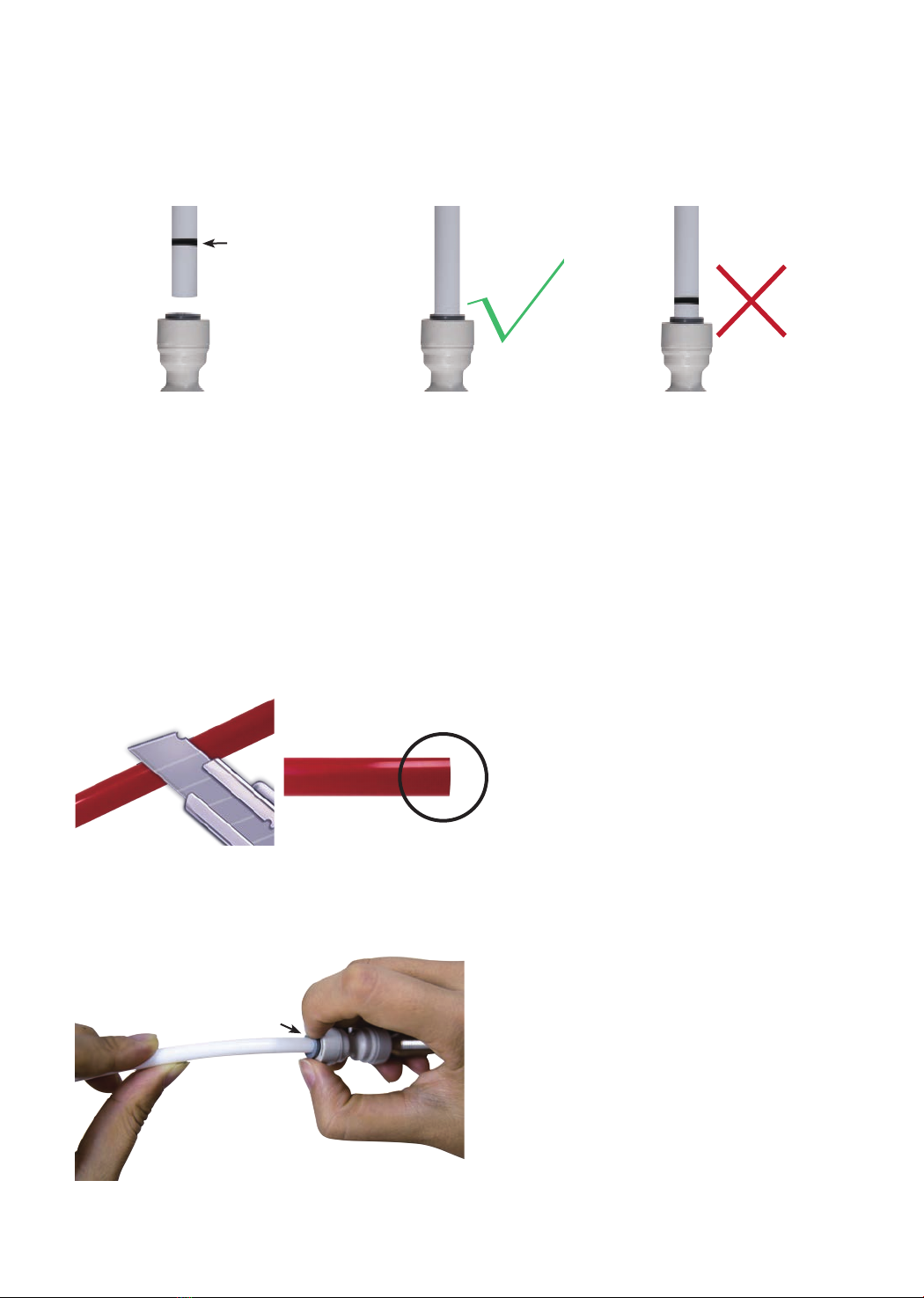

NOTE: There is an existing mark (Figure 1) at the end of the tubing for you to confirm if the
tubing is fully inserted into the fitting.
•Push the tubing into the fitting until you reach the mark on the tubing.
NOTE: If the tubing is not fully inserted, no seal will be created and leakage will occur.
•When the tubing is fully inserted, put the blue lock clip on the fitting. It will lock the
tubing in place and prevent it from falling off.
To disconnect:
•Remove the blue lock clip from the
fitting;
•Use your thumb and index finger to
press down the lock sleeve. Use your
other hand to pull out the tube from
the fitting (Figure 3).
NOTE: Please do not pull out the tubing
directly. This will damage the fitting and
cause leakage.
Figure 1
Figure 2
Figure 3
NOTE: If the tubing is too long, cut
it to a suitable length with a sharp
utility knife or scissors. Cut the tubing
squarely and cleanly (Figure 2). Make
sure the tubing is fully inserted (about
0.8”).
Mark for
Full Insert
Press
Cut Cleanly
and Squarely

5

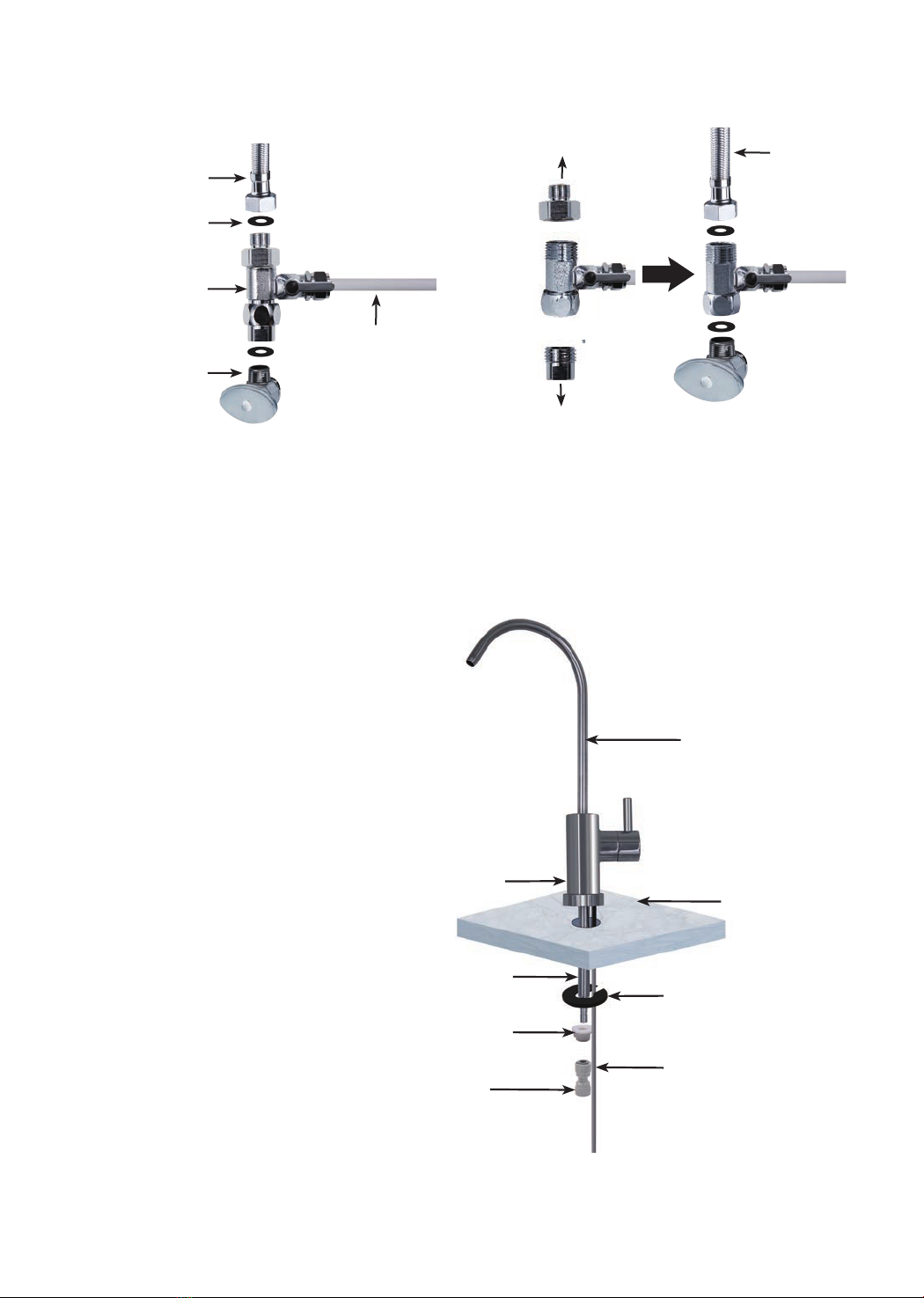

Step 1: Install the Feed Water Adapter (3/8” or 1/2”)
NOTE: The “INPUT” water tubing has been attached to the feed water adapter for easy
installation.
1. Shut off water supply. Turn on the kitchen faucet to release water pressure;
NOTE: Make sure the water has stopped before proceeding to the next step. Get a towel
or bucket to catch any water drips.
2. Disconnect the cold water pipe from cold water supply valve;
3. Twist the feed water adapter onto cold water supply valve (with its washer) and tighten
it with an adjustable wrench (Figure 4);
NOTE: If the cold water pipe is 1/2”, unscrew the two converters from the feed water
adapter firstly (Figure 5), then go step 3.
4. Twist cold water pipe (with its washer) onto the feed water adapter and tighten with an
adjustable wrench.
Installation Steps
NOTE:
•The RO system must be connected to the COLD water supply ONLY.
•Do not install the system in exposure to direct sunlight or harmful chemicals, nor any
place where it may be damaged.
•Do not install the system near any heat source.
•Do not install the system outdoors.
How to Drill a Hole on Your Sink or Countertop (Optional)
NOTE: Please confirm if there is an existing hole available to install the RO faucet. If not,
please drill a hole in accordance with the following steps.
It’s highly recommended to watch the YouTube video “How to Drill Faucet Holes” for better
understanding of the process. There is also a sticker for your reference to drill the hole.
Remember to wear safety glasses to protect your eyes while drilling the faucet hole.
1. Choose a diamond core bit for granite, and a carbide drill bit for stainless steel. Do not
use a hammer drill on nature stone, glass or ceramic;
2. Glue the sticker on your sink or countertop, and drill a hole referring to the sticker hole
size (1.38”);
3. Make an indent with a center punch on stainless steel sink before drilling to help guide
the bit;
4. Be careful when drilling on a porcelain sink, as it can be easily chipped. Apply downward
pressure firmly on the bit until breaking through the surface;
5. Starting at lowest speed, hold the drill straight with firm pressure to prevent the bit from
walking on the counter;
6. Once breaking through the surface, swirl the drill a little to apply pressure in a circle
evenly.
Prior to installation, it is highly recommended to watch the video “Waterdrop RO Installation”
on YouTube.

6
Step 2: Install the RO Faucet (Non-Air Gap Faucet)
NOTE: If your kitchen sink or
countertop does not have an
existing hole, you will have to
drill one (1.38”). Refer to Page 5.
1. Insert the faucet spout
into the faucet body;
2. Insert the faucet stem
and power cord into the
hole on countertop;
3. Under the sink, put the
mounting washer on
faucet stem, slip on the
nut and tighten it up;
4. Insert the quick-connect
fitting onto the faucet
stem fully and firmly.
Faucet Body
3/8"
Cold Water Pipe
1/2"
Cold Water Pipe
Washer
Unscrew
Unscrew
3/8" INPUT Water
Tubing
Feed Water
Adapter
Cold Water Supply
Valve
Mounting Washer
Nut
Faucet Stem
Countertop
Faucet Spout
Faucet Power Cord
Quick-Connect
Fitting
Figure 4 Figure 5
Figure 6

7
Step 3: Install the Drain Saddle
1. Choose a spot on the drain pipe that is convenient for installing the drain saddle;
NOTE: It’s recommended to install the drain saddle on the vertical drain pipe.
2. Drill 1/4” hole in the drain pipe. Be sure not to penetrate opposite side of the pipe;
3. Slip the front plate on one end of the tubing (without mark), and insert the tubing into
the drilled hole for about 0.6”(Figure 8);
4. Position the back plate on drain pipe by tightening screws and nuts evenly while leaving
the tubing in the hole;
5. Pop the lock clip on the fitting to secure the connection (Figure 9).
NOTE: In some area, the “WASTE” water tubing needs to be connected to drain pipe
through air gap. Consumers need to purchase air gap accessories additionally.
Figure 7 Figure 8 Figure 9
Foam Seal
Front Plate About 0.6"
Back
Plate
Step 4: Position the RO System Housing
Check and ensure there is sufficient space under the countertop to install the system (18.06”
*5.68” *17.76”). Position the front panel facing towards you, which will be convenient for future
filter replacement and indicator checking.
NOTE: It is not recommended to place the housing against the cabinet as there may be
vibration when the system works.
a) The power-supply receptacle for the appliance
shall be installed in a cabinet or on a wall adjacent
to the undercounter space in which the appliance
is to be installed;
b) There shall be an opening through the partition
between the compartments specified in (a) that
is large enough for the attachment plug to pass
through. The longest dimension of the opening
shall not be more than 1-1/2 in (38 mm);
c) The edges of the opening specified in (b) shall,
if the partition is wood, be smooth and rounded,
or, if the partition is metal, be covered with an
edge protector provided for this purpose by the
manufacturer; and
d) Care shall be exercised, when the appliance is
installed or removed, to reduce the likelihood of
damage to the supply cord.
17.76”
18.06”
5.68”
Figure 10

Step 5: Connect Tubing
1. Install the “INPUT” Water Tubing
•Remove the plug from “INPUT” water port;
•Identify the white 3/8”PE tubing which has been attached to the feed water adapter
(Figure 11);
•Insert the other end of the tubing into the “INPUT” water port (Figure 12), and pop the lock
clip on the fitting.
NOTE: Make sure it is fully inserted until you reach the mark on the tubing.
NOTE: Confirm the tubing length you need first, cut the tubing if it’s too long referring to
“How to Use the Quick-Connect Fittings”on page 4.
8
2. Install the “FILTERED” Water Tubing
•Remove the plug from “FILTERED” water port;
•Identify the white 1/4”PE tubing;
•Insert one end of the PE tubing into the quick-connect fitting on RO faucet (Figure 13), and
pop in lock clip on the fitting;
NOTE: Make sure it is fully inserted until you reach the mark on the tubing.
•Insert the other end of the tubing into the“FILTERED”water port (Figure 14), and pop lock
clip on the fitting.
NOTE: Make sure it is fully inserted until you reach the mark on the tubing.
Quick-connect Fitting
on RO Faucet
“FILTERED”
Water Tubing
“INPUT” Water Port
“INPUT” Water
Tubing
Lock Clip
Lock Clip
“FILTERED”Water
Tubing
Feed Water Adapter
“INPUT” Water Tubing
Figure 11
Figure 13
Figure 12
Figure 14
“FILTERED” Water Port

9
Step 7: Install the Filters
Each filter is marked with a logo (CB/CF/RO) and an installation arrow.
1. Remove wrappings and protective cap from the filter;
2. Insert the filter into its corresponding hole (Figure 19), align the arrow with the empty
circle on the housing (Figure 20);
3. Twist the filter with a little force forward in clockwise direction for 90 degrees, until the
arrow is aligned with the solid circle on the housing (Figure 21). You may hear a clicking
sound when the filter is fitted into the place properly;
4. Repeat the above steps to install the other two filters.
“FAUCET” Connector “POWER” Port
Figure 17 Figure 18
Drain
Saddle
“WASTE”
Water Tubing
“WASTE”
Water Port
Lock Clip
“WASTE”Water
Tubing
Figure 15 Figure 16
Step 6: Connect Power Cord
Connect RO faucet with the system: Insert the power cord which is attached to the RO faucet
into the “FAUCET” connector (Figure 17) at the back of the housing, and tighten the nut.
Connect Power Adapter: Insert the DC head of power adapter into the “POWER” port at the
back of the housing (Figure 18).
NOTE: Please do not connect power socket now.
3. Install the “WASTE” Water Tubing
•Remove the plug from “WASTE” water port;
•Identify the red 1/4”PE tubing which has been attached to the drain saddle (Figure 15);
•Insert the other end of the tubing into the “WASTE” water port (Figure 16), and pop the lock
clip on the fitting.
NOTE: Make sure it is fully inserted until you reach the mark on the tubing.

10

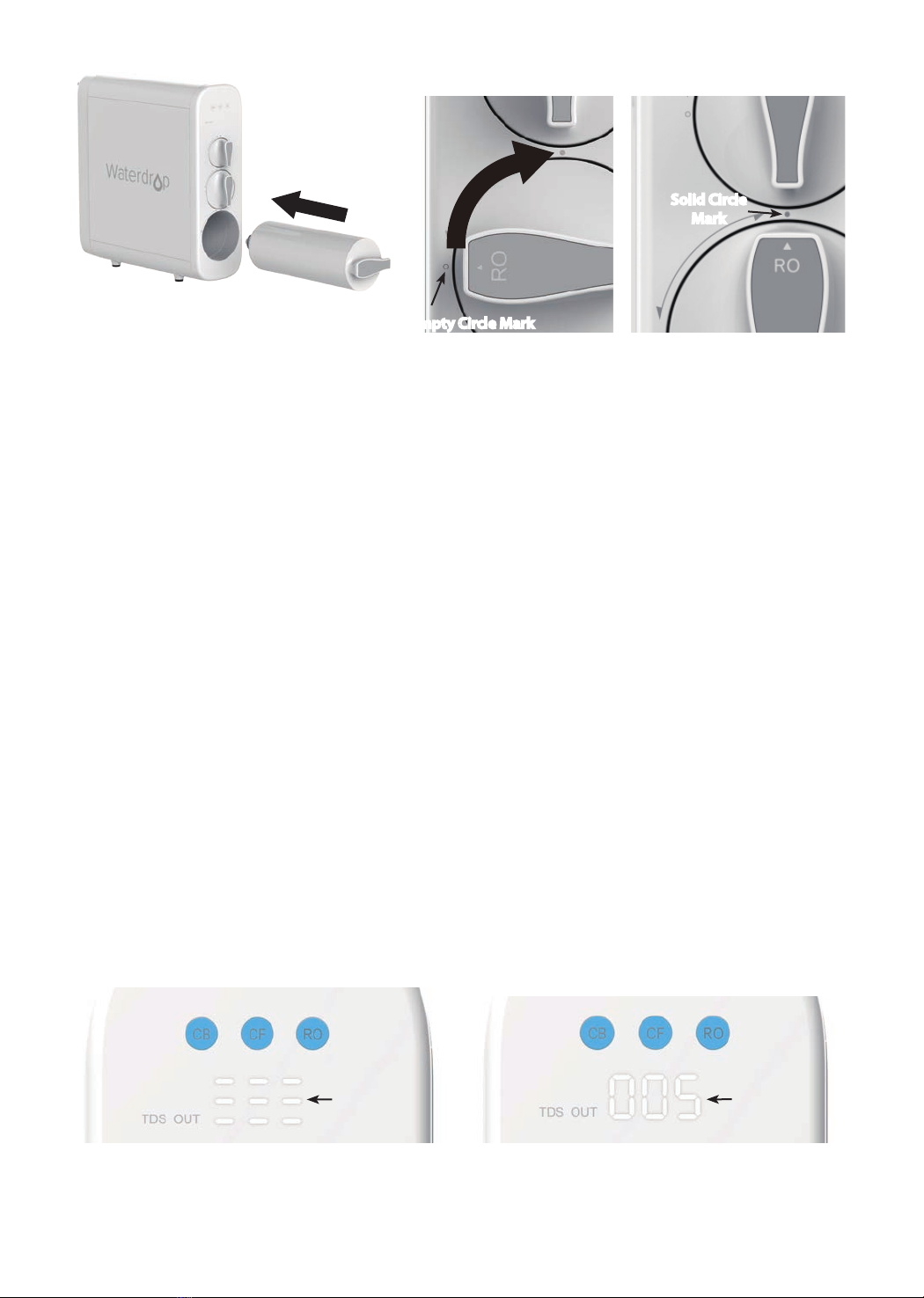

Figure 19 Figure 20 Figure 21
Solid Circle
Mark
Empty Circle Mark
Step 8: Start Up the System
1. Turn on cold water supply valve . Check for leaks;
2. Insert the plug of power adapter into socket;
3. The system starts flushing automatically for 5 minutes;
NOTE: There is one beep sound. Filter life indicators flash blue, yellow and red light in
turn and then turn blue for 5 minutes (Figure 22). Do not turn on RO faucet, allow the
system to flush automatically for 5 minutes. The three indicator lights will be off when
the flush is completed.
NOTE: A slow water flow is normal if the RO faucet is turned on, and water is not
drinkable during the automatic flush.
4. Turn on RO faucet, allow it to run 30 minutes until the front panel screen starts
displaying TDS reading (Figure 23);
NOTE: Be sure to carefully check the tightness of each part of the system while flushing.
Check and ensure all tubings are installed correctly and completely. Make sure there is
no leaking at joints, fittings, valves and tubing connections.
NOTE: The water is not drinkable during the flushing. The 30 minutes are accumulative.
If the flush is stopped in advance, the system will continue to flush when you open RO
faucet again until it reaches 30 minutes.
5. Confirm the flush is completed before turning off the RO faucet and ensure it’s not
leaking.
Figure 22 Figure 23
TDS Reading
Flushing
Status

11
Other Outputs Connection (Optional)
If you want to connect the system to your refrigerator output, you will need to prepare
additionally:
•1/4" quick connect T-fitting,
•1/4" male water supply line adapter,
•1/4" nut cap,
•1/4" PE tubing,
•1/4" compression hex nut,sleeve,insert
•Bypass (Used to replace the water filter in refrigerator for dispensing water. Check and
confirm whether your refrigerator needs a bypass. Any questions, please contact us by
Phone: [phone] Mon-Fri 8:00 AM-5:00 PM (PST) or by Email: service@water-filter.
com.)
NOTE: If you missed the free accessory kit when purchasing RO, claim the free gift by
visiting www.water-filter.com/warranty
Choose specific accessories based on whether the refrigerator is connected to water source
or not.
A: If your refrigerator is connected to water source,
Figure 24
T-fitting
1/4” tubing with
compression fitting
“Input”
water tubing
Tee-fitting
PE tubing Straight-fitting
Refrigerator water tubing
“Output”
water tubing
Installation Steps

B: If your refrigerator is not connected to water source,
Congratulations!
You have successfully installed the system!
Register your product now for
1 YEAR MANUFACTURER WARRANTY*
* Please refer to Limited Product Warranty on Page 19
Visit
www.water-filter.com/warranty
Scan the QR code or Text WDRO to 31996 or
“Input”
water tubing
Tee-fitting
“Output”
water tubing
PE tubing Nut Insert
Sleeve Refrigerator joint

12
OWNER’S MANUAL
Display and Operation
Section 1: TDS Display
The built-in TDS sensor detects the water quality when the system begins to work, and
shows the TDS reading on front panel display screen (Figure 25).
NOTE:
The system will provide above 90% TDS rejection rate when working properly, which may vary
with deviation of 10% depending on source water quality and water usage. The TDS reading
may vary as the water is flowing.
The TDS display will go off after 5 minutes when the system stops making water.
Section 2: Filter Life Reminder
Figure 25
TDS Reading
Pre-sediment and Carbon Block Filter (CF)
Reverse Osmosis Membrane Filter (RO)
Activated Carbon Filter (CB)
Filter Life: 6 months or 550 gallons
Filter Life: 24 months or 2200 gallons
Filter Life: 12 months or 1100 gallons
NOTE: Filter life may vary depending on source water quality and water usage.
Please replace the filter according to the reminder of the filter life indicators.

13
Display Status:
Status Status
Replace Soon
Replace Now
GoodNormal
Pre-warning
Warning
≤15
≤ 0
≤40
≤ 0
>15 >40 Blue
Yellow
Red
N/A
Beeps 2 times when
dispensing water
Keeps beeping when
dispensing water
Indication
Light Buzzer
Remaining
Life (Day) Remaining Capacity (G)
NOTE: The indicators will notify according to usage time or processing capacity of the filters,
whichever comes first.
Display Time:
•All indicators will go off after 5 minutes when the system stops making water.
•Check the filter life status by touching the indicators, and the lights will go off in 30
seconds.
1. Filter Life Indicator on System Housing
There are helpful electronic filter indicators (CF/CB/RO) on the front panel (Figure 26) that
will notify you to perform routine filter replacement by color change. Be sure to reset the
filter life indicator every time you replace your filter.
2. Filter Life Indicator on RO Faucet
Different light colors will be displayed on the RO faucet corresponding to the filter life status
(Figure 27).

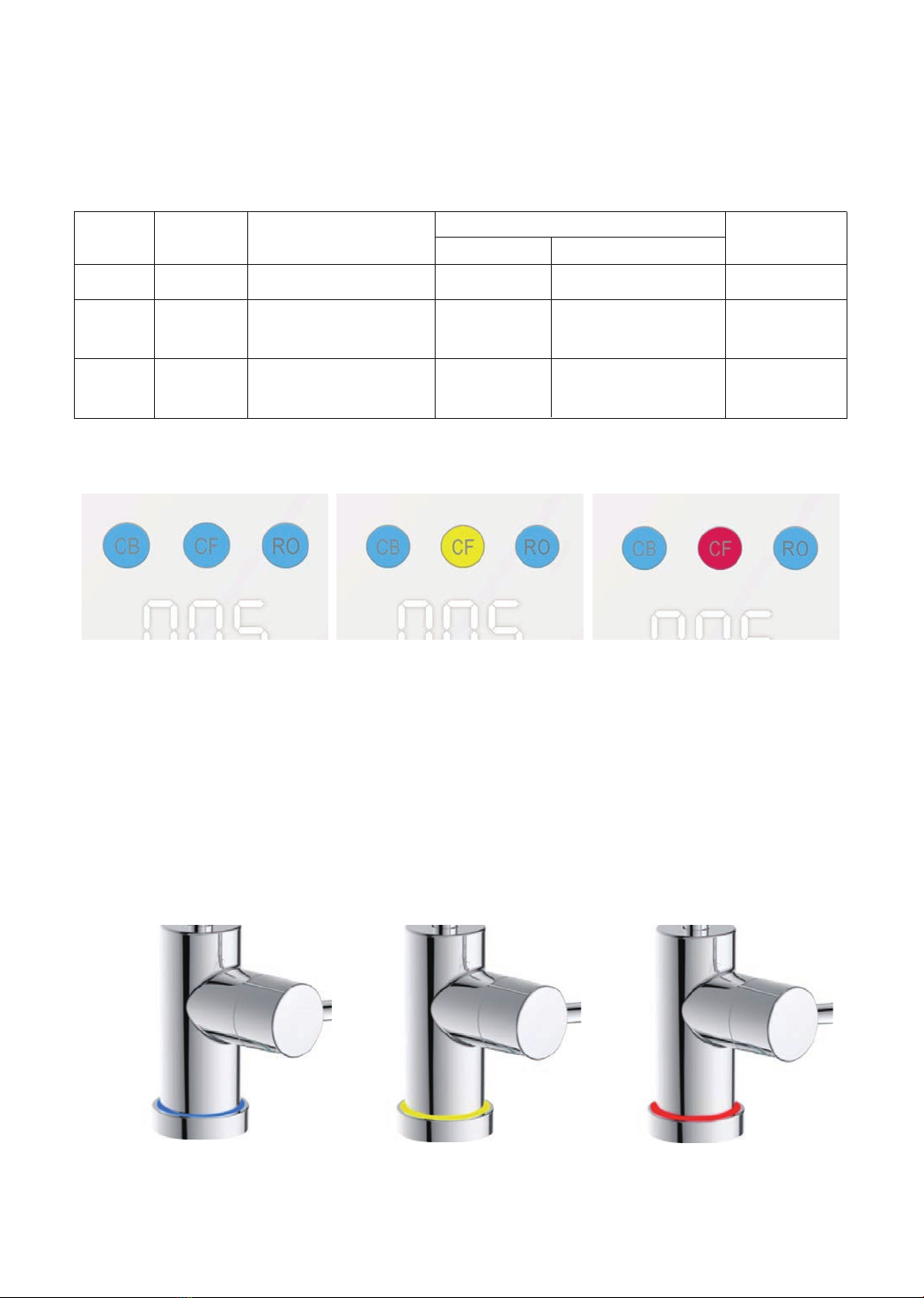

Figure 26
Good Replace Soon Replace Now
Blue Yellow Red
Figure 27

14
NOTE: If lter expires, please purchase and replace lter immediately. Otherwise, the
ltration eciency will decrease signicantly and aect the performance.
Section 3: Filter Replacement Guide
How to Replace Filters:
The filters could be replaced directly without cutting off power and water, and there will be
no water and electric leakage.
1. Twist off the filter that needs to be replaced in counterclockwise direction (Figure 28).
NOTE: After replacing CF and CB filter, it’s recommended to press the center knob (Figure
29) protruding at the top of the old filter to release pressure to avoid water spills. Get a
towel or bucket to catch any water drips;
2. Twist the new filter into the housing in clockwise direction;
3. Reset filter life indicator and flush the filter after replacement (Please refer to the
following steps).
How to Reset Filter Life Indicator (Taking Reset of CB Filter Life Indicator
for Example):
Press and hold the CB filter life indicator for 7 seconds until the system beeps.
NOTE: The filter life reset of CF and RO is the same as the reset of CB.

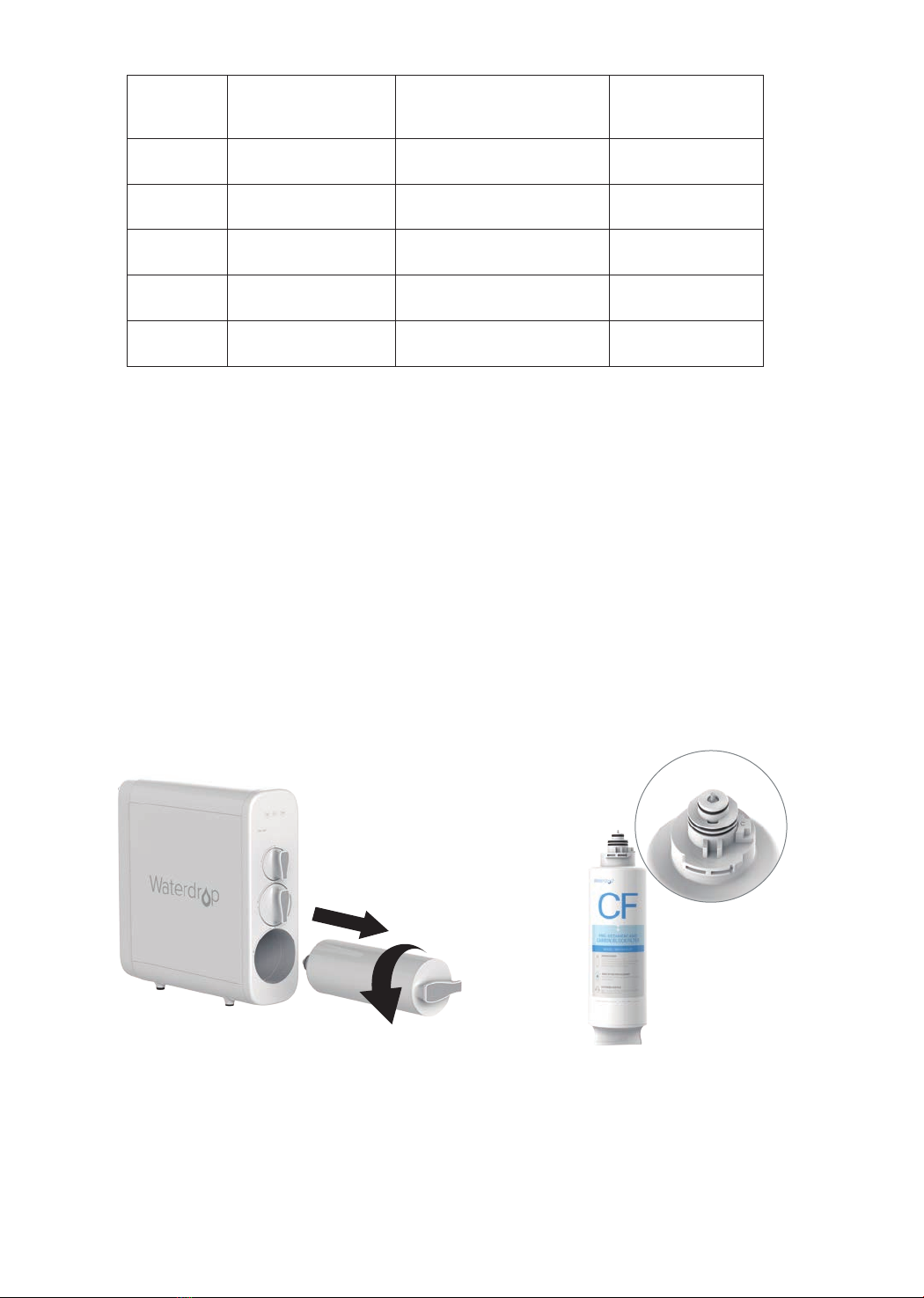

Figure 28 Figure 29
Status
Blue
Blue Flash
Red Flash
Yellow
Red
≤15
≤ 0
/
/
/
/
≤40
≤ 0
>15 >40 Good
Replace Soon
Replace Now
Flushing
Malfunction
Light Remaining Life(Day) Remaining Capacity (G)
