Wavecom W40PC User manual

WAVECOM Decoders v6.15
W40PC, W41PC, W51PC
by WAVECOM Elektronik AG.

PUBLISHED BY
WAVECOM ELEKTRONIK AG
Hammerstrasse 8
CH-8180 Buelach
Switzerland
Phone [phone]
Fax [phone]
Email: [email protected]
Internet: http://www.wavecom.ch
© by WAVECOM Elektronik AG. All rights reserved.
Reproduction in whole or in part in any form is prohibited without written consent of the
copyright owner.
The publication of information in this document does not imply freedom from patent or other
protective rights of WAVECOM ELEKTRONIK AG or others.
All brand names in this document are trademarks or registered trademarks of their owners.
Specifications are subject to change without further notice
Printed: Friday, September 17, 2004, 14:38:02

WAVECOM Decoders v6.15 W40PC, W41PC, W51PC Contents •iii
Contents
Welcome 1
Professional Version..................................................................................................................1
Training .....................................................................................................................................1
Source Code...............................................................................................................................1
Company Profile........................................................................................................................1
Install & Uninstall 3
Setup W40PC ............................................................................................................................3
W40PC Hardware Installation.....................................................................................3
W40PC Software Installation......................................................................................8
W40PC First Time Start, Card Installed....................................................................10
W40PC System and Error Messages.........................................................................11
W40PC Software Uninstallation ...............................................................................12
Setup W41PC ..........................................................................................................................12
W41PC Hardware Installation...................................................................................12
W41PC Software Installation....................................................................................15
W41PC First Time Start, Card Installed....................................................................17
W41PC System and Error Messages.........................................................................18
W41PC Software Uninstallation ...............................................................................19
Setup W41USB........................................................................................................................20
W41USB Hardware Installation................................................................................20
W41USB Software Installation.................................................................................22
W41USB First Time Start .........................................................................................24
W41USB System and Error Messages......................................................................26
W41USB Software Uninstallation.............................................................................26
Setup W51PC ..........................................................................................................................27
W51PC Hardware Installation...................................................................................27
W51PC Software Installation....................................................................................28
W51PC First Time Start, Card Installed....................................................................32
W51PC Command Line Parameters..........................................................................34
W51PC System and Error Messages.........................................................................35
W51PC Software Uninstallation ...............................................................................36
Setup W51LAN.......................................................................................................................36
W51LAN Hardware Setup ........................................................................................36
W51LAN Remote Mode (DCOM required)..............................................................37
W51LAN Remote Desktop Operation (DCOM not required)...................................38
W51LAN with third party software (DCOM required).............................................41
W51LAN Stand alone (DCOM not required)............................................................41
Hyper-Threading......................................................................................................................41
DCOM configuration for firewalls ..........................................................................................41
Restricting the Range of TCP Ports...........................................................................42
Configuring Your Firewall........................................................................................42
General Operating Procedure 43
Using the Decoder ...................................................................................................................43
Program Start...........................................................................................................................43
Setup........................................................................................................................................44
User Interface (MMI) ..............................................................................................................45

iv •Contents WAVECOM Decoders v6.15 W40PC, W41PC, W51PC
Menu Bar.................................................................................................................................45
File Menu ..................................................................................................................45
View Menu................................................................................................................46
Window Menu...........................................................................................................46
Decoding and Analysis Menus..................................................................................46
Decoder and Analysis Full Screen Menu ..................................................................47
Demodulator Menu....................................................................................................49
Options Menu............................................................................................................52
Favorites Menu..........................................................................................................54
Setup..........................................................................................................................56
Help...........................................................................................................................60
Button Bars..............................................................................................................................60
Toolbar......................................................................................................................61
WxxPC Toolbar.........................................................................................................61
Level Indicator ..........................................................................................................61
Spectrum Indicator ....................................................................................................61
Status Bars...............................................................................................................................62
Decoder Status Bar....................................................................................................62
Demodulator Status Bar ............................................................................................62
Double Clicking on Status Bar Fields .......................................................................62
Tuning Radio Data Signals......................................................................................................62
Tuning a FSK (F1B) Signal.......................................................................................62
Tuning a Twinplex (F7B) Signal...............................................................................62
Tuning a CW-Morse Signal.......................................................................................63
Tuning a WEATHER-FAX Signal............................................................................63
Tuning a MFSK Signal..............................................................................................63
Tuning an ERMES Signal.........................................................................................64
Operating Modes .....................................................................................................................64
Main Menu ..............................................................................................................................65
Main Menu Screen Display.......................................................................................65
Organization of Modes ............................................................................................................65
Analysis Modes on the HF Menu..............................................................................66
Standard Modes on the HF Menu..............................................................................66
Duplex Modes on the HF Menu................................................................................67
Simplex Modes on the HF Menu...............................................................................67
FEC Modes on the HF Menu.....................................................................................68
MFSK Modes on HF Menu.......................................................................................68
FAX Modes on the HF Menu....................................................................................68
SELCAL HF Modes on the HF Menu.......................................................................69
Analysis Modes on the VHF/UHF Menu..................................................................69
Selcal Analog Modes on the VHF/UHF Menu..........................................................70
Selcal Digital Modes on the VHF/UHF Menu ..........................................................70
Advanced Topics 71
General.....................................................................................................................................71
Analysis Menu.........................................................................................................................71
REAL-TIME FFT....................................................................................................................71
Adjustment of the translation frequency....................................................................73
HF REAL-TIME FFT................................................................................................74
VHF REAL-TIME FFT INDIRECT (W51PC, W40PC) ..........................................74
VHF REAL-TIME FFT DIRECT (W51PC, W40PC)...............................................74
FFT & SONAGRAM ..............................................................................................................74
HF FFT & SONAGRAM..........................................................................................75
VHF FFT & SONAGRAM INDIRECT (W51PC, W40PC).....................................75
VHF FFT & SONAGRAM DIRECT (W51PC, W40PC).........................................75
REAL-TIME WATERFALL...................................................................................................75
HF REAL-TIME WATERFALL ..............................................................................76
VHF REAL-TIME WATERFALL INDIRECT (W51PC, W40PC).........................77
VHF REAL-TIME WATERFALL DIRECT (W51PC, W40PC) .............................77

WAVECOM Decoders v6.15 W40PC, W41PC, W51PC Contents •v
REAL-TIME SONAGRAM....................................................................................................77
HF REAL-TIME SONAGRAM (W51PC, W40PC).................................................78
VHF REAL-TIME SONAGRAM INDIRECT (W51PC, W40PC)...........................78
VHF REAL-TIME SONAGRAM DIRECT (W51PC, W40PC)...............................78
REAL-TIME OSCILLOSCOPE..............................................................................................78
FSK ANALYSIS.....................................................................................................................79
FSK ANALYSIS Example........................................................................................80
Baudrate and Spectrum Window...............................................................................80
Waterfall Window.....................................................................................................81
FSK Analysis Options...............................................................................................81
Display of Single FSK Analysis................................................................................81
HF FSK ANALYSIS.................................................................................................82
VHF FSK ANALYSIS INDIRECT (W51PC, W40PC)............................................82
VHF FSK ANALYSIS DIRECT (W51PC, W40PC)................................................83
CODE CHECK........................................................................................................................84
HF FSK CODE CHECK...........................................................................................84
VHF FSK CODE CHECK INDIRECT (W51PC, W40PC)......................................86
VHF FSK CODE CHECK DIRECT (W51PC, W40PC) ..........................................87
PSK SYMBOL RATE and PSK PHASE PLANE...................................................................88
MFSK ANALYSIS..................................................................................................................92
AUTOCORRELATION..........................................................................................................93
BIT CORRELATION..............................................................................................................95
BIT LENGTH ANALYSIS.....................................................................................................96
SELCAL ANALYSIS .............................................................................................................98
Bit Inversion Mask ................................................................................................................100
Code Statistic.........................................................................................................................100
Transmission Modes 102
Fundamentals of Telegraph Transmissions............................................................................102
Bits, Codewords and Codes.....................................................................................102
Synchronization.......................................................................................................103
Telegraph Speed, Bitrate and Baudrate...................................................................103
Shift, Mark and Space .............................................................................................103
One-Way Traffic, Simplex and Duplex...................................................................104
Increasing the Data Throughput..............................................................................104
Encryption...............................................................................................................104
Data Protection........................................................................................................105
Duplex Modes .........................................................................................................105
Simplex Modes........................................................................................................106
FEC Modes..............................................................................................................107
MFSK Modes..........................................................................................................108
VHF-UHF Modes....................................................................................................109
FAX Modes.............................................................................................................110
Carrier Modulation..................................................................................................111
Baudrates, Speeds and Carrier Modulation.............................................................112
ACARS..................................................................................................................................114
ALF-RDS (W51PC, W40PC)................................................................................................116
ALIS ......................................................................................................................................117
ALIS-2...................................................................................................................................117
AMSAT-P3D.........................................................................................................................118
AUM-13.................................................................................................................................119
ARQ-E...................................................................................................................................120
ARQ-E3.................................................................................................................................120
ARQ-N...................................................................................................................................121
ARQ-M2-342 and ARQ-M2-242 ..........................................................................................121
ARQ-M4-342 and ARQ-M4-242 ..........................................................................................122
ARQ6-90 and ARQ6-98........................................................................................................123
ASCII.....................................................................................................................................123
ATIS ......................................................................................................................................124

vi •Contents WAVECOM Decoders v6.15 W40PC, W41PC, W51PC
AUTOSPEC...........................................................................................................................125
BAUDOT...............................................................................................................................125
BULG-ASCII.........................................................................................................................126
CCIR......................................................................................................................................126
CCITT....................................................................................................................................127
CIS-11....................................................................................................................................128
CIS-14....................................................................................................................................129
CIS-36....................................................................................................................................129
CIS-36-50 ..............................................................................................................................130
CIS-50-50 ..............................................................................................................................130
CODAN.................................................................................................................................131
COQUELET-8.......................................................................................................................131
COQUELET-13.....................................................................................................................132
COQUELET-80.....................................................................................................................132
CTCSS...................................................................................................................................133
CW-MORSE..........................................................................................................................134
DCS SELCAL (W51PC, W40PC).........................................................................................135
DGPS.....................................................................................................................................136
DTMF....................................................................................................................................137
DUP-ARQ .............................................................................................................................138
DUP-ARQ-2..........................................................................................................................139
DUP-FEC-2...........................................................................................................................139
EEA .......................................................................................................................................140
EIA ........................................................................................................................................141
ERMES..................................................................................................................................141
EURO ....................................................................................................................................144
FEC-A....................................................................................................................................145
FELDHELL...........................................................................................................................146
FLEX.....................................................................................................................................146
FM-HELL..............................................................................................................................147
FMS-BOS..............................................................................................................................147
GMDSS/DSC-HF..................................................................................................................149
GMDSS/DSC-VHF ...............................................................................................................150
GOLAY.................................................................................................................................150
G-TOR...................................................................................................................................151
HC-ARQ................................................................................................................................152
HF-ACARS (W51PC, W40PC).............................................................................................153
HNG-FEC..............................................................................................................................154
ICAO SELCAL .....................................................................................................................155
METEOSAT..........................................................................................................................156
MFSK-8 and MFSK-16.........................................................................................................157
MFSK-20...............................................................................................................................158
MIL-188-110A (W51PC)......................................................................................................159
MIL-188-141A ......................................................................................................................161
MPT-1327..............................................................................................................................162
NATEL..................................................................................................................................164
NMT-450...............................................................................................................................165
NOAA-GEOSAT...................................................................................................................166
PACKET-300 ........................................................................................................................166
PACKET-1200 ......................................................................................................................167
PACKET-9600 ......................................................................................................................168
PACTOR ...............................................................................................................................169
PACTOR-II ...........................................................................................................................169
Tuning a PACTOR-II Signal with W41PC.............................................................170
Tuning a PACTOR-II Signal with W51PC or W40PC ...........................................171
PICCOLO-MK6 and PICCOLO-MK12................................................................................172
POCSAG ...............................................................................................................................174
POL-ARQ..............................................................................................................................175
PRESS-FAX..........................................................................................................................176
PSK-31...................................................................................................................................176

WAVECOM Decoders v6.15 W40PC, W41PC, W51PC Contents •vii
Tuning a PSK-31 Signal with W41PC....................................................................177
Tuning a PSK-31 Signal with W51PC or W40PC ..................................................178
Polarity of PSK-31 ..................................................................................................179
PSK-63F and PSK-125F........................................................................................................179
Tuning a PSK-63F and PSK-125F Signal with W41PC..........................................180
Tuning a PSK-63F and PSK-125F Signal with W51PC or W40PC........................181
RUM-FEC .............................................................................................................................182
SI-ARQ..................................................................................................................................183
SI-FEC...................................................................................................................................183
SI-AUTO...............................................................................................................................184
SITOR-ARQ..........................................................................................................................184
SITOR-FEC...........................................................................................................................185
SITOR-AUTO .......................................................................................................................185
SPREAD-11, SPREAD-21 and SPREAD-51........................................................................185
SSTV .....................................................................................................................................186
STANAG 4285 (single-tone, W51PC)..................................................................................188
STANAG 4529......................................................................................................................191
SWED-ARQ..........................................................................................................................193
TWINPLEX...........................................................................................................................194
VDEW...................................................................................................................................195
WEATHER-FAX ..................................................................................................................196
ZVEI-1...................................................................................................................................197
ZVEI-2...................................................................................................................................198
ZVEI-VDEW.........................................................................................................................199
Technical Data 200
Interfaces ...............................................................................................................................200
W40PC....................................................................................................................200
W41PC and W41USB.............................................................................................201
W51PC....................................................................................................................202
System Components ..............................................................................................................202
W40PC....................................................................................................................202
W41PC and W41USB.............................................................................................203
W51PC....................................................................................................................203
Demodulators.........................................................................................................................204
Software.................................................................................................................................204
Analysis Software..................................................................................................................205
Alphabets...............................................................................................................................208
Unicode ...................................................................................................................208
Teleprinter Alphabets..............................................................................................209
WAVECOMServer 215
General...................................................................................................................................215
WAVECOM Server Control..................................................................................................215
Setting Up the Card Names.....................................................................................216
W51PC DCOM ServerControl..............................................................................................217
AlarmMonitor 218
Introduction ...........................................................................................................................218
Setup......................................................................................................................................219
Setup – Decoder Card..............................................................................................219
Setup – Font size .....................................................................................................220
Options...................................................................................................................................221
Settings ..................................................................................................................................222
Settings – Folder......................................................................................................222
Settings – Alarm......................................................................................................223
Settings-SMS...........................................................................................................224
Run ........................................................................................................................................225

viii •Contents WAVECOM Decoders v6.15 W40PC, W41PC, W51PC
SerialLink 226
Introduction ...........................................................................................................................226
Getting Started.......................................................................................................................226
Status Information .................................................................................................................229
Appendix 231
Question & Answer ...............................................................................................................231
Signal Interference.................................................................................................................235
General....................................................................................................................235
Antenna installation.................................................................................................235
Receiver...................................................................................................................235
HF Cabling..............................................................................................................235
Grounding................................................................................................................235
Location of decoder.................................................................................................235
Video Monitor.........................................................................................................235
LAN.........................................................................................................................236
Conditions of Sale..................................................................................................................237
Warranty..................................................................................................................237
Obligation................................................................................................................237
Copyright.................................................................................................................237
Liability...................................................................................................................237
Terms of Delivery and Price Information................................................................237
Laws and Regulations..............................................................................................237
Addresses and Dealer ............................................................................................................239
Manufacturer and International Distribution...........................................................239
WAVECOM Dealer ................................................................................................239
Literature ...............................................................................................................................239
Registration Form..................................................................................................................241
Manual History 242
2004, Jan................................................................................................................................242
W51PC 6.0 ..............................................................................................................242
2004, March...........................................................................................................................242
W51PC 6.1 ..............................................................................................................242
W41PC 5.6 ..............................................................................................................243
Missing....................................................................................................................243
2004, Sept..............................................................................................................................243
W51PC....................................................................................................................243
W40PC....................................................................................................................244
Glossary of Terms 245
Index 253

WAVECOM Decoders v6.15 W40PC, W41PC, W51PC Welcome •1
Welcome
Congratulation on your purchase of a WAVECOM decoder. The product that was shipped to
you incorporates the latest technology in data decoding with the latest software release
available at the time of shipment. As with other software-based products, there are changes in
the future.
Please check our webpage: www.wavecom.ch to see if a new software version is available.
Always check the newest documentation on the CD or on our homepage.
We thank you for choosing a WAVECOM decoder and look forward to work for you in the
future.
This chapter introduces you to what WAVECOM is and what it does and what you might use it
for.
Professional Version
Please register your software if you are a professional user (governmental bodies), otherwise
we can not send you the professional version of the software and inform you about updates.
We maintain a mailing list of our professional customers. Registration is possible with the
form at the end of the manual.
Training
Please note, that when required WAVECOM is in the position to support you with training.
Training can be ordered on customer location or in Switzerland.
Source Code
Source code is available for professional users (governmental bodies). Please ask for an offer
from WAVECOM if you plan to add your own modes.
Company Profile
WAVECOM ELEKTRONIK GmbH was founded in 1985 in Hohentengen, Germany, close to
the Swiss border. In 1991 the company moved to Switzerland and established WAVECOM
ELEKTRONIK AG as the new headquarters. Now located in Buelach, it is in the close vicinity
of Zürich airport.

2 •Welcome WAVECOM Decoders v6.15 W40PC, W41PC, W51PC
The company has focused on decoding and analysis systems for wireless data transmissions.
The wide product range spans from professional, high performance systems to units for private
and amateur radio use.
Very high quality standards combined with high system performance are appreciated by all
customers worldwide. The global network of authorized sales partners ensures local assistance
in the country or region and basic level support can be given in many cases. More than 95% of
all units sold are exported. The majority of the customers are governments, authorities, military
and the telecommunication industry.
About 40% of the turnover is invested in research and development. The employees at
WAVECOM ELEKTRONIK AG are mainly engineers with a lot of experience in DSP
technology, computer and RF hardware development, software engineering and radio data
transmission. Access to external know-how and human resources enlarges the capabilities for
realizing projects. Manufacturing is outsourced to specialized companies within Switzerland
which can handle today's needs for processing surface mount components and fine-pitch
structures.
WAVECOM ELEKTRONIK AG does not have any juridical or financial links or connections
to other companies or official bodies and is completely owned by its general manager,
Christian Kesselring.

WAVECOM Decoders v6.15 W40PC, W41PC, W51PC Install & Uninstall •3
Install & Uninstall
Setup W40PC
The powerful W40PC hardware utilizes two Digital Signal Processors (DSP). Three signal
inputs are available: AF, HF and DIS (Discriminator). With a stable digital synthesizer (DDS)
and a mixer all input signals are translated to base band. The DSP’s demodulate the incoming
signal and automatically synchronize to a valid bit stream. After decoding by a WINDOWS-
DLL, the data is displayed on the user interface.
W40PC Hardware Installation
W40PC I/O Address Settings PC
Note:
The W40PC hardware only requires an address range in the I/O address space of the PC. No
DMA (Direct Memory Access) or IRQ (Interrupt) channels are required.
As one PC at the maximum accommodates one W40PC card, automatic installation (Plug-and-
Play, PnP) is presently not available. PnP will only work with systems equipped with a PCI
bus, and in case of ISA bus systems PnP may cause conflicts. An ISA-bus is available in all
PCs and hence is preferred.
The factory default W40PC address is set to 310 hexadecimal. Already allocated addresses are
known to WINDOWS. To find out the availability of an address is very easy. Use the
following commands:
Procedure for WINDOWS 95/98/ME:
•Right click on the "My Computer" icon on the desktop.
•Select the "Properties" Menu Item to open the "System
Properties" dialog.
•Select the "Device Manager" tab.
•In the displayed icon list, please double-click on first entry
"Computer" and select the "Input/output (I/O)" radio button.

4 •Install & Uninstall WAVECOM Decoders v6.15 W40PC, W41PC, W51PC
The allocated I/O addresses are displayed in a list.
In this example, the I/O address 0310 is free for use with the W40PC
Procedure for WINDOWS NT 4.0:
•Press "Start" button.
•Select "Programs" menu item.
•Select "Administrative Tools (Common)" menu item.
•Select "WINDOWS NT Diagnostics" menu item to start the NT
Diagnostics application.
•Select the "Resources" tab to display the assigned computer
resources.
•Select the "I/O Port" button to display the allocated I/O resources.
Note:
If the W40PC application is running, the I/O space assigned to the W40PC would also be
displayed in the list.

WAVECOM Decoders v6.15 W40PC, W41PC, W51PC Install & Uninstall •5
The default I/O address of 0310 is not occupied, and is free to use for the W40PC installation.
Procedure for WINDOWS 2000:
•Right click on the "My Computer" icon on the desktop.
•Select the "Properties" Menu Item to open the "System
Properties" dialog.
•Select "Hardware" and then "Device Manager".
•In the "View" menu, click on "Resources by type".
•Open "Input/output (IO)".
The allocated I/O addresses are displayed in a list.

6 •Install & Uninstall WAVECOM Decoders v6.15 W40PC, W41PC, W51PC
W40PC I/O Address Selection Card
The selection of the W40PC I/O address is controlled by two jumpers on the card, JP1 and JP2.
The factory default setting is 0310 hexadecimal with JP1 installed. Next to the jumpers a table
with valid address values is printed.
W40PC I/O Address Settings Card
1 : Jumper installed
0 : Jumper not installed

WAVECOM Decoders v6.15 W40PC, W41PC, W51PC Install & Uninstall •7
W40PC Card Installation
Before unpacking the W40PC card or installing it in your PC be sure you are grounded to
avoid damaging static-sensitive components on the card or in the computer. You can reduce
static electricity on your person by touching the metal chassis of your computer.
Power off your computer and unplug it from its power source and disconnect all peripherals.
Then carefully remove the cover of the computer, and locate a free 16 bit ISA slot. Carefully
insert the card into the connector and check that it is fully inserted. Replace the computer
cover, and power on the machine. It should boot normally.

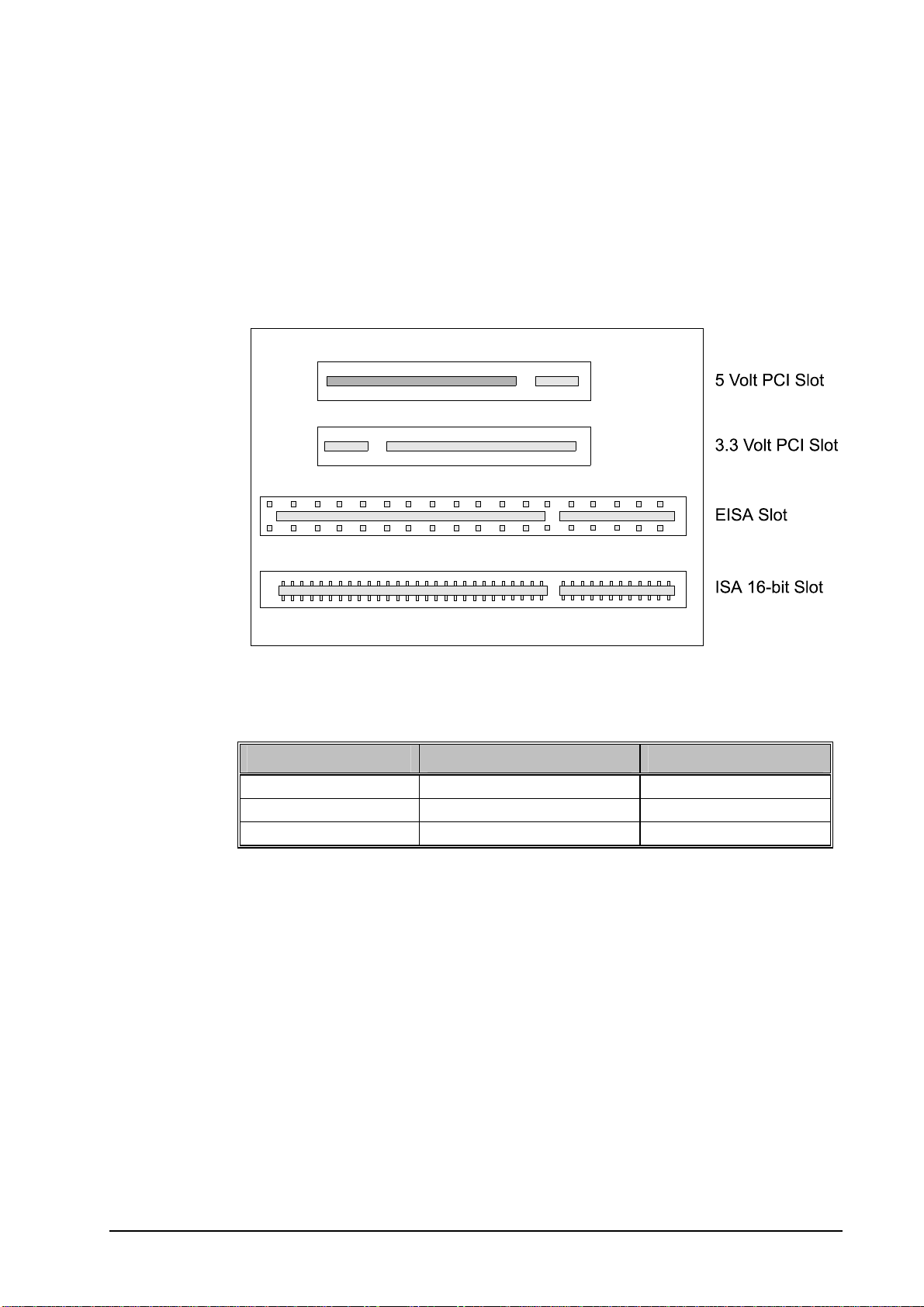

W40PC PCI, EISA and ISA Adapters
W40PC Connecting to a W40PC Card
The W40PC card has three BNC signal inputs available:
Input Frequency Range Input Voltage Range
AF-IN 600 Hz - 16.0 kHz 5 mVrms - 2,5 Vrms
HF-IN 14 kHz - 1.5 MHz 1 mVrms - 0,5 Vrms
DIS-IN 0 Hz - 20.0 kHz 70 mVrms - 7,0 Vrms
One or more of these inputs must be connected to the signal source(s) by cinch / coaxial cable
or a similar shielded cable. As an example a HF receiver may be connected to the AF IN con-
nector and a VHF-UHF scanner to the HF IN connector.
To avoid distortion of the input signal, the input voltage ranges should be observed.
Below is an example of how to connect a W40PC card:

8 •Install & Uninstall WAVECOM Decoders v6.15 W40PC, W41PC, W51PC
W40PC PC Power Supply Ratings
A W40PC card consumes approx.
•60 mA from the +12V rail,
•60 mA from the –12V rail and
•600 mA from the +5V rail.
A typical PC power supply may as an example be rated at 150W, +5V/18.0A, +12V/3.0 A and
-12V/0.5 A.
W40PC Software Installation
The W40PC and other software is contained on a CD-ROM. The installation is very easy and
complies with standard WINDOWS installation procedures.
Place the CD in the CD-ROM drive. Usually the installation program should start automati-
cally.
Otherwise it can be started with the "WINDOWS Explorer" by double-clicking "Installa-
tion.exe". Now the welcome dialog of the installation program is shown:

WAVECOM Decoders v6.15 W40PC, W41PC, W51PC Install & Uninstall •9
If the operating system of the PC is WINDOWS 95, DCOM-95 must be installed
before the decoder software. With WINDOWS 98/ME/NT/2000/XP as operating
system, the installation of DCOM is not necessary, because DCOM is a part of
the operating system.
Clicking on "Next" continues the installation. The W40PC default software directory is
"\Program Files\WAVECOM\W40PC", but if required the directory may be changed.
After a new click on "Next" the dialog box asks for a folder name for the start menu. The de-
fault is called "WAVECOM\W40PC".
A click on the "Next" button shows a status of all the given inputs. The next action will start
the copying of the files.
When the installation is completed, the W40PC program may be started even without the
hardware being installed. Click on "W40PC" to make a test start. A start of a transmission
mode is not possible without W40PC hardware, however.

10 •Install & Uninstall WAVECOM Decoders v6.15 W40PC, W41PC, W51PC
Note:
It is only possible to run and install one W40PC-card in the same PC at the same time.
W40PC First Time Start, Card Installed
If the I/O address is missing after program start the following message is displayed:
First time the W40PC software is started with the W40PC card installed, the software must be
informed of the address configuration of the W40PC card. Clicking on "Setup" and then on
"W40PC Card" will display the dialog box shown below. The entry is stored in a
WINDOWS Ini file and no further entry is necessary. The settings may be changed at any
time.
W40 Starting a Mode
After the W40PC software has been started, all software for the two W40PC on-board proces-
sors is downloaded. The download duration is approximately 8 seconds and the progress of the
operation is displayed as "Init...".

WAVECOM Decoders v6.15 W40PC, W41PC, W51PC Install & Uninstall •11
Installation is now completed and the W40PC is ready for use. From the "HF-MODES" or
"VHF/UHF-MODES" menus a mode may be selected.
W40PC System and Error Messages
If the I/O address is missing after program start, the following message is displayed:
If the software does not detect any W40PC card the message shown below is displayed. This
indicates that the installation procedure has not been correct.
•The address set on the PC card is not the same as the address en-
tered in "Setup".
•The address is used by another application. Earlier in this section of
the manual the procedure to find a free address is described.
Other Error Messages
Message Cause and remedy
"W40PC card communication error. Please check
installation and try again." Hardware or software error on the W40PC card. Reboot the PC and restart the W40PC software.
"W40PC card loader error. Please check
installation and try again."
The loader program or one of the "*.LOD" files
are missing. Reinstall the W40PC software.
"W40PC timeout error"
Hardware or software error on the W40PC card.
Restart the W40PC software or contact your
W40PC vendor.
"W40PC device driver error. Please check
installation and try again." Device driver is missing in WINDOWS NT or 2000. Please reinstall the W40PC software.
"W40PC device driver conflict. Please check
installation and try again." Wrong device driver version in WINDOWS NT or 2000. Please re-install the W40PC software.
"W40PC internal error. Contact your supplier for
more information. " Software error. Write down the error code and contact your vendor.

12 •Install & Uninstall WAVECOM Decoders v6.15 W40PC, W41PC, W51PC
W40PC Software Uninstallation
In certain situations, e.g. a software update, it is necessary to uninstall the W40PC software.
With the following commands it is very easy to do:
•Click on "START", go to the "SETTINGS" menu and open
"CONTROL PANEL"
•Select the icon "ADD/REMOVE PROGRAMS"
•Select "INSTALL/UNINSTALL"
•Choose "W40PC" from the displayed list
•Click on "ADD/REMOVE"
Now the software has been removed from the PC. It is possible, that the W40PC icons have to
be manually removed.
Setup W41PC
The powerful W41PC hardware utilizes two Digital Signal Processors (DSP) and one 16/32 bit
processor. Three signal inputs are available: AF, HF and IF (10.7 MHz or 21.4 MHz for
W41PC-MKII). An extremely stable digital synthesizer (DDS) translates all input signals to
base band. The DSP’s demodulate the incoming data while the 16/32 bit CPU do the stand-
alone decoding
W41PC Hardware Installation
W41PC I/O Address Settings PC
Note:
W41PC hardware only requires an address range in the I/O address space of the PC. No DMA
(Direct Memory Access) or IRQ (Interrupt) channels are required.
As one PC at the maximum accommodates eight W41PC cards, automatic installation (Plug-
and-Play, PnP) is presently not available. PnP will only work with systems equipped with a
PCI bus, and in case of ISA bus systems PnP may cause conflicts.
The factory default W41PC address is set to 310 hexadecimal. Already allocated addresses are
known to WINDOWS. To find out the availability of an address is very easy. Use the
following commands:
WINDOWS 95/98/Me WINDOWS NT WINDOWS 2000/XP
1. Start 1. Start 1. Start
2. Settings 2. Programs 2. Programs
3. Control Panel 3. Administrative Tools 3. Accessories
4. System 4. WINDOWS NT Diagnostics 4. System Tools
5. Device Manager 5. Resources 5. System Information
6. Computer 6. I/O Port 6. Hardware Resources
7. Input/Output (I/O) 7. I/O
If in the example shown below, the addresses 310 - 317 hexadecimal are not occupied, and is
free to use for the W41PC installation. If occupied, then another address must be selected (See
I/O Address Selection Card).
