WaveSplitter WST-PEX010 User manual

Copyright ©2020 Wavesplitter AV Technology |Wavesplitter .com
TEL：[phone] MAIL：[e-mail]
V2
OPERATION MANUAL
Model No. WST-PEX010
HDMI 1080P CAT5e/6 Extender-Transmitter, 120m
Model No. WST-PEX011
HDMI 1080P CAT5e/6 Extender-Receiver, 120m
Safety Instruction

Copyright ©2020 Wavesplitter AV Technology |Wavesplitter .com
TEL：[phone] MAIL：[e-mail]
V2
OPERATION MANUAL
Introduction
WST-PEX010 and WST-PEX011 are 1080P HDMI chainable extender that uses an Ethernet cable to transmit an HDMI signal up to 120m.
Transmitter (WST-PEX010) can connect with many Receiver (WST-PEX011) to split into 250 HDMI signals simultaneously. With one input
and multiple outputs, the total chainable distance can reach up to 2.5km. This product is very useful for large spaces like gyms, stations, and
airports that require extender and splitter functions of multiple HDMI signals.
Key Features
⚫Supports resolutions up to 1920x1080@60Hz 4:4:4
⚫One Transmitter(WST-PEX010) can cascade by adding more Receivers (WST-PEX011)
⚫Max chainable and split up to 250 HDMI displays
⚫Signal extension up to 120m over Cat.6; max distance up to 2.5km
⚫Support TCP/IP protocol
⚫HDCP compliant
Package Contents
Transmitter x 1 | Receiver x 1 | 12V / 1A Multi-Country Power Adapter x 2

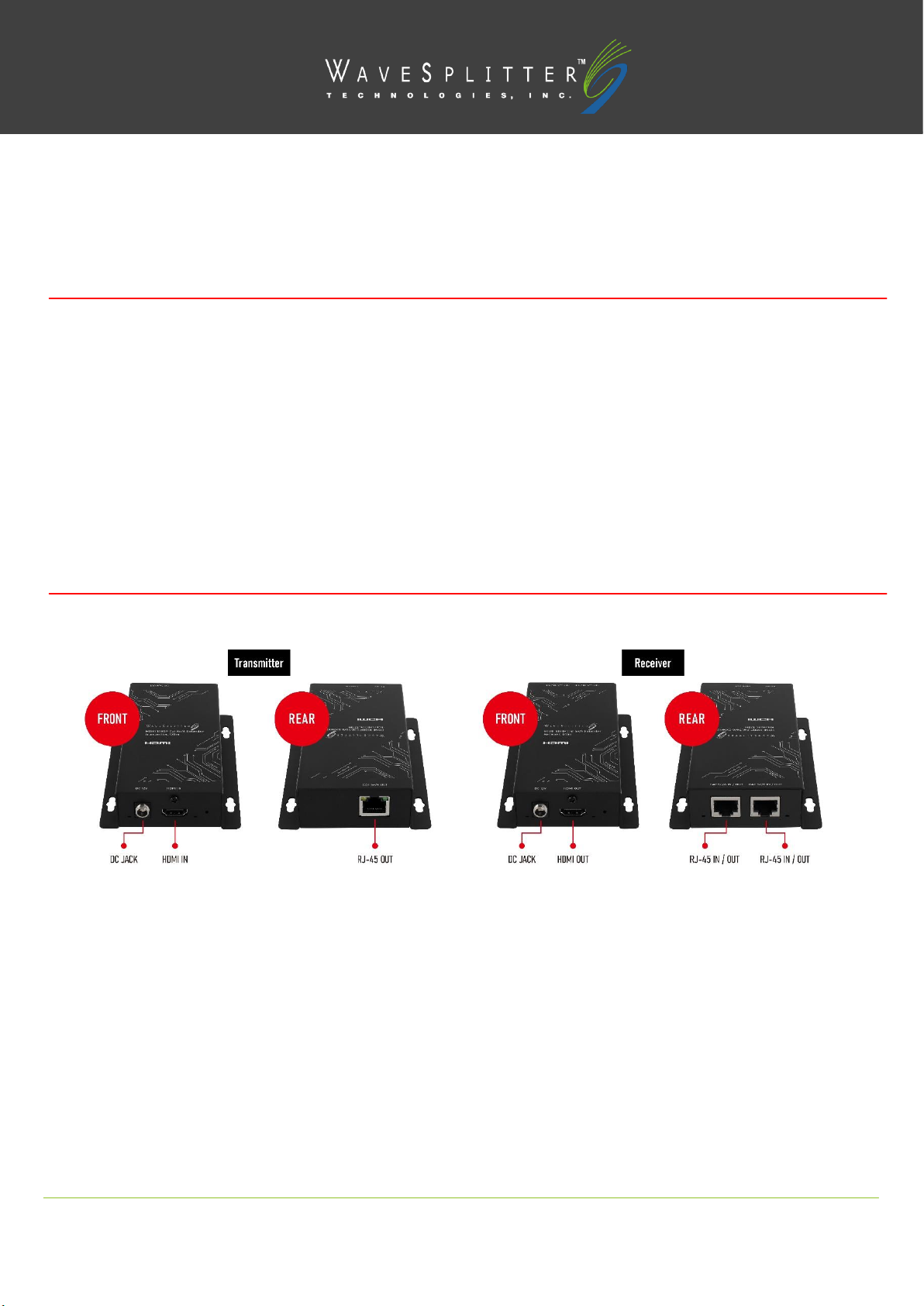

Panel Description
1.Power input: Connect for 12V/1A power.
2. HDMI input: Connect for HDMI signal source equipment.
3. RJ-45 output: Connect for Cat5e/6 Ethernet cable.
1.Power input: Connect for 12V/1A power.
2. HDMI input: Connect for HDMI signal source equipment.
3. RJ-45 intput/output: Connect for Cat5e/6 Ethernet cable.
4. RJ-45 intput/output: Connect for Cat5e/6 Ethernet cable.

Copyright ©2020 Wavesplitter AV Technology |Wavesplitter .com
TEL：[phone] MAIL：[e-mail]
V2
OPERATION MANUAL
Connecting and operating
1. Connect 1 source such as a computer, Blu-Ray Player, game console, STB, etc. to the HDMI input on the transmitter.
2. Connect 1 display such as an HDTV or HD Projector to the Loop HDMI output on the transmitter.
3. Connect a single Cat.5e/6 network cable (up to 120m) to the RJ45 ports on the transmitter and receiver (choose one of
RJ-45 ports on the receiver).
4. Connect the 12V / 1A power supply to the power input of the transmitter and receiver and turn on the power.
5. If you need to cascade more receiver, you only need to connect another Cat.5e/6 network cable (up to 120m) to the
RJ-45 port of the receiver and then connect it to the RJ-45 port of the next receiver.
※Each receiver need to connect a 12V / 1A power supply.
Application 1 –Unicast

Copyright ©2020 Wavesplitter AV Technology |Wavesplitter .com
TEL：[phone] MAIL：[e-mail]
V2
OPERATION MANUAL
Application 2 –Unlimited cascade connection

Copyright ©2020 Wavesplitter AV Technology |Wavesplitter .com
TEL：[phone] MAIL：[e-mail]
V2
OPERATION MANUAL
Application 3 –To distribute an HDMI signal up to 1080p via Gigabit Ethernet Switch to
multiple displays .

Copyright ©2020 Wavesplitter AV Technology |Wavesplitter .com
TEL：[phone] MAIL：[e-mail]
V2
OPERATION MANUAL
Application 4 –Use with WST-PSP002 as an HDMI loop-out for local monitoring

Copyright ©2020 Wavesplitter AV Technology |Wavesplitter .com
TEL：[phone] MAIL：[e-mail]
V2
OPERATION MANUAL
Specifications
Interface
Transmitter
Inputs
HDMI Type-A (Female) x 1
DC Jack (Female) x 1
Outputs
RJ-45 (Female) x 1
Receiver
Inputs
RJ-45 (Female) x 1
DC Jack (Female) x 1
Outputs
RJ-45 (Female) x 1
HDMI Type-A (Female) x 1
Transmission
HDMI Compliant
HDMI 1.4
HDCP Compliant
1.4
Max. Video Resolution
1920x1080@60Hz YUV:4:4:4
Max. Transmission Distance
120m over Cat.5e / Cat.6 cable
Audio Format
44kHz and 48kHz PCM
Power
Power consumption
2.5W (Max)
Power Supply
12V/ 1A DC
Environment
Operating Temperature
-0˚C～55˚C
Storage Temperature
-10˚C～85˚C
Product Structure
Main Material
Iron
Size W x D X H
TX : 124.6 x 84 x 27mm | RX : 124.6 x 84 x 27mm
Weight
TX : 240 g | RX : 240 g
Country of Origin
China
Certification
Safety & Emission
CE / FCC / RoHS / REACH
