NOTICE
USING YOUR NAVIGATOR at the first time
1. Charge completely
2. Install into your vehicle
3. Initialize software as described in the manual
4. Make sure that the car is outside the garage and it is not covered by
anything (treed, bridges, etc)
5. Normally it takes a bit longer to receive the GPS signal the first time
you turn on the unit. Your device has to locate 3 satellites to function.
This time to find the satellites is significantly shorter after the first time
you use the device. If you move your unit over 300km without it being
used, it may need a little more time to locate the satellites again.
2

Introduction
This manual is a complete instruction for the device. Please read this manual carefully
before using.
Contents:
Safety and Regulatory Information
1. Getting Started
1.1 Unpacking
1.2 Over View
1.3 Using Your Device in a Vehicle
1.3.1 Using the Car bracket
1.3.2 Connecting the Car Charger
1.3.3 Connecting to AC Power supply and Charging the Battery
1.3.4 Assembly
1.4 Starting up
1.5 Power saving
2. Main Menu Selection
2.1 Navigation
2.2 Media
2.2.1 Music
2.2.2 Photo
2.2.3 Ebook
2.2.4 Mp4
2.3 Bluetooth
2.4 System
3

Safety and Regulatory Information
Important Safety Notices and Warnings
Global Positioning System
The Global Positioning System (GPS) is a satellite-based system that provides location and timing
information around the Globe.
GPS is operated and controlled under the sole responsibility of the Government of the United
States of America, who are responsible for its availability and accuracy. Any changes in GPS
availability and accuracy, or in environmental conditions, may impact the operation of your
device .We cannot accept any liability for the availability and accuracy of GPS.
Precautions and Notices
For your own safety, do not operate the controls of the product while driving.
Use this product prudently. The product is intended to be used only as a navigation aid. It is not for
precise measurement of direction, distance, location or topography.
The calculated route is for references only. It is the user's responsibility to follow the traffic signs
and local regulations along the roads When you get off the car, do not leave your device on the
dashboard or the car glass that is subject to direct sunlight. The overheating of the battery can
cause malfunction and /or danger.
GPS is operated by the United States government, which is solely responsible for the performance
of GPS. Any change to the GPS system can affect the accuracy of all GPS equipments.
GPS satellite signals can not pass through solid materials (except glass).When you are inside a
tunnel or building, GPS positioning is not available.
A minimum of 4 GPS satellite signals is needed to determine current GPS position. Signal
reception can be affected by situations such as bad weather or dense overhead obstacles (e.g. trees
and tall buildings)
The wireless devices might interfere the reception of satellite signals and cause the reception of
the signal to be unstable. For better signal reception, it is recommended that you use a car antenna
(option)
Aircraft and Hospitals
Use of devices with an antenna is prohibited on most aircraft, in many hospitals and in many other
locations. The device must not be used in these environments.
4

1. Getting Started
1.1 Unpacking
Unpack your device box and identify the contents. You should have:
(1) Unit. Its main features are a touch-sensitive LCD screen, 1 SD card slot, 1 volume control
switch. Details see the photo below.
(2) Holder，to hold the device.
(3) Bracket, its main features is to fix the device on a car .
(4) Car Charger. With 12V cigarette lighter adapter. This is the normal way of providing power to
your device when it's in your vehicle.
(5) AC adapter (Option), included for you to charge and work with your device even when It's not
in your vehicle. When you use the adapter, please make sure it is cooled by placing it in a
ventilated area.
(6) USB data cable for connecting your device to a Windows PC
(7) User Manual.
*Note: please check optional accessories with local retailer/importer/distributor.
1.2 Over View
5

(1) Charger Indicator Light
(2) Power Switch
(3) External GPS Antenna Connector
(4)Speaker
(5)SD Card Slot: for accessing data as maps. Note:
Before using GPS navigation software and maps, you need to insert the storage Card included
with your device. Do not remove the card during GPS operation.
(6)Earphone Jack
(7)Reset Key
(8)USB Connector
Doing so may be dangerous and will invalidate your warranty.
Do not attempt to service the device yourself! Do not open, puncture or disassemble it.
High temperatures can cause permanent damage.
Do not expose the device to high temperatures. We recommend that you do not leave the device
in direct sunlight for long periods or in an unattended car on sunny days.
1.3 Using Your Device in a Vehicle
A stand and a car charger are supplied with your device.
1.3.1 Using the Car Bracket
Caution:
-- Select an appropriate location for the stand. Never place the stand where the driver's field of
vision is blocked.
-- If the car's windshield is tinted with a reflective coating, an external antenna (optional) may be
needed to route the roads.
The external antenna is stick to the top of the car through a window. When closing the car window,
be careful not to pinch the antenna cable (Cars with an anti-jam window design may automatically
leave adequate space as needed.).

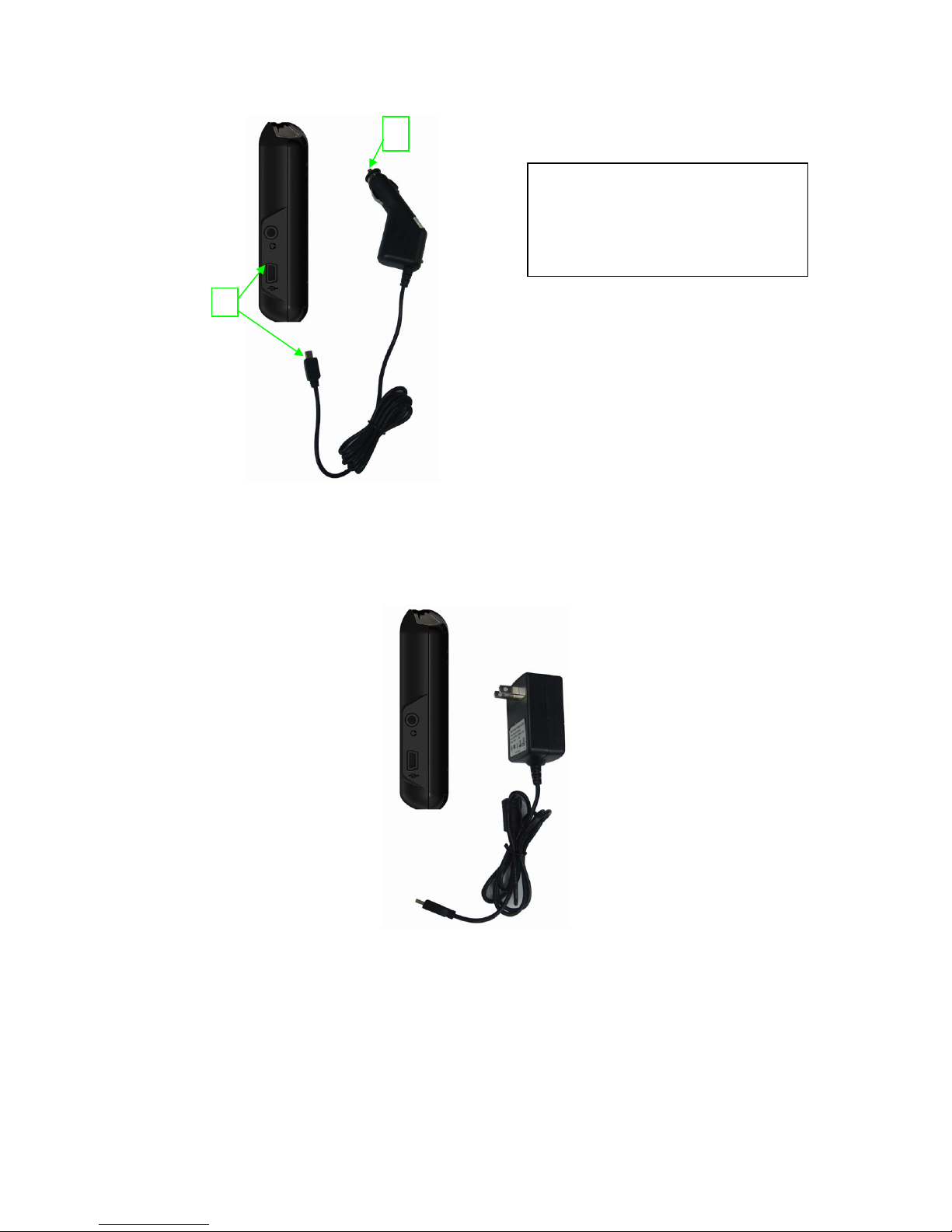

1.3.2 Connecting the Car Charger
The car charger supplies power to your device when you are using the device in a car.
Caution: To protect your device against sudden surges in current, connect the car charger only
after the car engine has been started. Connect one end of the car charger to the power connector of
your device. Connect the other end to the cigarette lighter in the car to power and charge your
device.
6

1.3.3 Connecting toAC power supply and Charging the Battery
1. Fully charge the battery before using your device for the first time
2. Connect the adapter cable to the bottom of your device.
3. Plug the AC adapter into a wall outlet.
The charge indicator glows amber when charging is in progress. Do not disconnect your device
from AC power until the battery is fully charged, when the charge indicator turns green. This will
take a couple of hours.
1.3.4Assembly
To get started, put the device into the holder and assemble holder with bracket. Take off the
protected film on the bottom or the suction. Then put the bracket onto a suitable location of your
windscreen or side window, make sure the window or the suction or windscreen is clean and
To Cigarette Lighter
1. Device power connector
2. Vehicle power connector
2
1
7

without water and some dirty things inside, fixing the stand on that position..
Note: Controlling 5 different levels of suction by pressing down the button (See below picture)
Note: that some newer vehicles may have a heat reflective shield embedded in the windscreen. In
some cases this can prevent proper GPS signal reception. If this turns out to be a problem in your
vehicle, you will need to purchase and install the GPS external antenna kit.
Under normal journey conditions, the suction mount is perfectly sufficient to hold the bracket in
position. Note that suction may be lost if left overnight, due to condensation and low temperature.
For this reason, and for security, we recommend Removing Both the suction mount bracket and
the device when leaving your vehicle overnight.
To remove the bracket, three steps as below:
Press 2 sides button, pull left lightly and then take off the suction. If the bracket still doesn't detach
from your windscreen, tug gently on the clear plastic tab at the edge of the suction mount, to break
the vacuum seal.
1.4 Starting up

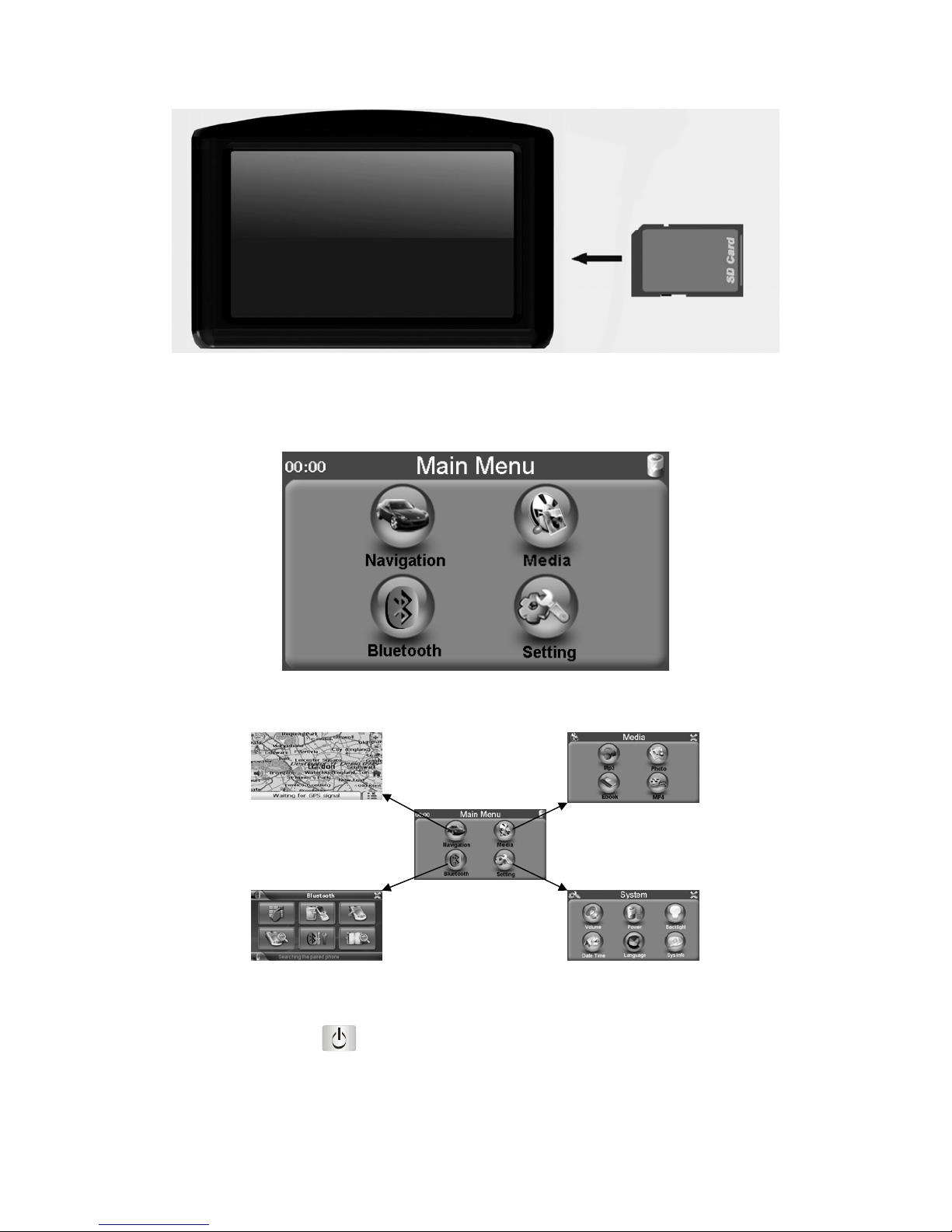

Insert the supplied SD card (optional) into the slot at the bottom of device.
8

Tap "OK "then enter into the "Main Function Operation Screen " as below.
Then select the functions you need and then go directly to the way you need.
1.5 Power saving
Press the power button on the top side of your device to turn on and off your device for
saving power. When you press the power button to turn off the unit, your device actually enters a
suspend state and the system stops operation. Once you turn on the system again, it resumes.
9

2. Main Menu Selection
Main Menu is the start of all functions. It includes four function icons such as navigation, Media
with Mp3,Photo,Ebook and MP4,Bluetoothand system setting .You can choose your desired
functions as you like.
2.1 Navigation
Please refer the navigation software user manual for the details.
2.2 Media
Tap the icon "Media" on the main menu and enter into following interface.
2.2.1 MP3
1) Tap the icon “Mp3” on the media menu and enter into following interface.
2) Tap your desired file and enter into the following interface.
It supports various player format If no Mp3 files can be found, it will enter into
playing directly.
10

3 Tap " " return to main menu.
2.2.2 Photo

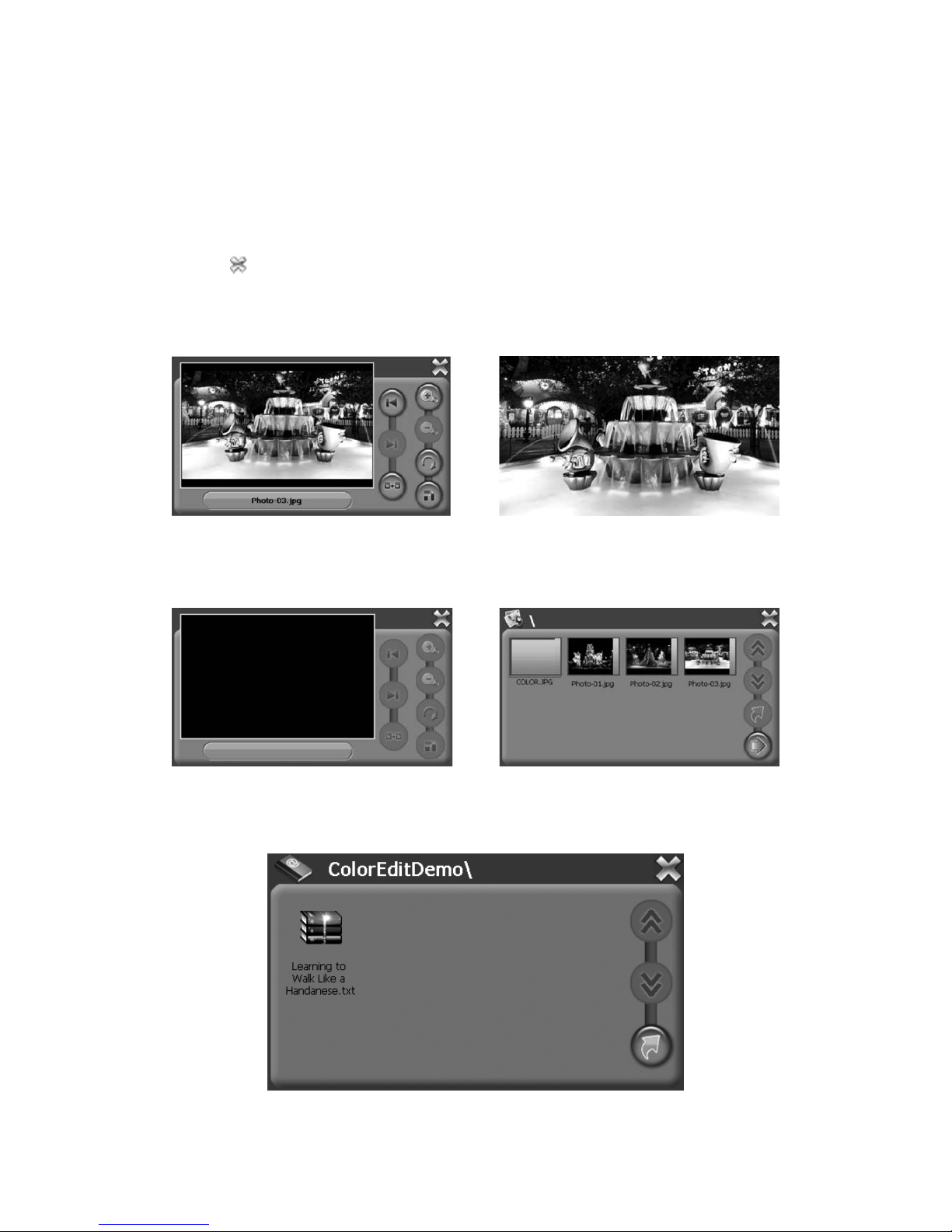

1) Tap " Photo" on the media menu and enter into the following interface.
2) Tap the file on the screen and enter into the following interface.
A: previous
B: next
11

C: return to previous menu
D: current picture name
E: Zoom out
F: Zoom in
G: rotate
H: full screen
3) Tap " " and return to main menu.
Tips:
Tap FULL SCREEN button, it will display in full screen size
Tap PREVIOUS or NEXT button to view the pictures. If picture is too big or the device does not
support the format, it will be dark screen or can not read.
2.2.3 Ebook
1) Tap " Ebook" on the media menu and enter into the following interface.
12

2) Tap the file on the picture and enter into the following interface.
A: Return to main menu
B: Previous
C: Next
D: Return to previous menu
E: Pages chose
F: Current page/total pages
G: Current file name
3) Tap " " and return to main menu.
2.2.4 MP4

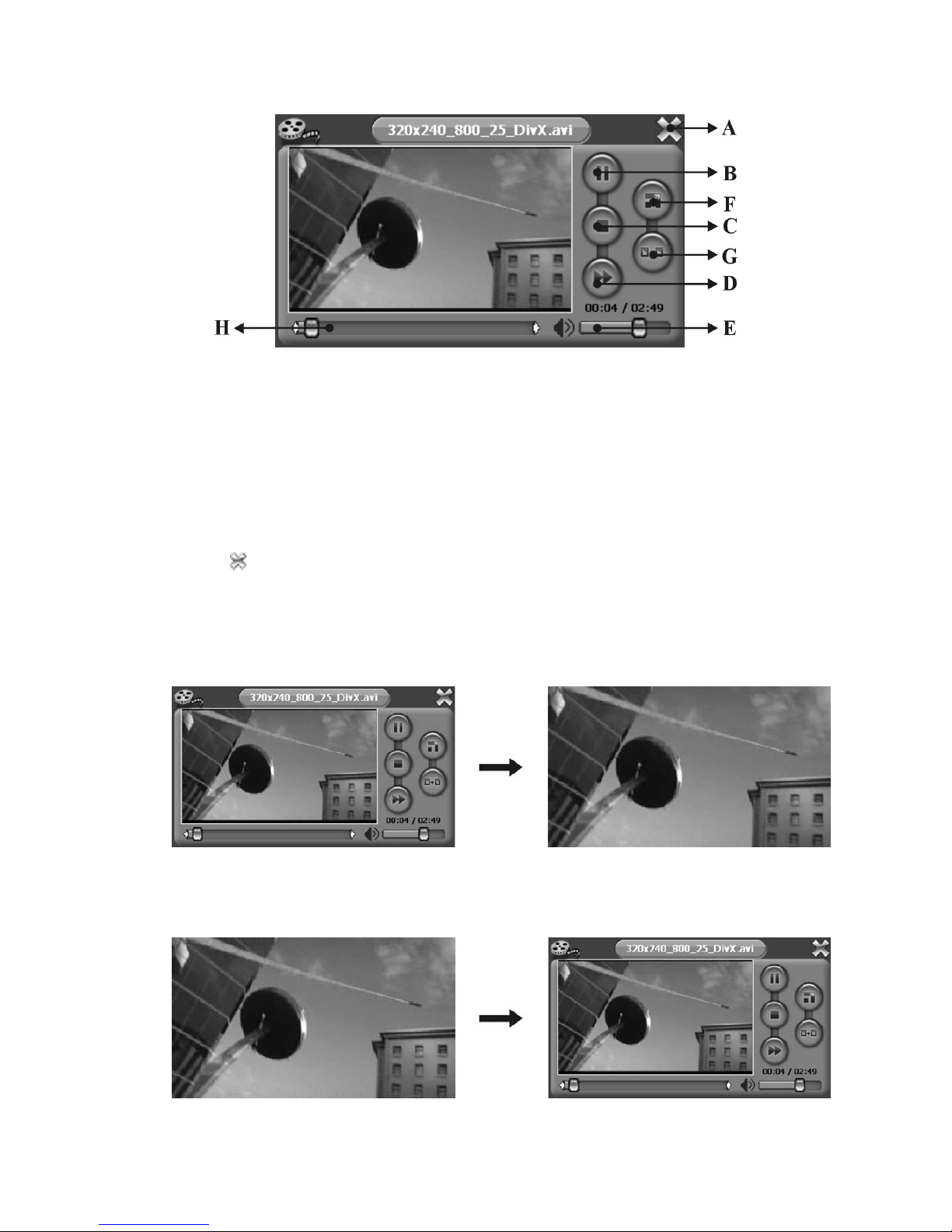

1) Tap the icon "Mp4" on the main menu and enter the following interface.
2) Tap the file and enter into the following interface.
It supports various player format, please refer to DOWNLOAD AND UPDATE.
13

A: Return to main menu
B: Pause/play
C: Stop
E: Volume control
F: Full screen
G: Return to previous menu
H: Speed bar
3) Tap " " and return to main menu.
Tips:
Tap NEXT button to recircle the movie.
Tap full screen button or double press the screen, it will play in full screen.
When playing in full screen, double press the screen again, it will return to original playing size.
14

2.3 Bluetooth

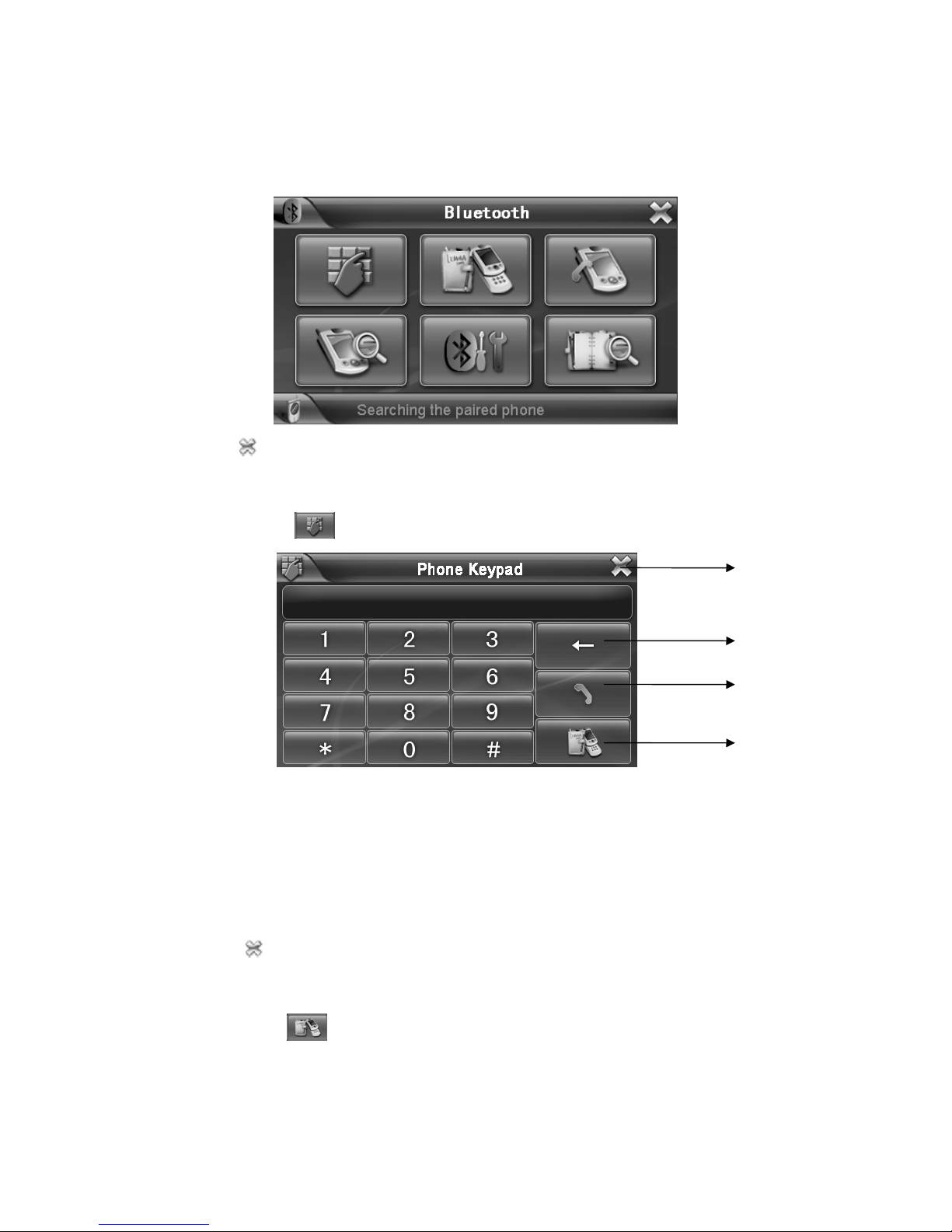

Tap the icon “Bluetooth” on the main menu and enter into the following interface.
And tap " " and return to main menu.
2.3.1 Phone keypad
1) Tap the icon on the bluetooth menu and enter into the following interface.
B
A
C
D
A Return to the bluetooth menu
B Backspace
C Pair and connect with the mobile you want
D Call Record
2) Tap " " and return to the bluetooth menu.
2.3.2 Call Record
1) Tap the icon on the bluetooth menu and enter into the following interface.
15

G
A
B
C
D
E
F
H
I
A Return to the bluetooth menu
B Previous
C Next
D Connect with the mobile you want
E Delete all the call record
F Delete the record number you chose
G Hang up the number you dial
H Incoming call record
I Outgoing call record
2) Tap " " and return to the bluetooth menu.
2.3.3 Pair
Tap the icon or the icon on the bluetooth menu and enter into the following
interface.
16

2.3.4 Attribute
1) Tap the icon on the bluetooth menu and enter into the following interface.
A PIN Setting
B Music Setting
2) Tap PIN Setting button and enter into the following interface.
A
B
3) Tap Music Setting button and enter into the following interface.
17

Then tap the icon you desired and choose the music file as the ring of incoming call.

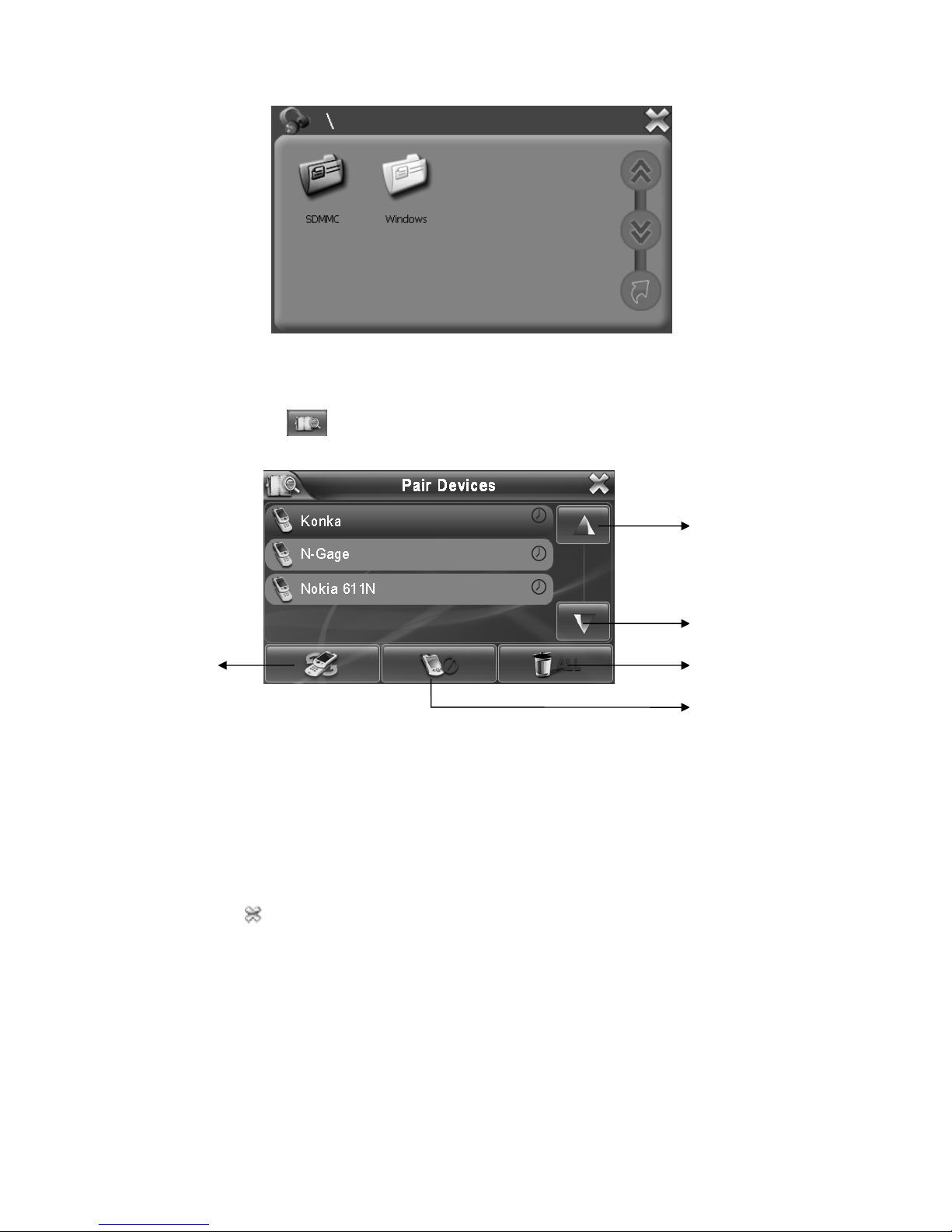

2.3.5 Pair Devices
1) Tap the icon on the bluetooth menu and enter into the following interface.
A Previous
B Next
C Delete all the Devices information
D Disconnect the Devices you chose
E Connect the Devices you chose
A
B
C
D
E
2) Tap " " and return to the bluetooth menu.
2.4 Setting

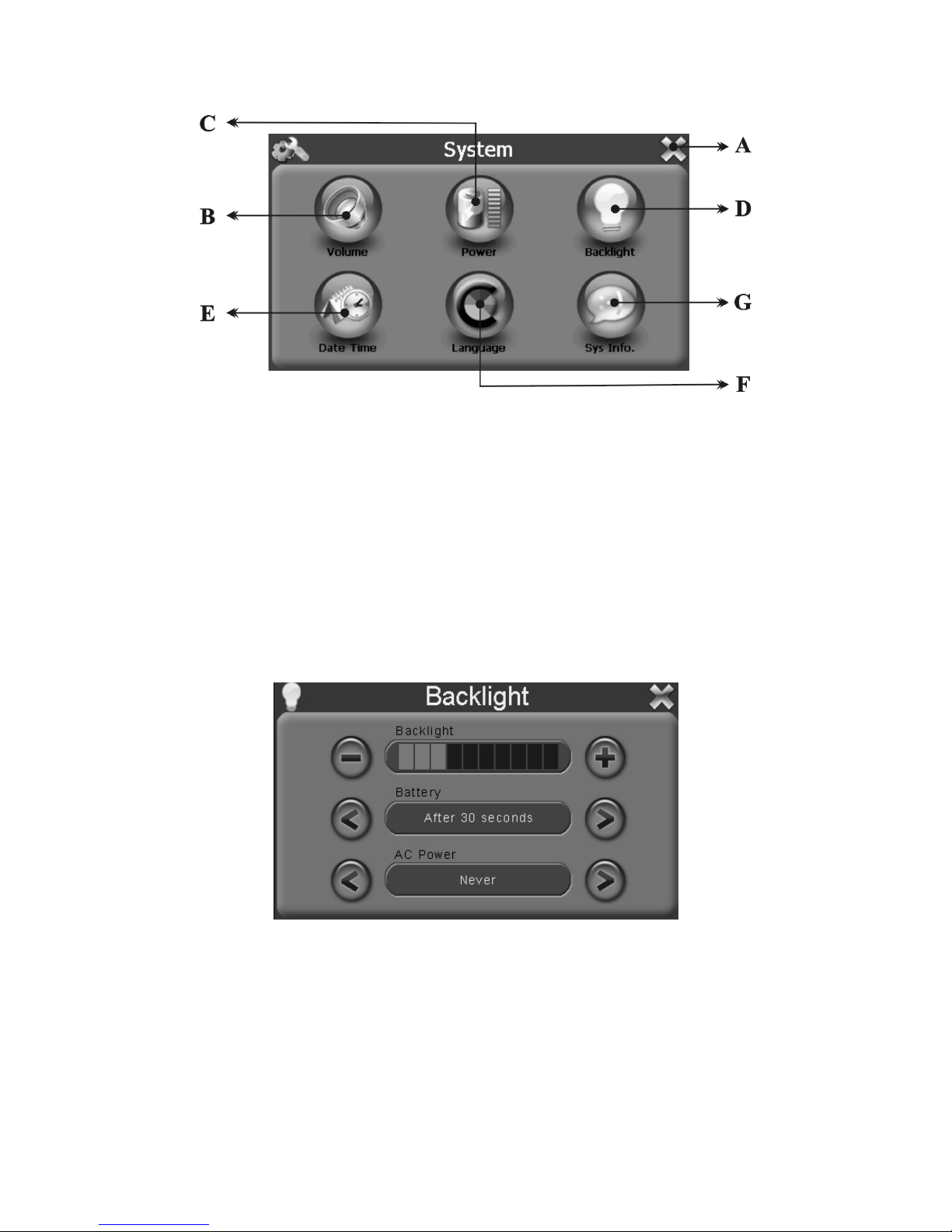

Tap the icon "Setting" on the main menu and enter into the following interface.
18

A: return to main menu
B: volume
C: power
D: backlight
E: date and time
F: language
G: system information
1) Backlight
Tap the icon "Backlight" and enter into the following display.
A. Under Backlight icon, tap "-" to weaken the backlight, and tap "+" to stronger the backlight.
B. Under battery icon, tap < or > button to select the duration of auto power off the backlight.
C. Under AC power icon, tap <or >to select the duration of auto power off the backlight when
using AC adaptor.
2) System Info

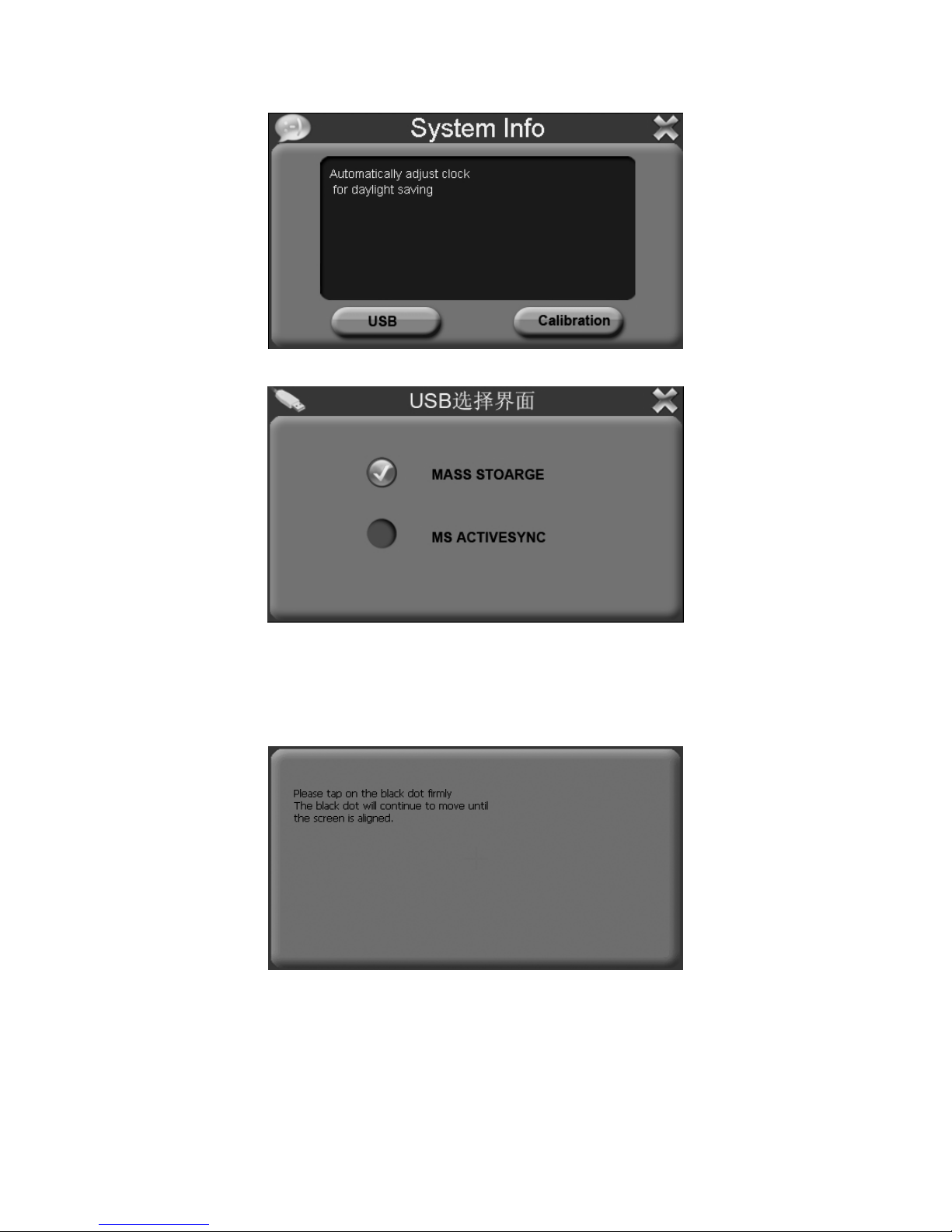

A. Tap the icon “USB” to set the USB working mode.
19

B. Tap the icon "Calibration" and enter the adjustment of touch screen.
According to the information on the screen, press the right cross centre. Then take the operation
under instruction until the following screen display.
3) Language
A. Tap the icon "Language" and enter into the following display.
20
