Wealtec ELITE 200 User manual

Wealtec Corp.
ELITE 200
POWER SUPPLY
Service & Operation & Instruction
Manual
Version 2.0
Item # 0 2012
http://www.wealtec.com E-mail : [email protected]

Packing List
x 1 main body
x 1 power cable
x 1 manual
x 1 warranty card
Wealtec Corp.
1885 Meadowvale Way, Sparks, NV 89 31, USA TEL: [phone] FAX: [phone]
http://www.wealtec.com E-mail: [email protected]

Index
A. Important Notice -------------------------------------------------------------------------------------------- 2
A-1. Warranty
A-2. Technical and Service Contact
A-3. Safety Notice
A-3-1. Certification
A-3-2. Safety Information
B. Introduction -------------------------------------------------------------------------------------------------- 5
B-1. Specifications
B-2. Product Descriptions
C. Installations -------------------------------------------------------------------------------------------------- 9
. Operation Instructions ------------------------------------------------------------------------------------ 9
E. Maintenance ------------------------------------------------------------------------------------------------ 11
F. Trouble shooting -------------------------------------------------------------------------------------------- 12
F-1. Instrument Service
F-2. General Error
F-3. Error Message
G. Order Information ------------------------------------------------------------------------------------------ 16
Appendix: Service Manual ---------------------------------------------------------------------------------- 17
Section 1 ─ Product Description
Section 2 ─ ELITE 200 Function Description
Section 3 ─ Service Parts List
Section ─ Circuit Diagram
1

A. Important Notice
The instrument is designed for laboratory use only.
Before setting up and operating ELITE 200 power supply, please carefully read these
instructions to get familiarized with installation and operation process. Instructions should be read by
well-trained individuals or by technical people from Wealtec Corp. before operating the instruments.
Any improper usage of the instruments may cause damage, please refer to the safety notice.
The instruments shall not be modified or altered in any way. Any modification or alteration will
void the warranty, void the regulatory certifications and create potential safety hazard. Wealtec is not
responsible for any injury or damage caused by using the instruments for any non-intended purpose or
by modifying the instruments by any person who is not authorized by Wealtec Corp.
A-1. Warranty
ELITE 200 power supply, is warranted to be free from defects in materials or workmanship for a
period of one year from the original invoice date, under normal usage. Any defects occurring during
warranty period, Wealtec Corp. will repair or replace defective products or parts without charge unless
the defects arising from below conditions. The defects described below are specially excluded from
Wealtec warranty policy.
1. Improper operation of the instrument.
2. Repair or modification by any person who is not authorized by Wealtec Corp.
3. Damage caused by any (in)-direct accident, neglect or misuse.
2

. Damage caused by disaster.
5. Damage caused by any improper solvents or samples
A-2. Technical and Service Contact
Most of the operation details are described in the instruction manual and operator can find
appropriate solutions according to these instructions. For any other technical/ service questions,
please contact your local representative or contact Wealtec international technical/ service specialist by
E-mail: [email protected].
A-3. Safety Notice
A-3-1. Certification
ELITE 200 power supply, is designed to meet the international electrical safety standards
EN61010 and EMC regulations. This product holds CE marking and operation is according to the
guidance of its instruction manual certificated safe. Any modification or alteration will void the warranty,
void the regulatory certifications and create potential safety hazard.
3

A-3-2. Safety Information
Basic safety precautions must be observed when operating the centrifuge in order to avoid
hazards of electrical shock or possible physical injuries.
ELITE 200 power supply, is not to be used in Class 1, Division 1, Group C hazardous location defined
by the National Fire Protection Association, Bulletin No.56A (Inhalation Anesthetics), as extending
upward to a level of 5 feet above the floor where flammable anesthetics are used.
CAUTION: Below information should be read before using ELITE 200 power supply to prevent possible injury.
To Avoid Electrical Shock:
 Plug the power cord only into a grounded 3-wire receptacle.
 Do not remove the grounding prong from the power plug.
 Always unplug the power code before attempting to service the ELITE 200 power supply.
To Avoid amage to the Instrument:
 Operate the ELITE 200 power supply with the space at least 6cm around the unit.
 Do not operate ELITE 200 power supply in the environment of high humidity (≥95%).
 When taking out ELITE 200 power supply from cold room, the condensation can short its
internal electrical circuit. Do not operate the unit until it equilibrates to room temperature for 2
hours.
4

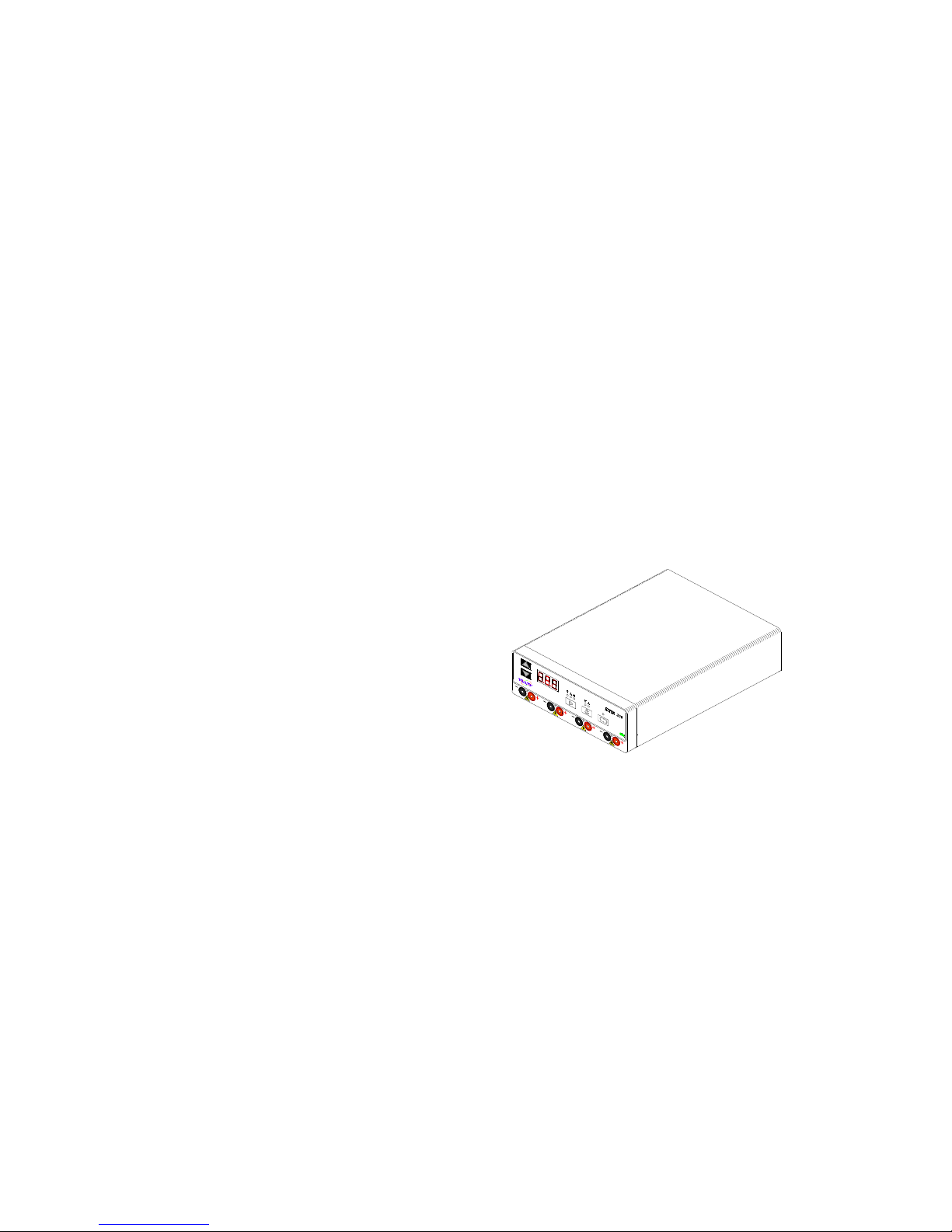

B. Introduction
ELITE 200 power supply is a settable power supplies with excellent quality. It is perfect for
submerged horizontal, mini vertical gel electrophoresis and electro-blotting applications. The output
of ELITE 200 power supply is controlled by timer and constant current/voltage, -set of apparatus can
be connected to each power supply simultaneously for experiment convenience and its compact, light
and stackable design offers space saving as well.
5

B-1. Specifications
Outputs: voltage 5-200VDC adjustable in 1V steps
current 0.01-2.00ADC adjustable in 0.01A step
power 200W max.
Input power 120/230, 50-60Hz
Output terminals set in parallel
Timer control 1-999 minutes
Display 3 digit 7 seg LED
Panel control Touch panel
Status alarm Yes
Operation temperature 0- 0℃
Operation Humidity 10% to 90% R.H. Non-condensing
Noise level 32dB
Regulation: Ripple ±0.3%@200V and 200W
Line regulation ±0.3%@200V and 200W from 90-132VAC or
198-26 VAC
Load Regulation
±0.5%@200V for a 50% change in output load
Drift ±0.3% after 30min warm up @ 200V and 200W
Weight 2.6kg
Dimensions (LxWxH) 13x8.7x2.9inches
6

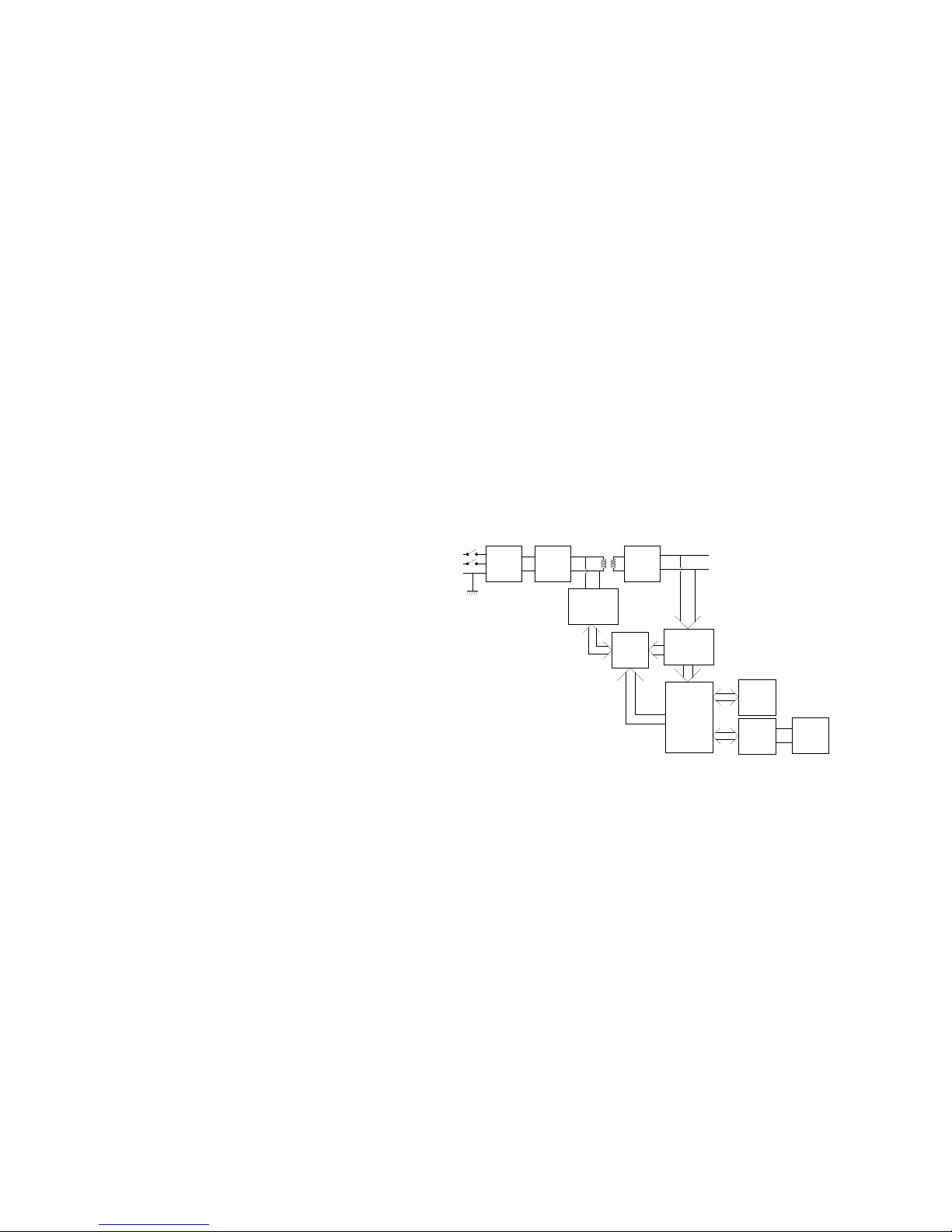

B-2. Product escriptions
The front and rear panel keys are used to set up and run the ELITE 200 power supply. A beep sound
will alarm to inform user when front panel key been pressed. A long beep sound will alarm after the run
is complete or if an error occurs. This beep sound will continue to alarm every ten seconds until any
key is pressed or the power is turned off.
Key descriptions
1 Power switch:
To turn on/off power supply
2 “CONST” key:
Select voltage or current to be constant
3 “MO E” key:
Select the volts, amps, or time to be displayed
&
“UP” & “ OWN” key:
Changes the setting value of the selected parameter.
5 “RUN” key:
To start/stop the output of power from the power supply
7

C. Installation
1. Carefully take out ELITE 200 power supply from the package box and place it at a stable,
suitable place.
2. Connect power cable to correct power source and press the power switch to check ELITE 200
power supply is working properly.
. Operation instruction:
Step
Action escription
1
Connect the electrophoresis
cell(s) to the power supply
The power leads are non-reverse and color coordinated to the
output terminals.
2 Turn on power The default display is constant voltage and 0V.
3 Select the constant
parameter.
V and A are alternately selected by pressing the CONST key.
Enter value Use △▽ keys to enter suitable value.
5 Change the default limit if
desired.
Default current limit is 2.00A.
Default voltage limit is 200V.
9

6 If programming a timed run,
press MODE to display
Time and enter the minuets
to be run.
Time is in minutes and the maximum is 999 minutes.
If running in time mode a power failure detects (PFD)
special function can be activated.
7 Set PFD function (Optional)
When PFD function is activated and a power failure
occurred during sample running, all operation parameters
including time are retained in memory. When power
restored, the power supply automatically completes the run
and E6 error code is displayed after running to alert the
operator.
To activate PFD, simultaneously press both △ and ▽
keys after timer setting and PF1 is displayed momentarily.
To deactivate PFD before starting the run by following three
methods:
1. Simultaneously press both △ and ▽ keys again, and
PF0 is displayed momentarily.
2. Set timer to 0.
3. Restart power supply.
PFD is deactivated automatically after each run.
10

8 Press RUN Start the run.
During a run, you can view the run conditions just press the
MODE key. You also can change the value of constant
parameter or the length of a timed run by pressing MODE key
and then the △ and ▽ keys.
9 Stop of run When timer is timed or press the RUN key again to manually
stop a run. Display will show “OFF”.
E. Maintenance
ELITE 200 power supply can be cleaned by soft moisten tissue or cloth. Organic solvents or strong
detergents may damage the instrument and should be avoided.
11

F. Trouble shooting
F-1. Instrument Service
If your ELITE 200 power supply is malfunction or operates unusually in any way. You may initially
attempt to solve the problem by following the procedures in this section. All other servicing attempts will
terminate the responsibility of the manufacturer under the forms of the warranty.
If you cannot repair a system malfunction, contact your local WEALTEC representative.
This section discusses error messages, which appear when the system has encounter, a known
problem. These messages are listed in numerical order, along with possible causes of the message
and corrective actions.
F-2. General Error
Pre-caution
Wait 10 seconds from time AC power is disconnected to allow high voltage discharge within the power
supply.
12

Symptom Action and possible causes
Fan is not spinning
LED & Display do not light up
Front panel power on indicator off
1. Check source wall power.
2. Replace a new configure fuse and try again.
3. Check if power switch malfunction.
. Check if line voltage select error.
5. Contact your local Wealtec representative.
Fan is spinning
LED & Display do not light up
Front panel power on indicator off
1. Check source wall power.
2. Check if line voltage select error.
3. Contact your local Wealtec representative.
Fan is spinning
LED & Display do not light up
Front panel power on indicator on
1. Contact your local Wealtec representative
Fuse F1 blow 1. Change a new same configure fuse and try again.
2. Contact your local Wealtec representative.
13

F-3. Error Message
Error Code
Explanation Possible Solution
E1 No load detected
The electrophoresis cell(s) are not
plugged in. During a run, load current
chopped more than 0.01A.
＊Check all connections
＊Check appropriate buffer volume.
Press the RUN key to resume the run or any other
key to clear the error code.
E2 Unacceptable Value(s) Entered
＊ No value entered
＊ Voltage below 5V
＊ Current below 0.01A
Enter acceptable values and press run key to resume
the run or any other key to clear the error code.
E3 Change in Load Resister
＊ Electrophoresis cell(s) were
added or removed during a run.
＊ Buffer leakage
＊ Loose connection in a connected
cell
Check and correct any potential resistance problems.
Then press RUN key to resume the run or any other
key to clear the error code
14

E Power Failure During a Non-Timed
Run
Press any key (other than RUN) to clear the error
code. Then press the RUN key to resume the run.
E5 Power Failure During a Timed Run
(PFD OFF)
Press any key (other than RUN) to clear the error
code. Then press the RUN key to restart the run.
E6 Power Failure During a Timed Run
(PFD ON)
Press any key (other than RUN) to clear the error
code.
E7 Short Circuit
Load current exceeded 2A.
＊ Check for any short circuit.
＊ High buffer concentration
＊ Press the RUN key to resume the run or any
other key to clear the error code
CHC Current differential alarm
Difference current value
(>0.1A) between start and final run.
＊ Check buffer volume
Any other error code Contact your local Wealtec representative
15

G. Order Information
Item # escription
1001001
ELITE 200 Power Supply, 120V, 50-60Hz
1001002
ELITE 200 Power Supply, 230V, 50-60Hz
1001003
ELITE 300 Power Supply, 120V, 50-60Hz
100100
ELITE 300 Power Supply, 230V, 50-60Hz
1001005
ELITE 300 PLUS Power Supply, 120V, 50-60Hz
1001006
ELITE 300 PLUS Power Supply, 230V, 50-60Hz
1001007
mini ELITE Power Supply, 90-26 V, 50-60Hz
Accessories
Item # escription
1000001
Power adapter
1000002
Power cable
16

Appendix: Service Manual
Section 1 ─
──
─ Product escription
The 200V, 200W, electrophoresis power supply is a micro controller based, fly back converter power
supply. The component designations used in the functional description refer to fig. below.
EMI
filter
Bridge
rectifies
out put
rectifies
Comparater
CPU
Front
Panel
Control
7 seg
display
readout
200W
PMW
out put
NV
RAM
converter
power
17

Section 2 ─
──
─ ELITE 200 Function escription
The electrophoresis power supply is a micro controller based flyback converter power supply. The
principle sections are the primary circuit, 200W power converter, control circuit and the front panel
board.
Primary Circuit
AC power is applied through switch with EMI filter. When the switch is closed and AC power is applied,
RT1 and RT2 limit the current into the supply. BR1 rectifies the AC power to produce around 320VDC
high voltages across C3 and C . JP1 allows the line voltage selection for 110/220 VAC operation. T ,
BR2, Q , Q5, U form a regulator for the control circuitry. Q6 regulator for fan used only.
Power Converter
The electrophoresis power supply uses a 200W discontinuous mode flyback converter toplogy. When
output is needed , the control circuitry forces the shut down signal 〞LOW〞to start the power converter.
The voltage error signal is transmitted and from the control circuitry U6 to U2-9, U2 drives U1, which is
a gate transformer driver for T3. The error signal magnitude is proportion to the T3 duty cycle. When
Q1 & Q2 turns on, energy is stored in the T2 primary. At the same time, D6 and D7 conducts to charge
up output storage capacitor C18. Filter L3 and C11 suppress voltage spikes when C18 is charged up.
When Q9 turns off, snubber circuit R6 and C6 suppress the leakage inductance spike from the T2
primary winding. D and D5 help to divert current from the inductance spike. Current sense circuit CT1
active to turn off PWM if primary current exceeds 8A.
1
