Wear & Hear HearLink Plus BT5805A User manual

For more information
visit our Web site
www.WearAndHear.com
Model: BT5805A
User Manual

2
Product Name: HearLink PLUS Product No.: BT5805A Doc.: HPUM_EN_Ver.01
HearLink PLUS User Manual
Contents:
13
Specifications
12
13
Automatic Sleep Mode
11
13
Clear Pairing List
10
12
Bypass Mode
9
10
Bluetooth Broadcast Mode
8
8

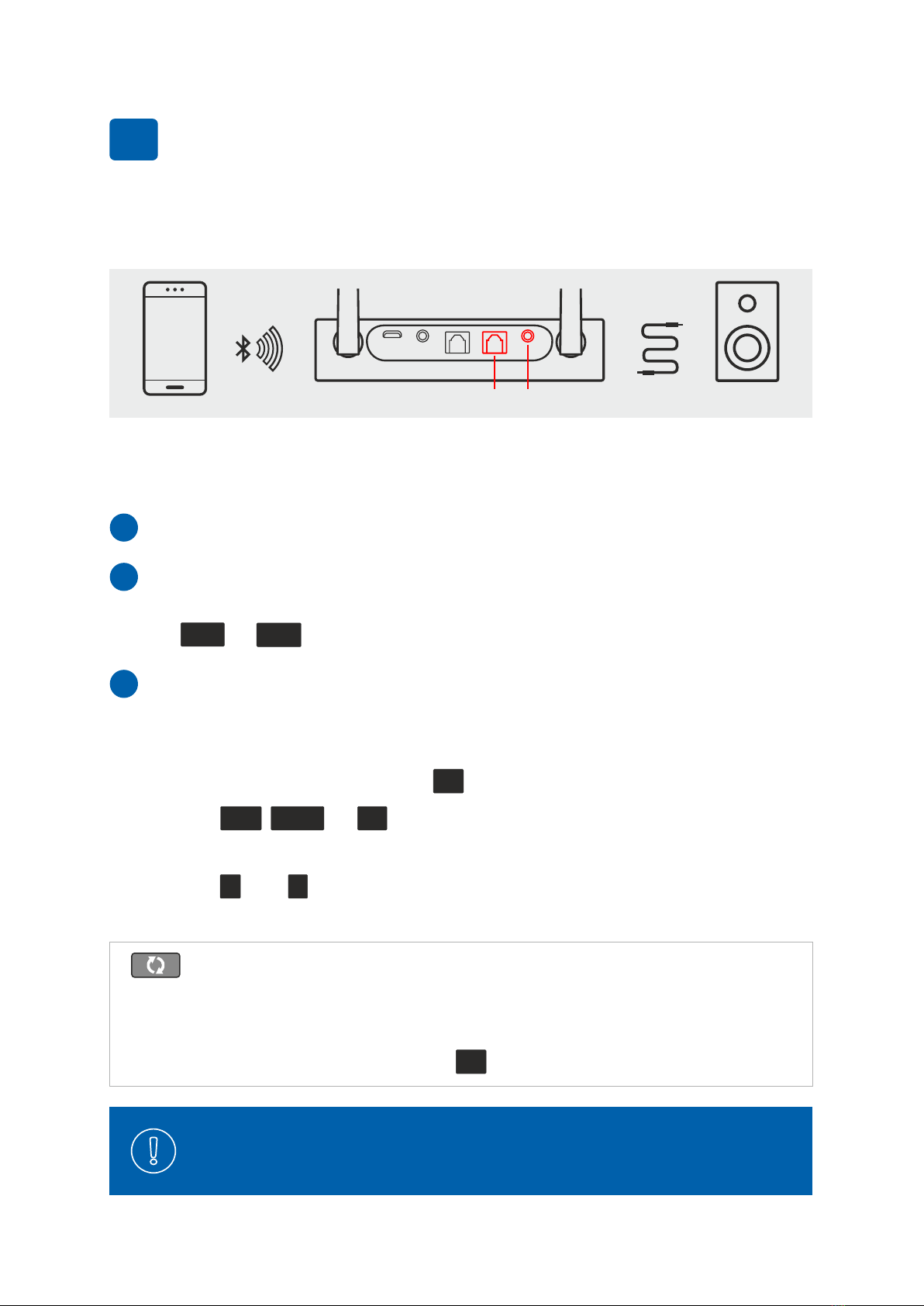

Bluetooth Receiver Mode
7
6

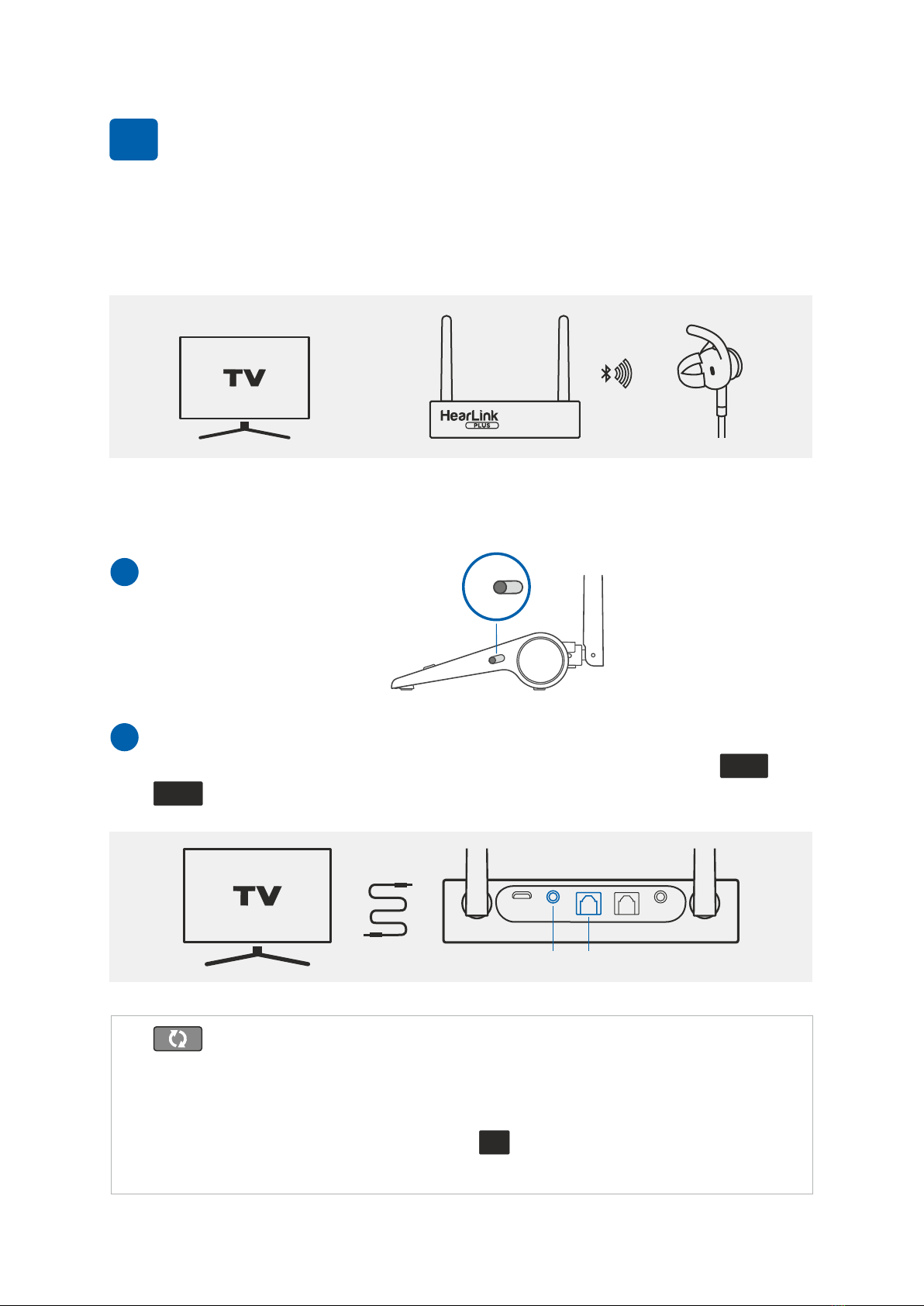

Bluetooth Transmitter Mode
6
5
Turn ON/OFF
5
5
LED Indicators
4
4
Device Details
3
3

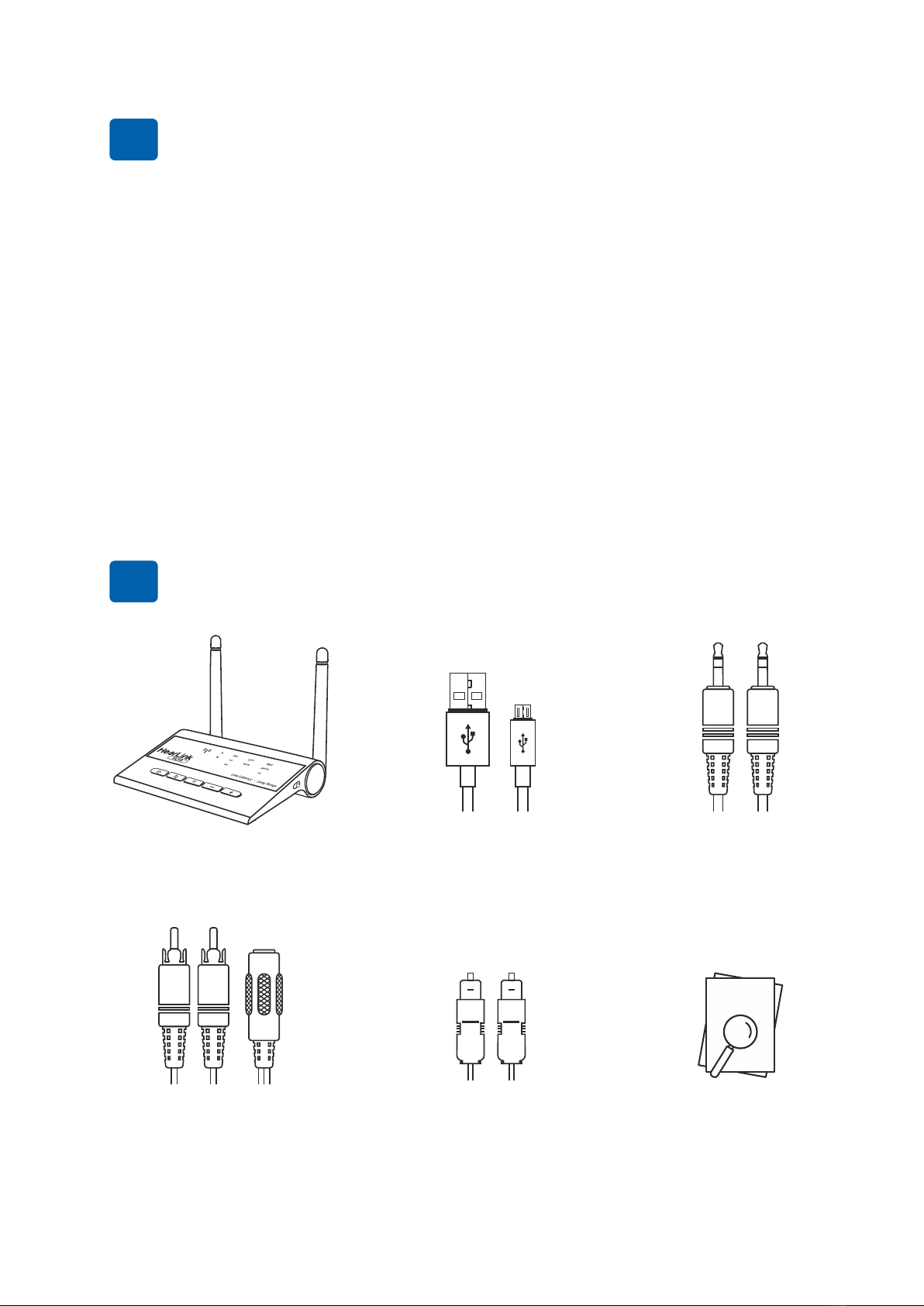

Package Contents
2
3
Features
1
14
LEGAL INFORMATION

3
HearLink PLUS
device
USB power
cable
3.5mm stereo
audio cable
RCA-to-3.5mm
adapter
Optical fiber
audio cable
Quick start
guide
Quick Start
Quide
Package Contents
2
Features
1
ŸTransmit stereo audio from TV set, computer, or any multimedia
device to a wireless Bluetooth headset
ŸBypass stereo audio from TV set, computer, or any multimedia
device to wired stereo speakers
ŸConnect wireless Bluetooth media to wired stereo speakers
ŸBroadcast stereo audio to multiple wireless speakers
Product Name: HearLink PLUS Product No.: BT5805A Doc.: HPUM_EN_Ver.01
HearLink PLUS User Manual

4
Device Details
3
7
1234 5
6
8 9 10 11 12
Remove the sticker to
expose the RX ports
1 – Multi-function button: ON/OFF, Play/Pause
2 – Bluetooth function button
3 – Bluetooth Broadcast Mode button
4 Previous track/volume down button –
5 Next track/volume up button–
6 – Mode switch: Receiver/Transmitter/Bypass 
7 – LED indicators
8 – Micro USB power input
9 – AUX stereo input (from TV, Transmitter mode)
10 – Optical input (from TV, Transmitter mode)
11 – Optical output (to speaker, Receiver mode)
12 – AUX stereo output (to speaker, Receiver mode)
Product Name: HearLink PLUS Product No.: BT5805A Doc.: HPUM_EN_Ver.01
HearLink PLUS User Manual

5
Turn ON/OFF
5
Connect HearLink PLUS to a power outlet (A) or the TV set’s USB port (B)
using the supplied USB power cable. HearLink PLUS will turn ON
automatically. Unpluging the cable will turn HearLink PLUS OFF.
Press and hold for 3 sec to turn HearLink PLUS OFF.
Press and hold for 2 sec to turn HearLink PLUS ON.
Purchased separately
1 – Bluetooth Broadcast mode: white – Transmitting, blue – Receiving
2 – Connected headsets/smartphones: A – first, B – second
3 – Operation mode: RX –Receiver, TX – Transmitter, – Bypass
4 – Connected cable: OPT – optical fiber, AUX – audio cable
5 – Type of connected Bluetooth CODEC: SBC, APTX, LL (low latency)
LED Indicators
4
12 3 4 5
Product Name: HearLink PLUS Product No.: BT5805A Doc.: HPUM_EN_Ver.01
HearLink PLUS User Manual

6
Bluetooth Transmitter Mode
6
WIRELESS
HEADSET
AUX/ OPTICAL
In Bluetooth Transmitter mode HearLink PLUS transfers audio from the TX
input to BeHear (or any other Bluetooth headset). Two headsets can be
connected at the same time.
TX
Short press to place HearLink PLUS into pairing mode.
Press and hold for 3 sec to disconnect from a connected
headset and enter pairing mode.
When in pairing mode, the indicator light will flash
quickly.
OPT
AUX
Connect the HearLink PLUS TX port to the TV (or other multimedia
device) via the supplied optical or 3.5mm audio cable. The lit or
A indicator shows the connection type.
AUX OPT
2
TX
Ensure that the Mode switch
is set to the TX position.
1
How to Set Up HearLink PLUS
Product Name: HearLink PLUS Product No.: BT5805A Doc.: HPUM_EN_Ver.01
HearLink PLUS User Manual

7

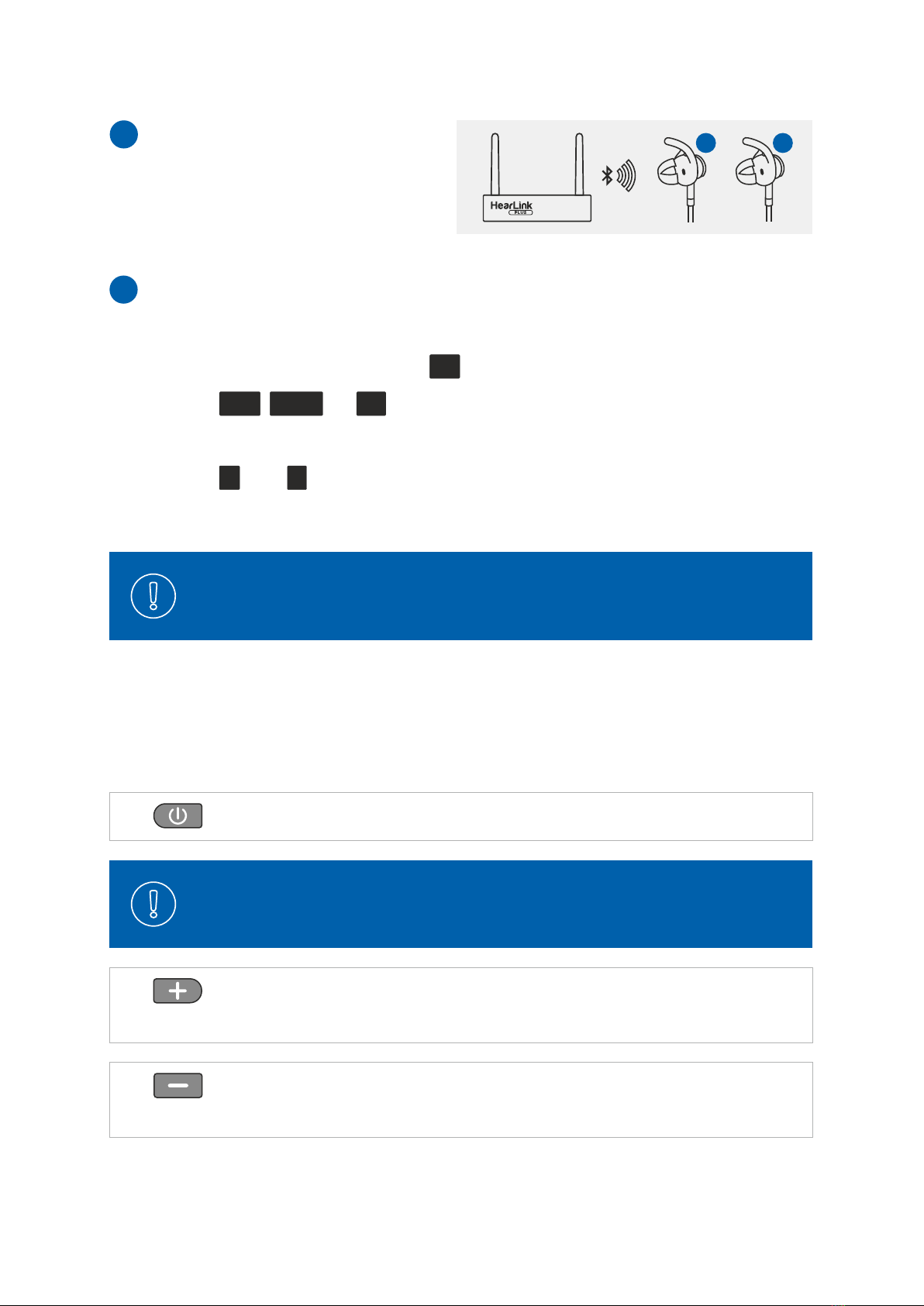

Place the Bluetooth headset
into pairing mode and set it
down close to the HearLink
PLUS device.
AB
3
When powered on HearLink PLUS connects automatically to
the last connected headset(s).
Wait for 5-30 seconds. HearLink PLUS will pair automatically with the
Bluetooth headset.
When pairing is complete the indicator will shine steadily.
The lit , or text indicates which type of Bluetooth
CODEC is being used.
The lit and texts indicate which headsets have been connected
first and second, respectively.
TX
APTXSBC
B
LL
A
4
Audio Playback
Short press to toggle audio Play/Pause.
Press to increase the volume. A tone is played when
maximum volume is reached.
Press to decrease the volume. A tone is played when
minimum volume is reached.
Play/Pause can be controlled remotely from the connected
BeHear headset.
Product Name: HearLink PLUS Product No.: BT5805A Doc.: HPUM_EN_Ver.01
HearLink PLUS User Manual

8
Bluetooth Receiver Mode
7
In Bluetooth Receiver mode HearLink PLUS transfers the audio from the
Bluetooth device to the speaker or stereo headphone connected to RX output.
AUX
OPT Wired Speaker
Setting Up HearLink PLUS in Receiver Mode
1
2
3
OPT AUX
Set Mode switch to RX position.
Connect HearLink PLUS RX port to non-Bluetooth speaker, stereo
system, wired-headphone, etc., via optical or 3.5mm audio cable. The
lit or indicator shows the connection type.
Enable Bluetooth on the target device (e.g., smartphone). Search for
“Hearlink PLUS” and tap to connect. If a password is required, enter
0000.
When pairing is complete the indicator will shine steadily.
The lit , or text indicates which type of Bluetooth
CODEC is being used.
The lit and texts indicate which devices have been connected
first and second, respectively.
RX
LLAPTXSBC
BA
When powered on HearLink PLUS connects automatically to
the last connected device.
RX
Short press to place HearLink PLUS into pairing mode.
Press and hold for 3 sec to disconnect from a connected device
and enter pairing mode.
When in pairing mode, the indicator light will flash quickly.
Product Name: HearLink PLUS Product No.: BT5805A Doc.: HPUM_EN_Ver.01
HearLink PLUS User Manual

9
Audio Playback in Receiver Mode
Short press to toggle audio Play/Pause.
Short press to switch to the next track.
Long press to increase the volume. A tone is played when
maximum volume is reached.
Short press to switch to the previous track.
Long press to decrease the volume. A tone is played when
minimum volume is reached.
Product Name: HearLink PLUS Product No.: BT5805A Doc.: HPUM_EN_Ver.01
HearLink PLUS User Manual

10
In Bluetooth Broadcast Transmission mode HearLink PLUS transfers the
audio from the TX input to multiple Bluetooth broadcast receivers.
AUX Wireless Speakers
OPTION 1
OPTION 2
AUX
Setting Up HearLink PLUS in Transmission Mode
1
2Bluetooth broadcasting receivers will connect automatically to
HearLink PLUS.
Press and hold for 3 sec to place HearLink PLUS in
Broadcast Transmission mode. The indicator will shine
steadily white.
Option 1: Set Mode switch to Bypass position.
Connect HearLink PLUS TX port to TV or other multimedia device via
3.5mm audio cable (optical connection is not supported). The
indicator light will turn on.
Option 2: Set Mode switch to RX position.
Connect HearLink PLUS to the smartphone via Bluetooth
(see Bluetooth Receiver mode section).
AUX
8
Bluetooth Broadcast Mode
Broadcast Transmission Mode
Product Name: HearLink PLUS Product No.: BT5805A Doc.: HPUM_EN_Ver.01
HearLink PLUS User Manual

11

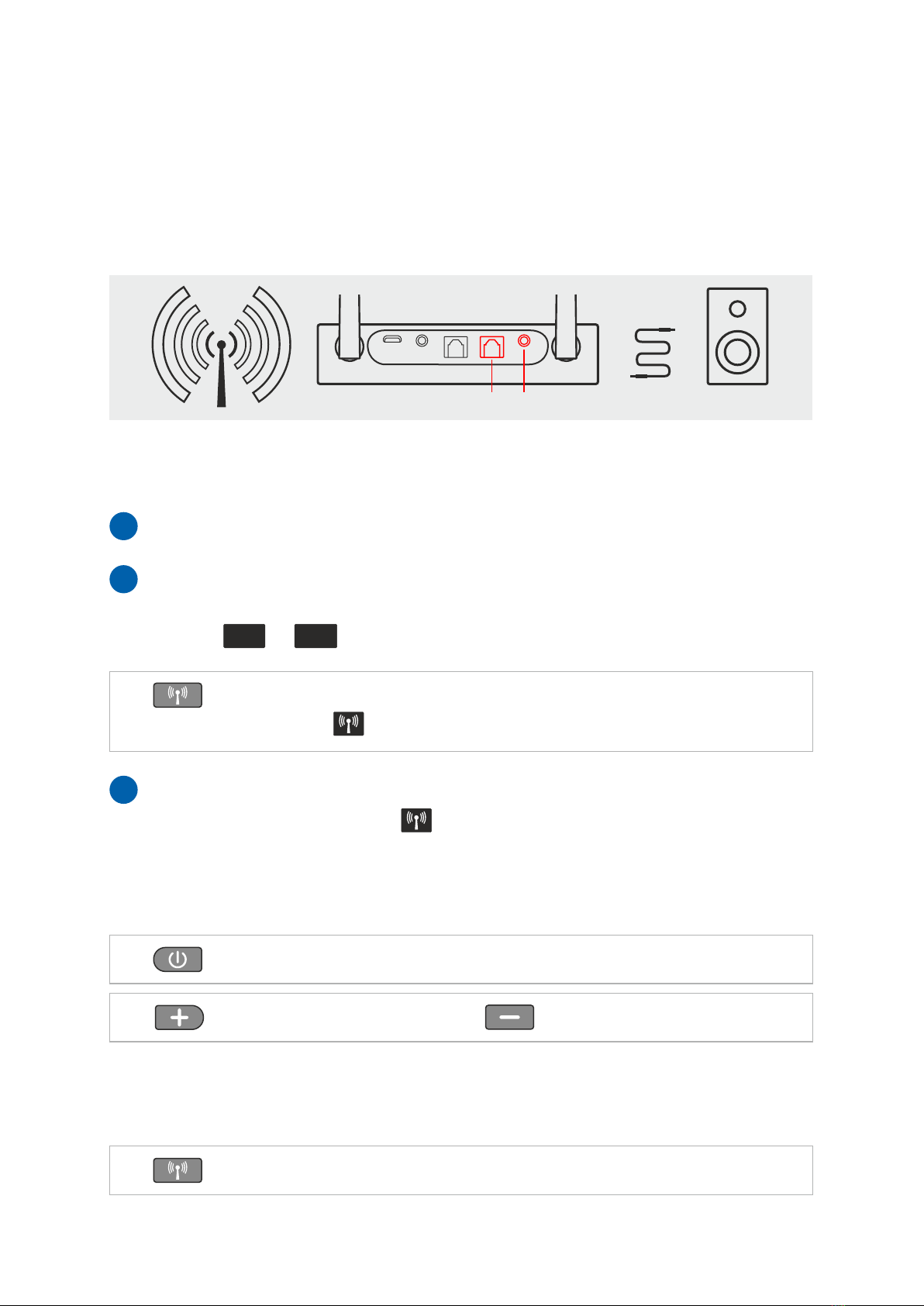

In Bluetooth Broadcast Receiving mode HearLink PLUS transfers the audio
from the Bluetooth broadcast transmitter to the speaker or stereo
headphone connected to RX output.
AUX
OPT Wired Speaker
Broadcast Receiving Mode
Setting Up HearLink PLUS in Receiving Mode
1
2
3
OPT AUX
Set Mode switch to to RX position.
Connect HearLink PLUS RX port to non-Bluetooth speaker, stereo
system, wired-headphone, etc., via optical or 3.5mm audio cable.
The lit or indicator shows the connection type.
HearLink PLUS will connect automatically to a nearby active Bluetooth
broadcast transmitter. The indicator will shine steadily.blue
Short press to place HearLink PLUS in Broadcast Receiving
mode. The indicator will blink.blue
Audio Playback in Broadcast Mode
Short press to toggle audio Play/Pause.
Increase the volume. Decrease the volume.
Exit Bluetooth Broadcast Mode
Press and hold for 3 sec to exit Broadcast mode.
Product Name: HearLink PLUS Product No.: BT5805A Doc.: HPUM_EN_Ver.01
HearLink PLUS User Manual

12
9

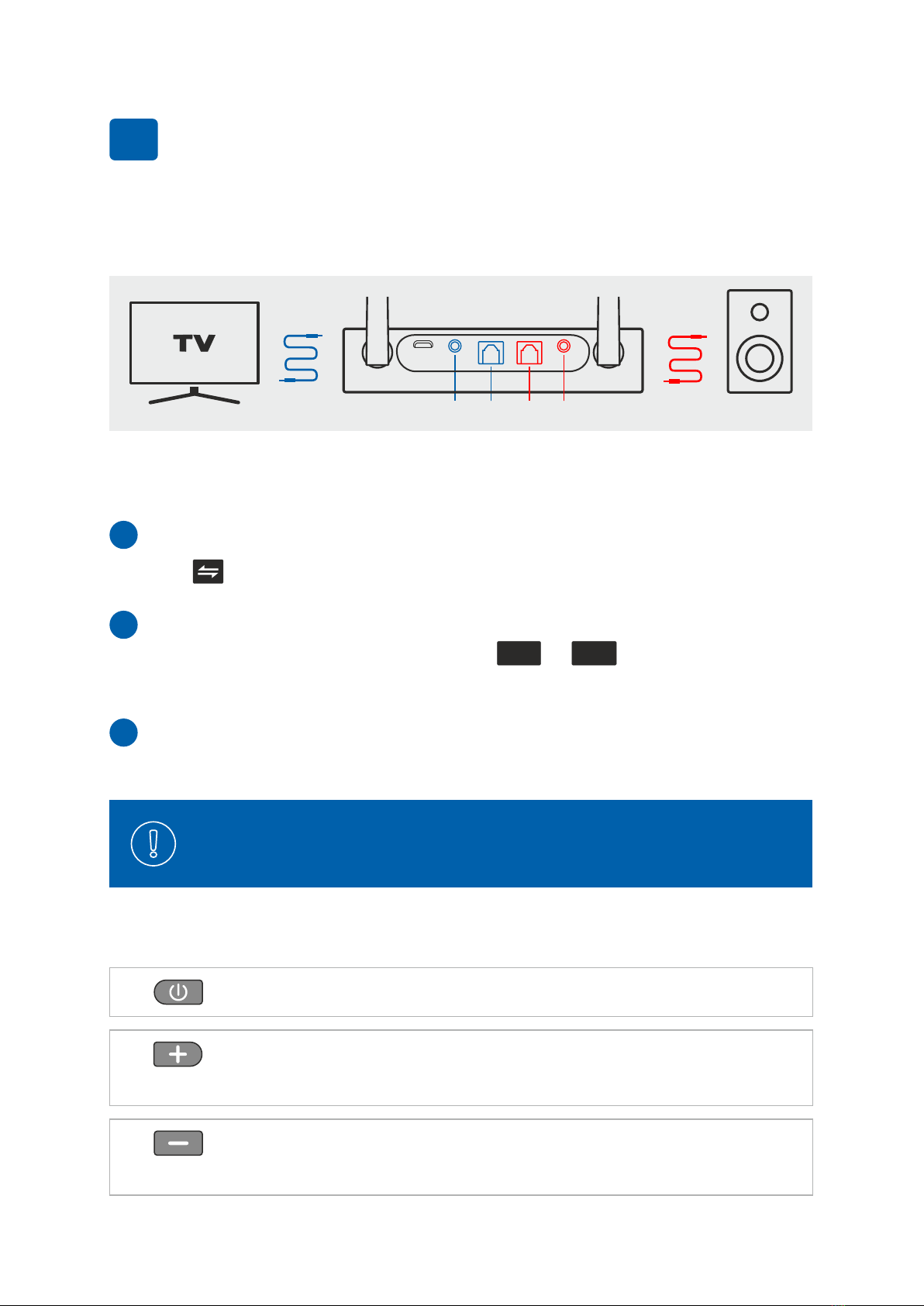

Bypass Mode
In Bypass mode HearLink PLUS transfers the audio from the TX input to the
speaker or stereo headphone connected to RX output.
AUX OPT AUX
OPT Wired Speaker
Setting Up HearLink PLUS in Bypass Mode
1
2
3
OPT AUX
Set Mode switch to Bypass position.
The indicator will shine steadily in Bypass mode.
Connect Hearlink PLUS TX port to TV or other multimedia device via
optical or 3.5mm audio cable. The lit or indicator shows
connection type.
Connect Hearlink PLUS RX port to a speaker via the same type of cable
as the TX port connection.
Audio Playback in Bypass Mode
Short press to toggle audio Play/Pause.
Increase the volume. A tone is played when
maximum volume is reached.
Decrease the volume. A tone is played when
minimum volume is reached.
AUX-to-AUX or optical-to-optical configurations are supported
in Bypass mode.
Product Name: HearLink PLUS Product No.: BT5805A Doc.: HPUM_EN_Ver.01
HearLink PLUS User Manual

13
RXTX
Press and hold for 8 sec until or indicator
blinks twice.
10
Clear Pairing List
11
Automatic Sleep Mode
HearLink PLUS will enter sleep mode automatically when:
Ÿit is not paired with a Bluetooth device within 10 minutes.
Ÿa paired Bluetooth device has been disconnected for more than 10
minutes.
12
Specifications
Bluetooth version
Operating range
Supported profiles
Supported audio CODECs
Dual stream
Input/output audio
Power supply
Current consumption
Operating temperature
Net weight
Dimensions
V5.0, Class I
Transmitter mode - up to 60m
Receiver mode – up to 40m
A2DP, AVRCP
aptX-LL, aptX, SBC
HearLink PLUS can connect two Bluetooth
headsets simultaneously
Stereo analog audio, optical fiber digital audio
5VDC, micro-USB
Up to 220mA
-10 to +55°C (14 to 131°F)
99 g (3.5 oz.)
127mm x 85mm x 26.3mm
(5.00 x 3.35 x 1.05 inches)
Product Name: HearLink PLUS Product No.: BT5805A Doc.: HPUM_EN_Ver.01
HearLink PLUS User Manual

14
Product Name: HearLink PLUS Product No.: BT5805A Doc.: HPUM_EN_Ver.01
HearLink PLUS User Manual
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
ŸReorient or relocate the receiving antenna.
ŸIncrease the separation between the equipment and receiver.
ŸConnect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
ŸConsult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment. This device
complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC ID: 2AM3S-BT5805A
EU Compliance Statement
Alango Technologies Ltd. hereby declares that this wireless device is in
compliance with the essential requirements and other relevant provisions of the
R&TTE Directive. A copy of the EU Declaration of Conformity is available at
www.wearandhear.com/compliance.
European Union –
Disposal Information
The symbol above means that according to local laws and regulations your
product and/or its battery shall be disposed of separately from household waste.
When this product reaches its end of life, take it to a collection point designated
by local authorities. The separate collection and recycling of your product and/or
its battery at the time of disposal will help conserve natural resources and ensure
it is recycled in a manner that protects human health and the environment.
Product Name: HearLink PLUS Product No.: BT5805A Doc.: HPUM_EN_Ver.01
HearLink PLUS User Manual
