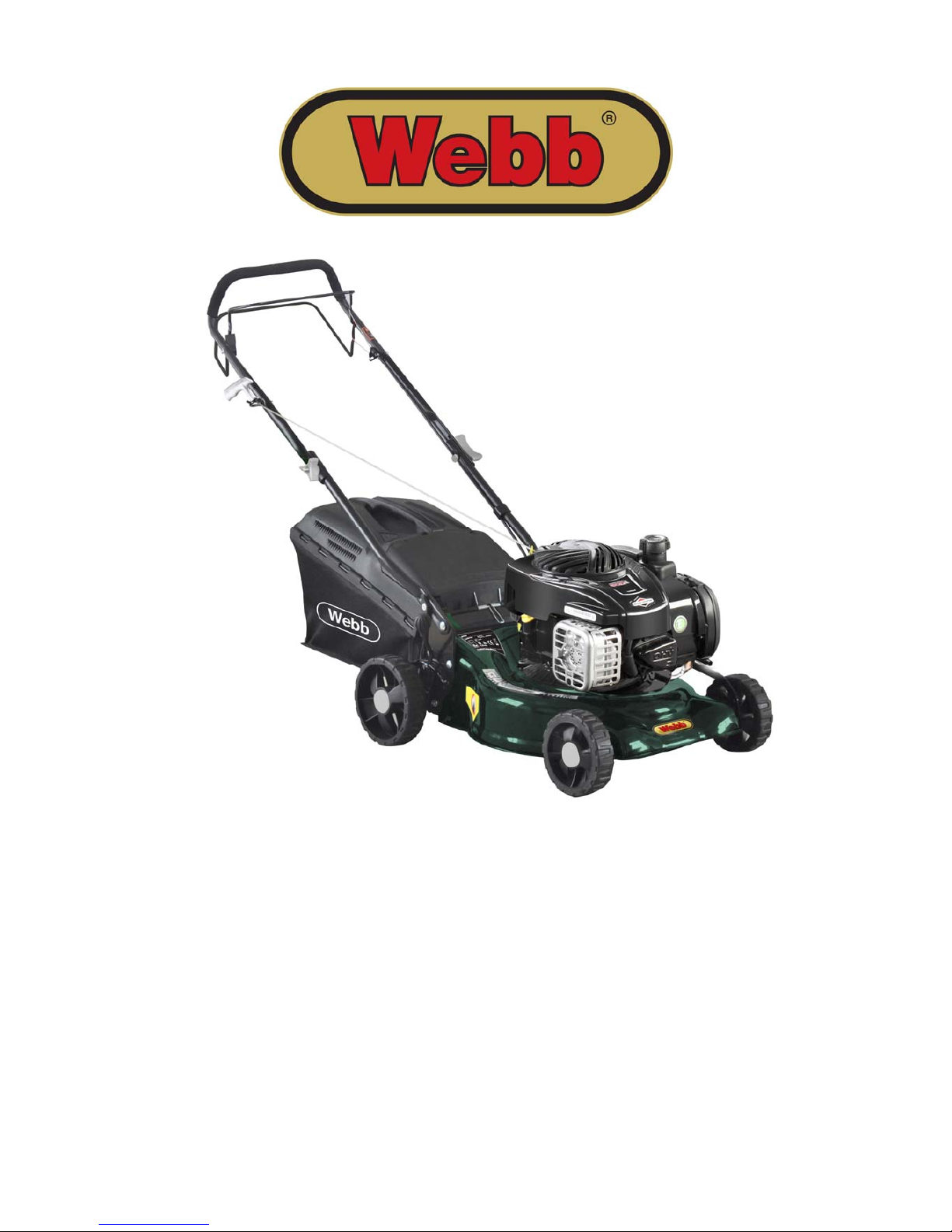

Webb WER16SP Programming manual

OPERATOR’S MANUAL AND PARTS LIST
SELF PROPELLED PETROL LAWNMOWER
WER16SP
Spares & Support: 01793 333212
www.webblawnmowers.co.uk
Before use please read & understand this manual, paying particular attention to
the safety instructions.
193837001 14/11/2014 v2

Thank you for choosing our petrol lawnmower.
To ensure that you get the best results from your petrol lawnmower please read all of these safety and
operating instructions carefully before using this product.
TABLE OF CONTENTS PRODUCT SPECIFICATION
Product Specifications……………………….1
Safety Rules……………………………….1-3 Model number WER16SP (193837001)
Assembly/Pre-Operation……………….....3-6 Petrol engine B&S450eseries125cc
Operation……………………………….....7-9 Engine speed 2800rpm
Maintenance……………………………...9-11 Cutting width 420mm
Storage……………………………………...10 Adjustable cutting height 15-65mm
Environment…………………….………….10 Grass collection capacity 40L

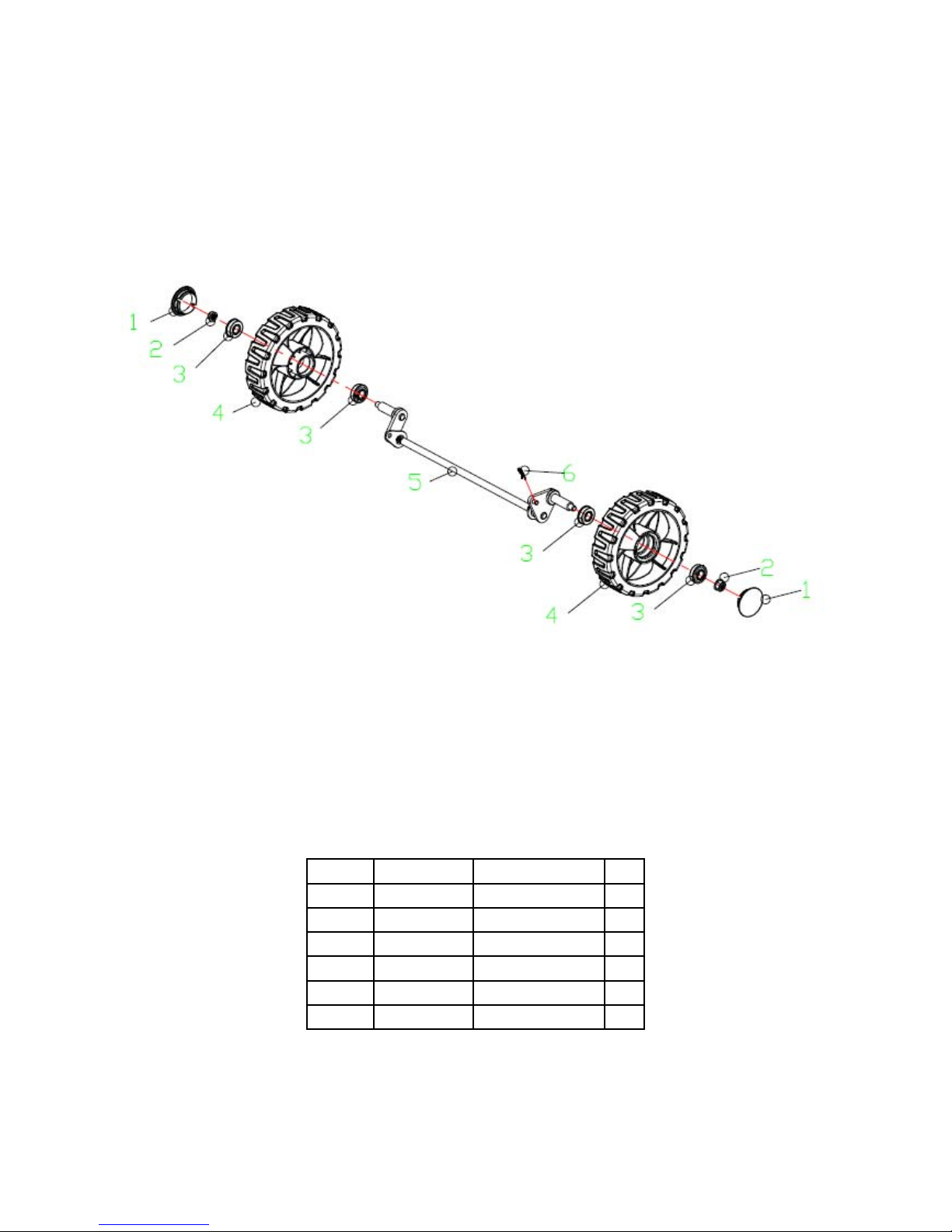

Parts Diagram and Lists...………………11-16 Sound Pressure Level 90.8 dB(A)
DOC………………………………………..17 Guaranteed Sound Power Level 96dB(A)
Warranty……………..............................18-19 Max. vibration value 2.67m/ s2
Also Available From Webb…………….......21 Steel Deck
Warranty Registration…………………..22-23
IMPORTANT: Failure to observe the following safety instructions could result in serious injury.
WARNING: In order to prevent accidental starting when setting up, transporting, adjusting or making
repairs, always the disconnect the spark plug lead.
CAUTION: Exhaust and other engine parts become extremely hot during operation and remain hot after
engine has stopped. To avoid severe burns on contact, stay away from these areas.
Drive lever
Brake lever
Grass collector
Height adjust handle
Triangle knob
B&S 450E series
Hose connector
Fuel cap
Air Filter
Starter Handle
1

1. GENERAL OPERATION AND SAFETY RULES
zRead the instructions carefully. Be familiar with the controls and the proper use of the equipment.
zDo not put your hands or feet near or under rotating parts. Keep clear of the discharge opening at all
times.
zOnly allow responsible individuals, who are familiar with the instructions, to operate the machine.
zThoroughly inspect the area where equipment is to be used and remove all objects, which could be
thrown by the machine.
zNever mow while people, especially children, or pets are nearby.
zWhile mowing, always wear appropriate footwear and trousers. Do not operate the equipment when
barefoot or wearing open sandals.
zDo not pull the mower backwards unless absolutely necessary.
zNever operate the lawnmower with defective guards, or without safety devices, for example
deflectors and/or grass catchers, in place.
zOnly use accessories approved by the manufacturer.
zStop the blade(s) when crossing gravel drives, paths, or roads.
zStop the engine and disconnect the spark plug:
-before clearing blockages or unclogging the chute.
-before checking, cleaning or working on the lawnmower.
-after striking a foreign object. Inspect the lawnmower for damage and make repairs before
restarting and operating the lawnmower.
-if lawnmower starts to vibrate abnormally (check immediately).
zShut the engine off and wait until it has come to a complete stop before removing the grass catcher.
zMow only in daylight or good artificial light.
zDo not operate the machine while under the influence of alcohol or drugs.
zNever operate machine in wet grass, this could cause slipping.
zKeep a firm hold on the handle and walk; never run.
zDisengage the self-propelled mechanism before starting the engine.
zAlways wear safety goggles or safety glasses with side shields when operating the mower.
zRemove obstacles such as rocks, tree limbs, etc.
zWatch for holes, ruts, or bumps. Tall grass can hide obstacles.
zDo not trim near drop-offs, ditches or embankments. The operator could lose their footing or balance.
zDo not mow excessively steep slopes.
zKeep in mind that the operator or user is responsible for accidents or hazards involving the machine
that could occur to other people or their property.
zBe alert and turn the machine off if children enter the area.
zFor wheeled rotary machines, mow across the face of slopes, never up and down.
zNever allow children or people unfamiliar with these instructions to use the lawnmower.
zWARNING-Petrol is highly flammable.
-store fuel in containers specifically designed for this purpose;
-refuel outdoors only and do not smoke while refueling;
-add fuel before starting the engine. Never remove the cap of the fuel tank or add petrol while the
engine is running or when the engine is hot;
-if petrol is spilled, do not attempt to start the engine but move the machine away from the area
of spillage and avoid creating any source of ignition until the petrol vapours have dissipated;
-replace fuel tanks and container caps securely.
2

zBefore using, always visually inspect to ensure that the blade, blade bolts and cutter assembly are not
worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
zNever tamper with safety devices. Regularly check that they are operating properly.
zKeep the machine free of grass, leaves, or other debris build-up. Clean oil or fuel spillage. Allow the
machine to cool before storing.
zExercise extreme caution when changing direction on slopes.
zNever attempt to make wheel height adjustments while the engine is running.
zGrass catcher components are subject to wear, damage, and deterioration, which could expose
moving parts or allow objects to be thrown. Frequently check components and replace with the
manufacturer’s recommended parts, when necessary.

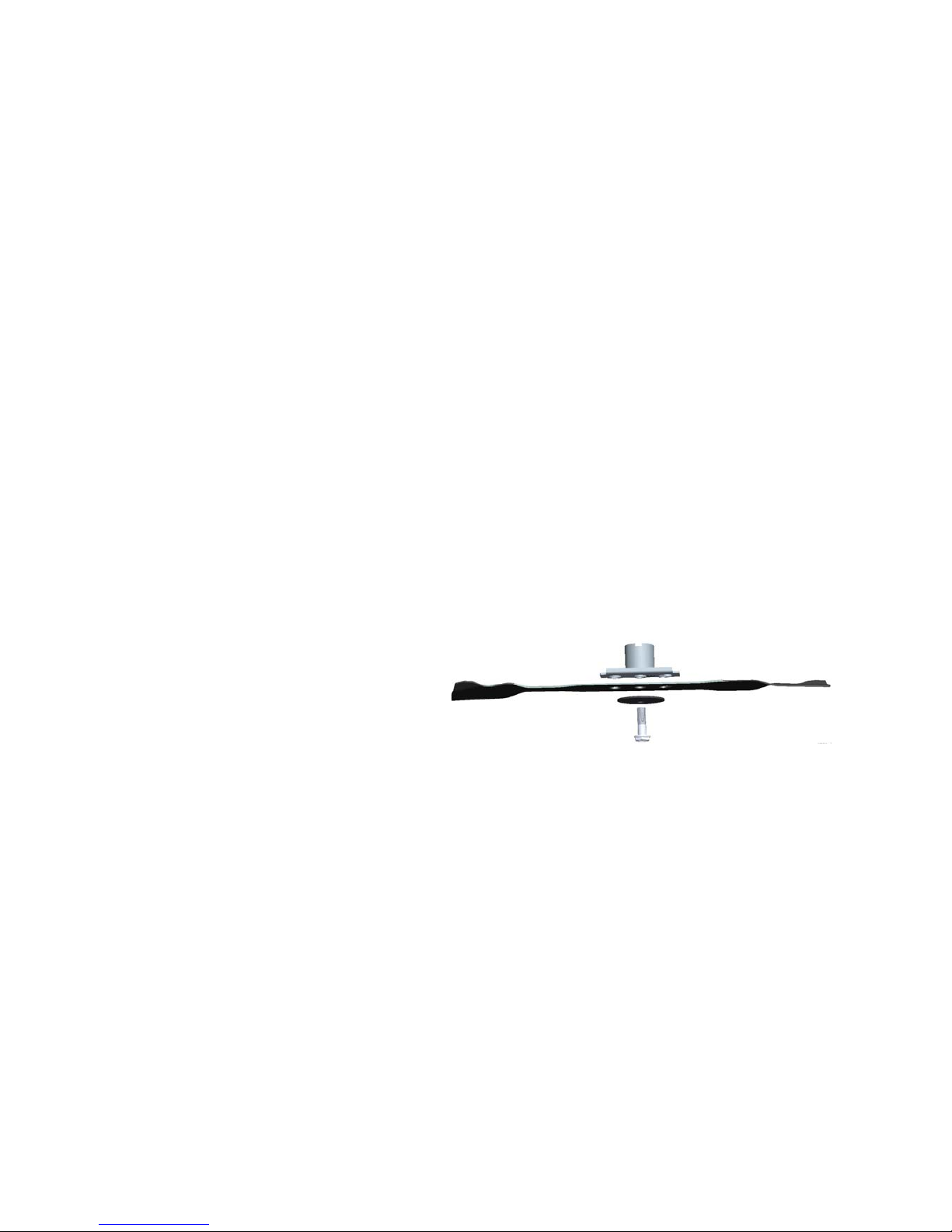

zThe mower blades are extremely sharp. Wrap the blade, wear gloves, and use extra caution when
servicing them.
zDo not change the engine governor setting or over-rev the engine.
zStop the engine if the lawnmower has to be tilted for transportation when crossing surfaces other than
grass, and when transporting the lawnmower to and from the area to be mowed.
zDisengage the drive clutch before starting the engine.
zStart the engine carefully according to the instructions, with your feet well away from the blade.
zDo not tilt the lawnmower when starting the engine or cutting.
zDo not start the engine when standing in front of the discharge chute.
zNever pick up or carry a lawnmower while the engine is running.
DANGER – Rotating Warning! Keep hands
Read blades.Keephands andfeetclearofthe
Operator’s andfeetoutof cuttingdeckwhenthe
Manual. Openings while machine is running.
. Machine is running.
Warning!Beforestarting
Keep Beforeyouworkon anyrepairwork,remove
Bystanders thecuttingequipment, thesparkplugcable
Away. removethespark plug fromthesparkplug.
socket.
Warning! Keep other persons
RemoveObjectsthatcould atasafedistancewhen
Bethrownbytheblade. usingthislawnmower.
ASSEMBLY/PRE-OPERATION
Read this instruction manual in its entirety before you assemble or operate your new lawnmower.
IMPORTANT: The lawnmower is shipped WITHOUT OIL OR PETROL in the engine.
Your new lawnmower has been assembled and tested at the factory.
Roll the lawnmower out of the carton and check the carton thoroughly for additional loose parts.
3

To avoid damage during the transport process, the drive and brake cables for your machine may not be
fitted to their appropriate handle bar.
The front cable is the brake cable, which is to be fitted to the front lever on your machine, this is the
Operator Presence Control Lever (OPC). The cable at the rear is your drive cable, which is to be fitted to
the rear lever, which is your Drive Lever.
Apply inward pressure to the lever assembly on the left hand side of the machine, to remove the lever lug
from the handle assembly.
Brake Cable
Drive Cable
4

Insert the Brake Cable into the OPC Lever.
Insert the Drive Cable into the Drive Lever.
Re-seat the lever assembly back into the main handle.
5

INSTALLATTACHMENTS
Your lawnmower was shipped ready to be used as a rear bag mower.
The mower has three different operating modes.
1. Collecting:
• Fit the grassbox by lifting the rear flap on the mower and hook the front of the box to the shaft on the
mower.
• Lower the flap to lock the grassbox in position.
• When the box is full, the grass will be visible through the viewing window in the top of the box.
• Stop the engine before emptying the grassbox.
2. Rear Discharge:
• With the grassbox removed and the rear flap in the down position, the mower will cut and discharge the
grass from the rear of the machine.
3. Mulching:
• Fit the mulch plug to the rear discharge opening of the mower and close the rear flap.
• The mower will now recycle the chopped grass into the lawn surface.
• To mulch efficiently only cut one third of the length of the grass.
ASSEMBLE HANDLE
Fit the Lower Handle to the frame of the lawnmower.
Insert 1x Square Neck Bolt M8x30 in the lower hole of the handle and frame from the outside.
Once through, add the Flat Washer and Small Triangle Knob with M8 Hex Nut, tighten until they are
secure.
Enter Hex Bolt M8x16 into the second lower handle fixing and frame hole from the outside.
Once through, add Lock Nut M8/8.8 and tighten.
Fit the Top Handle to the Lower Handle.
There are two holes in the Upper Handle, insert the Carriage Bolt M8x50 from the inside through the
Lower Handle and your selected hole in the Upper Handle to assemble the handle at your chosen height.
Once through, fit a Flat Washer and Large Triangle Knob with an M8 Hex Nut, tighten until they are
secure.
6

OPERATION
Operator Presence Control (OPC) Bar - must be held down to the handle to start the engine. Release to
stop the engine.
Starter rope - used to start the engine.
Drive control lever - used to engage self- propelled motion of the lawn mower.
LAWNMOWER ENGINE SPEED
The engine speed was set at the factory for optimum performance. Speed is not adjustable.
DRIVE CONTROL (Model: WER16SP)
zThe drive is controlled by holding the Operator Presence Control bar down to the handle and pulling
the drive control lever back towards the handle.
zForward motion will stop when the operator presence control bar is released. To stop forward motion
without stopping the engine release the drive control lever until the drive control disengages and hold the
operator presence control bar down against handle to continue mowing without the drive.
ADJUST CUTTING HEIGHT
Lower the cutting deck for a low cut and raise the deck for a high cut; adjust cutting height to suit your
requirements. Medium position is best for most lawns.
7

BEFORE STARTING ENGINE ADD OIL
Before each subsequent use the oil level must be checked and if necessary topped up with SAE30 engine
oil.
OIL FILLER CAP/DIPSTICK
Your lawnmower is shipped without oil in the engine.
CAUTION: DO NOT overfill the engine with oil, or it will smoke heavily from the exhaust on startup.
1. Be sure that the lawnmower is on level ground.
2. Remove the oil dipstick from the oil fill spout.
3. Insert and tighten the dipstick.
IMPORTANT:
zCheck the oil level before each use. Add oil if needed. Fill to the full line on the dipstick.
zChange the oil after every 25 hours of operation or each season. You may need to change the oil
more often under dusty, dirty conditions. See “TO CHANGE ENGINE OIL” in the Maintenance
section of this manual.
ADD PETROL
zFill fuel tank to the bottom of the tank filler neck. Do not overfill. Use fresh, clean, regular unleaded
petrol. Do not mix oil with petrol. Purchase fuel in quantities that can be used within 30 days to
ensure fuel freshness. Old or stale fuel can cause damage to the engine carburettor which would
not be covered under the warranty.
CAUTION: Wipe off any spilled oil or fuel. Do not store, spill or use petrol near an open flame.
FUEL TANK CAP
UPPER LIMIT
LOWER LIMIT
8

CAUTION: To avoid engine problems, the fuel system should be emptied before being stored for 30 days
or more. Empty the fuel tank, start the engine and let it run until the fuel lines and carburettor are empty.
Use fresh fuel for your next use of the machine. See Storage Instructions for additional information.
Never use engine or carburettor cleaner products in the fuel tank, permanent damage may occur.
START ENGINE
To start the engine, first make sure that the spark plug is tightened and that the machine is filled with
sufficient oil and petrol.
NOTE: Due to the protective coating on the engine, a small amount of smoke may be present during the
initial use of the product and should be considered normal.
Press the primer bulb 3 times to allow fuel into the engine (for the first use, press 5 times).
Hold the Operator Presence Control bar down to the handle and pull the starter handle quickly.
Do not allow the starter rope to snap back.
STOP ENGINE
zTo stop engine, release the Operator Presence Control bar.
zDisconnect the spark plug cap if the lawnmower is to be left unattended.
MOWING TIPS
zUnder certain conditions, such as very tall grass, it may be necessary to raise the height of the cut to
reduce the pushing effort and to keep from overloading the engine and leaving clumps of grass
clippings. It may also be necessary to reduce ground speed and/or run the lawnmower over the area a
second time.
zFor extremely heavy cutting, reduce the width of cut by overlapping the previously cut area and mow
slowly.
zPores in cloth grass catchers can become filled with dirt and dust during use and catchers will collect
less grass. To prevent this, regularly hose the catcher off with water and let it dry before using.
zKeep the top of the engine around the starter clean and clear of grass clippings and chaff. This will
assist engine air flow and extend engine life.
MAINTENANCE
IMPORTANT-Regular, careful maintenance is essential for keeping the safety level and original
performance of the machine unchanged over time.
1) Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition. Regular
maintenance is essential for safety and performance.
2) Never store the equipment with fuel in the tank inside a building where vapour may reach a flame,
spark or source of extreme heat.
3) Allow the engine to cool before storing in an enclosed space.
4) To reduce the fire hazard, keep the engine, exhaust silencer, battery compartment and fuel storage area
free of grass, leaves, or excessive grease. Remove grass cuttings from containers before storage.
5) Do not use equipment with worn or damaged parts. Parts should be replaced not repaired. Only use
genuine spare parts. Parts that are not of the same quality can damage the equipment and create safety
hazards.
6) If the fuel tank has to be drained, this should be done outdoors and when the engine is cool.
7) Wear strong work gloves when removing and reassembling the blade.
9

8) Check the blade’s balance after sharpening.
9) Check the self-closing guard and grass-catcher frequently for wear and deterioration.
10) Whenever the machine is to be handled, transported or tilted you must:
- Wear strong working gloves.
- Grasp the machine at the points that offer a safe grip, clear of the blade and taking account of the weight
of the machine and its distribution.
CLEANING
Your lawnmower has been supplied with a hose pipe connector towards the back of the deck. This enables
you to clean your machine, using your garden hose. Clip the hose to the machine using a standard hose
connector. Turn on your tap. Ensure that any trailing hose is away from the machine deck. Start the
machine. The momentum of the blade rotation will force water around the deck to clean it.
Carefully clean the machine after each cut to ensure an easy start-up next time you use the machine. Be
sure to remove grass debris and mud accumulated inside the chassis before it dries.
If you need to tilt the mower while cleaning always tip it backwards towards the handles, do not tip it on
its side as this will cause oil to enter the carburettor or exhaust.
The paintwork on the inside of the chassis may peel off over time due to the abrasive action of the cut
grass; when this occurs you must touch up the paintwork using a rustproof paint as soon as possible to
prevent the formation of rust that would lead to corrosion of the metal.
Remove the transmission casing by removing the screws and clean around the transmission and drive
belts with a brush or compressed air once or twice a year.
Once every season, the drive wheels should be cleaned internally. Remove both wheels. Clean the gear
wheel and the wheel gear rim of grass and dirt using a brush or compressed air.
CHANGING BLADES
Empty the oil tank before removing the blade.
To replace the blade, undo the screw.
Reinstall as illustrated. Tighten the screw properly. Tightening torque 45 Nm.
When replacing the blade, the blade screw should also be replaced.
STORAGE
The same petrol must not remain in the tank for more than 30 days.
Thoroughly clean the mower and store it indoors in a dry place.
THE ENVIRONMENT
In order to protect the environment, we recommend that the following points should be given special
consideration:
zAlways use pure unleaded petrol.
zAlways use a funnel and/or petrol can with a level control to avoid spillage when refilling the fuel
tank.
zDo not fill the fuel tank completely.
zDo not overfill with engine oil.
zWhen changing the oil, ensure that all the used oil is collected. Avoid spillage. Take the used oil to a
recycling unit.
10

zDo not dispose of used oil in a rubbish bin. Take it to a recycling unit.
zReplace the silencer if faulty. Always use the Manufacturer’s original spare parts.
zAlways seek professional help when the carburettor requires adjustment.
zClean the air filter according to the instructions.
PARTS DIAGRAM AND LIST – HANDLE ASSEMBLY
Item No Part Number Description Qty Item No Part Number Description Qty
1QG112-1 Foam Handle Cover 113 WE113-17 Flat Washer 8.4x16x1.6 4
2QG112-2 Brake Lever 114 WE113-72 Carriage Bolt M8x50 2
3WE113-8 Bolt M6x30 215 WE113-74 Triangle Knob Small (Grey) 2
4WE113-10 Plastic Stopper 116 QG112-4 Square Neck Bolt M8x32/8.8 2
5WE113-7 Brake Cable Assembly Plate 117 QG112-5 Square Neck Bolt M8x20/8.8 2
6WE113-9 Lock Nut M6/8.8 218 QG112-6 Lower Handle 2
7WE113-4 Top Handle 119 WE113-21 Cable Fastener 1
8WE113-5 Rope Guide 120 QG112-7 Small Knob 2
9WE113-6 Cap Nut M6/8.8 121 QG112-8 Handle Stopper 2
10 QG112-3 Brake Cable 122 WE117-1 Self Propelled Cable 1
11 WE113-19 Hex Nut M8 623 WE117-2 Self Propelled Lever 1
12 WE113-73 Triangle Knob Large (Grey) 2
11

PARTS DIAGRAM AND LIST – DECK ASSEMBLY
Item
No Part Number Description Qty Item No Part Number Description Qty
1WE116-2 B&S 450e Petrol Engine 113 QG112-17 Height Adjustment Rod 1
2QG112-10 Self-Tapping Screw ST6.3x18 214 WE117-3 Self-Tapping Screw 5
3QG112-11 Large Washer 6x18x1.6 215 WE117-4 Deck 1
4WE113-9 Lock Nut M6/8.8 316 QG112-20 Height Adjustment Board 1
5QG112-12 Rear Discharge Base A 217 QG112-21 Right Rear Bracket 1
6QG112-13 Rear Discharge Base B 118 WE113-25 "O" Ring 11.2x2.65 1
7QG112-14 Bolt M6x16 319 WE113-26 Hose Connector Inlet 1
8WE113-12 Lock Nut M8/8.8 620 WE113-27 Hose Connector Nut M12x1.25 1
9QG112-15 Left Rear Bracket 121 WE113-28 Cable Stopper 1
10 WE113-34 Square Neck Bolt M8x15/8.8 622 WE117-5 Pressure Plate 2
11 WE113-42 Lock Nut M6/8.8 423 WE117-23 Mulch Plug 1
12 QG112-16 Bolt M6x12 4
12

PARTS DIAGRAM AND LIST – FRONT AXLE ASSEMBLY
Item No Part Number Description Qty
1 QG112-20 Wheel Trim (Grey) 2
2 WE113-52 Lock Nut M8 2
3 WE113-51 Wheel Bearing 4
4 QG112-21 Front Wheel 2
5 QG112-22 Front Axle 1
6 WE113-40 R Pin 1.5x25 1
13

PARTS DIAGRAM AND LIST – REAR AXLE ASSEMBLY
Item No Part No Description Qty Item No Part No Description Qty
1WE113-40 R Pin 1.5x25 110 WE113-51 Bearing 4
2WE117-6 Drive Cog Left 111 WE117-21 Wheel 2
3WE117-7 Drive Pin 212 WE117-13 Inner Wheel Cover 2
4WE117-8 Self-Propelled Washer 413 WE117-14 Height Adjuster Handle 1
5WE117-9 Spring Washer 614 WE117-15 Rear Wheel Axle Sleeve 2
6WE117-10 Drive Cog Right 115 WE117-16 Self-Propelled Spring 1
7WE117-11 Rear Axle 116 WE117-17 Gearbox Assembly 1
8WE117-12 Wheel Trim (Grey) 217 WE117-18 Drive V Belt 1
9WE113-52 Lock Nut M8 210 WE113-51 Bearing 4
14

PARTS DIAGRAMAND LIST – GRASS COLLECTORASSEMBLY
Item No Part Number Description Qty
1 QG112-26 Lock Washer 2
2 QG112-27 Rear Discharge Cover 1
3 WE113-64 Rear Discharge Cover Spring 1
4 QG112-28 Rear Discharge Cover Shaft 1
5 QG112-29 Grass Collector Breather 1
6 QG112-30 Grass Collector Board 1
7 QG112-31 Grass Collector Top 1
8 QG112-32 Gasket 4
9 QG112-33 Self-Tapping Screw ST6.3x14 4
10 QG112-34 Grass Collector Frame 1
11 QG112-35 Grass Collector Bag (Unbranded) 1
15

PARTS DIAGRAM AND LIST – BLADE ASSEMBLY
Item No Part Number Description Qty
1WE114-19 Chassis bushing 2
2WE117-19 Belt Cover 1
3WE114-21 Hex Self-Tapping Screw 3/8-16x1ST 1
4WE114-20 Hex Self-Tapping Screw 3/8-16x1ST 30mm 2
5WE117-20 Blade Adapter 1
6QG113-37 Blade 1
7WE113-70 Blade Washer 1
8WE113-71 Hex Flange Bolt 50mm 1
16

EC Declaration of Conformity
We, Importer
Handy Distribution
SN3 5HY
Declare that the product
Designation: 125cc Petrol Lawnmower
Model: WER16SP
Complies with the following directives:
2006/42/EC- Machinery Directive
2004/108/EC- Electromagnetic Compatibility Directive
2000/14/EC amended by 2005/88/EC-Noise Emission in the Environment by Equipment for
Use Outdoors Directive.
The conformity assessment procedure followed was in accordance with
Directive 2006/42/EC Annex VI
Name of the Notified Body: TÜV Product Service
Address: No. 88 Heng Tong Road, Shanghai 200070, P.R. China
-Measured Sound Pressure Level: 90.8 dB (A)
-Guaranteed Sound Power Level: 96 dB (A)
Standards and technical specifications referred to:
EN 836/A3:2004
ZEK01.2-08.2008
EN ISO 14982:2009
EN ISO 3744:1995
ISO 11094:1991
Authorised signatory and technical file holder
Date: 30/7/2014
Signature:
Name / title: Mr. Simon Belcher / Managing Director
Murdock Rd, Swindon, Wiltshire, SN3 5HY.
17

GJ HANDY & CO LTD USER WARRANTY POLICY
GJ Handy & Co Ltd reserve the right to change specifications and/or price without notice
Version 2 08-2014
1. Users Statement of Warranty
Each new machine is warranted against defective material or assembly of material under normal usage. The
warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and
repairing those parts, which are of original manufacture.
2. Period of Warranty
All Webb, Handy Pro (Brushcutter & Long Handle Hedgecutter only) and Sanli domestic products
(a) 2 years from the original date of sale to the first domestic user.
(b) 90 days from the original date of sale to the professional/commercial user.
(c) 90 days from the original date of sale when used for hire.
(d) Engines as per the manufacturer’s warranty statement which will be supplied with the machine.
(e) 90 days from the original date of purchase for Replacement Spare Parts.
(f) All machines must be serviced within the first 12 months from the original date of purchase to comply
with the warranty, failure to do so will invalidate the second year of the warranty.
(g) A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear
(e.g. wheels, tyres, cutter bars, cylinders, bottom blades, belts, cables, grass bags, spark plugs).
All Handy, Handy Pro (All others), Mowerland and Q-Garden domestic products
(a) 1 year from the original date of sale to the first domestic user.
(b) 90 days from the original date of sale to the professional/commercial user.
(c) 90 days from the original date of sale when used for hire.
(d) Engines as per the manufacturer’s warranty statement which will be supplied with the machine.
(e) 90 days from the original date of purchase for Replacement Spare Parts.
(f) A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear
(e.g. wheels, tyres, cutter bars, cylinders, bottom blades, belts, cables, grass bags, spark plugs).
All warranty repairs must be undertaken by an authorised service dealer. These dealers have been accredited
by GJ Handy & Co Ltd and agree to only use genuine parts and follow our repair procedures.
18

GJ HANDY & CO LTD USER WARRANTY POLICY
GJ Handy & Co Ltd reserve the right to change specifications and/or price without notice
Version 2 08-2014
3. Not covered by this warranty
(a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or
corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident.
(b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services
instructed by the operators manual, or service parts replacement which would include oil, filters, tyres,
belts, brake linings, fuses, blades, seals and other service parts unless it can be proven that the item has
evidence of faulty manufacture.
(c) The warranty policy will not cover failure or damage caused as a result of parts or accessories being
modified without the written approval of GJ Handy & Co Ltd.
(d) The warranty policy will not cover the unit if non-genuine parts have been fitted and as a result the unit
has been damaged.
(e) The warranty policy is non-transferable and is only applicable to the original purchaser.
4. Disclaimer
(a) This warranty is only a remedy for product defects. GJ Handy & Co Ltd will never issue a warranty for the
merchantability of a product or its fitness for a particular purpose.
(b) No person is authorised to make any warranties, representations or promises, expressed or implied, on
behalf of GJ Handy & Co Ltd, or to modify the terms conditions or limitation of this warranty policy in any
way.
(c) Neither GJ Handy & Co Ltd nor any company affiliated with GJ Handy & Co Ltd shall be liable in any
event or manner whatsoever for incidental or consequential damages or injuries, including, but not
limited to, loss of crops, loss of profit, out of pocket expenses or profits, rental of substitute equipment or
other commercial losses.
5. General
(a) Most warrantable failures show up within the first few weeks of use. These failures are usually
straightforward and warranty assessment is relatively easy.
(b) Failures relating to cutter decks and belts need careful investigation, as the cause may not always be
straightforward. Look for damage to blades and pulleys especially when the cutter belt or blade boss
have snapped or cracked as this could be due to impact damage.
(c) Customers should always refer to the operator’s instruction manual when any disputed problem arises,
you will find most areas covered within the manual.
19
