Weber Summit Series User manual

56589 10/30/11 AA
NOTE: Grills illustrated may have slight differences than model purchased.
THIS PROCEDURE SHOULD ONLY BE PERFORMED BY AN AUTHORIZED
WEBER-STEPHEN PRODUCTS LLC SERVICE TECHNICIAN
WARNING: GENUINE WEBER-STEPHEN REPLACEMENT PARTS MUST BE USED FOR ANY REPAIR OR REPLACEMENT.
YOUR ACTIONS, IF YOU FAIL TO FOLLOW THIS PRODUCT WARNING, MAY CAUSE A FIRE, AN EXPLOSION, OR
STRUCTURAL FAILURE RESULTING IN SERIOUS PERSONAL INJURY OR DEATH AS WELL AS DAMAGE TO PROPERTY.
(WILL VOID ALL WARRANTY PROTECTION.)
 DANGER: BEFORE PERFORMING ANY WORK MAKE SURE THE GAS SUPPLY IS TURNED OFF AT THE SOURCE.
FAILURE TO FOLLOW DANGERS, WARNINGS AND CAUTIONS CONTAINED IN THIS INSTRUCTION SHEET MAY CAUSE A
FIRE OR AN EXPLOSION RESULTING IN SERIOUS PERSONAL INJURY OR DEATH AS WELL AS DAMAGE TO PROPERTY.
REAR VENT ASSEMBLY
REPLACEMENT INSTRUCTIONS
ReaR
FilleR StRip
Replacement
BEFORE STARTING:
Make sure lid is closed
and casters are locked to
prevent grill from moving.
1DiScOnnectiOn OF GaS SOURce 2FilleR StRip RemOVal
A) Remove all front, side, and rear filler strips.
ReaR
Vent
Replacement
ReaR
Vent bRacket
Replacement
1
1
A) Make sure main gas source is completely turned off.
B) Located inside tank enclosure, disconnect main corrugated gas line from
bulkhead fitting, (1).
C) Pull main corrugated gas line through
island structure cavity and into grill
assembly. (Not Pictured)

1
2
4
5
6
GRill aSSemblY RemOVal
ReaR Vent RemOVal
ReaR Vent bRacket RemOVal
TOOLS NEEDED: - PHILLIPS
TOOLS NEEDED: - PHILLIPS
A) Unlock front casters of grill assembly (Not Pictured).
B) Pull grill assembly away from island structure.
A) Using a Phillips head screwdriver, remove screws that secure rear vent to
rear vent bracket (1).
B) Lift rear vent off grill assembly (2).
A) Using a Phillips head screwdriver, remove screws that secure rear vent
bracket to frame assembly (1).
B) Lift rear vent bracket off grill assembly hooks (2).
1 2
1
2
3 RemOVal OF
FROnt WHeel aliGnment panel
TOOLS NEEDED: - PHILLIPS
A) Using a Phillips head screwdriver, remove screws that secure front wheel
alignment panel to frame assembly (1).
B) Pull front wheel alignment panel away from grill assembly (2).

9
8
7GRill aSSemblY ReinStallatiOn
ReaR Vent inStallatiOn
ReaR Vent bRacket inStallatiOn
TOOLS NEEDED: - PHILLIPS
TOOLS NEEDED: - PHILLIPS
A) Push grill assembly into island structure.
B) Align each front caster so that v-shaped piece faces forward. Reach behind
each caster and push lock down. (Not Pictured)
A) Place rear vent onto frame assembly (1).
B) Using a Phillips head screwdriver, install screws that secure rear vent to
rear vent bracket (2).
A) Place rear vent bracket onto frame assembly hooks (1).
B) Using a Phillips head screwdriver, install screws that secure rear vent
bracket to frame assembly (2).
• REPLACEMENT PART INSTALLATION
10 ReinStallatiOn OF
FROnt WHeel aliGnment panel
TOOLS NEEDED: - PHILLIPS
A) Make sure v-shaped piece of each caster is facing outward away from
island structure (1).
B) Place front wheel alignment panel onto grill assembly (2).
C) Using a Phillips head screwdriver, install screws that secure front wheel
alignment panel to grill assembly (3).
1
2
1
2
1
2 3

12 cOnnectiOn OF GaS SOURce
11 FilleR StRip inStallatiOn
A) Install all front, side, and rear filler strips.
1
1
A) Make sure main gas source is completely turned off.
B) Pull main corrugated gas line through grill assembly into island structure
cavity. (Not Pictured)
C) Connect main corrugated gas line to
bulkhead fitting, which is located inside
tank enclosure (1).
DO NOT OVERTIGHTEN GAS LINE
FITTING.

13

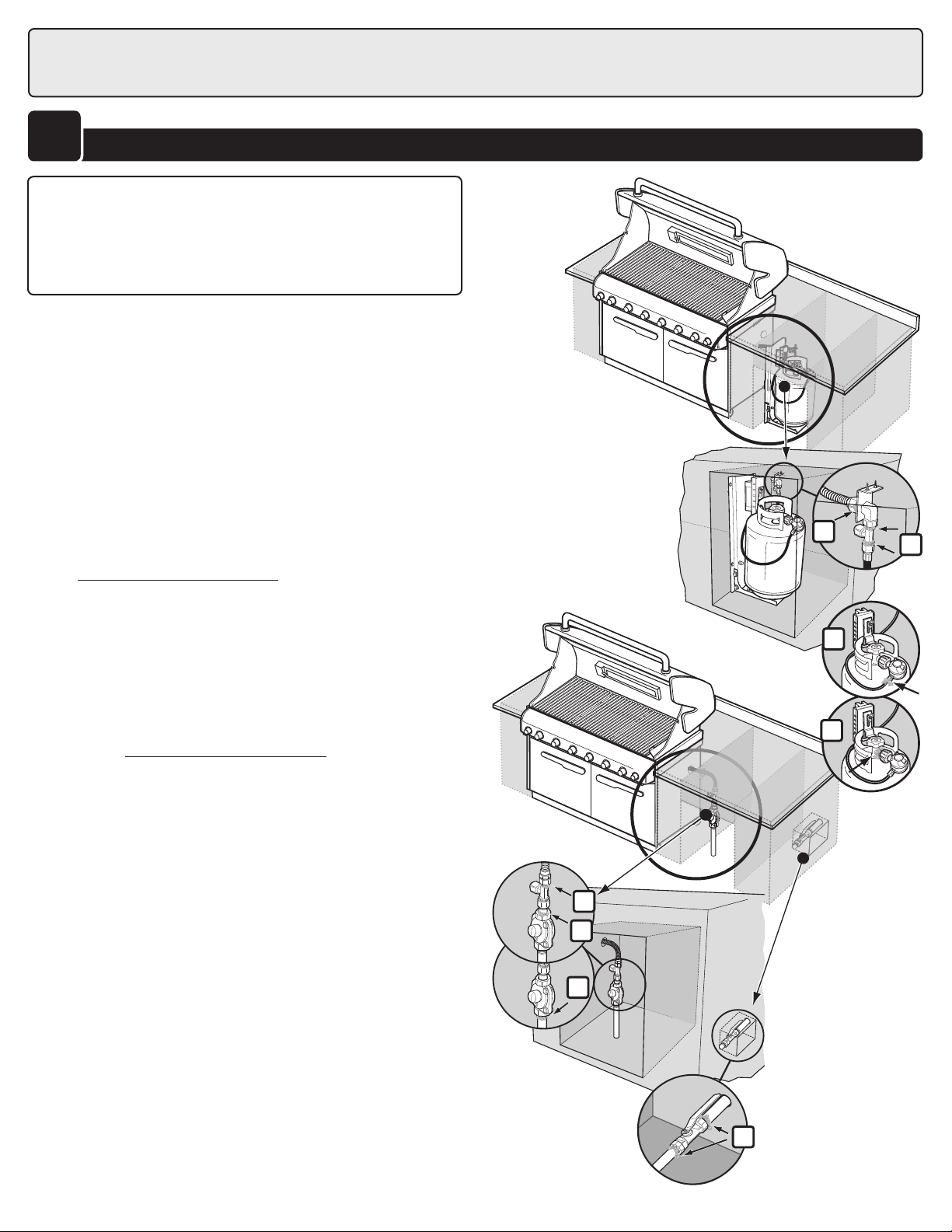

cHeck FOR GaS leakS
 DANGER
Do not use an open flame to check for gas leaks. Be sure
there are no sparks or open flames in the area while you
check for leaks. Sparks or open flames will result in a fire
or explosion, which can cause serious bodily injury or
death and damage to property.
You will need: a soap and water solution and a rag or brush to apply it.
A) Mix soap and water.
B) Turn on gas supply at source.
C) Check for leaks by wetting fittings with soap and water solution and
watching for bubbles. If bubbles form, or if a bubble grows, there is a leak.
D) When leak checking is complete, turn gas supply off at the source and rinse
connections with water.
Check:
A) LP: Corrugated gas line-to-bulkhead connection (1).
B) Bulkhead-to-gas supply hose connection (2) (5).
C) Bulkhead-to-regulator connection (6).
D) NG: Regulator-to-gas supply connection (7).
 DANGER: If there is a leak at connection (1, 2, 5, 6 or 7),
retighten the fitting with a wrench and recheck for leaks
with soap and water solution. If a leak persists, turn OFF the
gas. DO NOT OPERATE THE GRILL. Failure to follow dangers,
warnings and cautions contained in this Instruction sheet may
cause a fire or an explosion resulting in serious personal injury
or death as well as damage to property. Contact the Customer
Service Representative in your area using the contact
information on our web site. Log onto www.weber.com®.
E) LP: Hose-to-regulator connection (3).
F) LP: Regulator-to-cylinder connection (4).
G) NG: Gas supply-to-shutoff connection (8).
 DANGER: If there is a leak at connection (3, 4 or 8), turn
off the gas. DO NOT OPERATE THE GRILL. Failure to follow
dangers, warnings and cautions contained in this Instruction
sheet may cause a fire or an explosion resulting in serious
personal injury or death as well as damage to property.
Contact the Customer Service Representative in your area
using the contact information on our web site.
Log onto www.weber.com®.
When leak checks are complete, turn gas supply OFF at the source and rinse
connections with water.
 WARNING: Make sure all control knobs are turned to the OFF position before reconnecting gas supply and
operating grill. Your actions, if you fail to follow this Product Warning, may cause a fire, an explosion, or structural
failure resulting in serious personal injury or death as well as damage to property.
12
3
4
5
6
7
8

 PROPOSITION 65 WARNING: HANDLING THE BRASS MATERIAL ON THIS PRODUCT EXPOSES YOU TO LEAD, A CHEMICAL
KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.
(WASH HANDS AFTER HANDLING THIS PRODUCT.)
 WARNING: All repairs to gas carrying, gas burning, igniter or structural components must be performed by an
authorized Weber-Stephen Products LLC service technician.
These parts may be gas carrying, gas burning, igniter or structural components. Please contact Weber-Stephen Products LLC, Customer
Service Department for Genuine Weber-Stephen Products LLC replacement part(s) information.
 WARNING: Do not attempt to make any repair to gas carrying, gas burning, igniter or structural components
without contacting Weber-Stephen Products LLC, Customer Service Department.Your actions, if you fail to follow
this Product Warning, may cause a fire, an explosion, or structural failure resulting in serious personal injury or
death as well as damage to property.
 WARNING: Make sure all parts are assembled and hardware is fully tightened before operating the grill.Your
actions, if you fail to follow this product warning, may cause a fire, an explosion, or structural failure resulting in
serious personal injury or death as well as damage to property.
