Weber Geset ALPHA V40 User manual

Manual for Installation, Setup and Operation
ALPHA V40
Part Number of Document: 21800863
Copyright © 2006, Geset Etikettier-Systeme GmbH
Version: 18.07.06/L.Krämer
Geset Etikettier-Systeme GmbH
Jakobstraße 79
D-73734 Esslingen
E-Mail: [email protected]
http://www.geset.com
21800863
User's Manual

Version 18.07.06
2
NOTE !
Geset Etikettier-Systeme GmbH insures that every effort has been made to ensure that the
information in this manual is complete, accurate and up to date. Geset Etikettier-Systeme
GmbH refuses any kind of warranty and assumes no responsibility or liability for any errors or
inaccuracies that may appear in this manual. Information in this document is subject to change
without notice.
No part of this manual may be reproduced, transmitted or translated into any language, in any
form by any means, electronic or mechanical, including photocopying and recording, for any
purpose. Without the express written permission of Geset Etikettier-Systeme GmbH a
reproduction is not permitted. An exemption clause is limited to personal requirements.
NOTE !
Alpha_V40_UsersGuide_21800863.pdf

Glossary ALPHA V40
Version 18.07.06
3
1. Introduction ........................................................................................................................9
Purpose and Scope of this Manual ..........................................................................................9
Conventions Used in this Manual...........................................................................................10
Manual Outline .......................................................................................................................12
Service – Hotline ....................................................................................................................13
2. General Information .........................................................................................................14
Compressed Air and Power .............................................................................................................. 14
Specifications .........................................................................................................................14
Installation ..............................................................................................................................15
Important indication for the installation / putting into operation......................................................... 15
Recommendation .............................................................................................................................. 15
System Block Diagram ...........................................................................................................16
Figure 2-1: ALPHA V40 in left hand version (LH) ............................................................................. 16
Figure 2-1: ALPHA V40 in right hand version (RH) .......................................................................... 17
Applications Modes ................................................................................................................18
Wipe-On-Mode (Standard)................................................................................................................ 18
Tamp-Blow-Mode (Option)................................................................................................................ 18
Tamp-On-Mode (Option)................................................................................................................... 18
Blow-On-Mode (Option) .................................................................................................................... 18
3. Preliminary Setup.............................................................................................................19
Applicator Unpacking, Mounting and Transportation .............................................................19
Possible Machine Attitudes ....................................................................................................21
Label Loading.........................................................................................................................23
Change for Label Roll.............................................................................................................25
Out of Operation.....................................................................................................................25
4. Inputs / Outputs................................................................................................................26
Connections on rear panel .....................................................................................................26
Connection to AC Power (230 / 115 VAC)............................................................................................. 27
Configuration of the Input Power (230VAC or 115VAC)................................................................... 28
Enclosure Cover Removal / Installation .................................................................................29
Removal ............................................................................................................................................ 29
Installation ......................................................................................................................................... 29
Stepper Motor Connection (X1-MOTOR)...................................................................................29
Product Sensor Connection (X2-PRODUCT SENSOR P, X4-PRODUCT SENSOR S) ........................30
Configuration of Sensor Inputs:......................................................................................................... 30
Low Label Sensor Connection (X3-LOW LABEL SENSOR)..........................................................33
Connection to Shaft-Encoder (X5-DIG ENCODER).....................................................................33
Warning Lights Connection (X6-ALARM LAMP)..........................................................................34
Label Sensor Connection (X7-LABEL SENSOR) .........................................................................35
Applicator Connection (X8-APPLICATOR) ..................................................................................35
Relay Outputs (X9-RELAY-OUTPUTS) ........................................................................................36
READY Relay (Outputs of X9) .......................................................................................................... 37
SYNC Relay (Outputs of X9)............................................................................................................. 37
Low Label Relay (Outputs of X9) ...................................................................................................... 37
5. Machine Setup ..................................................................................................................38
Web Brake Adjustment ..................................................................................................................... 38
Unwind Brake Adjustment................................................................................................................. 39
Positioning Label Sensor .................................................................................................................. 41
To Setup the Mechanical Label-Sensor (Option).............................................................................. 42
Wipe-On Setup.......................................................................................................................43
Contents list

Glossary ALPHA V40
Version 18.07.06
4
Applicator Setup...................................................................................................................44
Air Assist Setup ......................................................................................................................44
Blow-Box Setup......................................................................................................................46
Vacuum Adjustment .......................................................................................................................... 46
Vacuum Box Grid Setup.................................................................................................................... 47
Air blast Tube Arrangements ............................................................................................................ 48
Tamp-Blow Setup...................................................................................................................49
Vacuum Setup................................................................................................................................... 49
Piston Speed Setting......................................................................................................................... 50
Home Sensor Adjustment ................................................................................................................. 51
To Check Home Sensor Adjustment.................................................................................................51
Tamp Pad...............................................................................................................................53
Installation of Tamp Pad ................................................................................................................... 54
Proximity Sensor for Variable Stroke (Option) .................................................................................. 55
Tamp-On Setup......................................................................................................................56
Product Detection Setup ........................................................................................................57
Positioning the Applicator.................................................................................................................. 57
Product Detector Position ................................................................................................................. 57
Test Run............................................................................................................................................ 58
6. Display Controller ............................................................................................................59
Display Controller ...................................................................................................................59
Label Counter.................................................................................................................................... 60
Input sensor (state) ........................................................................................................................... 60
Label Sensor (value and state) ......................................................................................................... 60
Current Label ID................................................................................................................................ 61
Feed Length ...................................................................................................................................... 61
Feed Speed / Trigger Delay .............................................................................................................. 61
Function of Keypad ........................................................................................................................... 61
To Enter Menus......................................................................................................................62
Reset Function .................................................................................................................................. 62
Password (ACCESS CODE) .................................................................................................................. 62
User-Menu..............................................................................................................................64
LABEL FORMAT............................................................................................................................... 64
RESET COUNTER............................................................................................................................ 65
CHANGE LANGUAGE...................................................................................................................... 65
Programming Mode................................................................................................................66
LINE SPEED ..................................................................................................................................... 66
Auxiliary information to the Line Speed ............................................................................................ 67
LABEL POSITION............................................................................................................................. 68
REFERENC EDGE ........................................................................................................................... 69
GAP LEVEL....................................................................................................................................... 70
LABEL LEVEL ................................................................................................................................... 70
TRIGGER DELAY ............................................................................................................................. 71
SYNCHRONIZATION PULSE...........................................................................................................71
TRIGGER BLANK ............................................................................................................................. 72
LABEL QUEUE ................................................................................................................................. 72
CALIBRATE SENSOR ...................................................................................................................... 73
Auxiliary information of calculation algorithm.................................................................................... 73
CALIBRATE LABEL .......................................................................................................................... 74
CALIBRATE LABEL .......................................................................................................................... 74
Service Program.....................................................................................................................76
Current Page ..................................................................................................................................... 76
Address ............................................................................................................................................. 76
Bit Value ............................................................................................................................................ 76
Address 00 (Page 0), language ........................................................................................................ 77
Address 01 (Page 0), label format .................................................................................................... 77
Address 02 (Page 0), trigger/applicator configuration....................................................................... 78
Address 03 (Page 0), paper threshold .............................................................................................. 78
Address 04 (Page 0), max. search length......................................................................................... 79

Glossary ALPHA V40
Version 18.07.06
5
Address 05 (Page 0), sensor and peeling edge distance ................................................................. 79
Address 06 (Page 0), encoder reading ............................................................................................. 80
Address 07 (Page 0), diagnostic functions ....................................................................................... 81
Address 08 (Page 0), dispensing speed (of label format #1)............................................................ 82
Address 09 (Page 0), label positioning (of label format #1).............................................................. 82
Address 10 (Page 0), gap level (of label format #1) ......................................................................... 82
Address 11 (Page 0), label level (of label format #1)........................................................................ 82
Address 12 (Page 0), trigger delay (of label format #1).................................................................... 83
Address 13 (Page 0), sync pulse (of label format #1)....................................................................... 83
Address 14 (Page 0), trigger blanking (of label format #1) ............................................................... 83
Address 15 (Page 0), label queue (of label format #1) ..................................................................... 83
Address 249 (Page 0), tamp extension time..................................................................................... 84
Address 250 (Page 0), proximity timeout.......................................................................................... 84
Address 251 (Page 0), blow time ...................................................................................................... 85
Address 252 (Page 0), burst mode ................................................................................................... 85
Address 253 (Page 0), apply delay................................................................................................... 85
Address 254 (Page 0), access code ................................................................................................. 86
Address 255 (Page 0), checksum..................................................................................................... 86
Set Up ALPHA V40 to applicators..........................................................................................87
Set up V40 to Blow-Box Applikator ................................................................................................... 89
Set up V40 to Tamp-On Applicator ................................................................................................... 87
Set up V40 to Tamp-Blow Applikator ................................................................................................ 88
Quick descriptions of most important functions .............................................................. 90
To call up stored Label Formats........................................................................................................ 90
To setup (new) Types of Labels........................................................................................................ 90
To setup the Label Position............................................................................................................... 91
Change LINE SPEED / TRIG. DELAY for real-time settings ............................................................ 91
Table of Parameters.......................................................................................................................... 92
Firmware Release Notes......................................................................................................95
7. Maintenance......................................................................................................................98
Recommended Cleaning Products: ..................................................................................................98
Daily Maintenance..................................................................................................................99
Weekly Maintenance ............................................................................................................100
Six-month Maintenance........................................................................................................101
Yearly Maintenance..............................................................................................................102
8. Troubleshooting .............................................................................................................103
Errors of mechanical causes ................................................................................................103
Error Messages Appearing on Display.................................................................................106
Additional information for a advanced assistance........................................................................... 108
9. Index ................................................................................................................................109
Declaration of Conformity ................................................................................................. 111

Glossary ALPHA V40
Version 18.07.06
6
Glossary
Adhesive String:
Label adhesive that adheres to the label and the label liner while the label is dispensing. It can
cause the label to be improperly positioned on the tamp pad.
Air Assist:
The stream of air that the air assist tube directs at the label in order to help it come off of the
label liner as it is dispensing.
Air Assist Pressure Gauge:
A gauge that indicates the air pressure that is being applied to the air assist tube.
Air Assist Tube:
A small tube located at the end of the peeler bar that directs a stream of air at the label in order
to help it break free from the label liner as it is dispensing.
Air Blow Mode:
An applicator configuration in which the label is held on a stationary vacuum grid and applied
with air pressure.
Backing:
Backing or backing paper is a siliconed paper which carries the labels.
bar :
A measure of air pressure >> 1 bar = 14.7 PSI (see PSIG)
Carrier Tape
See backing or label liner
Continuous:
Products are not required in order to trigger a label application. Completion of label ejection
triggers label application.
Cycle Time:
The amount of time that it takes the machine to perform a complete machine sequence, starting
from the detection of the product.
Edge Detection:
The edge (front or back) of a product or label that will cause the detector to send a detection
signal.
Ganged Configuration:
A way to wire grouped applicators.
Inverted Tamp Blow:
Mode in which the tamp remains in the extended position until an apply signal is received. Upon
receipt of an apply signal, the air blast applies the label. The tamp retracts to receive the next
label and then returns to the extended position. Although Inverted Tamp Blow mode is
somewhat more accurate, its use should be restricted to situations in which the tamp doesn’t
have to retract to avoid hitting the product or conveying device.

Glossary ALPHA V40
Version 18.07.06
7
LED:
Light Emitting Diode
Label Feed:
The process that feeds the label stock through the machine.
Label Liner:
The paper that the labels are affixed to before they are applied to the product.
Label Sensor:
The photoelectric sensor (pitch detector) that detects the presence of a label in the machine.
Label Size:
The length and width of the label. Length refers to the distance from the leading edge to the
trailing edge in the feed direction. Width refers to the measurement of the label perpendicular to
the length.
Label Stock:
The label liner with labels still attached.
Leading Edge:
The first edge of the product that triggers the label application.
Lock Pin:
The metal piece that secures the label liner to the rewind mandrel.
Machine Sequence:
The sequence in which the machine executes all the steps necessary for a complete cycle.
Mandrel:
A shaft that can spin on its axis, on which another device is mounted.
Millimetre (mm):
The measure of lengths (1 Inch = 25.4 mm)
Parity:
A data bit that provides a means of checking for errors in the data stream.
PSIG:
A measure of air pressure (Pounds per Square Inch Gauge). 1 bar = 14.7 PSI.
Pneumatic:
Moved or operated by air pressure.
Product Delay:
The time delay before the tamp is extended (Tamp-On Mode), before the air blast is activated
(Air Blow Mode), or before extending the tamp and firing the air blast to apply a label (Tamp-
Blow Mode).
Product Detector:
A photoelectric device that detects the presence of a product edge and sends a signal to the
applicator controller.
Repeat Length:
The distance between the leading edge of one label to the leading edge of the next.

Glossary ALPHA V40
Version 18.07.06
8
Static Stack:
A stack of labels that have been applied one on top of the other. When the applicator is setup
correctly, a static stack will have less than + or – 1/32 of an inch variation in any direction.
Tamp:
A mechanical device that receives a label and moves the label to a position where it is applied
to a product.
Tamp Blow Mode:
Mode in which the tamp remains in the retracted position until an apply signal is received. Upon
receipt of an apply signal, the tamp extends, the air blast applies the label, and the tamp
retracts to receive the next label. Tamp Blow mode is most suitable for operations requiring the
tamp to reach into a recessed area on the product.
Tamp Retract Mode:
Mode that determines whether the tamp retracts at the start or the end of an air blast.
Trailing Edge:
The trailing edge of the product triggers label application.
VAC:
Volts AC (Alternating Current). Also designated as ~.
Vacuum Generator:
A device that uses compressed air to create vacuum.
VDC:
Volts DC (Direct Current).
Web:
The label liner with labels still attached that feeds into the machine.

Chapter 1 Introduction ALPHA V40
Version 18.07.06
9
1. Introduction
The ALPHA V40 incorporates a label applicator with controller unit. The
applicator is designed to accommodate a few different types of applicators
(Wipe-On- or Tamp applicators and Blow Box). This chapter covers the
purpose and scope of this manual, the conventions used to convey information and the manual
outline. Customer Support information is located at the end of this chapter.
Purpose and Scope of this Manual
This User’s Manual is designed for users who will be performing the following tasks:
• Machine installation with supplier support
• Machine setup and configuration
• Machine operation
• Machine troubleshooting and maintenance
This manual is designed to provide procedures and reference material needed to complete the
tasks mentioned above. All operators should be familiar with the conventions and guidelines
outlined below before performing any of these procedures.
NOTE : For spare parts lists please refer to the appendix documentation
with part number 32708118.
Overview

Chapter 1 Introduction ALPHA V40
Version 18.07.06
10
Conventions Used in this Manual
Following is a brief list of the conventions used in this manual:
oA pointing hand symbol indicates special notes and warnings:
NOTE: This is a special note.
oKeys which you must press on the machine appear in a special boxed font:
Press the [Enter] key to continue.
oProcedures which should be followed in a specific order are listed in numbered
paragraphs:
1. Disconnect the label applicator from the AC power source.
oReferences to other section names or pages appear in bold text:
(For more information, see Chapter 4, page 20)
oMessages which appear on a controller display are shown in a box using Arial Narrow
typeface:
00000 123G
01 0123mm 12.3

Chapter 1 Introduction ALPHA V40
Version 18.07.06
11
Pay special attention to any procedures that may have one of the following symbols. Read all
of the Caution and Warning instructions and follow them when performing the corresponding
procedures.
CAUTION
THIS SYMBOL IS USED TO WARN USERS OF DANGER FROM
(POSSIBLE) ELECTRICAL SHOCK! READ ALL CAUTION STATEMENTS
AND FOLLOW ALL THE INSTRUCTIONS TO AVOID A PERSONAL
INJURY AND/OR EQUIPMENT DAMAGE.
CAUTION
THESE SYMBOLS ARE USED TO WARN USERS THAT
THERE IS A DANGER OF BEING INJURED BY WORKING
PARTS OF THE APPLICATOR! READ ALL CAUTION
STATEMENTS AND FOLLOW ALL THE INSTRUCTIONS TO
AVOID A PERSONAL INJURY AND/OR EQUIPMENT DAMAGE.
NOTICE
THIS SYMBOL IS USED TO WARN USERS THAT MACHINE DAMAGE IS
POSSIBLE IF ALL PROCEDURES ARE NOT FOLLOWED CAREFULLY.
READ ALL NOTICE STATEMENTS AND FOLLOW ALL THE
PROCEDURES CAREFULLY IN ORDER TO AVOID EQUIPMENT
DAMAGE.
CAUTION !
Exercise caution when cycling the machine. The friction rollers turn oppositely, with the
consequent pulling objects into the centre. A protection axle should prevent users of being
injured. However, always keep away body parts or things like jewelleries, ties, sleeves, when
the machine moves.

Chapter 1 Introduction ALPHA V40
Version 18.07.06
12
Manual Outline
Chapter 1. Introduction Defines the purpose and scope of this
manual. Explains the conventions used
within the manual and lists an outline of the
material covered. Includes customer
support information.
Chapter 2. General Information Includes specifications for proper air and
power sources, information regarding
machine placement, and drawings that
illustrate the machine layout and identify key
components.
Chapter 3. Preliminary Setup Includes all the procedures that can be
done before the AC power connected to the
machine.
Chapter 4. Inputs / Outputs Describes all connections of the machine
and how to configure the sensor inputs.
Chapter 5 Applicator Setup Covers the setup procedures for the label
applicator. These procedures include label
and tamp adjustments, and air pressure
settings of each V40 Versions.
Chapter 6. Controller Operations Describes the controller's functions and
explains how to use the control panel to
adjust the applicator.
Chapter 7. Maintenance Details instructions for performing
maintenance on the ALPHA V40.
Chapter 8. Troubleshooting Covers diagnostic and troubleshooting
information.
Chapter 9. Index Defines terms used throughout this manual.
Declaration of Conformity

Chapter 1 Introduction ALPHA V40
Version 18.07.06
13
Service – Hotline
Please contact your system provider if any technical support is required:
You should be prepared with the following information when being asked on the phone:
- Fault description gave full particulars
- All information on the name plate
- When did the error occur?
- after loading labels.
- after changing set ups.
- Any information about the PLC-status and display messages.
Please ensure, before calling the Hotline Service, whether the chapter ‘’troubleshooting’’ gives
any indication for solving that problem.
Our main effort is to keep the service hotline always possibly free for urgent cases. However,
we beg your pardon that our hotline also refers to written information contained in this manual.
Distributor Label

Chapter 2 General Information ALPHA V40
Version 18.07.06
14
2. General Information
This section describes general functional and logistical information regarding
the machine and its usage. This includes air and power source
specifications, illustrations that identify the primary working components on
the machine, and illustrations that identify the various machine layouts and views.
Compressed Air and Power
The Label Applicator requires electrical power and compressed air (for Blow-Box or Tamp
applicators). The compressed air must be clean and dry. Typical air pressure is 85 PSIG (6.0
bar). The air pressure must always be greater than the highest pressure setting on the
machine. 3 SCFM is the typical air volume requirement. The rate of production and the label
size can effect the air supply requirements. If you have problems in this area, check with Weber
Customer Support.
Specifications
Label-Format (for Wipe-On applications) min. 20 x 12 (width x length in mm)
max. 120 x 500 (width x length in mm)
optionally width 7 mm min., length 2500 mm max.
Label-Roll Outside diameter Ø = 300 mm (equals 450 meters)
Core: 76 mm (3 “) and outside winding preferred
Speed and Rate of Label Application Wipe-On / Blow : up to 600 Labels per Minute.
Tamp-Applicators: up to 120 Labels per Minute
Distance for Label Application 0 – 20 mm is the distance from the tamp plate to the
product. Depending on label sizes and quality and
accuracy of placement.
Accuracy of Placement +/- 1mm, for Wipe-On and Tamp-On Applicator
Label Carrier (Rewind) Up to 170 mm diameter (equals 450 m)
LCD backlit Display Display : backlit LCD, 2-lines with each 16 characters,
Panel Key [ENTER]- , [] and [] -keys,
Dimensions: Controller
Applicator
187 x 255 x 75 mm (Lx W x H)
700 x 300 x 500 mm (Lx W x H) depending on
applicator version).
Weight (with out label-roll) approx. 22 kg depending on applicator version
Operating voltage 115 VAC (60 Hz) , 2A
230 VAC (50 Hz), 1A
Fuse T 2A / 250V (for 230 V)
T 4A / 250V (for 115 V)
Air Pressure (only for Blow-Box and Tamp
applicators)
6 bar, according to DIN ISO 8573-1
- content of residual oil 25 mg/m³ (Quality-Guard 5)
- residual dust 5µm ; 5 mg/m³ (Quality-Guard 3)
- residual water 6 g/m³ ; +3 °C (Quality-Guard 4)
Air Consumption 200 Nl/min, with maximum rate of application.
0,3 - 3 Litre per cycle of application
Environmental Operating Range 10°-38° C Temperature,
10-95 % relative humidity (non-condensing).
.
Overview

Chapter 2 General Information ALPHA V40
Version 18.07.06
15
Installation
If the applicator is installed on a machine stand, it must be able to support at least 30 Kg and
have a base that is large enough to prevent the machine from tipping over.
When positioning the machine consider the following placement criteria:
oThe machine should be positioned the appropriate distance from the product for proper
labeling based on the machine type (wipe on, tamp on, tamp blow, or, Air Blow).
oThe retracted tamp, if tamp is used, should not touch any part of the product as it passes
through the machine.
oThe position of the machine should allow the operator to easily change labels and
ribbon, and reach the controller keypad.
oMake sure that all the adjustment locks have been tightened after the machine has been
correctly assembled and positioned.
NOTE : The ALPHA V40 is not intended to be operated in an environment where
flammable or explosive gases are present.
NOTE : The ALPHA V40 is not to be used in direct contact with food products.
NOTE : The ALPHA V40 is not to be used outdoors.
NOTE : The ALPHA V40 is not to be used in a wet environment.
NOTE : The ALPHA V40 is not to be used in an environment in which particulate matter
is present.
Important indication for the installation / putting into operation
The complex job for a correct putting into operation and installation of Label Applicator must be
coordinated in exactly sequences. This is prerequisite for a durable functional performance.
Weber Marking Systems offers solutions for favourable, practice approved Systems Supports
and Protection Cabinets. Benefit from our extensive experiences in all areas of industry.
Recommendation
Therefore we recommend urgently to executes the installation of the system by the specialists
of Weber Marking Systems.

Chapter 2 General Information ALPHA V40
Version 18.07.06
16
System Block Diagram
See the ALPHA V40 Wipe-On versions as a left hand and a right hand system as follows:

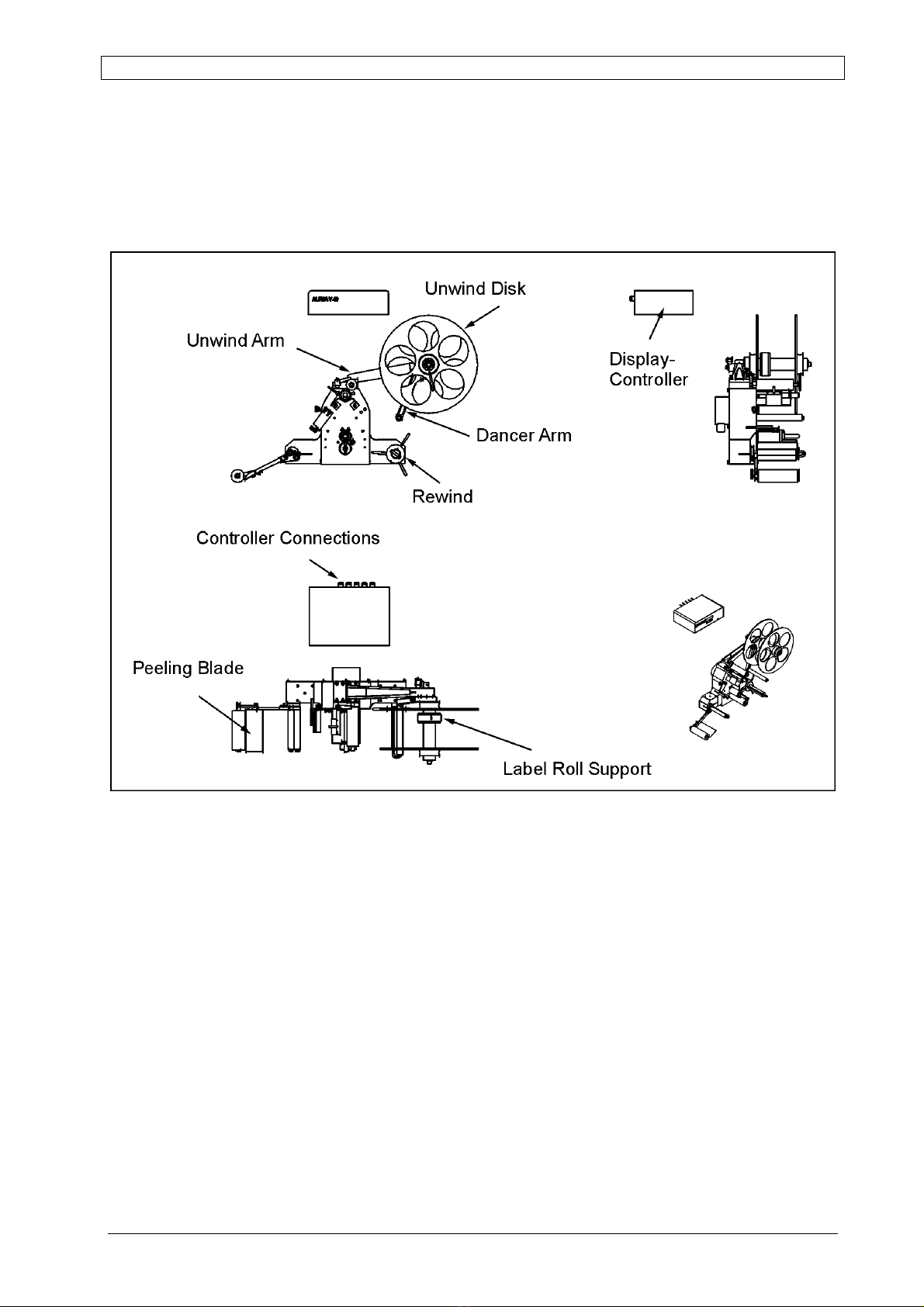

Figure 2-1: ALPHA V40 in left hand version (LH)
FIG. 2-1: ALPHA V40 (LH)

Chapter 2 General Information ALPHA V40
Version 18.07.06
17
Figure 2-1: ALPHA V40 in right hand version (RH)
Fig. 2-2: ALPHA V 40 (RH)

Chapter 2 General Information ALPHA V40
Version 18.07.06
18
Applications Modes
The ALPHA V40 applies labels onto a moving or stopped product. Depending on applicator
version there are different application modes. They can be selected via display controller.
Wipe-On-Mode (Standard)
In the Wipe-On version the labels are peeled off from the carrier, and applied to the product
by precise stepping motor.
Only moving products can be labelled.
Label feed speed and Product speed have to be identical or have to be adjusted to each
other (see the explanation on page 61).
Tamp-Blow-Mode (Option)
With the Tamp-Blow version, the dispending tamp extends over a linear system to the
product by a pneumatic drive. The label is blow onto a moving or stationary product, with no
physical contact.
The Tamp-Blow-Mode is frequently used since mode of operation offers the following
advantages:
Both stopped and moving products can be labelled.
The wear danger is low, because the product is labelled contactlessly.
Tamp-On-Mode (Option)
The Tamp-On applicator is spring-mounted and presses the label onto the surface of a
slowly-moving or stopped product.
Only slowly-moving or stationary products can be labelled.
Preferred used: Difficult surfaces, for example saw timber/wood.
Blow-On-Mode (Option)
In the case of Blow-Box design the label is blown straight onto the stationary or passing
product.
Both stopped and moving products can be labelled.
The wear danger is low, because the product is labelled contactlessly.
With the exception of the Wipe-On mode, it is possible to trigger the dispending procedure only,
at every ALPHA V40.
In this case the label is ejected under tamp pad or grid of blow box and the label applicator
"waits" for the start signal to apply the label. So it is possible to separate the label feed from
applying, using an additional product sensor (Secondary Sensor).

Chapter 3 Preliminary Setup ALPHA V40
Version 18.07.06
19
3. Preliminary Setup
The preliminary setup includes all the procedures that can be done before the
AC power is connected to the machine. The machine enclosure must be
removed before working on some of these procedures.
Use caution when removing the enclosure. All safety warnings must be followed.
Applicator Unpacking, Mounting and Transportation
The machine can be mounted on different Machine Supports.
WARNING! Approximate weight of ALPHA V40 is about 25 Kg.
Read this set of instructions entirely before opening the applicator package:
1. Remove the applicator from the packaging
2. Two people should lift the applicator from the carton, grasping the unwind-arm and chassis
at marked positions (see red arrows on Fig. 3-1).
Fig. 3-1: Grasping Positions at the ALPHA V40
Overview

Chapter 3 Preliminary Setup ALPHA V40
Version 18.07.06
20
3. Place the applicator with its backside on an adequately stable work surface that is
approximately high of your stand.
4. After proper assembly of the stand (per assembly instructions), adjust the height of the
carriage if available until the machine.
5. Assemble the applicator to the stand and tighten the lock washer and nut securely.
6. Also the controller unit can be mounted onto a metal tube (diameter Ø = 30 mm) using a
flange.
7. The screw holes are located at the lower side of the controller. Please screw the flange onto
this area and tuck the unit onto the stainless steel tube.
