weBoost DRIVE SLEEK User manual

ENGLISHFRANÇAIS
Vehicle Signal Booster Kit
DRIVE SLEEK
A WILSON ELECTRONICS BRAND
NEED HELP? support.weboost.com 866.294.1660
Installation Guide

______
Index
Package Contents 1
STEP 1: Mount Outside Antenna 2
STEP 2: Route & Connect Booster 3
STEP 3: Route Cable To Front Of Vehicle 5
STEP 4: Connect System To Power 6
STEP 5: Insert Phone Into Cradle 7
Troubleshooting 8
Safety Guidelines 9
Specifications 10
Warranty 11

ENGLISH
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 1
________

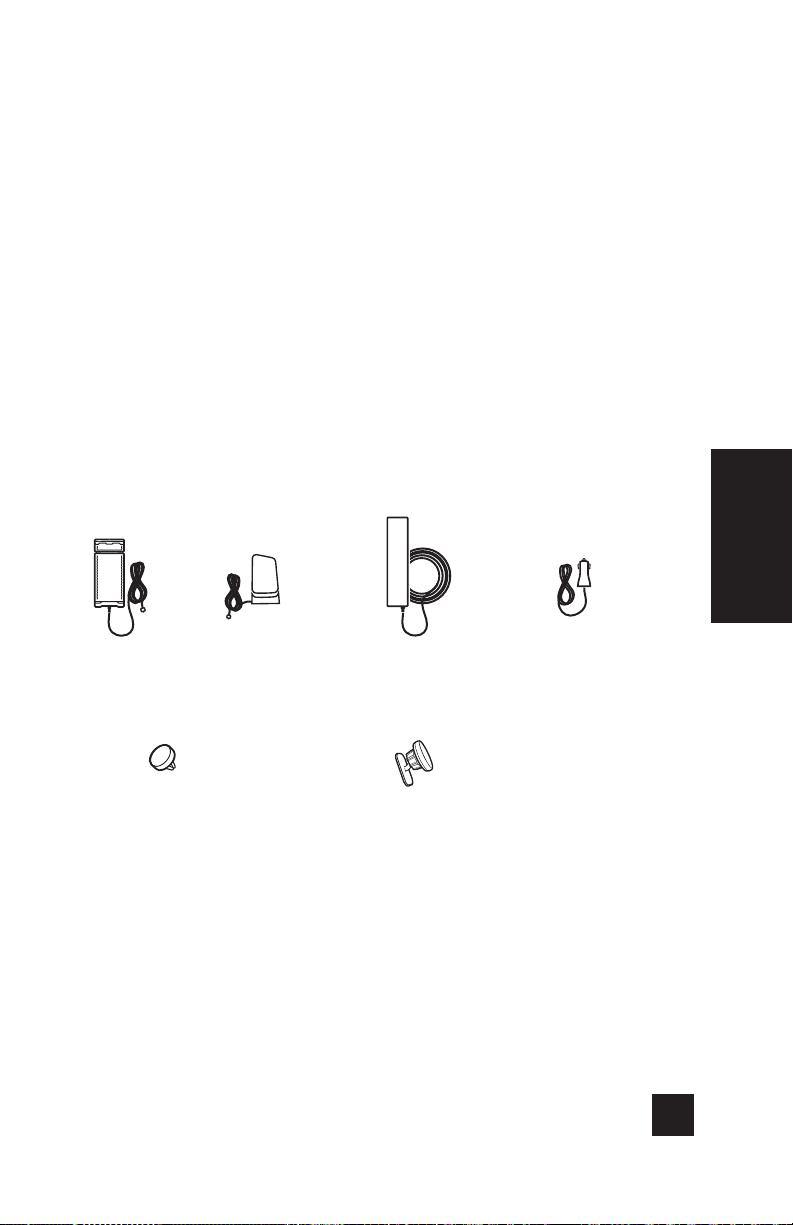

Package
Contents
Sleek
Cradle
Outside
Antenna
Signal
Booster
Power
Supply
Magnetic
Vent Mount
Adhesive Magnetic
Dash Mount
(for cradle) (for cradle)

ENGLISH
2CELL PHONE SIGNAL BOOSTER DRIVE SLEEK
______

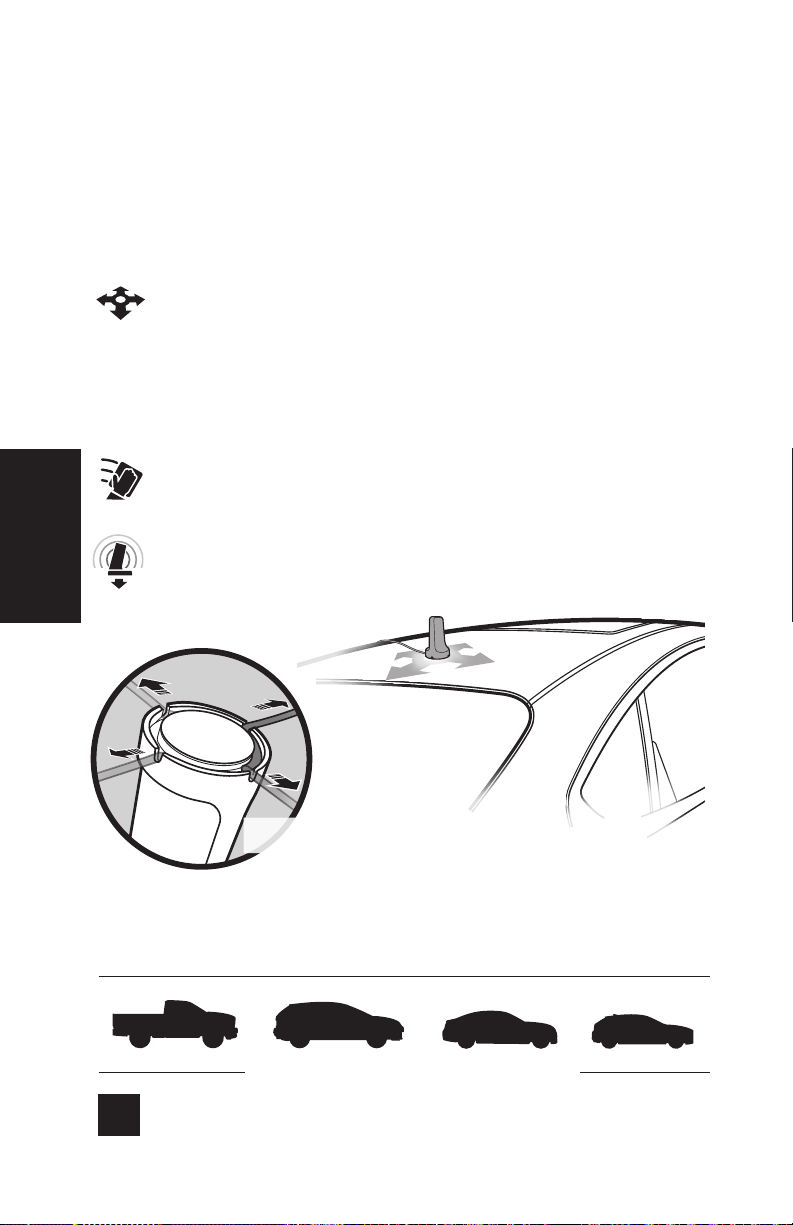

Step 1: Mount Outside
Magnetic Antenna
WORKS WITH ALL VEHICLES
Identify a location on the top of your vehicle that is:
 Near the center of the roof
 At least 12 inches away from any other antennas
 At least 6 inches away from any windows
(including sunroofs)
Clean the surface where you will place the outside
antenna.
Mount the outside antenna by placing on top of vehicle.
12 in. away from windows
(including sunroofs)
NOTE: For aluminum roofs, an adhesive disk is included to mount the
outside antenna (do not use if outside antenna will magnetize to the top
of your vehicle).
route from
any side

ENGLISH
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 3
______
Step 2: Route Antenna Cable
& Connect Booster
Route the cable into the vehicle. See examples below.
NOTE: When going through car wash,
remember to remove your antenna.
NOTE: The cable is strong enough that it may be shut in most vehicle doors
without damaging the cable.
Car/Sedan: Cable routed
into rear side door.
SUV/Van/Hatchback: Cable
routed into top of hatchback door.
Truck: Cable routed into
side door.
Identify a location on the top of your vehicle that is:
 Near the center of the roof
 At least 12 inches away from any other antennas
 At least 6 inches away from any windows
(including sunroofs)
Clean the surface where you will place the outside
antenna.
Mount the outside antenna by placing on top of vehicle.

ENGLISH
4CELL PHONE SIGNAL BOOSTER DRIVE SLEEK
The included Velcro®can be used to mount the booster
out-of-the way on the floor under a seat or mounted to the
side of the trunk. It is best to mount in a place where the
cables cannot be tripped over or snagged (damaging the
booster).
______
(STEP 2 cont.)

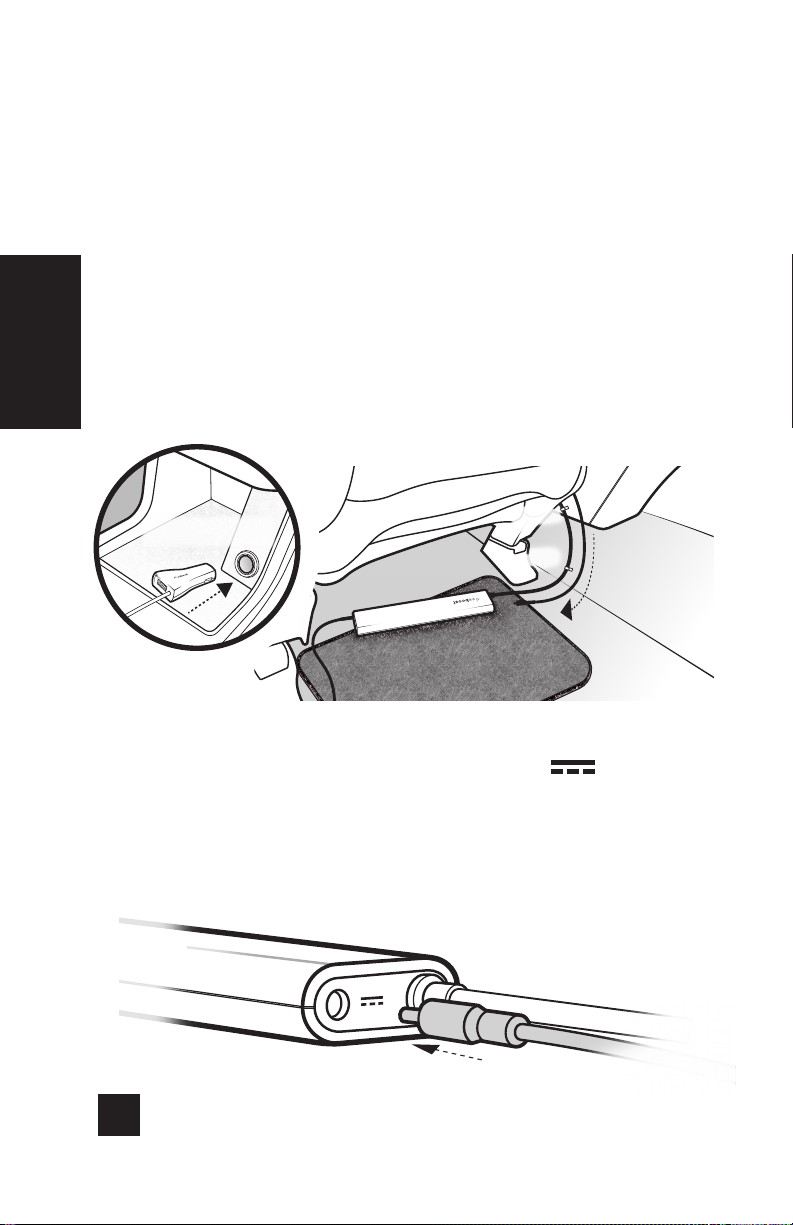

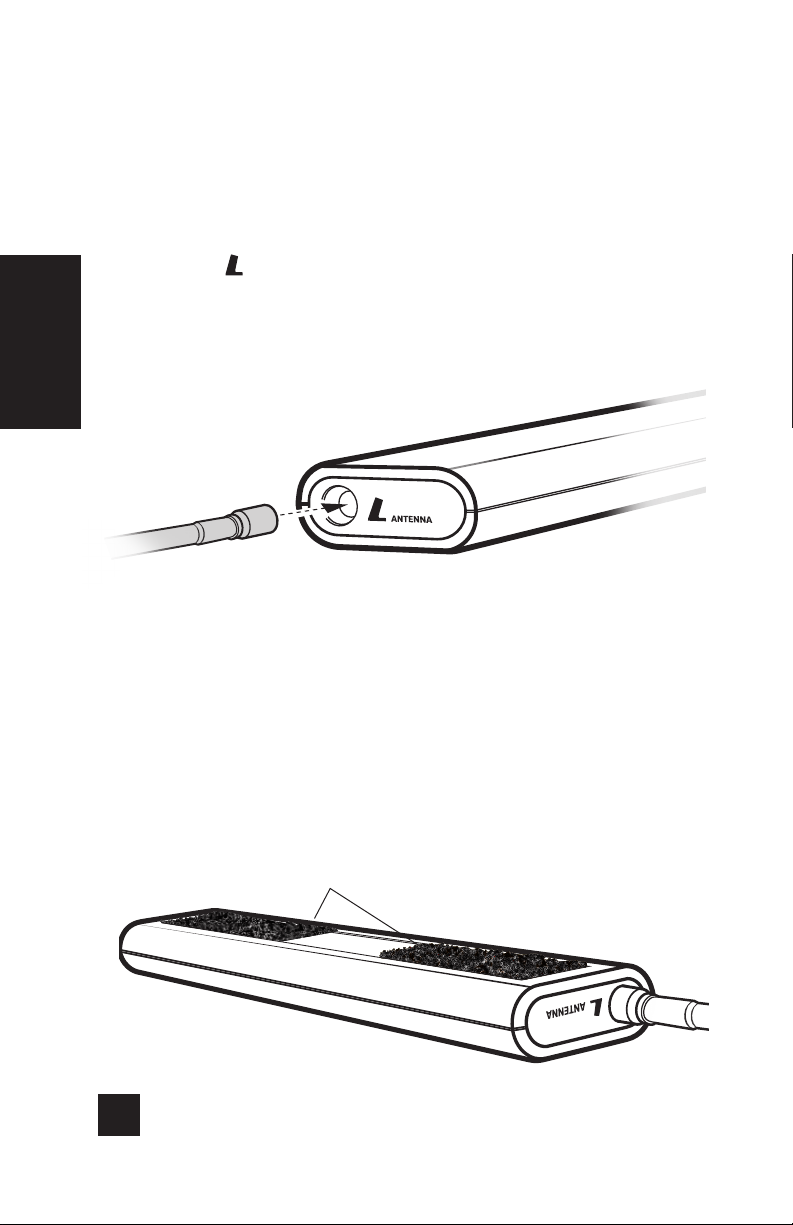

Connect the cable from the outside antenna to the booster
port labeled
ANTENNA
by simply pressing the connector in
until you hear a “click”.
ANTENNA
cable from
outside antenna
booster
Velcro®
NOTE: Connecting cable from outside antenna to booster does not
take much force.
NOTE: The “hook” side of the Velcro®(already on the booster) can be
used to attach to the carpet of many vehicles.
bottom side of booster

ENGLISH
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 5
______
Step 3: Route Cable To Front
Of Vehicle & Connect To
Cradle
We recommend routing the 15ft. fixed cable from the
booster, under mats and between seats up to the front of
the vehicle where the cradle will be located.
Connect booster cable to cradle cable.
to front of
vehicle
snap-in
connectors
cradle

ENGLISH
6CELL PHONE SIGNAL BOOSTER DRIVE SLEEK
______
Step 4: Connect System To
Power
Connect the power to the 12V*CLA port on your vehicle
and route power cable back to the booster.
Connect power cable to booster port labeled .
NOTE: We recommend routing with the same path as the cradle/booster
cable (under mats and between seats). Cable clips are provided to help
route & secure the cables.
NOTE: The booster will be on whenever there is power from the 12V CLA
port. If your vehicle always has power going to this port, you may want to
unplug this when you’re not driving so the booster does not drain your
battery. *Only 12V ports are supported.
ANTENNA
connect power supply
to 12V port
connect
to booster
cable from power supply
cable clip
cable clip
insert phone into
cradle to boost signal

ENGLISH
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 7
______
Step 5: Insert Your Phone
Into Cradle
Make sure you have plenty of slack in the cable going up
to the cradle (Velcro®straps included to manage excess
cable). Insert your phone into cradle and watch your signal
increase!
NOTE: A Magnetic Vent Mount & Adhesive Magnetic Dash Mount
are provided which provides a versatile, safe and functional
smartphone solution.
IMPORTANT: The FCC requires to never use the cell phone in the
cradle next to your ear.
cradle extends
insert phone into
cradle to boost signal
magnetic vent mount

ENGLISH
8CELL PHONE SIGNAL BOOSTER DRIVE SLEEK
______
Troubleshooting
Solid White (LED on cradle)
This indicates that your booster is functioning properly and at maximum gain.
Light O (LED on cradle)
Check/secure power connections to the CLA, booster, and cradle. If light shuts off,
remove from vehicle port and plug back in to reset the system. For any questions
or assistance contact our weBoost Customer Support Team (1-866-294-1660).
Dropped Calls
If you are regularly experiencing dropped calls in the same areas, turn off VoLTE/HD
Voice in your phone’s settings.
NEED HELP? weboost.ca 866.294.1660

ENGLISH
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 9
______
Safety Guidelines
This is a CONSUMER device.
BEFORE USE, you must meet all requirements set out in ISED CPC-2-1-05.
You MUST operate this device with approved antennas and cables as specified by the
manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from (i.e., MUST
NOT be installed within 20 cm of) any person.
You MUST cease operating this device immediately if requested by ISED or licensed
wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls
served by using this device.
Use only the power supply provided in this package. Use of a non-weBoost product
may damage your equipment.
All inside antennas must have at least 1.5’ separation distance from all active users.
RF Safety Warning: Any antenna used with this device must be located at least 8
inches from all persons.
FOR MORE INFORMATION ON REQUIREMENTS SET OUT IN ISED CPC-2-1-05,
SEE BELOW:
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html

ENGLISH
10 CELL PHONE SIGNAL BOOSTER DRIVE SLEEK
Drive Sleek
Product Number U470035
Model Number 460035
IC: 4726A-460035
Frequency 698-716 MHz, 729-756 MHz, 777-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz
Maximum Power
Power output for single cell
phone (Uplink) dBm
700 MHz
Band 12/17
18.74
700 MHz
Band 13
21.57
800 MHz
Band 5
22.65
1700 MHz
Band 4
25.56
1900 MHz
Band 2
19.19
Power output for single cell
phone (Downlink) dBm
700 MHz
Band 12/17
2.1
700 MHz
Band 13
2.1
800 MHz
Band 5
-2.5
2100 MHz
Band 4
-0.6
1900 MHz
Band 2
2.5
Noise Figure 5 dB nominal
Power Requirements 12 V 1.5 A / USB 5V 2.1 A
______
Specifications
The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development
Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference,
and (2). This device must accept any interference, including interference that may cause undesired operation of the device.
Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment.

ENGLISH
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 11
2 YEAR WARRANTY
weBoost Signal Boosters are warranted for two (2) years against defects in
workmanship and/or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer at the
consumer’s expense, with a dated proof of purchase and a Returned Material
Authorization (RMA) number supplied by weoost. weBoost shall, at its option,
either repair or replace the product.
This warranty does not apply to any Signal Boosters determined by weBoost
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
Replacement products may include refurbished weBoost products that have been
recertified to conform with product specifications.
RMA numbers may be obtained by contacting Customer Support
DISCLAIMER: The information provided by weBoost is believed to be complete
and accurate. However, no responsibility is assumed by weBoost for any business
or personal losses arising from its use, or for any infringements of patents or other
rights of third parties that may result from its use.
NEED HELP? weboost.ca 866.294.1660

ENGLISH
12 CELL PHONE SIGNAL BOOSTER DRIVE SLEEK
Notes
NEED HELP? weboost.ca 866.294.1660

ENGLISH
DRIVE SLEEK CELL PHONE SIGNAL BOOSTER 13
Notes
NEED HELP? weboost.ca 866.294.1660

3301 East Deseret Drive, St. George, UT
866.294.1660 www.weboost.ca
Copyright © 2019 weBoost. All rights reserved.
weBoost products covered by U.S. patent(s) and pending application(s)
For patents go to: weboost.com/us/patents
NOT AFFILIATED WITH WILSON ANTENNA
